Instruction Manual Model 2016-57
Downconverter
July 2020, Rev.0
MENU
EXECUTE
MODEL 2016
CROSS TECHNOLOGIES INC.
REMOTE POWERALARM
DOWNCONVERTER
F = 5950.125
G = +30.0
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 2016-57 Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 6
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear Panel Inputs & Outputs 9
2.3 Front Panel Controls & Indicators10
2.4 Operation 11
2.5 Menu Settings 12
3.0 Environmental Use Information 17
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2016-57 Manual, Rev 0. Page 2 7/14/20

MODEL 2016-57 Downconverter
1.0 General
1.1 Equipment Description
The 2016-57 Downconverter converts 5.845 to 6.725 GHz to 70 ± 18 MHz in 125 kHz steps (1 kHz steps,
option X1005) with low group delay and flat frequency response. Synthesized local oscillators (LO) provide
frequency selection with ±0.01 ppm stability. Push button switches select the RF frequency, gain, and other
parameters. Front panel LEDs provide indication of DC power (green), PLL alarm (red), and remote operation
(yellow). Gain is adjustable manually over a +30 to +50 dB range by the front panel push-button switches.
Remote M&C allows selection of the 10 MHz reference, frequency and gain. Parameter selection and
frequency and gain settings appear on the LCD display. Connectors are BNC (female) for IF output and the
10MHz reference input and output, and Type N (female) for the RF input (other connector configurations
available). A 10 MHz output connector contains either the internal or external 10 MHz reference signal. The
unit is powered by a 100-240 ±10% VAC power supply, and housed in a 1 3/4” X 19“ X 16” rack mount
chassis.
MENU
EXECUTE
MODEL 2016
CROSS TECHNOLOGIES INC.
REMOTE POWERALARM
DOWNCONVERTER
F = 5950.125
G = +30.0
FRONT
AC
GND
J3J10J18
J2
RF IN
10 MHZ REF
OUTPUT
10 MHZ
EXT REF
INPUT
MONITOR
AND
CONTROL
J1
IF OUT
15 234 6789
REAR

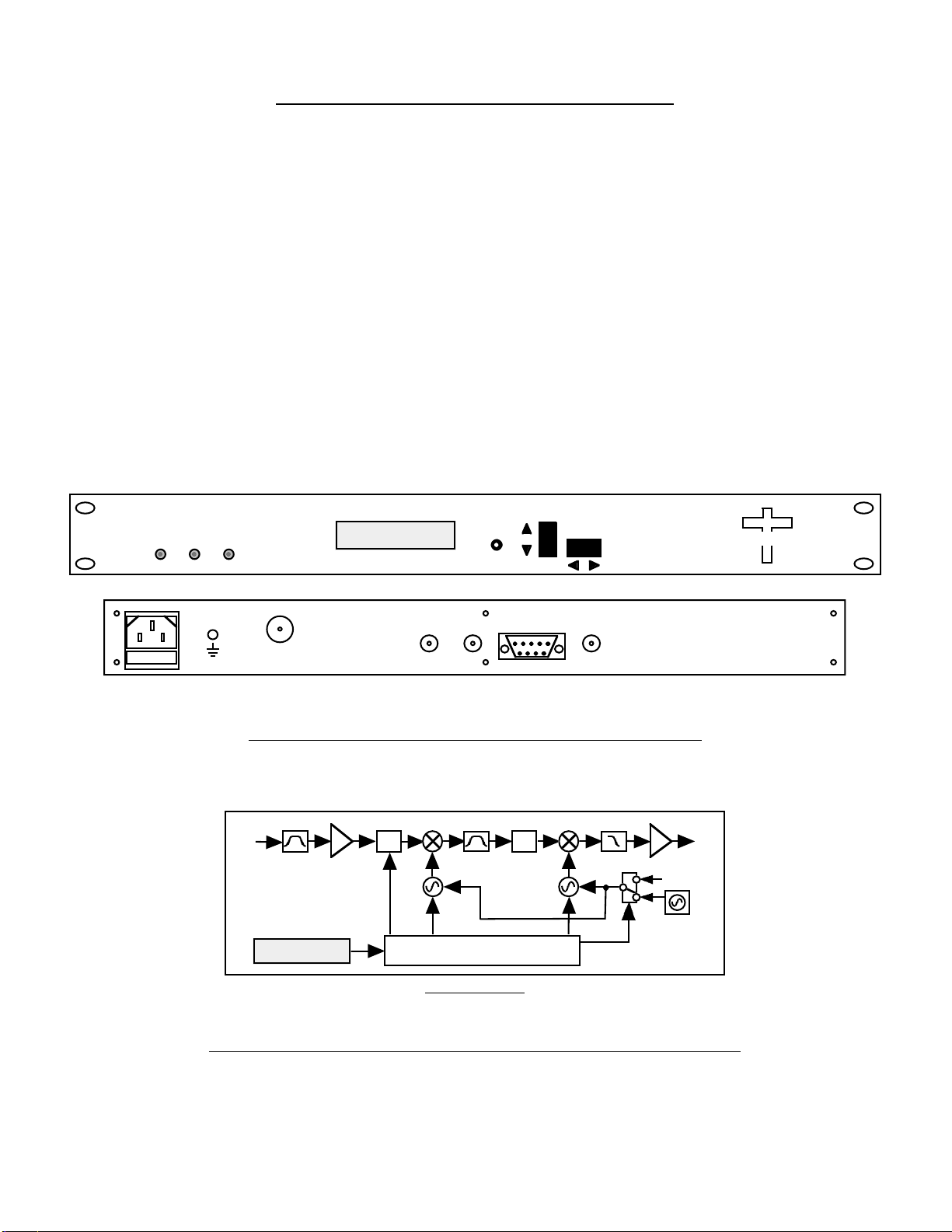

FIGURE 1.1 Model 2016-57 Front and Rear Panels
5.845
to
6.725
GHz
IN
70
MHz
OUT
CONTROLLER
F=5950.125
G=+30.0
VAR
ATT
EXT
10 MHz
VAR
ATT
INT
10 MHz
Block Diagram
FIGURE 1.2 Model 2016-57 Downconverter Block Diagram
2016-57 Manual, Rev 0. Page 3 7/14/20

1.2 Technical Characteristics
TABLE 1.0 2016-57 Downconverter Specifications*
Input Characteristics (RF)
Impedance/Return Loss 50Ω/ 14 dB min.
Frequency 5.845 to 6.725 GHz
Noise Figure, maimum 15 dB (max. gain)
Level -70 to -30 dBm
Output Characteristics (IF)
Impedance/Return Loss 75Ω/ 18 dB
Frequency 70 ± 18 MHz
Level -20 to 0 dBm
1dB compression +10 dBm
Channel Characteristics
Max. Gain range +50 to +2 dB, +30 to +50 dB, 0.5± 0.5 dB steps
Image Rejection > 50 dB, minimum
Spurious Response < -50 maxium
Intermodulation <-50dBC for two carriers at 4MHz spacing, each at -5dBm out, gain +50
Frequency Response ±1.5 dB, 5.845-6.725 GHz ; ± 0.5 dB, 36 MHz BW
Group Delay, max 0.015 ns/MHz2parabolic; 0.05 ns/MHz linear; 1 ns ripple
Frequency Sense Non-inverting
Synthesizer Characteristics
Frequency Accuracy ±0.01 ppm internal reference or external reference input
Frequency Step 125 kHz minimum; (1 kHz steps, option X1005)
10 MHz level (In & Out) 3 dBm ± 3 dB
-110-95-80-75-70
1MHz100kHz10kHz1kHz100 Hz
dBC/Hz
Phase Noise
@
Fre
q
Controls, Indicators
Frequency Selection direct readout LCD; pushbutton switches
Gain Selection direct readout LCD; pushbutton switches
Power Green LED
Alarm Red LED
Remote Yellow LED, RS 232C, 9600 baud (RS 422/485, option Q)
Other RF / IF Connectors RF - Type N (female), 50Ω/ IF - BNC (female), 75Ω
10 MHz Connectors BNC (female), 75Ω, works with 50 or 75 ohms
Alarm/Remote Connector DB9 - NO or NC contact closure on Alarm
Size 19 inch, 1RU standard chassis 1.75” high X 16.0” deep
Power 100-240± 10% VAC, 47-63 Hz. 45 watts maximum
2016-57 Manual, Rev 0. Page 4 7/14/20

Available Options
W7 RF / IF - Monitor Ports (Front)
W31 Ext. Temperature 0C to +50C
X1005 1 kHz Frequency step
Remote M&C Interface:
Q RS485/422
W8 Ethernet;with Web Browser (WB)
W18 Ethernet;with Web Browser (WB) & SNMP
W28 Ethernet with TCP/IP, Telnet
Connector Options See TABLE 2.2
*+10˚C to +40˚C; Specifications subject to change without notice.
2016-57 Manual, Rev 0. Page 5 7/14/20

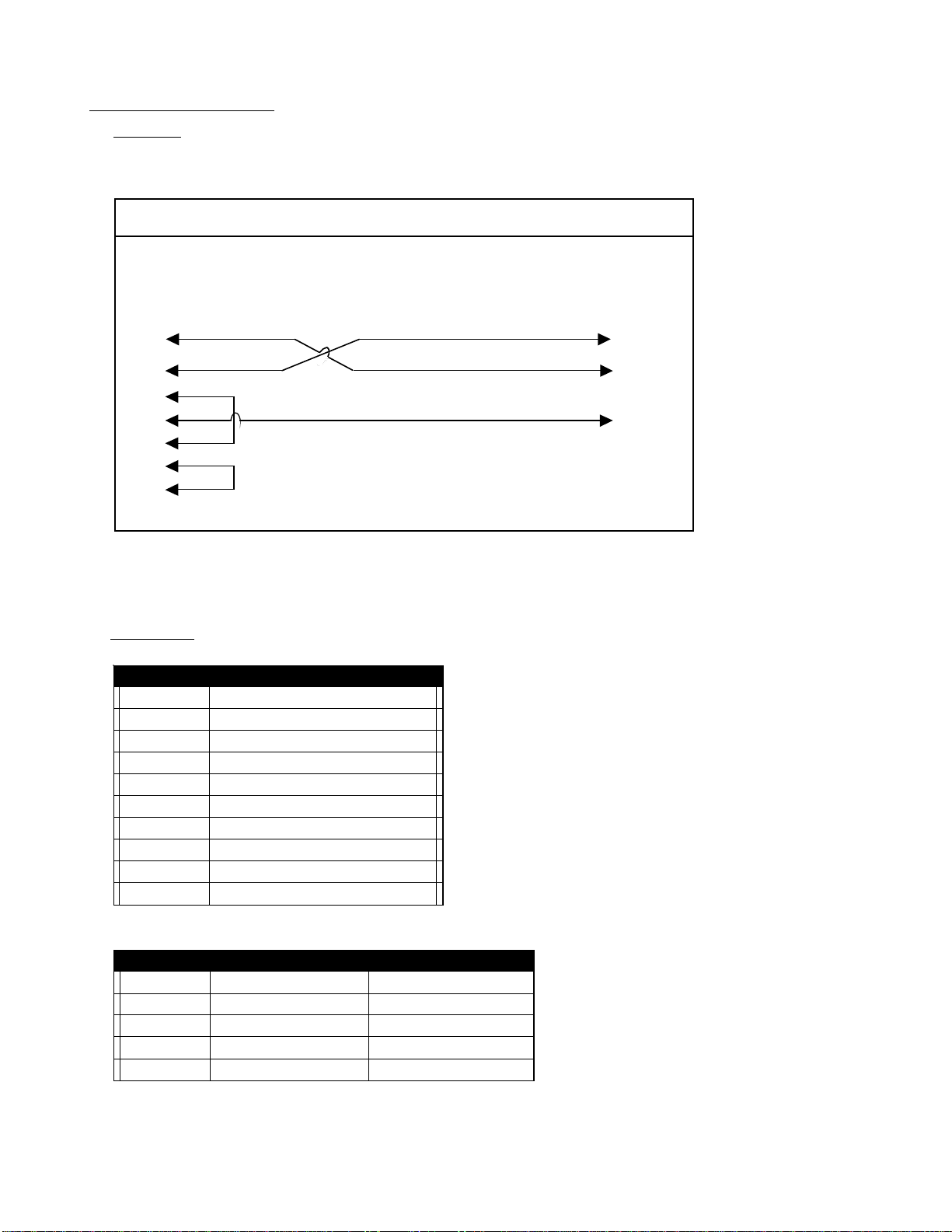

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - Option-Q)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port Male DB-9
2015/16/17 M&CPort
M&C Cable Diagram - Cross Technologies Frequency Converters
Connector: Rear panel, DB-9 male
J10 Pinouts (RS-232C/422/485)
Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
2016-57 Manual, Rev 0. Page 6 7/14/20
TABLE 2.2
I
IF/RF
2.2 IF/RF Connectors /Im
p
pedance
/Impedance
Option IF RF
STD 75ΩBNC 50ΩType N
M50ΩBNC 50ΩType N
S 50Ω50ΩSMA
S7 75ΩBNC 50ΩSMA

B) Status Requests
Table 1.1 lists the status requests for the 2016-57 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
TABLE 1.1 2016-57 Status Reequests
Status Requests
Command Syntax* Description
Command Status {aaS1} Returns {S1bbbbbbbccA} where:
• bbbbbbb = Rx frequency (in kHz)
4 characters - standard (7 characters - Option-X)
• cc = Rx gain
• A = summary alarm; 1=alarmed, 0=normal
10MHz Ref Status {aaS2} Returns {S2E} where:
• E = 1 - external 10 MHz switched in
2016-57 Manual, Rev 0. Page 7 7/14/20

C) Commands
Table 1.2 lists the commands for the 2016-57 and briefly describes them. After a command is sent the 2016-57
sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only - option -Q)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 2016-57 Comman
d
ds
Commands
Command Syntax* Description
Set Receiver Frequency {aaC2xxxxxxx} where:
• xxxxxxx = 7 characters
• Range: 5845000 to 6725000 kHz
Set Receiver Gain {aaC4xx} where:
• xx = 2 characters
• Range: 30 to 50 (+30 dB to +50 dB, in 1 dB steps)
Enable External 10MHz IN {aaCEx} where x =:
• 0 to disable External 10MHz ref signal
• 1 to enable External 10MHz ref signal
Enable Remote # Just # sign
Disable Remote {aaCR0} {CR and zero}
2016-57 Manual, Rev 0. Page 8 7/14/20

2.0 Installation
2.1 Mechanical
The 2016-57 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A
switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016-57 can be secured to
a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2016-57 is assembled.
POWER
SUPPLY
FIGURE 2.1 2016-57 Mechanical Assembly
2016-57 Manual, Rev 0. Page 9 7/14/20

2.2 Rear Panel Input/Output Signals
Figure 2.2 shows the input and output connectors on the rear panel.
AC
GND
J18
J2
RF IN
10 MHZ REF
OUTPUT
AC - POWER IN
AC input for switching
power supply.
100-24 ±10% VAC, 47-60 Hz
J2 - RF IN
-70 to-30 dBm input signal.
Type N (female) see Table
2.2.
J1 - IF OUT
-20 to 0 output signal.
BNC (female)
see Table 2.2.
J10
MONITOR
AND
CONTROL
J10 - MONITOR AND CONTROL
DB9 (female) - see Table 2.1
J3
10 MHZ
EXT REF
INPUT
J3 - 10 MHz EXT REF INPUT
3 ± 3 dBm, 10 MHz external reference
input. 50/75 ΩBNC (female)
J1
IF OUT
J18 - 10 MHz REF OUTPUT
+3 ± 3 dBm, 10 MHz reference
output. 50/75 ΩBNC (female).
5 4 3 2
1
9 8 7
FIGURE 2.2 2016-57 Rear Panel I/Os
TABLE 2.1 JJ10
2.1 J10 Pinouts (RS-232C*)
Pin Function
1 Not Used
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4 Not Used
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Closed
8 Not Used
9 Alarm Relay: Normally Open
*Remote Serial Interface
Interface: DB-9 Female
Protocol: RS-232C, 9600 baud rate, no parity,
8 data bits, 1 start bit, 1 stop bit
2.3 Front Panel Controls and Indicators
Figure 2.3 shows the front panel controls and indicators.
MENU
EXECUTE
REMOTEALARM POWER
LCD DISPLAY
Display shows Downconverter
frequency in MHz and Gain in dB
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS3 - ALARM LED
Red LED indicates
downconverter alarm.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls values in the
Menu items when in program mode. Does not
function in the normal display mode
S3 - HORIZ. TOGGLE
Horizontal toggle switch that controls
which values are being adjusted. Does
not function in the normal display mode
F=5950.125
G=+30.0
FIGURE 2.3 2016-57 Front Panel Controls and Indicators
2016-57 Manual, Rev 0. Page 10 7/14/20

2.4 Operation
2.4.1 Installing and Operating the 2016-57 Downconverter
1. Connect a -70 dBm to -30 dBm signal to RF IN, J2 (Figure 2.2)
2. Connect the IF OUT, J1, to the external equipment
3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.
4. Set the input frequency (See Section 2.5 Menu Settings).
5. Set the gain for +30 to +50 dB (See Section 2.5 Menu Settings).
6. Be sure DS6 (green, DC Power) is on and DS3 (red, Alarm) is off (Figure 2.3).

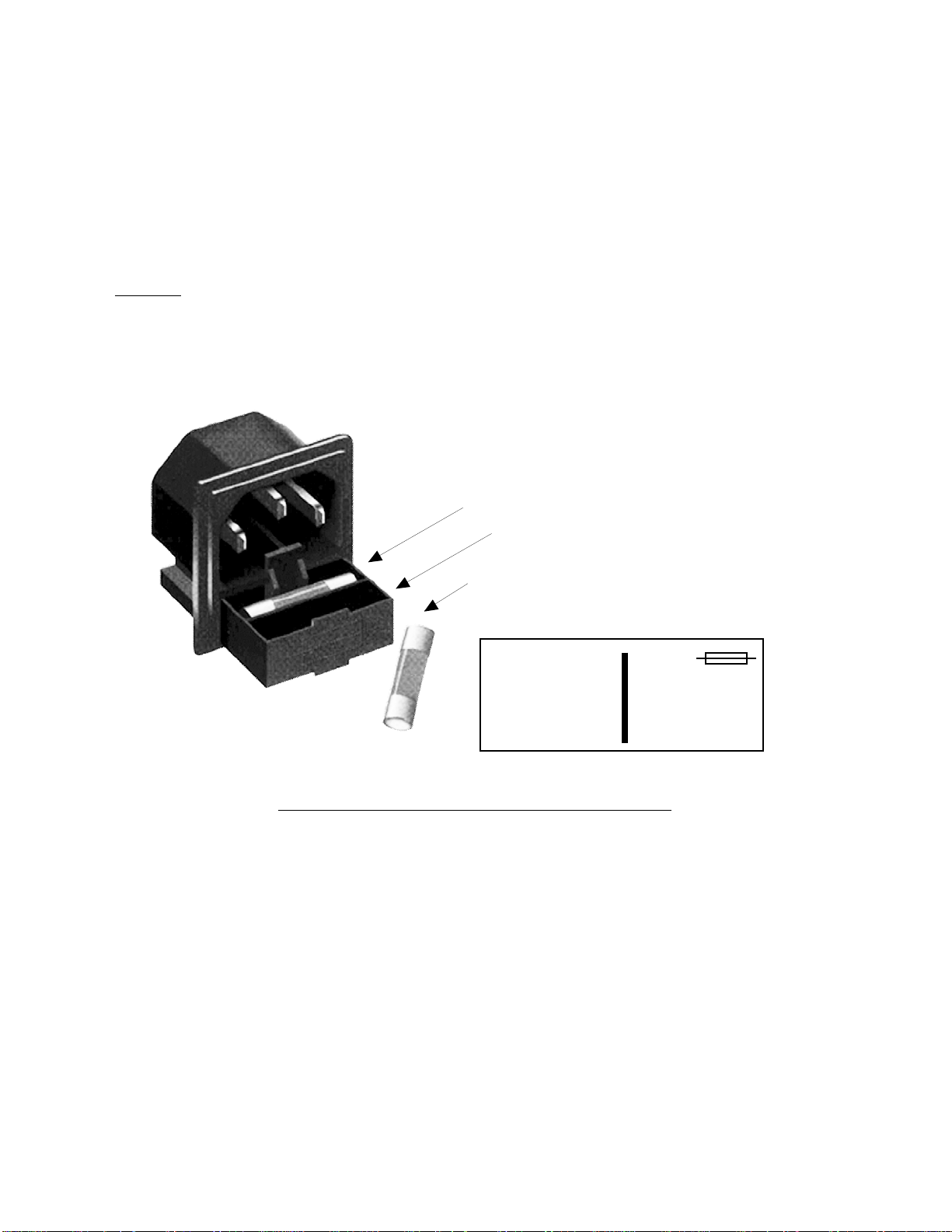

7. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in the
drawer below the AC input as shown in Figure 2.4. There is a spare fuse in the near slot. If a fuse
continues to open, the power supply is most likely defective.
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VA
C
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.4 Fuse Location and Spare Fuse
2016-57 Manual, Rev 0. Page 11 7/14/20

2.5 Menu Settings
2.5.1 Functions
This section describes operation of the front panel controls. There are three operator switches, the LCD
display and alarm indicator LEDs. All functions for the equipment are controlled by these components. The
functions are (see Figure 2.5):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Gain (+30 to +50)
Menu 3 Set Unit to Remote Operation
Menu 4 Select External 10 MHz Ref
Menu 5 Set Remote mode (option Q)
Menu 6 Set RS-485 address (option Q)
Save Menu When “R” is selected in any above menu or at the end of the menu options
Alarm indications appear on the LEDs (see figure 2.3).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2016-57 Manual, Rev 0. Page 12 7/14/20

2.5.2 Power On Settings
NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED.
WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO ITS PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1.The LCD goes black to show all segments are functioning.
2.The software version will be displayed.
REV 1.00
3.The present frequency and gain of the downconverter is shown.
F = 5950.125
G = +30
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left or
right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency, gain changes, the vertical movement will raise or lower the number in the
direction of the arrows.
b. For other functions such Mute on/off, the vertical switch will alternately turn the function on or
off regardless of the direction operated.
2016-57 Manual, Rev 0. Page 13 7/14/20

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 30 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch and
select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.5 for the
sequence of menu options. The following display is for changing the downconverter frequency:
F = 5950.125 R
Pressing the Up/Down switch down will toggle the display to:
F = 5850.125 R
By using the horizontal rocker switch the cursor can be moved left or right .
F = 5850.125 R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
When the display indicates the value desired you can push the Menu/Execute switch to get to the next item:
G = +30 R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to this:
F = 5950.125
G = +30
Figure 2.5 gives the menu items and how to make changes.
2016-57 Manual, Rev 0. Page 14 7/14/20

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the Menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 30 seconds, and the system will return to the normal operating mode.
To change the GAIN:
Push the Menu/Execute switch to get to the gain setting (See Figure 2.5 for the sequence of menu options):
G = +30 R
Pressing the Up/Down switch will change the gain in 1 or 10 dB steps depending on the cursor location:
G = +40 R
By using the horizontal rocker switch the cursor can be moved left or right. Pressing the Up/Down switch
will toggle the display digit selected until you have the desired gain.
G = +40R
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW.
When the display indicates the value desired you can push the Menu/Execute switch to get to the next item:
REMOTE OFF R
OR you can scroll to “R” and push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings. Pushing the
Menu/Execute switch then takes you to this:
F = 5950.125
G = +30
Figure 2.5 gives the menu items and how to make changes.
2016-57 Manual, Rev 0. Page 15 7/14/20

2.5.5 Alarm Indications
An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock. The Mute
LED will light if you select Mute and the Remote LED will light when you select the Remote mode.
ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F = 5950.125
G = +30
F = 5950.125
SCROLL <>
SCROLL
PUSH BUTTON
REMOTE OFF
EXT REF OFF
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up
Normal Display
Menu 1 Frequency
Menu 2 Gain (+30 to +50)
Menu 3 Set Unit to Remote
Operation
Menu 4 Select External
10 MHz Reference
Menu 5 Set Remote Mode
(option Q)
Menu 6 Set RS-485 Address
(option Q)
Save? When “R” is selected or at
the end of the menu options
G = +30
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SAVE SETTINGS? Y N
SCROLL <>
PUSH BUTTON
R
R
R
R
RS 485 OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
ADDRESS = 00
SCROLL <>
SCROLL
PUSH BUTTON
R
FIGURE 2.5 Menu Display and Sequence
2016-57 Manual, Rev 0. Page 16 7/14/20

3.0 Environmental Use Information
A.Elevated operating ambient temperature - if installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
B. Reduced air flow - Installation of the equipment in a rack should be such that the amount of
air flow required for safe operation of the equipment is not compromised. Additional space between
unit may be required.
C. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
D. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
E. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connection to the
Branch (use of power strips).
F. Top Cover - There are no servicable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE RE-INSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2016-57 Manual, Rev 0. Page 17 7/14/20

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2016-57 Manual, Rev 0. Page 18 7/14/20
