INSTRUCTION MANUAL
MODEL 3016-1520-1200 Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
1.4 Environmental Use Information 10
2.0 Installation 11
2.1 Mechanical 11
2.2 Rear Inputs & Outputs 12
2.3 Front & Rear Panel Controls & Indicators 12
2.4 Operation 13
2.5 Menu Settings 14
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s
obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,
replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be
liable for any special, indirect, or consequential damages. This warranty does not cover parts
or equipment which have been subject to misuse, negligence, or accident by the customer
during use. All shipping costs for warranty repairs will be prepaid by the customer. There are
not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
3016-1520-1200 Manual_Rev. B Page 2. 12/11/19

MODEL 3016-1520-1200 Downconverter
1.0 General
1.1 Equipment Description
The 3016-1520-1200 Downconverter converts 15 to 20 GHz to 1200 ± 50 MHz in 125 kHz steps (1 kHz opt-
X1008). The 15 to 20 GHz is first converted to 7.0 GHz with an agile, high side LO and then to 1200 MHz to
obtain the wide tuning range. Synthesized local oscillators (LO) provide frequency selection. Multi-function
switches select the input frequency, gain, and other parameters. Front panel LEDs provide indication of DC
power, PLL alarm or Remote operation. Gain is adjustable manually (MGC) over a +10 to +30 dB range. The
frequency and gain are remotely selectable. Parameter selection and frequency and gain settings appear on the
LCD display. Connectors are SMA female for the RF, and BNC female for the IF and external 10 MHz
reference input and output. Other connector options are available. It is powered by a 100-240 ±10%VAC
power supply, and is in a 1 3/4” X 19” X 18” rack mount chassis.
MENU
EXECUTE
MODEL 3016
CROSS TECHNOLOGIES INC.
REMOTE POWERALARM
DOWNCONVERTER
F=19123.125
G=+10 REF = INT
FRONT
AC
GND
J3J10J18
J2
RF IN
10 MHZ REF
OUTPUT
10 MHZ
EXT REF
INPUT
MONITOR
AND
CONTROL
J5
RF OUT
15
23
46
78
9
J20
REAR
FIGURE 1.1 Model 3016-1520-1200 Front and Rear Panels
7.0 GHz
BP
var
atten 1200
MHz
OUT
8200
MHz
1300 MHz
LP
22.0
TO
27.0
GHz
15
to
20
GHz
IN
SW,PLL,ATT,VCC CONTROL
M&C
CONTROLLER 19123.125 MHz
G=10 REF=INT
EXT
10MHz
INT 10MHz
10MHz
TO
VCOs
3016-1520-1200
Block Diagram
15 to 20 GHz
BP
FIGURE 1.2 Model 3016-1520-1200 Downconverter Block Diagram
3016-1520-1200 Manual_Rev. B Page 3. 12/11/19

1.2 Technical Characteristics
Continued on next page...
3016-1520-1200 Manual_Rev. B Page 4. 12/11/19
> 50 dB
,
miminumIma
g
e Re
j
ection
Channel
Characteristics
S
y
nthesizer Characteristics
125 kHz minimumFre
q
uenc
y
Ste
p
Non-invertin
g
Fre
q
uenc
y
Sense
< -50 dBc for two carriers each at -5 dBm out
Intermod < -50 dBc, in band, 15 to 20 GHz

input; 1200 ±50 MHz, 0dBm,

output
S
p
urious Res
p
onse
+3 dBm ± 3 dBExternal 10 MHz Level
± 0.01 ppm maximum over temp internal reference; external reference input
Fre
q
uenc
y
Accurac
y
2 ns
p
arabolic
;
2 ns linear
;
1 ns ri
pp
le
,
100 MHz BWGrou
p
Dela
y,
max.
±3.0 dB, 15.0-20.0 GHz; ±1.5 dB, any 1 GHz band; ± 1.0 dB, 100 MHz BW
Fre
q
uenc
y
Res
p
onse
30 ± 3 dB Max./ +10.0 to +30.0 dB ran
g
e
,
0.5 dB ± 0.5 dB ste
p
sGain Max./Ran
g
e
(
ad
j
ustable
)
Other
100-24 ±10% VAC
,
47-63 Hz
,
60 watts max.Power 19 inch
,
1RU Standard Chassis 1.75” hi
g
h X 18.0” dee
p
Size DB9
(
female
)
- NO or NC contact closure on AlarmAlarm/Remote Connector BNC
(
female
)
75Ωworks for 50 or 75 ohms10 MHz Connectors Su
p
er SMA
,
(
Female
),
BNC
,
75Ω
(
female
),
(
Others O
p
tional
)
RF
,
IF Connectors
-100-90-80-70-60
1MHz100kHz10kHz1kHz100 MHz
dBC/Hz
Phase Noise @ Frequency
RS232C
,
9600 baud
(
RS422/485/o
p
tion -Q
,
Remote
Controls
,
Indicators
Ethernet/o
p
tion -W8
,
-W18
,
-W28 or -828
Direct readout LCD
;
manual or remote selectionFre
q
uenc
y
/ Gain Selection Green LED
,
Red LED
,
Yellow LED
,
Yellow LEDPower
,
Alarm
,
Remote
,
Mute
TABLE 1.1 3016-1520-1200 Downconverter Specifications*
-20 to 0 dBmOut
p
ut Level Ran
g
e
20 dB (max gain)Noise Figure, max. 15 to 20 GHzFre
q
uenc
y
-50 to -30 dBmIn
p
ut Level Ran
g
e
+10 dBmOut
p
ut 1 dB Com
p
ression
Out
p
ut Characteristics
(
IF
)
In
p
ut Characteristics
1200 ± 50 MHzFrequency 750Ω/ 14 dBIm
p
edance / Return Loss
50Ω/18 dB typ., 14dB minimum
Im
p
edance / Return Loss

Continued from page 4.
3016-1520-1200 Manual_Rev. B Page 5. 12/11/19
50ΩSMA
(
RF
),
50ΩSMA
(
IF
)
- SS
Contact Cross for other o
p
tions
Su
p
er SMA for >18 GHz
50ΩSMA
(
RF
),
50ΩBNC
(
IF
)
- S
Connector / Im
p
edance
Available O
p
tions
W8 +W18 +W28
Ethernet with TCP/IP
,
Telenet
Ethernet with Web Browser & SNMP
Ethernet with Web Browser
(
WB
)
- W828
- W28
- W18
- W8
RS485/422-
Q
*10˚C to 40˚C
;
S
p
ecifications sub
j
ect to chan
g
e without notice.

1.3 Monitor and Control Interface
A) Remote Serial Interface
Protocol - RS-485, RS-422 or RS-232C (selectable), 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.
Female DB-9
PC Com Port Male DB-9
M&C Cable Diagram - Cross Technologies Frequency Converters
2
1
3
4
5
6
7
8
9
2
1
3
4
5
6
7
8
9
3016-1520-1200 Manual_Rev. B Page 6. 12/11/19

B) Commands - Table 1.2 lists the commands for the 3016-1520-1200 and briefly describes them.
After a command is sent the 3016-1520-1200 sends a return “>” indicating the command has been
received and executed.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 3016-1520-1200 CCommands
3016-1520-1200 Commands
Command Syntax Description
Set Frequency {aaCFxxxxxxxx} where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
F = command code
xxxxxxxx = Converter center frequency in MHz.
Range: 15000.000 to 20000.000 in 125 kHz steps.
example: {CF16250.250}
Will set the converter output frequency to 16250.250 MHz.
The unit will reply with the '>' character if
the command is sucessfully processed.
Set Gain {aaCGxxx} where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
G = command code
xxx = Desired gain in 0.5 dB steps, omit the decimal point.
Range: -50 to 200 (-5.0 to 20.0 in 0.5 dB steps).
example: {CG155}
Will set the gain to 15.5 dB.
The unit will reply with the '>' character if
the command is sucessfully processed.
Set Reference Mode {aaCEx} where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
E = command code
x = 0 for Internal, 1 for External.
example: {CE1}
Will set unit's 10 MHz reference mode to External.
The unit will reply with the '>' character if
the command is sucessfully processed.
Set Mute {aaCMx} where:
aa = unit address, range = 00 to 31, only used if interface is R
S
S
M = command code
x = 0 for mute off and 1 for mute on.
example: {CM1}
Will mute the converter's RF output.
The unit will reply with the '>' character if
the command is sucessfully processed.
3016-1520-1200 Manual_Rev. B Page 7. 12/11/19

C) Status Requests - Table 1.2 lists the status requests for the 3016-1520-1200 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 3016-1520-1200 Staatus
3016-1520-1200 Status Requests/Inquir
i
ies
Table 1.2 3016-1520-1200 Status Requests/Inquiries
Command Syntax Description
Get Frequency {aaSF} returns: {aaSFxxxxxxxx}
where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
F = command code
xxxxxxxx = the converter's RF center frequency in kHz.
The unit will reply with the '>' character if the command
is sucessfully processed.
Get Gain {aaSG} returns: {aaSGxxx}
where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
G = command code
xxx = Gain in 0.5 dB.
The unit will append the '>' character if the command
is sucessfully processed.
Get Reference Mode {aaSE} returns: {aaSEx}
where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
E = command code
x = 0 for Internal, 1 for External.
The unit will append the '>' character if the command
is sucessfully processed.
Get Mute {aaSM} returns: {aaSMx}
where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
A = command code
x = 0 for alarm off, 1 for alarm on.
The unit will append the '>' character if the command
is sucessfully processed.
Get alarm status {SA} returns {aaSAx}
where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
A = command code
x = 0 for alarm off, 1 for alarm on.
The unit will append the '>' character if the command
is sucessfully processed.
3016-1520-1200 Manual_Rev. B Page 8. 12/11/19

C) Status Requests - Continued...
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 3016-1520-1200 SStatus
3016-1520-1200 Status Requests/Inqquiries
Table 1.2 3016-1520-1200 Status Requests/Inquiries
Command Syntax Description
Get product/model info {aaSV} returns {aaSV3016-1520-1200rev.5xx}
where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
V = command code
3016-1520-1200 = product model and rev. 5.xx
is the firmware revision.
The unit will append the '>' character if the command
is sucessfully processed.
Get IP address {aaSi} returns {aaSixxx.xxx.xxx.xxx}
(ethernet option) where:
aa = unit address, range = 00 to 31, only used if interface
is RS485, otherwise omit
i = command code
xxx.xxx.xxx.xxx = IP address
Get subnet mask {aaSs} returns {Ssxxx.xxx.xxx.xxx}
(ethernet option) where xxx.xxx.xxx.xxx = subnet mask
3016-1520-1200 Manual_Rev. B Page 9. 12/11/19

1.4 Environmental Use Information
A.Elevated operating ambient temperature - if installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
B. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between unit
may be required.
C. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
D. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
E. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
F. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
3016-1520-1200 Manual_Rev. B Page 10. 12/11/19

2.0 Installation
2.1 Mechanical
The 3016-1520-1200 consists of one RF/Controller PCB which is housed in a 1 RU (1 3/4 inch high) by 16 inch
deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assembly.
The 3016-1520-1200 can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the
3016-1520-1200 is assembled.
POWER
SUPPLY
••••••••
•••••••••••••••
FIGURE 2.1 3016-1520-1200 Mechanical Assembly
3016-1520-1200 Manual_Rev. B Page 11. 12/11/19

2.2 Rear Panel Input / Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.
FIGURE 2.2 3016-1520-1200 Rear Panel Inputs and Outputs
Table 2.1 J10 PPinouts
Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)*
Pin Description
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5 Ground
6 Alarm Relay - Common
7 Alarm Relay - Normally Open
8 Not Used
9 Alarm Relay - Normally Closed
*Interface: DB-9 Female; Protocol: RS-485, RS-422, or RS-232C (selectable), 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit
Table 2.2 Conneectors/Impedance
Table 2.2 Connectors/Impedance
S SMA (RF), 50ΩBNC (IF)
SS SMA (RF), SMA (IF)
Super SMA for > 18GHz

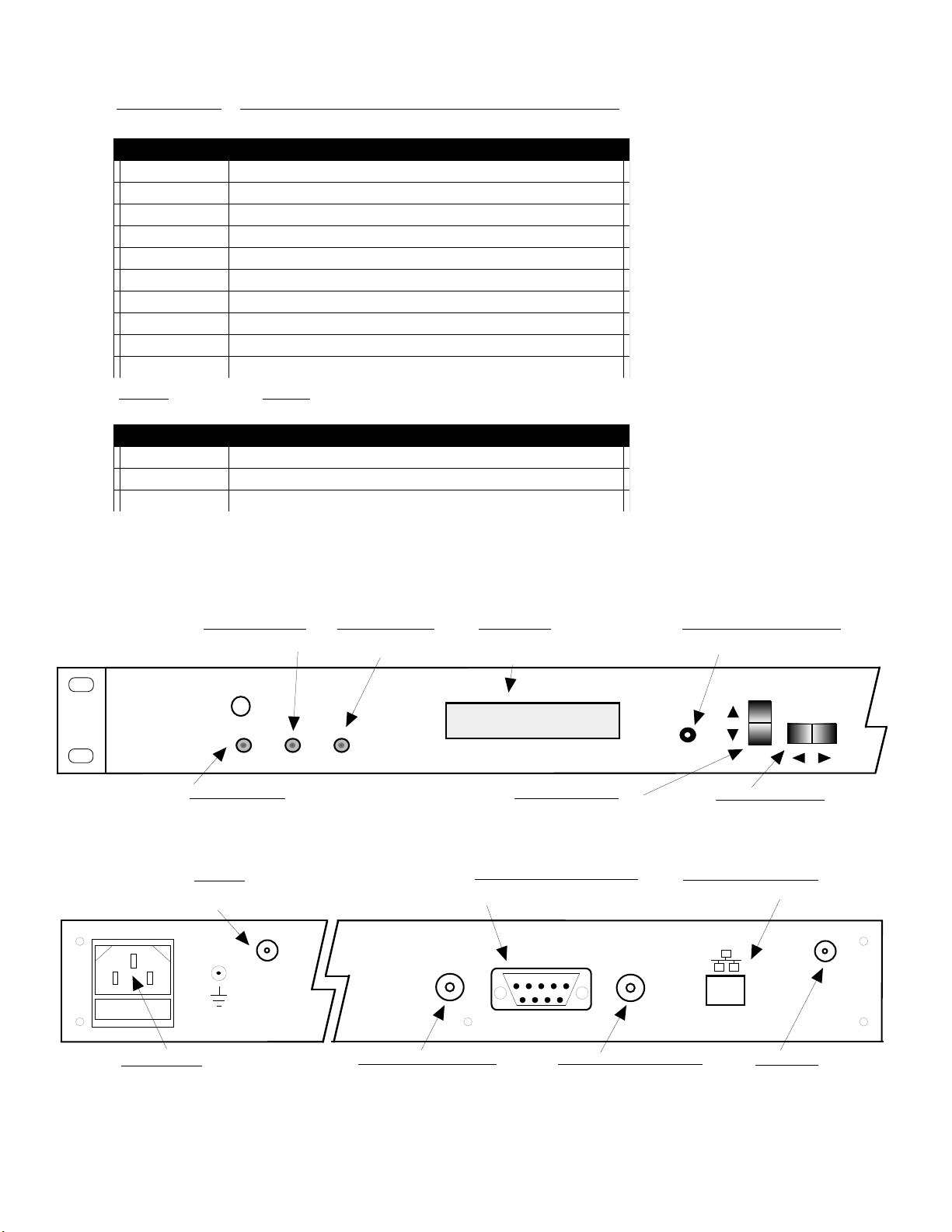

2.3 Front & Rear Panel Controls and Indicators - Figure 2.3 shows the front and rear panel controls
and indicators.
MENU
EXECUTE
REMOTE POWER
LCD DISPLAY
Display shows Frequency in MHz and
Gain in dB. Is used during Program
Mode to change settings.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function
in the normal display mode
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode
ALARM
DS5 - ALARM LED
RED LED indicates
Downconverter alarm.
F=19123.125
G=+10 REF = INT
RF MONITOR
AC
GND
J5
J10
AND
MONITOR
CONTROL
5 4 3 2 1
9 8 7 6
J10 - MONITOR AND CONTROL
DB9 female connector.
See Table 2.1.
RF IN
J18 J3
10 MHZ
EXT REF
J2 - RF IN
15 to 20 GHz
-50 to -30 dBm input
J5 - RF OUT
Frequency 1200± 50 MHz
-20 to 0 dBm output
INPUT
J18 - 10 MHz REF OUTPUT
10 MHz reference output,
3 ± 3 dBm, 50 ohms
BNC (female) connector.
AC - POWER IN
AC input for switching power supply.
100-240 VAC, 47-63 Hz.
J20 - Ethernet Connection
RJ45 Ethernet Connector
Option -W8).
J20J2
J3 - 10 MHz EXT REF INPUT
10 MHz reference input,
3 ± 3 dBm, 75 ohms
BNC (female) connector.
RF OUT
10 MHZ
EXT REF
OUTPUT
3016-1520-1200 Manual_Rev. B Page 12. 12/11/19

Figure 2.3 Front & Rear Panel Controls & Indicators
2.4 Installation / Operation
2.4.1 Installing and Operating the 3016-1520-1200 Downconverter
1. Connect a -50 dBm to -30 dBm signal, to RF IN, J2 (Figure 2.3, page 9)
2. Connect RF OUT, J5, to the external equipment.
3. Connect 100- 240 ±10% VAC, 47 - 63 Hz to AC input on the back panel.
4. Set the desired output frequency (See Section 2.5 Menu Settings, page 13).
5. Set the input level (See Section 2.5 Menu Settings, page 15).
6. Set the gain for -10.0 to +30.0 dB. Make sure the output stays within -15 to 0 dBm with the
gain selected and the input level provided. The firmware will prevent setting gain and
input level outside this range. (See Section 2.5 Menu Settings, page 15).
7. Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3, page 9).
8. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in the
drawer below the AC input as shown in Figure 2.4, page 10. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~

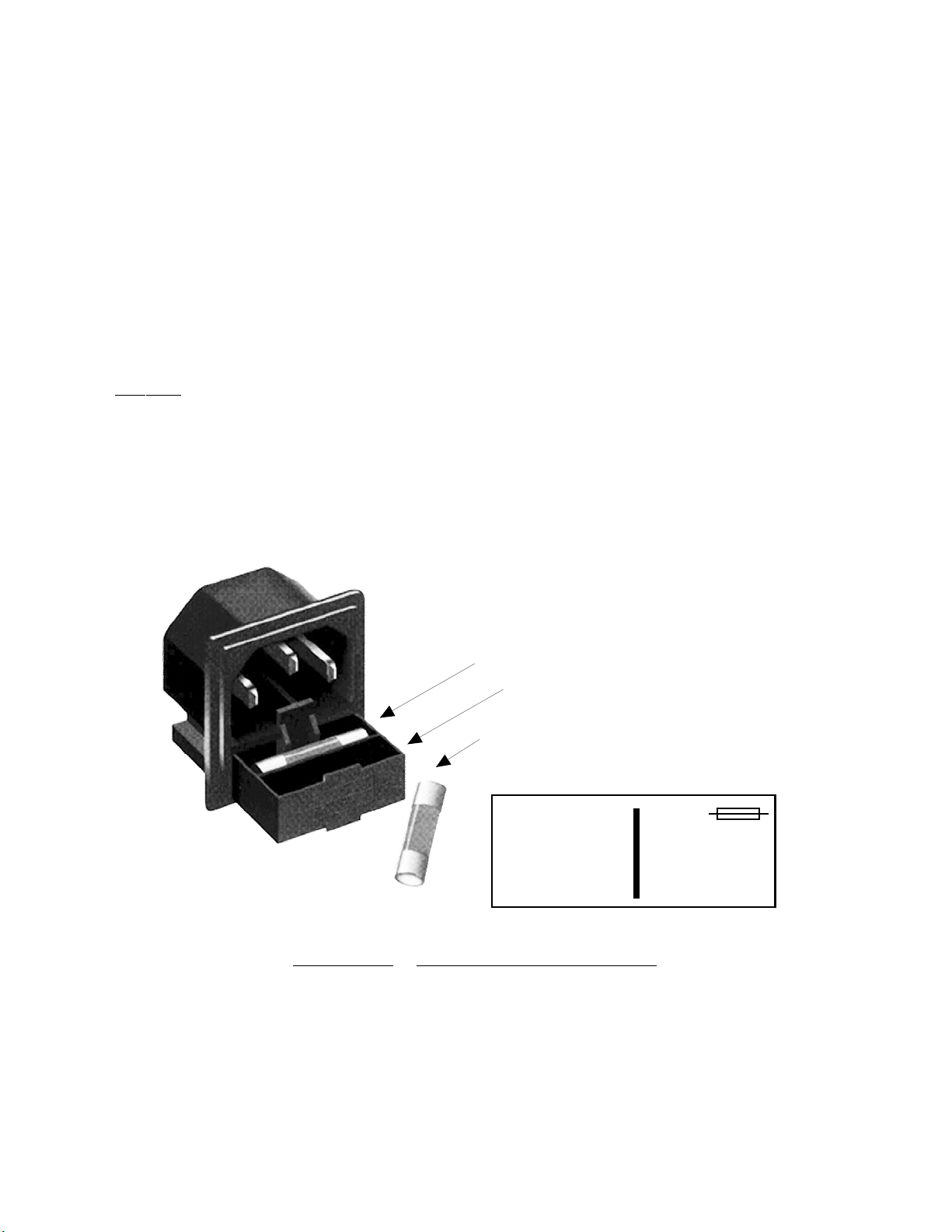

FIGURE 2.4 Fuse Location and Spare Fuse
3016-1520-1200 Manual_Rev. B Page 13. 12/11/19

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.5, page 15):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Input Level in dBm (-50 to-30)
Menu 3 Gain in dB (+10 to +30.0)
Menu 4 Mute Signal
Menu 5 Set Unit to Remote Operation
Menu 6 Select Frequency Step Size -1kHz minimum (option X1008)
Menu 7 Select External 10 MHz Reference
Menu 8 Select RS232, RS422, or RS485 Remote Operation (option Q)
Menu 8 Select RS485 Remote Address for Unit (option Q)
Save Menu When “R” is selected in any of the above menus or when operator reaches the end
Alarm indications appear on the LEDs (see figure 2.2, page 9).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
3016-1520-1200 Manual_Rev. B Page 14. 12/11/19

2.5.2. Power On Settings
NOTE: The last status of a unit is retained even when power is removed. When power is restored, the unit
will return to it's previous settings.
When power is first applied, the LCD display goes through three steps.
1.The LCD goes black to show all segments are functioning.
2.The software version will be displayed.
REV 1.00
3.The present frequency, gain, and selected RF output of the Downconverter is shown.
F = 19123.125
G = +10 REF = INT
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left or
right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
A) During frequency, gain changes, the vertical movement will raise or lower the number in the
direction of the arrows.
B) For other functions such as Mute on/off, the vertical switch will alternately turn the function
on or off regardless of the direction operated.
3016-1520-1200 Manual_Rev. B Page 15. 12/11/19

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 30 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch
and select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
1.Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.5 for
the sequence of menu options. The following display is for changing the Downconverter frequency:
F = 19123.125 R
Pressing the Up/Down switch down will toggle the display to:
F = 19123.125 R
By using the horizontal rocker switch the cursor can be moved left or right .
F = 19123.125 R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES. THE CARRIER IS MUTED
WHEN FREQUENCY IS CHANGED.
When the display indicates the value desired you can push the Menu/Execute switch to the next item:
INLVL = -20R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the default display:
F = 19123.125
G = +10 REF = INT
Figure 2.5 shows all the menu items and how to make changes.
3016-1520-1200 Manual_Rev. B Page 16. 12/11/19

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
To change the GAIN, first push the Menu/Execute switch to get to the gain setting:
Operate the Menu/Execute switch until you get to the menu item you want to change (see Figure 2.5 for
the sequence of menu options). The following display is for changing the Downconverter input level.
This is an important setting to optimize spurious and should be made as accurately as possible:
INLVL = -20R
NOTE: CHANGES TAKE PLACE ON LEVEL AND GAIN IMMEDIATELY BUT DO NOT GET
SAVED UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE
CHANGES.
Press the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute switch to
get to the Gain setting:
G = +10.0 R
Press the Up/Down switch to change the gain in 0.1, 1 or 10 dB steps:
G = +20.0 R
By using the horizontal rocker switch the cursor can be moved left or right. Pressing the Up/Down
switch down will toggle the display digit selected until you have the desired gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED 0 dBm OR HAVE LESS THAN -20 dBm
OUTPUT LEVEL. THE FIRMWARE PREVENTS YOU FROM THIS.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to:
F = 19123.125
G = +10 REF = INT
Figure 2.5 gives the menu items and how to make changes.
3016-1520-1200 Manual_Rev. B Page 17. 12/11/19

2.5.5 Alarm Indications
An alarm condition for will occur if the local oscillator phase lock loop (PLL) comes out of lock. The Mute
LED will light if you select to mute the Tx Signal and the Remote LED will light when you select the Remote
mode.
2.5.6 10 MHz Reference Mode Operation
Internal Mode: The unit uses its own built-in 10 MHz OCXO. The Internal Reference is present on the
Reference Output Connector, J18. REF = INT appears on the front panel display.
External Mode: The unit uses a 10 MHz Reference that is connected to the External Reference Input, J3.
REF = EXT appears on the front panel display. The External 10 MHz Reference level
must be +3dBm, ±3dB. If the External 10 MHz signal does not meet the unit’s
specified parameters then the unit will not function properly. The External Reference
is present on the Reference Output connector, J18.
Auto Mode: The unit defaults to the External 10 MHz Reference as long as the level meets the +3dBm,
±3dB specification. REF = AUTO - E appears on the front panel display where the -E
indicates that the unit is using the External 10 MHz Reference. The External Reference is
present on the Reference Output connector, J18.
If the external 10 MHz Reference signal level is less than -1dBm, the unit switches to
Internal 10 MHz Reference. REF = AUTO -I appears on the front panel display
where -I indicates that the unit is using the Internal 10 MHz Reference. The Internal
10 MHz Reference is present on the reference output connector, J18.
3016-1520-1200 Manual_Rev. B Page 18. 12/11/19

ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F = 19123.125
G = +10 Ref = INT PUSH BUTTON
Power Up
Normal Display
Menu 1 Set Frequency
Menu 2 Set Input Level
(from -40 to -10)
Menu 3 Set Gain (-10 to +20)
Menu 4 Mute TX signal
Menu 5 Set Unit to
Remote Operation
Menu 6 Select Frequency Step
Size (option -X1008)
Menu 7 Select External 10 MHz
Reference (option-E)
Menu 8 Set Remote Mode
(option -Q)
Menu 9 Set RS-485 Address
(option -Q)
Save Settings? At the end or
when “R” is selected from any of
the above menus
F = 19123.125
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
SCROLL
PUSH BUTTON
INLVL = -20 R
G = +10
SCROLL <>
SCROLL
PUSH BUTTON
R
MUTE OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
PUSH BUTTON
SAVE SETTINGS? Y N
SCROLL <>
PUSH BUTTON
STEP = 125 KHZ
SCROLL <>
SCROLL
PUSH BUTTON
R
RS485
SCROLL <>
SCROLL
PUSH BUTTON
R
ADDRESS = 00
SCROLL <>
SCROLL
PUSH BUTTON
R
EXT REF OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
REMOTE OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
STEP = 125 KHZ
FIGURE 2.5 Menu Display and Sequence
3016-1520-1200 Manual_Rev. B Page 19. 12/11/19

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
3016-1520-1200 Manual_Rev. B Page 20. 12/11/19
