Cross Technologies 2015-123 User manual

Instruction Manual Model 2015-123
Upconverter
November 2009 Rev A
MENU
EXECUTE
MODEL 2015
CROSS TECHNOLOGIES INC.
F=2050.000
G=+00.0 RF=A
MUTEREMOTE POWER ALARM
UPCONVERTER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 2015-123 Upconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
2.0 Installation 8
2.1 Mechanical 8
2.2 Rear Inputs & Outputs 9
2.3 Front Panel Controls & Indicators 9
2.4 Operation 10
2.5 Menu Settings 11
3.0 Environmental Use Information 16
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s
obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,
replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be
liable for any special, indirect, or consequential damages. This warranty does not cover parts
or equipment which have been subject to misuse, negligence, or accident by the customer
during use. All shipping costs for warranty repairs will be prepaid by the customer. There are
not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2015-123 Manual, Rev.A Page 2 11/12/09

MODEL 2015-123 Upconverter
1.0 General
1.1 Equipment Description
The 2015-123 Upconverter converts 70 ± 18 MHz to 2025 to 2300 MHz in 1kHz, 10kHz, or 125kHz steps (user
selectable) with low group delay and flat frequency response. Synthesized local oscillators (LO) provide very
low phase noise and ±0.01 ppm stability frequency selection. Multi-function push button switches select the
RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL
alarm (red), remote operation (yellow) or the TX carrier is muted (yellow). Variable attenuators for the IF input
and output provide a gain range of -10 to +30 dB as adjusted by the front panel multi-function push-button
switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and
gain settings appear on the LCD display. Connectors are BNC female for IF Input, RF outputs and the 10MHz
external reference input and 10MHz reference output. The 10MHz reference signal (internal or external) can be
sent to the 10MHz reference output connector and/or to the RF OUT connectors. The RF signal can be
switched between two RF outputs (A and B) via an integrated, remotely controlled RF switch.. The unit is
powered by a100-240 ±10% VAC power supply, and is housed in a 1.75” X 19” X 16” rack mount chassis.
MENU
EXECUTE
MODEL 2015
CROSS TECHNOLOGIES INC.
F=2050.000
G=+00.0 RF=A
MUTEREMOTE POWER ALARM
UPCONVERTER
FRONT
AC RF OUT A
GND
J4J3
J10
J18
10 MHZ REF 10 MHZ IF INAND
MONITOR EXT REF
CONTROL
5 4 3 2
1
9 8 7 6
OUTPUT INPUT
RF OUT B
J101 J102
REAR
FIGURE 1.1 Model 2015-123 Front and Rear Panels
2.025
to
2.300
GHz
OUT
70
MHz
IN
2.0 to 2.5 GHz
BP
CONTROLLER F=2050.0000
G=10.0 RF=A
1750 MHz
BP
1820
MHz
3.8
to
4.1
GHz
VAR
ATT
10MHz
EXT
10 MHz
INT/EXT
10 MHz
VAR
ATT
INT
10 MHz
RF OUT A
RF OUT B
FIGURE 1.2 Model 2015-123 Upconverter Block Diagram
2015-123 Manual, Rev.A Page 3 11/12/09

1.2 Technical Characteristics
TABLE 1.1 2015-123 Upconverter Specifications*
Input Characteristics
Impedance/Return Loss 50 /18 dB
Frequency 70 ± 18 MHZ
Input Level -40 to -10 dBm
Output Characteristics
Impedance/Return Loss 50 /10 dB
Frequency 2025 to 2300 MHz
Output level 0 to -20 dBm
Output level/1 dB +5 dBm
Channel Characteristics
Gain range (adjustable) -10.0 to +30.0 dB (0.1 dB steps)
Spurious Response <-50 dBC
Frequency Response ±1.5 dB, 2025 to 2300 MHz; ± 0.5 dB, 36 MHz BW
Group Delay, max 3 ns, 30 MHz, 5 ns, 36 MHz BW
Frequency Sense Non-inverting
Synthesizer Characteristics
Frequency Accuracy ± 0.01 ppm max over temp internal reference; external ref. input
Frequency Step 1 kHz, 10 kHz, or 125 kHz (selectable)
-117-107-97-90-75
1MHz100kHz10kHz1kHz100 MHz
dBC/Hz
Phase Noise
@
Fre
q
10 MHz Level (In or Out) 0 dBm, ± 3 dB, 75 ohms
Controls, Indicators
Frequency Selection direct readout LCD; pushbutton switches or remote selection
Gain Selection direct readout LCD; pushbutton switches or remote selection
Power Green LED
Alarm Red LED
Mute Yellow LED
Remote Yellow LED, RS232C/RS422/RS485 (selectable), 9600 baud
Other RF Connectors BNC (female), 50 
IF Connector BNC (female), 50 
10 MHz Connectors BNC (female), 75 
Alarm/Remote Connector DB9 (female), NO or NC contact closure on Alarm
Size 19 inch, 1RU standard chassis 1.75” high X 16.0” deep
Power 100-240 ±10% VAC, 47-63 Hz, 45 W max
*+10˚C to +40˚C; Specifications subject to change without notice
2015-123 Manual, Rev.A Page 4 11/12/09

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - option -Q)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port Male DB-9
2015/16/17 M&C Port
M&C Cable Diagram - Cross Technologies Frequency Converters
RX RX
TX TX
DTR
SG
DSR
RTS
CTS
SG
Connector: Rear panel, DB-9 male
J10 Pinouts
Pinouts (RS-232C/422/485)
Pin Function
1Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8NotUsed
9 Alarm Relay: Normally Closed
2015-123 Manual, Rev.A Page 5 11/12/09

B) Status Requests -
Table 1.3 lists the status requests for the 2015-95 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.3 2015-123 Status Reequests
Requests
Command Syntax Description
Command Status {aaS1}* Returns {aaS1bbbbbbbccddddMIERA} where:
• bbbbbbb = Tx frequency
• cc = Input Level
• dddd = Tx Gain
• M = Tx RF Status (1 = Normal, 0 = Muted)
• I = Ref Insertion Status (1 = Ref On, 0 = Ref Off)
• E = External Ref Status (1 = Ext Off, 0 = Ext On)
• R = RF Output Status (0 = RF Out A, 1 = RF Out B)
• A = Alarm Status (0 = NO Alarm, 1 = Alarm)
2015-123 Manual, Rev.A Page 6 11/12/09

C) Commands - Table 1.2 lists the commands for the 2015-123 and briefly describes them. After a command
is sent the 2015-123 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only - option Q)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 2015-123 Comma
n
nds
Commands
Command Syntax Description
Set Transmitter Frequency {aaC1xxxxxxx}* where:
• xxxxxxx = 7 characters
• Range: 2000000 to 2500000 kHz, 1kHz steps
Set Input Level {aaCIxx}* where:
• xx = 2 characters
• Range: 10 to 40 (-10 dB to -40 dB, in 1 dB steps)
Set Transmit Gain {aaC3xxxx}* where:
• xxxx = 3 or 4 characters (use 4 char for negative gain)
• Range: -100 to 300 (-10.0 dB to 30.0 dB, in 0.1 dB steps)
Enable 10MHz insertion/out {aaC6x}* where x =:
• 0 to disable reference out
• 1 to enable reference out
Set RF Output {aaC7x}* where x =:
• 0 RF Output = A
• 1 RF Output = B
Enable Tx {aaCAx}* where x =:
• 0 to disable Tx signal
• 1 to enable Tx signal
Enable External 10MHz {aaCEx}* where x =:
• 0 to disable External 10MHz ref signal
• 1 to enable External 10MHz ref signal
Enable Remote # Just # sign
Disable Remote {aaCR0}* {CR and zero}
2015-123 Manual, Rev.A Page 7 11/12/09

2.0 Installation
2.1 Mechanical - The 2015-123 consists of one RF/Controller PCB which is housed in a 1 RU (1 3/4 inch
high) by 16 inch deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the
assembly. The 2015-123 can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how
the 2015-123 is assembled.
POWER
SUPPLY
SYNTHESIZER
OSC
RF
SWITCH
J12
J13
J15
J5
PCB
FIGURE 2.1 2015-123 Mechanical Assembly
2015-123 Manual, Rev.A Page 8 11/12/09

2.2 Rear Panel Input / Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.
AC
GND
J18
10 MHZ REF
OUTPUT
J10
AND
MONITOR
CONTROL
5 4 3 2 1
9 8 7 6
J10 - MONITOR AND CONTROL
DB9 female connector. see Table
2.1.
RF OUT A
J4
J101
J3
10 MHZ IF IN
EXT REF
J101 - RF OUT A
2025-2300 MHz
0 to -20 dBm output
J4 - IF IN
70 MHz
-10 to -40 dBm input
INPUT
RF OUT B
J102
J102 - RF OUT B
2025-2300 MHz
0 to -20 dBm output
J3 - 10 MHz EXT REF INPUT
10 MHz external reference input,
0 ± 3 dBm, 75 ohms, BNC female
connector.
J18 - 10 MHz REF OUTPUT
10 MHz reference output,
0 ± 3 dBm, 75 ohms, BNC
female connector.

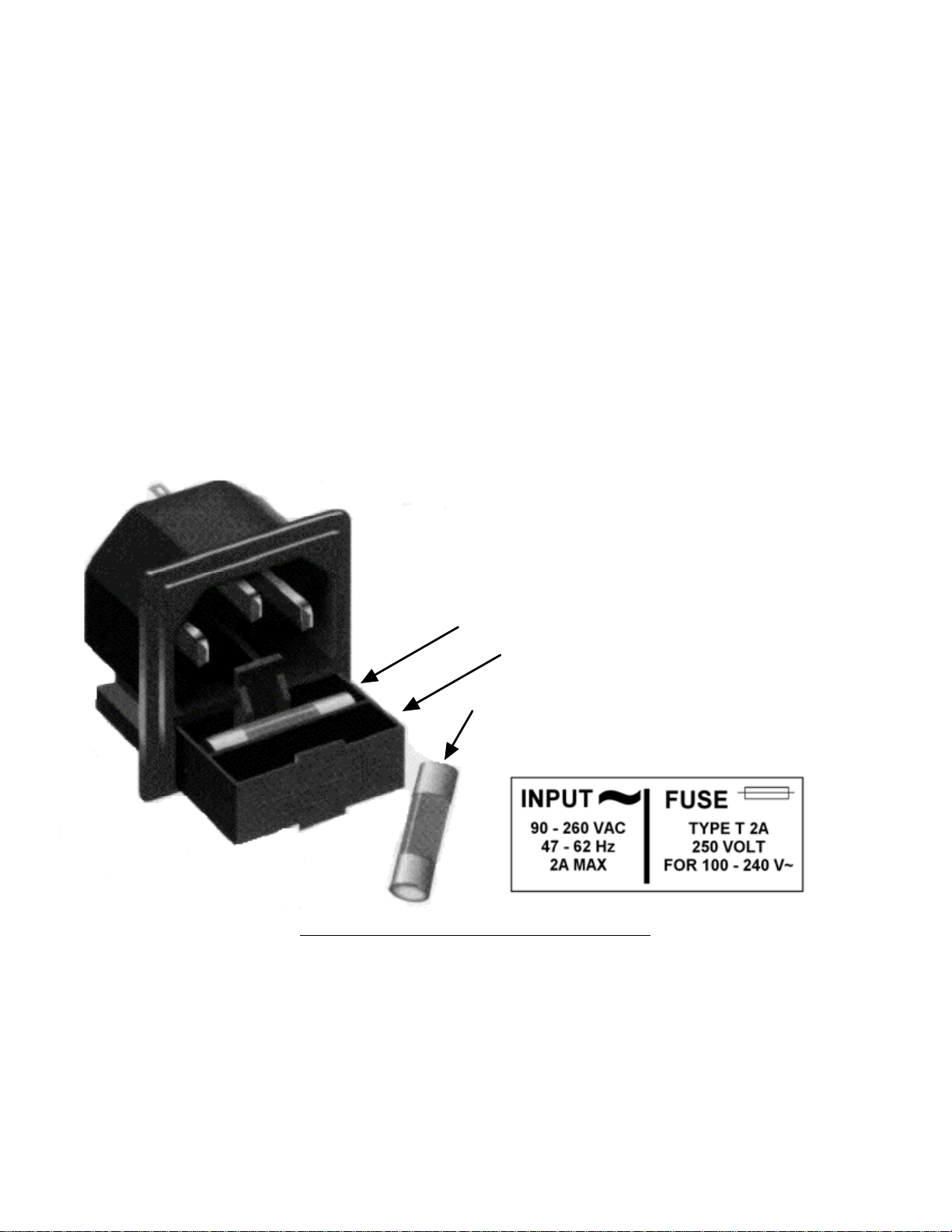

AC - POWER IN
AC input for switching power supply.
90-260 VAC, 47-60 Hz.
FIGURE 2.2 2015-123 Rear Panel Inputs and Outputs
Table 2.1 J10
Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)*
Pin Description
1Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5 Ground
6 Alarm Relay - Common
7 Alarm Relay - Normally Open
8NotUsed
9 Alarm Relay - Normally Closed
*Interface: DB-9 Female; Protocol: RS-485, RS-422, or RS-232C (selectable), 9600 baud rate, no
parity, 8 data bits, 1 start bit, 1 stop bit
2.3 Front Panel Controls and Indicators -The following are the front panel controls and indicators.
MENU
EXECUTE
F=2050.000
MUTEREMOTE POWER
LCD DISPLAY
Display shows frequency in MHz, Gain in
dB, and RF output selected, and is used to
change settings in Program mode.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in the
normal display mode
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode
ALARM
G=+00.0 RF=A
DS5 - UP MUTE LED
Red LED indicates
upconverter mute.
DS2 - UP ALARM LED
Red LED indicates
upconverter alarm.
FIGURE 2.3 2015-123 Front Panel Controls and Indicators
2015-123 Manual, Rev.A Page 9 11/12/09

2.4 Installation / Operation
2.4.1 Installing and Operating the 2015-123 Upconverter
1.) Connect a -10 dBm to -40 dBm, 70MHz signal to IF IN, J4 (Figure 2.2)
2.) Connect the RF OUT A, J101, and RF OUT B, J102, to the external equipment.
3.) Connect 90- 260 VAC, 47 - 63 Hz to AC input on the back panel.
4.) Set the desired output frequency (See Section 2.5 Menu Settings).
5.) Set the input level (See Section 2.5 Menu Settings).
6.) Set the gain for -10 to +30 dB. Make sure the output stays within -20 to 0 dBm with the gain
selected and the input level provided. The firmware will prevent setting gain and input level outside this
range. (See Section 2.5 Menu Settings).
7.) Select the RF Output (A or B) (See Section 2.5 Menu Settings).
8.) Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3).
9.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in
the drawer below the AC input as shown in Figure 2.4. There is a spare fuse in the near slot. If a fuse
continues to open, the power supply is most likely defective.
FUSE DRAWER
SPARE FUSE DRAWER
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FIGURE 2.4 Fuse Location and Spare Fuse
2015-123 Manual, Rev.A Page 10 11/12/09

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.5):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Input Level (-40 to -10)
Menu 3 Gain (-10.0 to +30.0)
Menu 4 Mute
Menu 5 Select RF Output (A or B)
Menu 6 For Other Settings (see below)
Save Menu When go to “R” or at end
IF OTHER = Y
Menu 7 Set Unit to Remote Operation (Note: the local controls still function when in REMOTE)
Menu 8 Select Frequency Step Size (1kHz, 10kHz, 100kHz, or 125kHz)
Menu 9 Select External 10 MHz Ref
Menu 10 Select 10 MHz Output
Menu 11 Select RS232, RS422, or RS 485 Remote Operation
Menu 12 Select Remote Address for Unit (RS485 only)
Save Menu When go to end
Alarm indications appear on the LEDs (see figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2.5.2. Power On Settings
NOTE: The last status of a unit is retained even when power is removed. When power is restored, the unit
will return to it's previous settings.
When power is first applied, the LCD display goes through three steps.
1.The LCD goes black to show all segments are functioning.
2.The software version will be displayed.
REV1.00
3.The present frequency, gain, and selected RF output of the upconverter is shown.
F = 2050.000
G = +00.0 RF = A
The unit is now operational and ready for any changes the operator may desire.
2015-123 Manual, Rev.A Page 11 11/12/09

2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left or
right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
A) During frequency, gain changes, the vertical movement will raise or lower the number in the
direction of the arrows.
B) For other functions such Mute on/off, the vertical switch will alternately turn the function
on or off regardless of the direction operated.
2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch
and select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
1.Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.5 for
the sequence of menu options. The following display is for changing the upconverter frequency:
F = 2050.000
R
Pressing the Up/Down switch down will toggle the display to:
F = 2150.000
R
By using the horizontal rocker switch the cursor can be moved left or right .
F = 2150.000
R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES. THE CARRIER IS MUTED
WHEN FREQUENCY IS CHANGED.
When the display indicates the value desired you can push the Menu/Execute switch to the next item:
UP INLVL = -20
R
2015-123 Manual, Rev.A Page 12 11/12/09

OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the default display:
F = 2150.000
G = +00.0 RF = A
Figure 2.5 shows all the menu items and how to make changes.
2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
To change the GAIN, first push the Menu/Execute switch to get to the gain setting:
1.Operate the Menu/Execute switch until you get to the menu item you want to change (see Figure 2.5
for the sequence of menu options).
The following display is for changing the upconverter input level. This is an important setting to
optimize spurious and should be made as accurately as possible:
UP INLVL = -20
R
NOTE: CHANGES TAKE PLACE ON LEVEL AND GAIN IMMEDIATELY BUT DO NOT GET
SAVED UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE
CHANGES.
Press the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute switch to
get to the Gain setting:
G = +00.0
R
Press the Up/Down switch to change the gain in 0.1, 1 or 10 dB steps:
G = +10.0
R
By using the horizontal rocker switch the cursor can be moved left or right. Pressing the Up/Down
switch down will toggle the display digit selected until you have the desired gain.
2015-123 Manual, Rev.A Page 13 11/12/09

NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED 0 dBm OR HAVE LESS THAN -20 dBm
OUTPUT LEVEL. THE FIRMWARE PREVENTS YOU FROM THIS.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to:
F = 2150.000
G = +10.0 RF = A
Figure 2.5 gives the menu items and how to make changes
2.5.5 Alarm Indications
An alarm condition for will occur if the local oscillator phase lock loop (PLL) comes out of lock. The Mute
LED will light if you select to mute the Tx Signal and the Remote LED will light when you select the Remote
mode.
2015-123 Manual, Rev.A Page 14 11/12/09

ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F = 2050.000
G = +00.0 RF=A
F = 2050.000
SCROLL <>
SCROLL
PUSH BUTTON
OTHER? Y N
REMOTE OFF
EXT REF OFF
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up
Normal Display
Menu 1 Up Frequency
Menu 2 Up Input Level (Set from -40
to -10)
Menu 3 Up Gain (-10 to +30)
Menu 4 Mute
Menu 5 Select RF Output
Menu 6 For Other Settings (below)
Save? When go to “R” or at end
IF OTHER = Y
Menu 7 Set Unit to Remote
Operation
Menu 8 Select frequency step size
Menu 9 Select External 10 MHz
Reference
Menu 10 Select 10MHz Output
Menu 11 Select RS232, RS422, or
RS485 remote control
Menu 12 Select remote address for
unit (RS485 only)
Save? When go to end
UP MUTE OFF
RF OUT = A
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
UP INLVL = -20
G = +00.0
SCROLL <>
SCROLL
PUSH BUTTON
STEP = 1 kHz
SAVE SETTINGS? Y N
SCROLL <>
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SAVE SETTINGS? Y N
R
R
R
R
R
R
R
R
R
R
RS232
UP REF OUT OFF
R
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
R
ADDRESS = 00
SCROLL <>
SCROLL
PUSH BUTTON
FIGURE 2.5 Menu Display and Sequence
2015-123 Manual, Rev.A Page 15 11/12/09

3.0 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between unit
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connection to the
Branch (use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2015-123 Manual, Rev.A Page 16 11/12/09

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
2015-123 Manual, Rev.A Page 17 11/12/09
