Cross Technologies 2415 0925 Series User manual

Instruction Manual Model 2415-x0925
Multi Channel Upconverter
2415-40925 Four Channel • 2415-30925 Three Channel • 2415-20925 Two Channel • 2415-100925 One Channel
August 2023, Rev. 0
MENU
EXECUTE
MODEL 2415
CROSS TECHNOLOGIES INC.
UPCONVERTER
REMOTE
POWER
ALARMS
1674.125 1926.250
1926.375 2086.625
------ CH 1 -------- ------ CH 2 --------
1
2
3
4
------ CH 3 -------- ------ CH 4 --------
A
B

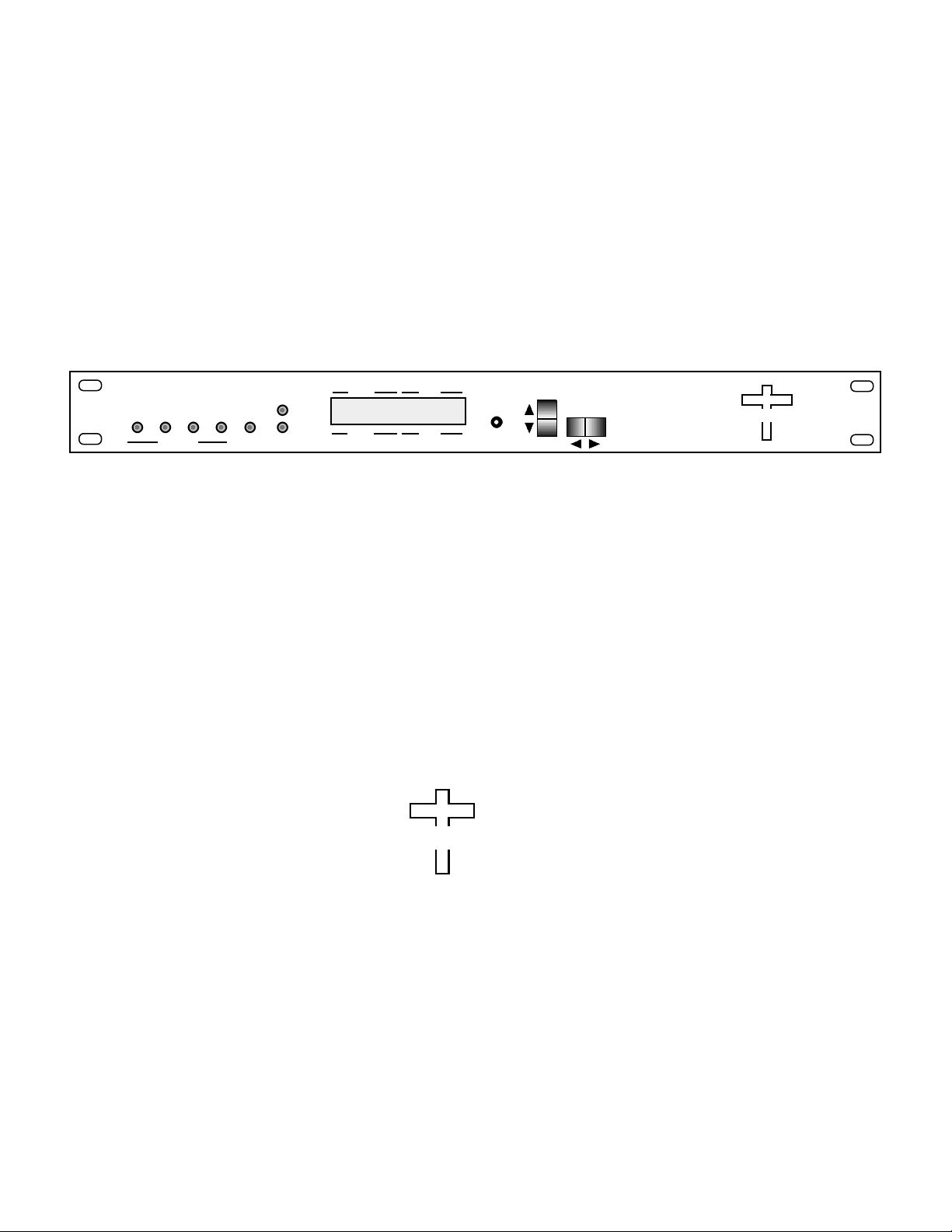

(Shown, Model 2415-40925 - Four Channel, Front Panel)
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
Model 2415-x0925 Multi Channel Upconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Specifications 4
1.3 Monitor & Control Interface 6
1.4 Environmental Use Information 10
2.0 Installation 11
2.1 Mechanical 11
2.2 Rear Panel Inputs & Outputs 12
2.3 Front Panel Controls & Indicators 13
2.4 Operation 14
2.5 Menu Settings 17

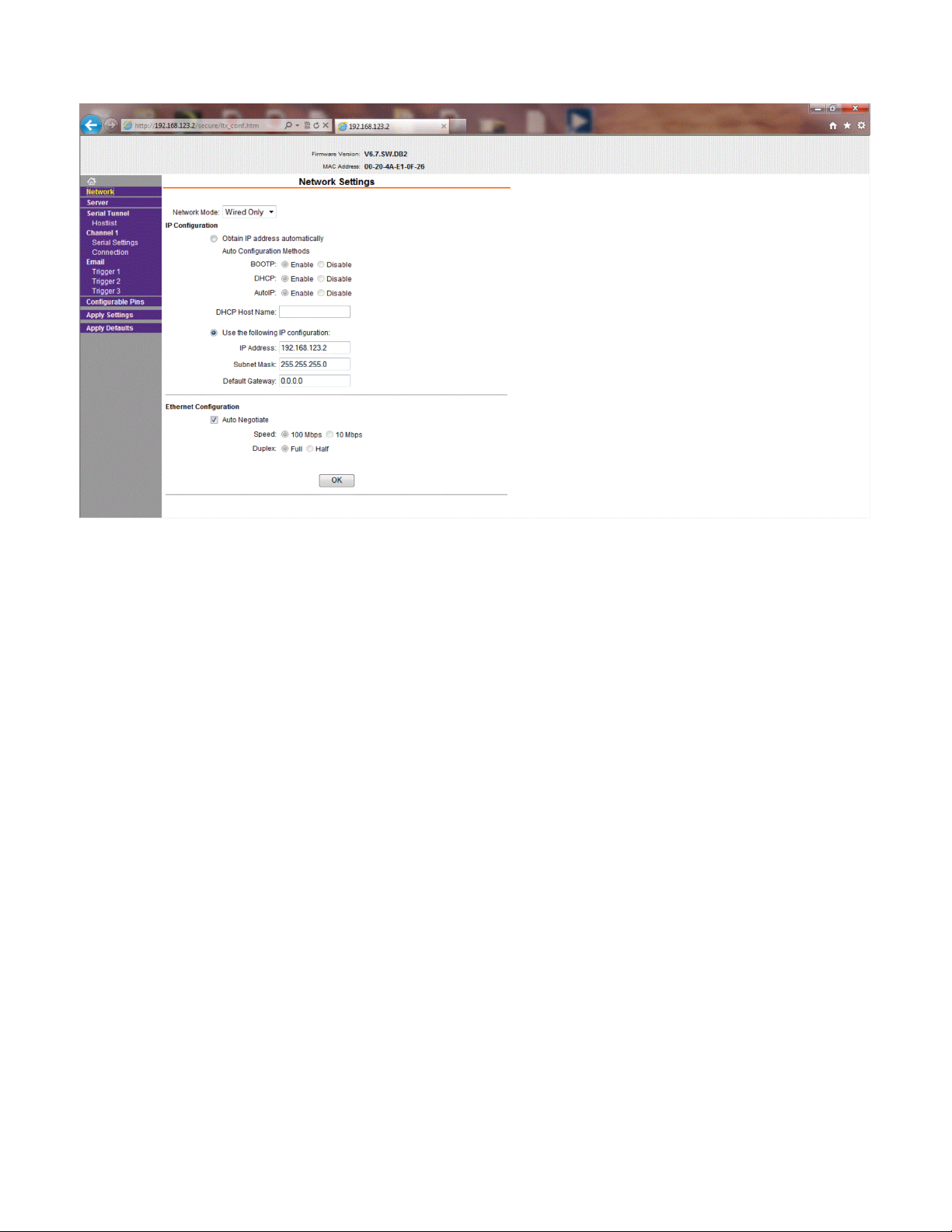

3.0 Ethernet Interface 18
3.1 Connection 18
3.2 Ethernet Configuration 18
3.3 Webpage M&C 21
3.4 SNMP Configuration 22
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
WEB www.crosstechnologies.com
E-MAIL [email protected]
2415-x0925 Manual, Rev. E Page 2 08/09/23

Model 2415-x0925
Multi Channel Upconverter
2415-40925 Four Channel • 2415-30925 Three Channel • 2415-20925 Two Channel • 2415-100925 One Channel
1.0 General
1.1 Equipment Description
The 2415-40925 Upconverter has four individual channels, each one converts 70 MHz to 950 to 2500 MHz in
125 kHz steps using PLL in “exact frequency mode” with low group delay and flat frequency response.
Synthesized local oscillators (LO) provide frequency selection. Push button switches select the output
frequency, gain, and other parameters. Front panel LEDs provide indication of DC power, PLL alarm or
Remote operation. Gain is adjustable manually over a 0 to +30 dB range in 0.5 ± 0.5 dB steps. The frequency
and gain of each channel are also remotely selectable. Parameter selection and frequency and gain settings
appear on the LCD display. Connectors are Type F female for the RF, and BNC female for the IF and!external
10 MHz reference input and output. The!10 MHz reference can be inserted on all RF lines. The table below
shows available options.!SSPB +24 VDC option V1, can be inserted only on the channel 1 RF line.!The unit is
powered by a 100-240 ±10% VAC, 47-63 Hz power supply, and is in a 1 3/4” X 19” X 16” rack mount chassis.
* 2415-40925, Four (4) Channels, 2415-30925, Three (3) Channels, 2415-20925, Two (2) Channels, 2415-10925, One (1) Channel.
MENU
EXECUTE
MODEL 2415
CROSS TECHNOLOGIES INC.
UPCONVERTER
REMOTE
POWER
ALARMS
1674.125 1926.250
1926.375 2086.625
------ CH 1 -------- ------ CH 2 --------
1
2
3
4
------ CH 3 -------- ------ CH 4 --------
A
B

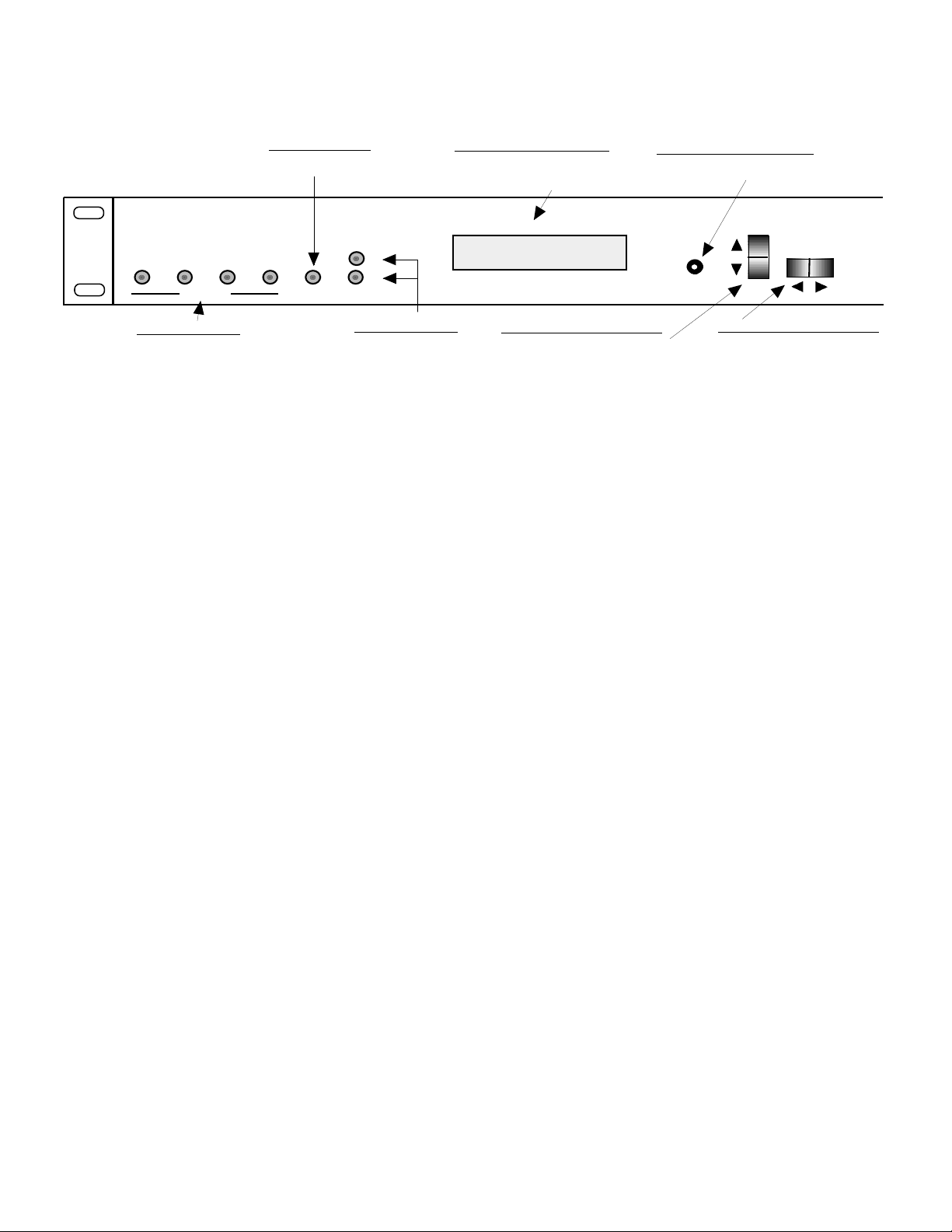

FRONT PANEL (2415-40925 - Four Channel show)
PSA
GND
J11
J12
AND
MONITOR
CONTROL
CHANNEL 4
RF OUT
J10
J9
IF IN
CHANNEL 3
RF OUT
J8
J7
IF IN
CHANNEL 1
RF OUT
J2
VDC
ON
RF
J1
IF IN
10 MHZ REF
OUTPUT
10 MHZ IN/OUT
J4
J3
10 MHZ REF
INPUT
CHANNEL 2
RF OUT
J6
J5
IF IN
PSB
1
5
2
3
4
6
7
8
9

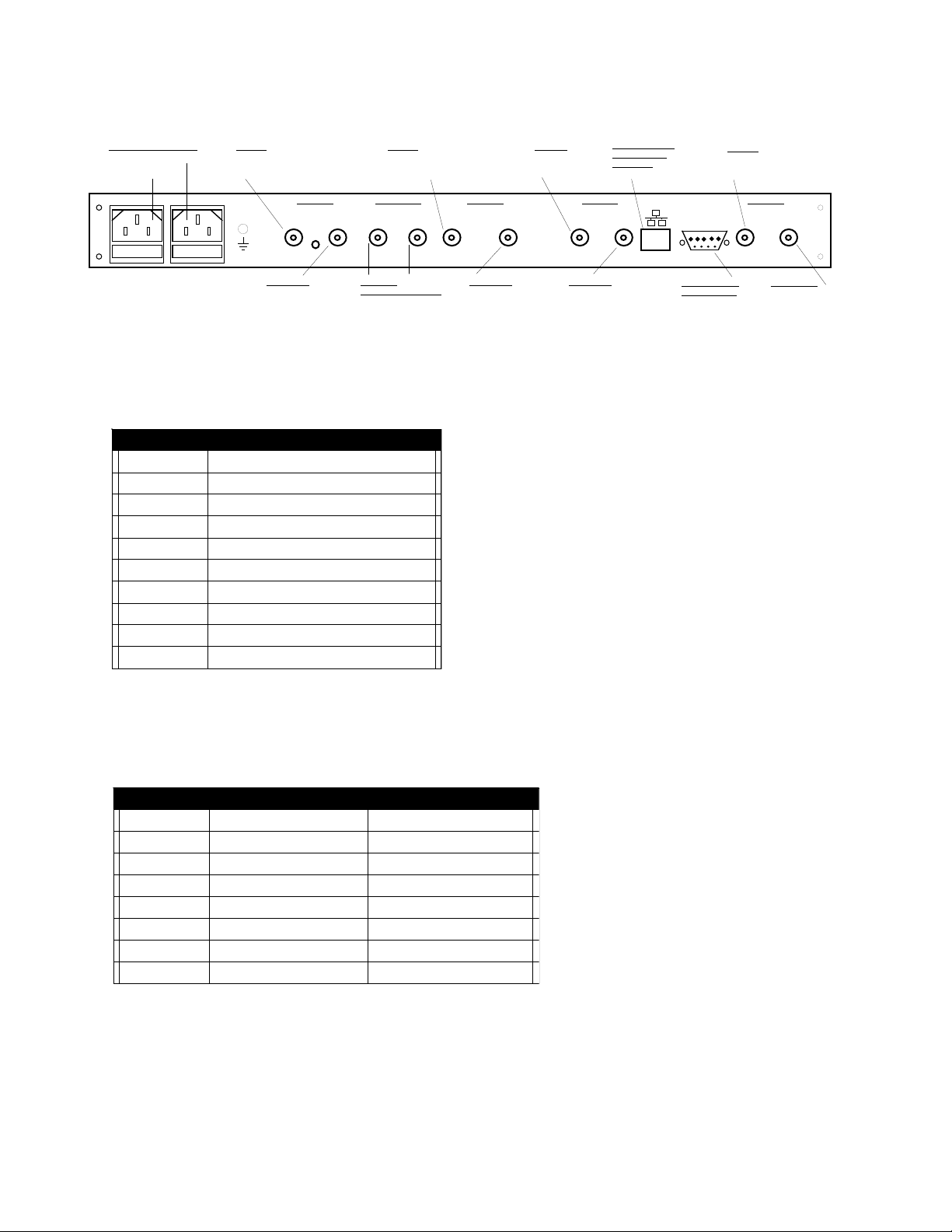

REAR PANEL (2415-40925 - Four Channel shown with optional Ethernet)

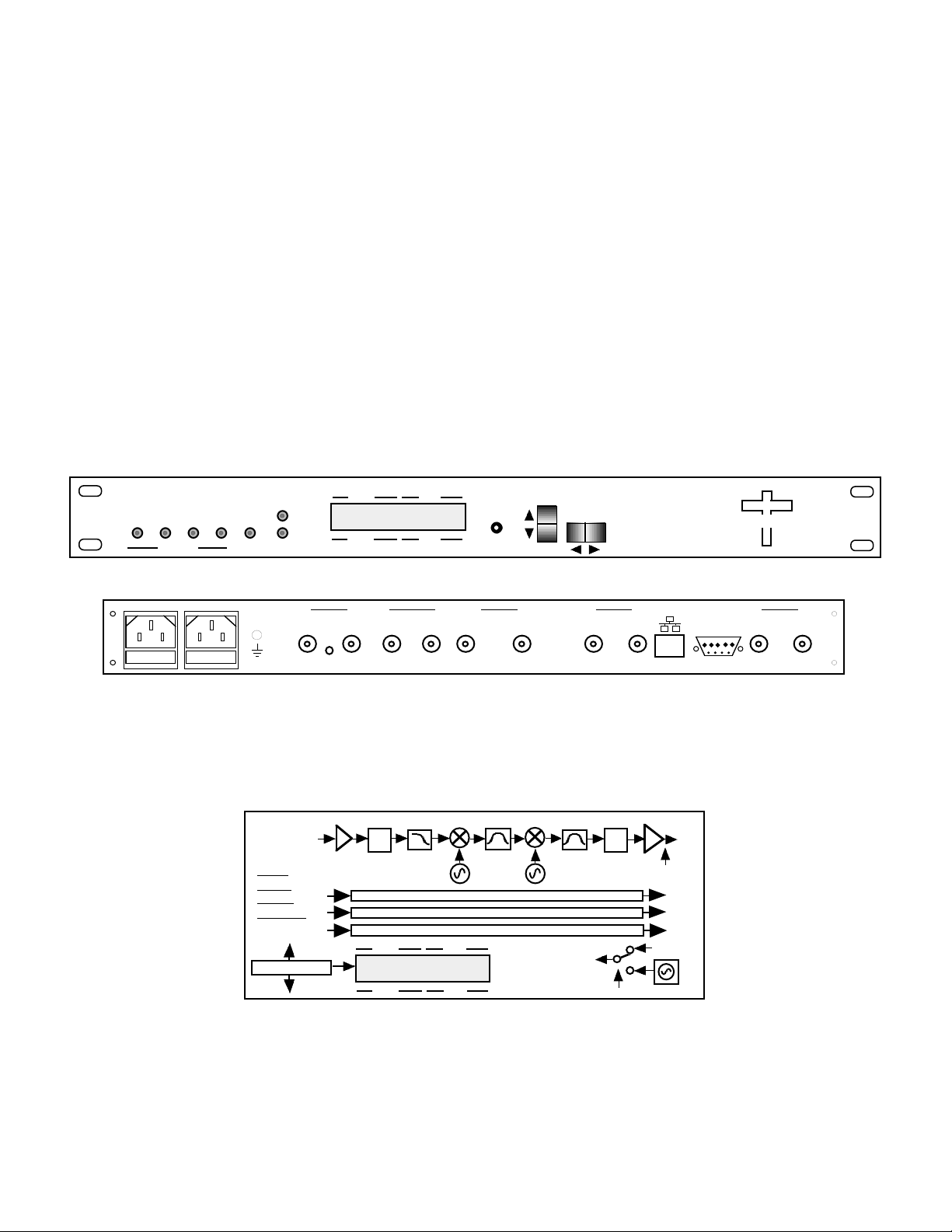

FIGURE 1.1 Model 2415-x0925 Front and Rear Panels
SW,PLL,ATT,
10M CONTROL
M&C
CONTROLLER
EXT
10MHz
INT 10MHz
10MHz
TO
VCOs
2415-
40925
Block
Diagram
0.8 to 2.5 HP/LP
2800 MHz BP
3.75 to
5.30 GHz
var
atten
70
MHz
IN
2870
MHz
200 MHz LP
0.95
to
2.50
GHz
OUT
SAME FOR FREQUENCY CHANNEL 2
SAME FOR FREQUENCY CHANNEL 3
SAME FOR FREQUENCY CHANNEL 4
10 MHz, std.,
DC - Opt V1
var
atten
------ CH 1 -------- ------ CH 2 --------
------ CH 3 -------- ------ CH 4 --------
1674.125 1926.250
1926.375 2086.625
FIGURE 1.2 Model 2415-x0925 Upconverter Block Diagram
(Block Diagram applies to Models 2415-10925, 20925, 30925 & 40925)
2415-x0925 Manual, Rev. E Page 3 08/09/23

Intermodulation
<-50 dBc for two carriers at Fc +/- 2 MHz spacing, each at -5 dBm out,
(set to -30 dBm input, 30 dB gain)
<-60 dB typical, <-50 dB min.; G=30, -30 dBm input level
Channel to Channel Isolation
-35 to -10 dBm
Input Level Range
Input Characteristics
Output Characteristics
Channel Characteristics
Synthesizer Characteristics
-20 to 0 dBm
Output Level Range
TABLE 1.0 2415-x0925 Multi-Channel Upconverter Technical Specifications**
125 kHz (as low as 1 kHz steps available)
Frequency Step
±1.0 ppm max. over temp. (±0.01ppm, Option H)
Frequency Accuracy
Non-inverting
Frequency Sense
0.015 ns/MHz2parabolic; 0.05 ns/MHz linear; 1 ns ripple
Group Delay, max.
< -50 dBc, in band; <-45dBc out of band (0.2-0.94 GHz and 2.51-3.0 GHz)
Spurious Response
±2.0 dB, 950 - 2500 MHz; ±0.5 dB, 36 MHz BW; ±1.0 dB, 40 MHz BW
Frequency Response
0 to +30.0 dB in 0.5 ±0.5 dB steps
Gain Range (adjustable)
+10 dBm, maximum gain
Output 1 dB compression
950 to 2500 MHz
Frequency
50Ω/ 12 dB (See Table 2.2 for connector options)
Impedance/Return Loss
70 ±18 MHz
Frequency
75Ω/18 dB (See Table 2.2 for connector options)
Impedance/Return Loss
-90 -110
-80
-75
-65
-60
Standard 125 kHz steps dBc/Hz
100k 1M
10k
1k
100
10
Phase Noise @ Freq (Hz) >
19 inch, 1RU standard chassis, 1.75” high x 16.0” deep
Size
Controls, Indicators
Other
75ΩBNC (female), 75ΩBNC (female) works with 50Ω& 75Ω
IF, 10 MHz Connectors
Direct readout LCD; manual or remote selection
Gain Selection
3 dBm, ± 3 dB, 75 ohms (Option -E)
10 MHz Level (In or Out)
100-240 ±10% VAC, 47- 63 Hz, 45 watts maximum
Power
RS232/RS485 selectable, Ethernet optional)
Remote
Direct readout LCD; manual or remote selection
Frequency Selection
DB9 (female) - NO or NC contact closure on Alarm
Alarm, Remote Connector
50ΩBNC (female)
RF Connector
Green LED; Red LED; Yellow LED
Power; Alarm; Remote
(Technical Specifications continued on page 5...)
2415-x0925 Manual, Rev. E Page 4 08/09/23

(Technical Specifications continued from page 4...)
350 +/- 20 MHz (+/- 1.0 dB 40 MHz BW)
W350-20-x
140 ±36/70 ±18 MHz Selectable
W140/70-x
Ethernet with Web Browser
W8 -
Redundant Power Supply
R -
High Stability (±0.01 ppm) internal ref.
H -
1 kHz Frequency Step Size
X1002 - x
Ethernet with TCP/IP, Telnet®
W28 -
SSPB DC, CH1(ONLY), +24VDC, 2.5 A
V1 -
Available Options
140 ±36 MHz
W140-x
Ethernet with Web Browser & SNMP
W18 -
See TABLE 2.2
Connectors/Impedance
**+10˚C to +40˚C; Specifications subject to change without notice Cross Technologies, Inc. 2015
2415-x0925 Manual, Rev. E Page 5 08/09/23

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port
Male DB-9
2415-x0925 M&C Port

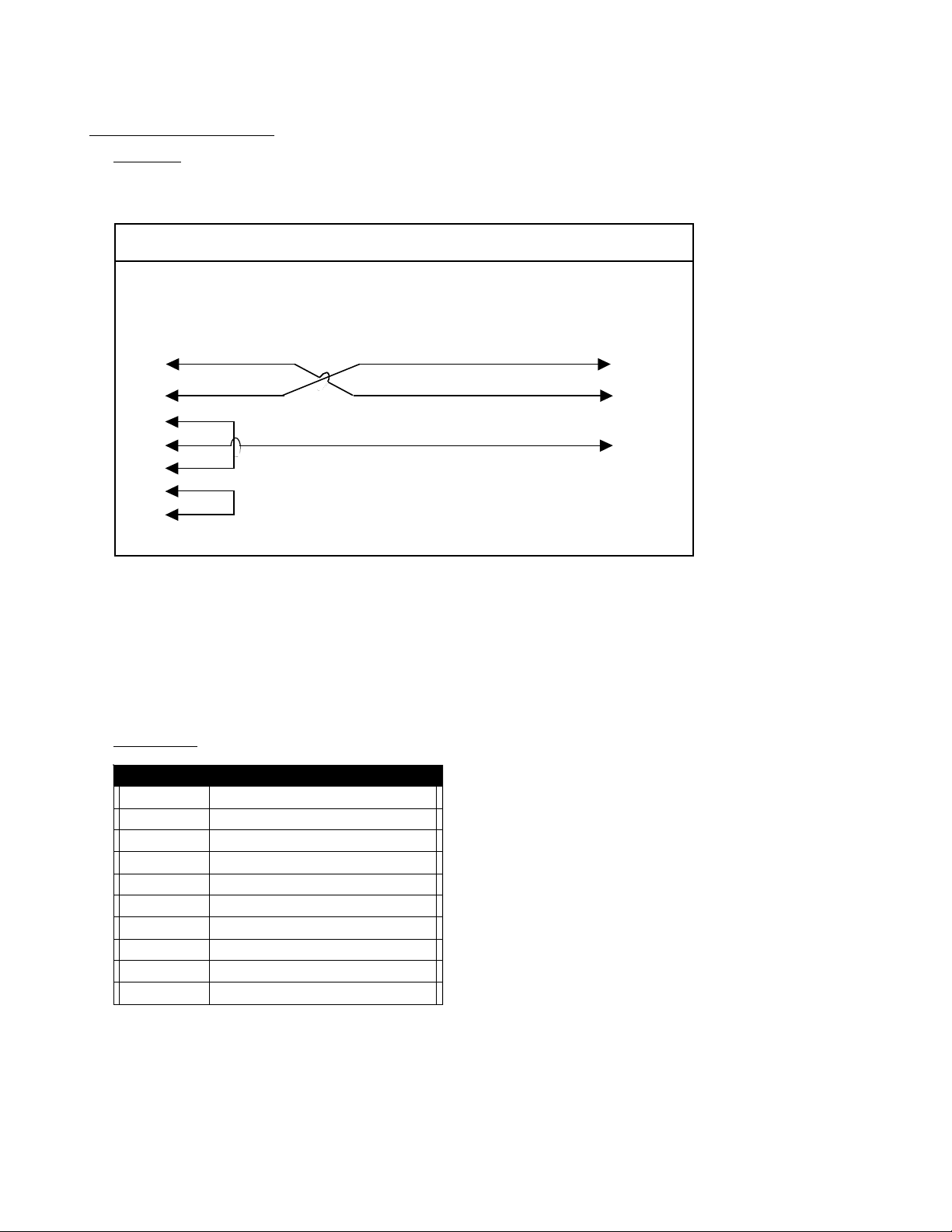

M&C Cable Diagram - Cross Technologies Frequency Converters
RX
RX
TX
TX
DTR
SG
DSR
RTS
CTS
SG
Connector: Rear panel, DB-9 female
J10 Pinouts (RS-232C/422/485)
J10 Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
2415-x0925 Manual, Rev. E Page 6 08/09/23

B) Status Requests
Table 1.1 lists the status requests for the 2415-x0925 and briefly describes them.
*PLEASE NOTE: Status requests of values specific to a channel
must be preceded by a *i where *i is the channel number.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485 is selected.
TABLE 1.1 2415-x0925 Status Requests
TABLE 1.1 2415-x0925 Status Requests
TABLE 1.1 2415-x0925 Status Requests
Command Syntax* Description
Get channel frequency {aa*iSF} Returns {*iSFxxxxxxx} where :
• i = 1, 2, 3 or 4 designating the channel number
• xxxxxxx = frequency in KHz
Get channel gain {aa*iSG} Returns {*iSGxxx} where:
• i = 1, 2, 3 or 4 designating the channel number
• xxx = gain to nearest 1.0 dB (e.g., +14 = 14 dB)
Get mute setting {aa*iSM} Returns {*iSMx} where :
• i = 1, 2, 3, or 4 designating the channel number
• x = 1 for Mute ON (carrier OFF)
• x = 0 for Mute OFF (carrier ON)
Get setting for reference {aa*iSL} Returns {*iSLx} where :
insertion on output • i = 1, 2, 3 or 4 designating the channel number
• x = 0 for non-insertion; 1 for insertion
Get input level {aa*iSI} Returns {*iSIxxx} where :
• i = 1, 2, 3, or 4 designating the channel number
• xxx = input level in dBm
Get reference status {aaSE} Returns {SExy} where :
• x = setting: 0 for internal 10 MHz;
1 for external 10 MHz; 2 for auto detect
• y = currently selected in hardware :
0 for internal 10 MHz; 1 for external 10 MHz
Get reference offset (Option O) {aaSO} Returns {SOxxxxx} where :
• xxxxx = an offset amount between -2000 & +2000
2415-x0925 Manual, Rev. E Page 7 08/09/23

(Status Request continued from page 7...)
TABLE 1.1 2415-x0925 Status Requests Continued
TABLE 1.1 2415-x0925 Status Requests Continued
TABLE 1.1 2415-x0925 Status Requests Continued
Command Syntax* Description
Get IF Frequency {aa*iSY} Returns {*iSYx} where :
(Option W140/70) • i = 1, 2, 3 or 4...
• x = 0 for 70 MHz IF, 1 for 140 MHz IF
Get IP address {aaSi} Returns {Sixxx.xxx.xxx.xxx} where :
(If Ethernet Option, W8, W18, or W28, enabled)
(If Ethernet Option, W8, W18, or W28, enabled)
• xxx.xxx.xxx.xxx = IP address
Get subnet mask {aaSs} Returns {Ssxxx.xxx.xxx.xxx} where :
(If Ethernet Option, W8, W18, or W28, enabled)
(If Ethernet Option, W8, W18, or W28, enabled)
• xxx.xxx.xxx.xxx = subnet mask
Get channel base parms {aa*iS1} Returns {*iS1tfffffffgggIIIma} where :
• i = 1, 2, 3 or 4 designating the channel number
• t=channel type: 0 for unused;
1 for upconverter; 2 for downconverter
• fffffff = frequency in KHz
• ggg = gain to nearest 1.0 dB (e.g., +25 = 25 dB)
• III = input level in dBm
• m = mute (0 = mute off, 1 = mute on)
• a = alarm: 0 for alarm off; 1 for alarm on
Get alarm status {aaSA} Returns {SAabcd} where:
• a=channel 1 alarm state (0 for alarm off; 1 for alarm on)
• b=channel 2 alarm state (0 for alarm off; 1 for alarm on)
• c=channel 3 alarm state (0 for alarm off; 1 for alarm on)
• d=channel 4 alarm state (0 for alarm off; 1 for alarm on)
Get product/model info {aaSV} Returns {SV2415-x0925xxxver5.00} where:
• 2415-x0925 = product model
• xxx = list of options, if any
•"ver"=separates model & options from firmware version
• 5.00 = firmware version
2415-x0925 Manual, Rev. E Page 8 08/09/23

(C) Commands
Table 1.2 lists the commands for the 2415-x0925 and briefly describes them. After a command is sent the
2415-x0925 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: Commands specific to a channel must be preceded
by *i where i is the channel number.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485 is selected.
Table 1.2 2415-x0925 Commands
Table 1.2 2415-x0925 Commands
Table 1.2 2415-x0925 Commands
Command Syntax* Description
Set Channel Frequency {aa*iCFxxxxxxx} where i = :
• 1, 2, 3 or 4 designating the channel number
• xxxxxxx = frequency in KHz
Set Channel Gain {aa*iCGxx} where i = :
• 1, 2, 3 or 4 designating the channel number
• xx = gain to nearest 1.0 dB (e.g., {1CGI5} sets channel 1 gain to 15 dB.)
Set input level {aa*iCIxxx} where i = :
• 1, 2, 3 or 4 designating the channel number
• xxx = input level in dBm,
(e.g., {*1CI-20} sets channel 1 input level to -20 dBm)
Set Channel Mute {aa*iCMx} where i = :
• 1, 2, 3 or 4 designating the channel number
• x = 1 for Mute ON (carrier OFF)
• x = 0 for Mute OFF (carrier ON)
10 MHz reference mode {aaCEx} where x = :
• 0 for internal 10 MHz; 1 for external 10 MHz; 2 for auto detect
Reference insertion on output {aa*iCLx} where :
• i = 1, 2, 3 or 4 designating the channel number
• x = 0 for non-insertion; 1 for insertion
Reference offset/adjust {aaCOxxxxx} where x = :
(Option O) • xxxxx = an offset amount between -2000 & +2000
IF Output Frequency {aa*iCYx} where i = :
(Option W140/70) • 1, 2, 3 or 4 designating the channel number
• x = 0 for 70 MHz IF, 1 for 140 MHz IF
2415-x0925 Manual, Rev. E Page 9 08/09/23

1.4 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated operating ambient temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra. (Maximum Recommended Ambient Temperature)
D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between units
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2415-x0925 Manual, Rev. E Page 10 08/09/23

2.0 Installation
2.1 Mechanical
The 2415-x0925 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep
chassis. A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2415-x0925 can
be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2415-x0925 is assembled.
POWER
SUPPLY
POWER
SUPPLY
FIGURE 2.1 2415-x0925 Mechanical Assembly
(Shown, Model 2415-40925 - Four Channel)
2415-x0925 Manual, Rev. E Page 11 08/09/23

2.2 Rear Panel Input/Output Signals
Figure 2.2 shows the input and output connectors on the rear panel.
PSA & PSB - POWER IN
AC input for switching
power supply.
100-240 ±10% VAC,
47-60 Hz.
J12- MONITOR
and CONTROL
DB9 female
connector.
see Table 2.1.
J11 - ETHERNET
CONNECTION
(option W8)
RJ45 Ethernet Connector
J2- RF OUT
950-2500 MHz output,
-20 to 0 dBm,
50ΩBNC (female)
see Table 2.2.
J1- IF IN
70 MHz Input,
-35 to -10dBm.
75ΩBNC
J3 & J4 -
10MHz REF IN & OUT
10 MHz external
reference input (J3) and
output (J4). 75ΩBNC
female connectors.
PSA
GND
J11
J12
AND
MONITOR
CONTROL
CHANNEL 4
RF OUT
J10
J9
IF IN
CHANNEL 3
RF OUT
J8
J7
IF IN
CHANNEL 1
RF
OUT
J2
VDC
ON
RF
J1
IF IN
10 MHZ REF
OUTPUT
10 MHZ IN/OUT
J4
J3
10 MHZ REF
INPUT
CHANNEL 2
RF OUT
J6
J5
IF IN
PSB
1
5
2
3
4
6
7
8
9
J5- IF IN
70 MHz Input,
-35 to -10dBm.
75ΩBNC
J7 - IF IN
70 MHz Input,
-35 to -10dBm.
75ΩBNC
J6- RF OUT
950-2500 MHz output,
-20 to 0 dBm,
50ΩBNC (female)
see Table 2.2.
J8- RF OUT
950-2500 MHz output,
-20 to 0 dBm,
50ΩBNC (female)
see Table 2.2.
J10- RF OUT
950-2500 MHz output,
-20 to 0 dBm,
50ΩBNC (female)
see Table 2.2.
J9- IF IN
70 MHz Input,
-35 to -10dBm.
75ΩBNC
FIGURE 2.2 2415-x0925 Rear Panel I/Os
REAR PANEL (2415-40925 - Four Channel show above)
TABLE 2.1 J10 Pinouts (RS-232C*)
TABLE 2.1 J10 Pinouts (RS-232C*)
Pin Function
1 Not Used
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4 Not Used
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Closed
8 Not Used
9 Alarm Relay: Normally Open
*Remote Serial Interface
Interface: DB-9 female
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
Option IF RF
STD BNC, 75ΩBNC, 50Ω
Bx BNC, 75ΩBNC, 75Ω
Cx BNC, 75ΩBNC, 50Ω
Dx BNC, 50ΩBNC, 50Ω
Sx SMA, 50ΩSMA, 50 Ω
Kx BNC, 50ΩBNC, 75 Ω
Mx BNC, 50ΩType N, 50 Ω
x = # of Channels
Contact Cross Technologies for other options
2415-x0925 Manual, Rev. E Page 12 08/09/23

2.3 Front Panel Controls and Indicators - The following are the front panel controls and indicators.
MENU
EXECUTE
1674.125 1926.250
REMOTE
POWER
LCD FRONT PANEL DISPLAY
Shows parameter selection and
frequency and gain settings
for channels 1, 2, 3, & 4.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LEDS
Green LEDs indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LEDs indicates
remote operation.
S2 - MULTI-FUNCTION SWITCH
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function
in the normal display mode.
S3 - MULTI-FUNCTION SWITCH
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode.
ALARMS
-------- CH 1 -------- -------- CH 2 ---------
DS2 - ALARM LEDs
Red LEDs indicate
Downconverter alarms for
channels 1, 2, 3, & 4.
A
B
1
2
3
4
-------- CH 3 -------- -------- CH 4 ---------
1926.375 2086.625
FIGURE 2.3 2415-x0925 Front Panel Controls and Indicators
FRONT PANEL (2415-40925 - Four Channel show above)
2415-x0925 Manual, Rev. E Page 13 08/09/23

2.4 Operation
2.4.1 Installing and Operating the 2415-x0925 Upconverter
1. Connect a -35 dBm to -10 dBm signal to IF IN,
for the designated channel (ie: J1, J5, J7, J9), (Figure 2.2).
2. Connect the RF OUT, for the designated channel (ie: J2, J6, J8, J10),
to the external equipment, (Figure 2.2).
3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.
4. Set the output frequency (See Section 2.5 Menu Settings).
5. Set the “Input Level” to reflect the level of the signal applied to the IF input.
6. Set the gain for 0 to +30.0 dB (See Section 2.5 Menu Settings).
7. Be sure DS6 (green, DC Power, PSA, PSB) is on and DS2 (red, Alarm) is off (Figure 2.3).
8. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot
in the drawer below the AC input as shown in Figure 2.4. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.4 Fuse Location and Spare Fuse
2415-x0925 Manual, Rev. E Page 14 08/09/23

2.5 Power On Settings
Figure 2.5 shows the various Front Panel LCD Displays that you will see during the Power Up sequence and
the Settings modes. The first two displays (Power Up, displaying Model Number, Rev. Level and IP Address
are only displayed briefly during the Power On sequence.
The Normal Display is what you will see while the unit is in normal operating mode.
When power is first applied, the LCD display goes through three steps.
1. The model number and options will be displayed.
2. The unit reads the IP address (if Ethernet option installed) and displays IP Address.
3. The current frequency setting of each channel downconverter is displayed.
The unit is now operational and ready for any changes the operator may desire.
The Menu Displays are those displays you will see when making any Setting changes.
NOTE: Mode Settings and Values will be changed as you select them, but they will NOT BE SAVED if you
do not select Save and YES. If you do not wish to save any settings you can either select Save and NO or you
can NOT press the Menu/Execute switch and simply do nothing for approximately 30 seconds and the unit will
return to the previously saved Mode and Value Settings.
The “R” shown on the menu is a Return setting that allows you to Stop and Save wherever you are in the
Settings mode, without going through all the Menu screens.
2.5.1 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch (Figure 2.3).
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor
left or right (Figure 2.3).
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency, gain changes, the vertical movement will raise or lower the number in
the direction of the arrows (Figure 2.3).
b. For other functions such Mute on/off, the vertical switch will alternately turn the function
on or off regardless of the direction operated.
2415-x0925 Manual, Rev. E Page 15 08/09/23

2.5.2 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 30 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch
and select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change.
See Figure 2.5 for the sequence of menu options.
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE
SAVE MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
2.5.3 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish
to save the changes you have made, scroll to “R” and push the Menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 30 seconds, and the system will return to the normal operating mode.
To change the UPCONVERTER GAIN:
Push the Menu/Execute switch to get to the gain setting.
See Figure 2.5 for the sequence of menu options.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER,
THE VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE
SETTINGS WINDOW.
2415-x0925 Manual, Rev. E Page 16 08/09/23

2.6 Menu Settings
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
Alarm indications appear on the LEDs (See figure 2.3). An alarm condition will occur if any local oscillator
phase lock loop (PLL) comes out of lock. The Remote LED will light when you select the Remote mode.
Figure 2.5 Front Panel Menu Display & Sequence
OTHER SETTINGS
EXT REF = INT
SAVE SETTINGS Y N
SCROLL <>
SCROLL
SCROLL <>
SCROLL
SCROLL <>
SCROLL
SCROLL <>
SCROLL
OTHER SETTINGS
REMOTE = ON
OTHER SETTINGS
INTERFACE = RS232
RS485 ADDR = 00
R
R
R
R
PUSHING MENU/EXECUTE SEQUENCE
ON POWER UP
SCROLL <>
SCROLL
IP Address
Model Number
Firmware Rev.
Normal Display
Menu 1 Select Settings
Menu 2 Set Frequency
Menu 3 Set Input Level
Menu 4 Select Gain
Menu 5 Select Mute
Menu 6 Reference Insert
Save? When “R” is selected
from any above menu or
at the end.
NORMAL DISPLAY
WHICH SETTINGS?
#1 #2 #3 #4 OTHER
CH1 UPCONVERTER
FREQ= 950.000
R
1674.125 1926.250
1926.250 1250.125
SCROLL <>
SCROLL
SCROLL <>
SCROLL
SCROLL <>
SCROLL
SCROLL <>
SCROLL
SCROLL <>
SCROLL
CH1 UPCONVERTER
INPUT LVL = -20
CH1 UPCONVERTER
GAIN = +20.0
CH1 UPCONVERTER
MUTE = OFF
CH1 UPCONVERTER
REF INSERT = OFF
R
R
R
R
R
SAVE SETTINGS Y N
192.168.123.2
REPEAT ABOVE SEQUENCE
FOR ALL INDIVIDUAL CHANNELS
2415-40925
5.00
2415-x0925 Manual, Rev. E Page 17 08/09/23

3.0 Ethernet Interface Installation and Operation (Option W8, W18 or W28)
This manual applies to Cross Technologies products equipped with a 10/100 Base-T compatible Ethernet
interface for control and monitoring of its operating parameters. The following sections describe the operation
and setup of those interfaces. An HTML script interface allows the user to monitor and control the converter
using a standard web browser. SNMP (Simple Network Management Protocol) is also supported.
Contact Cross Technologies for the SNMP MIB file.
3.1 Connection
3.1.1 Direct Connection to a PC
For control from a local PC, attach the 2415-x0925 Ethernet port to the Ethernet network connector on the PC
using a crossover RJ-45 cable.
3.1.2 LAN Connection
For LAN connections, attach the 2415-x0925 Ethernet port to the LAN using a normal RJ-45 cable. Use any
PC on the LAN to connect to the 2415-x0925.
3.2 Ethernet Configuration
Each product must be configured with an appropriate IP address, Netmask, and Gateway assigned by your
network manager. The 2415-x0925 is preset at the factory with a static address that is briefly displayed on the
LCD Display during Power On Sequence (192.168.123.2 is the default). The device server in the 2415-x0925
has a built in HTTP based configuration manager that is used to configure network settings. To access the
configuration manager open a web browser and enter the IP address of the product in the browser's address
field. The window shown in Figure 3.0 will appear. As delivered, there is no password set. Choose your user
name and password here or leave those fields blank and click OK to proceed to the Configuration Manager web
page screen, Figure 3.1.

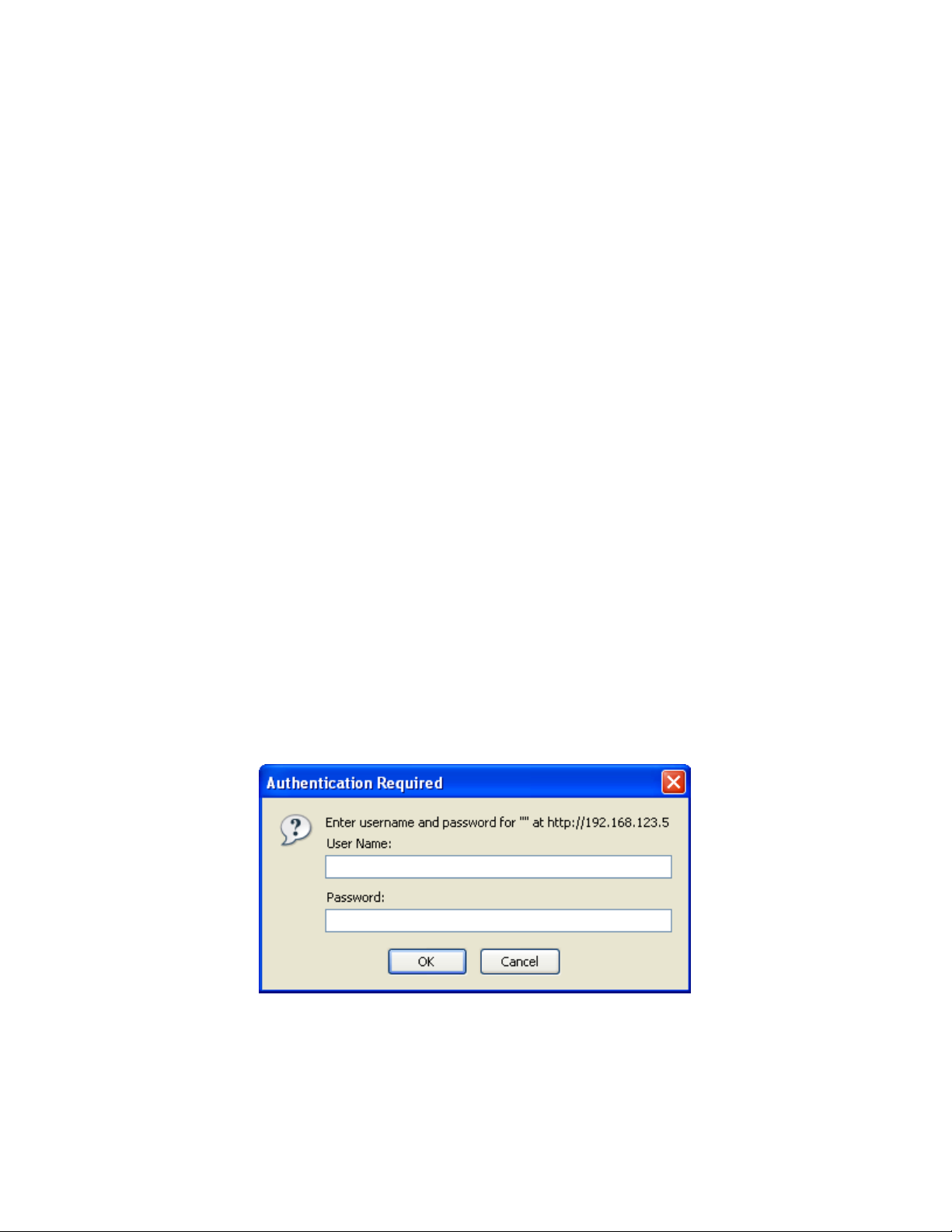

Figure 3.0: Password Screen
2415-x0925 Manual, Rev. E Page 18 08/09/23

Figure 3.1: Configuration Manager Screen
(Example above shows Configuration Manger Screen for Model 2415-40925)
Once logged in, you will be presented with the Configuration Manager web page. In the left frame of the
configuration manager click on Network to display the Network Settings screen. Enter the IP address, Subnet
mask, and Gateway address with delimiter dots (example: 192.168.123.2 (Default)). Click “Apply Settings” in
the left frame to apply the new settings in the network device.
2415-x0925 Manual, Rev. E Page 19 08/09/23

Figure 3.2: Network Settings Web Page Screen
(Example above shows Network Settings Screen for Model 2415-40925)
2415-x0925 Manual, Rev. E Page 20 08/09/23
