Instruction Manual Model 2016-75-213
Downconverter
April 2009 Rev A
MENU
EXECUTE
MODEL 2016
CROSS TECHNOLOGIES INC.
719 to 201 MHZ
G=+10 REF=INT
MUTE
REMOTE
POWER
ALARM
DOWNCONVERTER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

INSTRUCTION MANUAL
MODEL 2016-75-213 Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
1.4 Environmental Use Information 7
2.0 Installation 8
2.1 Mechanical 8
2.2 Rear I/O’s 9
2.3 Front Panel Controls, Indicators 10
2.4 Operation 11
2.5 Menu Settings 12
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2016-75-213, Rev. A Manual Page 2 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

MODEL 2016-75-213 Downconverter
1.0 General
1.1 Equipment Description
The 2016-75-213 Downconverter converts 719 MHz to 201.143 or 213.143 ± 3 MHz with low group delay and
flat frequency response. Synthesized local oscillators (LO) provide output frequency selection. Multi-function
push button switches select the output frequency, gain, and other parameters. Front panel LEDs provide
indication of DC power (green), remote operation (yellow), and PLL alarm (red). Variable attenuators for the
RF input provide a gain range of 0 to +40 dB as adjusted by the front panel multi-function pushbutton switches.
Remote operation allows selection of output frequency and gain. Parameter selection and frequency translation
and gain settings appear on the LCD display. Connectors are Type F female for the RF and BNC female for IF
and optional 10 MHz input and output signals (option -E). A high stability (±0.01ppm) (option -H) is also
available. The unit is powered by a 100-240 ± 10% VAC power supply, and housed in a 1 3/4” X 19“ X 16”
rack mount chassis.
MENU
EXECUTE
MODEL 2016
CROSS TECHNOLOGIES INC.
719 to 201 MHZ
G=+10 REF=INT
MUTE
REMOTE
POWER
ALARM
DOWNCONVERTER
FRONT PANEL
AC
RF OUT
GND
J4
J5
J3
J18
10 MHZ REF
10 MHZ
IF IN
EXT REF
OUTPUT
INPUT
DS7
VDC on RF
J10
AND
MONITOR
CONTROL
1
5
2
3
4
6
7
8
9
REAR PANEL
FIGURE 1.1 Model 2016-75-213 Front and Rear Panels
719
MHz
IN
350 to 750 MHz
BP
CONTROLLER
201 to 719 MHZ
G=+10 REF=INT
IF
BP
LO1
LO2
VAR
ATT
10MHz*
+24VDC*
EXT
10 M*
INT/EXT
10 M
VAR
ATT
1751
201.143
or
213.143
MHz
OUT
Block Diagram
FIGURE 1.2 Model 2016-75-213 Downconverter Block Diagram
2016-75-213, Rev. A Manual Page 3 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1.2 Technical Characteristics
TABLE 1.0 2016-75-213 Downconverter Specifications*
Input Characteristics
Impedance/Return Loss 75 Ω/12 dB (see TABLE 2.2 for connector options)
Frequency 719 MHz ± 3 MHZ
Input Level -60 to -20 dBm
Output Characteristics
Impedance/Return Loss 75 Ω/12 dB (see Table 2.2 for connector options)
Frequency 201.143 or 213.143 ± 3 MHz
Level Range -30 to -20 dBm
Output 1 dB Compression -15 dBm
Channel Characteristics
Gain range (adjustable) 0.0 to +40 dB
Image Rejection <50 db, min.
Frquency Reponse 201.143 or 213.143 ± 3 MHz out; ± 0.5 dB
Spurious Response <-45 dBC, in band
Group Delay, max. 0.01 ns/MHz2parabolic; 0.03 ns/MHz linear; 1 ns ripple
Frequency Sense Non-inverting
Synthesizer Characteristics
Frequency Accuracy ± 1.0 ppm max over temp (± 0.01 ppm option -H) internal reference
Frequency Step 1.0 MHz minimum
10 MHz In/Out Level 3 dBm, ± 3 dB, 75 (option -E)
-110
-95
-80
-70
-70
1MHz
100kHz
10kHz
1kHz
10Hz
dBC/Hz
Phase Noise @ Freq
Controls, Indicators
Frequency/Gain Selection direct readout LCD; manual or remote
Power Green LED
Alarm Red LED
Remote Yellow LED; RS232C (RS485, option -Q), 9600 baud
Other
RF, IF Connector Type F (female) (see TABLE 2.2 for other options)
IF Connector BNC (female) (see TABLE 2.2 for other options)
Ext 10 MHz Conn. (In/Out) BNC (female) (option -E)
Alarm/Remote Connector DB9 - NO or NC contact closure on Alarm
Size 19 inch, 1RU standard chassis 1.75”high X 16.0” deep
Power 100-240 ±10% VAC, 47-63 Hz, 45 watts max
Options Available
E - External 10 MHz ref input & output Connectors/Impedance
H - High Stability Internal Ref (±0.01 ppm) B - 75ΩBNC (RF), 75ΩBNC (IF)
Q - RS485 Remote Interface C - 50ΩBNC (RF), 75ΩBNC (IF)
X - 125 kHz Frequency Steps D - 50ΩBNC (RF), 50ΩBNC (IF)
N - 50ΩN-type (RF), 75ΩBNC (IF)
M - 50ΩN-type (RF), 50ΩBNC (IF)
S - 50ΩSMA (RF), 50ΩBNC (IF)
*+10˚C to +40˚C; Specifications subject to change without notice.
2016-75-213, Rev. A Manual Page 4 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - option -Q)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port
Male DB-9
2015/16/17 M&CPort

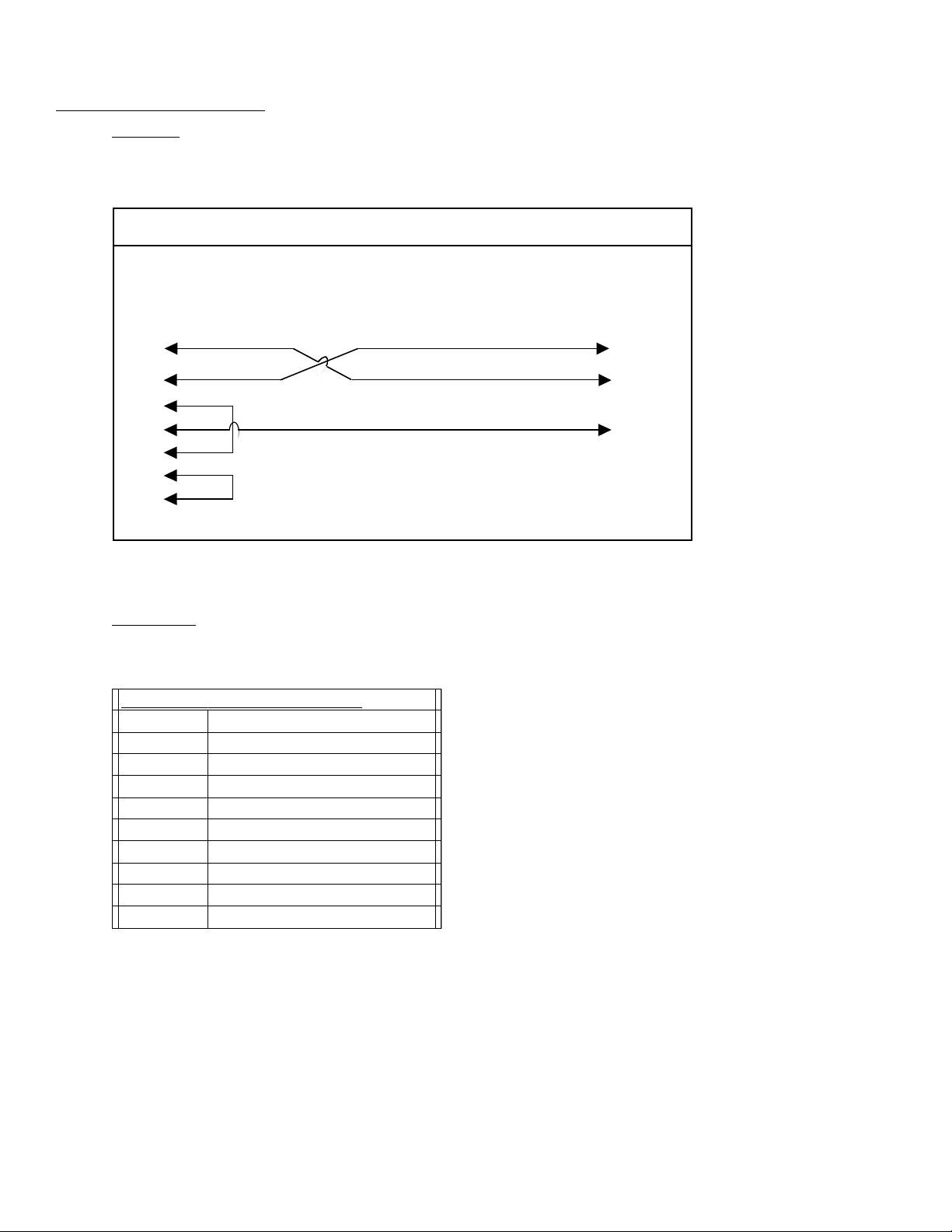

M&C Cable Diagram - Cross Technologies Frequency Converters
Connector: Rear panel, DB-9 male
J10 Pinouts (RS-232C/422/485)
J10 Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4 Tx-
5 GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
2016-75-213, Rev. A Manual Page 5 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

B) Status Requests Table 1.1 lists the status requests for the 2016-75-40 and briefly describes them
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
TABLE 1.1 2016-75-213
STATUS REPORT
STATUS REPORT
Command Syntax * Description
Command Status {aaS1} Returns {aaS1bccAM} where:
• b = 0 if input frequency = 201 MHz
• b = 1 if input frequency = 213 MHz
• cc = Tx gain
• A = 0 - summary alarm
Reference Status {aaS2} Returns {aaS2E} where:
• E = Ext 10MHz Status (1 = on, 0 = off)
C) Commands Table 1.2 lists the commands for the 2016-75-213 and briefly describes them. After a
command is sent the 2016-75-213 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only - option -Q)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Talbe 1.2 2016-75-213 COMMANDS
Command Syntax* Description
Set Input Frequency {aaC1x} where:
• x = 1 characters
• x = 0 for 201 MHz
• x = 1 for 213 MHz
Set Transmit Gain {aaC3xx} • Range: 0 to 40 dB
Set External Reference {aaCEx} where x =
• 0 to disable External 10MHz ref signal
Enable Remote # • 1 to enable External 10MHz ref signal
Disable Remote {aaCR0} Just # sign
{CR and zero}
2016-75-213, Rev. A Manual Page 6 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1.4 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your eqipment rack.
B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated operating ambient temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between unit
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
G. Top Cover - There are no servicable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE RE-INSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2016-75-213, Rev. A Manual Page 7 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.0 Installation
2.1 Mechanical - The 2016-75-213 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by
16 inch deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies.
The 2016-75-213 can be secured to a rack using the 4 holes on the front panel.
Figure 2.0 shows how the 2016-75-213 is assembled.
POWER
SUPPLY

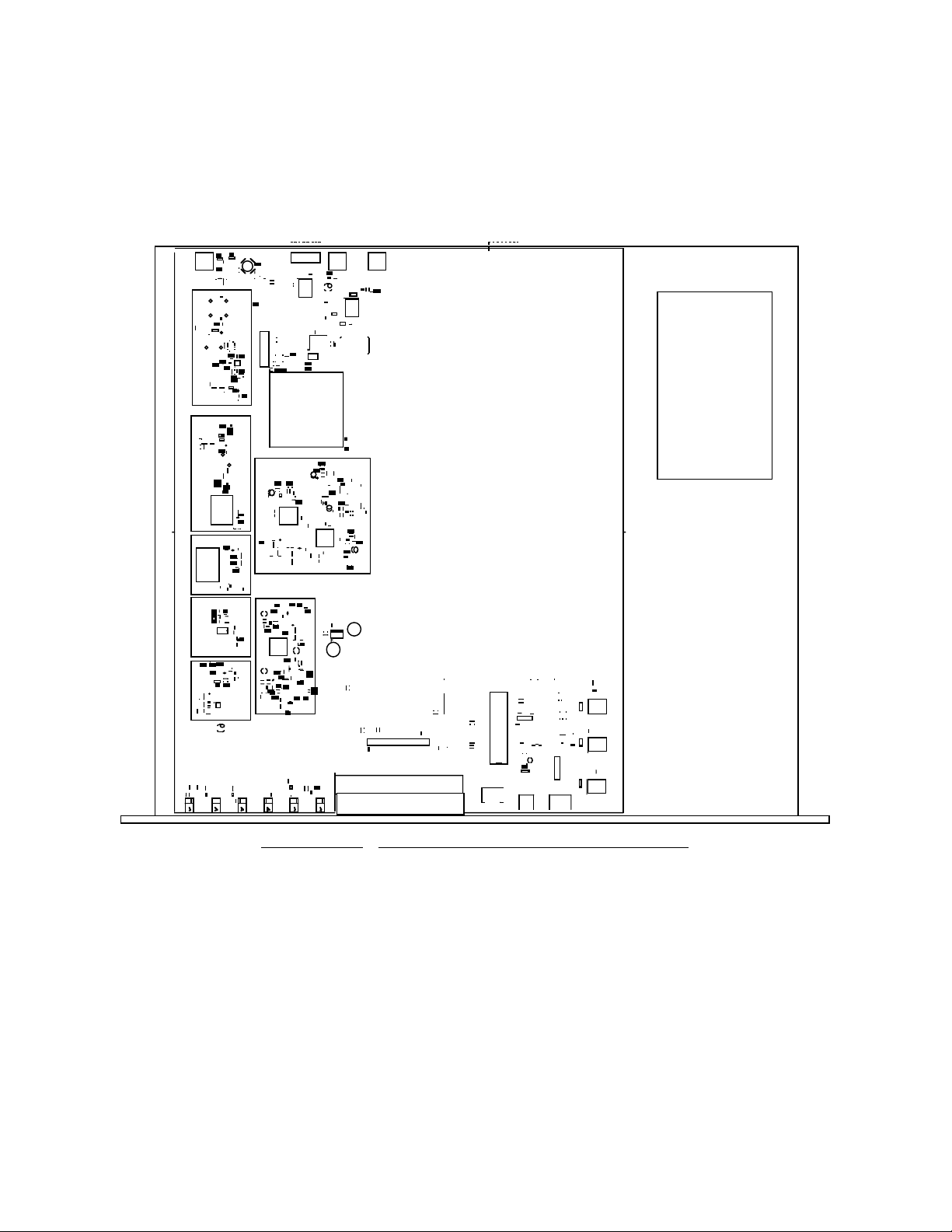

FIGURE 2.0 2016-75-213 Mechanical Assembly
2016-75-213, Rev. A Manual Page 8 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.2 Rear Panel Input/Output Signals - Figure 2.1 shows the input and output connectors on the rear panel.
AC1 - POWER IN
AC input for switching
power supply.
100-240 ±10% VAC,
47-60 Hz.
J10 - MONITOR AND CONTROL
DB9 female connector. see Table 2.1.
J3 - 10 MHz EXT REF INPUT (Option -E)
10 MHz external reference input, 3 ± 3 dBm, 75
ohms, BNC female connector.
AC
GND
J18
10 MHZ REF
OUTPUT
J10
AND
MONITOR
CONTROL
RF OUT
J4
J5
J3
10 MHZ
IF IN
EXT REF
J5 - RF OUT
250-750 MHz,
0 to -20 dBm output
see Table 2.2.
J4 - IF IN
70 MHz,
-10 to -40 dBm input
see Table 2.2.
DS7
VDC on RF
INPUT
DS7 - SSPB ALARM LED (option -V)
Lights yellow when +24 VDC SSPB
voltage is present on RF OUT, J5,
center pin.
J18 - 10 MHz REF OUTPUT (option -E)
10 MHz reference output. 75ΩBNC
female connector.
1
5
2
3
4
6
7
8
9
FIGURE 2.1 2016-75-213 Rear Panel I/Oʼs
TABLE 2.1 J10 Pinouts (RS-232C/422/485*)
TABLE 2.1 J10 Pinouts (RS-232C/422/485*)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4 Tx-
5 GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
*Remote Serial Interface
Interface: DB-9 Male
Protocol: RS-232C (RS-232C/422/485 option -Q), 9600 baud rate, no parity,
8 data bits, 1 start bit, 1 stop bit.
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
Option IF RF
STD BNC, 75ΩType F, 75Ω
-B BNC, 75ΩBNC, 75Ω
-C BNC, 75ΩBNC, 50Ω
-D BNC, 50ΩBNC, 50Ω
-N BNC, 75ΩType N, 50Ω
-M BNC, 50ΩType N, 50Ω
-S BNC, 50ΩSMA, 50Ω
2016-75-213, Rev. A Manual Page 9 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.3 Front Panel Controls and Indicators -The following are the front panel controls and indicators.
MENU
EXECUTE
719 to 213 MHz
G=+10 REF=INT
REMOTE
POWER
LCD DISPLAY
Display shows frequency in MHz
and Gain in dB
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function
in the normal display mode
ALARM
DS2 - UP ALARM LED
Red LED indicates
upconverter alarm.
FIGURE 2.2 2016-75-213 Front Panel Controls and Indicators
2016-75-213, Rev. A Manual Page 10 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.4 Installation / Operation
2.4.1 Installing and Operating the 2016-75-213, Upconverter Section
1. Connect a -10 dBm to -40 dBm signal to IF In, J4 (Figure 2.1)
2. Connect the RF OUT, J5, to the external equipment
3. Connect 100-240 ± 10% VAC, 47 - 63 Hz to AC1 on the back panel.
4. Set the desired output frequency (See Section 2.5 Menu Settings).
5. Set the input level (See Section 2.5 Menu Settings).
6. Set the gain for -10 to +30 dB. Make sure the output stays within -20 to 0 dBm with the gain selected
and the input level provided. The firmware will prevent setting gain and input level outside this range.
(See Section 2.5 Menu Settings).
7. Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).
8. Option -V only - To insert SSPB +24 VDC on the RF center pin install 2.5A fast blo fuse in F2 and
check that DS7 lights yellow (Figure 2.1)

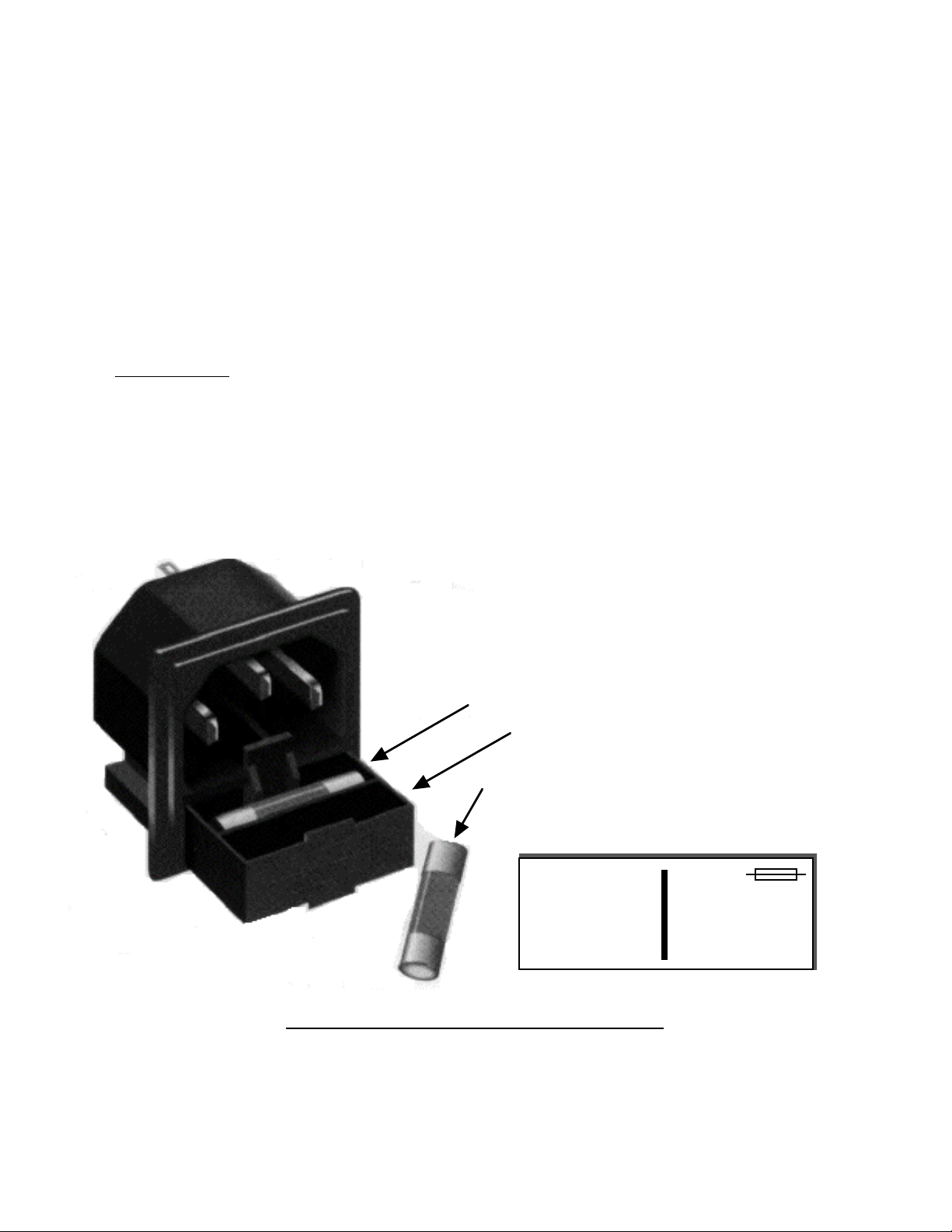

9. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in the
drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a fuse
continues to open, the power supply is most likely defective.
FUSE DRAWER
SPARE FUSE DRAWER
AC Fuse - 2 amp slow blow (Type T 2A GDC),
5 mm X 20 mm
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.3 Fuse Location and Spare Fuse
2016-75-213, Rev. A Manual Page 11 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.4):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Gain
Menu 3 Select External 10 MHz
Menu 4 Set Remote
Menu 5 Remote Mode (Option Q)
Menu 6 RS-485 Address (Option Q)
Menu 7 Save Changes
Alarm indications appear on the LEDs (see figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2016-75-213, Rev. A Manual Page 12 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.5.2. Power On Settings
NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED.
WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The software version will be displayed.
R E V 1 . 0 0
3. The present frequency and gain of the upconverter is shown.
719 to 201
G = +10 REF=INT
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing
the Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the
cursor left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency , gain changes, the vertical movement will raise or lower the
number in the direction of the arrows.
b. For other functions such Mute on/off, the vertical switch will alternately turn the
function on or off regardless of the direction operated.
2016-75-213, Rev. A Manual Page 13 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds, and
the system will return to the normal operating mode or scroll to “R” and push the Menu/Execute switch and
select “NO” in the “SAVE SETTINGS?” window.
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
When the display indicates the value desired you can push the
Menu/Execute switch to the next item:
719 to 201
G = +10 REF=INT
OR you can scroll to “R”, push the
Menu/Execute switch to get to:
S A V E S E T T I N G S ? Y N
Selecting Ywill save the new settings.
Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
719 to 201
G = +10 REF=INT
Figure 2.4 gives the menu items and how to make changes
2016-75-213, Rev. A Manual Page 14 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
NOTE: CHANGES TAKE PLACE ON LEVEL AND GAIN IMMEDIATELY BUT DO NOT GET
SAVED UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE
CHANGES.
Press the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute switch to
get to the Gain setting:
G A I N = + 2 0R
Pressing the Up/Down switch to change the gain in 1 or 10 dB steps and then push the Menu/Execute
switch to get to the Gain setting:
G A I N = + 2 0R
By using the horizontal rocker switch the cursor can be moved left or right .
Pressing the Up/Down switch down will toggle the display digit selected until you have the desired gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW.
When the display indicates the value desired you can push the
Menu/Execute switch to the next item OR you can scroll to “R”,
push the Menu/Execute switch to get to:
S A V E S E T T I N G S ? Y N
Selecting Ywill save the new settings.
Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
719 to 201
G = +10 REF=INT
Figure 2.4 gives the menu items and how to make changes
2016-75-213, Rev. A Manual Page 15 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.5.5 Alarm Indications
An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock.
The Mute LED will light if you select Mute and the Remote LED will light when you select the Remote mode.
ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
719 to 213 MHz
G = +10 REF=INT
719 to 213 MHz
EXT REF OFF
SAVE SETTINGS?
SCROLL <>
SCROLL PUSH BUTTON
SCROLL <>
SCROLL PUSH BUTTON
Power Up
Normal Display
Menu 1 Frequency in MHZ
Menu 2 Gain (-10.0 to +20.0)
Menu 3 Select External
10MHz Ref (option -E
Menu 4 Set Unit to
Remote Operation
Menu 5 Save Settings
G = +10
SCROLL <>
SCROLL PUSH BUTTON
REMOTE OFF
R
R
Y N
R
R
FIGURE 2.4 Menu Display and Sequences
2016-75-213, Rev. A Manual Page 16 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2016-75-213, Rev. A Manual Page 17 4/16/09
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group is your source for quality
new and certied-used/pre-owned equipment
• FAST SHIPPING AND
DELIVERY
• TENS OF THOUSANDS OF
IN-STOCK ITEMS
• EQUIPMENT DEMOS
• HUNDREDS OF
MANUFACTURERS
SUPPORTED
• LEASING/MONTHLY
RENTALS
• ITAR CERTIFIED
SECURE ASSET SOLUTIONS
SERVICE CENTER REPAIRS
Experienced engineers and technicians on staff
at our full-service, in-house repair center
WE BUY USED EQUIPMENT
Sell your excess, underutilized, and idle used equipment
We also offer credit for buy-backs and trade-ins
www.artisantg.com/WeBuyEquipment
REMOTE INSPECTION
Remotely inspect equipment before purchasing with
our interactive website at www.instraview.com
LOOKING FOR MORE INFORMATION?
Visit us on the web at www.artisantg.com for more
information on price quotations, drivers, technical
specications, manuals, and documentation
Contact us: (888) 88-SOURCE | [e-mail] | www.artisantg.com
SM
View
Instra
