Cross Technologies 2015-26 User manual

Instruction Manual Model 2015-26
Upconverter
December 2010 Rev. 0
MENU
EXECUTE
MODEL 2015
CROSS TECHNOLOGIES INC.
F=2475 G=+10.0
MUTEREMOTE POWER ALARM
UPCONVERTER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 2015-26 Upconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
1.4 Environmental Use Information 8
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear Panel Inputs & Outputs 10
2.3 Front Panel Controls & Indicators 11
2.4 Operation 12
2.5 Menu Settings 14
2.6 Availabe Options 18
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies,
Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies,
Inc. shall not be liable for any special, indirect, or consequential damages. This warranty
does not cover parts or equipment which have been subject to misuse, negligence, or
accident by the customer during use. All shipping costs for warranty repairs will be
prepaid by the customer. There are not other warranties, express or implied, except as
stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2015-26 Manual, Rev. 0 Page 2 12/09/10

MODEL 2015-26 Upconverter
1.0 General
1.1 Equipment Description
The 2015-26 Upconverter converts 140 ± 36 MHz to 2000 to 2500 MHz in 1.0 MHz steps (0.5 MHz steps
optional) with low group delay and flat frequency response. Synthesized local oscillators (LO) provide
frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters.
Front panel LEDs provide indication of DC power (green), PLL alarm (red), Remote operation (yellow) or the
TX carrier is Muted (yellow). Variable attenuators for the IF input and output provide a gain range of -10 to +30
dB as adjusted by the front panel multi-function pushbutton switches. Remote operation allows selection of
frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display.
Connectors are BNC female for IF input, external reference input, and RF output. The 2015-26 is powered by a
100-240 ± 10% VAC power supply, and is housed in a 1 3/4” X 19” X 16” rack mount chassis.
MENU
EXECUTE
MODEL 2015
CROSS TECHNOLOGIES INC.
F=2475 G=+10.0
MUTEREMOTE POWER ALARM
UPCONVERTER
FRONT PANEL
AC
RF OUT
GND
J4 J5J3J18
10 MHZ REF 10 MHZ IF IN
EXT REF
OUTPUT INPUT
J10
AND
MONITOR
CONTROL
15 234 6789
REAR PANEL
FIGURE 1.1 Model 2015-26 Front and Rear Panels
FIGURE 1.2 Model 2015-26 Upconverter Block Diagram
2015-26 Manual, Rev. 0 Page 3 12/09/10
2.0
to
2.5
GHz
OUT
140
MHz
IN
1.0 to 2.8 GHz
BP
CONTROLLER F=2475 G=+10.0
1750 MHz
BP
1820
MHz
3.8
to
4.3
GHz
var
atten
EXT
10MHz*
*OPTIONAL
var
atten
INT
10MHz

1.2 Technical Characteristics
TABLE 1.0 2015-26 Upconverter Specifications*
Input Characteristics
Impedance/Return Loss 75 /18 dB
Frequency 140 ± 36 MHZ
Input Level -40 to -10 dBm
Output Characteristics
Impedance/Return Loss 50 /12 dB
Frequency 2000 to 2500 MHz
Output level 0 to -20 dBm
Output 1 dB compression +5 dBm
Channel Characteristics
Gain range (adjustable) -10 to +30.0 dB
Spurious Response <-45 dBC
Frequency Response ± 1.5 dB, 2000 - 2500 MHz; ± 1.0 dB, 36 MHz BW
Group Delay, max .0035 ns/MHz2parabolic; 0.025 ns/MHz linear; 1 ns ripple
Frequency Sense Non-inverting
Synthesizer Characteristics
Frequency Accuracy ± 1.0 ppm internal ref (± 0.01 ppm, option H)
Frequency Step 1.0 MHz (0.5 MHz, option 5; 125kHz, option X)
10 MHz Level (In/Out) +3 dBm ± 3 dB (option E)
-105-95-80-70-70
1MHz100kHz10kHz1kHz100 Hz
dBC/Hz
Phase Noise
@
Fre
q
Controls, Indicators
Frequency Selection direct readout LCD; pushbutton switches or remote selection
Gain Selection direct readout LCD; pushbutton switches or remote selection
Power Green LED
Alarm Red LED
Remote Yellow LED; RS232C, 9600 baud (RS485, option Q)
Mute Yellow LED
Other RF Connector BNC (female), 50
IF Connector BNC (female), 75
Ext 10 MHz BNC (female), 50/75(option E)
Connector, Alarm, Remote DB9 - NO or NC contact closure on Alarm
Size 19 inch, 1RU standard chassis 1.75”high X 16.0” deep
Power 100-240 ±10% VAC, 47-63 Hz, 45 watts max
Options
Available Options See SECTION 2.6, page 18
Connector options See TABLE 2.2, page 10
*+10˚C to +40˚C; Specifications subject to change without notice.
2015-26 Manual, Rev. 0 Page 4 12/09/10

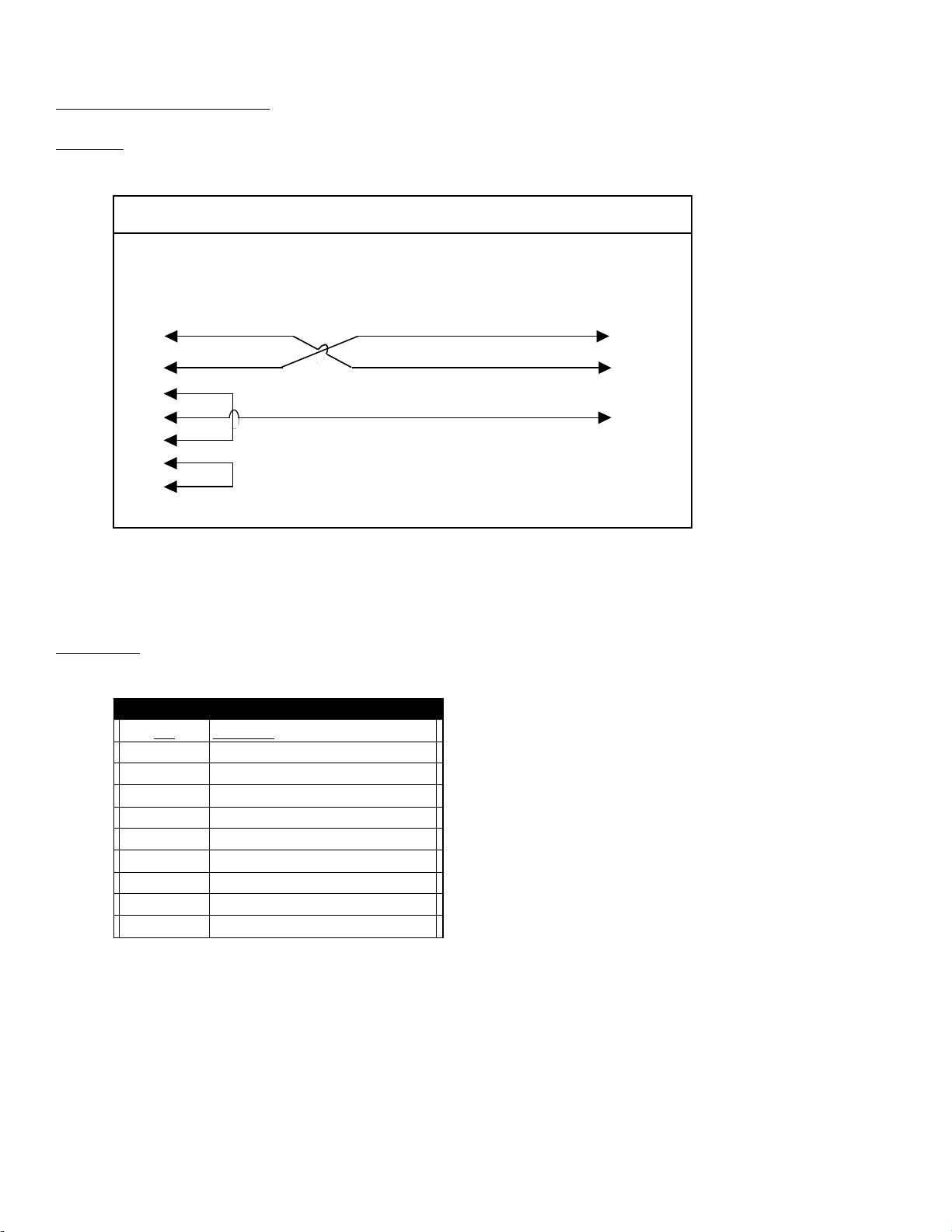

1.3 Monitor and Control Interface
A) Remote Serial Interface
Protocol - RS-485, RS-422 or RS-232C (selectable), 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port Male DB-9
2015/16/17 M&C Port
M&C Cable Diagram - Cross Technologies Frequency Converters
RX RX
TX TX
DTR
SG
DSR
RTS
CTS
SG
Connector: Rear panel, DB-9 male.
J10 Pinouts
Pinouts (RS-232C/422/485)
Pin Function
1Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8NotUsed
9 Alarm Relay: Normally Closed
2015-26 Manual, Rev. 0 Page 5 12/09/10

B) Status Requests - Table 1.1 lists the status requests for the 2015-26 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.1 2015-26 Status R
e
equests
Requests
Command Syntax* Description
Command Status {aaS1} Returns {S1bbbbcccccddAM} where:
• bbbb = Tx frequency (MHz)
4 characters - standard (7 characters - Option-X)
• Standard 1 dB step format: ccc = Tx gain (-10 to +30)
• Z OPTION (0.1 dB steps): cccc = Tx gain (-100 to +300)
• dd = Tx input level (10 to 40 => -10 to -40)
• A = 0 if no alarm, 1 if summary alarm)
• M = Tx RF Status (1 = Normal, 0 = Muted)
Command Status {aaS2} Returns {S2E} where:
• E = Ext 10MHz Status (1 = on, 0 = off)
2015-26 Manual, Rev. 0 Page 6 12/09/10

C) Commands Table 1.2 lists the commands for the 2015-26 and briefly describes them. After a command is
sent the 2015-26 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only - option Q)
C = 1 character, either C (command) or S (status)
N = 1-digit command or status number, 1 through 9
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 2015-26 Commannds
Commands
Command Syntax* Description
Set Transmitter Frequency {aaC1xxxx} where:
• xxxx = 4 characters standard (7 characters -Option-X)
• Range: 2000 to 2500 MHz
Set Input Level {aaCIxx} where:
• xx = 2 characters
• Range: 10 to 40 (-10 to -40 dBm, in 1 dB steps)
Set Transmit Gain {aaC3xxxx} where:
• Standard 1 dB step format:
- xxx = 2 char (0 to 30dB), or 3 char (-10 to -01dB) if neg.
- Range: -100 to 300 (-10.0 dB to +30.0 dB, in 0.1 dB steps)
• Z OPTION (0.1 dB steps):
- xxxx = 3 char (0 to 300dB), or 4 char (-100 to -001dB) if neg.
- Range: -100 to 300 (-10.0 dB to +30.0 dB, in 0.1 dB steps)
Enable Tx {aaCAx} where x =:
• 0 to disable Tx signal
• 1 to enable Tx signal
Enable External 10MHz {aaCEx} where x =:
• 0 to disable External 10MHz ref signal
• 1 to enable External 10MHz ref signal
Enable Remote # Just # sign
Disable Remote {aaCR0} {CR and zero}
2015-26 Manual, Rev. 0 Page 7 12/09/10

1.4 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between unit
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2015-26 Manual, Rev. 0 Page 8 12/09/10

2.0 Installation
2.1 Mechanical - The 2015-26 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16
inch deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2015-
26 can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2015-26 is
assembled.
POWER
SUPPLY
FIGURE 2.1 2015-26 Mechanical Assembly
2015-26 Manual, Rev. 0 Page 9 12/09/10

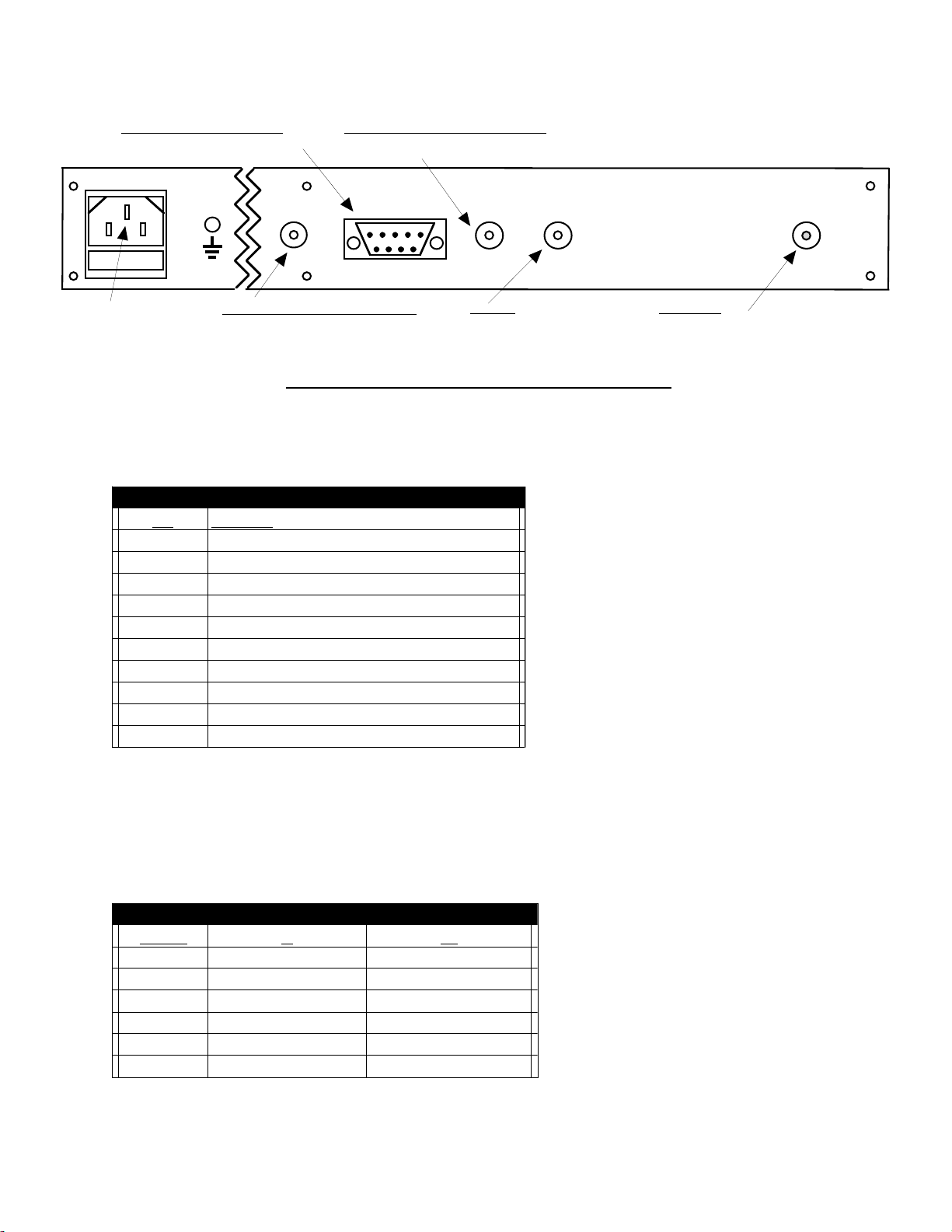

2.2 Rear Panel Input/Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.
AC
GND
J18
10 MHZ REF
OUTPUT
J10
AND
MONITOR
CONTROL
J10 - MONITOR AND CONTROL
DB9 female connector. See Table 2.1.
RF OUT
J4 J5J3
10 MHZ IF IN
EXT REF
J3 - 10 MHz EXT REF INPUT (Option -E)
10 MHz external reference input, 0 ± 3 dBm,
75 ohms, BNC female connector.
J5 - RF OUT
2000-2500 MHz output, -20 to 0 dBm out,
See Table 2.2.
J4 - IF IN
140 MHz input,
-10 to -40 dBm in,
See Table 2.2.
INPUT
J18 - 10 MHz REF OUTPUT (option -E)
10 MHz reference output.
75BNC female connector.
15 234
678
9
FIGURE 2.2 2015-26 Rear Panel I/Os
TABLE 2.1 JJ10
J10 Pinouts (RS-232C/422/485*)
Pin Function
1Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8NotUsed
9 Alarm Relay: Normally Closed
*Remote Serial Interface
Interface: DB-9 Male
Protocol: RS-232C (RS-232C/422/485 option Q), 9600 baud rate, no parity, 8 data bits, 1 start
bit, 1 stop bit.
TABLE 2.2
I
IF/RF
IF/RF Connector Optionns
Options
Option IF RF
STD BNC, 75BNC, 50
-B BNC, 75BNC, 75
-D BNC, 50BNC, 50
-N BNC, 75Type N, 50
-M BNC, 50Type N, 50
2015-26 Manual, Rev. 0 Page 10 12/09/10

2.3 Front Panel Controls and Indicators - The following are the front panel controls and indicators.
MENU
EXECUTE
F=2475 G=+10.0
MUTEREMOTE POWER
LCD DISPLAY
Display shows frequency
in MHz and Gain in dB.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in
the normal display mode.
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode.
ALARM
DS5 - UP MUTE LED
Yellow LED indicates
upconverter mute.
DS2 - UP ALARM LED
Red LED indicates
upconverter alarm.
FIGURE 2.3 2015-26 Front Panel Controls and Indicators
2015-26 Manual, Rev. 0 Page 11 12/09/10

2.4 Operation
2.4.1 Installing and Operating the 2015-26 Upconverter
1. Connect a -10 dBm to -40 dBm signal to IF In, J4 (Figure 2.2)
2. Connect the RF OUT, J5, to the external equipment
3. Connect 100-20 ±10% VAC, 47 - 63 Hz to AC1 on the back panel.
4. Set the desired output frequency (See Section 2.5 Menu Settings).
5. Set the input level (See Section 2.5 Menu Settings).
6. Set the gain for -10 to +30 dB. Make sure the output stays within -20 to 0 dBm with the gain selected
and the input level provided. The firmware will prevent setting gain and input level outside this range.
(See Section 2.5 Menu Settings).
7. Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3).
8. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in the
drawer below the AC input as shown in Figure 2.4. There is a spare fuse in the near slot. If a fuse
continues to open, the power supply is most likely defective.

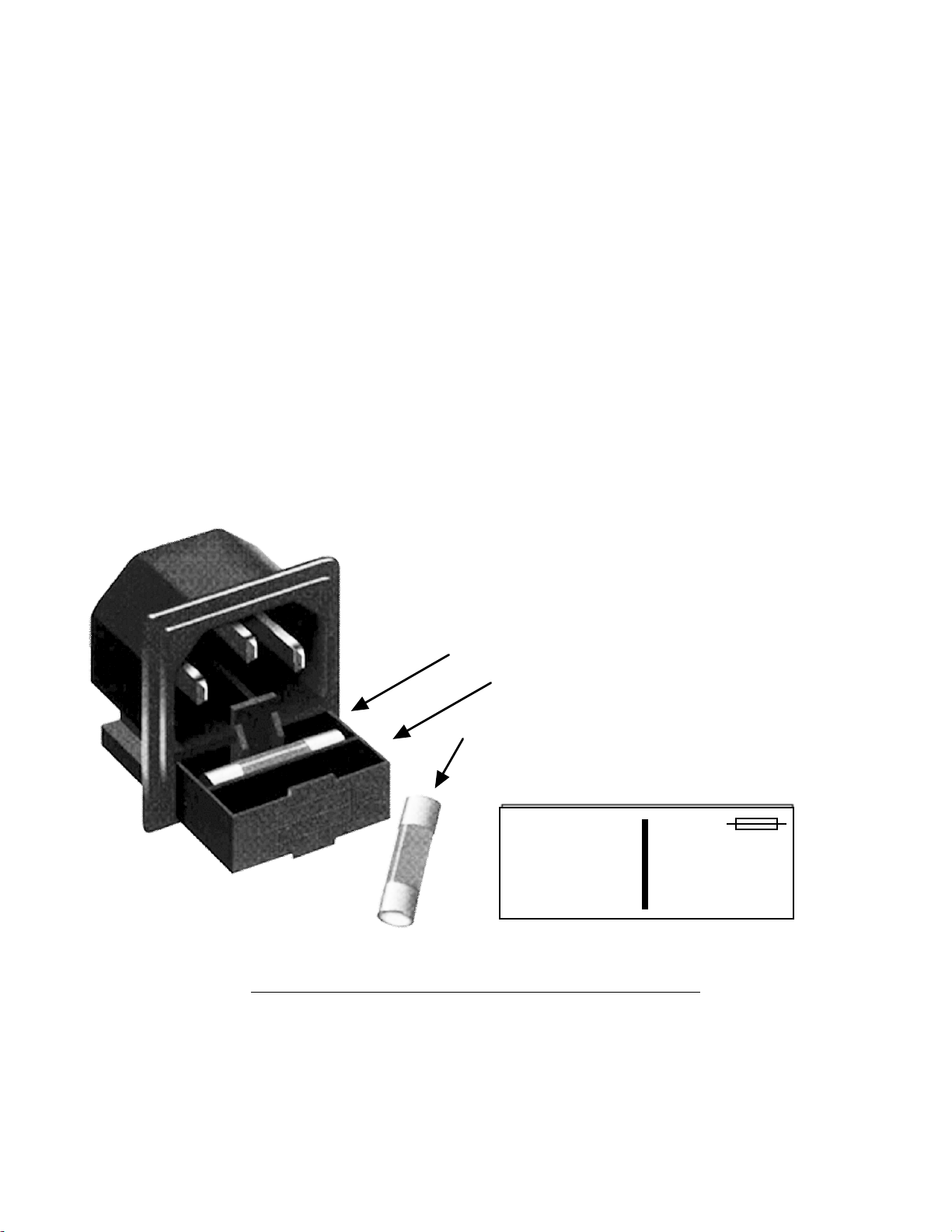

FUSE DRAWER
SPARE FUSE DRAWER
AC Fuse - 2 amp slow blow (Type T 2A GDC),
5 mm X 20 mm
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.4 Fuse Location and Spare Fuse
2015-26 Manual, Rev. 0 Page 12 12/09/10

2.5 Menu Settings
2.5.1 Functions
This section describes operation of the front panel controls. There are three operator switches, the LCD
display and alarm indicator LEDs. All functions for the equipment are controlled by these components.
The functions are (See Figure 2.5):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Input Lvl (Set from -40 to -10)
Menu 3 Gain (-10 to +30)
Menu 4 Mute
Menu 5 Set Unit to Remote Operation (NOTE: the local controls still function when in REMOTE)
Menu 6 Select External 10 MHz Ref (option E)
Menu 7 Set Remote Mode (option Q)
Menu 8 Set RS-485 Address (option Q)
Save Menu When “R” is selected or at the end
Alarm indications appear on the LEDs (See figure 2.3).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2015-26 Manual, Rev. 0 Page 13 12/09/10

2.5.2 Power On Settings
NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED.
WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1.The LCD goes black to show all segments are functioning.
2.The software version will be displayed.
REV 1.00
3.The present frequency and gain of the upconverter is shown.
F=2350 G=+10.0
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left or
right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency, gain changes, the vertical movement will raise or lower the number in the
direction of the arrows.
b. For other functions such Mute on/off, the vertical switch will alternately turn the function on or off
regardless of the direction operated.
2015-26 Manual, Rev. 0 Page 14 12/09/10

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch and
select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change. See Figure 2.5 for
the sequence of menu options. The following display is for changing the upconverter frequency:
F = 2350 R
Pressing the Up/Down switch down will toggle the display to:
F = 2450 R
By using the horizontal rocker switch the cursor can be moved left or right.
F = 2450 R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.THE CARRIER IS MUTED WHEN
FREQUENCY IS CHANGED.
When the display indicates the value desired you can push the Menu/Execute switch to the next item:
INLVL = -20R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to this:
F=2450 G=+10.0
Figure 2.5 gives the menu items and how to make changes.
2015-26 Manual, Rev. 0 Page 15 12/09/10

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
The following display is for changing the upconverter input level. This is an important setting to
optimize spurious and should be made as accurately as possible:
INLVL = -20R
NOTE: CHANGES TAKE PLACE ON LEVEL AND GAIN IMMEDIATELY BUT DO NOT GET
SAVED UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE
CHANGES.
Pressing the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute
switch to get to the Gain setting:
G = +10 R
Pressing the Up/Down switch to change the gain in 1 or 10 dB steps and then push the Menu/Execute
switch to get to the Gain setting:
G = +20 R
By using the horizontal rocker switch the cursor can be moved left or right .
Pressing the Up/Down switch down will toggle the display digit selected until you have the desired
gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW.DO NOT SET A GAIN THAT WOULD EXCEED 0 dBm OR HAVE LESS THAN -20 dBm
OUTPUT LEVEL. THE FIRMWARE PREVENTS YOU FROM THIS.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to this:
F=2450 G=+20.0
Figure 2.5 gives the menu items and how to make changes.
2015-26 Manual, Rev. 0 Page 16 12/09/10

2.5.5 Alarm Indications
An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock.
The Mute LED will light if you select Mute and the Remote LED will light when you select the Remote mode.
ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F = 2450 G = +10.0
F = 2450
SCROLL <>
SCROLL
PUSH BUTTON
REMOTE OFF
UP MUTE OFF
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up
Normal Display
Menu 1 Frequency
Menu 2 Input Level
(Set from -40 to -10)
Menu 3 Gain (-10.0 to +30.0)
Menu 4 Up Mute
Menu 5 Set Unit to
Remote Operation
Menu 6 Select External 10 MHz
Reference (option E)
Menu 7 Set Remote Mode
(option Q)
Menu 8 Set RS-485 Address
(option Q)
Save? When “R” is selected or at the
end of menu selections
UP INLVL = -20
G = +10.0
SCROLL <>
SCROLL
PUSH BUTTON
SAVE SETTINGS?
SCROLL <>
PUSH BUTTON
R
R
R
R
R
RS 485 OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
ADDRESS = 00
SCROLL <>
SCROLL
PUSH BUTTON
R
EXT REF OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
Y N
FIGURE 2.5 Menu Display and Sequence
2015-26 Manual, Rev. 0 Page 17 12/09/10

2.6 Available Options (Models: 2015-XX, 2016-XX & 2017-XX)
LNB Voltage + 24 VDC, 0.4 Amps, for 2016-XX Downconverter.
2015-XX
2016-XX
L
External 10 MHz reference input for IF to UHF-, S-, C-, Ku- Agile Frequency Converters.
2015-XX
2016-XX
E/2
Connectors, 75 F-type RF, 75 F-type IF, for 2015-XX & 2016-XX Frequency Converters.2015-XX
2016-XX
F
Option PWR - Provides +15 dB Output @ 1 dB Compression for 2015-XX L-band Upconverter.
50 Ohm Connectors ONLY.
2015-XX
2016-XX
PWR
Option P48 – ±48 VDC Power Supply, for 2015, 2016 & 2017 Frequency Converters;
2115-XX & 2016-XX Block Converters.
2015-XX
2016-XX
P48
Option P24 – ±24 VDC Power Supply, for 2015, 2016, & 2017-XX Frequency Converters;
and 2115-XX & 2016-XX Block Converters.
2015-XX
2016-XX
P24
Connectors: RF = N/50 Ohm , IF = F/75 Ohm, for 2015 & 2016-XX Frequency Converters.2015-XX
2016-XX
NF
Connectors: N-type, 50 Ohm RF & BNC 75 Ohm IF; 2015 & 2016-XX Frequency Converters.
2015-XX
2016-XX
N
Connectors: N-type, 50 Ohm RF & BNC 50 Ohm IF; 2015 & 2016-XX Frequency Converters.2015-XX
2016-XX
M
Connectors, 75 BNC RF, 50 Ohm BNC IF, for 2015 & 2016-XX Frequency Converters.2015-XX
2016-XX
K
JConnectors, 75 F-type RF, 50 Ohm BNC IF, for 2015 & 2016-XX Frequency Converters.2015-XX
2016-XX
Spectrum Inversion for 2015-XX Upconverters or 2115-XX Block Upconverters.2015-XX
2016-XX
I
High Stability (± 0.01 ppm) internal reference, for 2015 , 2106, & 2017-XX
frequency converters and 2083-714A/-914A IF Translators.
2015-XX
2016-XX
2017-XX
H
External 10 MHz reference input, also supports insertion of either internal or external
10 MHz source on RF, models 2015-XX & 2016-XX Up & Downconverters.
2015-XX
2016-XX
E
All RF & IF Connectors, 50 Ohm BNC, 2015-XX & 2016-XX.2015-XX
2016-XX
D
CE Certification Compliance, Documentation & Labeling for 2015-XX, 2016-XX and
2017-XX frequency converters and 2115-XX & 2116-XX block converters.
2015-XX
2016-XX
2017-XX
CE-Cert
2015-XX
2016-XX Connectors, IF - 75 Ohm BNC, RF - 50 Ohm BNC for 2015-XX & 2016-XX Frequency Converters.
C
2015-XX
2016-XX Bandpass Filter Option #1, highly selective elliptic function bandpass filter with multiple all pass delay equalizers.
BPF-1
Connectors: All RF & IF Connectors, 75 Ohm BNC, (2015-XX & 2016-XX).
2015-XX
2016-XX
B
Provides Automatic Gain Control (AGC) capability for 50 to 200 MHz Output via an add-on PCB
On-board SMA connectors allow insertion of bandpass filters (Option BPF-#) if required.
2015-XX
2016-XX
AGC/2
Provides Automatic Gain Control (AGC) capability on 70 MHz Output on
2016-XX IF Downconverter.
2016-XX AGC
Option Description
Available
Product(s)
Option
Table 2.6.A Options Document
2015-26 Manual, Rev. 0 Page 18 12/09/10

Redundant Power Supply, for 2015, 2016 & 2017-XX Frequency Converters.
NOT AVAILABLE on units with SSPB Power Option (Option V).
2015-XX
2016-XX
2017-XX
R
RS485/RS422 Remote Interface, for 2015, 2016, & 2017-XX Frequency converters.
2015-XX
2016-XX
2017-XX
Q/2
RS485/RS422 Remote Interface, for 2017-XX Frequency converters.
2015-XX
2016-XX
2017-XX
Q
Connectors: RF - SMA 50 Ohm; IF BNC 75 Ohm for 2015 & 2016 Up or Downconverters
OR 2115-XX and 2116-XX BLOCK Up or Downconverters.
2015-XX
2016-XX
S7
Connectors: RF=SMA/50 Ohm, IF=SMA/50 Ohm for ALL L-, C-,
and Ku-band Frequency Converters.
2015-XX
2016-XX
SS
Ethernet M & C Remote Interface, for 2015, 2016, & 2017-XX Frequency converters.
2015-XX
2016-XX
2017-XX
W8
Front Panel, RF & IF Test/Monitor Ports for 2015 & 2016-XX Up or Downconverters;
Connectors RF - SMA 50 Ohms, IF - BNC 50 Ohms.
2015-XX
2016-XX
W7
Optional Reference Oscillator Adjustment, rear panel, screw adjust for 2015 & 2016-XX
Up or Downconverters.
2015-XX
2016-XX
W5
3 MHz bandwidth SAW Filter for 2015 & 2016-XX Up or Downconverters.2015-XX
2016-XX
W4
W1 Level Detection for 2016-25 Downconverter.2015-XX
2016-XX
SSPB Voltage, +48 VDC. 1.25 Amps, 65 Watts, for 2015-XX Upconverters.2015-XX
2016-XX
V46
SSPB Voltage, +48 VDC. 2.10 Amps, 100 Watts, for 2015-XX Upconverters.
2015-XX
2016-XX
2017-XX
V41
Temperature Sensor, for 2017-XX Up/Downconverter.
T2015-XX
2016-XX
2017-XX
Integrated RF Switch, designed to switch between Low and High RF Inputs based on selecte
d
RF Frequency from Front Panel LCD menu or Remote M&C interface.
2015-XX
2016-XX
SW1
Integrated RF Switch with Remote RS485/RS522 control to enable remote switching of
RF Output from RF A to RF B Outputs.
2015-XX
2016-XX
SW
2015-XX
2016-XX Integrated 2 x 1 splitter to provide dual, simultaneous IF Outputs.SP
2015-XX
2016-XX Connectors: RF = all SMA, 50 Ohm , IF = all BNC 50 Ohm; 2115-XX & 2116-XX
Frequency Converters.
S
Option Description
Available
Product(s)
Option
Table 2.6.B Options Document - Continued
2015-26 Manual, Rev. 0 Page 19 12/09/10

100 KHz Step Size for 2015-XX, 2016 -XX and 2017-XX Frequency Converters.2015/16/17-XXX1
Option X - 125 KHz Step Size for 2015-XX or 2016 -XX Frequency Converters.2015-XX
2016-XX
X
Front Panel Disable for Series 2015/2016 & 2017-XX Frequency Converters.
Provides the ability to Disable the Front Panel Interface via the Remote Interface
and to ONLY configure, monitor and control the unit via the Remote Interface.
2015-XX
2016-XX
2017-XX
W10
Ethernet M & C Remote Interface With SNMP, for 2015, 2016, & 2017-XX
Frequency converters and 1582/2582-XXX Protection Switches.
2015-XX
2016-XX
W18
Front Panel, IF Test/Monitor Ports for 2015-XX Upconverters w/25 dB Gain,
Max Output +5 dBm; Connector IF - BNC 50 Ohms.
2015-XX
2016-XX
W17
Individual Test Data per unit. For Frequency Converters and/or Protection Switches.
2015-XX
2016-XX
2017-XX
W16
Power ON/OFF Switch, Rear Panel Mounted.
2015, 2016, & 2017 L-band Frequency Converters.
2015-XX
2016-XX
2017-XX
W15
REAR Panel, LO1 (SMA Connector) Test Port for 2016-XX Downconverters.2015-XX
2016-XX
W13
REAR Panel, LO1 (SMA Connector) and LO2 (BNC Connector) Test Ports for
2015-XX Upconverters.
2015-XX
2016-XX
W12
500 KHz Frequency Step for 2015-26 Upconverter.2015-XX
-5,
Downconverter Attenuator 0.1 dB, on 2016-XX Downconverter or 2017-XX,
Downconverter portion.
2015-XX
2016-XX
Z1
Upconverter Attenuator 0.1 dB, on 2015-XX Upconverter or 2017-XX Upconverter portion.2015-XX
2016-XX
Z
Option Description
Available
Product(s)
Option
Table 2.6.C Options Document
2015-26 Manual, Rev. 0 Page 20 12/09/10
