CYP OR-44-4K22 User manual

OR-44-4K22
4 x 4 HDMI Matrix Switcher (4K, HDCP2.2, HDMI2.0)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 21/03/2017 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 Remote Control........................................10
6.4 IR Pin Denitions......................................11
6.5 RS-232 Protocols......................................11
6.6 Telnet and RS-232 Commands............12
6.7 Telnet Control............................................15
6.8 WebGUI Control .......................................16
7. Connection Diagram .......................... 26
8. Specications...................................... 27
8.1 Technical Specications ........................27
8.2 Timing..........................................................28

6
1. INTRODUCTION
This 4x4 4K UHD Matrix provides a high level of audio and video
performance with support for resolutions up to 4K@60Hz (YUV 4:4:4, 8-bit)
and pass-through support of digital audio formats including LPCM 7.1
(with sampling rates up to 192kHz), bitstream, and HD bitstream. The 4
HDMI inputs and 4 HDMI outputs support fully matrixed switching.
A sophisticated WebGUI interface supports storing and recalling up to
four routing presets, making remote control and configuration of the
unit a breeze. Built in EDID management support allows the user select
from multiple built in EDIDs as well as to upload custom EDID files and
download the EDID from connected displays. Control is provided via front
panel buttons, IR remote, WebGUI, RS-232, and telnet.
2. APPLICATIONS
Video/TV wall display and control
Security surveillance and control
Commercial advertising, display and control
University lecture hall, display and control
Retail sales and demonstration
3. PACKAGE CONTENTS
1 x 4x4 4K UHD+ Matrix
1 x IR Extender
1 x OTG USB converter
1 × 24V/2.7A DC Power Adaptor
1 x IR Remote Control with Battery.
1 × Power Cord
Operation Manual

7
4. SYSTEM REQUIREMENTS
HDMI source equipment such as media players, video game consoles
or set-top boxes.
HDMI receiving equipment such as HDTVs, monitors or audio
ampliers.
The use of “Premium High Speed HDMI”cables is highly recommended.
5. FEATURES
HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
DVI 1.0 compliant with the use of an HDMI-DVI adaptor
HDCP 1.4 and 2.2 compliant
Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) &
4096x2160@60 Hz (YUV 4:4:4, 8-bit)
Supports 48-bit Deep Colour up to 1080p60
Supports 3D signal bypass
Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio
formats over HDMI
Provides powerful EDID management tools with 4 slots for user-
created EDIDs, and EDID bypass support
Supports storing and recall of up to four routing presets
Controllable via front-panel buttons, RS-232, telnet, WebGUI, and IR
remote

8
6. OPERATION CONTROLS AND FUNCTIONS

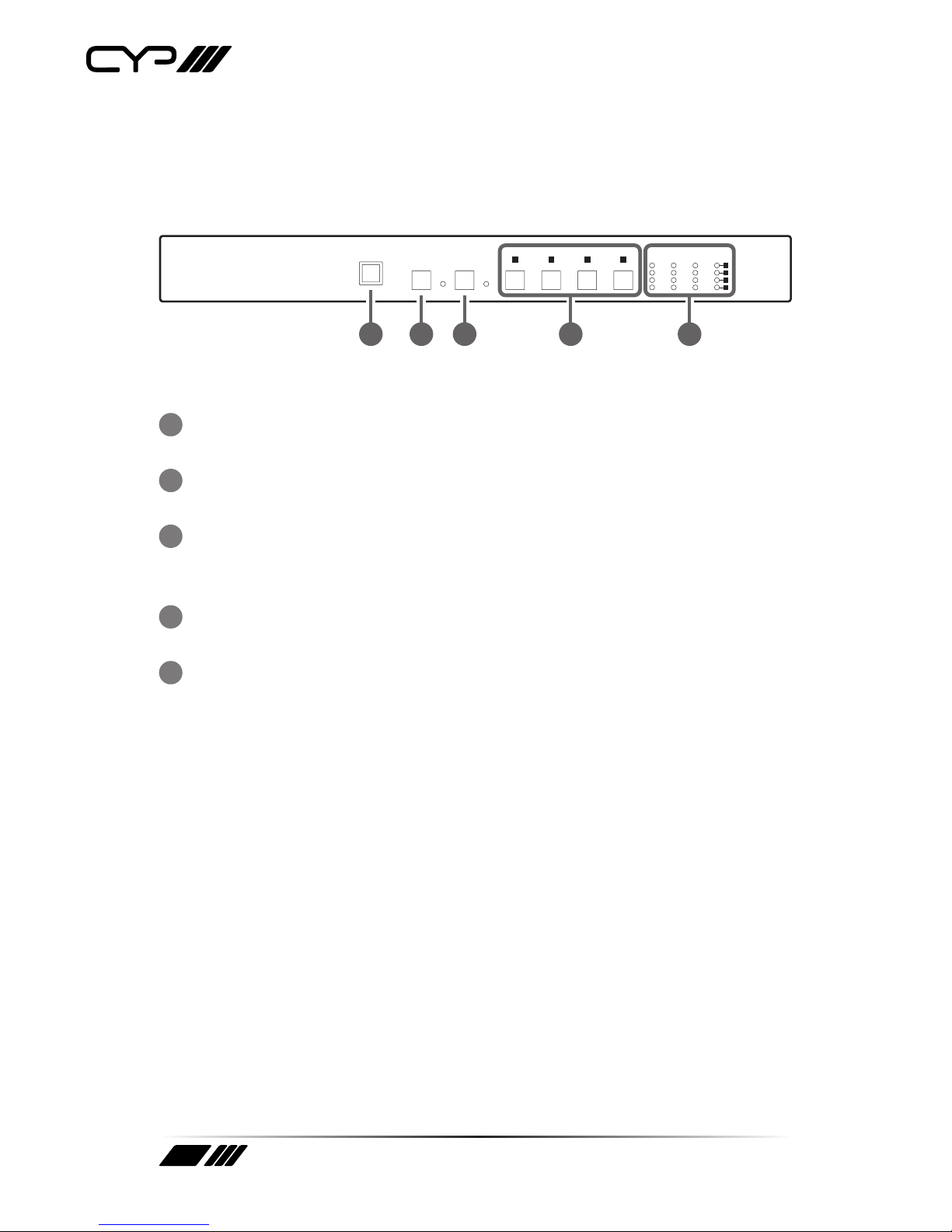

6.1 Front Panel
POWER LOCK A B C D 1234
A
B
C
D
1 2 3 4 5
1IR Window: Accepts IR signals from the included IR remote for control
of this unit only.
2Power Button & LED: Press this button to power the unit on (green
LED) or place it into stand-by mode (red LED).
3LOCK& LED: Press to lock all button functions on the front panel.
Press and hold for 3 seconds to release the lock function. The LED will
be lit when the front panel is in the locked state.
4A~D: Press and hold these buttons to sequentially switch through the
available inputs for the associated output.
5LED 1~4: These LEDs will illuminate to indicate which sources are
currently selected for each output. No lit LED for an output indicates
that that output is muted.

9
6.2 Rear Panel
1234
INPUT OUTPUT
A B C D RS232IR IN
SERVICE
CONTROL DC 24V
POWER
1 2 4 5 6 73
1INPUT 1~4: Connect to HDMI source equipment such as media
players, game consoles or set-top boxes. DVI sources are supported
with the use of an HDMI to DVI adapter.
2OUTPUT A~D: Connect to HDMI TVs, monitors or ampliers for digital
video and audio output.
3IR IN: Connect to the provided IR Extender to extend the IR control
range of the unit. Ensure that the remote being used is within direct
line-of-sight of the IR Extender.
4RS232: Connect directly to a PC, laptop or other serial control device
to send RS-232 commands to control the unit.
5Control: Connect directly, or through a network switch, to your PC/
laptop to control the unit via telnet/WebGUI.
6SERVICE: This slot is reserved for rmware update use only.
7DC 24V: Plug the 24V DC power adapter into the unit and connect it
to an AC wall outlet for power.

10

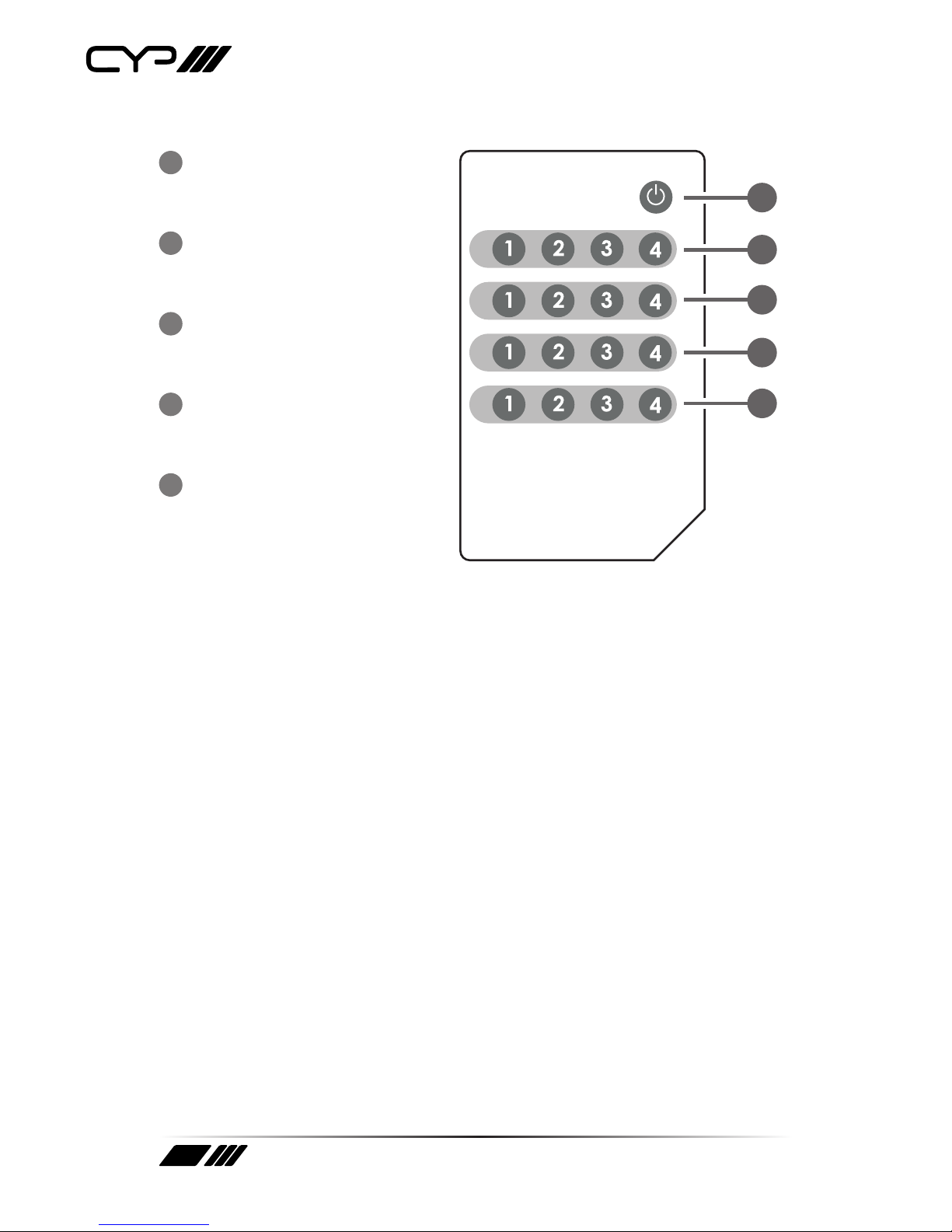

6.3 Remote Control
1POWER: Press this button to
power the unit on or place it
into stand-by mode.
2OUTPUT A: Press the number
of the input (1~4) to display
on Output A.
3OUTPUT B: Press the number
of the input (1~4) to display
on Output B.
4OUTPUT C: Press the number
of the input (1~4) to display
on Output C.
5OUTPUT D: Press the number
of the input (1~4) to display
on Output D.
OUTPUT
A
OUTPUT
D
OUTPUT
C
OUTPUT
B
POWER
CR-33
2
3
4
5
1
