CYP CH-527TXVBD User manual

CH-527TXVBD
4K UHD+ HDMI over HDBaseT Transmitter
with Bi-directional 24V PoC
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in
use to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
VS1 2018/12/22 Final technical review

CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Front Panel................................................. 3
6.2 Rear Panel.................................................. 4
6.3 IR Cable Pinouts ........................................ 5
6.4 RS-232 Bypass Pinout................................. 5
7. Connection Diagram ......................................6
8. Specications ..................................................7
8.1 Basic Specications .................................. 7
8.2 Video Specications................................. 8
8.3 Audio Specications................................. 9
8.4 Cable Specications .............................. 10
8.5 HDBaseT Features.................................... 11
9. Acronyms.......................................................12

1
1. INTRODUCTION
This HDMI over HDBaseT Transmitter is a great solution for extending
UHD video and audio as well as Ethernet and control via a single run
of Cat.5e/6/7 cable over distances up to 100 meters. This extender
complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as
well as supporting the legacy HDCP 1.x and HDMI 1.x standards. In
addition, despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD
HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as
well as 10/12-bit sources with HDR, are able to be processed and
extended by the use of AVLC (Adaptive Visually Lossless Compression)
when needed. Multiple data and control interfaces are also able to
be extended, including IR, RS-232, and LAN connections.
This unit supports bi-directional 24V PoC (Power over Cable) allowing
the system to be completely powered by, or provide power to, a
compatible connected Receiver, allowing for greater exibility within
different installation scenarios.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1×HDMI to HDBaseT Transmitter with Bi-directional 24V PoC
• 1×24V/1.25A DC Power Adapter
• 1×2-pin Terminal Block
• 1×3.5mm to IR Blaster Cable
• 1×Operation Manual

2
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as a media player, video game
console or set-top box.
• An HDBaseT Receiver equipped with AVLC and 24V PoC support is
strongly recommended.
• The use of “Premium High Speed” HDMI cables, and industry
standard Cat.6, Cat.6a or Cat.7, is highly recommended.
5. FEATURES
• HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
• HDCP 1.x and HDCP 2.2 compliant
• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
and output
• Supports Deep Color input and output up to 12-bit
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
• Supports CEC bypass
• HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet,
24V PoC and Control (bi-directional IR/RS-232 pass-through)
• HDBaseT output transmits video, audio and data over a single
Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K
when using Cat.6a/7
• Integrated AVLC (Adaptive Visually Lossless Compression) activates
when the bandwidth requirements of the source are beyond
10.2Gbps (340MHz) allowing for support of sources up to 18Gbps
(600MHz) with no loss of visual quality
• Supports pass-through of many audio formats including LPCM
2.0/5.1/7.1, Bitstream, and HD Bitstream
• Bi-directional 24V PoC allows the unit to be powered by, or provide
power to, a compatible connected Receiver
Note: The 24V PoC function is designed to power, or receive power
from, compatible Receiver units only. Non-PoC Receivers will need
their own power supply. Other brands of Receiver may not be
compatible.

3
6. OPERATION CONTROLS AND FUNCTIONS

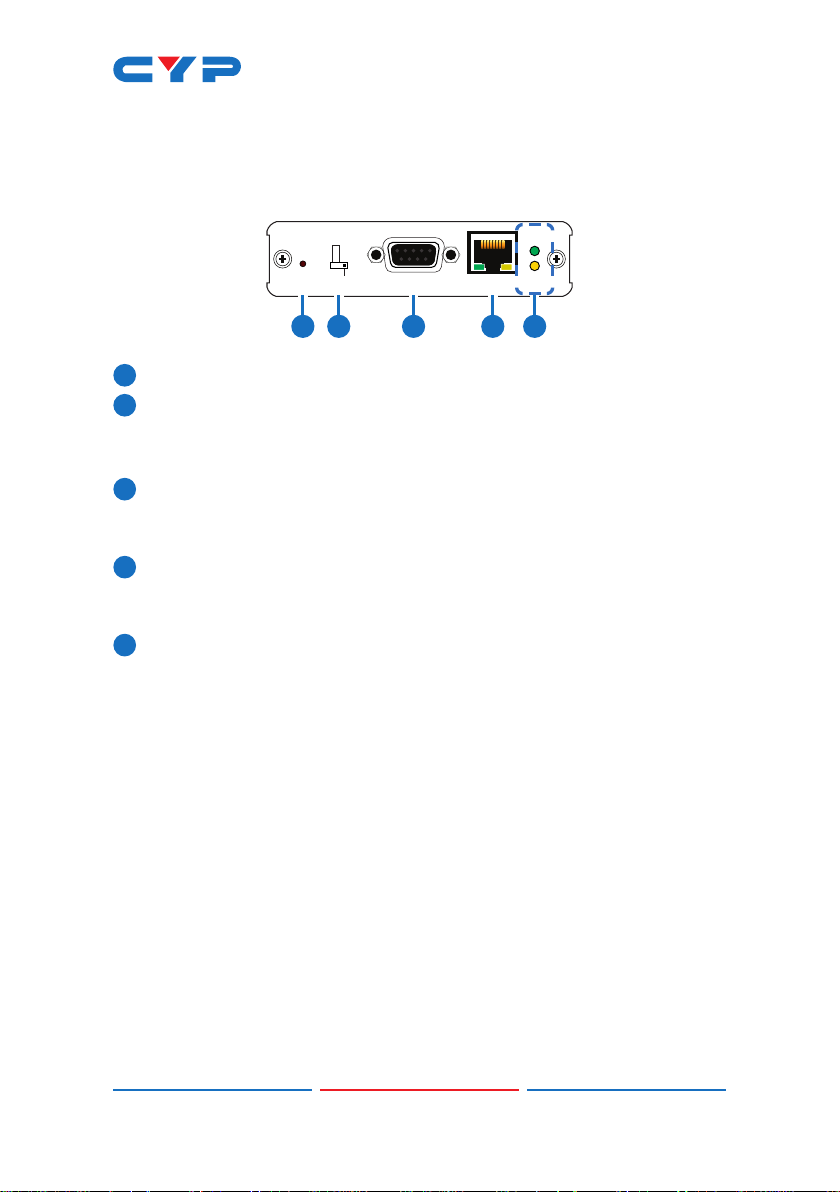

6.1 Front Panel
RS-232
POWER
ISP
LAN
STD
UPDATE
SYNC
1 2 3 4 5
1ISP Pinhole: This button is reserved for factory use only.
2STD/UPDATE Switch: This switch is reserved for factory use only.
Note: This should be left on the default setting of “STD” for normal
operation.
3RS-232 Port: Connect to a PC, laptop, or serial controllable device
for the extension of RS-232 signals between both ends of the
HDBaseT connection.
4LAN Port: Connect to an Ethernet supporting device or to your
local network, as appropriate, to extend the network to both ends
of the HDBaseT connection.
5POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
SYNC LED: This LED will illuminate when a live input source is
detected.

4
6.2 Rear Panel
HDMI IN
CAT5e/6/7
OUT
IR
EXTENDER
IR
BLASTER
DC 24V
+
-
1 2 3 4 5
1DC 24V Terminal Block: Plug the 24V DC power adapter into this
terminal block and connect it to an AC wall outlet for power.
(Optional)
Note: This connection is not required if the unit is receiving power
via 24V PoC from the Receiver.
2IR BLASTER Port: Connect to the provided IR Blaster to transmit IR
signals from the other end of the HDBaseT connection to devices
within direct line-of-sight of the IR Blaster.
3IR EXTENDER Port: Connect to an IR Extender to receive IR control
signals and extend them to devices connected to the other end
of the HDBaseT connection. Ensure that the remote being used is
within direct line-of-sight of the IR Extender.
4CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT Receiver
with a single Cat.5e/6/7 cable for transmission of all data signals.
24V PoC can also be supplied to, or received from, a connected
compatible Receiver.
Note: The 24V PoC function is designed to power, or receive
power from, compatible Receiver units only. Non-PoC Receivers
will need their own power supply. Other brands of Receiver may
not be compatible.
5HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box. DVI sources are supported
with the use of an HDMI to DVI adapter.

5
6.3 IR Cable Pinouts
IR Blaster
Cabl
e
1
2
3
Infrared
Power
Not U
sed
IR Extender
Cabl
e
1
2
3
Infr
ared
Power
Ground
6.4 RS-232 Bypass Pinout
1
2
3
4
5
8
7
6
9
DCD
RxD
TxD
DTR
GND
RI
CTS
RTS
DSR
DE-9
Female Port

6

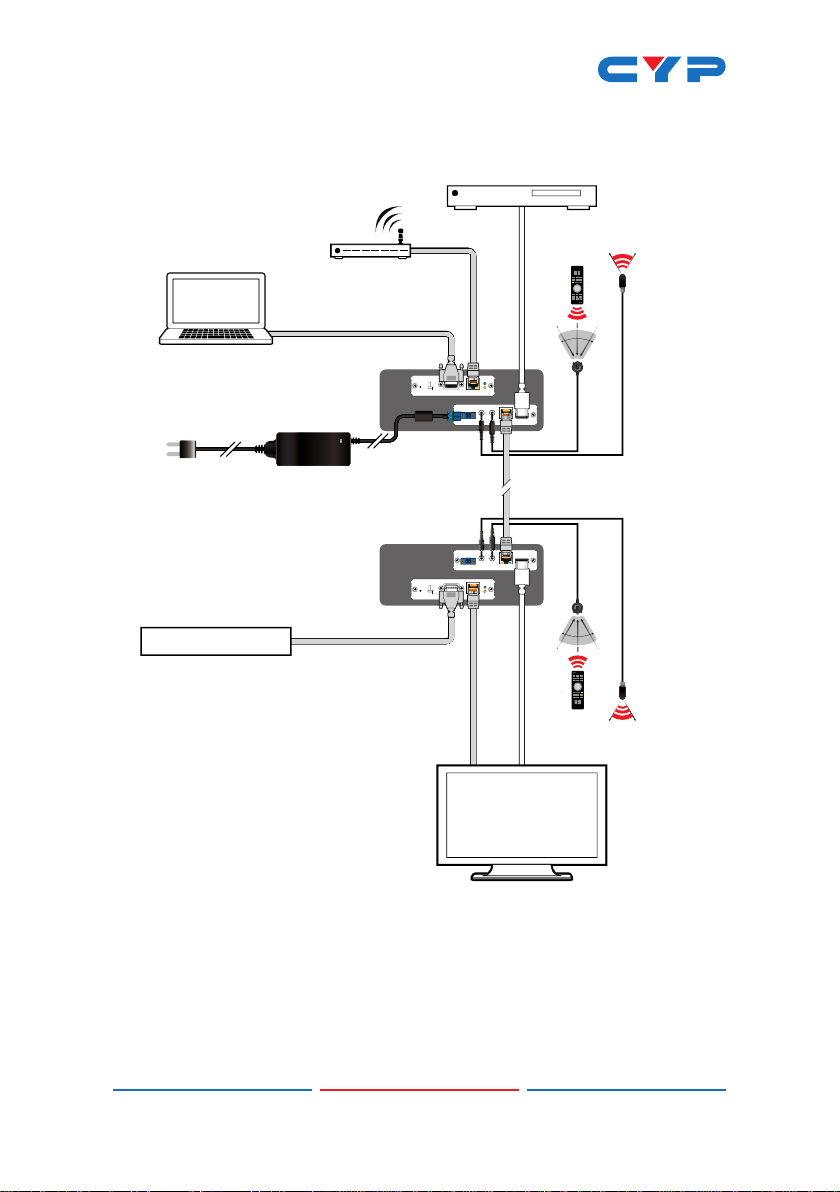

7. CONNECTION DIAGRAM
Tx
Rx
HDMI IN
CAT5e/6/7
OUT
IR
EXTENDER
IR
BLASTER
DC 24V
+
-
RS-232
POWER
ISP
LAN
STD
UPDATE
SYNC
RS-232
POWER
ISP
LAN
STD
UPDATE
SYNC
HDMI OUT
CAT5e/6/7
IN
IR
EXTENDER
IR
BLASTER
DC 24V
+
-
7m3m 3m
60°
1.5m
60°
1.5m
60°
7m3m 3m
60°
Media Player
Power Supply
UHDTV
RS-232 Controlled
Device
RS-232 Equipped
PC Network
Switch
IR Input &
Output
HDMI
Output
HDMI
Input
RS-232
RS-232 LAN
LAN
IR Input &
Output
Cat.5e/6/7
Cable

7
8. SPECIFICATIONS
8.1 Basic Specications
HDMI Bandwidth 600MHz/18Gbps
HDBaseT Bandwidth 340MHz/10.2Gbps
Input Port 1×HDMI
Output Port 1×HDBaseT (RJ-45)
Pass-through Ports 1×IR Extender (3.5mm)
1×IR Blaster (3.5mm)
1×RS-232 (DE-9)
1×LAN (RJ-45)
IR Frequency 30 – 50kHz (30 – 60kHz under ideal
conditions)
Baud Rate Up to 115200
Power Supply 24V/1.25A DC (US/EU standards, CE/FCC/
UL certied)
ESD Protection Human Body Model
±8kV (Air Discharge),
±4kV (Contact Discharge)
Dimensions 102mm×25mm×107.5mm
(W×H×D) [Case Only]
102mm×25mm×115mm
(W×H×D) [All Inclusive]
Weight 252g
Chassis Material Metal (Steel)
Chassis Color Black
Operating Temperature 0˚C – 40˚C/32˚F – 104˚F
Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity 20 – 90% RH (Non-condensing)
Power Consumption 16.3W (Tx+Rx)

8
8.2 Video Specications
Supported Resolutions (Hz)
Input Output
HDMI HDBT
720×400p@70/85  
640×480p@60/72/75/85  
720×480i@60  
720×480p@60  
720×576i@50  
720×576p@50  
800×600p@56/60/72/75/85  
848×480p@60  
1024×768p@60/70/75/85  
1152×864p@75  
1280×720p@50/60  
1280×768p@60RB/60/75/85  
1280×800p@60RB/60/75/85  
1280×960p@60/85  
1280×1024p@60/75/85  
1360×768p@60  
1366×768p@60RB/60  
1400×1050p@60RB/60  
1440×900p@60RB/60/75  
1600×900p@60RB  
1600×1200p@60  
1680×1050p@60RB/60  
1920×1080i@50/60  
1920×1080p@24/25/30  
1920×1080p@50/60  

9
Supported Resolutions (Hz)
Input Output
HDMI HDBT
1920×1200p@60RB  
2560×1440p@60RB  
2560×1600p@60RB  
2048×1080p@24/25/30  
2048×1080p@50/60  
3840×2160p@24/25/30  
3840×2160p@50/60 (4:2:0)  
3840×2160p@24/25/30, HDR10 AVLC
3840×2160p@50/60 (4:2:0), HDR10 AVLC
3840×2160p@50/60 AVLC
4096×2160p@24/25/30  
4096×2160p@50/60 (4:2:0)  
4096×2160p@24/25/30, HDR10  
4096×2160p@50/60 (4:2:0), HDR10  
4096×2160p@50/60  
8.3 Audio Specications
HDMI Input/Output
LPCM
Max Channels 8 Channels
Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
Bitstream
Supported Formats Standard & High-Denition

10
8.4 Cable Specications
Cable Length
1080p 4K30 4K60
8-bit 12-bit (4:4:4) 8-bit (4:4:4) 8-bit
High Speed HDMI Cable
HDMI Input 10m 5m 5m 3m
Ethernet Cable
Cat.5e/6 100m 70m
Cat.6a/7 100m 100m
• 1080p (FHD Video)
- Up to 1080p@60Hz, 12-bit color
- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
• 4K30 (UHD Video)
- 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit color
- 4K@50/60Hz (4:4:4, 8-bit) with AVLC active
- Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
• 4K60 (UHD+ Video)
- 4K@50/60Hz (4:4:4, 8-bit), AVLC required over HDBaseT
- 4K@50/60Hz (4:2:0, 10-bit HDR), AVLC required over HDBaseT
- Data rates higher than 10.2Gbps

11
8.5 HDBaseT Features
HDBaseT Feature Set
Video & Audio Supported
IR Pass-through Supported
RS-232 Pass-through Supported
Accept power from Receiver Supported
Send power to Receiver Supported
LAN Pass-through Supported

12
9. ACRONYMS
ACRONYM COMPLETE TERM
AV Audio/Video
AVLC Adaptive Visually Lossless Compression
Cat.5e Enhanced Category 5 cable
Cat.6 Category 6 cable
Cat.6a Augmented Category 6 cable
Cat.7 Category 7 cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
EDID Extended Display Identication Data
HD High-Denition
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDR High Dynamic Range
HDTV High-Denition Television
IP Internet Protocol
IR Infrared
LAN Local Area Network
LED Light-Emitting Diode
LPCM Linear Pulse-Code Modulation
PC Personal Computer
PD Powered Device
PoC Power over Cable
PSE Power Sourcing Equipment
UHD Ultra-High-Denition
UHD+ Ultra-High-Denition Plus
UHDTV Ultra-High-Denition Television

CYPRESS TECHNOLOGY CO., LTD.
www.cypress.com.tw
