D-Link 10/100BASE-TX to 100BASE-FX Media Converter User manual

10/100BASE-TX to
100BASE-FX
Media Converter
User’s Guide
Rev. 01 (JUN. 2002)
1907M110MM16003
RECYCLABLE

2
TABLE OF CONTENTS
TABLE OF CONTENTS ....2
INTRODUCTION..............3
ABOUT MEDIA CONVERTER .....................................3
PRODUCT FEATURES ...............................................3
INSTALLATION ...............4
SELECTING A SITE FOR THE EQUIPMENT ...................4
CONNECTING TO POWER .........................................5
SLIDING SWITCH .......................................................5
CONNECTING TO POWER .........................................6
INSTALLING IN A CHASSIS .......................................6
LED INDICATOR .......................................................7
SPECIFICATIONS ...........8
RECYCLABLE
Rev. 01 (Jan. 2002)
6012-9600128
1907M110MM16001
Printed In Taiwan

3
INTRODUCTION
Thank you for choosing the 10/100BASE Fast Ethernet
Media Converter, The Converter introduced here
provides one channel media conversion between
10/100BASE-TX and 100BASE-FX.
About Media Converter
The Media Converter is a network technology specified
by IEEE 802.3 10BASE-T, IEEE802.3u 100BASE-TX,
100BASE-FX standards.
Product Features
9One-channel media conversion between
10/100BASE-TX and 100BASE-FX
9Fiber media allows: multi-mode fiber using SC,
LC or MT-RJ connector; single-mode fiber using
SC connector
9Auto negotiation of speed and duplex mode on TX
port
9Auto MDI-X on TX port
9One slide switch for configuring fixed half/full
duplex modes
9Store-and-forward mechanism
9Back-pressure & IEEE802.3x compliant flow
control
9Full wire-speed forwarding rate
9Front panel status LEDs
9Used as a stand-alone device or with a chassis
9Hot-swappable when used with a chassis

4
INSTALLATION
This chapter gives step-by-step installation instructions
for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the
equipment where it will not be subjected to extreme
temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the
following requirements:
1. The ambient temperature should be between 32
and 104 degrees Fahrenheit (0 to 40 degrees
Celsius).
2. The relative humidity should be less than 90
percent, non-condensing.
3. Surrounding electrical devices should not exceed
the electromagnetic field (RFC) standards for
IEC 801-3, Level 2 (3V/M) field strength.
4. Make sure that the equipment receives adequate
ventilation. Do not block the ventilation holes on
each side of the switch or the fan exhaust port on
the side or rear of the equipment.
5. The power outlet should be within 1.8 meters of
the switch.

5
Connecting to Power
1. This Converter is a plug-and-play device.
2. Connect the supplied AC to DC power adaptor
with a power voltage of 7.5Vdc/1.5Amp to the
receptacle on the rear panel of the converter, and
then attach the plug into a standard AC outlet
with a voltage range from 100 to 260 Vac.
Sliding Switch

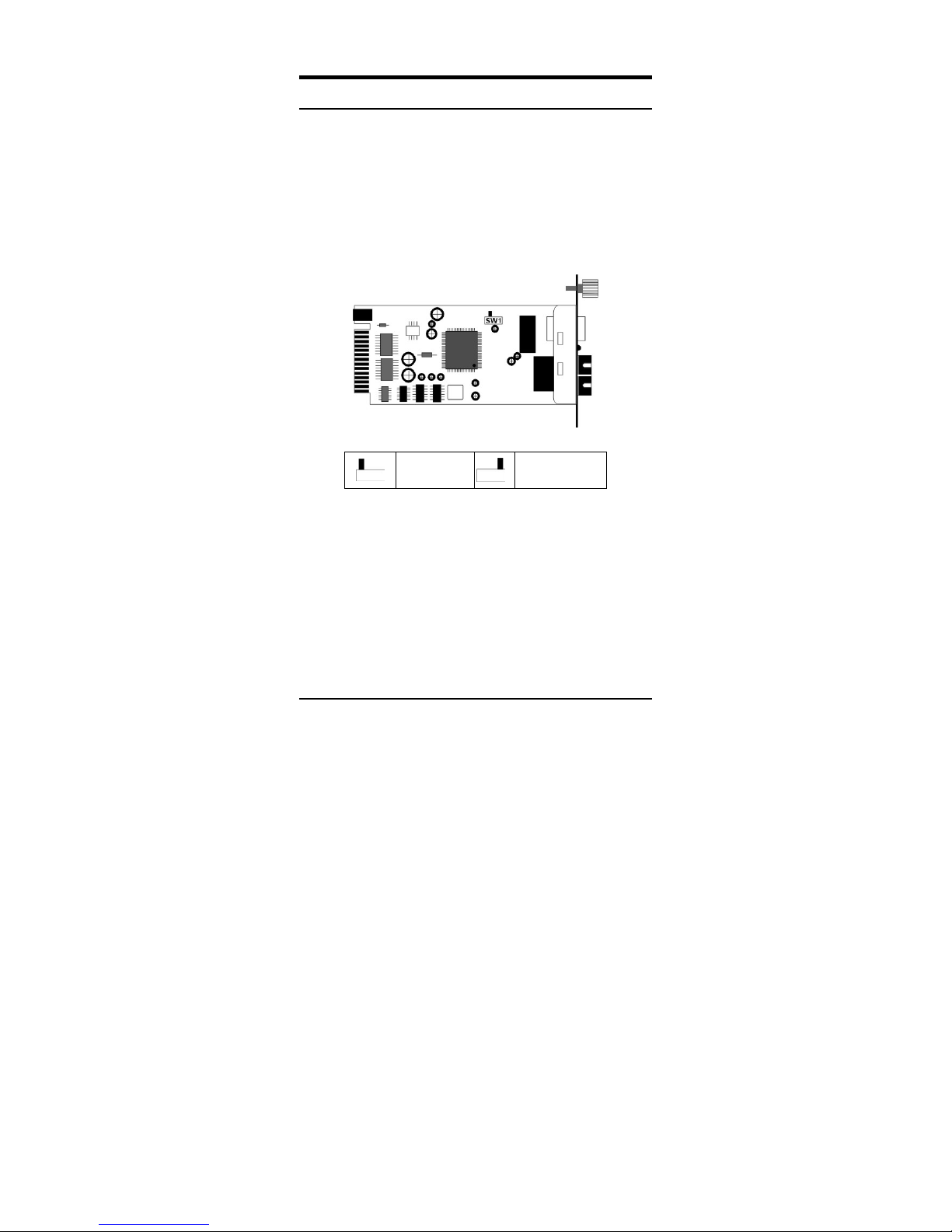

There is a sliding switch for duplex mode setting for
fiber port. Refer to the table below for more details.
Half
Duplex
Full Duplex
(default)

6
Connecting to Power
3. This Converter is a plug-and-play device.
4. Connect the supplied AC to DC power adaptor
with a power voltage of 7.5Vdc/1.5Amp to the
DC-Jack on the converter, and then attach the
plug into a standard AC outlet.
Installing in a Chassis
The Converter can be fit into any of the expansion slots
on a special designed chassis.

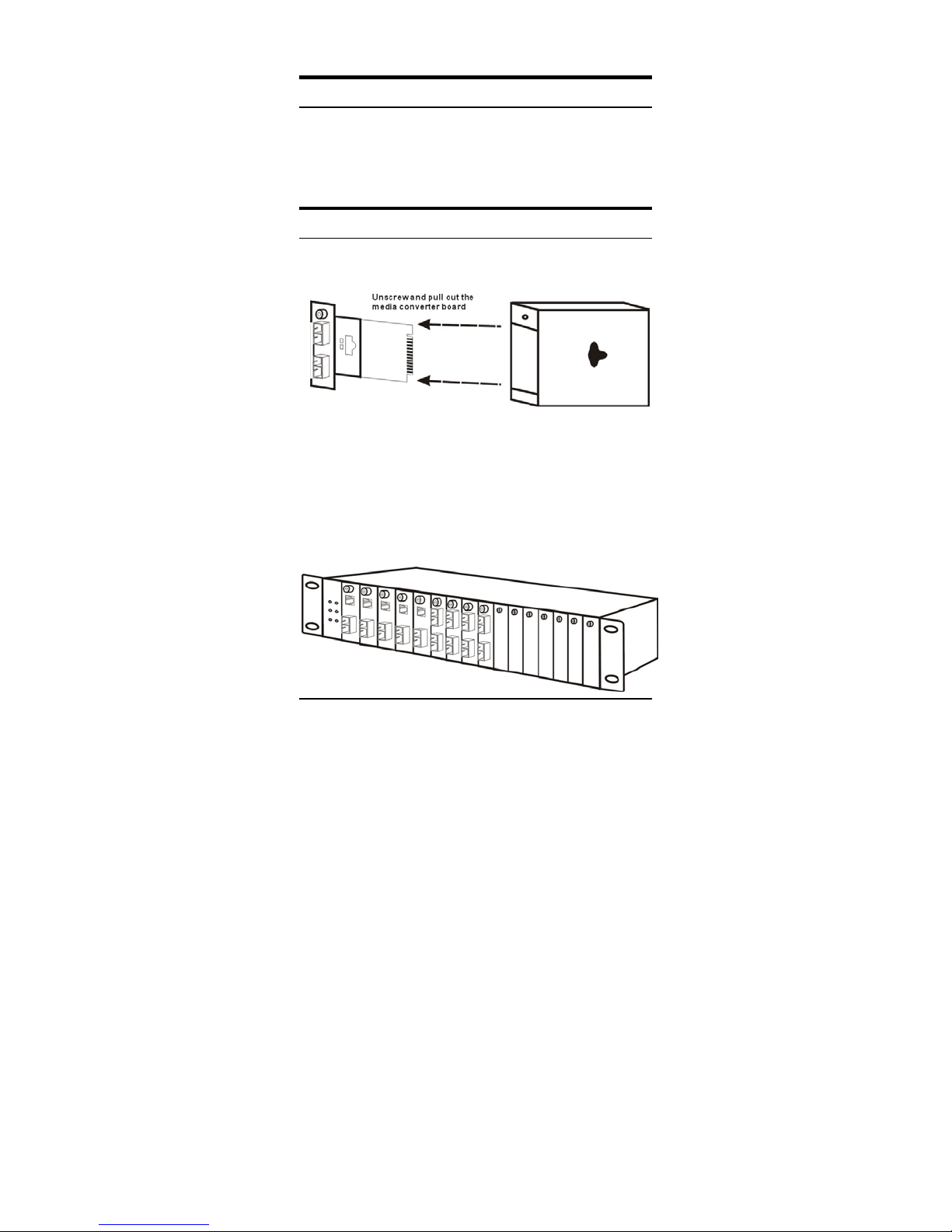

yFirst, install the converter onto a carrier supplied with
the chassis:
Step 1- Unscrew and pull out the media converter
board.
Step 2- Plug in the media board to any of the vacant
slot.
Step 3- Fit the converter onto the carrier and use the
screw to secure it.

7
LED Indicator

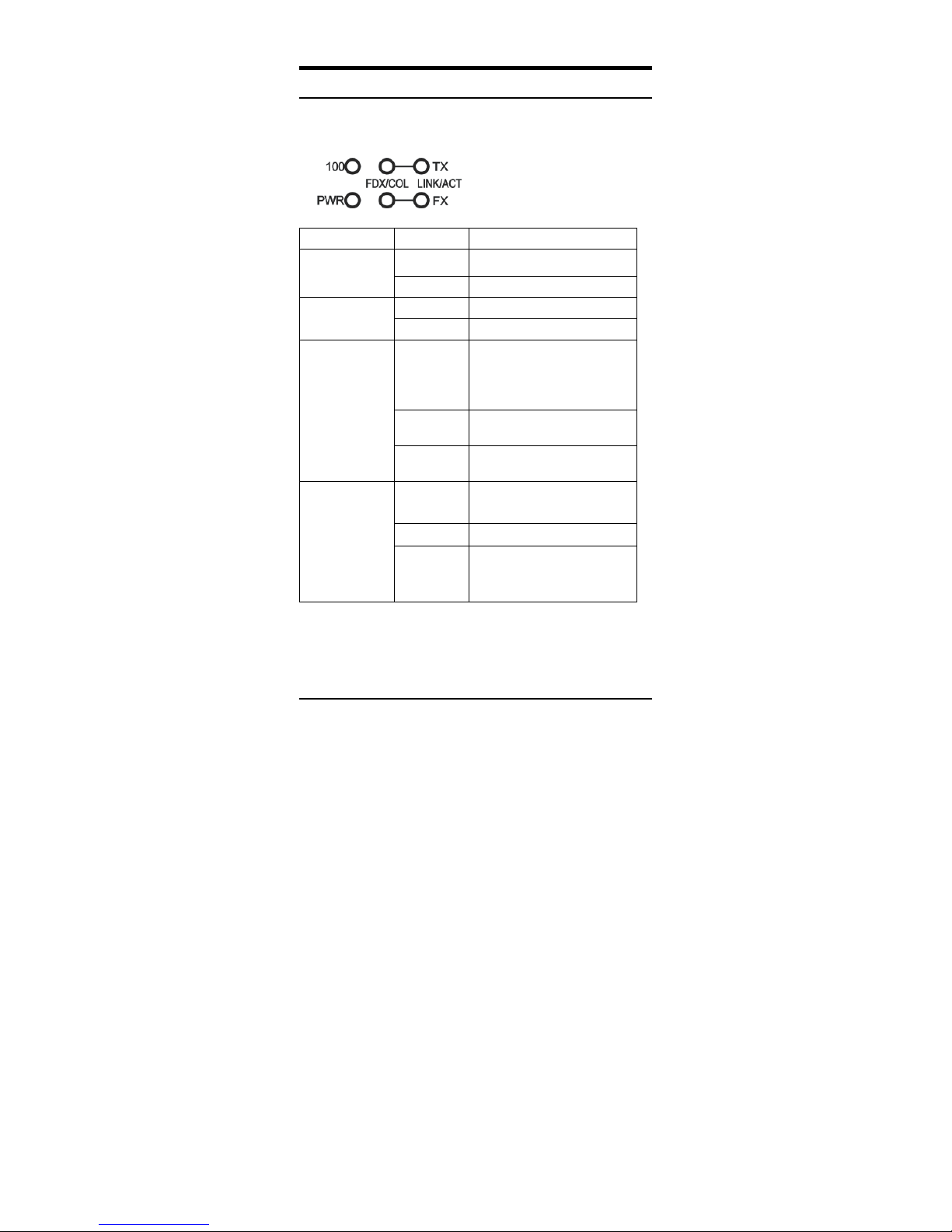

The LED indicators give you instant feedback on status
of the converter:
LEDs State Indication
Steady Power onPower
(PWR) Off Power off
Steady Runs at 100Mbps on TX port100 Mbps
(100) Off Runs at 10Mbps on TX port
Steady
(FDX)
Connection in full duplex
mode
FDX stands for
FULL-DUPLEX
Lights off Connection in half duplex
mode
TX Port (TX)
FX Port (FX)
FDX/COL
Blinking
(COL)
Data collision
Steady
(LINK)
A valid network connection
established
Lights off Not Linking
TX Port (TX)
FX Port (FX)
LINK/ACT Blinking
(ACT)
Transmitting or receiving
data
ACT stands for Activity

8
SPECIFICATIONS
Applicable
Standards
IEEE 802.3 10BASE-T
IEEE802.3u 100BASE-TX & 100BASE-FX
Fixed Ports 1 TX port, 1 FX port
Speed 10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
Forwarding
rate
148,800pps
Per Unit- (2 LEDs): Power; Speed( 100 )LED Indicators
Per Port- (2 LEDs): FDX/COL, LINK/ACT
Cable 10BASE-T –
2-pair UTP Cat. 3,4,5, up to 100 m (328 ft)
100BASE-TX --
2-pair UTP Cat. 5, up to 100 m (328 ft)
100BASE-FX --
62.5/125um multi-mode fiber optic cable,
up to 2 km
10/125um single-mode fiber optic cable, up
to 75 km
Dimensions L120 × W88 × H25 mm
Weight 305 g
Power External power adaptor 7.5V 1.5A
Power
Consumption
7.2W Max.
Temperature Operating:0°C ~ 40°C (32°F ~ 104°F)
Storage: -25°C ~ 70°C (-13°F ~ 158°F)
Humidity 10 ~ 90%, non-condensing
Emissions FCC part 15 Class B, CISPR ClassB, VCCI
Class B, CE Mark
