D-Link DAP-3520 - AirPremier N Dual Band Exterior PoE Access... User manual

2
DAP-3520 AirPremier N PoE
Exterior Access Point
Using a power adapter with a different voltage rating will damage and void the warranty of
this product.
System Requirements
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based operating systems
• Installed Ethernet Adapter
• Internet Explorer version 7.0 or Firefox 3.0 and above

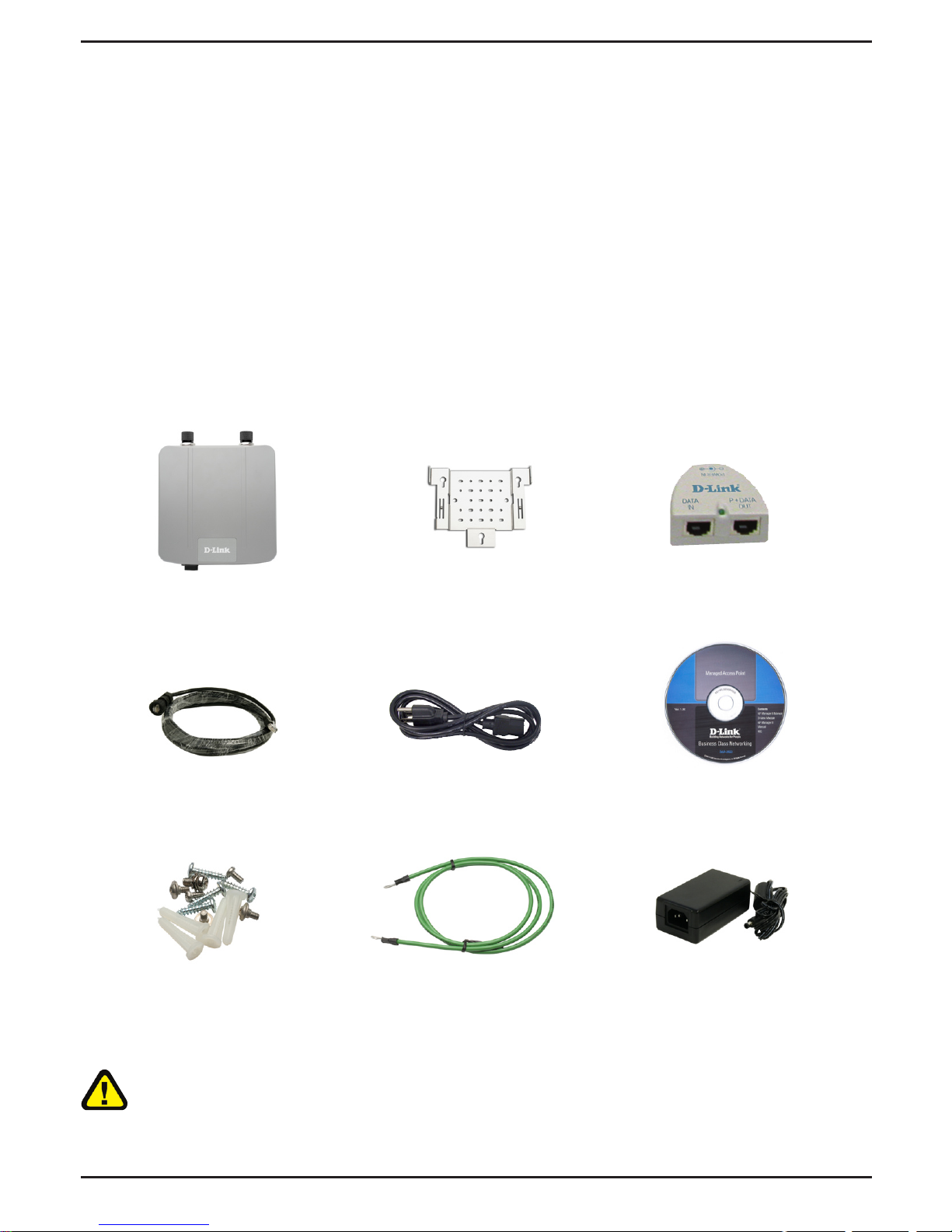

Power over Ethernet
base unit
CD-ROM with Manual
Power Adapter - DC 48V, 0.4A
Mounting Plate
4m Ethernet Cable Power cord
Screws Grounding Wire
Package Contents

3
Before You Begin
It’s best to use a computer (with an Ethernet adapter) connected to a switch to configure the DAP-3520.
The default IP address for the DAP-3520 is 192.168.0.50 with a subnet mask of 255.255.255.0 on the
wired Ethernet side.You will need to assign your computer a static IP address within the same range
as the DAP-3520’s IP address for the purpose of configuring the DAP-3520. If you need assistance
assigning a static IP address to your network adapter, please refer to the manual on the CD-ROM.
Important Information
This product should ONLY be installed by an experienced installer who is familliar with local building
and safety codes and where ever applicable, is licensed by the appropriate authorities. Failure to
do so may void the D-Link product warranty and may expose the end user or the service provider
to legal and financial liabilities. D-Link and its resellers or distributors are not liable for injury,
damage, or violation of regulations associated with the installation of outdoor units or antennas.
A safety grounding system is necessary to protect your outdoor installation from lightning
strikes and the build-up of static electricity.The grounding system must comply with the National
Electrical Code and safety standards that apply in your country. Always check with a qualified
electrician if you are in doubt as to whether your outdoor installation is properly grounded.
Note:
DAP-3520 is certified to IP65 which means the device is protected from dust and low pressure
jets of water from all directions - limited ingress permitted. It is recommended to place this
device under a roof.

4

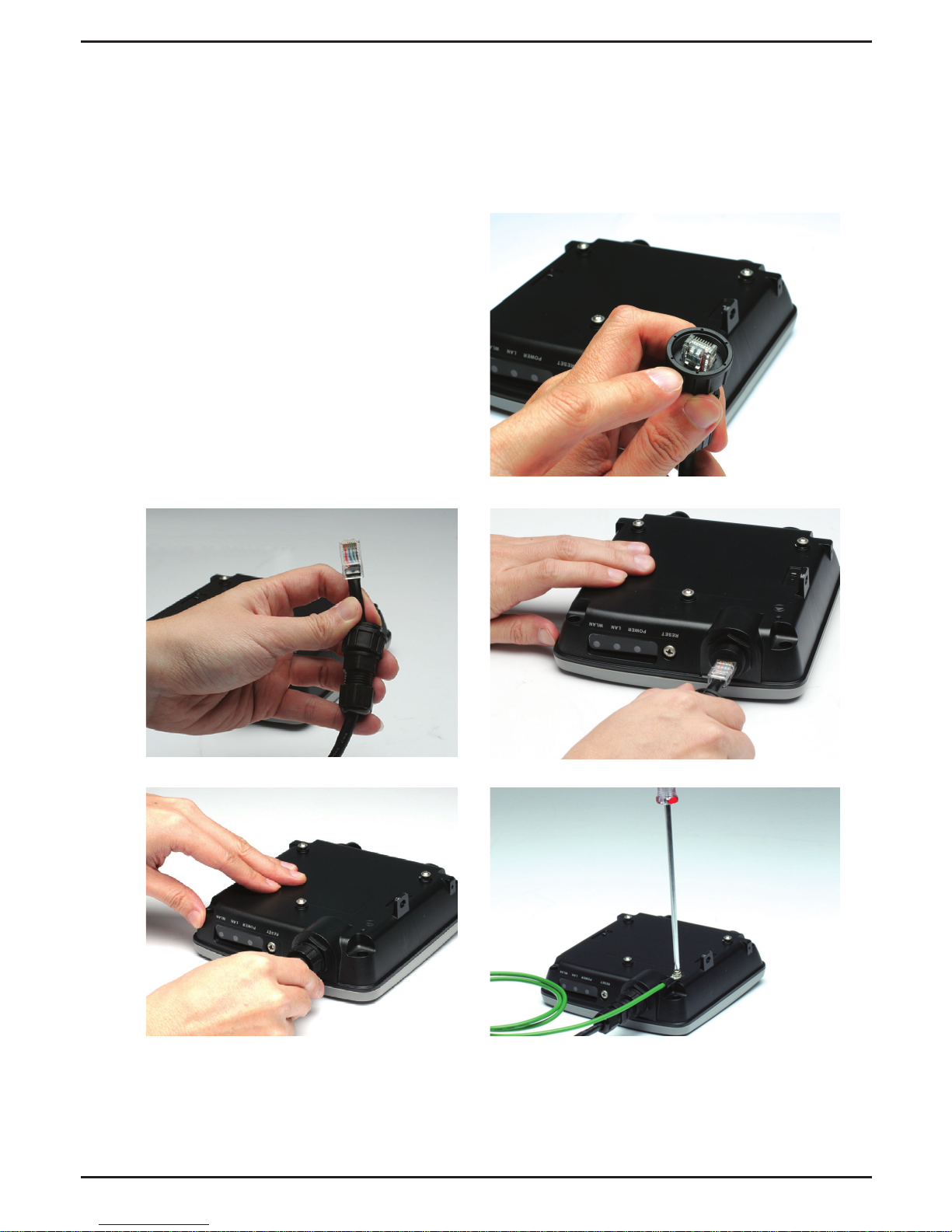

Physical Installation
Connect the supplied Ethernet cable with the
waterproof enclosure to the Ethernet port on the
DAP-3520 and attach the grounding wire.

5

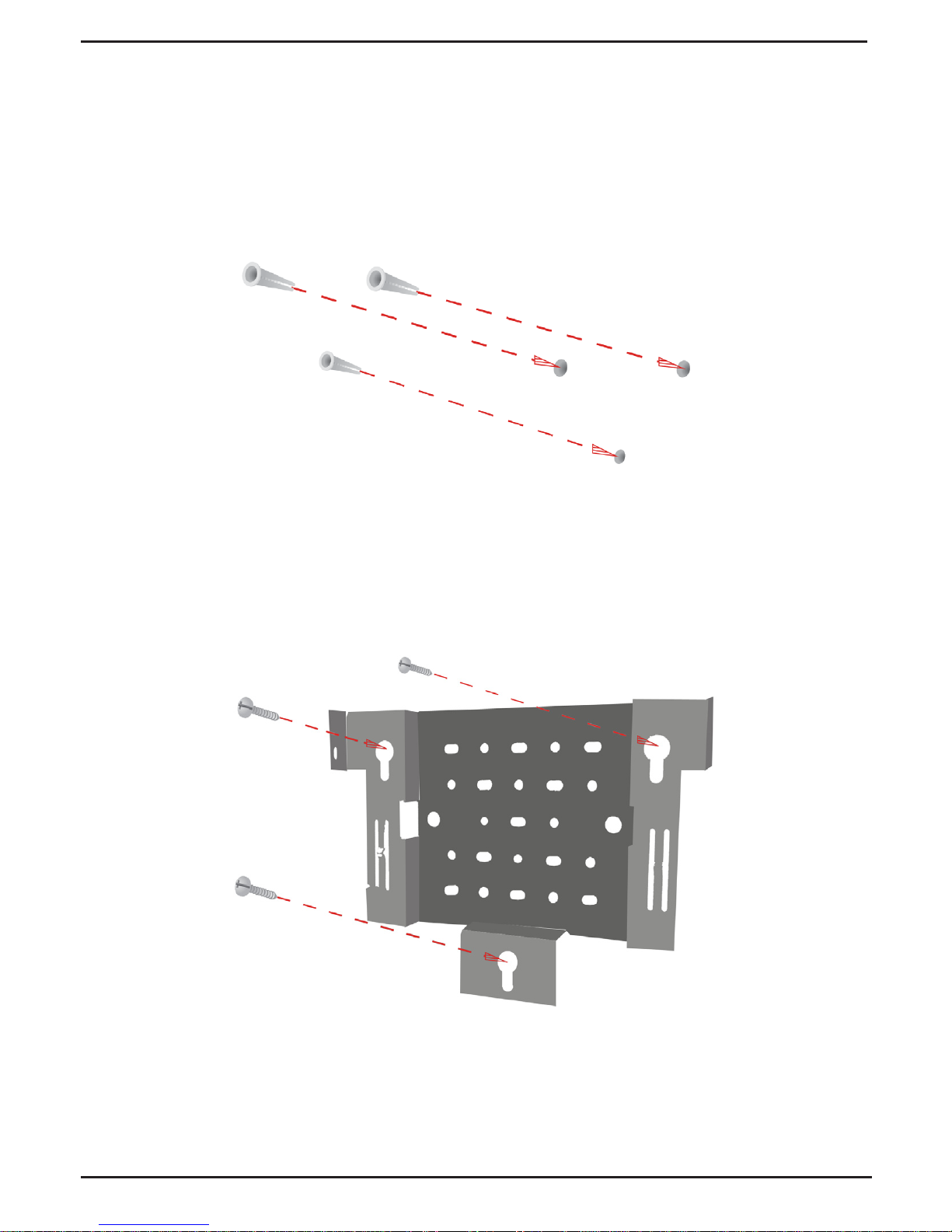

Step 1: Insert provided wall anchors in the wall where the mounting plate
will be attached.
Mounting Plate Assembly
Step 2: Use the provided screws to secure the mounting plate on the wall.

6

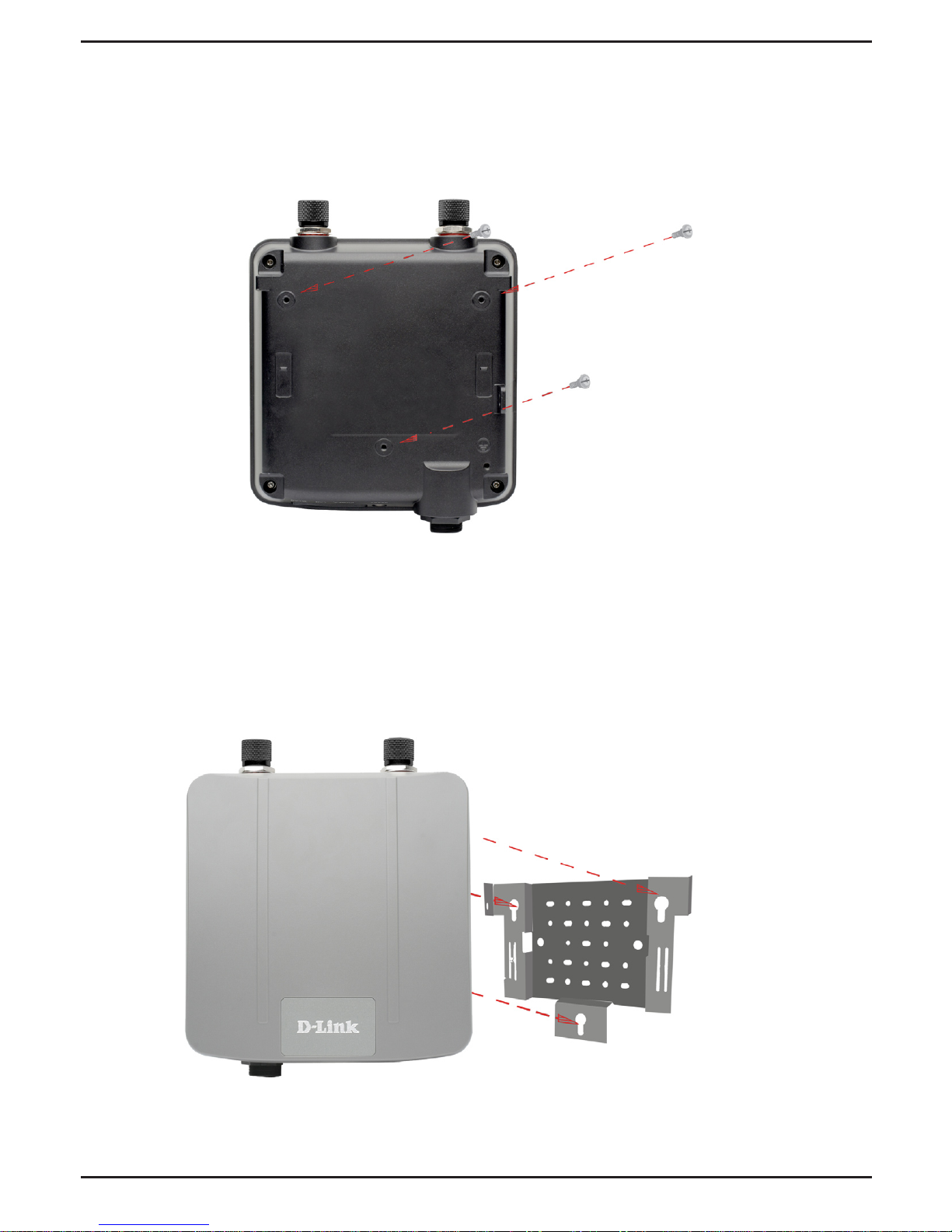

Step 3: Attach the remaining screws securely to the back of the DAP-3520.
Step 4: Attach the DAP-3520 to the mounting plate.

7
Step 5: Slide the DAP-3520 down into the grooves on the mounting plate to
secure it to the plate.

8

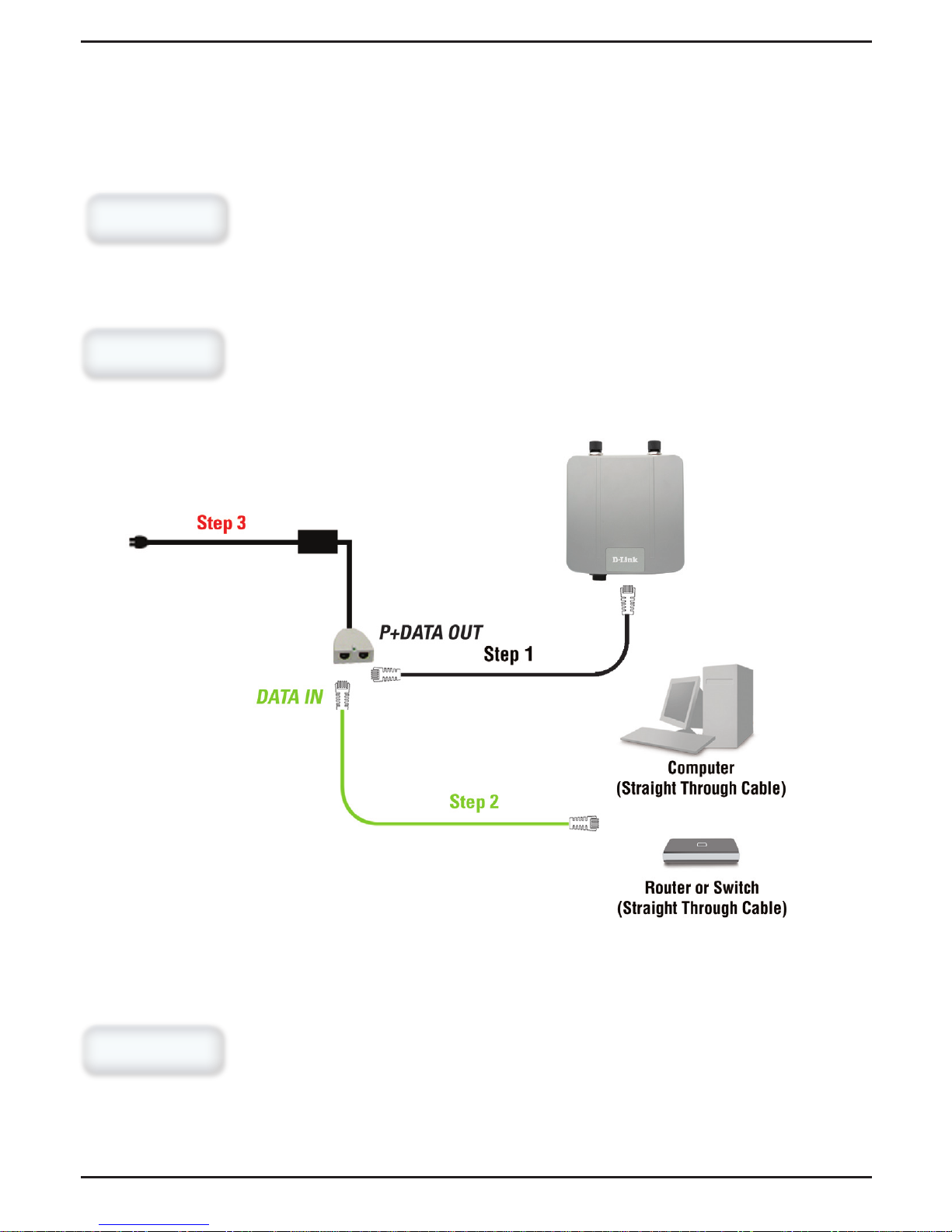

Installing the Hardware
Step 1
Step 2
Connect one end of an Ethernet cable (included with your package) to the
LAN port on the DAP-3520 and the other end of the Ethernet cable to the
port labeled P+DATA OUT on the PoE base unit.
Connect another Ethernet cable from the DATA IN port on the PoE base unit
to your router/switch or to a PC.
Attach the power adapter to the connector labeled POWER IN on the PoE
base unit. Attach the power cord to the power adapter and into an electrical
outlet.
Step 3
Power over Ethernet (PoE) Setup

9

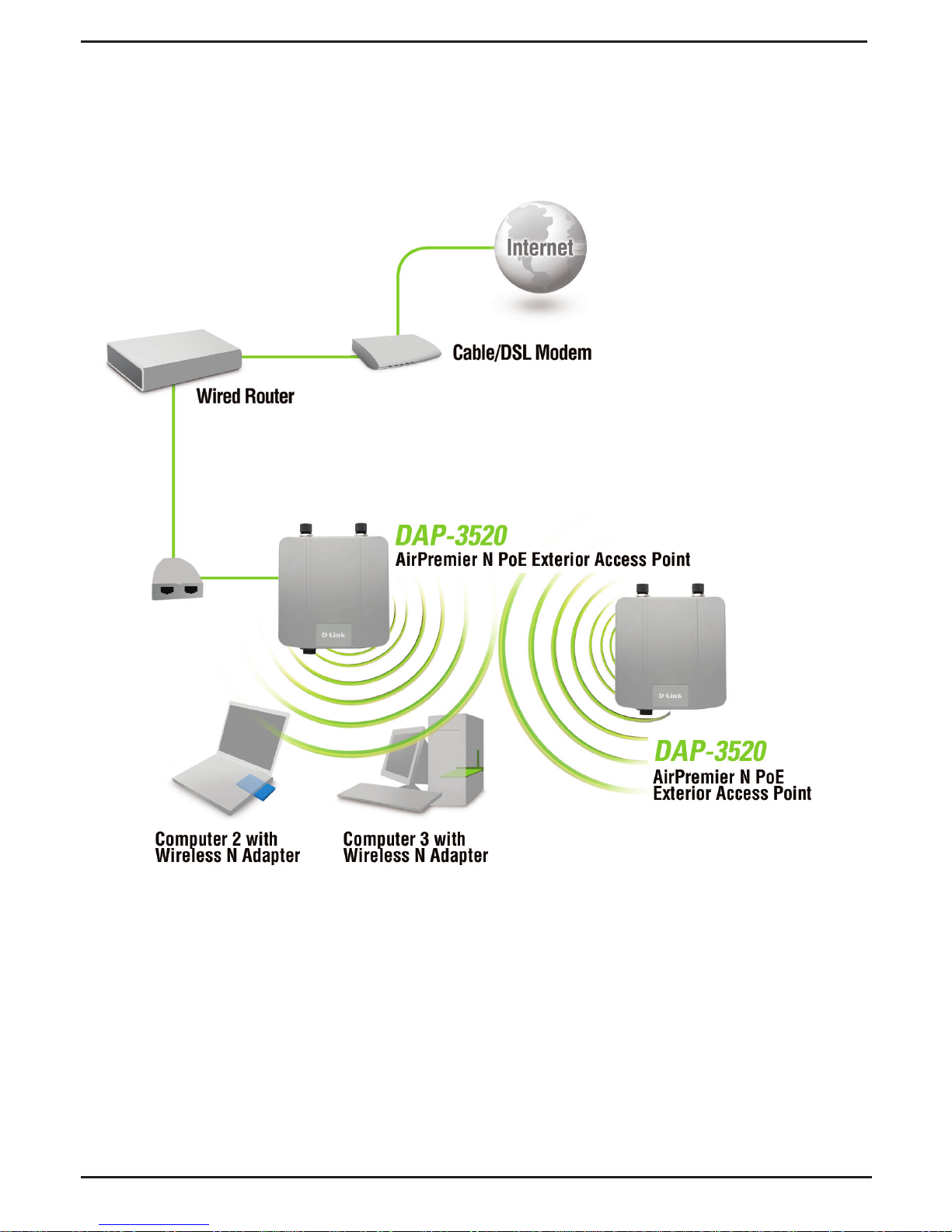

When you have completed the steps in this Installation Guide and configured your DAP-3520
for your network, your network should look similar to this:

10
Notes

11
Notes

12
