Instruction Book for
TENSIONED ADVANTAGE®DELUXE
ELECTROL®
The Da-Lite Difference.

PRE-INSTALLATION
1
CASE INSTALLATION
1. The case provides multiple attachment points for bolts, cables, or threaded rod. Page 7 shows threaded rod
installed. The variable position-mounting bracket may be located anywhere along the length of the case. It is
recommended to keep the brackets spaced evenly enough to distribute the weight of the screen.
The case has a self-trimming flange around the bottom. Ceiling tiles or drywall may be placed on top of this flange
to provide a finished appearance.
2. After securing the case in the ceiling check that the case is level and plumb.
3. Use supplied 1/8” nex key and a 1/4” wrench to remove silver shipping brackets attached to slat and screen case.
3. Install electrical connections that apply to your unit. Refer to the following diagrams for proper installation. The
diagrams on page 4 are for standard controls; the diagrams on page 5 are for SCB100 controls and page 6 for
SCB200 controls. The terminal block for the wall switch connections is located under the metal housing
surrounding the junction box. Remove two screws for access.
1. Carefully unpack screen and remove outer wrapping from case.
2. Make sure to recheck measurements of screen location before installation.
IMPORTANT SAFETY INSTRUCTIONS
When using your video equipment, basic safety precautions should always be followed, including the
following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance
should be used. Cords rated for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized
service dealer when repair work is required. Incorrect reassembly can cause electric shock when
the appliance is used subsequently.
5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of
fire, electric shock, or injury to persons.
SAVE THESE INSTRUCTIONS
FABRIC DOOR
ACCESS
DOOR
SCREW FOR
SECURING ROLLER
ACCESS DOOR
FIGURE 1

2
If your screen was shipped with the motor and roller already installed proceed to step 6.
1. Remove the screw from each end of the access door (front door) and open the door. See figure 1.
2. Carefully unpack screen and roller assembly. Leave packing paper on the roller.
3. Place the roller assembly into the case with the motor on the left side. The limit switches should be facing down.
Line up the square pin on the motor with the square hole in the bracket.
4. Lift the pin end (right end) of the roller into position and slide the bracket onto the roller pin. Tighten two nuts to
secure the bracket.
5. Complete electrical hook-up by snapping motor wire connector into case connector.
6. Remove shipping brackets by removing the hex head screws from aluminum slat and case. Slat should move
freely. See figure 2. (Only if the roller assembly is preinstalled.)
7. Test installation by operating the screen several times. Be prepared to stop the screen. Standard Duty Cycle: 1
MIN. ON/3 MIN. OFF. The fabric door (rear door) will not close until the wall switch is placed in the up position and
when the screen motor stops at its limit switch in the up direction.
NOTE: Excessive continuous operation may cause the motor to overheat. If this happens the motor will shut off until it cools to
a normal operating temperature.
8. Run the screen down enough to open the fabric door. Close the access door and reinstall the screws to secure the
door.
SCREEN AND ROLLER ASSEMBLY INSTALLATION
screen motor
FIGURE 2
WHITE
ADJUSTMENT
KNOB "DOWN"
DOOR
MICROSWITCH
FABRIC
DOOR
KNOCKOUTS FOR
CONDUIT INSTALLATION
FIGURE 3
SCB-100/SCB-200
ACCESS COVER
ACCESS DOOR
door motor
HEX HEAD SCREWS SHIPPING
BRACKET
BLACK
ADJUSTMENT
KNOB "UP"
CONTACT DA-LITE AT 800-622-3737 OR 574-267-8101 IF SCREEN OR DOOR MOTOR NEEDS ADJUSTMENT.
s
!
SCREEN ADJUSTMENT

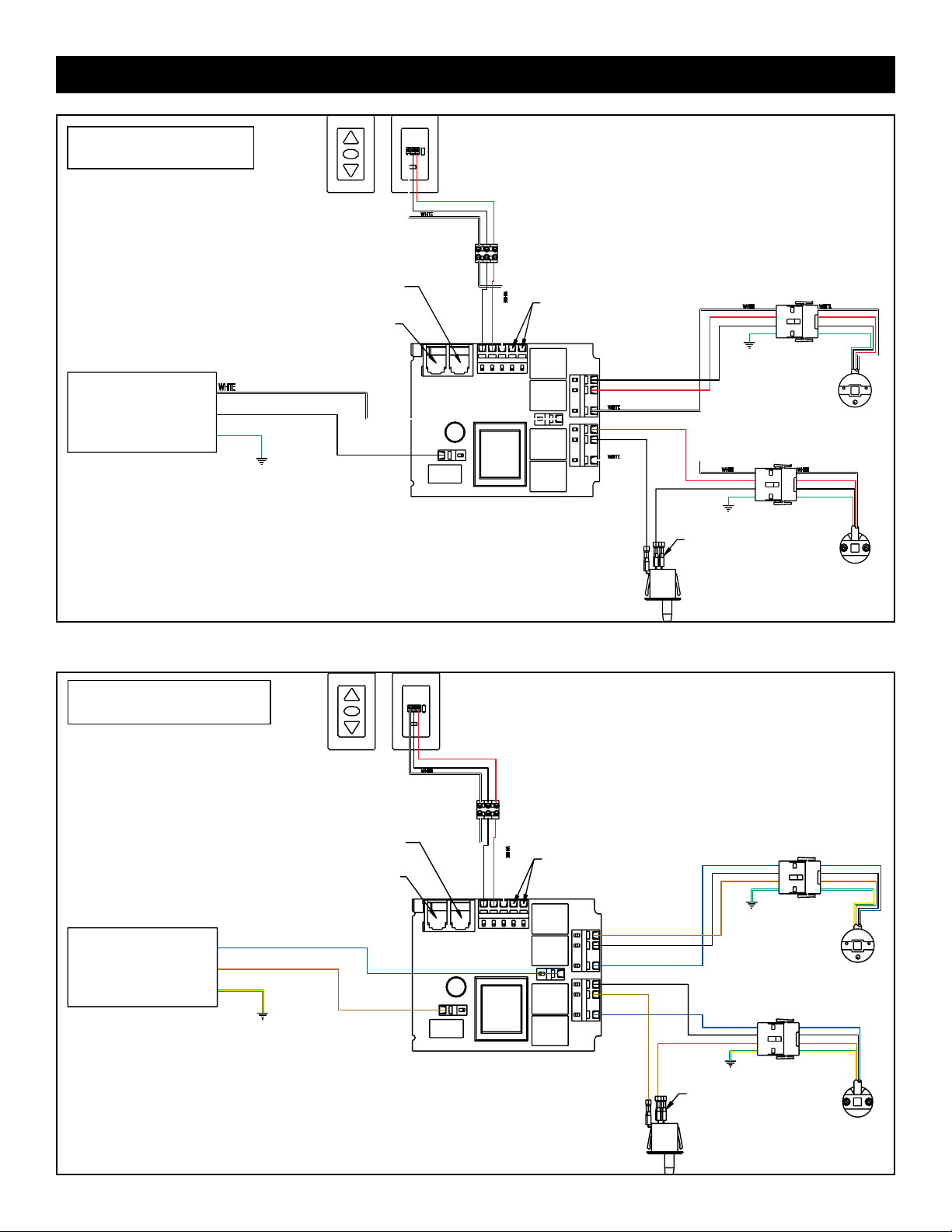

TENSIONED ADVANTAGE®DELUXE ELECTROL®INSTRUCTIONS FOR STANDARD CONTROL
120V WIRING DIAGRAM
SCREEN MOTOR
BLACK (UP)
RED (UP)
OPTIONAL RF OR IR
REMOTE CONNECTOR
WHITE (COMMON)
POWER INPUT
120VAC/60HZ
DOOR MOTOR
DOWN
STOP
UP
NOTE: Electrical connections
on left end of case.
AUX EYE
NOT USED
WHITE (COMMON)
NOT USED
NOT USED
WHITE (COMMON)
NOTE: 20-24AWG WIRE RECOMMENDED
FOR CONNECTING WALL SWITCH TO THE
DUAL MOTOR CONTROLLER
DOOR MICROSWITCH
FRONT OF
WALL SWITCH
BACK OF
WALL SWITCH
BLACK (HOT)
GREEN (GROUND)
BLACK (DOWN)
WHITE (COMMON)
RED (UP) BLACK (DOWN)
BLACK (DOWN)
WHITE (COMMON)
RED (UP)
RED (DOWN)
WHITE (COMMON)
RED (UP)
BLACK (DOWN)
GREEN (GROUND)
WHITE (COMMON)
RED (UP)
BLACK (DOWN)
GREEN (GROUND)
WHITE (COMMON)
RED (DOWN)
BLACK (UP)
GREEN (GROUND)
WHITE (COMMON)
RED (DOWN)
BLACK (UP)
GREEN (GROUND)
220/240V WIRING DIAGRAM
OPTIONAL RF OR IR
REMOTE CONNECTOR
POWER INPUT
240VAC/50HZ
NOT USED
NOT USED
NOT USED
DOOR MICROSWITCH
NOTE: 20-24AWG WIRE RECOMMENDED
FOR CONNECTING WALL SWITCH TO THE
DUAL MOTOR CONTROLLER
NOTE: Electrical connections
on left end of case.
AUX EYE
FRONT OF
WALL SWITCH
BACK OF
WALL SWITCH
SCREEN MOTOR
DOOR MOTOR
BLUE (COMMON)
BROWN (HOT)
GREEN/YELLOW (GROUND)
DOWN
STOP
UP
RED (UP)
BLACK (DOWN)
WHITE (COMMON)
WHITE (COMMON) RED (UP) BLACK (DOWN)
BROWN (UP)
BROWN (DOWN)
BLUE (COMMON)
BLACK (UP)
BLACK (DOWN)
BLUE (COMMON)
BLUE (COMMON)
BLACK (UP)
BROWN (DOWN)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
BLACK (UP)
BROWN (DOWN)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
BLACK (DOWN)
BROWN (UP)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
BLACK (DOWN)
BROWN (UP)
GREEN/YELLOW (GROUND)
3

4
POWER INPUT AND CONTROL
BOARD ARE LOCATED ON RIGHT
SIDE OF SCREEN HOUSING.
BROWN (HOT)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
POWER INPUT
240VAC/50HZ
DOWN
STOP
UP
NOT USED
BACK OF FRONT OF
WALL SWITCH WALL SWITCH
SCREEN MOTOR
DOOR MOTOR
TERMINAL BLOCK
TX - DATA OUT
G - GROUND
RX - DATA IN
TX - DATA OUT
G - GROUND
RX - DATA IN
WHITE (COMMON)
BLACK (DOWN)
RED (UP)
- 12VDC OUT
+ 12VDC OUT
SCREEN AND DOOR MOTOR, MICROSWITCH
AND TIMER RELAY ARE LOCATED ON LEFT
SIDE OF SCREEN HOUSING. DOOR MICROSWITCH
BLUE
(COMMON)
BROWN (UP)
BLUE (COMMON)
BLACK (DOWN)
BROWN (UP)
GREEN/YELLOW (GROUND)
BROWN (DOWN)
BLUE (COMMON)
BLACK (UP)
GRAY (DOOR)
BROWN (DOWN)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
BLACK (UP)
GRAY (DOOR)
BROWN (DOWN)
GREEN/YELLOW (GROUND)
BROWN/
YELLOW
BLACK (DOWN)
BLUE (COMMON)
BLUE (COMMON)
BROWN (DOWN)
BLACK (UP)
BROWN (HOT)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
NOTE: 20-24AWG WIRE RECOMMENDED
FOR CONNECTING WALL SWITCH TO THE
DUAL MOTOR CONTROLLER

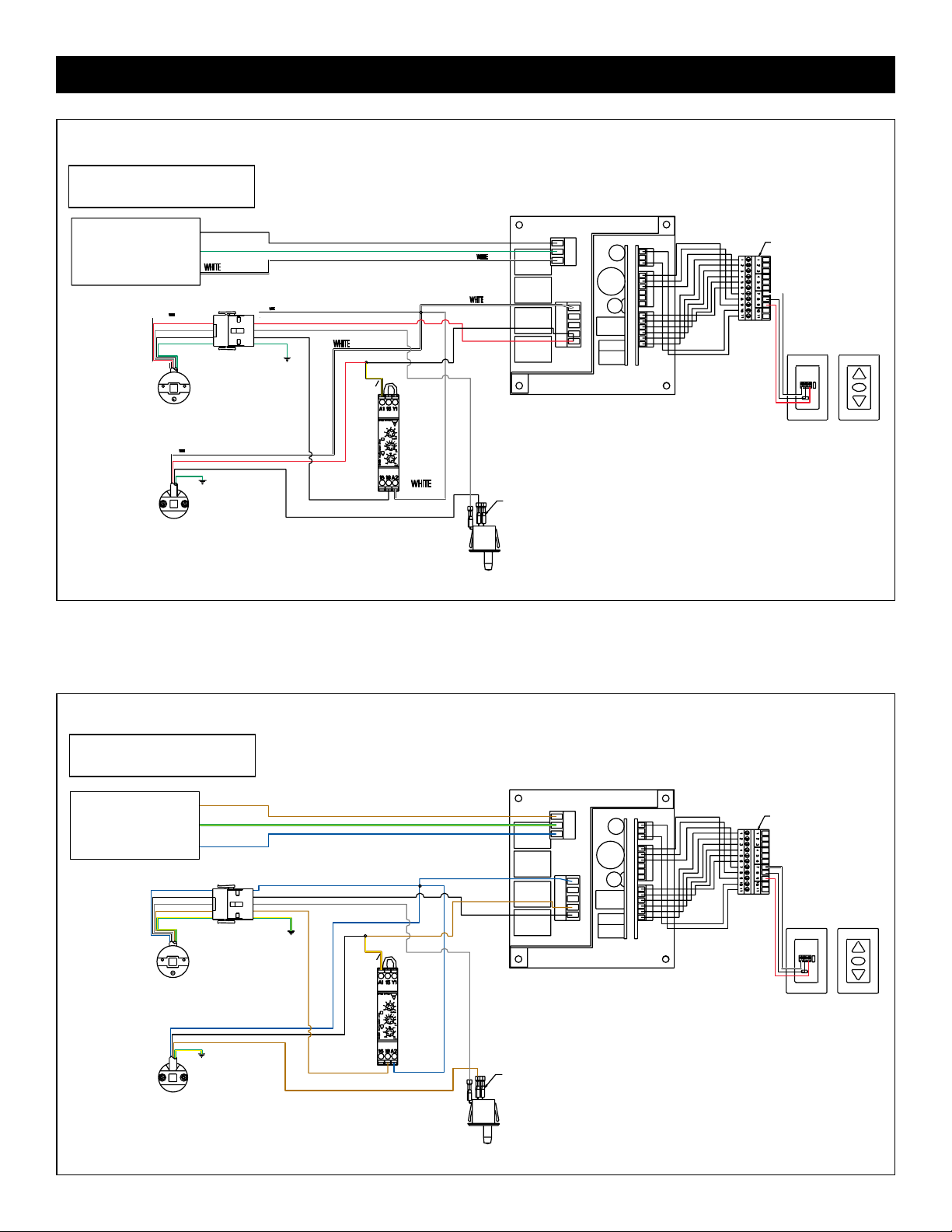

TENSIONED ADVANTAGE®DELUXE ELECTROL®INSTRUCTIONS SCB-100 CONTROL
POWER INPUT AND CONTROL
BOARD ARE LOCATED ON RIGHT
SIDE OF SCREEN HOUSING.
220 / 240V
WIRING DIAGRAM
120V WIRING DIAGRAM
NOTE: Electrical connections on right side of case.
NOTE: Electrical connections on right side of case.
BLACK (HOT)
GREEN (GROUND)
WHITE (COMMON)
POWER INPUT
120VAC/60HZ
DOWN
STOP
UP
NOT USED
BACK OF FRONT OF
WALL SWITCH WALL SWITCH
SCREEN MOTOR
DOOR MOTOR
TERMINAL BLOCK
TX - DATA OUT
G - GROUND
RX - DATA IN
TX - DATA OUT
G - GROUND
RX - DATA IN
WHITE (COMMON)
BLACK (DOWN)
RED (UP)
- 12VDC OUT
+ 12VDC OUT
SCREEN AND DOOR MOTOR, MICROSWITCH
AND TIMER RELAY ARE LOCATED ON LEFT
SIDE OF SCREEN HOUSING. DOOR MICROSWITCH
WHITE
(COMMON)
BLACK (UP)
WHITE (COMMON)
RED (DOWN)
BLACK (UP)
GREEN (GROUND)
BLACK (DOWN)
WHITE (COMMON)
RED (UP)
GRAY (DOOR)
BLACK (DOWN)
GREEN (GROUND)
WHITE (COMMON)
RED (UP)
GRAY (DOOR)
BLACK (DOWN)
GREEN (GROUND)
BLACK/
YELLOW
RED (DOWN)
WHITE (COMMON)
WHITE (COMMON)
BLACK (DOWN)
RED (UP)
BLACK (HOT)
GREEN (GROUND)
WHITE (COMMON)
NOTE: 20-24AWG WIRE RECOMMENDED
FOR CONNECTING WALL SWITCH TO THE
DUAL MOTOR CONTROLLER

POWER INPUT AND CONTROL
BOARD ARE LOCATED ON RIGHT
SIDE OF SCREEN HOUSING.
BROWN (HOT)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
POWER INPUT
240VAC/50HZ
NOT USED
ENCODER
5V A B GND
SCREEN MOTOR
DOOR MOTOR
SCREEN AND DOOR MOTOR, MICROSWITCH
AND TIMER RELAY ARE LOCATED ON LEFT
SIDE OF SCREEN HOUSING. DOOR MICROSWITCH
BLUE
(COMMON)
BROWN (UP)
WHITE (COMMON)
RED (DOWN)
BLACK (UP)
GREEN (GROUND)
BROWN (DOWN)
BLUE (COMMON)
BLACK (UP)
GRAY (DOOR)
BROWN (DOWN)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
BLACK (UP)
GRAY (DOOR)
BROWN (DOWN)
GREEN/YELLOW (GROUND)
BROWN/
YELLOW
BLACK (DOWN)
BLUE (COMMON)
BLUE (COMMON)
BROWN (DOWN)
BLACK (UP)
BROWN (HOT)
GREEN/YELLOW (GROUND)
BLUE (COMMON)
BLACK (UP)
BROWN (DOWN)
BLUE (COMMON)
B + A -
TENSIONED ADVANTAGE®DELUXE ELECTROL®INSTRUCTIONS SCB-200 CONTROL
POWER INPUT AND CONTROL
BOARD ARE LOCATED ON RIGHT
SIDE OF SCREEN HOUSING.
220 / 240V
WIRING DIAGRAM
120V WIRING DIAGRAM
NOTE: Electrical connections on right side of case.
NOTE: Electrical connections on right side of case.
BLACK (HOT)
GREEN (GROUND)
WHITE (COMMON)
POWER INPUT
120VAC/60HZ
NOT USED
ENCODER
5V A B GND
SCREEN MOTOR
DOOR MOTOR
SCREEN AND DOOR MOTOR, MICROSWITCH
AND TIMER RELAY ARE LOCATED ON LEFT
SIDE OF SCREEN HOUSING. DOOR MICROSWITCH
WHITE
(COMMON)
BLACK (UP)
WHITE (COMMON)
RED (DOWN)
BLACK (UP)
GREEN (GROUND)
BLACK (DOWN)
WHITE (COMMON)
RED (UP)
GRAY (DOOR)
BLACK (DOWN)
GREEN (GROUND)
WHITE (COMMON)
RED (UP)
GRAY (DOOR)
BLACK (DOWN)
GREEN (GROUND)
BLACK/
YELLOW
RED (DOWN)
WHITE (COMMON)
WHITE (COMMON)
BLACK (DOWN)
RED (UP)
BLACK (HOT)
GREEN (GROUND)
WHITE (COMMON)
RED (UP)
BLACK (DOWN)
WHITE (COMMON)
B + A -
5

6

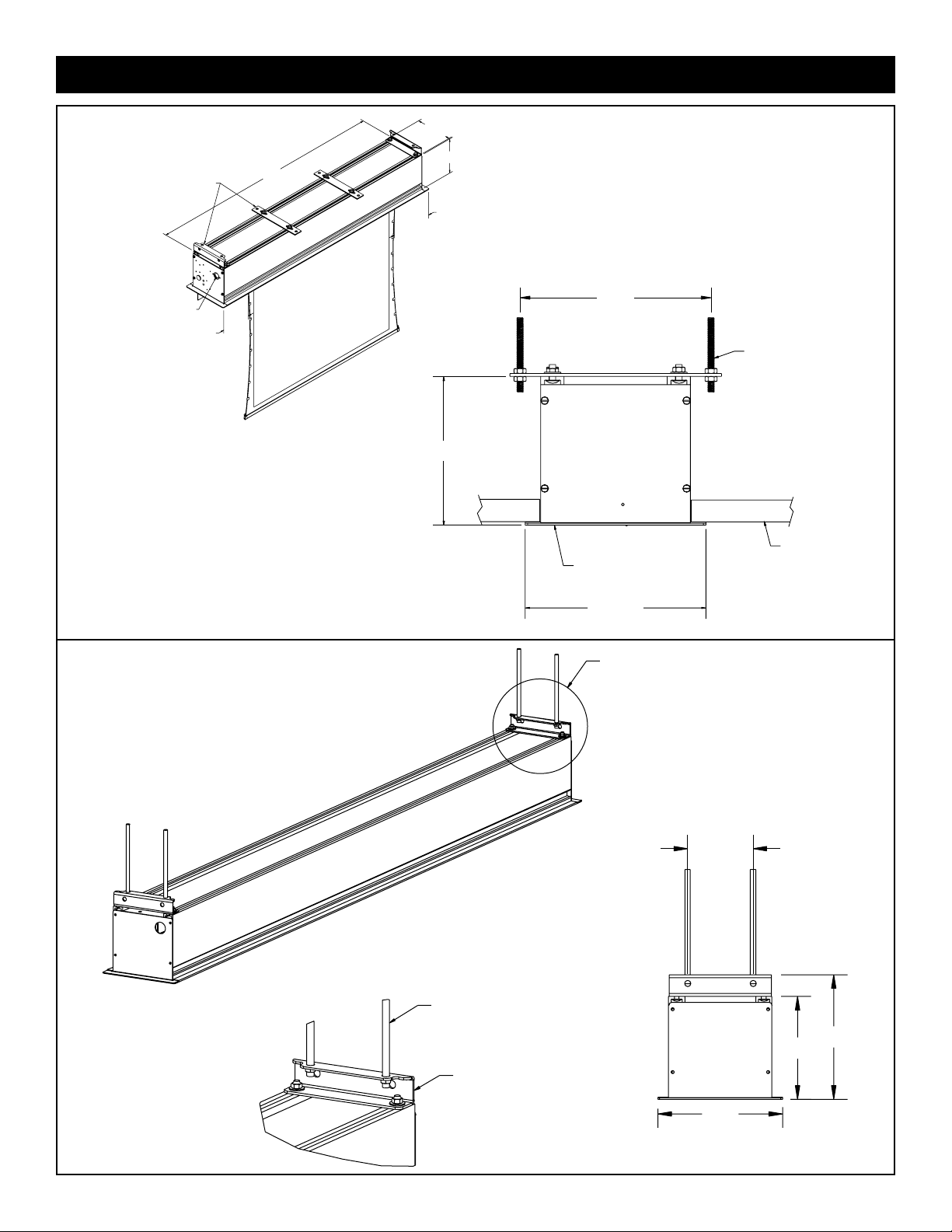

TENSIONED ADVANTAGE®DELUXE ELECTROL®INSTALLATION
CASE LENGTH
VARIABLE POSITION
MOUNTING BRACKETS
7-1/4"
7-5/8"
MOTOR END
ELECTRICAL
JUNCTION BOX
7-1/4"
7-5/8"
9-1/4"
(SUGGESTED) 3/8"
THREADED ROD
(NOT INCLUDED)
ATTACHED TO
MOUNTING BRACKET
FINISHED
CEILING
SELF-TRIMMING
FLANGE
7-1/4"
8-3/4"
SEE DETAIL A
(SUGGESTED) 3/8"
THREADED ROD
(NOT INCLUDED)
4.59"
7.21"
8.75"
DETAIL A
8.74"
HANGER BRACKET
FLAT BRACKET MOUNTING METHOD
FORMED BRACKET
MOUNTING METHOD

7
TROUBLESHOOTING
SYMPTOM
If screen is not responding properly and
SCB100 or SCB200 controls are used,
contact the factory for troubleshooting
assistance.
1. Screen will not operate or will not go
“down”.
Motor does not hum.
Motor hums.
2. Screen will not move upward.
Motor does not hum.
Motor hums.
CAUSE
(a) Incorrect line voltage.
(b) Blown facility fuse.
(c) Tripped facility circuit breaker.
(d) No power to operating switch or
junction box.
Power at junction box.
(e) Thermal overload tripped.
(f) Broken wire in the “down” position.
(g) Defective motor, limit switch or
capacitor.
(h) Capacitor burned out.
(a) Incorrect line voltage.
(b) Blown facility fuse.
(c) Tripped facility circuit breaker.
(d) No power to operating switch or
junction box.
(e) Open door limit switch.
Power at junction box
(f) Thermal overload tripped.
(g) Broken wire in the “up” position.
(h) Defective motor, limit switch or
capacitor.
(i) Capacitor burned out.
SOLUTION
(a) Verify 115-125V (or 220-240V). If
insufficient voltage, rewire incoming
electric line.
(b) Replace facility fuse.
(c) Reset facility circuit breaker.
(d) Check above. Tighten all loose wire
connections. Recheck wiring. See
installation instructions.
“Down” Position
Check for power across black and white
leads.
(e) Let motor cool down for 15 minutes.
Try again.
(f) Check for continuity.
(g) Replace motor assembly.
NOTE: Motor is a sealed assembly.
(h) Replace motor assembly.
(a) Verify 115-125V (or 220-240V). If
insufficient voltage, rewire incoming
electric line.
(b) Replace facility fuse.
(c) Reset facility circuit breaker.
(d) Check above. Tighten all loose wire
connections. See above.
“Up” Position
Check for power across red and
white leads.
(e) Replace switch.
(f) Let motor cool down for 15 minutes.
Try again.
(g) Check for continuity.
(h) Replace motor assembly.
NOTE: Motor is a sealed assembly.
(i) Replace motor assembly.
Visit www.da-lite.com/products/tutorials.php to find installation and troubleshooting tutorials. You will also
find a link to Live Chat for interactive support and you can contact us by email at [email protected] or by phone
at [phone] or [phone] with any troubleshooting questions.

8
TROUBLESHOOTING
SYMPTOM
3. Door will not open.
4. Door does not close.
5. “Down” limit switch incorrect.
6. Noise.
NOTE: Screen will operate with a low-
pitched hum.
7. Coasting.
8. Roller displaced from mounting
bracket.
9. Fabric hangs crooked.
10. Door closes before screen is all the
way up.
11. Door opens but screen does not
operate.
CAUSE
(a) Hinge is bound or has a foreign
substance on it which does not allow
it to open by gravity.
(b) No power.
(a) Open door limit switch.
(b) No power from screen motor.
(a) “Down” limit switch out of
adjustment.
(a) Buzzing noise.
(b) Gear noise.
(a) Defective brake.
(a) Pin end slipped out of nylon bearing.
(a) Screen not installed properly.
(b) Fabric is damaged.
(a) Screen “up” limit out of adjustment.
(a) Loose wire.
SOLUTION
(a) Check installation to free door. Clear
any foreign substance; i.e., paint or
plaster from hinge.
(b) See above.
(a) Replace switch.
(b) Replace screen motor.
(a) See installation instructions.
(a) Adjust door limit switch (too far
down).
(b) Replace motor assembly.
(a) Replace motor assembly.
(a) Realign pin end bracket.
(a) Check for level and plumb.
(b) Replace fabric.
(a) Adjust “up” limit (call factory for
instructions).
(a) Check all wiring and connections.

9

10

Printed in U.S.A. 88585 Rev. 3/11
11
LIMITED ONE YEAR WARRANTY
ON DA-LITE PRESENTATION PRODUCTS
Da-Lite Screen Company, Inc. warrants its products to the original purchaser only, to be free
from defects in materials and workmanship for a period of one (1) year from the date of
purchase by the original purchaser provided they are properly operated according to Da-Lite’s
instructions and are not damaged due to improper handling or treatment after shipment from
the factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental
damage, or which has been tampered with or repaired by a person other than authorized Da-
Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option)
the defective part of the merchandise. Returns for service should be made to your Da-Lite
dealer. If it is necessary for the dealer to return the screen or part to Da-Lite, transportation
expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for
damage in shipment. To protect yourself against damage or loss in transit, insure the product
and prepay all transportation expenses.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANT ABILITY. Any
implied warranties of fitness for use, or merchantability, that may be mandated by statute or
rule of law are limited to the one (1) year warranty period. This warranty gives you specific
legal rights, and you may also have other rights, which vary from state-to-state. NO LIABILITY
IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN
OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL
DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you
may contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, [phone],
[phone].
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE
BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE
WITH DA-LITE’S WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
