•Thank you for purchasing the wired remote controller.
•
This manual describes safety precautions required for the use of the
product.
Read this manual carefully and be sure you understand the
information provided before attempting to use the product.
Keep this manual where it is readily accessible after reading it through.
If another user operates the product in the future, be sure to hand over
this manual to the new user.
BRC073A4

User reference guide
1
Contents
Notices Safety Precautions ................................................... 2
Items to be Strictly Observed ................................... 3

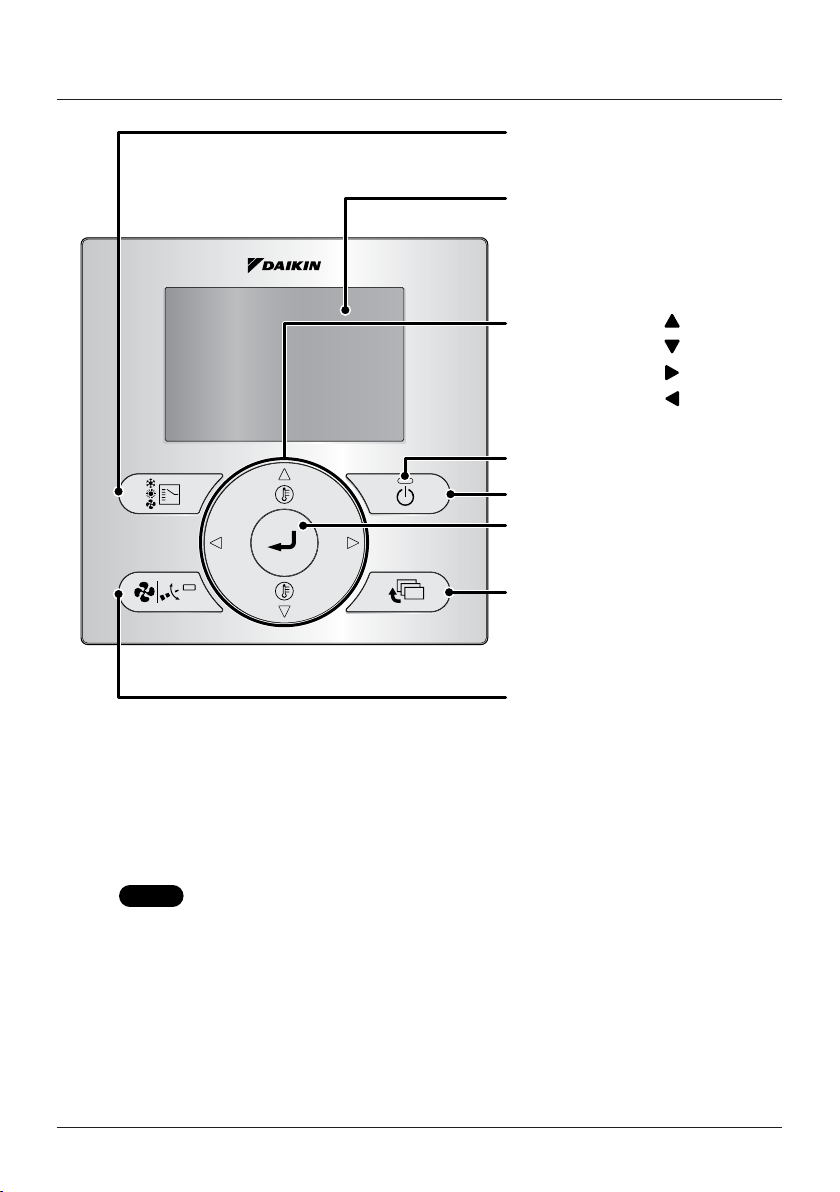

Names and Functions............................................... 7

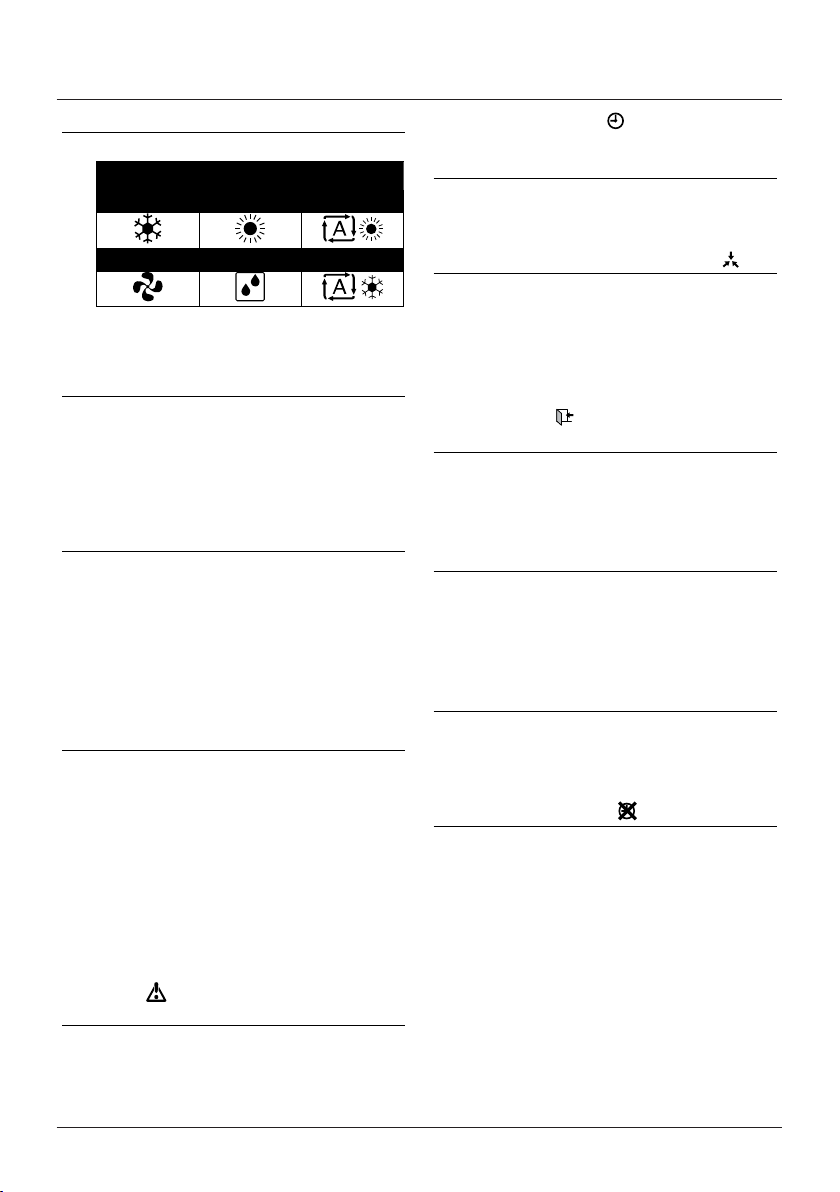

Liquid Crystal Display............................................. 9
Basic Operation Method Enable/disable the Menu/Enter and Cancel
button...................................................................... 11
Cool/Heat/Fan/Dry/Auto Operation......................... 12
Program Dry Operation .......................................... 16
Setback................................................................... 17
Key Lock................................................................. 18
Quick Reference of
Main Menu Items
Main Menu Items Overview.................................... 19
Menu Manipulation Main Menu.............................................................. 21
Airow Direction...................................................... 22
Energy Saving Options........................................... 23
Schedule................................................................. 28
Maintenance Information........................................ 33
Con iguration .......................................................... 34
Current Settings...................................................... 36
Clock & Calendar.................................................... 37
Language................................................................ 39
Maintenance Maintenance of Unit and the LCD display .............. 40
Reference Information Error Code Display ................................................. 41
ʺMode Conictʺ message ....................................... 42
After-sales Service ................................................. 47

User reference guide
2
BRC0731A4
3P4227241-1
The original instructions are written in English. All other languages are translations of the original
instructions.
This appliance is not intended to be used by persons, including children, with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they are supervised or
have been given instructions on how to use the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Please read these Safety Precautions carefully before installing the remote controller.
•This manual classifies the precautions into WARNING and CAUTION.
They both contain important information regarding safety. Be sure to follow all the precautions
below.
WARNING Failure to follow these instructions properly may result in personal
injury or loss of life.
CAUTION
Failure to observe these instructions properly may result in property
damage or personal injury, which may be serious depending on the
circumstances.
•The following pictograms are used in this manual.
Never do. Always follow the instructions given.
Be sure to ground the unit. Absolutely keep wet hands away.
Absolutely keep water and moisture
away.
About Remote Controller
WARNING
•Do not install the remote controller by yourself.
Improper installation may result in electric shocks or re.
Consult your Daikin dealer.
•Do not modify or repair the remote controller.
This may result in electric shocks or re.
Consult your Daikin dealer.
•Do not relocate or reinstall the remote controller by yourself.
Improper installation may result in electric shocks or re.
Consult your Daikin dealer.
• Do not use ammable materials (e.g., hair spray or insecticide) near the
product.
Do not clean the product with organic solvents such as paint thinner.
The use of organic solvents may cause crack damage to the product, electric shocks or
re.
Safety Precautions

User reference guideBRC0731A4
3P422724-1 3
CAUTION
•Do not play with the unit or its remote controller.
Accidental operation by a child may result in impairment of bodily functions and harm
health.
•Never disassemble the remote controller.
Touching the interior parts may result in electric shocks or re.
Consult your Daikin dealer or authorized contractor for internal inspections and
adjustments.
• To avoid electric shocks, do not operate with wet hands.
•Do not wash the remote controller.
Doing so may cause electric leakage and result in electric shocks or re.
•Do not leave the remote controller wherever there is a risk of wetting.
If water gets into the remote controller there is a risk of electrical leakage and damage to
electronic components.
Indoor Unit and Outdoor Unit
WARNING
• Be aware that prolonged, direct exposure to cool or warm air from the air
conditioner or to air that is too cold or too warm can be harmful to your
physical condition and health.
• Do not place objects, including rods, your ngers, etc. in the air inlet or
outlet.
Injury may result due to contact with the air conditioner's high-speed fan blades.
•Contact professional personnel about attachment of accessories and be
sure to use only accessories specied by the manufacturer.
If a defect results from your own workmanship, it may result in water leaks, electric
shock or re.
• Do not use the product in atmospheres contaminated with oil vapor,
such as cooking oil or machine oil vapor.
Oil vapor may cause crack damage, electric shocks or re.
• Do not use the product in places with excessive oily smoke, such as
cooking rooms or in places with ammable gas, corrosive gas or metal
dust.
Using the product in such places may cause re or product failures.
Items to be Strictly Observed

User reference guide
4
BRC0731A4
3P422724-1
Items to be Strictly Observed
WARNING
• Beware of re in case of refrigerant leakage.
If the air conditioner is not operating correctly, i.e. not generating cool or warm air,
refrigerant leakage could be the cause. Consult your dealer for assistance. The
refrigerant within the air conditioner is safe and normally does not leak. However, in the
event of a leakage, contact with a naked burner, heater or cooker may result in
generation of noxious gas. Do not longer use the air conditioner until a qualied service
person conrms that the leakage has been repaired.
• In the case of using a load breaker provided with a fuse, make sure that
the capacity of the fuse is correct.
Use of an ordinary conductive wire may cause malfunctions or re.
•Do not use the power supply breaker to start or stop the air conditioner.
Otherwise, re or water leakage may result.
Furthermore, the fan will rotate abruptly if power failure compensation is enabled, which
may result in injury.
•Be sure to earth the unit.
Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead.
Imperfect earthing may result in electric shocks or re. A high surge current from
lightning or other sources may cause damage to the air conditioner.
• When the air conditioner is malfunctioning (giving off a burning odour,
etc). turn off the power and contact your local dealer.
Continued operation under such circumstances may result in a failure, electric shocks or
re hazards.
•Consult your local dealer regarding what to do in case of refrigerant
leakage.
When the air conditioner is to be installed in a small room, it is necessary to take proper
measures so that the amount of any leaked refrigerant does not exceed the
concentration limit in the event of a leakage.
Otherwise, this may lead to an accident due to oxygen depletion.
•Be sure to install an earth leakage breaker.
Failure to install an earth leakage breaker may result in electric shocks or re.
•Consult the dealer if the air conditioner submerges owing to a natural
disaster such as a ood or typhoon.
Do not operate the air conditioner in that case or otherwise a malfunction, electric shock
or re may result.
•Be sure to use a dedicated power supply for the air conditioner.
The use of any other power supply may cause heat generation, re or product failures.

User reference guideBRC0731A4
3P422724-1 5
Items to be Strictly Observed
CAUTION
• After prolonged use, check the unit stand and its mounts for damage.
If left in a damaged condition, the unit may fall and cause injury.
•Do not allow a child to mount on the outdoor unit or avoid placing any
object on it.
Falling or tumbling may result in injury.
•Do not block air inlets nor outlets.
Impaired airow may result in insufcient performance or trouble.
• To avoid injury, do not touch the air inlet or aluminium ns of the unit.
•Do not remove the outdoor unit's fan guard.
The guard protects against the unit's high speed fan, which may cause injury.
•Do not place objects that are susceptible to moisture directly beneath
the indoor or outdoor units.
Under certain conditions, condensation on the main unit or refrigerant pipes, air lter dirt
or drain blockage may cause dripping, resulting in fouling or failure of the object
concerned.
• Do not place water containers (ower vases, etc). on the unit, as this
may result in electric shocks or re.
•Do not use the air conditioner for purposes other than those for which it
is intended.
Do not use the air conditioner for cooling precision instruments, food, plants, animals or
works of art as this may adversely affect the performance, quality and/or longevity of the
object concerned.
• Do not place appliances that produce naked ames in places exposed to
the airow from the unit as this may impair combustion of the burner.
•Do not place heaters directly below the unit as resulting heat can cause
deformation.
• Be sure that children, plants or animals are not exposed directly to
airow from the unit as adverse effects may ensue.
• Do not put ammable containers, such as spray cans, within 1 m from
the blow-off mouth.
The containers may explode because the warm air output of the indoor or outdoor unit
will affect them.
•Do not install the air conditioner at any place where there is a danger of
ammable gas leakage.
In the event of a gas leakage, build-up of gas near the air conditioner may result in re
hazards.

User reference guide
6
BRC0731A4
3P422724-1
Items to be Strictly Observed
CAUTION
•Do not sit or stand on any unstable base at the time of operating or
maintaining the air conditioner.
The base may topple down and injury may occur.
• Do not touch the motor when replacing the lter.
The motor can be very hot which may result in burns.
•Do not wash the air conditioner with water as this may result in electric
shocks or re.
•Perform ventilation from time to time.
Be careful when using the air conditioner with other heating equipment.
Insufcient ventilation may result in oxygen deciency.
•Always stop the operation of the air conditioner and turn OFF the power
supply breaker when cleaning.
Failure to do so may result in an electric shock or injury.
•Do not wash the interior of the indoor and outdoor units by yourself.
Always consult your Daikin dealer.
The use of an incorrect washing method or incorrect detergent may damage the resin
parts of the indoor unit or cause water leakage.
Moreover, malfunctions, smoke generation or ignition may result if the electric parts or
the motor in the indoor unit come in contact with a detergent or water.
• Do not place objects in direct proximity of the outdoor unit and do not let
leaves and other debris accumulate around the unit.
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such
animals can cause malfunctions, smoke or re when making contact with electrical
parts.
• Fix the units securely.
If the units are not mounted securely, the units may fall or topple and result in personal
injury.
•Arrange the drain to ensure complete drainage.
If proper drainage from the outdoor drain pipe does not occur during air conditioner
operation, there could be a blockage due to dirt and debris build-up in the pipe.
This may result in water leakage from the indoor unit. Under these circumstances, stop
the air conditioner operation and consult your dealer for assistance.

User reference guideBRC0731A4
3P422724-1 7
Names and Functions
2. Fan Speed/Airow
Direction button
3. Menu/Enter button
8. ON/OFF button
10. Cancel button
9. Operation lamp
11. LCD (with backlight)
4. Up button
5. Down button
6. Right button
7. Left button
1. Operation Mode
Selector button
Functions other than the basic operation items (i.e., ON/OFF,
operation mode selection, fan speed, up/down direction, and
temperature setting) are set from the menu screen.
NOTE
• Do not install the remote controller in places exposed to direct sunlight.
Otherwise, the LCD may become discolored and nothing may be displayed.
•Do not pull or twist the remote controller cord.
Otherwise, the remote controller may malfunction.
•Do not press the buttons on the remote controller with objects with sharp ends.
Otherwise, the remote controller may be damaged or malfunction.

User reference guide
8
BRC0731A4
3P422724-1
Names and Functions
1. Operation Mode Selector button
•Press this button to select the operation
mode of your preference. (See "Cool/
Heat/Fan/Dry/Auto Operation" on page 12)
•Available modes may vary with the
connected model.
2. Fan Speed/Airow Direction
button
•Used to change the fan speed and airow
direction. (See "Cool/Heat/Fan/Dry/Auto
Operation" on page 13)
•Available fan speeds and airow directions
may vary with the connected model.
3. Menu/Enter button
•This button is enabled by default.
To disable, refer to "Enable/disable the
Menu/Enter and Cancel button" on
page 11.
•Used to display the Main Menu or enter the
selected item (See "Main Menu Items
Overview" on page 19).
4. Up button
•Used to raise the set temperature.
•The next item on the upper side will be
highlighted.
(Keep pressing the button to cycle through
the values or items).
•Used to change the selected item.
5. Down button
•Used to lower the set temperature.
•The next item on the lower side will be
highlighted.
(Keep pressing the button to cycle through
the values or items).
•Used to change the selected item.
6. Right button
•Used to highlight the next items on the
right-hand side.
•The display contents are changed to the
next screen.
7. Left button
•Used to highlight the next items on the
left-hand side.
•The display contents are changed to the
previous screen.
8. ON/OFF button
•Press to start or stop the air conditioner.
9. Operation lamp (Green)
•This lamp lights up during operation.
•This lamp is not lit when the unit operation
is OFF.
•This lamp blinks if an error or mode conict
occurs.
10.Cancel button
•This button is enabled by default.
To disable, refer to "Enable/disable the
Menu/Enter and Cancel button" on
page 11.
•Used to return to the previous screen.
11. LCD (with backlight)
•The backlight will be lit for approximately
30 seconds when one of the buttons is
pressed.
•The actions linked to the buttons , except
for the ON/OFF button, are not carried out
when the backlight is not lit.

User reference guideBRC0731A4
3P422724-1 9
Names and Functions
Liquid Crystal Display
•There are four display methods for the liquid crystal display (LCD) available. The
Standard display, which is used by default, and the Detailed display. There is also the
possibility to use only Icon or Icon and Text mode (see the Installer reference guide).
•To change the active display method, select the desired display method in the Display
Method screen (See "Display" on page 34).
•The displayed contents on the screen may vary with the operation mode of the
connected models. (E.g.: The following display will appear when the air conditioner is
in heating operation).
Standard display
With icons (default) With icons and text
28°C
5
7
4
6
8
3
2
1
28°C
Heat
Error: Push Menu button
5
7
4
6
8
3
2
1
Set to
Detailed display
The clock and Detailed selection items appear on the Detailed
display in addition to the items appearing on the Standard display.
With icons With icons and text
10
9
Fri
11:03
4
10
9
Fri
11:03
3
4
11
Error: Push Menu button
Heat
2
Set to Room

User reference guide
10
BRC0731A4
3P422724-1
Names and Functions
1. Operation mode
•Indicates the current operation mode.
Operation Mode
Cool Heat Auto (Heat)
Fan Dry Auto (Cool)
2. Fan speed
(See "Cool/Heat/Fan/Dry/Auto Operation"
on page 12)
•Indicates the fan speed that is set for the
air conditioner.
•The fan speed will not be displayed if the
air conditioner does not have the fan speed
control function.
3. Airow direction
•Displayed only when the air conditioner is
in operation.
•Indicates the airow direction that is set for
the air conditioner.
•The possible directions depend on the
indoor unit.
4. Set/Setback temperature display
(See "Setback" on page 17)
•When the unit is turned ON, the
temperature that is set for the air
conditioner is displayed.
•When the unit is turned OFF and Setback
is disabled, the temperature that is set for
the air conditioner is displayed.
•When the unit is turned OFF and Setback
is enabled, the temperature that is set for
the setback function is displayed in smaller
digits.
5. Error " "
(See "Error Code Display" on page 41
•Indicates a unit error.
6. Timer enabled "
(SkyAir and VR
"
V)
(See "OFF Timer" on page 27and
"Schedule" on page 28)
•Indicates that the schedule timer or the
OFF timer is enabled.
7. Under Centralised control " "
•Indicates that the air conditioner is under
the management of central control
equipment (optional accessories) and the
operation of the system through the remote
controller is prohibited.
8. Setback " "
(See "Setback" on page 17)
•The setback icon ashes when the unit is
turned on under the setback control.
9. Clock (12/24 hours real time clock)
(See "Clock & Calendar" on page 38)
•Indicates that the clock is set.
•If the clock is not set, " -- : -- " will be
displayed.
10.Detailed selection
(See "Display Mode" on page 34)
•Is displayed when the detailed display
mode is selected.
•No detailed items are selected by default.
11. Timer problem " "
•Indicates that the clock needs to be set
again.
•The schedule timer function will not work
unless the clock is set again.

User reference guideBRC0731A4
3P422724-1 11
1
1/2
Airflow Direction
Energy Saving Options
Schedule
Maintenance Information
Configuration
Current Settings
SettingReturn
Main Menu
•Display the Main Menu. (See
"Manipulating the Main Menu" on page 21).
•Press the (Up/Down) buttons to
select Schedule and press the Menu/Enter
button.
2
NoYes
Schedule
Clock has not been set
Would you like to set it now?
SettingReturn
0:00
Wednesday
1Day
1Month
2014Year
Setting
Date & Time
Return
•Press the (Left/Right) buttons to
select Yes and press the Menu/Enter
button.
•The Date & Time screen will appear.
•Set the current year, month, day, and time.
(See "Clock & Calendar" on page 37).
Note
•Before setting the schedule, the clock must
be set.
•If the clock has not been set, a screen like
the one on the left will appear.

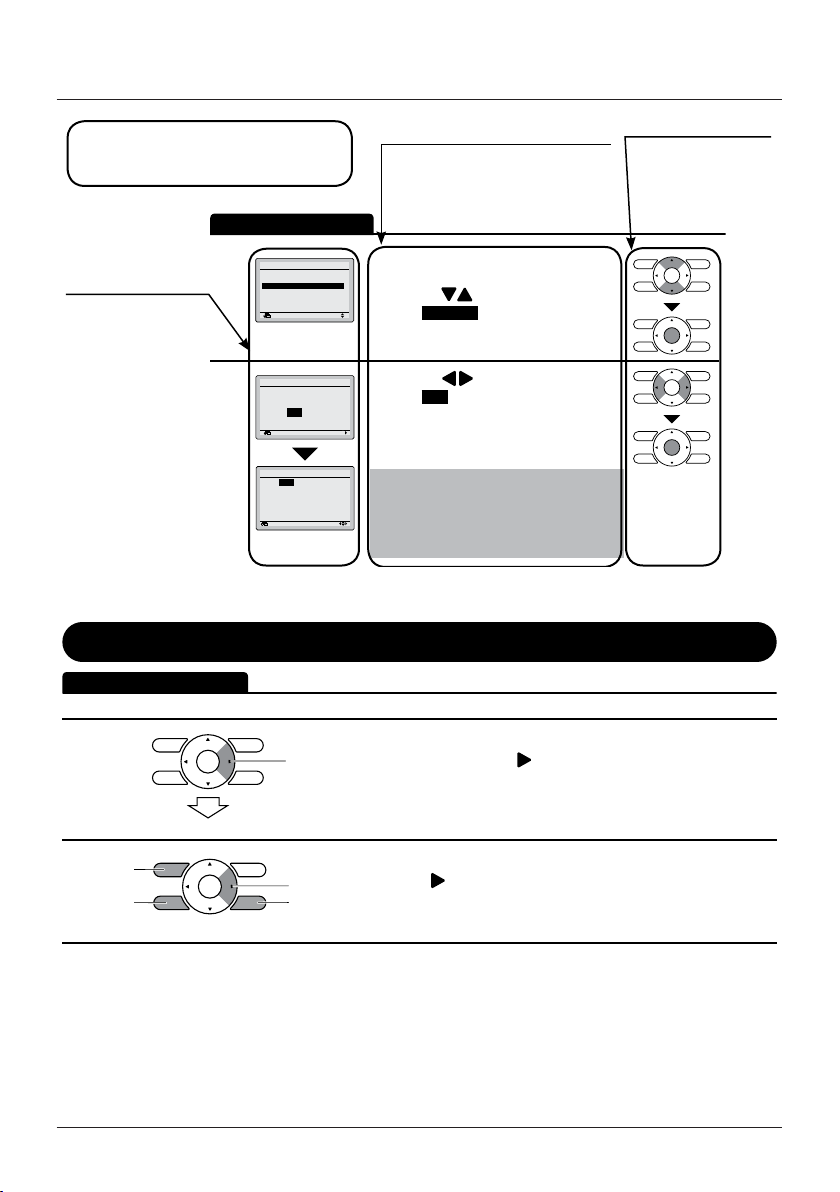

Operation Method
Remote Controller
Functions
Operation procedure
Operate the buttons according to
the procedure.
Button display
Displays the positions
of the buttons to be
operated.
Screen display
Screens that will be
displayed on the
remote controller.
Enable/disable the Menu/Enter and Cancel button
By default, the Menu/Enter and Cancel button are enabled.
Operation Method
1
2
2
2
2
1•To enable/disable the Menu/Enter and
Cancel button, keep the (Right) button
pressed in the Basic Screen.
2
2
2
2
2
1
•Press the 3 keys simultaneously while
keeping the (Right) button pressed.
Basic Operation Method

User reference guide
12
BRC0731A4
3P422724-1
Basic Operation Method

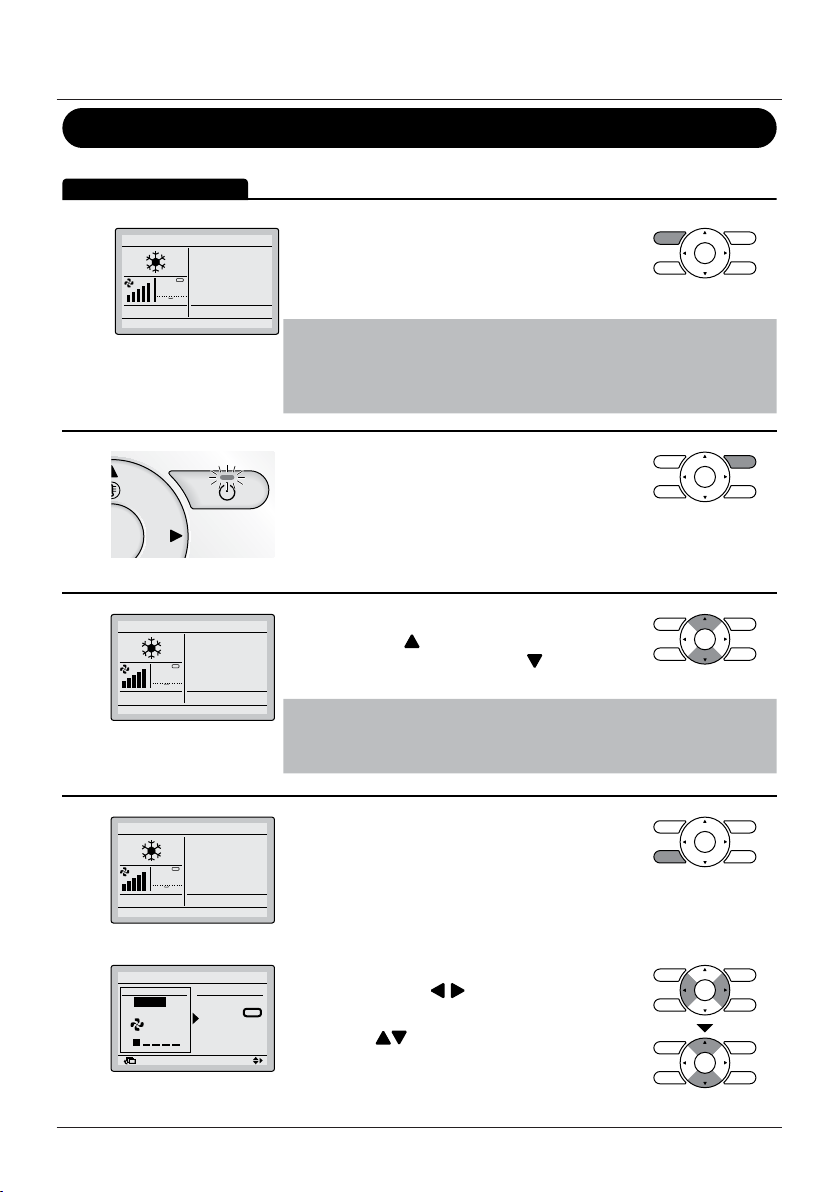

Cool/Heat/Fan/Dry/Auto Operation
1 28°C
•Press the Operation Mode Selector button
several times until the desired mode (Cooling,
Heating, Fan Only, Dry or Auto) is selected.
Note
•Unavailable operation modes are not displayed.
•Only Cooling, Dry or Fan Only mode can be selected if the air
conditioner is a cooling-only model.
2•Press the ON/OFF button.
The Operation lamp (green) will be lit and the
air conditioner will start operating.
3 28°C
•The set temperature will increase by
1°C when the (Up) button is pressed
and decrease by 1°C when the
(Down) button is pressed.
Note
Temperature settings are not possible while in Dry or Fan Only
mode.
4 28°C
• To change the fan speed or airow direction,
press the Fan Speed/Airow Direction button.
Return Setting
Return Setting
Swing stop
Lv. 1 (L)
Airow level /direction
level Direction1
• To select air volume or airow direction
setting, press the buttons.
•Press the (Up/Down) buttons to select
the desired level or position.
Operation Method

User reference guideBRC0731A4
3P422724-1 13
Basic Operation Method

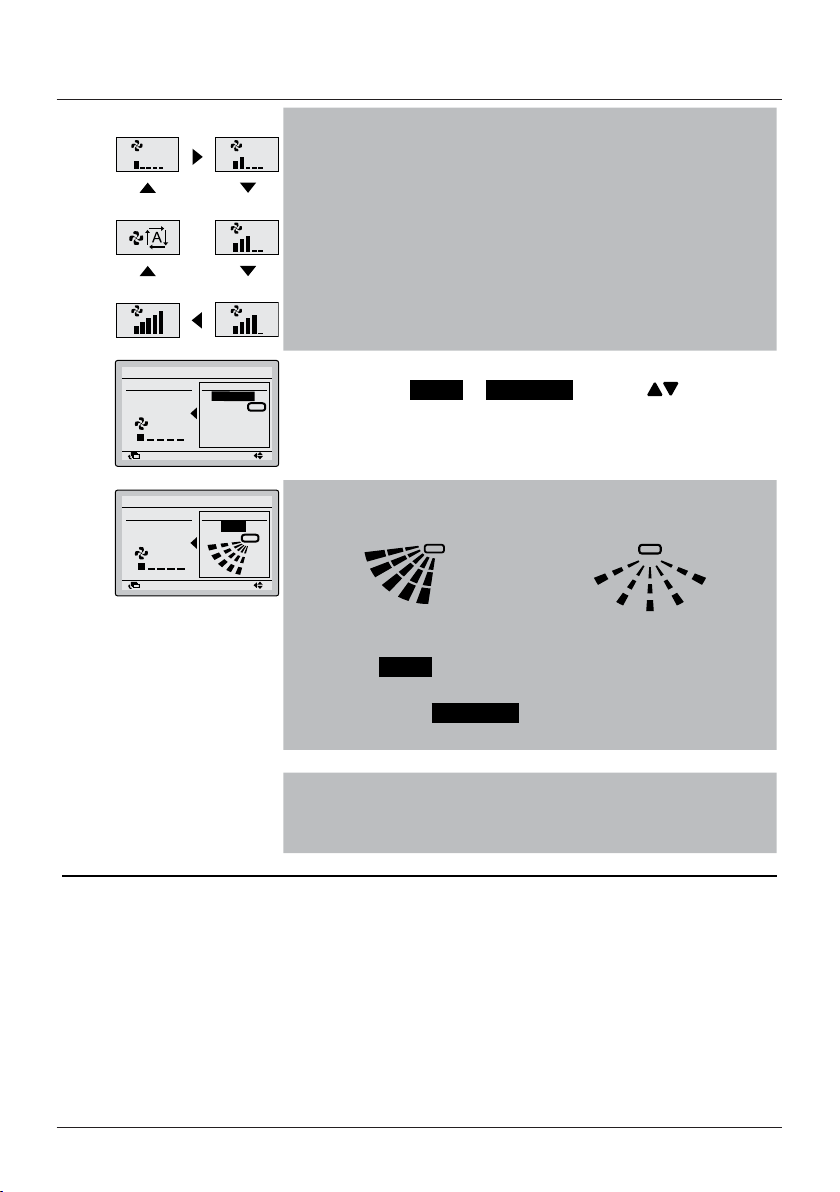

High Medium-high
Auto Medium
Medium-low
Low
Note
•The air conditioner may be in automatic fan speed control for
mechanical protection purposes.
•The air conditioner may be in automatic fan speed control
according to the room temperature.
•The fan may stop operating, which is not a failure.
•It may take time until fan speed changes are actually carried
out.
•In Auto fan speed, the fan speed is adjusted automatically
according to the setpoint and indoor temperature.
Return Setting
Return Setting
Lv. 1 (L) Swing stop
Airow level /direction
level Direction1
• With airow direction selected, select the desired airow
direction from Swing or Swing stop using the (Up/Down)
buttons.
Return Setting
Return Setting
Lv. 1 (L)
Swing
Airow level /direction
level Direction1
Airow direction
setting (up/down)
Note
• The airow directions appear on the screen as follows:
Up/down direction Left/right direction
•Selecting Swing will cause the airow direction blades to swing
back and forth.
•When you select Swing stop , the airow direction blades stay
in the position of when you press the Menu/Enter button.
Note
• To change the left/right airow direction, refer to "Change the
Airflow direction" on page 22.

User reference guide
14
BRC0731A4
3P422724-1
Basic Operation Method

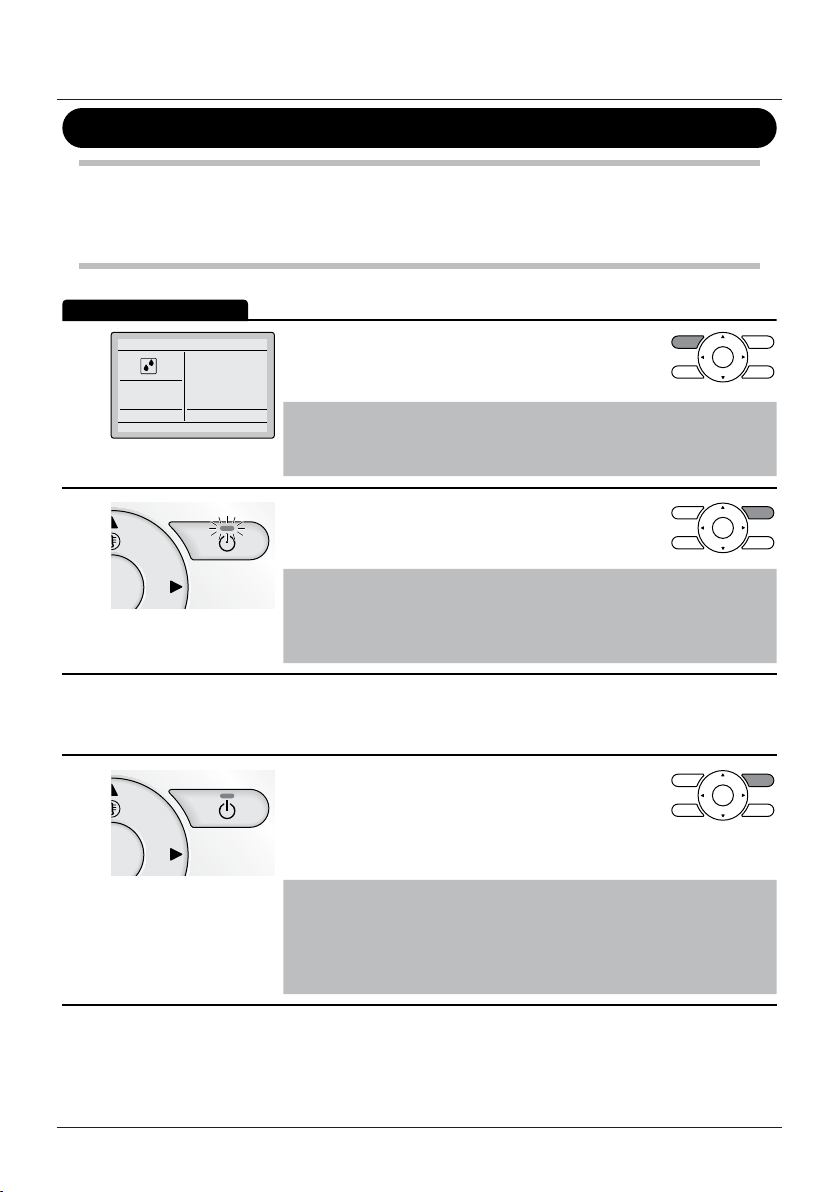

5•When the ON/OFF button is pressed again,
the air conditioner will stop operating and the
Operation lamp will turn OFF.
Note
•When the system is stopped while in heating operation, the fan
will continue to operate for approximately 1 minute in order to
eliminate the residual heat in the indoor unit.

User reference guideBRC0731A4
3P422724-1 15
Basic Operation Method
Characteristics of Cooling Operation
•When the outdoor air temperature is high, it takes some time until the
room temperature reaches the set temperature.
Characteristics of Heating Operation
Starting operation • Heating operation generally requires a longer time to attain the set
temperature compared with cooling operation.
It is recommended to start operating the air conditioner in advance by
using the timer.
Perform the following operation in order to prevent the degradation of the
heating capability or cold drafts.
Defrost operation • The air conditioner will automatically go into defrost operation to
prevent frost accumulation at the outdoor unit which results in loss of
the heating capacity.
•The air conditioner will return to normal operation after approximately
6 to 8 minutes (Max 10 minutes).
•During defrost mode the temperature near the indoor room temp is
displayed. This may be affected by the location of the unit.
Outdoor
temperature and
heating capability
•The heating capacity of the air conditioner will drop when the outdoor
temperature decreases.
If the heating effect is insufcient, it is recommended to use another
heating appliance in combination with the air conditioner. (When a
combustion appliance is used, ventilate the room regularly).
Do not use the heating appliance in places where the heating
appliance is exposed to the airow of the air conditioner.
•The air conditioner is a hot air circulation type. Therefore, it takes
some time to warm up the room after the air conditioner starts
operating.
The indoor fan will automatically operate until the indoor temperature
of the system rises to a certain level.
•If hot air stays around the ceiling and your feet feel cold, a circulator is
recommended.
For details, consult your Daikin dealer.

User reference guide
16
BRC0731A1
3P422724-1
Basic Operation Method
Program Dry Operation
Preparation
•The dry mode may not be selected if the remote controller has no eligibility to select cooling/
heating mode.
1•Press the Operation Mode Selector button several
times until Dry mode is selected.
Note
Dry mode may not be available depending on the type of indoor
unit.
2•Press the ON/OFF button.
The Operation lamp will be lit and the air
conditioner will start operating.
Note
The air conditioner is in automatic temperature and fan speed
control. Therefore, the temperature or fan speed cannot be
changed while the air conditioner is in operation.
3• To set the airflow direction, see "Airflow Direction" on page 22.
4•When the ON/OFF button is pressed again, the air
conditioner will stop operating and the Operation
lamp will turn OFF.
Note
To prevent water leakage or system failure, do not turn OFF the
power soon after the air conditioner stops operating. Be sure to
wait at least 5 minutes so that the drain pump nishes discharging
the residual water from the indoor unit.
Operation Method

User reference guideBRC0731A4
3P422724-1 17
Basic Operation Method
Characteristics of Dry Operation
In Dry operation, the air humidity will be lowered by intermittently
turning the air conditioner ON in cooling and OFF again to minimize
the temperature decrease.
Note
•The temperature and fan speed are controlled automatically and
cannot be controlled by the remote controller.
•Dry operation will not function if the room temperature is too low.
Setback
The Setback function will maintain the room temperature in a specic range when the remote
controller is turned OFF. This is done by temporarily starting the air conditioner that was previously
turned OFF by the user, the schedule function or the OFF timer.
OFF
Heating
Operation
Cooling Operation
10°C 12°C
33°C 35°C
For example:
[ Setback setpoint temperature: cool 35°C, heat 10°C ]
[ Recovery differential: cool -2°C, heat +2°C ]
•If the room temperature drops below 10°C, heating is started automatically. If after half an hour
the temperature increases to 12°C or above, the controller returns to its original state.
•If the room temperature goes above 35°C, cooling is started automatically. If after half an hour
the temperature drops to 33°C or below, the controller returns to its original state.
Note
•This function is disabled by default. This function can only be enabled/disabled in the Energy
Saving List (See "Energy Saving Options" on page 23).
•The differential can be adjusted in the Setback Condition menu (See "Setback Condition" on
page 25).
•The setback temperature can be set while the unit is turned off on the Basic Screen or set in the
schedule.
•Setback will turn the unit ON for at least 30 minutes unless the setback temperature setpoint is
changed or the unit is turned ON with the ON/OFF button.
•When setback turns the air conditioner ON while in Auto mode, the remote controller switches to
Cooling or Heating only, depending on what is appropriate, and only the respective setback
temperature setpoint is shown.
•The temperature is measured inside the air conditioner unit (when the unit is switched OFF). As
there is no actual air ow, the measured temperature inside the air conditioner unit can deviate
(up to 3°C) from the actual room temperature.

User reference guide
18
BRC0731A4
3P422724-1
Basic Operation Method
Operation Method
Setback should not be enabled when a centralised controller is connected
via the KRP928 Interface adapter for Room Air Conditioner.
135°C
The setback icon " " ashes when the unit is turned ON under
the setback control.
The fan speed cannot be changed when setback is active and,
as a result, the fan speed is not visible.
The airow direction can only be changed through the menu when
setback is active.
Key Lock
Operation Method
Disable the use of all buttons.
1 28°C
•Press the Menu/Enter button for at least
4 seconds. (During backlight lit)
2
Buttons have been locked.
Press the menu button
for 4 seconds to release.
Return
•All buttons are disabled when the keys are locked.
•When one of the buttons is pressed, the message
on the left is displayed.
3•To cancel the key lock, continue pressing the
Menu/Enter button for at least 4 seconds. (During
backlight lit)
