Daikin BRC1H51W User manual

Installation and operation manual
Wired remote controller English
+
-
Installation and operation
manual
Wired remote controller
BRC1H51W
BRC1H51K
BRC1H51S

aProduct page: www.daikin.eu/BRC1H
For the original declaration of conformity and the latest version of this manual, see the product page above.
Hereby, Daikin Europe N.V. declares that the radio equipment type BRC1H is in compliance with the
Directive 2014/53/EU.
dProdukt-Seite: www.daikin.eu/BRC1H
Um die Konformitätserklärung im Original und die jüngste Version dieses Handbuchs einzusehen, siehe die
oben angegebene Produkt-Seite.
Hiermit erklärt Daikin Europe N.V., dass der Funk-Gerätetyp BRC1H der Richtlinie 2014/53/EU entspricht.
fPage produit: www.daikin.eu/BRC1H
Pour la déclaration de conformité originale et la dernière version de ce manuel, voir la page produit
ci-dessus.
Par la présente, Daikin Europe S.A. déclare que l'équipement radio de type BRC1H est conforme à la
Directive 2014/53/EU.
lProductpagina: www.daikin.eu/BRC1H
Voor de oorspronkelijke conformiteitsverklaring en de nieuwste versie van deze handleiding, zie de
productpagina hierboven.
Hierbij verklaart Daikin Europe N.V. dat de radioapparatuur van het type BRC1H conform de Richtlijn
2014/53/EU is.
ePágina del producto: www.daikin.eu/BRC1H
Para conocer la declaración de conformidad original y la versión más reciente de este manual, consulte la
página del producto arriba.
Por la presente, Daikin Europe N.V. declara que el equipo de radio BRC1H cumple con la Directiva
2014/53/EU.
iPagina prodotto: www.daikin.eu/BRC1H
Per consultare la dichiarazione di conformità originale e l’ultima versione del presente manuale, vedere la
pagina prodotto sopra indicata.
Con la presente, Daikin Europe N.V. dichiara che l’apparecchiatura radio di tipo BRC1H è conforme ai
requisiti della direttiva 2014/53/UE.
g Σελίδα προϊόντος: www.daikin.eu/BRC1H
Για την αρχική δήλωση συμμόρφωσης και την τελευταία έκδοση αυτού του εγχειριδίου, ανατρέξτε στην
παραπάνω σελίδα του προϊόντος.
Δια του παρούσης, η Daikin Europe N.V. δηλώνει ότι η συσκευή BRC1H, τύπου ραδιοεξοπλισμού,
συμμορφώνεται με την Οδηγία 2014/53/ΕΕ.
pPágina do produto: www.daikin.eu/BRC1H
Consulte a declaração de conformidade original e a versão mais recente deste manual na página do
produto acima.
A Daikin Europe N.V. declara que o equipamento de rádio do tipo BRC1H está em conformidade com a
directiva 2014/53/UE.
u Информация об оборудовании: www.daikin.eu/BRC1H
Оригинальный текст заявления о соответствии и самое свежее издание этого руководства см. на
указанной выше странице с информацией об оборудовании.
Компания Daikin Europe N.V. настоящим заявляет, что радиооборудование типа BRC1H
соответствует требованиям Директивы 2014/53/EU.
wÜrün sayfası: www.daikin.eu/BRC1H
Orijinal uygunluk beyanı ve bu kılavuzun son sürümü için yukarıdaki ürün sayfasına bakın.
Burada Daikin Europe N.V., BRC1H tipi radyo ekipmanının 2014/53/EU Direktifi ile uyumlu olduğunu beyan
eder.

Table of Contents
Installation and operation manual
3
BRC1H51W+K+S
Wired remote controller
4P511630-1 – 2017.10
Table of Contents
1 General safety precautions 3
1.1 For the user ............................................................................... 3
1.2 For the installer.......................................................................... 3
2 About this document 4
For the user 4
3 Buttons 4
4 Home screens 4
5 Status icons 5
6 Operation 5
6.1 Operation mode......................................................................... 5
6.1.1 To set the operation mode.......................................... 5
6.2 Setpoint ..................................................................................... 6
6.2.1 To set the setpoint ...................................................... 6
6.3 Airflow........................................................................................ 6
6.3.1 Airflow direction........................................................... 6
6.3.2 Airflow level................................................................. 6
6.4 Ventilation.................................................................................. 6
6.4.1 Ventilation mode ......................................................... 6
6.4.2 Ventilation rate ............................................................ 7
6.5 Advanced operation .................................................................. 7
6.5.1 To make a Bluetooth connection ................................ 7
7 Maintenance and service 7
7.1 Overview: Maintenance............................................................. 7
For the installer 7
8 About the box 7
8.1 To unpack the controller............................................................ 7
9 Preparation 8
9.1 Wiring requirements .................................................................. 8
10 Installation 8
10.1 Mounting the controller.............................................................. 8
10.1.1 To mount the controller............................................... 8
10.2 Connecting the electrical wiring................................................. 8
10.2.1 To connect the electrical wiring................................... 8
10.3 Closing the controller................................................................. 9
10.3.1 To close the controller................................................. 9
11 Starting up the system 9
11.1 To designate a controller as slave............................................. 9
12 Maintenance 9
12.1 Maintenance safety precautions................................................ 9
12.2 To clean the controller............................................................... 9
12.3 Time to clean filter indication..................................................... 9
12.3.1 To remove the Time to clean filter indication .............. 9
1 General safety precautions
Please read these general safety precautions carefully before
installing air conditioning equipment, and be sure to install the
equipment correctly.
Failure to follow these instructions properly may result in property
damage or personal injury, which may be serious depending on the
circumstances.
1.1 For the user
INFORMATION
Also see the operation manual delivered with the outdoor
and indoor unit.
WARNING
Do NOT play with the unit or its remote controller.
Accidental operation by a child may result in impairment of
bodily functions and harm health.
WARNING
To prevent electric shocks or fire:
▪ Do NOT operate the controller with wet hands.
▪ Do NOT disassemble the controller and touch interior
parts. Contact your dealer.
▪ Do NOT modify or repair the controller. Contact your
dealer.
▪ Do NOT relocate or reinstall the controller by yourself.
Contact your dealer.
WARNING
Do NOT use flammable materials (e.g. hairspray or
insecticide) near the controller.
NOTICE
To clean the controller, do NOT use organic solvents, such
as paint thinner. Possible consequence: damage, electric
shock, or fire.
1.2 For the installer
▪ The precautions described in this document cover very important
topics, follow them carefully.
INFORMATION
This controller is an option and cannot be used standalone.
Also see the installation and operation manual of the
indoor and outdoor units.
NOTICE
Improper installation or attachment of equipment or
accessories could result in electric shock, short-circuit,
leaks, fire or other damage to the equipment. Only use
accessories, optional equipment and spare parts made or
approved by Daikin.
WARNING
All field wiring and components MUST be installed by a
licensed electrician and MUST comply with the applicable
legislation.
NOTICE
The remote controller MUST be mounted indoors.
NOTICE
When the controller is used as room thermostat, select an
installation location where the average temperature in the
room can be detected.
Do NOT install the controller in the following places:
▪ In places that are exposed to direct sunlight.
▪ In places that are near a heat source.
▪ In places that are affected by outside air or air draught due to e.g.
door opening/closing.

2 About this document
Installation and operation manual
4
BRC1H51W+K+S
Wired remote controller
4P511630-1 – 2017.10
▪ In places where the display can easily get dirty.
▪ In places where there is NO easy access to the controls.
▪ In places with temperatures <–10°C and >50°C.
▪ In places where the relative humidity is >95%.
▪ In places where there is machinery that emits electromagnetic
waves. Electromagnetic waves may disturb the control system,
and cause malfunction of the equipment.
▪ In places where it may be exposed to water, or in generally moist
areas.
If you are NOT sure how to install or operate the unit, contact your
dealer.
After finishing installation:
▪ Conduct a trial operation to check for faults.
▪ Explain the user how to operate the controller.
▪ Ask the user to store the manual for future reference.
INFORMATION
Consult your dealer regarding the relocation and
reinstallation of the controller.
2 About this document
Target audience
Authorised installers + end users
Documentation set
This document is part of a documentation set. The complete set
consists of:
▪Installation and operation manual:
▪ Installation instructions
▪ Basic operation instructions
▪ Format: Paper (in the box of the controller)
▪Installer and user reference guide:
▪ Extended installation and operation information
▪ Format: Digital files on http://www.daikineurope.com/support-
and-manuals/product-information/
▪ Daikin Control Assistant in-app documentation:
▪ The controller only allows for basic settings and operation.
Advanced settings and operation are performed via the Daikin
Control Assistant app. For more information, see the app and
its in-app documentation.
▪ Format: App available from Google Play and the Apple Store
Latest revisions of the supplied documentation may be available on
the regional Daikin website or via your dealer.
The original documentation is written in English. All other languages
are translations.
Technical engineering data
▪ A subset of the latest technical data is available on the regional
Daikin website (publicly accessible).
▪ The full set of latest technical data is available on the Daikin
extranet (authentication required).
For the user
3 Buttons
+
-
c b d
a
a ON/OFF
Turn ON/OFF the system.
b ENTER/ACTIVATE /SET
▪ From the homescreen, enter the main menu.
▪ From the main menu, enter one of the submenus.
▪ From their respective submenu, activate an operation/
ventilation mode.
▪ In one of the submenus, confirm a setting.
c CYCLE/ADJUST
▪ Cycle left.
▪ Adjust a setting (default: decrease).
d CYCLE/ADJUST
▪ Cycle right.
▪ Adjust a setting (default: increase).
4 Home screens
Depending on installer configuration, your controller either has a
standard or a detailed home screen. The standard home screen only
displays the actual indoor temperature, messages (if any), the active
operation mode, and the setpoint temperature (in case of Cooling,
Heating, or Auto operation mode). The detailed home screen gives
you all kinds of information through status icons.
Standard Detailed
-14
a
b
c
d
19
a
b
c
d
aActual indoor temperature
bMessages
cActive operation mode
dSetpoint temperature

5 Status icons
Installation and operation manual
5
BRC1H51W+K+S
Wired remote controller
4P511630-1 – 2017.10
INFORMATION
The controller is equipped with a power saving function
that causes the screen to go blank after a period of
inactivity. To make the screen light up again, press one of
the buttons.

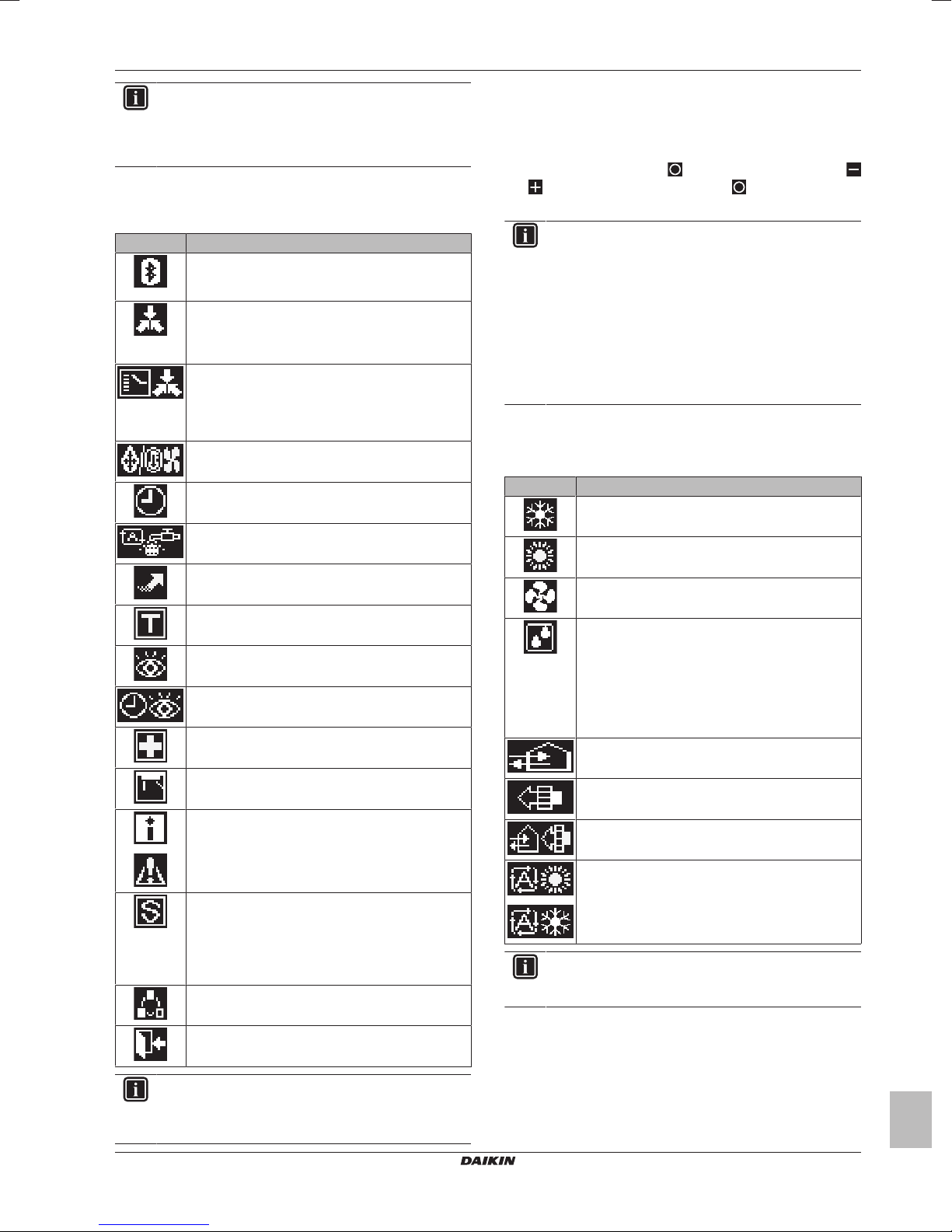

5 Status icons
Icon Description
Bluetooth. Indicates that the controller is
communicating with a mobile device, for use with the
Daikin Control Assistant app.
Centralised control. Indicates that the system is
controlled by central control equipment (optional
accessory) and control of the system by this controller
is NOT possible.
Changeover under centralised control. Indicates
that the cooling/heating changeover is under
centralised control by another indoor unit, or by an
optional cool/ heat selector that is connected to the
outdoor unit.
Defrost/Hot start. Indicates that the defrost/hot start
mode is active.
Timer. Indicates that the schedule timer or OFF timer
is enabled.
Self-cleaning filter. Indicates self-cleaning filter
operation.
Quick Start. Indicates that Quick Start mode is active
(Sky Air only).
Test operation. Indicates that Test Operation mode
is active (Sky Air only).
Inspection. Indicates that the indoor or outdoor unit is
being inspected.
Periodic inspection. Indicates that the indoor or
outdoor unit is being inspected.
Backup. Indicates that in the system an indoor unit is
set as backup indoor unit.
Airflow direction/swing. Indicates that the airflow
direction or swing are set.
Message. Indicates that the system has a message to
convey. Enter the menu to see the message.
Low noise operation/power consumption
limitation/forced thermo off (BACnet). Indicates
that the system is running under low noise operation,
under power consumption limitation conditions, or
receives a forced 'thermo off' command from a
BACnet interface.
Rotation. Indicates that Rotation mode is active.
Setback. Indicates that the indoor unit is operating
under setback control.
INFORMATION
For information on the operation mode and ventilation
mode icons, see "6.1 Operation mode" on page 5 and
"6.4.1Ventilation mode"on page6 respectively.
6 Operation
From the home screen, press to enter the main menu. Use
and to cycle through the menus. Press again to enter one of
the menus.
INFORMATION
▪ Depending on the type of indoor unit you are operating,
more or less menus may be available.
▪ In the main menu, the icon for each menu reflects the
current active setting or mode. When operating the
controller, the menu you navigate through can look
different from that represented in this manual.
▪ The controller only allows for basic operation of the
system. For advanced operation (schedules,
centralised control, …), see the Daikin Control
Assistant app.
6.1 Operation mode
The indoor unit can operate in various operation modes.
Icon Operation mode
Cooling. In this mode, cooling will be activated as
required by the setpoint or limit operation.
Heating. In this mode, heating will be activated as
required by the setpoint or setback operation.
Fan Only. In this mode, air circulates without heating
or cooling.
Dry. In this mode, the air humidity will be lowered with
a minimal temperature decrease.
The temperature and airflow level are controlled
automatically and cannot be controlled by the
controller.
Dry operation will not function if the room temperature
is too low.
Ventilation.In this mode, the space gets ventilated,
but not cooled or heated.
Air Clean. In this mode, the optional air cleaning unit
operates.
Ventilation + Air Clean. Combination of ventilation
and air clean operation.
Auto. In Auto mode, the indoor unit automatically
switches between heating and cooling mode, as
required by the setpoint.
INFORMATION
Depending on the indoor unit, more or less operation
modes are available.
6.1.1 To set the operation mode
1Navigate to the operation mode menu.

6 Operation
Installation and operation manual
6
BRC1H51W+K+S
Wired remote controller
4P511630-1 – 2017.10
2Use and to select an operation mode.
3Press to activate.
Result: The indoor unit changes its operation mode and the
controller returns to the homescreen.
6.2 Setpoint
The setpoint is the target temperature for the Cooling, Heating, and
Auto operation modes.
6.2.1 To set the setpoint
Prerequisite: The active operation mode is either 'Cooling',
'Heating', or 'Auto'.
1In the homescreen, use and to adjust the setpoint.
-14
Result: The indoor unit changes its temperature setpoint.
6.3 Airflow
6.3.1 Airflow direction
The airflow direction is the direction in which the indoor unit blows its
air. Depending on the indoor unit, the airflow direction can be set in a
vertical orientation (flaps moving up/down) and/or a horizontal
orientation (flaps moving left/right).
INFORMATION
For more information, see the installer and user reference
guide.
To set the airflow direction (vertical)
1Navigate to the airflow direction menu.
2Use and to adjust the airflow direction.
3Press to confirm.
Result: The indoor unit changes its airflow direction and the
controller returns to the homescreen.
To set the airflow direction (horizontal)
1Navigate to the airflow direction menu.
2Use and to adjust the airflow direction.
3Press to confirm.
Result: The indoor unit changes its airflow direction and the
controller returns to the homescreen.
6.3.2 Airflow level
The airflow level is the strength of the airflow coming out of the
indoor unit.
INFORMATION
For more information, see the installer and user reference
guide.
To set the airflow level
1Navigate to the airflow level menu.
2Use and to adjust the airflow level.
3Press to confirm.
Result: The indoor unit changes its airflow level and the controller
returns to the homescreen.
6.4 Ventilation
INFORMATION
Ventilation settings can ONLY be made for Heat Reclaim
Ventilation units.
6.4.1 Ventilation mode
The Heat Reclaim Ventilation unit can operate in various operation
modes.
Icon Ventilation mode
Energy Reclaim Ventilation. The outdoor air is
supplied to the room after passing through a heat
exchanger.

7 Maintenance and service
Installation and operation manual
7
BRC1H51W+K+S
Wired remote controller
4P511630-1 – 2017.10
Icon Ventilation mode
Bypass. The outdoor air is supplied to the room
without passing through a heat exchanger.
Auto. To ventilate the room in the most efficient way,
the Heat Reclaim Ventilation unit automatically
switches between "Bypass" and "Energy Reclaim
Ventilation" mode (based on internal calculations).
INFORMATION
Depending on the Heat Reclaim Ventilation unit, more or
less ventilation modes are available.
To set the ventilation mode
1Navigate to the ventilation mode menu.
2Use and to select a ventilation mode.
3Press to activate.
Result: The Heat Reclaim Ventilation unit changes its operation
mode and the controller returns to the homescreen.
6.4.2 Ventilation rate
The ventilation rate is the strength of the ventilation operation.
To set the ventilation rate
1Navigate to the ventilation rate menu.
2Use and to adjust the ventilation rate.
3Press to confirm.
Result: The Heat Reclaim Ventilation unit changes its ventilation
rate and the controller returns to the homescreen.
6.5 Advanced operation
The controller only allows for basic operation. For advanced
operation, use the Daikin Control Assistant app. Before you can use
the app, you first have to make a Bluetooth connection between the
controller and the mobile device on which the app is installed.
6.5.1 To make a Bluetooth connection
Prerequisite: You have a mobile device on which the Daikin Control
Assistant app is installed and running.
1Navigate to the Bluetooth menu.
2Use to activate and make the controller send out a
Bluetooth signal.
Result: Your mobile device connects to the controller and the app
takes over the rest of the connection.
Result: You can now use the app for advanced operation.
7 Maintenance and service
7.1 Overview: Maintenance
When the filter is dirty, the system is in error, or the indoor unit
needs to be maintained otherwise, consult your dealer.
To indicate this, you will be confronted by an error or maintenance
screen upon trying to enter the main menu.
Error screen (example) Maintenance screen (example)
A3-01
For the installer
8 About the box
8.1 To unpack the controller
1Open the box.
2Separate the accessories.
2×1×
a b

9 Preparation
Installation and operation manual
8
BRC1H51W+K+S
Wired remote controller
4P511630-1 – 2017.10
aInstallation and operation manual
bWood screws + wall plugs (Ø4.0×30)
9 Preparation
9.1 Wiring requirements
All wiring must comply with the following requirements:
Wire specification Value
Type Sheathed vinyl cord or cable (2
wires)
Section 0.75~1.25 mm2
Maximum length 500 m
To prepare the wiring for installation:
1Peel the sheath of the part of the cable that needs to pass
through the inside of the rear casing (L), according to the figure
and the table.
2Keep a 10mm distance between the length of the 2 wires.
10 mm
L
Wiring outlet L
Top outlet ±150mm
Top center outlet ±200mm
10 Installation
10.1 Mounting the controller
Before you can mount the controller, you have to determine the
wiring routing, and accordingly, remove a piece of the controller's
rear casing.
The wiring can be routed from the top, the rear, the left, or the
bottom. Remove a piece of the rear casing according to the
illustration:
a
b
c
aWiring from the top
bWiring from the left
cWiring from the bottom
In case you are routing the wiring from the rear, you don't have to
remove anything.
10.1.1 To mount the controller
1Take the screws and plugs from the accessory bag.
2Mount the rear casing to a flat surface.
NOTICE
Be careful not to distort the rear casing by overtightening
the mounting screws.
10.2 Connecting the electrical wiring
NOTICE
The wiring for connection is NOT included.
NOTICE
When wiring, run the wiring away from the power supply
wiring in order to avoid receiving electric noise (external
noise).
10.2.1 To connect the electrical wiring
Connect controller terminals P1/P2 to indoor unit terminals P1/P2.
From the top
P1P2
From the rear
P1P2

11 Starting up the system
Installation and operation manual
9
BRC1H51W+K+S
Wired remote controller
4P511630-1 – 2017.10
From the left
P1P2
From the bottom
P1P2
10.3 Closing the controller
CAUTION
Never touch the internal parts of the controller.
CAUTION
When closing the controller, be careful not to pinch the
wiring.
NOTICE
To prevent damage, make sure the front of the controller is
clicked into the rear casing securely.
10.3.1 To close the controller
1Click the front of the controller into the rear casing.
2
1
11 Starting up the system
The controller gets its power from the indoor unit. It will start up as
soon as it is connected. For the controller to be operable, therefore
make sure the indoor unit is powered on.
Once the controller is powered, it will automatically start up. If it is
the first and only controller that is connected to the indoor unit, it will
automatically get designated as master controller. For a second
controller to get designated as slave controller, manual action is
required.
11.1 To designate a controller as slave
Prerequisite: A master controller is already connected to the indoor
unit.
1Connect a second controller.
Result: It will start up automatically.
2Wait for a U5 or U8 error to appear on the screen.
3When the U5 or U8 error appears, press and keep it
pressed until "2" appears on the screen.
Result: The controller is now designated as slave.
12 Maintenance
12.1 Maintenance safety precautions
WARNING
Before carrying out any maintenance or repair activities,
stop system operation with the controller, and turn off the
power supply circuit breaker. Possible consequence:
electric shock or injury.
NOTICE
To clean the controller, do NOT use organic solvents, such
as paint thinner. Possible consequence: damage, electric
shock, or fire.
WARNING
Do not wash the remote controller. Possible
consequence: electric leakage, electric shock, or fire.
12.2 To clean the controller
1Wipe the screen and other surface parts of the controller with a
dry cloth.
INFORMATION
If the dirt on the surface cannot be removed, soak the cloth
in neutral detergent diluted with water, squeeze the cloth
tightly, and clean the surface. Afterwards, wipe dry with a
dry cloth.
12.3 Time to clean filter indication
When the indoor unit filter is dirty and needs to be cleaned, the
controller will indicate this by displaying in the top right corner of
the home screen, and confronting you with the 'Time to clean filter'
screen as soon as you try to enter the main menu from the home
screen.
12.3.1 To remove the Time to clean filter
indication
Prerequisite: On trying to enter the main menu from the home
screen, you are confronted with the 'Time to clean filter' screen.

12 Maintenance
Installation and operation manual
10
BRC1H51W+K+S
Wired remote controller
4P511630-1 – 2017.10
1Clean the filter.
2Press to remove the 'Time to clean filter' indication.

4P511630-1 2017.10
Copyright 2017 Daikin
