Dancover TITAN Dome 320 User manual

03-04-2020
for
Greenhouse TITAN Dome 320
Manual

Dear clients!
Aer making the decision of buying a greenhouse you received a carefully made item. Its
framework is made from special (1mm of thickness and 78mm width) proles produced
from galvanized metal which are extremely strong.
Due to uncomplicated instruction this greenhouse is easy to construct.
Because of additional items, you will be able to accomplish your ideas.
We keep the rights to make variations associated with the improvements of technolo-
gies. Some pictures and instructions may be dierent because of that.
We wish you a lot of joy and success with our greenhouse.
Attention!
Always use safety gloves when constructing the framework of the greenhouse and
working with polycarbonate cover.
Tools you will need for the construction:
• Hexagon wrench with the diameter of 8 mm or wrench with open end.
• Cross-head screwdriver or screwdriver for battery
• Shovel to dig pits
• Spirit level to measure equability of the ground.
• Rope to measure the diagonal
• Knife to cut polycarbonate sheets
If necessary, follow the instructions from local building area.
In case of strong wind or storm close the windows and doors.
Before starting the construction, you should read all the instruction at least once and
understand dierent sections and proles. is is a helpful guide for you. Compare the
list of parts with the parts in the package. en sort out the sections and leave them in
separate places.
It is highly recommended to screw the screws easily with hands at rst – if needed, you
will be able to rotate sections. Aer the construction, you should measure equability of
the framework and only then tighten the screws.
1

2
THE LIST OF PARTS
No Name Length,
mm
TITAN Dome
5m
2
10m
2
15m
2
20m
2
25m
2
NR. 1 Top post 1070 8 14 20 26 32
NR. 2 730 8 14 20 26 32
NR. 3 Side-bottom post 1600 8 14 20 26 32
NR. 4 Ground attachments 200 12 18 24 30 36
NR. 5 Post reinforcement rails 4000 4 4 8 8
NR. 6 Post reinforcement rails 2030 4 4 4
NR. 7 1330 4 6 8 10
NR. 8 Roof ridge reinforcement 450 2 5 8 11 14
NR. 9 Post for doors and end 2310 4 4 4 4 4
NR. 10 Holder of door and end post (at the top) 1120 2 2 2 2 2
NR. 11 Side reinforcements of Front-back parts 770 4 4 4 4 4
NR. 12 Reinforcement of back end part (in the
middle)
820 1 1 1 1 1
NR. 13 625 1 2 3 4 5
14 Connection of top post (plate with 4 holes) 4 7 10 13 16
15 Sides of foundation 4000 2 2 4 4
16 Extension of foundation side 2000 2 2 2
17 Front and back parts of foundation 2550 2 2 2 2 2
18 Corners of foundation 4 4 4 4 4
19 Connection plates of foundation (from 15
m2)
4 4 8
20 Polycarbonate attachment corners (large
corner)
20 20 20 20 20
21 Attachment corners for polycarbonate and
posts (small corner)
8 8 8 8 8
22 Polycarbonate attachment plates 5 5 5 5 5
23 Ridge 2100 2 4 6 8 10
24 Handles 2 2 2 2 2
25 Screws 2,5*12 with the injectable head 3 3 3 3 3
26 Screws М5-12 12 260 355 450 550 645
27 Screws М5-20 20 30 36 42 48 54
28 Screws М5-40 40 110 155 200 245 290
29 Nuts М5 400 546 692 843 989
30 Self-tapping screws for ridge attachment 8 14 20 26 32
31
Spacers
130 170 210 250 290
32
Protective band for panels roll
1 1 1 1 1

3
33 Plastic H prole for connection m 2 2 2 2 2
34 Plastic holder for opening the doors 1 1 1 1 1
35 Bolt with loop 2 2 2 2 2
36 Sealing rubber gray 12 12 12 12 12
37 Closure prole U 1,30 2,70 4,20 5,40 6,90
Skylight parts
SKYLIGHT NO. 1 Upper part of skylight with
hinges
520 1 2 3 4 5
SKYLIGHT NO. 2 Bottom part of skylight 520 1 2 3 4 5
SKYLIGHT NO. 3 Side parts of skylight 550 2 4 6 8 10
Door (top part) – small
DOOR NO. 1 Part of the door with hinges 670 1 1 1 1 1
DOOR NO. 2 Part of the door with handle 670 1 1 1 1 1
DOOR NO. 3 Transverse parts of the door 715 3 3 3 3 3
Door (bottom part) – large
DOOR NO. 4 Part of the door with hinges 1220 1 1 1 1 1
DOOR NO. 5 Part of the door with handle 1220 1 1 1 1 1
DOOR NO. 3 Transverse parts of the door 715 4 4 4 4 4
No. Name Height/
Width,
mm
5m210m215m220m225m2Notes
Top parts 2980x2100 2 4 6 8 10 Cut out from 2,10x6,00
m sheet.
1 Side – end part 2340x2100 1 1 1 1 1 ese parts must be cut
out form 2,10x6,00 m 1
sheet. Additional content
is 1 skylight for green-
house of 4 m length;
2 skylights for green-
house of 6 m length;
3 skylights for green-
house of 8 m length etc.
2
and
3
Side – front part (le
and right)
2110x850 2 2 2 2 2
4 Side – end part 1850x400 1 1 1 1 1
5 Bottom part of door 1230x830 1 1 1 1 1
6 Top part of door 720x830 1 2 3 4 5
7 Skylight 700x650 1 1 1 1 1
8 Triangle (over door) 790x420 1 1 1 1 1
Dimensions for cutting of plycarbonate

4
Scheme for cutting polycarbonate
Use appropriate side of polycarbonate! Side with protective layer, which protects
from UV radiation, must be on the outside. Protective layer is covered with plate
which contains writings; other side (which has to be on the inside) is covered with
clear tape. If sheets need to be cut, we recommend using electric saw, handsaw with
ne teeth or sharp knife. Tape must be removed prior to installation! ALWAYS
WEAR GLOVES WHEN CUTTING!
-1-; -4-; Side end part
-2-; -3-; Side-front parts
-5- Door (bottom part)
-6- Door (top part)
-7- Skylight
-8- Part above the door
NOTE:
additionally installed skylight
sheet:
1pc for 4 m long greenhouse
2pcs – 6m
3pcs – 8m nd etc.

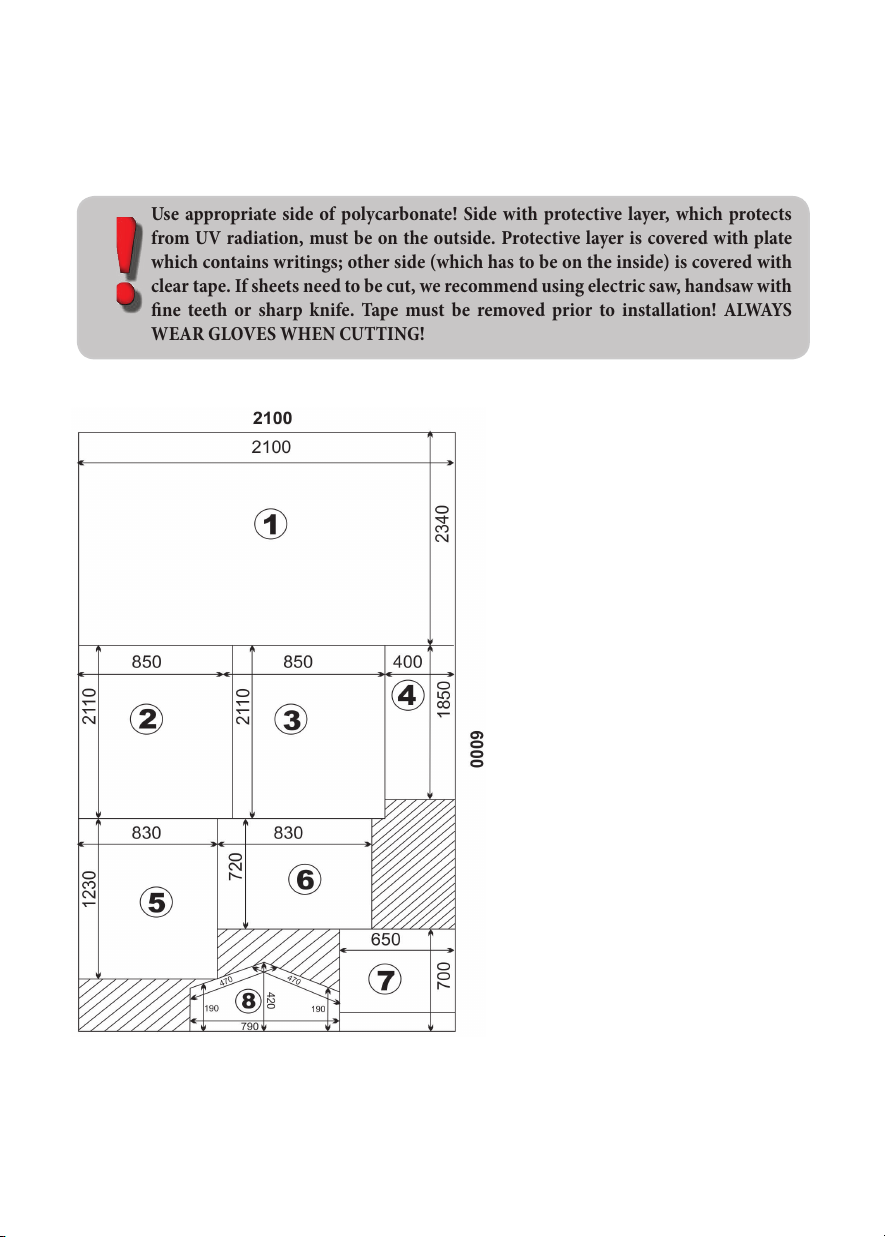

Diagram for cutting one polycarbonate 2100x6000 mm sheet for standard greenhouse (dou-
ble door at the front end, wall at the back end):

Installation instruction
1. Foundation is assembled by using front end and back end parts of foundation (17) and
foundation side parts (15). All parts must be connected in such manner that it would form
a rectangle. Use foundation corners (18) and connect all these parts together by using bolts
M5-12 (26), M5 nuts (29). Don’t tighten, just screw in loosely with hand (1.1-1.4 pic).
1.4 pic.
2 pic.
2. Measure the diagonal length of foundation
(example 2). Both diagonals must be equal in
length. If diagonals are equal – tighten the screws
of foundation (2 pic).
5
For greenhouses TITAN Dome larger than 10 m2,
foundation connection plates (19) are used for
foundation extension. ey must be attached by
using bolts M5-12 (26) and nuts M5 (29) (1.5 pic).
If greenhouse's length is 6 m - foundation must be
connected between: 4 m (15) + 2 m foundation
extension (16).
1.5 pic.
1.1 pic. 1.2 pic. 1.3 pic.
pits
(15)
(17)
If greenhouse’s length is 8 m – foundation must be connected between: 4 m (15) + 4 m
foundation extension (16).
If greenhouse’s length is 10 m – foundation must be connected between: 4 m (15) + 4
m (15) + 2 m foundation extension (16).

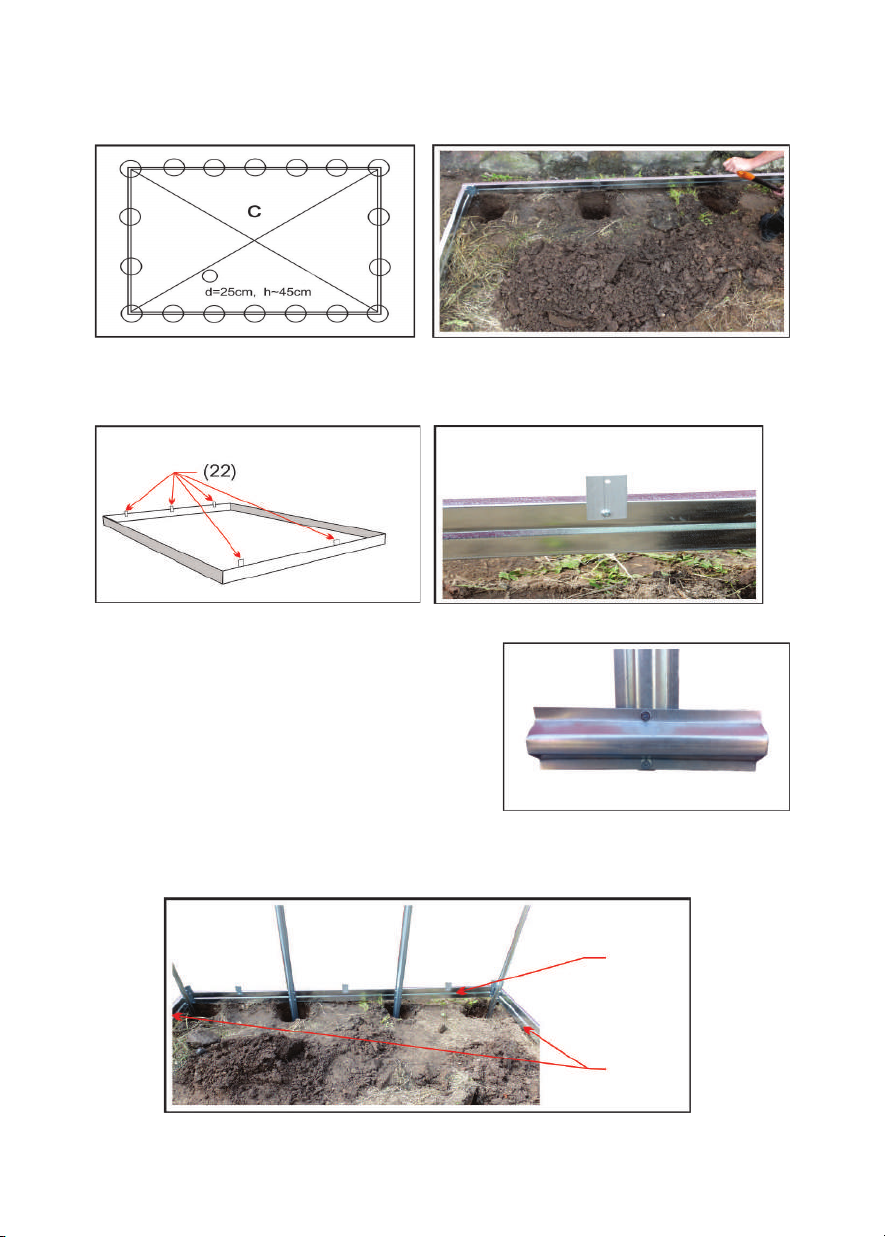

3. Excavate the pits (25 cm in diameter, 40 cm in depth) for side – bottom posts (NR. 3) at
attachment points in the foundation (3.1 - 3.2 pic).
4. Using screws M5-12 (26) and nuts M5 (29) attach polycarbonate installation plates (22) to
front end and back end parts of foundation (17) (4.1 - 4.2 pic).
5. Preparation of post for placing into ground. Using
screws M5-12 (26) and nuts M5 (29) attach the
parts, that connect post to the ground, to side-and
bottom post (NR. 3), tighten the connecting parts
(NR. 4) (5 pic).
6. Tighten side-bottom posts (NR. 3) to side parts of assembled foundation, using screws M5-
12 (26) and nuts M5 (29). (6.1 – 6.3 pic).
3.1 pic. 3.2 pic.
4.1 pic. 4.2 pic.
5 pic.
6.1 pic.
(17)
(15)
6
pits

8.1 pic. 8.2 pic.
6.2 pic. 6.3 pic.
If greenhouse length is 8 m – post reinforcement rails must be connected like this: 4 m (NO.
5) + 4 m (NO. 5).
If greenhouse length is 10 m – post reinforcement rails must be connected like this: 4 m (NO.
5) + 4 m (NO. 5) + 2 m (NO. 6).
7 pic.
12 (26) and nuts M5 (29) (8.1 – 8.2 pic)
NR.2 and NR.3 connection
9. Separately assemble top posts (NO. 1) with top post connections (plates with 4 holes) (14)
by using screws M5-12 (26) and nuts M5 (29) and attach ridge reinforcement at appropriate
points (NO. 8) by using bolts M5-12 (26) and nuts M5 (29) (9.1 - 9.2 pic).
Inside
Attaching posts to foundation at side
corners
Attaching posts to foundation at the
middle of sides
7
Outside

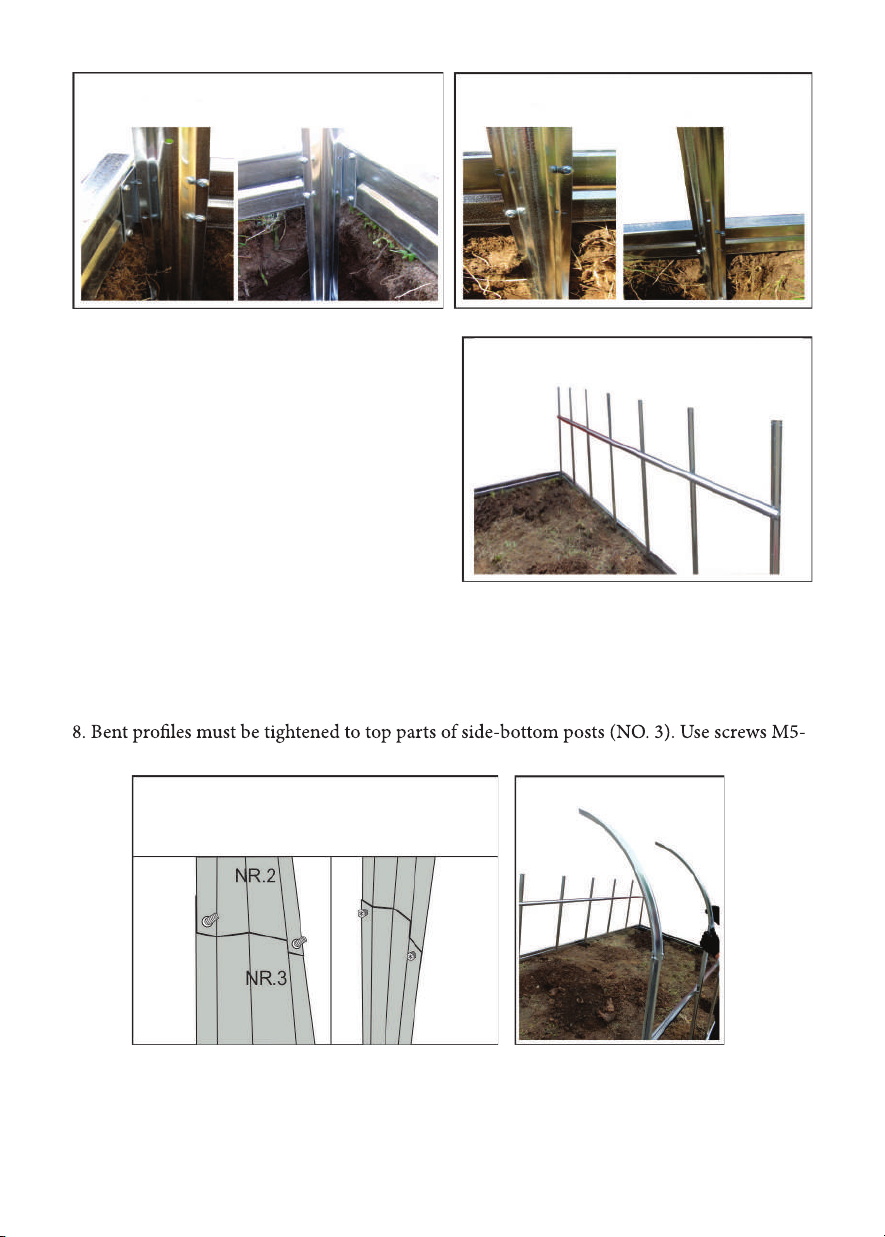

7. Side-bottom posts (NR. 3) are tightened by
installing post reinforcement rails (NR. 5)
using screws M5-12 (26) and nuts M5 (29)
(example 7). Same actions must be carried
out on both sides (7 pic).
With larger than 10 m2 greenhouse TITAN
Dome, additional rails must be used for
reinforcement of post.
If greenhouse length is 6 m - post
reinforcement rails must be connected like
this: 4 m (NO. 5) + 2 m (NO. 6).

8
NOTE: if assembly of greenhouse is carried out by one person or if greenhouse is longer
than 2 m – each arch can be assembled separately and connected to framework before
adding reinforcement rails (NO.5 and NO.6)
10. Attach remaining reinforcement rails (NO.5) to top post (NO.1) by using screws M5-12
(26) and nuts M5 (29) (10 pic).
9.1 pic.
11. Tightened and fully assembled top framework must be connected to side-bottom posts
(NR.3) by using screws M5-12 (26) and nuts M5 (29) (11.1 – 11.3 pic).
9.2 pic.
10 pic.
11.1 pic. 11.2 pic. 11.3 pic.

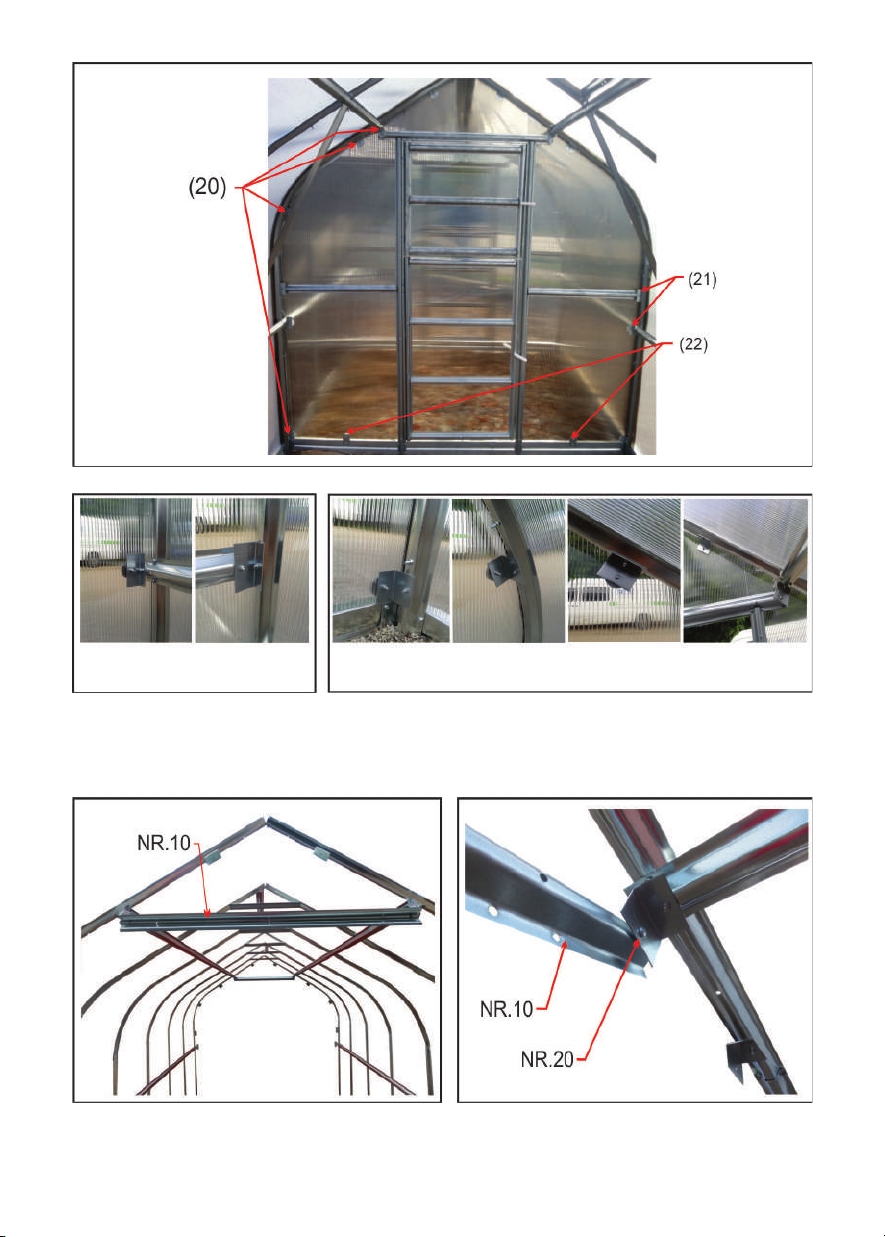

12. Attach corner for mounting of polycarbonate (20) and mounting of post (21) to side-
bottom post (NO. 3), top post (NO.1) and side post reinforcement rails by using screws M5-12
(26) and nuts M5 (29) (12.1 - 12.3 pic)
Positioning and arrangement of corners in chronological order form bottom to the top. Same
course of actions must be carried in 3 remaining corners
Collected top
posts

9
12.1 pic.
13.1 pic. 13.2 pic.
13. Tighten the holders of end post and door post (NO.1) to front and back of large corners
(20) which are at the top ends of post reinforcements (NO. 1). Use screws M5-12 (26) and nuts
M5 (29) (13.1 – 13.2 pic).
12.2 pic. 12.3 pic.
Attachment corners for polycarbonate
and posts (small corner) (21)
Polycarbonate attachment corners (large corner) (20)

10
14. Tighten door post and end post (NO. 9) to door post and end post holders (NO. 10). Top
part of post must be tightened to door post and end post holders (NO. 10) and bottom part
directly to front end part of foundation (17) using screws M5-12 (26) and nuts M5 (29). Same
actions must be used at the front end and at the back end (14.1 – 14.2 pic).
14.1 pic. 14.2 pic.
15. Tighten the door and back end reinforcements (NO. 11) to door and back end posts
(NO.3) at the back end and front end of greenhouse by using screws M5-12 (26) and nuts M5
(29); additionally tighten the back end reinforcement at the back end of greenhouse (NO. 12)
(15 pic).
15 pic.

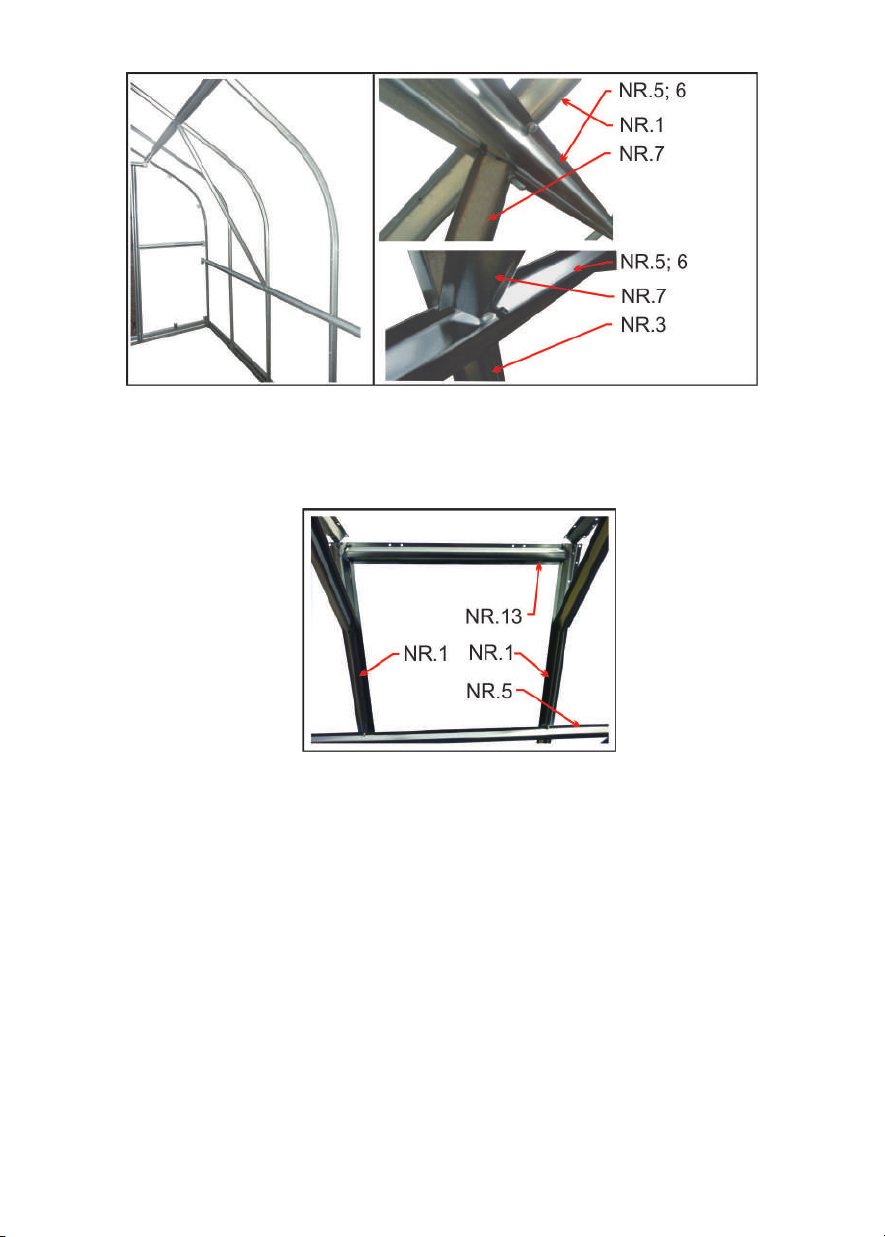

16. Tighten reinforcement proles (NO. 7) to side-bottom posts (NO. 3) and top posts (NO.1),
starting at top of reinforcement rail of rst-bottom post (NO.5) and nishing with bottom of
reinforcement rail of top second post (NO. 5). Use screws M5-12 (26) and nuts M5 (29) (16
pic). NOTE: We suggest using one M5-40 screw with all 3 parts: side post, reinforcement
rail of post and reinforcement prole.
Inside
Outside

11
16 рic.
17 рic.
17. Tighten the skylight prole (NO. 13) in between side posts at the point of your choice. Use
screws M5-12 (26) and nuts M5 (29). NOTE: it is not recommended to place skylight in a
place where two polycarbonate panels go on top of each other (i.e. at posts 4th, 7th, 10th,
13th and so on) (17 pic.)
18. Because screws were not completely tightened in order to be able to adjust the position of
proles – next step is to level assembled framework by using leveler tool, check the diagonal
length for a second time and only then cover the pits.
19. Installation of covering. NOTE: If your greenhouse has additional doors, back end
of greenhouse must be formed without H connecting prole – same as at the front end

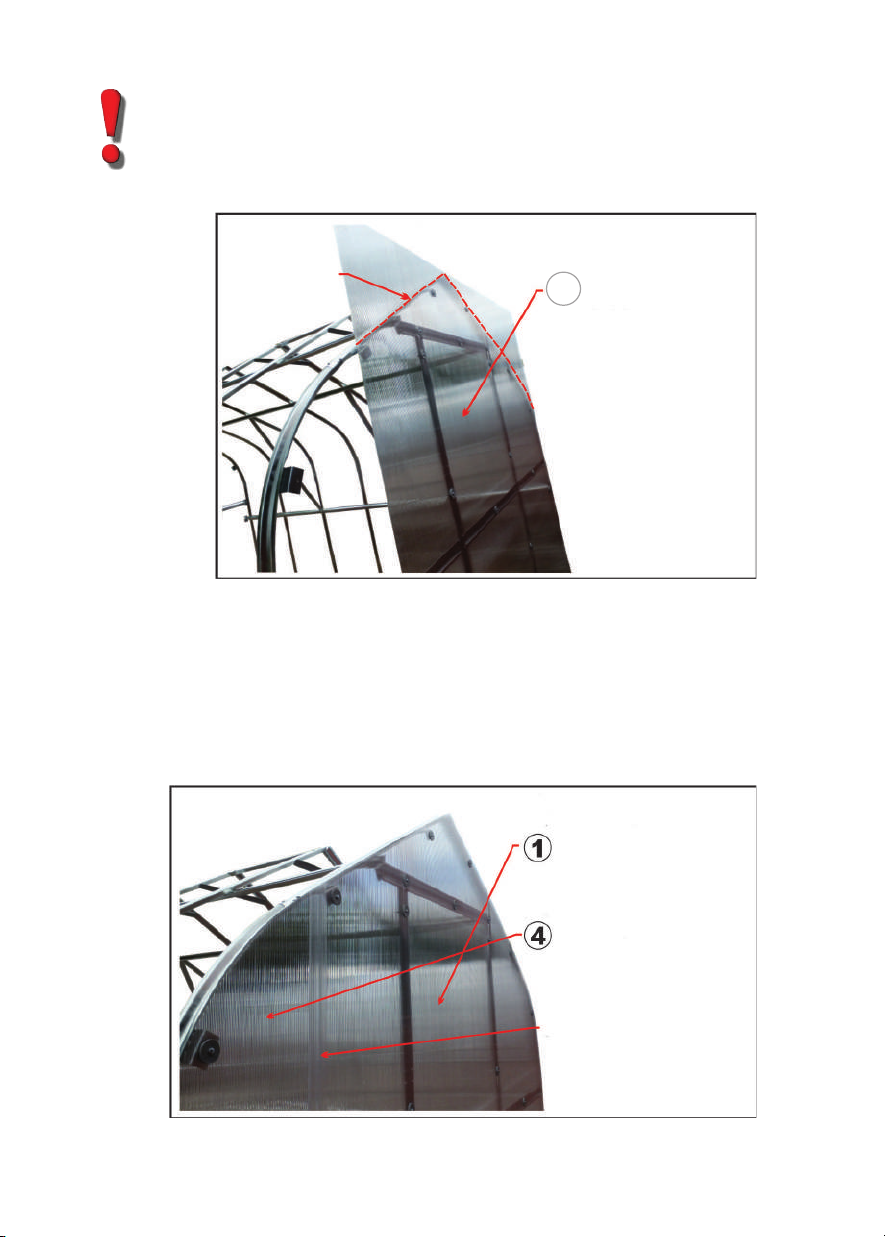

(see 21 p.). Assemble the framework of greenhouse, cut polycarbonate according to given
dimensions and attach it to framework. Installation of polycarbonate must be started from
back end of greenhouse. Put side-end part of polycarbonate sheet on framework at the back
end of greenhouse, mark bending radius with marker and cut out a bend. Or you can simply
attach the sheet to framework using screws M5-40 (28), nuts (29) and spacers (31), and then
cut the polycarbonate according to prole of framework by using sharp knife or jigsaw (19
pic).

12
19 piс.
20. Put 1850x400 mm side-end part (4th sheet in polycarbonate cutting diagram) and side-
end polycarbonate part, that you have cut-out, side by side and connect them with plastic H
connection prole (33). Screw connected polycarbonate sheet to corners of polycarbonate
installation and pole installation corners (20; 21) and polycarbonate installation plates (22)
by using screws M5-40 (28), nuts (29) and spacers (31). Attach to posts of back end part of
greenhouse by using screws M5-40 (28), nuts (29) and spacers (31) and then cut polycarbonate
according to framework prole by using sharp knife or jigsaw (20 pic).
Use appropriate side of polycarbonate! Side with protective layer, which protects from
UV radiation, must be on the outside. Protective layer is covered with plate which
contains writings; other side (which has to be on the inside) is covered with clear tape.
If sheets need to be cut, we recommend using electric saw, handsaw with ne teeth or
sharp knife. Tape must be removed prior to installation! ALWAYS WEAR GLOVES
WHEN CUTTING!
20 piс.
Cutting line
1
(33)
Rear greenhouse part

13
21. Attach side-front 2110 x 850 mm polycarbonate parts to front end of greenhouse from
both sides (2nd and 3rd sheets in polycarbonate cutting diagram), mark the bending radius
with marker and cut out the bend, or simply attach the sheet to framework using screws M5-
40 (28), nuts (29) and spacers (31), and then cut the polycarbonate according to prole of
framework by using sharp knife or jigsaw. Front middle part of greenhouse must be le empty
(for doors). Screw side-front polycarbonate parts, that you have cut out, to polycarbonate
installation and pole installation corners (20;21) and polycarbonate installation plates (22)
by using screws M5-40 (28), nuts (29) and spacers (31). Attach to posts of front end part of
greenhouse by using screws M5-40 (28), nuts (29) and spacers (31) (21 pic).
21 pic.
22. Tighten polycarbonate-triangle 790 x 420 mm at the front of greenhouse above the holder
of post of door and end (NO.10) by using screws M5-40 (28), nuts (29) and spacers (31). By
the polycarbonate attachment corners (large corner) (20), use screws M5-20 (27), nuts (29)
and spacers (31) (22 pic.)
22 pic.
Cutting
line

14
23.1 piс.

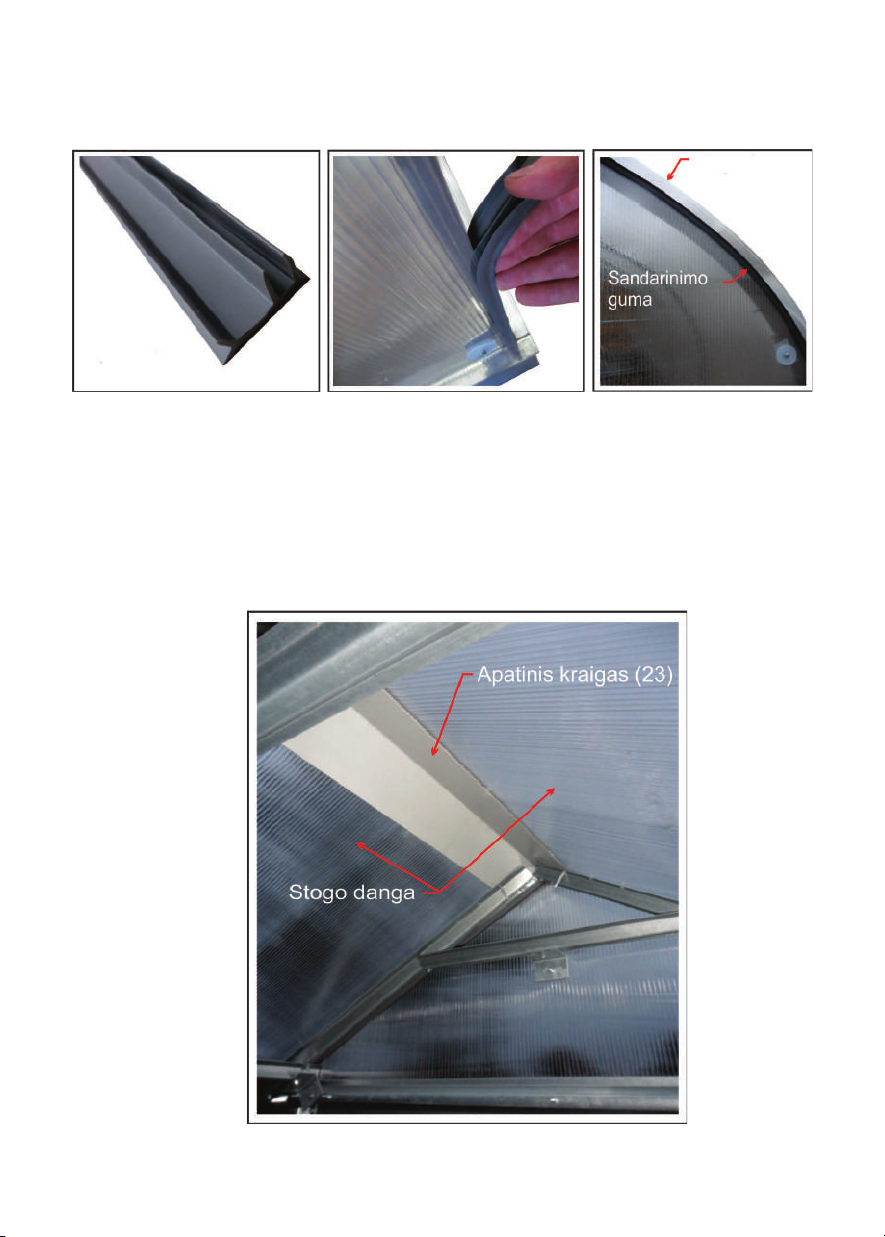

23. Attach sealing rubber to top channels of polycarbonate side sheets at the top of back end
and front end of greenhouse. en install the top polycarbonate covering (23.1 – 23.3 pic).
23.2 piс. 23.3 piс.
24. Before installing the roof covering, bottom ridge layer must be put on the framework
(23) (24 pic). When bottom ridge layer is in place, install the top polycarbonate (roof)
channel covering. Polycarbonate sheet of 2100 x 6000 mm must be used for roof covering.
For greenhouse of 4 meters length you will need 2 sheets of 2100 x 6000 mm and so on. Four
sheets of 2100 x 2980 mm must be cut out from this sheet. Attach protective aluminum foil
sealant strip to top channels of these sheets by using glue (32). Bottom ends of sheets must
remain open.
24 piс.
(36)
Roof cover
Roof cover
(36)

15
25. Screw 2100 x 2980 mm polycarbonate roof covering to greenhouse prole in appropriate
places, starting at the bottom (foundation part) and going upwards. Use screws M5-40 (28),
nuts (29) and spacers (31). Sheets that meet at the middle of greenhouse must go on top of
each other (~5-10), only aer placing them in such manner tighten the screws M5-40 (28),
nuts (29) and spacers (31). At the back end and front end, polycarbonate sheets must be
overhanging equally with foundation edge (25 pic).
25 piс.
26. Cut out polycarbonate parts from top reinforcement rails of arcs (NO. 5) to the top (width
= distance between posts) at the places chosen for skylight (26 pic).
26 piс.

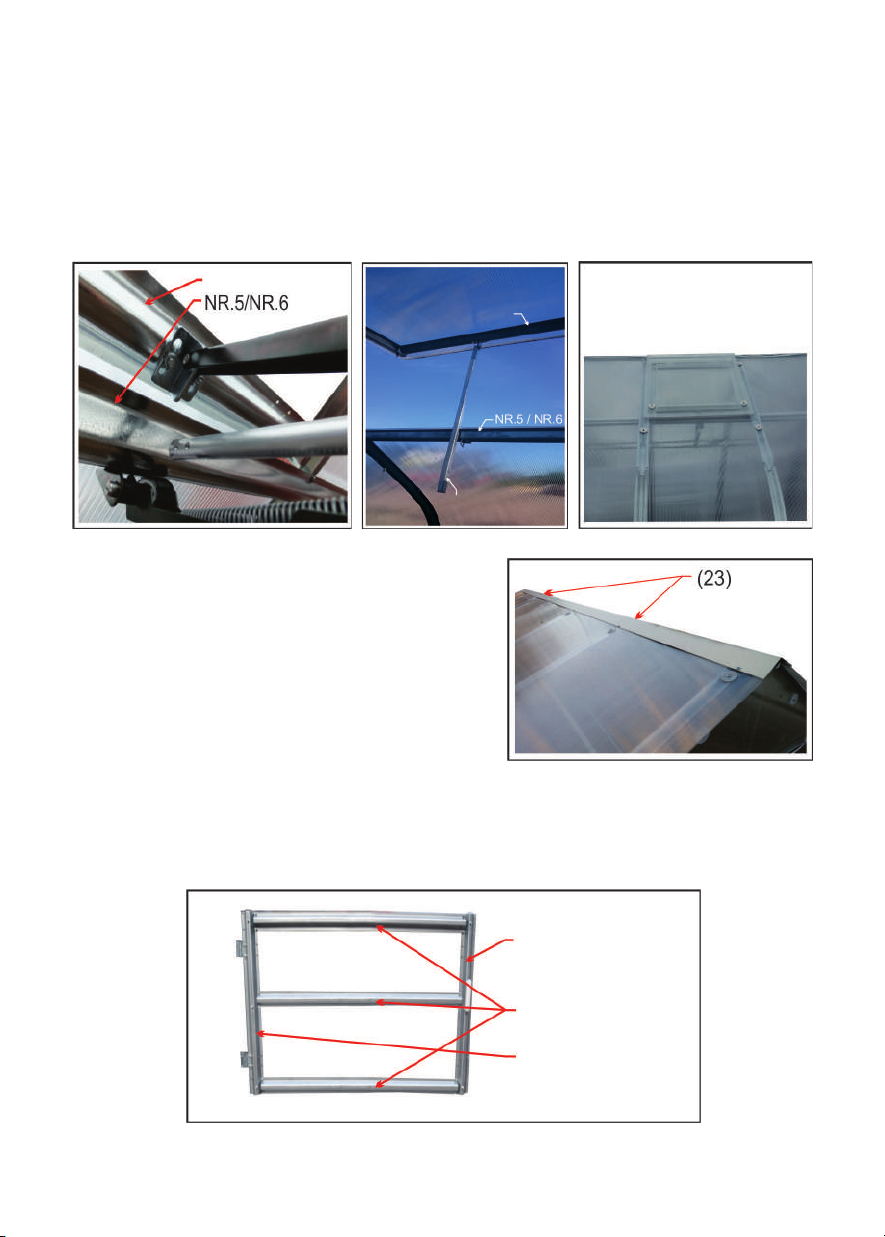

27. All parts listed in skylight set (SKYLIGHT NO.1; SKYLIGHT NO.2; SKYLIGHT NO.3)
must be connected in such way that they would form a rectangle; use screws M5-40 (28), nuts
(29). Skylight hinges must by tightened to skylight prole (NO.13) with screws M5-12 (26)
and nuts (29) (27.1 pic).
27.1 piс.
SKYLIGHT NO.1
SKYLIGHT NO.3
SKYLIGHT NO.2
Polycarbonate
xing points

Install automatic or manual opener (depending on conguration); one part of it must be
attached to bottom part of skylight (SKYLIGHT NO. 2), other – to top reinforcement rail (NO.
5) (27.1 pic). Tighten the 700 x 650 mm skylight polycarbonate to assembled small framework
of skylight; use screws M5-40 (28), nuts (29) and spacers (31). Skylight polycarbonate covering
goes under and up to the top, i.e. under ridge (27.2 pic).
NOTE: Depending on conguration, manual opener can be uses (27.2 pic).
.
27.2 piс. 27.3 piс.
SKYLIGHT
27.4 piс.
28. Install top part of ridge (23) and tighten it with
self-tapping screws (30) at side edges of omega prole,
trough top and bottom layer of ridge (28 pic).
28 piс.
29. All parts listed in set of top part of the door (DOOR NO.1; DOOR NO.2; DOOR NO.3; )
must be connected in such way that they would form a rectangle, tighten it with screws M5-12
(26) and nuts (29). Tighten the hinges of top part of the door to the post of door-end (NO.9);
use screws M5-12 (26) and nuts (29) (29.1 pic).
29.1 piс.
DOOR NO.2
DOOR NO.3
DOOR NO.1
SKYLIGHT NO.2
Manual opener
16

29. Assembly of bottom and top part of the door. All parts listed in set of bottom part of
door (DOOR NO.4; DOOR NO.5; DOOR NO.3; ) must be connected in such way that they
would form a rectangle, tighten it with screws M5-12 (26) and nuts (29). Tighten the hinges of
bottom part of the door to the post of door-end (NO.9); use screws M5-12 (26) and nuts (29)
(29.2 pic). NOTE: Top and bottom door must be attached to door posts by using screws
M5-12 (26) and nuts (29). At the time of tightening, doors must be fully opened and hinge
must be extended into outside of the opening, trough polycarbonate channel.
DOOR NO. 5
DOOR NO. 3
DOOR NO. 4
Tighten the polycarbonate of top and bottom part of the door to assembled framework of top
and bottom door by using screws M5-40 (28), nuts (29) and spacers (31). Use protective band
(32) of sheets to seal the top polycarbonate channels of the door. Attach the handle (24) to the
prepared place of the door (29.3 pic.).
29.2 piс.
29.3 piс.
DOOR NO. 3
DOOR NO. 1
DOOR NO. 2
DOOR NO. 3
DOOR NO. 4
DOOR NO. 5
17

30. Insert the screw with loop (35) into dedicated place (at the equal height with top door-
window handle). Make a loop from provided plastic holder for door opening (34) (30.1 – 30.2
pic).
30.1 piс. 30.2 piс.
18

Contact information
Head office:
Dancover A/S
Nordre Strandvej 119 G
3150 Hellebæk
Denmark
For more information
please visit:
www.dancovershop.com
National contact
Denmark: 70 26 76 20
[e-mail]
UK: 020 8099 7570
[e-mail]
Spain: 911 436 828
[e-mail]
Italy: 02 479 21 198
[e-mail]
Germany: 041 0266 7040
[e-mail]
Switzerland: 0840 000125
[e-mail]
France: 0975 181 800
[e-mail]
Austria: 0662 626935
[e-mail]
Sweden: 040 233 262
[e-mail]
Finland: 0 931 581 720
[e-mail]
Nederland: 0 858 880 524
[e-mail]
Poland: 22 300 8602
[e-mail]
Ireland: 0 151 33 003
[e-mail]
Luxembourg: [phone]
[e-mail]
Portugal: 308 800 899
[e-mail]
Belgium: 0 28 08 08 09
[e-mail]
Norway: 231 00 690
[e-mail]
