Dancover ARROW 3m Series User manual

20-03-2018
for
Greenhouse
ARROW 3,0
Manual

any length multipple to 2m
width 3,0 m
height 2,4 m

2
contents
dimensions, mm
Weight
max, kg
Frame (base length 2 m)
Package 1 – beams, straight parts and assembly manual 105х980х65 19,0
Package 2 – parts of arches and butt ends 170х1500х65 18,5
Package 3 – straight parts for butt ends, arch reinforcements
100х1290х65 20,0
Package 4
40х1100х750 1,2
Package 5 - weather strips 350х300 1,0
Package 6 - fasteners and parts 85х270х200 4,5
Package 7 * - side ventilating window 5
Inset (extending the frame by 2 m)
Package 1 - beams 80х980х65 12,5
Package 2 - parts of arches and straight parts 135х1480х65 14,7
Package 3 40х1100х750 1,2
Package 4 - fasteners and parts 85х200х200 1,2
Technical certificate
The greenhouse frame is made of zinc-coated iron and assembled with screws and nuts. The
greenhouse is fixed to the ground by digging special supports into the soil or by joining it to
a foundation slab with fastening hooks. The supply package includes everything you need
for fastening the cover surfaces. Cover surface sheets are supplied following the customer’s
request. The greenhouse has two door openings and two ventilating windows in the opposite
ends. Side ventilating windows are supplied following the customer’s request.
Perform installation and operation of the greenhouse in strict accordance
with the manual and operating rules stated in the technical certificate.
Please keep this technical certificate for further reference.
Description
6
12
18
24
Greenhouse specifcations
Chart 1
Length (m)
2m
4m
6m
8m
Covered area, sqm Number of polycarbonate sheets, 2100x6000 (pcs)
Packages supplied
Package contents
Inset
package numbers
Green-
house
length
2m
4m
6m
8m
*-additional packages supplied following the customer’s request.
Chart 2
Chart 3
Greenhouse ARROW is designed for creation of microclimate favorable for growing garden
crops on cottage and household plots. Area of covered soil depends on length of the
greenhouse (table 1). Height of installed frame is 2.4 m, width is 3.0 m.
The greenhouse may have various length depending on desire of buyer. Required length of
greenhouse is provided by purchase of additional inset packages adding 2 m to the base
length (Table 2).

Technical certificate
Detailed list of parts for Greenhouse ARROW
Marking Name Quantity (pcs)
Package 1 (beams and straight parts)
2Beam 20
14 Door diagonal part 4
15 Door diagonal strap 4
19 Ventilating window horizontal part 4
20 Ventilating window vertical part 4
Hooks 4
Package 2 (arch parts)
4н Lower arch 6
4в Upper arch 6
8Upper door opening stand 4
12 Door vertical part 4
Package 3 (straight parts for butt ends, arch reinforcements)
1stand 10
3support 10
5Butt end upper strainer 2
6Butt end lower strainer 2
6к Butt end lower strainer 4
7Lower door opening stand 4
9Horizontal strainer 1
10 Side brace 4
11 Brace spreader 2
13 Door horizontal part 6
16 Butt end strap 2
17 Door strap for the latch 4
18 Reinforcement nogging piece 2
21 middle strainer 4
Left tubular reinforcement 2
Right tubular reinforcement 2
Package 4 (ridge profile)
Ridge profile 2
Package 5 (weather strips)
Hinge strip (m) 3,6
Door strip (m) 10
Butt end strip (m) 12
Package 6 (fasteners and parts)
Angle 28
Rridge cover plate 3
Arm 12
Support hook М4х10 2
Screw М5х10 372
Screw М5х14 22
Screw М5х35 120
Screw М4х8 6
Screw М4х35 8
Bolt М5х50 18
Bolt М6х60 6
Self-tapping screw 6
Nut M4 16
Nut M5 532
Nut М6 6
Washer 132
Washer М6 12
Top wire bandage 3
Bottom wire bandage 6
Hinges 8
Semifinished rotator (with two elastic headers) 4
Bending tube 1
Adhesive tape 1
Handle 8
Pin 4
Profile L=1,05m 4
Two-side adhesive tape L=4,2м 1
Chart 4
3

4
Technical certificate
Detailed list of parts for Inset
Package 1
2balk 20
Package 2
3
support 4
1
stand 4
4н bottom arc 4
4в top arc 4
9horizontal strainer 2
10 side brace 8
11 brace strut liner 4
18 stiffening boom 4
Package 3
ridge profile 2
Package 4
angle 8
ridge cover plate 2
bottom wire bandage 4
top wire bandage 2
screw M5x10 150
screw M5x14 4
screw M5x35 16
screw M4x8 4
screw M4x35 8
nutM4 12
Nut M5 174
Nut M6 8
washer 16
washer M6 8
boltМ6х60 4
profile L=1,0m 4
double sided tapeL=4m 1
Chart 5
Small window detailed parts list – 7th package
Name Quantity (pcs)
Package 1
ф1
long bar
2
ф2
short bar
2
ф3
long diagonal
1
ф4
short diagonal
1
wire stop 1
wire extender 1
Package 2
arm
1
polycarbonate
0,95x0,43
sealer
0,95 m
heave-off hinge
2
screw M5x10
25
screw M5x35
8
washer 32х5
8
nut M5
37
clamp 2
Chart 6

5
Technical certificate
1. Before use of greenhouse,
assembleand install it in accordance
with the manual.
When installing the greenhouse by
third parties, buyer should supervise
compliance of installation with the
manual.
When installing the greenhouse by
third parties, buyer should supervise
Operating rules
2. In winter, coverage of
greenhouseshould not be removed
provided that snow load is limited.
Should greenhouse be unattended
all winter period, buyer should either
remove the coverage or estimate
possible snow load. Ultimate load for
the frame having complete package
with installed drawbars and side
braces appears under 360 kg snow
cover per 1 m2 of horizontal ground
surface corresponding to 1.8 m
fresh snow layer or 0.9 m packed
snow layer. Recommended 4 mm
depth of polycarbonate is enough for
Russian midland. In case of regions
Do not install greenhouse close to
buildings and trees from which snow or
ice can fall down. Minimal 2 m distance
is recommended.
with snow cover exceeding 0.6 m,
thicker polycarbonate should be used
for coverage of greenhouse top in
accordance with local conditions.
Maximum wind pressure for this
greenhouse is 25m/sec
Cleaning and washing sheets of polycarbonate.
1. Rinse the sheet with warm water.
2. Wash the sheet with a solution of soft soap or with a domestic detergent and
warm water, using a soft rag or a sponge to take away the dirt.
3. Rinse with cold water and dry with a soft rage to take away the water.
By disinfection of the greenhouse from fungus and biological diseases
pathogens do not use “sulphuric sticks”
When cleaning polycarbonate sheets never use abrasives or high-alkali
cleaning compositions. Dry wiping of the surface can damage the protective
layer and reduce its life cycle. Never use brushes, gauze fabric or other
abrasive materials to wipe the surface of polycarbonate sheets.

6
Technical certificate
Warranty responsibility
1. The manufacturer shall be responsible for the complete set of parts for
the greenhouse frame.
2. The manufacturer shall be responsible for assemblability of the
greenhouse in accordance with the manual.
3. The manufacturer shall be responsible for the greenhouse endurance in
the specified weather conditions.
4. Time period for making claims is 24 months after the day of purchase.
Warranty provisions
Warranty responsibility shall not cover the following cases:
1. Installation of the greenhouse in violation of the manual provisions.
2. Violation of operation rules.
3. Unintended use of the greenhouse.
4. Deformation of the greenhouse due to soil movement.
5. Floods, hurricanes and other natural disasters.
The manufacturer shall retain the right
to make changes to the greenhouse design.
Warranty responsibility

7
Manual

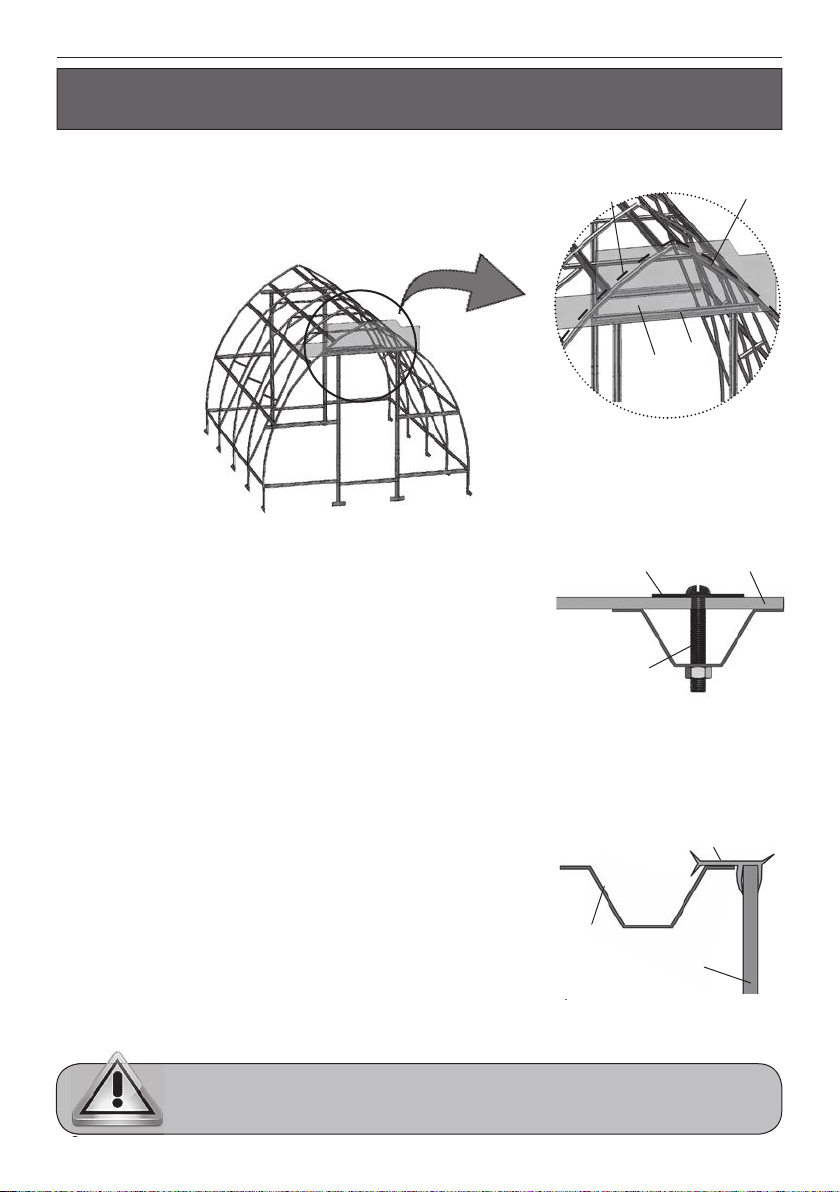

Installation manual for Greenhouse ARROW
General view of the frame is given in Picture 1 . Parts should be installed in
such a way that side selves of the profile are facing the surface cover. The
frame is assembled of numbered parts.
Symbols:
-arrow shows the direction of
installation as per schemes in the
manual.
Parts are fastened by putting profiles together and fastening them with
screws and nuts through the holes. When joining parts in “profile-to-
profile” way it does not matter which of the joined parts is above.
When assembling be careful not to damage the parts as they do not
have sufficient endurance before the whole structure is assembled. Use
supports (e.g. chairs) at interim stages of assembly to make sure the frame
is lifted steadily and evenly. To make sure holes coincide when assembling
complicated joints, use a 5 mm thick nail or a cone-shaped hand-punch.
1.
2.
3.
4.
Some parts may have spare
holes which are there due to
uniformity of parts.
introduction
Be careful when assembling the greenhouse! Parts have sharp edges.
Beware of cuts! Perform all works in protective gloves.
When assembling the frame parts should be joined through all holes
as prescribed. A simplified fastening of parts with only one or two
screws is the violation of assembly rules and the ground to relieve the
manufacturer of the warranty responsibility.

8
Manual
General view of Greenhouse ARROW frame
Б (inside view)А (outside view)
4В
angle
angle
4В
2 2
4Н
6к 2
1
arm
4Н
Е (outside view)
4В
5
arm
7
1
6к
6
В (inside view)
4Н
2
3
1
Pic. 1
Г (outside view) Д (inside view)
А
Д
В
Б
ЕГ
arm
2
2
22
2
2
2
2
2
2
2
2
4в
4н
4н
4в
8
8
5
6к
6
77
6к
10
10
10
21
18
18
9
9
9
18
5
21
11
11
3
3
1
1
ridge
cover

9
Manual

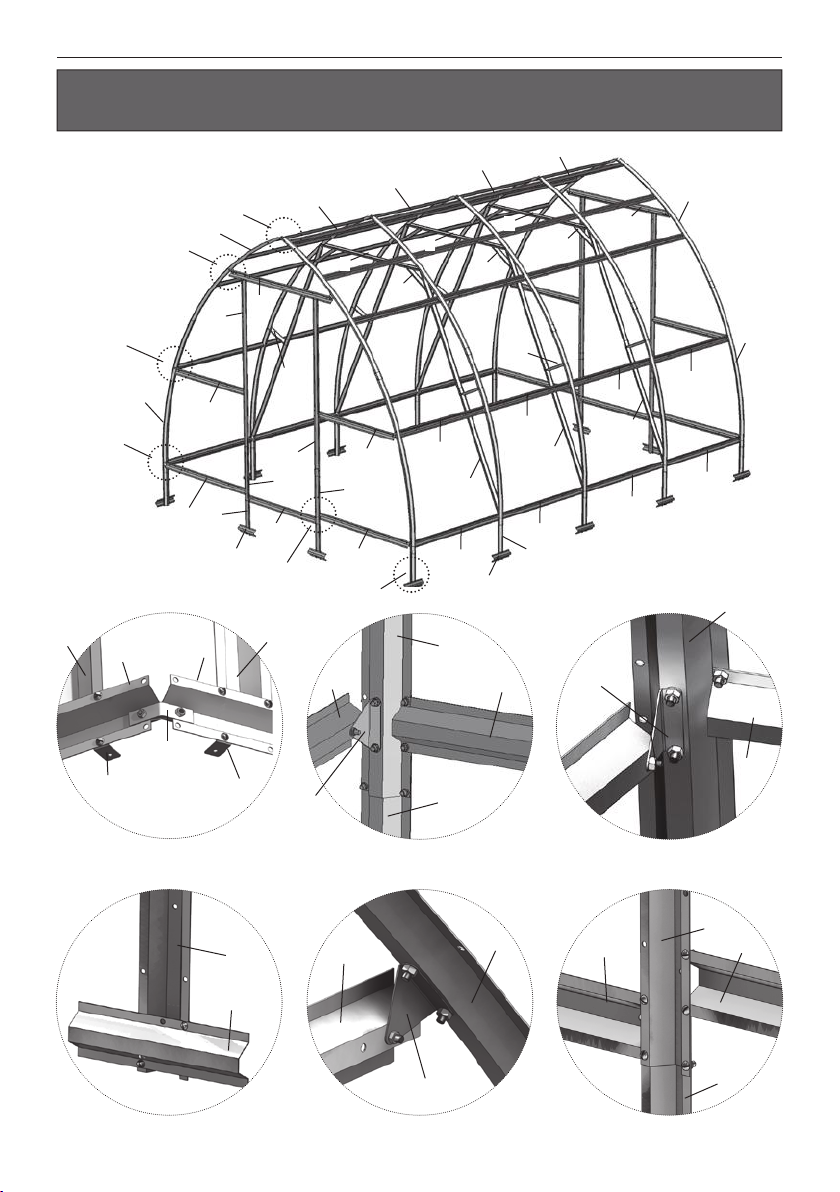

General view of Greenhouse ARROW frame
Greenhouse ARROW
extended by any number
of inserts.
Pic. 2
Pic. 3
858
4060
1000100010001000
3000

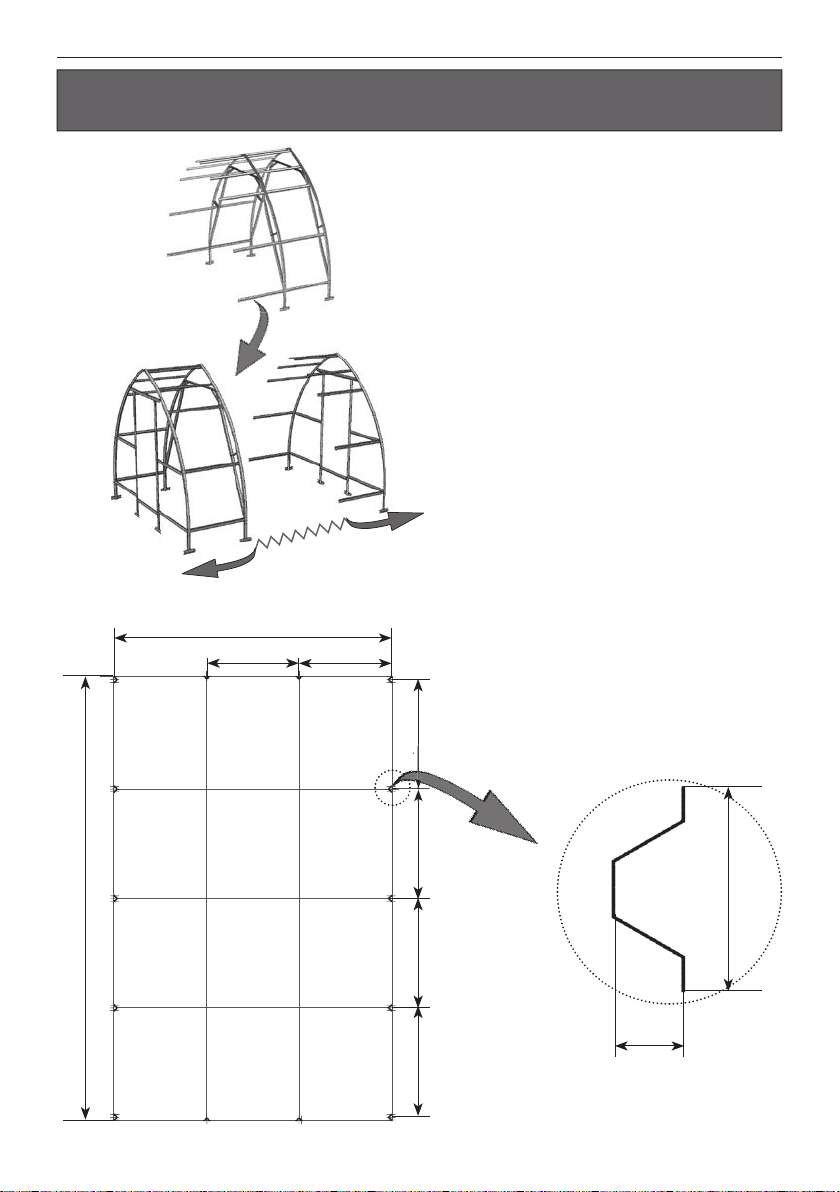

Greenhouse foundation support
layout plan.
Pic. 4
1071
60
21

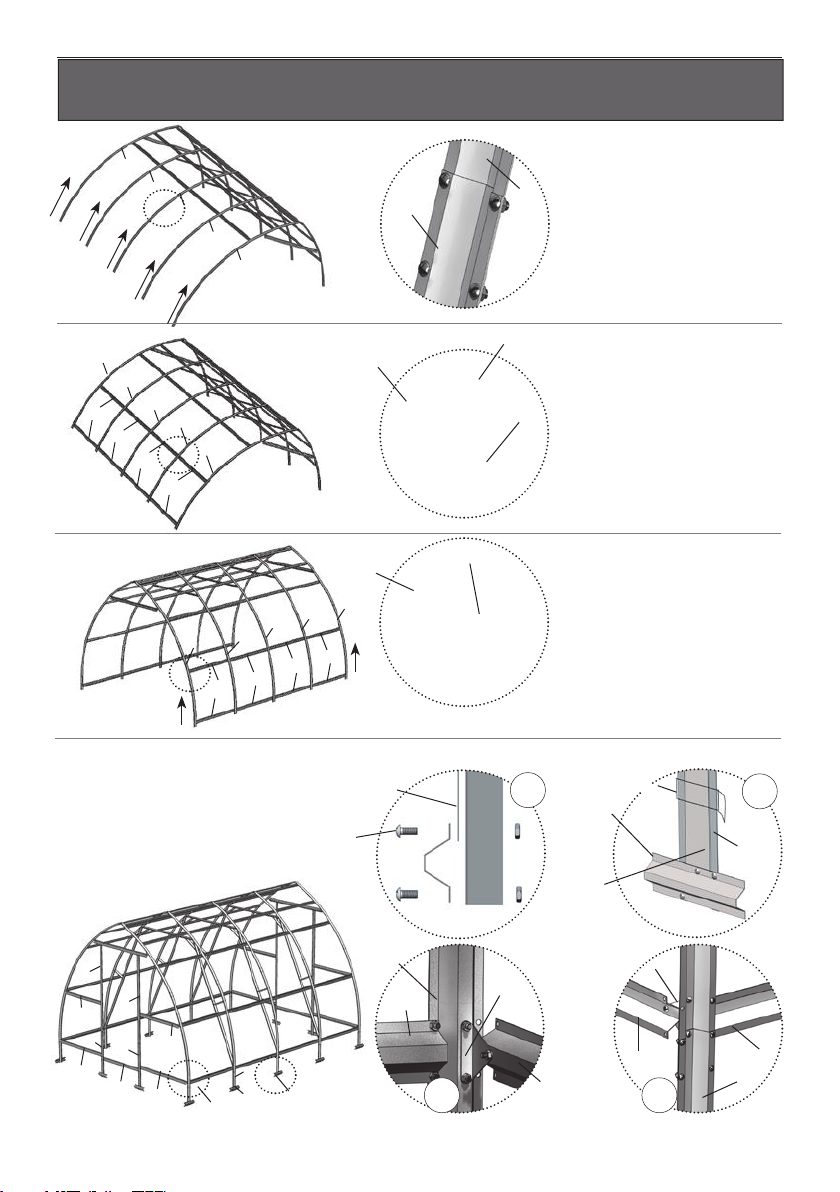

General view of insert
for Greenhouse ARROW.
Each insert extends
greenhouse length by 2 m.

10

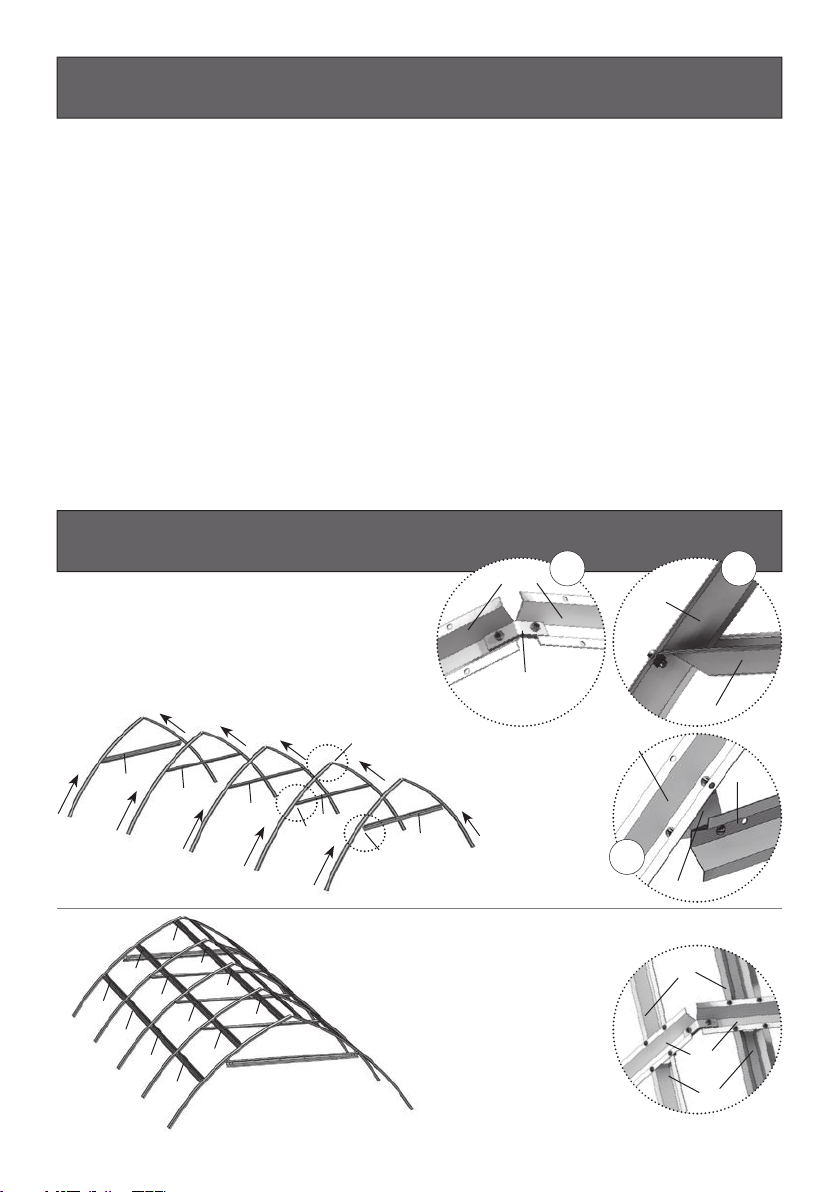

Assemble arcs 4в in pairs using ridge cover
plate and strainer 9. Connect end elements
5 to arcs 4в using arm.
Connect balks 2 to
assembled arcs.
2
2
4в
Assembling stages
Pic. 5
Pic.6
Level the frame using filling or deepening of pits to make longitudinal elements straight,
horizontal and parallel to each other and to make arcs even at side view. If arc planes
require leveling, loosen connections of balks with arcs, complete leveling on the ground
and tight screws again. Fill frame supports with soil after fastening bottom wire bandages
on element 3 (Pic.10)
Perform the installation close to location of the greenhouse.
Install greenhouse in accordance with photographs of installation stages and units
represented in Pic. 5…12. The figures show installation of greenhouse of 4 m length.
Required length is reached using attachment of appropriate number of Insert
packages. Use M5x10 screws for connection of elements.
Dig pits on the site selected for greenhouse installation at a depth of shovel blade
according to Pic. 4 Install frame into the pits. Check equality of frame diagonals using
a cord. Total draft of greenhouse into the ground should be so that bottom elements 6
of door opening touch the ground. Check equality of the diagonals using a cord again
and correct position of the frame angles.
1.
2.
3.
4.
Installation sequence
4в
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
arm
Manual
ridge cover
plate
4в
4в 4в
4в 4в 4в
4в
4в
4в
4в
4в
Б
4в
9
999
А
Б
В
А Б
В

11
When installing the greenhouse
through digging (without
foundation), connect elements
1 and 3 to the frame. Fasten
bottom wire bandage in free hole
of element 3. Install end elements
6, 6к, 7, 8, 21.
Pic.10
2
6к
4н
2
1
arm
6к
Pic. 7
Connect arcs 4н to arcs
4в from one side of
greenhouse.
Connect balks 2 to arcs
4н
Pic.9
Connect arcs 4н and
balks 2 from the other
side of reenhouse in the
same way.
Assembling stages
Manual
4н
4н
4в
4в
4в
4в
4в
4н
4н
4н
4н
4н
4н
4н
4н
4н
4н 4н 4н 4н 4н
4в
(inside view) (outside view)
arm
Pic. 8
4н
2
2
4н 2
2
2
6к
8
21
21
8
7
7
66к 3
1
222
2
2
2
АБ-1, Б-2 А А
3
1
3
1
screw
М4х8
bottom wire
bandage
bottom wire
bandage
Б-1 Б-2
adhesive tape

12
Install side braces 10 on each arc inside of greenhouse frame. Assemble side brace
assembled from two elements 10. Mount side brace liner 11 on the joint of elements
10 and connect it to arc 4н.
9
9
18
18
10
4в
10
2
2
Assembling stages
Manual
4н
4в
Pic. 11
Е
Д
А
Б
ВГ
11
10
10
4н
А
Г
EД
Б В

13
Door
Manual
Assembled door and end small window
Assemble door and end
small window from
elements12, 13, 14, 15
(Pic.12)
14
14
14
12
12
12 12
12
13
15
15
15
15
19
19
20 20
14
15
Б
Pic. 12
А
12
13
14
13
13
13
13
15
15
14
14
14
12
13
Small window
19
20
А
Б

14
6000
Door
lower band
Door
small
window
Left end
side
Left end
side
/template/
Right end
side
Right end
side
14901940
2100
1110
800
800
310310
Cutting line
Ridge
panel
Ridge
panel
Manual
Cutting and fastening of coverage
1. Cut a sheet for end coverage. To do this, cut a piece from polycarbonate sheet
(see cutting lines on Pic.13а or Pic 13б. To make a stencil of coverage, put the cut
piece to assembled end of greenhouse and, without removal of protective film from
polycarbonate, deposit stencil marking on the coverage sheet by elements 4н and
4в (with allowance Pic.14 . кWhen marking a sheet, align its edge strictly with edges
CUT POLYCARBONATE SHEET STRICTLY IN ACCORDANCE WITHС Pic. 13(а) or
13(б) and Pic. 14
2100 x 600 mm cellular polycarbonate sheet
Pic. 13а
Vertical position of cellular on ridge
pane
Pic. 13б
Horizontal position of cellular on ridge
panel
1940
Cutting line
Cutting line
A power jigsaw or
fine tooth arm saw
is recommended for
cutting.
Warning! When cutting the surface cover in windy weather, fix the edges of polycarbonate
sheets with a load.
Left end
side
Left end
side
Door
Door
Right
end
side
Right end
side
/template/
small
window
small
window
small
window

15
Manual
Attention! Coverage sheet side edge is aligned by elements 7, 8, and top
edge on 30 mm above bottom edge of element 5. Mark by elements 4н
and 4в with allowance.
Mount cellular polycarbonate strictly facing sun with a side having protective
layer (by all means, clarify it under purchase or before mounting). Protective
layer usually is on the side with inscriptions on transport film. On the other side
of sheet film is clear. After marking the sheet but before its cutting make marks
on protective side of each piece of sheet: after removal of transport film sheet
sides have no visual differences. Transport film is removed from both sides
immediately before fastening
coverage on the frame.
Pic. 14
8
5
2
4в
Coverage
marking
2100
Pic. 14
marking
2100
8
4в
30 mm
marking
- points for mounting of
armsfor coverage fastening
Angle
(inside view)
1940
of elements 7 and 8, and top edge at 30 mm above bottom edge of element 5. Cut
a stencil. Mark the rest of sheet using the stencil in accordance with cutting scheme
(Pic.13а или Pic 13б.

16
Manual
Раскрой и крепление покрытия торца
Pic. 15
2. Cut ridge coverage pieces located above the door at
the place of installation from remaining pieces. Mark
marking4в coverage by elements 4в with allowance
aligning bottom edge of the sheet with bottom edge of
element 5
(Pic.15).
marking 4в
5
aligning bottom edge of the sheet with bottom edge of
Cutting and fastening of coverage
сoverage
16
Avoid over-tightening screws that fasten the polycarbonate in order
not to damage the polycarbonate sheet and destroy its structure.
Pic.16
3. Mount side pieces of coverage in accordance with
Pic.16. Holding a piece of coverage, fasten it with
screws and washers by elements 6к, 7, 8б 21 and
by angles using tap screws with washers. Holes for
screws are drilled by boring bit of 5 mm diameter from
inside of greenhouse through holes in frame elements.
Mount top pieces of coverage fastening them on
angles with washers and tap screws. Cut overlapping
with side pieces.
4. Even coverage pieces by arcs 4н and 4в using a
knife and mount sealing profile in accordance with
Pic.17.
5. Fasten pieces of coverage on door with washers
(Pic.18,19) Fasten pieces of coverage on door with
washers (Pic.23), closing cellular beforehand (with
adhesive tape). Mount sealing profiles along the door
contour in accordance with Pic. 19,21,22.
Pic.17
details
4В, 4Н
and 1
end sealing
сoverage
Washer
screw М5х35
Protective layer
end
сoverage
Protective layer

17
hinge
Manual
Cutting and fastening of coverage
Pic.19
adhesive
tape
door sealer
door sealer
hinge sealer
hinge sealer
сoverage
сoverage
сoverage
17
screw
М5х14
handle
handle
handle
сoverage
adhesive
tape
door sealer
hinge
adhesive
tape
door sealer
hinge sealer сoverage
door sealer
door sealer
сoverage
hinge
hinge
adhesive
tape
adhesive
tape Pic.18
Angle
washer
washer
pin

18
Manual
Cutting and fastening of coverage
7. Install assembled doors and
smallwindows on ends mounting sealer
in accordance with Pic.22.
When mounting small windows, prevent
its further slackening. When tightening
the screws, lift the opposite end of
small window to remove screw gaps in
the holes.
Pic.23
end сoverage
20..25mm
(the output of surface contour door)
door
washer
12
8
screw М5х35
screw М5х35
door
сoverage
small
window
сoverage
door
сoverage
ridged
panel
16
screw
М5х50
screw
М5х35
5
door sealer
door sealer
door sealer
19
19
13
13
6
small window
Pic.20
end сoverage
screw М5х35
screw М5х10
screw
М5х10
hinge sealer
hinges
washer washer
washer
washer
washer
12
door
Pic.21
6. Mount end cover plate 16 on end coverage and fasten it on element 5 through
coverage (Pic.20 and Pic.24). Joint of end coverage pieces is under element 16.
door sealer
door sealer
screw
М5х35
screw
М5х35
screw
М5х35
screw
М5х35
Pic.22

19
Manual
Cutting and fastening of coverage
8. The washers and the hooks on the end install in accordance with Pic.24.
Pic.24
washer
washer
hook
end сoverage
Angle
Angle
screw М4х10
screw М5х35
The
ground
16
2
8
Install tubular reinforcing element door
opening in accordance with Pic.25
Pic.25
tubular
reinforcement
