Dancover Oceancover PVC User manual

26-09-2014-QJ
5,5x15x4,1x5,3m
Manual
Boat tent Oceancover PVC

Safety Advice
Attention
In some countries approval is needed to set up a marquee/tent larger than 75 m2. It is
your responsibility to comply with local rules and regulations and to ensure that the
marquee/tent is assembled correctly.
In case of bad weather conditions, it is your responsibility to ensure the marquee/tent is
safely secured and that the marquee/tent does not cause damage to others.
close to the tent.
The marquee/tent must be safely secured. We recommend you secure your marquee/tent
with straps and pegs as soon as it is assembled.
Make sure to check if the marquee/tent is covered by your home contents
insurance.
Marquees/tents must be evacuated under extreme weather conditions.
In the event of snow always remove snow from the roof of the marquee/tent regularly to
prevent snow from building on the roof as heavy snow can cause the marquee/tent to
collapse.
In the event of rain there is a risk of rain puddles building up on top of the roof of the
marquee/tent. Heavy rain puddles can cause the roof to collapse. It is your responsibility
to ensure rain puddles do not build up. As a precaution, make sure the roof of the
marquee/tent is stretched out properly and adequately over the side frames of the
marquee/tent and remove rain water regularly.
Do not unpack or repack your marquee/tent in freezing temperatures. In case of
temperatures below zero always unpack and repack your marquee/tent indoors to avoid
the risk of cracking parts.
The marquee/tent must be totally dry before you repack and store it to avoid mildew.
Warranty Information
Please visit dancovershop.com for information on warranty.
Please always check our website for the latest safety advice and manuall.
This structure is not tested for snow and wind loads. We always recommend that
you remove snow from the roof. This is a none-permanent structure.

Congratulations on your purchase of our instant shelter. This unit is a combination
of excellent manufacturing and design. It is comprised of a rigid frame and a durable
cover. For easy assembly, we have marked all the parts with codes, with proper
installation, use and maintenance, your unit will provide many years of good and
suitable service.
Tools required
The following hand tool will be needed for proper Installation of your new building:
12mm,14mm，and 17mm Open End Wrenches,
12mm, 14mm, 17mm Sockets or Box Wrench,
Large Flat Head Screwdriver,
2lb maul or Sledgehammer
4 Foot Level 14’ Step Ladder
Stake &String for aligning Base Plates &Frame
Assembly procedure
1. Prepare location and place all unit boxes near location sight. Perform an inventory
check before beginning, to be certain all components are available for installation.
2. Secure base plate flanges to base surface.
3. Assemble every group of arch.
4. Begin frame assembly with front end arch, first interior arch, purlins, etc.
5. Add to assemble other groups of arches.
6. Install main cover over frame.
7. Install end cover over end panels.
Read all the detailed instructions and notices in the following assembly
instructions!

Maintenance and care
Annually or more often, the unit should be completely inspected internally and externally to make
certain the unit remains properly installed and secured .Particular attention should be paid to:
Hardware-check all carriage bolts and hardware connectors to be certain they are in place and
tightened.
Weather trends, the unit will strain against the base plate flange under windy conditions, pegs
hardware, connection to frame members should be maintained tight and depth of pegs should be
checked to be certain they remain deeply and firmly set.
Snow Accumulation -All snow accumulation on the main cover should be removed as soon as
possible. Tap the main cover from the inside with a broom or soft brush to clear cover.
Main Cover Lacing-the poly rope that secures the main cover to the bottom rail of the frame
assembly should be checked, and adjusted as needed. The tension on the main cover should be
uniform from end and side to side. Rope ends must be tied off onto the frame members at the ends
on each side.
Cleaning -cover and doors can be cleaned with a mixture of light detergent and water. A soft
bristle brush with the mixture can be used to loosen any hard dirt, mold, or buildup on the cover.
After cleansing, the cover should be rinsed thoroughly to avoid any chemical reaction from
residual detergent. Allowing dirt and debris to sit on cover over an extended time will damage
cover irreparably.
Severe Weather-in preparation for inclement weather, completely secure the door of your buildings
portable building. Allowing wind to enter end lifts the
Thanks again for choosing this quality product. The following is the
detailed assembly instructions for you starting the assembly.

5,5x15x4,1x5,3 part list

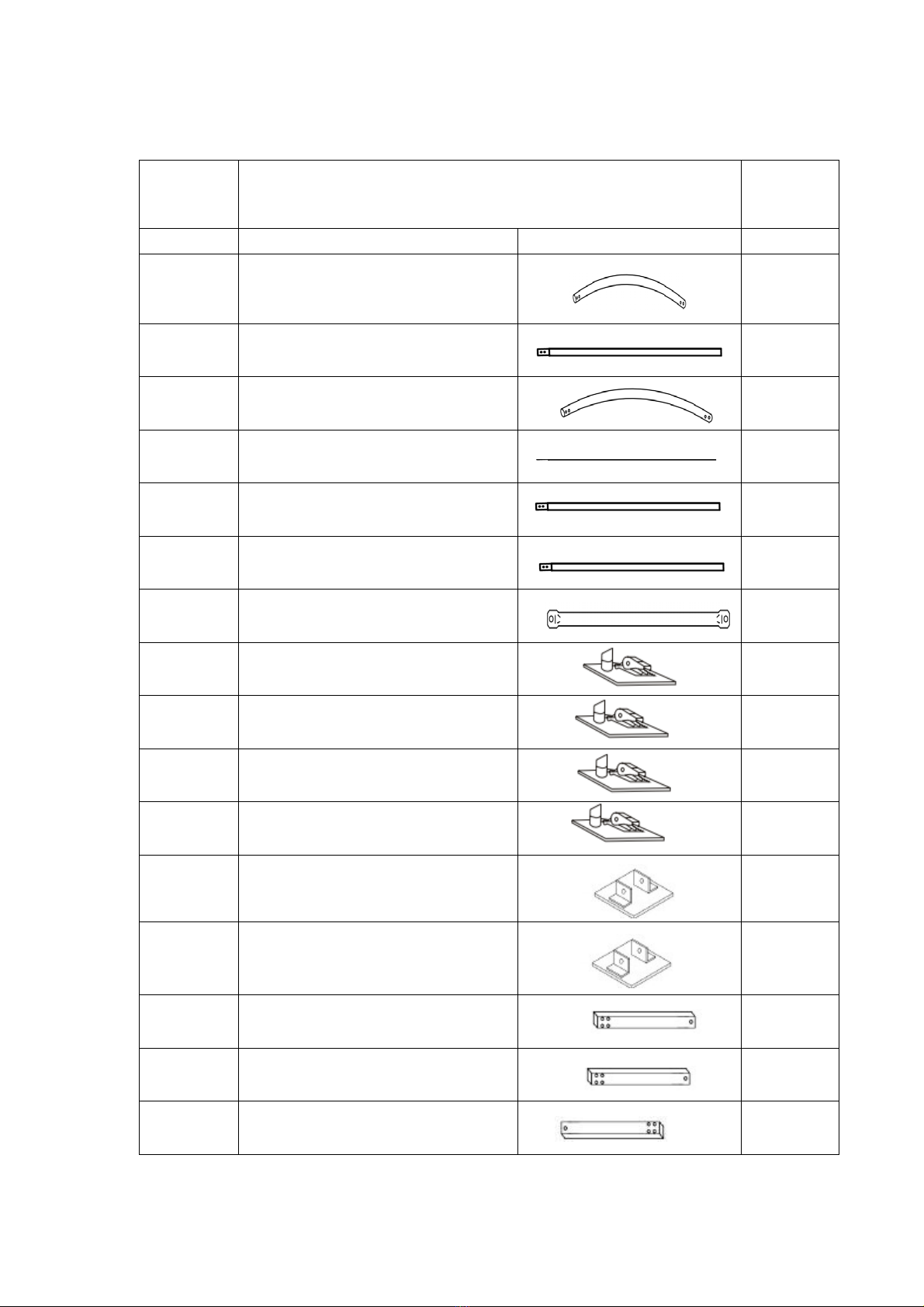

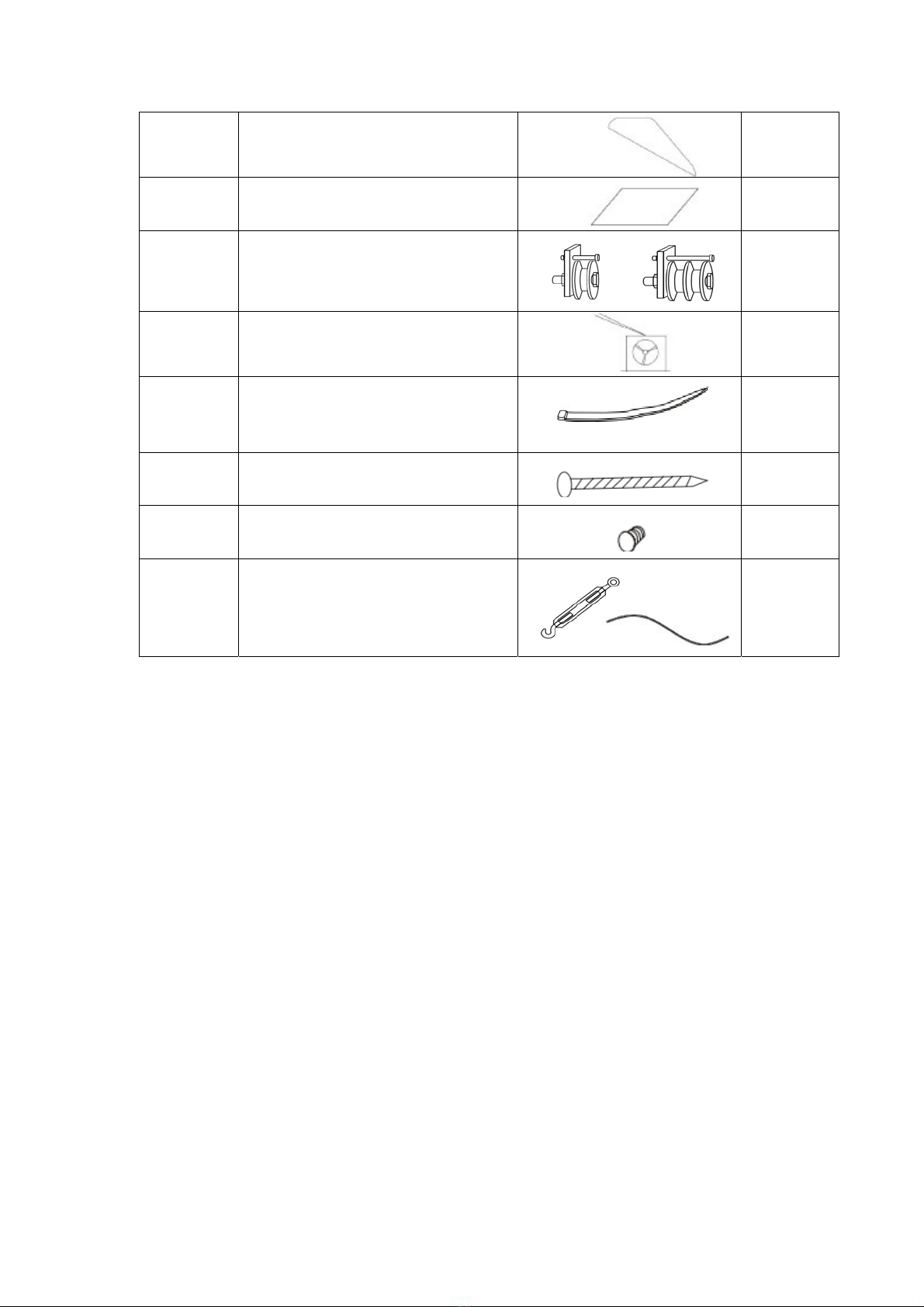

Part code Description Qty
1 Curved roof tube 7
01ebutfooredisdevruC2
2A Curved side roof tube in front and back
panel
4
01sebuTllawediS3
3A Sidewall Tube of front and back panel
2
3B Sidewall Tube at right of front and back
panel to connect the winch rail
2
4 Horizontal wall and roof purlin 30
5L Base flange in corner 2
5R Base flange in corner 2
6L Base flange for sidewall 5
6R Base flange for sidewall 5
7 Base flange of door frame 4
8 Beam beside door frame 4
9 Door beam 2sets
10 Upper door track 4
11 Lower door track 2
26-09-2014-QJ

11A Lower door track for bottom rail 2
12 Bottom rail for winch of mechanical
door(beside the door)
2
13 Cover Tensioning tube for roof cover 2sets
14 Door dropping tube 12sets
15 Door dropping tube at the bottom 2sets
16 Cover tensioning tube of front and back
cover
4
17 Wind Brace Support 4
17A The tube clip for wind brace support 8
18 Hexagon bolt M10x90 100
19 Carriage bolt M10x100 40
8103x01MtlobnogaxeH02
21 Hexagon bolt M10x75 40
21A Hexagon bolt M10x85 22
22 Hexagon bolt M10x12 28
23 Tie down ratchet 14
24 Band for tie down ratchet 14
25 Roof cover 1
26 Side cover beside the door(without
window for the winch of door)
4
26-09-2014-QJ

27 Top cover above the door 2
28 Door cover 2
29 Single and Double Pulley 2sets
30 Winch 2
31 Rope for fastening the roof cover, the
door cover and the front&back cover
18
40 Stake peg 50
42 Plastic cap of tensioning tube 12
43 Turnbuckle and steel wire 8sets
26-09-2014-QJ

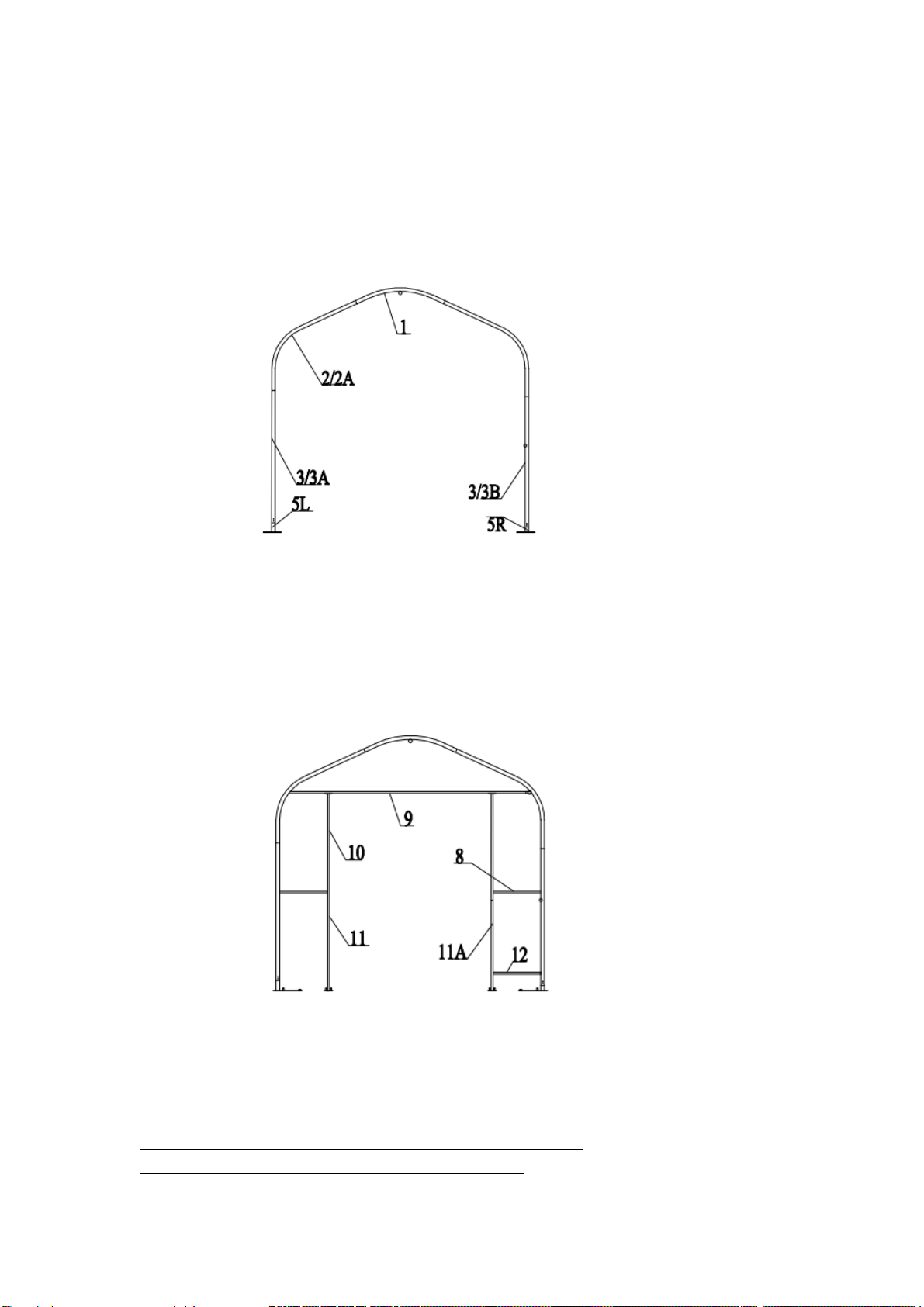

Figure 1
Sketch of Model 185017 Size: W5.5*L15*H5.3M

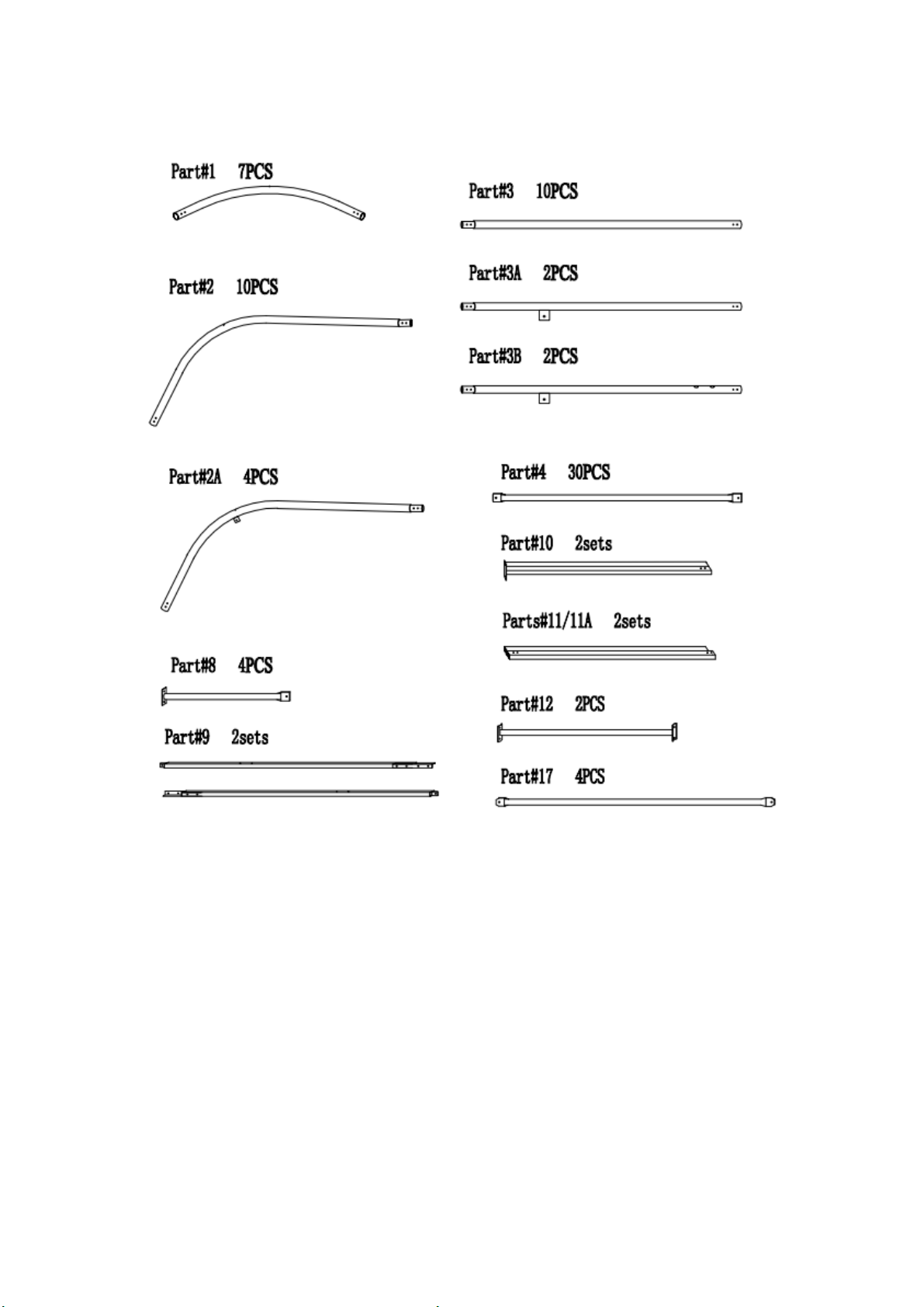

Figure 2 Sketch of parts

Step #1 --SECURING BASE FLANGES
Sit the building boxes in the chosen location. Remove all the components from
packaging to ensure all components are present by checking with the Part List.

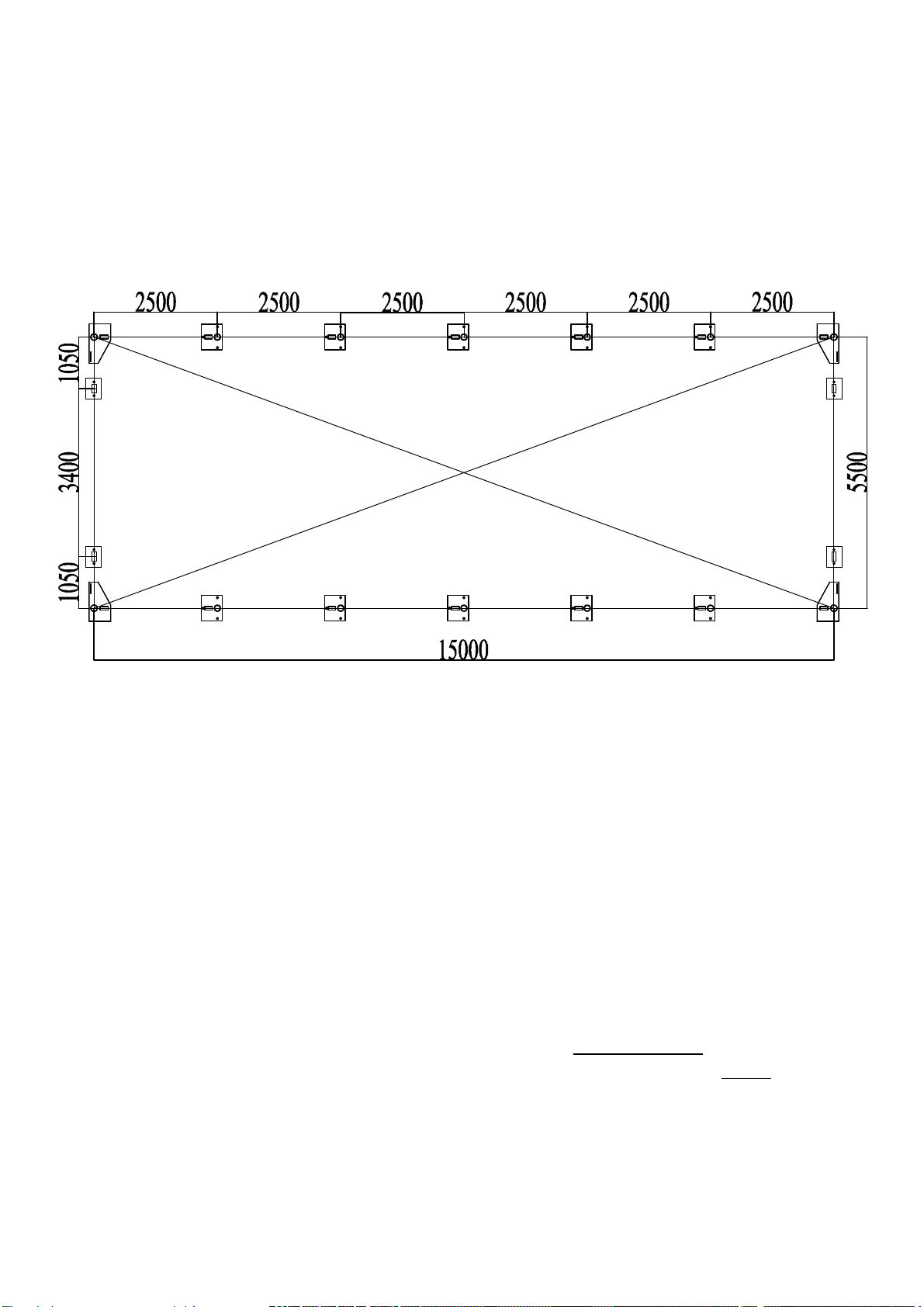

Figure 3 Position of Base Flanges
Begin by determining exact location of the four (4) corners of the building. Mark front
edge and side-to-side width of assembly on ground. Drive alignment stakes into the
ground outside of the markings, and draw alignment strings along both ends and sides
of the building to the dimensions shown in Figure 3. The outline of the strings will
represent the final location of the base flanges. The initial location of each Corner
Base Flanges (5R & 5L) is critical to the alignment and fit of the frame components
and cover.
Locate the Left Corner Base Flange and Right Corner Base Flange(5R&5L). Secure
the base flanges with Stake Pegs (Part #17). Measurements shown in Figure 2 are to
the center of the upright sockets on each Base Flange.
The Shelter must be secured to a firm surface that can receive and retain augers and
pegs firmly in position. The shelter should be installed on FIRM GROUND, not on
SWAMP, SOFT/WET GROUND. The Base Flanges must be secured so they cannot
be moved. Arches are tensioned at their base as they insert into the Base Plate sockets.

Step #2 --ARCH ASSEMBLY
Assemble each arch on ground. Each arches consist of:
One curving roof tube (Part #1)
Two roof curving tube (Part #2/2A)
Two curving sidewall tube (Part # 3/3A/3B)

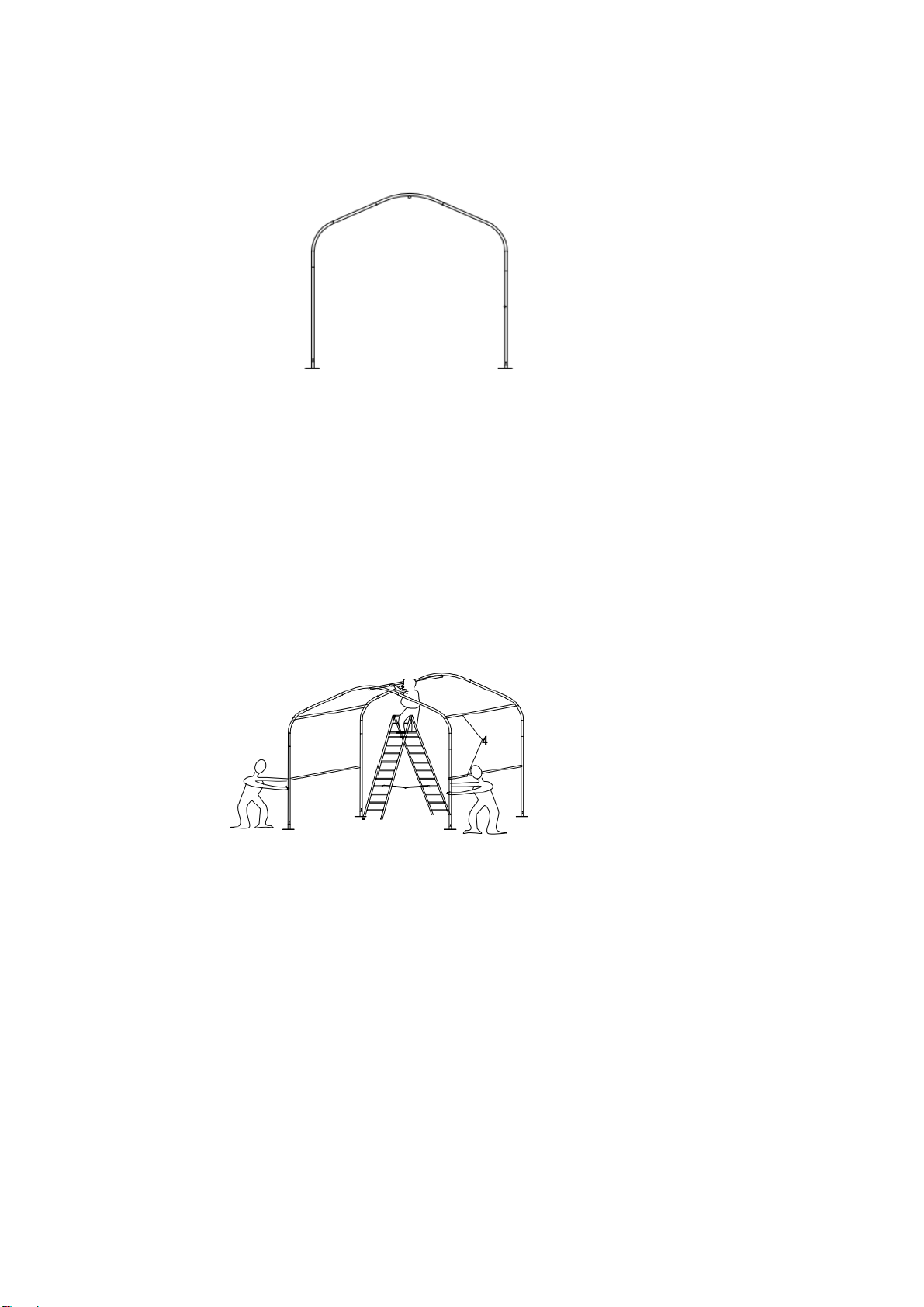

Figure 4 the arch installation
Connect the arches by Using the hexagon bolts with washers and nuts through
predrilled holes in frame members. Do not tighten down the nuts completely until
frame is fully assembled and set in place.
THE FRONT PANEL FRAME ASSEMBLY
Figure 5 Frame Installation for Front Panel
Assemble the front panel frame. According to Figure 5, connect the end wall frame by
Using the bolts with washers and nuts through predrilled holes in frame members. Do
not tighten down the nuts completely until frame is fully assembled and set in place.
NOTE: Please notice that the part code of the arch sections.
The sections of different arches are not the same.

Check with the Part List and the Sketch Figure #1.
Step #3 --ERECTING ARCHES

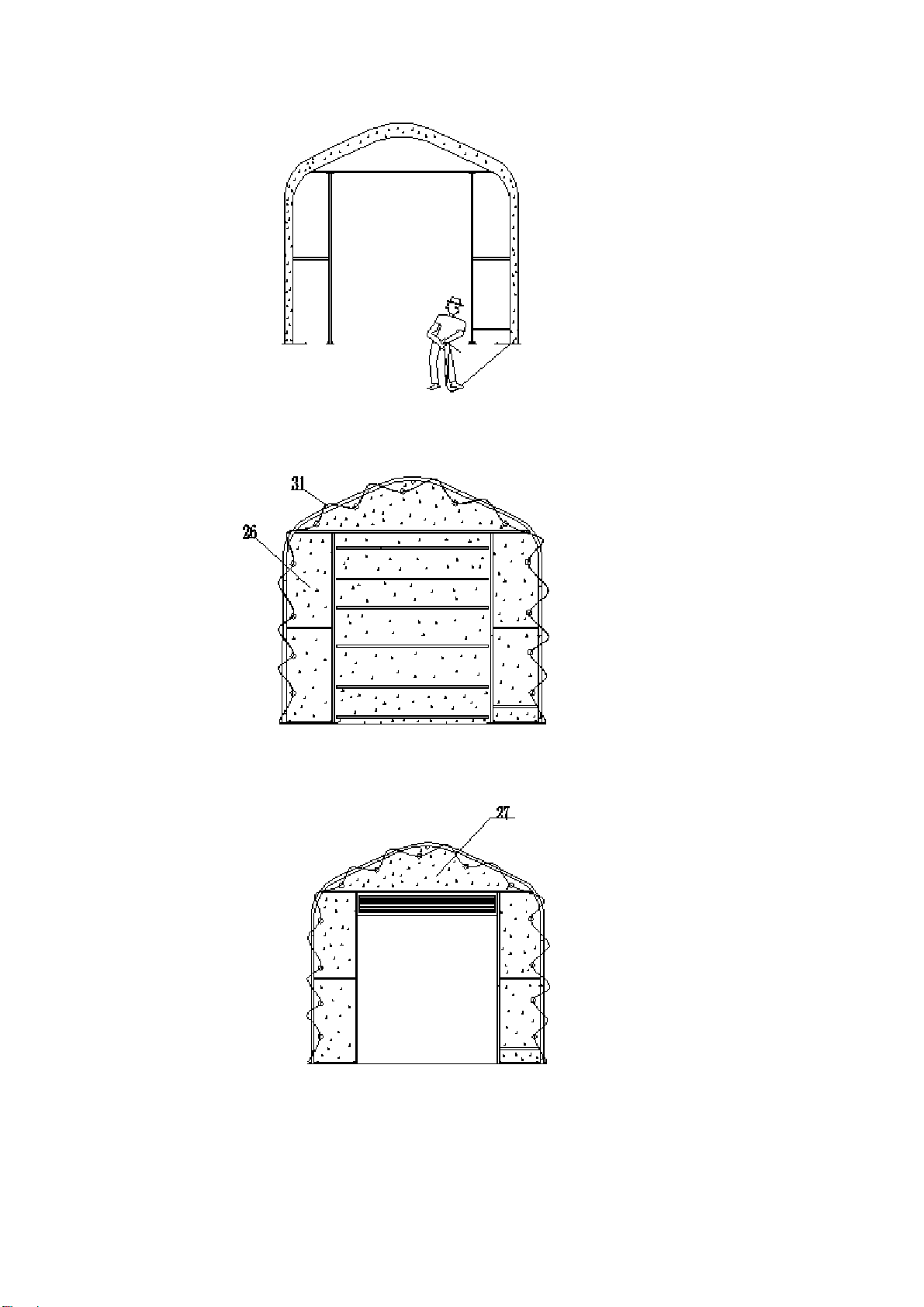

Figure 6Attaching Arches to Base Flanges
Begin frame assembly by erecting Front Arch into Front Corner Base Flanges. Place
left frame sidewall tubing into the upright tube socket into the Left Base Flange. Place
Hexagonal Bolt through base flange socket and arch sidewall tube hole.
In order to insert Right Sidewall Tube into Right Front Corner flange, it is necessary
to support arch on left side to prevent movement. Position the Right Sidewall Tube
over the Right Corner Base Flange.
Once the Right Sidewall Tube is placed into right corner base flange, insert a
hexagonal bolt and nut to prevent it from popping out of the socket while
assembly continues.
Next stand first interior arch up to repeat insertion into Base flanges.
Figure 7
Immediately after putting first interior arch into place, connect Front Arch and Interior
arch using Roof Purlin Tubes at top ridge and side shoulder cures of arches. Secure
the Roof Purlin tubes into place using carriage bolts and nuts.
Nets install the Wind Brace supports(part#13) and Tube Clip(part#13A) that connect
the Front Arch to the first Interior Arch. The Wind Braces give the arch assemblies
strength as a unit. Use Bolt M10Χ30 at the end of each Wind Brace Support to secure.
Continue to install other Arches Assemblies in the same manner. Overlap pinched
ends of Roof Purlin onto same carriage bolts inside frame assembly.
Next check entire frame assembly for square and plumb. Next tighten frame bolts
adequately. DO NOT over tighten bolts so as to oval or compress frame
components.。

Step #4--POSITION ROOF COVER
As figure 8shows, when ready to install Roof Cover, unpack cover and lay parallel to
building frame on one side. Cover must be pulled over top of frame assembly without
being snagged or stressed on any frame members. Use multiple ropes over top of
frame as shown in picture below. Having another person inside frame on a ladder to
assist in getting Roof Cover over frame will insure the cover will go on without any
damage.
Figure8: Pull the Roof Cover over the frame evenly
First circle the band for tie down ratchet(part#23) around the tensioning tube through
the cuts on the pocket of the roof cover.
Then put the bands through the reel of the ratchet.
Figure 9Fastening the Roof Cover

Step #5--TENSION COVER ON FRAME FROM SIDE-TO-SIDE
As Figure 9shows, when Roof Cover is over top of Frame Assembly, insert Cover
Tensioning Tubes into pockets along both sides of Roof Cover. Centre Roof Cover
over Frame assembly both side to side and front to back. Align one side of Roof
Cover evenly front to back. Add Band for Tie Down Ratchet at each point along the
cover opening, as shown. Put Band for Tie Down Ratchets over Cover Tensioning
Tubes at each Base Plate along one side. Bands do not attach to Tensioning Tubes, but
loop around and secure at both ends on ratchet.
Next take up slack in tie bands by ratcheting the mechanisms, tightening cover.
Evenly adjust ratchets on both sides of roof cover to take wrinkles out of roof cover.
DO NOT fully tighten cover yet. Leave adequate slack so that cover can also be
adjusted front to back in next step.
Step #6--TIGHTEN ROOF COVER ON FRAME FRONT TO
BACK
The roof cover is tensioned from front to back by the rope lacing to grommet flaps
inside the main cover, inside the unit at both front and rear arches. Using the rope
provided, lace the main cover grommet flap around the main frame front and rear arch
pieces. Start in the top middle of each arch, and lace to each side. Add rope length by
tying pieces together or cutting as necessary.
Lace all grommets on cover inside flap with rope. Starting at the middle top point
over the door, tighten lacing only enough to take wrinkles out of the cover. Repeat for
the Rear Arch. DO NOT over tighten lacing to pull out the grommets.
After the roof cover lacing is adjusted evenly across the grommet flap, go back and
re-adjust the Tensioning Ratchets along the side edges of the Roof Cover. At this
point, the main cover can be pulled taut enough to take all excess material and
wrinkles out of cover. It will be necessary to repeat this step 2-3 weeks after unit
assembly is complete and roof over has a chance to stretch out over the frame
completely.

Figure 10 Fastening the two ends of the Roof Cover
Figure 11 Fastening the two ends of the Roof Cover
Figure 12 Open Door Cover

Installation of mechanical door The door dropping tube
assembly
(Seeing from inside)

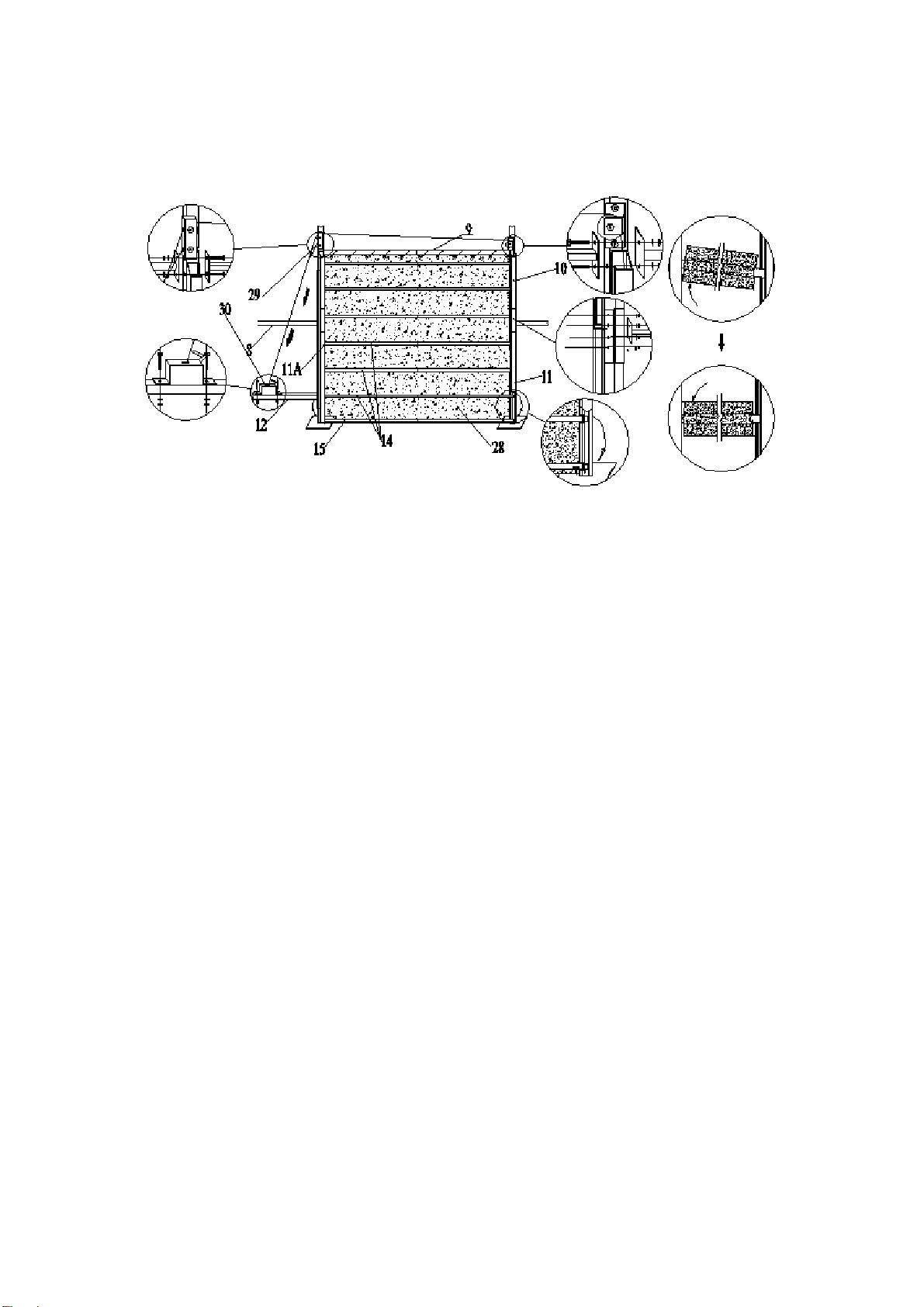

Figure 13 Installation of the Mechanical Door
Step #9 --MECHANICAL DOOR INSTALLATION STEPS
1. Install Main Door Pulleys (left and right) over the Top of the Door on each side of the Door
Beam (Part #9).
2. Next mount the Winch Mechanism to the Front Panel Lower Beam (Part #12).
3. Slide Bottom Door Dropping Tube (Part15) into the bottom horizontal fabric pocket on the
Door Cover (Part #28). Then slide the six remaining Door Dropping Tubes (Part #14) into the
remaining horizontal fabric pockets in the Door Cover。
4. Raise the Bottom Dropping Tube (#15) to the top of the Upper Door Tracks. Put the Bottom
Dropping Tube (#15) into the tracks side to side so the ends start down the tracks. Gently allow
the Door Cover to go down, and feed the six remaining Door Dropping Tubes (#14) into the Door
Tracks.
5. Next install the steel wire that leads from the bottom of the door dropping tubes
to the door winching assembly. Take one of the Steel Wires in the Door kit, and feed
down from the top of the Door track to the Bottom Door Tube Dropping Tube (#15)
on the right hand side of the door (facing from the inside). When the steel wire goes
down though the hole in the Bottom Dropping Tube, tie a knot in the steel wire so that
it cannot pass back up through the hole.
6. From the Winch Assembly route leading end of the Longer Steel Cable through the
Upper Roller of the double the pulley near door track and then through the Single
Roller on the door track farthest from the Winch Assembly.
Then down through the Bottom Door Dropping Tube (15).When the steel cable goes
down though the hole in the Bottom Door Dropping Tube, tie a knot in the steel cable.
Door can now be operating the Winch Assembly. Raise and lower the door several
times to be certain door tube ends are not binding on track.. Lubricate if necessary.

Contact information
Head office:
Dancover A/S
Nordre Strandvej 119 G
3150 Hellebæk
Denmark
For more information
please visit:
www.dancovershop.com
National contact
Denmark: 70 26 76 20
[e-mail]
UK: 020 8099 7570
[e-mail]
Spain: 911 436 828
[e-mail]
Italy: 02 479 21 198
[e-mail]
Germany: 041 0266 7040
[e-mail]
Switzerland: 0840 000125
[e-mail]
France: 0975 181 800
[e-mail]
Austria: 0662 626935
[e-mail]
Sweden: 040 233 262
[e-mail]
Finland: 0 931 581 720
[e-mail]
Nederland: 0 858 880 524
[e-mail]
Poland: 22 300 8602
[e-mail]
Ireland: 0 151 33 003
[e-mail]
Luxembourg: [phone]
[e-mail]
Portugal: 308 800 899
[e-mail]
Belgium: 0 28 08 08 09
[e-mail]
Norway: 231 00 690
[e-mail]
