DARAY MAGW150 User manual

MAGW150
Ultraviolet Wood’s Examination Light
Operating & Installation Manual
QAM.MAGW150.0219.5

Page 1of 15

Page 2of 15
Table of Contents
1. Introduction................................................................. 3
1.1 Supported Lights ....................................................... 3
2. Technical Specifications................................................ 4
2.1 Pre-Installation Responsibilities and component packing list ... 4
2.2 Pre-Start Checks ....................................................... 4
3. Operation ................................................................... 5
3.1 Skin Conditions ......................................................... 5
4. Installation .................................................................. 6
4.1 Operation ............................................................... 6
4.1 Power Requirements................................................ 7
5. Maintenance ................................................................ 8
5.1 Maintenance Schedule ................................................ 8
5.2 Safety Precautions ..................................................... 8
5.3 Bulb Replacement ..................................................... 9
5.5. Replacement Parts .....................................................10
5.6 Product cleaning & care guidelines ................................11
6. Troubleshooting Guide ...................................................12
7. Warranty Information ....................................................13
7.1 Returns Policy .........................................................13
8.2 Warranty Details ......................................................14

Page 3of 15
1. Introduction
The MAGW150 is specifically designed to meet the demanding needs of today’s
dermatologists and skin clinicians whilst providing the finest quality design with
superior performance, reliability and value. The MAGW150 emits Ultraviolet light
with the ability to note minor skin colour changes and variations in skin tone.
Under UV light different substances become luminous when exposed, making it a
useful tool for forensic technicians, veterinary surgeons, dermatologists and
many more.
This user & installation guide contains all the information you need for installation,
operation and maintenance.
Restrictions and Liabilities
Information in this document is subject to change and does not represent a
commitment by DARAY. Changes made to the information in this document will be
incorporated in new editions of the publication. No responsibility is assumed by
DARAY for the use or reliability of software or equipment that is not supplied by
DARAY.
For further information on our product range and find out more about our Company
please visit www.daray.co.uk or call 0333 321 0971.
This product was designed & manufactured in Great Britain by:
Daray Ltd.
Edison House, Robian Way
Swadlincote
Derbyshire
DE11 9DH
1.1 Supported Lights
The Following Models are supported in this Manual
MAGW150 Woods
Light
Handheld only

Page 4of 15
2. Technical Specifications
UV Bulb
9W UV Lamp (LB4100)
Power
110-240V AC 50-60Hz
Lens Size
110mm x 75mm
Lens Strength
3 Dioptre as Standard
(6 Dioptre special order)
2.1 Pre-Installation Responsibilities and component packing list
This document is a guide to the steps that need to be performed to correctly install
the MAGW150 Woods light. However, the work required to be performed is the
responsibility of the owner or designated contractor/s.
The components supplied by DARAY for fitting / installation should be the following
items in the specified quantities.
Handheld
Qty.
Lighthead with handle, hardwired to
a 1m lead with plug
1
User Manual
1
Microfibre cloth
1
2.2 Pre-Start Checks
Please check that the power cable is without visible damage, harsh folds, knots or
cuts in the rubberised coating.
When applicable, please check that the cable is fully inserted into the power socket,
before switching the power on.
Please check that all parts of the viewer are without visible damage.

Page 5of 15
3. Operation
3.1 Skin Conditions
The MAGW150 is an Ultraviolet light, which enables the user to analyse the surface and
deeper layers of the skin in order to determine the proper treatment for various skin
conditions.
The following is a table that describes how common dermatological skin conditions
appear under the ultraviolet light.
Note: The light must be used in a totally dark room.
Dermatological Condition
Colour Output
Hardened Skin and dead cells
White Fluorescence
Albinism
Depigmentation
Vitiligo
White
Acne Scarring
Yellow (sometimes Pink)
Oily Hydrated Skin
Thickened Blemished Skin
Congested Skin with open pores
and blackheads
Orange
Thin Skin
Cutaneous Aging
Pink
Normal / Healthy Skin
Blue-White
Pigmentation Marks
Sun damaged and prematurely
aging skin
Brown
Melasma (Chloasma)
Purple-brown
Dehydrated Skin
Light Violet

Page 6of 15
4. Installation
4.1 Operation
To use the handheld version of the MAGW150 you will need to locate a power socket
within range of your examination point, plug the light into your desired location
then:
1. Open the protective cover plate
2. Reduce light in the room to a minimum
3. Turn the Wood’s light on with the switch
4. Allow the light to warm up for about a minute
5. When finished, turn off and close the protective cover plate to protect the
viewing magnifier.

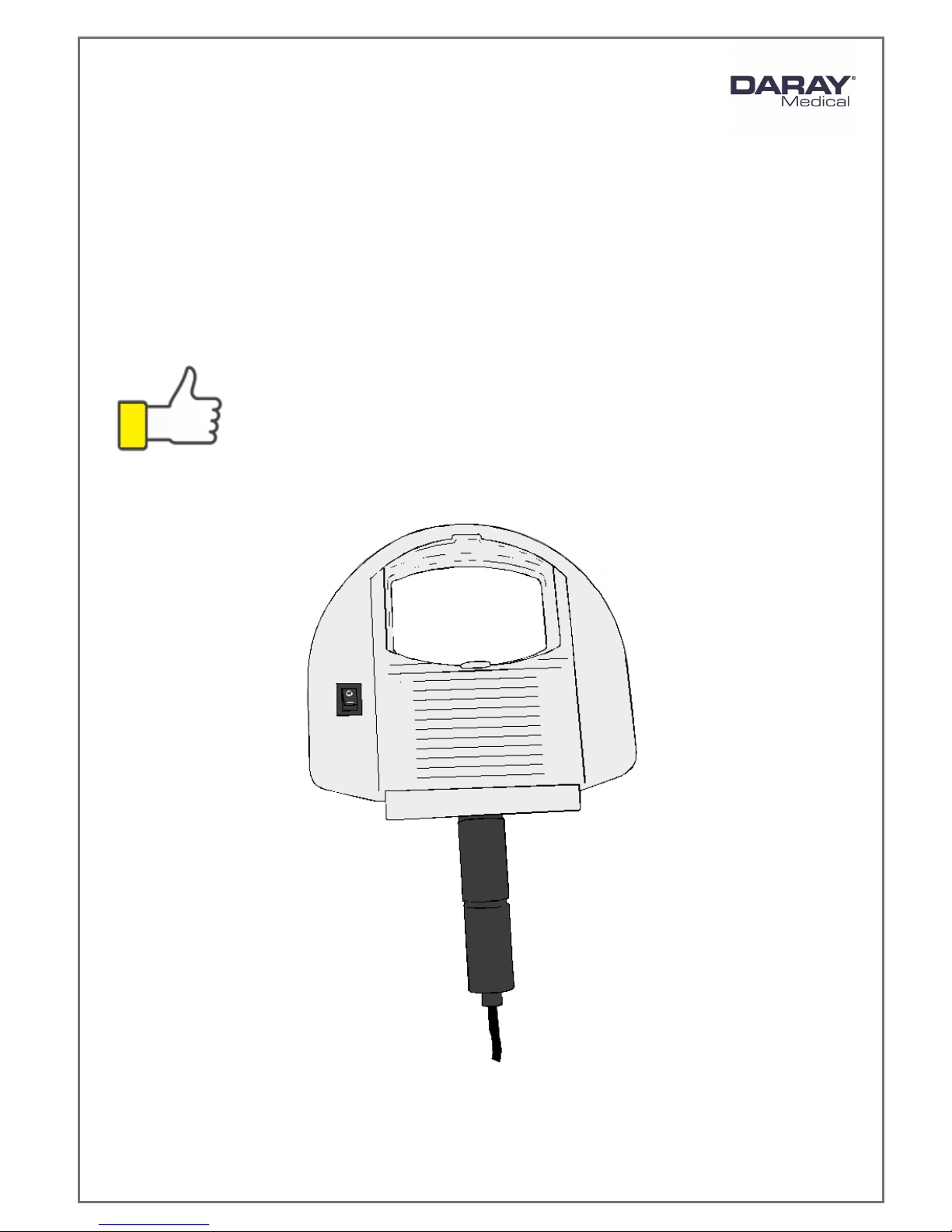

Protective Cover
Switch

Page 7of 15
4.1 Power Requirements
The power supply for the MAGW150 is a standard mains plug that leads into the
light’s body. These can be inserted into any standard UK wall socket and accepts
110-240V.
The light can now be tested by applying power and pressing the switch on the head.
To gain full support of our warranty please contact DARAY by phone or email.
Daray also provide service plans to help you maintain your light.
Contact Daray on 0800 878 9864 for more details.
For any issues requiring service work on the MAGW150 please
contact DARAY, as unauthorised work will invalidate the warranty.

Page 8of 15
5. Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product
and the operating environment, this may need to be revised more often.
DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY.
If you cannot resolve a problem then please contact our helpline on 0800 878 9864
or email [email protected]
5.1 Maintenance Schedule
Weekly checks
should include:-
No visible signs of excessive wear.
Monthly checks
to include:-
Check all electrical connections are sound and that there is no
visible cable wear.
Six monthly
checks to
include:-
All fixings to be checked and be of sound construction.
5.2 Safety Precautions
For all cleaning work, power off the equipment and where possible unplug
the mains socket, only minimal cleaning fluids should be used.
Please do not look directly into the light source when illuminated.
If the equipment is dented or scratched this should not impact the usability
of our lights however we advise that if the BioProtect® coating is damaged
and the metal casing underneath is visible, please do not attempt to ‘paint’
over it as this will impact upon the effectiveness of the coating, simply use
an alcohol based cleaning spray when cleaning and pay special attention to
the cut.
If there is damage to the power cable or if exposed wire is visible
DO NOT USE

Page 9of 15
5.3 Bulb Replacement
The MAGW150 may need to have its bulb replaced during the lifetime of the light. To
remove the bulb please follow these instructions.
Do not use undue force when replacing lamps, as it may shatter causing
injury.
Ensure the Wood’s light is disconnected from mains before replacing
lamps.

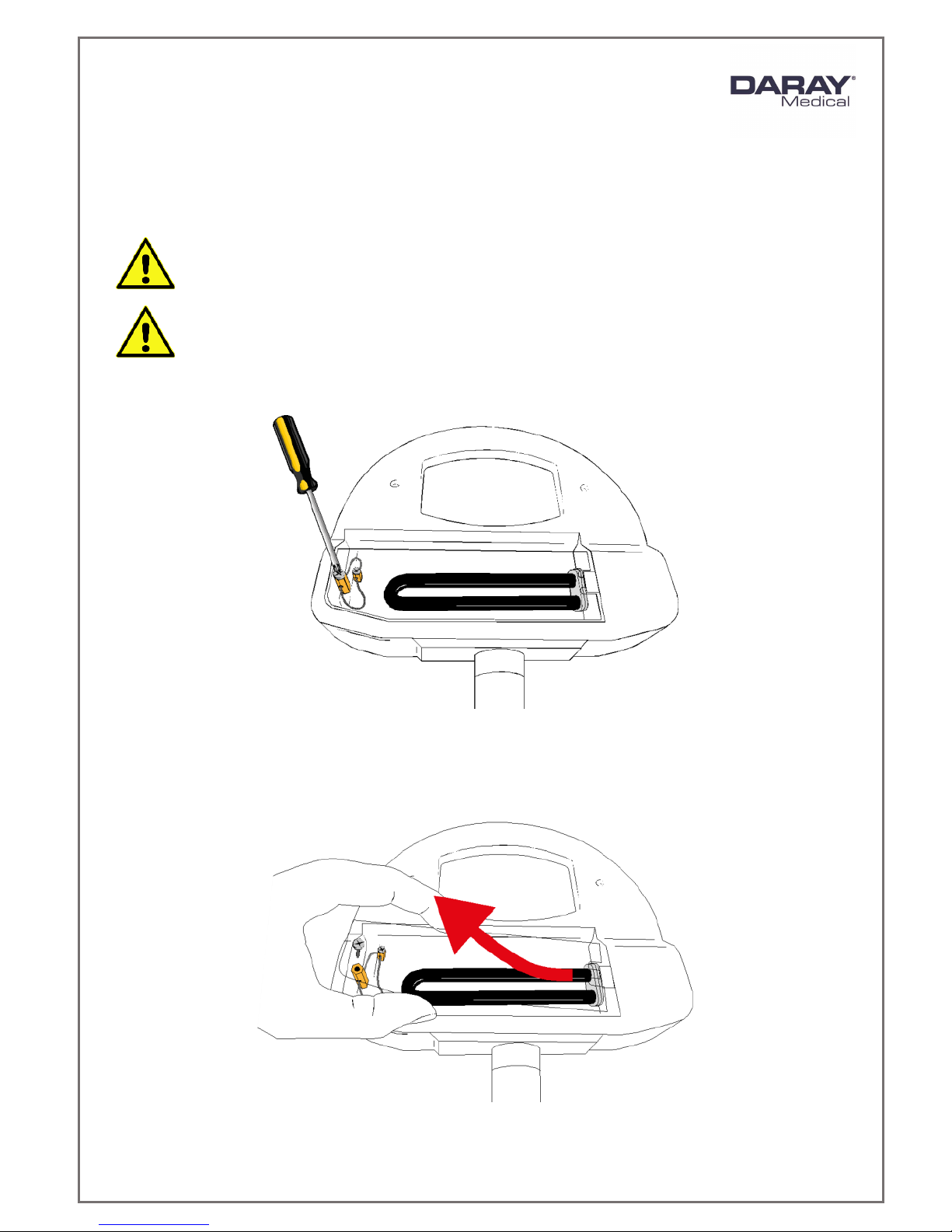

Remove the crosshead screw from the lamp protection cover, the screw should remain attached
to the cover to prevent it being lost.
Expose the lamp below by lifting the lamp protection cover and sliding it out of the retaining
slot.
NOTE: There is a wire thread keeping the cover attached to the main unit of the light, be
careful not to snap the cover when replacing the lamp.
