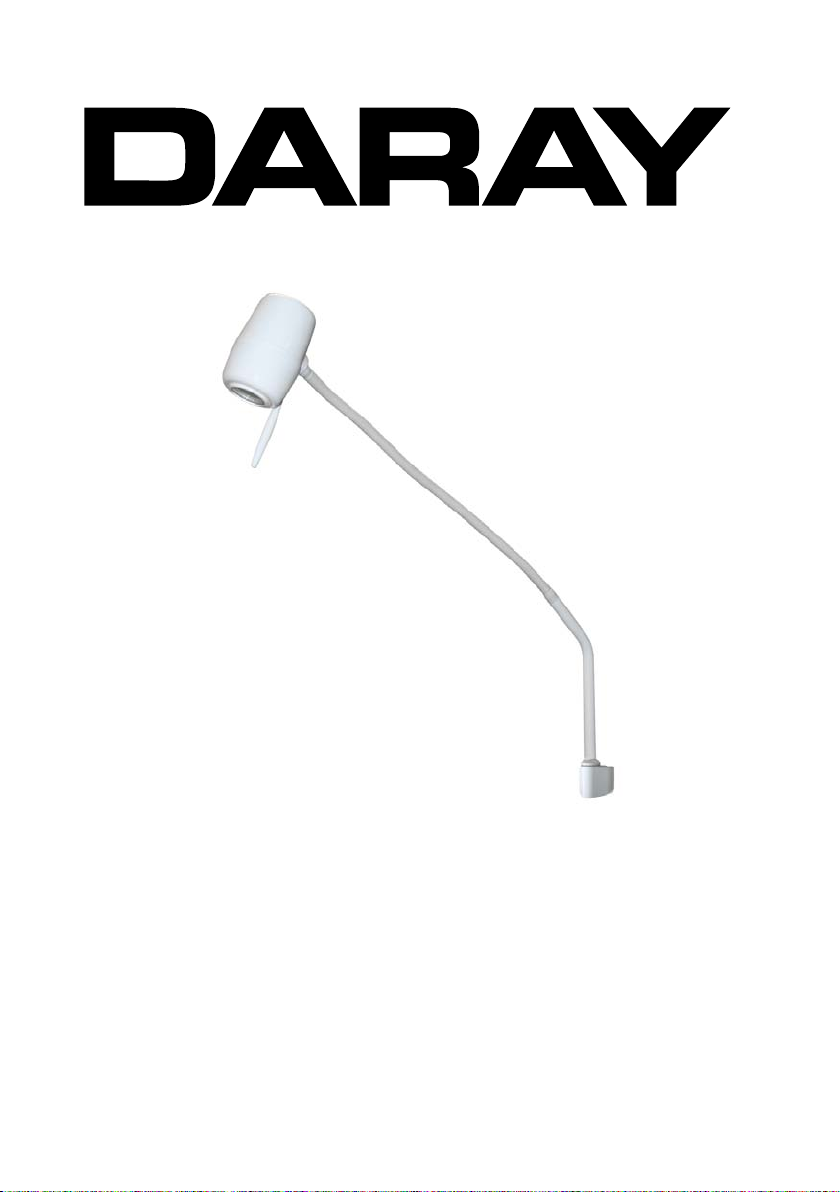

DARAY X230LED User manual

X230LED
LED MEDICAL EXAMINATION LIGHT
INSTALLATION AND
OPERATING MANUAL
QAM.X230LED.0810.1
®

3
®
1. GENERAL DESCRIPTION
4
2. SPECIFICATION
4
Serial Number
4
Product Identification
4
3. INSTALLATION/ASSEMBLY
5
4. OPERATION
6
5. MAINTENANCE
6
RETURNS POLICY
7
WARRANTY
8
WARRANTY REGISTRATION
10
Tel: [phone] - Fax: [phone]
[email protected] - www.daray.co.uk

4
DARAY Ltd make every effort to ensure that the information in this document is correct and
accurate, however, we cannot be held responsible for errors and omissions. DARAY Ltd
reserves the right to alter specifications and to add and withdraw products without notice.

5
1. GENERAL DESCRIPTION
DARAY’s X230LED is a state-of-the art, low-cost examination light for use during medical or
veterinary consultation and diagnosis. This light is specifically designed for panel mounting.
The light uses the latest next-generation LED technology to give the best intensity at the
correct colour temperature with no heat in the light-beam.
The X230LED head swivels on a 900mm flexible arm to allow accurate and stable positioning
of the light-patch. The flexible arm projects from an angled neck which swivels in its
mounting. The head, handles and mounting are coated with DARAY’s BioProtectTM, an
antimicrobial protection against bacteria such as MRSA.
The light comprises 4 parts: light-head, flexible arm/angled neck, power-supply unit, and
mounting. The flexible arm allows the light patch to be placed accurately and stably where
it is needed. The arm is covered with a PVC sleeve to prevent contamination and to allow
easy cleaning.
The power-supply module contains an electronic transformer to provide a low voltage to
power the light from the electrical mains.
The mounting bracket provides a simple method of fixing the light, allowing the base of the
arm to swivel in front of the wall; a screw prevents the arm from accidentally being pulled
out of the bracket.
This product is delivered in special-to-type packaging which, on the ends of the box,
identifies the type and serial number of the light within.
2. SPECIFICATION
Light output at 0.5 metre
32,000 lux
Flexible arm reach
900mm
Light output at 1 metre
8,000 lux
Base of arm rotation
± 90°
Power consumption 8.2 W Head rotation ± 150°
Colour temperature
4,200 K
Colour
RAL 9016 white
Luminous flux
400 lm
Input voltage
230V, 50 Hz
CRI
Ra93, R9=88
The product serial number and identifying labels are located on the base of the arm.

6
3. INSTALLATION/ASSEMBLY
Using the back-plate as a template, mark the four fixing holes (6.5mm), the central locking
screw hole (6.5mm) and the cable access hole (9mm) on the mounting surface (temporarily
inserting the spigot to assess whether it is vertical may help to achieve a level mounting).
Drill the 6 holes.
Offer up the mounting bracket to the drilled holes and feed the cable through the mounting
surface and mounting bracket.
Using 4 x M6x25 screws with 4 x non-slip washers, fit the mounting bracket by sandwiching
the mounting surface between the bracket and the back-plate.
Connect the PSU to the cable protruding from the back-plate.
Connect the PSU to a fused 230V AC supply.
Mounting surface
Mounting bracket
Spigot
Fixing screw
Locking
grub screw
Path of cable
Fixing holes
(x4)
Back-plate
Cable outlet
Locking
screw access

7
4. OPERATION
The light-head swivels on its mounting flexible arm, and the arm itself also swivels where it
fits into its mounting, allowing the light patch to be placed where you want it.

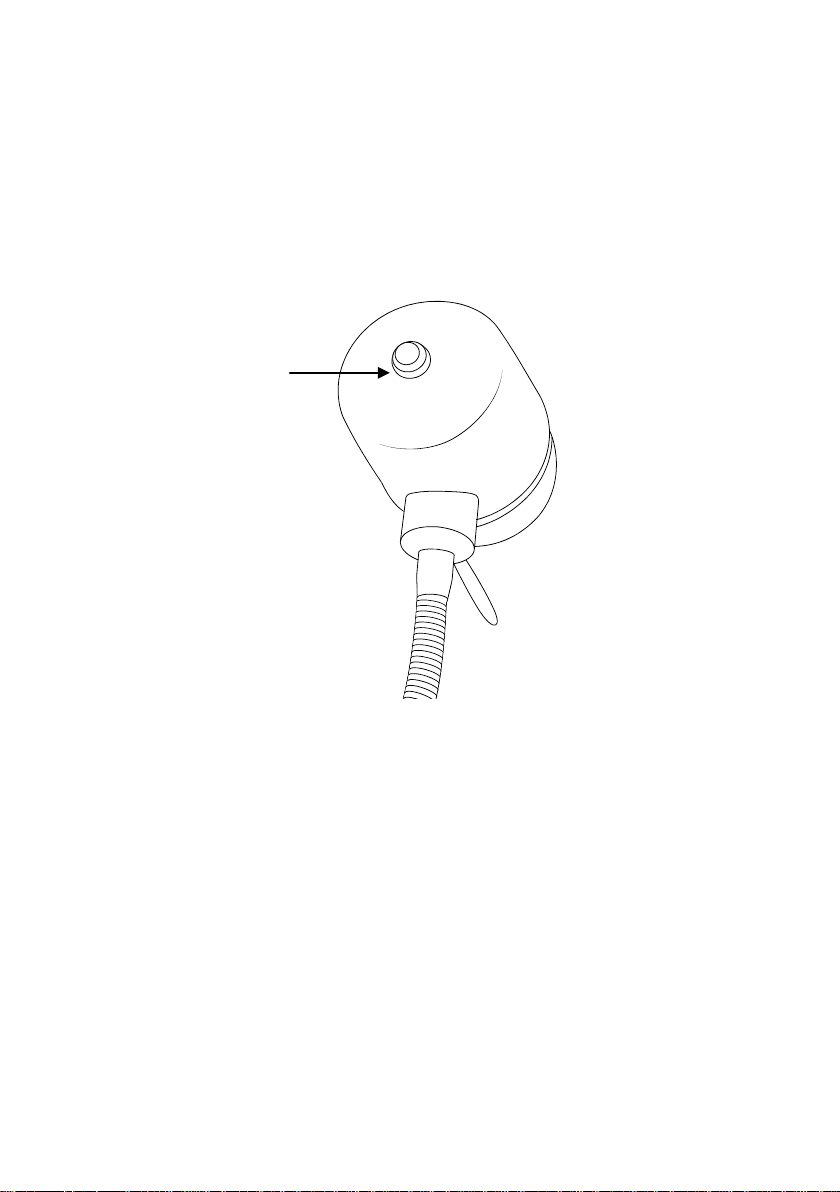

Press the push-button on the rear of the lamp to turn the light on. Press and hold to adjust
the intensity. Press the push-button again to turn the light off. Pressing the push-button
again will turn the light at the last set intensity.
If the light is disconnected from the mains and reconnected the light's intensity is reset to
its brightest setting.
Note: Unplug the power supply if the light is not going to be used for extended periods.
5. MAINTENANCE
The light should be dusted with a soft flannel cloth, and the front cover gently cleaned with
an alcohol-based liquid, and wiped dry.
WARNING: NO ABRASIVE CLEANING MATERIALS SHOULD BE USED TO CLEAN ANY PART OF
THE LIGHT.
If fitted, the rail should be dusted to avoid any build up between it and the light clamp.
Push-button controller

8
PLEASE REFER ANY PROBLEMS INITIALLY TO YOUR DISTRIBUTOR.
DARAY Customer Services on [phone]
Or email [e-mail] for help with any problems the distributor cannot solve.

9
Returns Policy
We want you to be completely satisfied with your purchase. If you need to return goods
purchased from DARAY Ltd, please read the following information carefully.
The DARAY Ltd returns policy provides guidance on when you can return goods we have
supplied, and what you can expect from us once you do. To see our detailed returns
policy and procedure visit www.daray.co.uk/returns
TYPE OF RETURN REMEDY
DAMAGED GOODS OR DOA*
Goods which are physically damaged on
delivery, or which do not function. We must be notified within 24 hours of receipt.
GOODS DEVELOPING A FAULT
Go
ods which have developed a fault
within the warranty period.
Within 14 days of delivery we will replace the item
as DOA*.
If the fault develops after 14 days, but within the
warranty period, we will initiate the returns
procedure.
NON WARRANTY
Goods which
have developed a fault
outside the warranty period.
If a fault develops outside the warranty period, we
will initiate the returns procedure.
OTHER
Any situation which is not covered by
the above.
We will try to help, but we cannot normally offer a
refund.
*DOA – dead on arrival
For additional clarification, please refer to our terms and conditions at
www.daray.co.uk/terms.
In a small number of cases, we may determine that a replacement would not work any
better than the original product we supplied. In such cases we will only offer a refund
rather than a replacement for qualifying returns.
Replacement bulbs are not eligible for returns, unless they are faulty or damaged.
Spare parts ordered on our website or from supplied part codes are not be eligible for
credit. We will accept returns and exchange for the correct item.
If you purchase an item incorrectly you can return it within 14 days and it can be exchanged
for another product of equal or high value, excluding transportation charges incurred.
If you send us goods that do not qualify for return, you will invalidate your claim to any
refund, and you will be obliged to compensate DARAY Ltd for the cost of return postage and
any other reasonable costs incurred processing the goods.
Your statutory rights are not affected.
IMPORTANT!
Before returning your item, you must call us on 0844 375 9000

10
WARRANTY
TERMS AND CONDITIONS OF WARRANTY
1. To qualify for this warranty you must register on www.daray.co.uk or return to Daray Ltd (Daray) the
duly completed warranty-registration form accompanying the product.
2. Daray warrants this product (excluding lamp) against faulty material and workmanship during the
period of the warranty. The period of warranty is the period stated on your warranty card and
commences on the date of purchase of the product. In the event that the product is not in good
working order Daray will provide, during the warranty period, a free repair service within the United
Kingdom. The warranty is subject to proof of purchase being provided; therefore, you should retain
your original receipt.
2.1 The repair service consists of the provision of spare parts and/or replacement products (at Daray’s
discretion) which will be provided on an exchange basis and will either be new, equivalent to new
or reconditioned. All replaced spare parts and products shall become the property of Daray.
2.2 Daray’s only obligation under this warranty is the provision of the service as set out above.
2.3 All products are returned to Daray at the customer’s cost and risk. Products to be returned should
be adequately packed. For the address to send returns to please visit www.daray.co.uk
3. Daray’s arrangements for providing service provided under this warranty may include the use of sub-
contractors.
4. This warranty does not cover damage or defects in the Product caused by or resulting from:
•Wilful neglect or negligence by anyone other than Daray;
•Improper use, storage or handling of the product;
•Use of non-Daray approved parts (such as replacement lamps) not compatible with the Product;
•Fire, accident or disaster;
•Use of non-Daray modifications other than in accordance with Daray’s instructions;
Attachment of fittings and accessories not approved by Daray;
Repairs, modifications carried out by service personnel not approved by Daray;
•Damage caused by chemical corrosion from cleaning agents not approved by Daray.
•Failure to use or install the product in accordance with the manufacturer’s instructions.
5. Nothing in this warranty shall have the effect of restricting or excluding the liability of Daray in respect of:
a) Death and personal injury caused by the negligence of Daray, or for fraud;
b) Under the Consumer Protection Act 1987 to a person who has suffered damage caused by a
defective product or to a dependant or relative of such a person;
c) Direct damage to your property caused by the proven negligence of Daray.
6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will
not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss,
damage caused to or suffered by the purchaser as a direct result of this agreement.
7. This warranty is offered (subject to these terms and conditions) in addition to, and does not affect
your statutory rights.
8. Daray may disclose your details and other personal information to companies within the Daray group
including any subsidiary company or sub contractor of Daray for the purposes of performing our
obligations hereunder.
9. You must not resell outside the UK any products supplied by Daray and covered by the Export of Goods
(Control) Order 1992 (or any law that replaces it) with out obtaining all necessary licences. You also
agree not to sell the product in the UK if you know or think that the person buying the product intends
to export it without getting the necessary licences. You agree to impose similar conditions to these on
anyone you sell the product to.
10. These conditions shall in all respect be governed and construed in accordance with English law and
the exclusive jurisdiction of the English courts.

11

12

21
COMPANY:
WARRANTY REGISTRATION
TO VALIDATE YOUR WARRANTY
PLEASE COMPLETE IN BLOCK CAPITALS
AND RETURN IN A WINDOWED DL ENVELOPE TO OUR FREEPOST ADDRESS
NAME:
ADDRESS:
FAX:
PHONE:
EMAIL:
DATE OF PURCHASE:
PURCHASED FROM:
PRODUCT:
SERIAL No:
ALTERNATIVELY REGISTER ONLINE AT WWW.DARAY.COM
Freepost Plus RRAS-YGXE-SLBC
Daray Ltd Marquis Drive SWADLINCOTE
DE12 6EJ
3 YEAR AFTERCARE PLAN
Occasionally DARAY would like to send you information about our special offers
and promotions. If you do not wish to receive such information, please tick here:
Privacy statement: DARAY will not pass on your details to any third party.


Marquis Drive ·Moira ·Derbyshire ·DE12 6EJ
Tel: [phone] ·Fax: [phone]
email: [email protected] ·url: www.daray.co.uk
