DeFelsko PosiTector6000 User manual

Full Guide v. 7.7

Table of Contents
Table of Contents
Introduction ......................................................... 1
Quick Start .......................................................... 1
Certification ......................................................... 2
Probes ................................................................. 4
Calibration, Verification and Adjustment ............. 7
Menu Operation .................................................. 9
Cal Settings Menu ............................................... 10
Zero ................................................................ 10
1 Pt Adjust ...................................................... 11
2 Pt Adjust ...................................................... 11
N Lock ............................................................ 12
Cal Lock ......................................................... 12
Cal Memory .................................................... 13
Setup Menu ......................................................... 14
Reset .............................................................. 14
Gage Info ....................................................... 15
Hi Res Mode................................................... 15
Fast Mode ...................................................... 15
Scan Mode ..................................................... 15
Statistics Menu .................................................... 17
HiLo Alarm ..................................................... 17
Memory Management ......................................... 18
Standard Models Menu .................................. 18
Advanced Models Menu ................................ 19
New PA2 ........................................................ 20
New 90/10 ...................................................... 20
Annotate ......................................................... 21
isplay ........................................................... 22
Summaries ..................................................... 23
Screen Capture .............................................. 23

Accessing Stored Measurement ata ................ 24
PosiSoft.net ................................................... 24
PosiSoft esktop............................................ 24
PosiTector App .............................................. 24
Connect Menu ..................................................... 25
WiFi......... ....................................................... 25
Access Point................................................... 25
USB.......... ...................................................... 27
USB Serial Streaming..................................... 27
Sync.net Now.................................................. 28
Bluetooth Smart................ ............................. 28
Bluetooth......................................................... 29
Updates .......................................................... 30
Temperature ........................................................ 31
Power Supply / Battery Indicator ........................ 31
Additional Accessories ........................................ 32
Bluetooth Wireless Printer ............................. 32
Troubleshooting - General................................... 33
Probe takes measurements in the air ............ 33
Thickness readings are inconsistent .............. 33
Gage powers up but will not take readings ... 33
Gage will not print to Bluetooth wireless printer .... 33
Technical ata .................................................... 34
Returning for Service .......................................... 35
Warranty .............................................................. 35

1
Introduction
Introduction

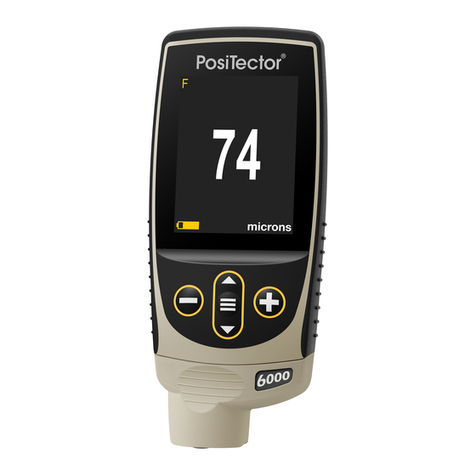

The PosiTec or 6000 hand-held, electronic Gage
non-destructively measures the thickness of coatings on all metals,
quickly and accurately. It consists of a Gage body
(Standard or Advanced) and probe (integral or cabled).
PosiTector 6000 Included Accessories:
- Probe Only:
- Protective rubber holster with belt clip
- Certificate of Calibration traceable to NIST or PTB
- Protective Cap for Probe (some probes only)
- Quick Guide Instructions
-Gage (in addition to above Probe accessories):
- Protective Lens Shield
- Wrist strap
- 3 Alkaline AAA batteries
- Nylon carrying case with shoulder strap
- USB Cable
- Precision Plastic Shim(s)
Principles of Operation
Fprobes use the magnetic principle to measure the thickness of
non-magnetic coatings on ferrous metals.
Nprobes use the eddy current principle to measure the thickness of
non-conductive coatings on non-ferrous metals.
FN probes combine the full abilities of both the "F" and "N" probes.
Quick Start
Quick Start
The PosiTector 6000 powers-up when the center navigation button is
pressed. To preserve battery life, it powers-down after approximately
5 minutes of no activity. All settings are retained.
1. Remove the protective plastic cap (if supplied) from probe.
2. Power-up Gage by pressing the center navigation button.
3. Place the probe FLAT on the surface to be measured.
HOL STEA Y. When a valid measurement is calculated, the Gage
BEEPS twice and the measurement is displayed.
4. Lift probe AT LEAST 2 INCHES (5cm) from the surface between
measurements - OR - leave probe on the surface in the same
location for continuous measurements.

2
If memory is ON while continuous measurements are being taken,
only the last value on the display (when the probe is lifted) is
stored into memory. Scan (pg.15) stores ALL measurements into
memory.
Certification
All probes include a Certificate of Calibration. For organizations
with re-certification requirements, instruments may be returned at
regular intervals for calibration. eFelsko recommends that
customers establish calibration intervals based upon their own
experience and work environment. Based on our product
knowledge, data and customer feedback, a one year calibration
interval from either the date of calibration, date of purchase, or
date of receipt is a typical starting point. Written calibration
procedures are available from eFelsko Corporation at
no charge.
Golden Rule
Measure your uncoated part first! This quick zero-check
determines if a Calibration Adjustment is needed for your
substrate. (see pg. 10)
Next, lay the included plastic shims onto a bare surface and
measure them individually to ensure the Gage measures a known
thickness within tolerance.
Protective Cap
Some PosiTector 6000 models are shipped with a protective
plastic cap over the probe. Remove this cap prior to use.
Replace it when the Gage is not in use to protect the probe.
Wrist Strap
We recommend attaching and wearing the
supplied wrist strap. 1
2
Plastic Lens Shield
The LC is covered with a thin plastic film for protection against
fingerprints and other marks during shipment. This film, while
usually removed before using the Gage, can be left in place to
protect against paint overspray. Replacements can be purchased.

3
Typical Screen
Substrate
Current
Measurement
Battery Indicator
Unit of
Measurement
Current Calibration
Setting
(Advanced Only)
Factory Calibration
in Use
Button Functions- Normal Operation
Scroll through
Trend Charts
(Advanced only)
Access the Menu
Pause / Resume
Restore brightness
after dimming
(Advanced only)

4
Magnetic & Eddy Current
Magnetic & Eddy Current
Theory of Operation
Theory of Operation
Probes
Probes
The PosiTector 6000 consists of a body and
a probe. A wide selection of interchangeable
probes are available. Each retain their own
unique calibration information. Gage bodies
(Standard or Advanced) accept ALL probes.See
Gage Info (pg. 15) to find your body and probe type. More probe
information is available at www.defelsko.com/p6000.
To disconnect a probe from a body, slide the plastic
probe connector horizontally (in the direction of the
arrow) away from the body. Reverse these steps to
attach a different probe. It is not necessary to power-
down the Gage when switching probes.
When powered-up the PosiTector automatically determines what
type of probe is attached and does a self-check. Coating
thickness probes “sense” when they are near metal and
immediately attempt a measurement followed by another every
2 seconds. They stop when removed from the vicinity of metal and
power-down after 5 minutes of no activity.
This continuous measurement feature is intended to allow careful
probe placement on small or odd-shaped surfaces. Ignore all
readings taken before the probe is properly placed.
The PosiTec or 6000 probes calculate coating thickness
measurements using either the magnetic principle
(Fprobes - ferrous models) or the eddy current principle
(Nprobes - non-ferrous models). Combination FN probes
(ferrous/non-ferrous) use both principles.
FN probes first attempt a measurement using the magnetic
principle and will display a reading with the letter "F" if the coating
is non-magnetic over steel. If the coating is non-conductive over
metal, then the probe will automatically attempt a measurement
using the eddy current principle and display a reading with the
letter "N” (see also N Lock pg. 12).

Available PosiTector 6000 Probes:
“Regular” - These constant-pressure, stainless
steel probes are hermetically sealed to be totally waterproof -
ideal for underwa er use.
”Micro” - ideal for measuring small parts and
hard-to-reach areas. Available in 0, 45 or 90 degree angles.
”Thick” - ideal for thick, protective coatings.
“Xtreme” - ideal for measuring rough and/or hot surfaces up to
250° C (500° F).
For complete details, see:
http://www.defelsko.com/p6000/p6000_probe_details.htm
5
Additional PosiTector Probes:
The PosiTector body accepts a wide variety of probe types
including magnetic, eddy current and ultrasonic coating thickness,
surface profile,environmental, Shore hardness durometer, salt
contamination and ultrasonic wall thickness probes. See
www.defelsko.com/probes
Two Probe Styles:
* Integral - sensor protrudes from bottom of probe connector
* Cabled - sensor is attached to the probe connector by a
1.2 meter (3 foot) cable.
(Extended cables lengths available.)
PosiTector bodies accept all PosiTector DPM, 6000, 200, SPG,
RTR, SST, SHD and UTG probes

6
Why is Measurement Important?
ry Film Thickness ( FT) is arguably the single most important
measurement made during the application and inspection of
protective coatings. Coatings are designed to perform their
intended function when applied within a tight FT range as
specified by the manufacturer. Correct thickness ensures optimum
product performance. Even the most basic specification will
require FT to be measured.
Many physical and appearance properties of the finished coating
are directly affected by the film thickness including the color, gloss,
surface profile, adhesion, flexibility, impact resistance, and
hardness of the coating. The fit of pieces assembled after coating
can be affected when film thickness isn’t within tolerance.
Regular film thickness measurement helps control material costs,
manage application efficiency, maintain finish quality and ensure
compliance with contract specifications. Paint manufacturers
recommend target ranges to achieve optimum performance
characteristics and clients expect these parameters to be met.
Precisely measuring finish thickness has other benefits, too.
Whether to meet International Organization for Standardization
(ISO), quality, or customer requirements for process control,
companies need to verify coating quality to avoid wasting money
reworking product.

7
Calibration, Verification & Adjustment
Calibration, Verification & Adjustment
PosiTector 6000 probes non-destructively measure the thickness
of coatings on metals. Three steps ensure best accuracy…
1. Calibration - typically done by the manufacturer. All probes
include a Certificate of Calibration.
2. Verification - typically done by the user on known reference
standards such as plastic shims or coated thickness standards.
3. Adjustment - to a known thickness
Calibration
Calibration is the high-level, controlled and documented process of
measuring traceable calibration standards over the full operating
range of the probe, and verifying that the results are within the
stated accuracy of the probe. Calibrations are performed by the
manufacturer, their authorized agent, or by an accredited
calibration laboratory in a controlled environment using a
documented process.
PosiTector 6000 probes are shipped with a Certificate of
Calibration showing traceability to a National Metrology Institution.
For organizations with re-certification requirements, probes may
be returned at regular intervals for calibration. eFelsko
recommends that customers establish calibration intervals based
upon their own experience and work environment. Based on
eFelsko’s product knowledge, data and customer feedback, a
one year calibration interval from either the last date of calibration,
date of purchase, or date of receipt is a typical starting point.
Written Calibration Procedures are available online at no charge.
Verification
Verification is an accuracy check performed by the user on known
reference standards. A successful verification requires the Gage to
read within the combined accuracy of the probe and the reference
standards.

8
A reference standard is a sample of known thickness(es) against
which a user may verify probe accuracy. Reference standards may
be plastic shims, coated thickness standards, or sample parts
whose coating thickness has been determined using other means.
Verify accuracy at the beginning and the end of each work shift.
uring the work shift, if the Gage is dropped or suspected of giving
erroneous readings, its accuracy should be re-verified.
In the event of physical damage, wear, high usage, or after an
established calibration interval, the probe should be returned to the
manufacturer for repair or calibration.
Adjustment
Adjustment, or Cal Adjustment, is the physical act of aligning the
probe’s thickness readings to match those of a known thickness
sample (removal of bias) in order to improve the accuracy of the
probe on a specific surface or in a specific portion of its
measurement range. 1-point or 2-point Cal adjustments are
possible.
Probes are factory calibrated and perform an automatic self-check
each time a measurement is taken. For many applications no
further adjustment is necessary after a Reset (pg. 14). Just check
ZERO on the uncoated substrate, then measure. However,
sometimes probe readings can be influenced by changes in
substrate shape, composition, and surface roughness or by
measuring in a different location on the part. That is why Cal
adjustments are made possible. The XX symbol disappears
whenever a Cal adjustment is made.
Where a Cal adjustment method has not been specified, use a
1-point method first. If measuring the included shims on your
uncoated surface reveals inaccuracies, use the 2-point method.
Factory Cal settings can be restored at any time by performing a
Reset (pg. 14), creating a NEW Cal setting (See Cal Memory
pg. 13), or by ELETING the adjustments made to the Cal 1
calibration setting (pg. 13). The XX symbol appears on the display
whenever factory Cal settings are in use.
With “FN” probes, calibration adjustments are made only to the
“F” or “N” mode (stored independently under a particular Cal),
whichever was measured last.

9
Memory
Statistics
Cal Settings
Setup
Connect
Help
Power Off
Exit
Menu Operation
Menu Operation
Gage functions are menu controlled. To access the Menu,
power-up the Gage, then press the center navigation button.
Below is a sample menu for a PosiTector 6000 Advanced Model:
Some buttons have a tick box to their
right to indicate current status. An empty
box indicates that feature is not active.
Current selection is displayed
with darkened background
ü
Sync Now
USB rive
Auto SYNC
Bluetooth
WiFi
Powder Probes
Updates
Exit
Press the (+) button to switch pages in a
multipage menu.
Press the (-) button to return to the previous
menu or page.
Select Exit to exit from any menu.
To navigate, use the Up and own buttons to scroll vertically and to SELECT.
Previous Page
(Exit)
Up
own
Next Page
Access the Menu
(Center/Select)

10
1-point Calibration Adjustment
Also known as an offset or correction value, there are 4 ways to
perform this adjustment:
(i) Simple Zero Calibration Adjustment
Measure your uncoated part. If the Gage does not read "0" within the
tolerance of the probe being used, lift the probe from the surface and
adjust the display down (-) or up (+) until it reads "0". Measure and
adjust until the average of a series of readings on the uncoated
surface is within tolerance of "0" .
(ii) Average Zero Calibration Adjustment
To establish “0” on a rough or curved surface a preferred method
to (i) is to take several readings on the uncoated part and
average the result.
(a) Select from the Cal Settings menu.
(b) Press (+) to select the number of readings to be used to
obtain an average, typically 3 to 10 readings. The greater the
variation between readings, the more readings should be taken
to obtain an average.
(c) Repeatedly measure the uncoated part. The Gage will wait
2 seconds after placing the probe on the surface to allow the
user to correctly position the probe on the surface. After the last
measurement the Gage will calculate a Zero which represents
the average of all the Zero readings taken.
(iii) Simple Adjustment to a Known Thickness
It is sometimes desirable to adjust the Gage to a known
thickness, such as a shim, rather than adjusting it to zero.
Measure the object. If the expected reading is not obtained
(within tolerance), lift the probe from the surface and adjust the
displayed reading down (-) or up (+) to the expected thickness.
Hold the button down to increase the rate of adjustment.
Cal Settings Menu
Cal Settings Menu
Zero
Zero

11
(iv) Average Adjustment to a Known Thickness
On rough or curved surfaces a preferred method to (iii) is to take
several readings on the known thickness and average the result.
(a) Select from the Cal Settings menu.
(b) Press (+) to select the number of readings to be used to
obtain an average, typically 3 to 10 readings. The greater the
variation between readings, the more readings should be taken
to obtain an average.
(c) Repeatedly measure the known thickness reference. The
Gage will wait 2 seconds between readings to allow the user to
correctly position the probe on the surface. After the last
measurement the Gage will calculate and display the reading
which represents the average of all the measurements taken.
If the expected reading is not obtained (within tolerance) lift the
probe from the surface and adjust the reading down (-) or up
(+) to the expected thickness and press .
2-point Calibration Adjustment
Preferred method for very unusual substrate materials, shapes or
conditions. Provides greater accuracy within a limited, defined
range.
1. Select from the Cal Settings menu.
2. Press (+) to select the number of readings to be used to obtain
an average on the thinner item, typically 3 to 10 readings. The
greater the variation between readings, the more readings
should be taken to obtain an average.
1 Pt Adjust
2 Pt Adjust
2 Pt Adjust
1 Pt Adjust
3. Repeatedly measure the thinner item. The Gage will wait for 2
seconds on the surface to allow the user to correctly position the
probe on the surface. After the last measurement the Gage will
calculate and display a thickness value which represents the
average of all the readings taken using the factory calibration
settings.

12
When selected, the icon will appear and all calibration settings
are “locked” to prevent further user adjustments. Uncheck to make
further adjustments.
Cal Lock ü
Select N Lock (Non-Ferrous Lock) when operating regularly on
non-ferrous substrates. The icon will appear and the probe will
only use the eddy current principle to shorten measurement time
and extend battery life.
N Lock is useful when measuring coatings on plated steel.
Normally the probe measures both the coating + plating over the
steel using the magnetic principle. N Lock makes the Gage
measure the coating over the plating only.
Select N Lock to measure over slightly magnetic substrates; i.e.
clear-coat on gold over nickel-plated brass. Although the probe's
magnet is used for the magnetic principle, it is also used in N Lock
to magnetically saturate a slightly magnetic substrate and allow
the eddy current principle to operate unhindered.
With N Lock engaged it is possible to obtain a reading
when measuring non-conductive coatings on steel. This is not
recommended.
N Lock ü(FN ferrous/non-ferrous combination probes only)
CAUTION:
4. Lift the probe from the surface and adjust the displayed reading
down (-) or up (+) to the known thickness value of the thin item. Press
to accept this value.
5. Repeat steps 2 - 4 for the thicker item.

13
It is often convenient to store a particular calibration adjustment
before making another. Then, if you return to that part, the
corresponding calibration setting can be restored.
A “setting” is any calibration adjustment. The PosiTector 6000
always displays the current calibration setting (ex. Cal 3) in the
upper right corner of the display.
The setting called Cal 1 has unique features. It can be adjusted
but never deleted, and is always made active with factory settings
after a Reset (pg.14).
Creates a new calibration setting using the next available number
(Maximum of 10). By default, these new Cal settings are initially
created with the Gage’s factory settings. This is indicated with the
icon which appears at the bottom of the display. A warning
message will prevent the creation of a new Cal Memory if a batch
is open and has readings. elete the batch first (pg. 21).
Removes a setting completely from the list. That Cal number can
be reused later with the New command. A setting cannot be
deleted if readings have been stored into a batch using that
calibration setting. elete all readings in that batch first (pg. 21).
Although Cal 1 cannot be deleted, the Delete function will return
it to factory settings.
View stored Calibration Settings.
Loads an existing setting. Use the Up or Down buttons to scroll
until the desired setting appears, then press . A warning
message will prevent the opening of a stored Cal setting if a batch
is open and has readings. Create a new batch first or open a batch
containing no readings (pg. 21).
View
Delete
Open
New
Cal Memory (Advanced models only)
Calibration Memory
Calibration Memory

14
Setup Menu
Setup Menu
Reset
Reset (menu reset) restores factory settings and returns the Gage
to a known condition. The following occurs:
- All batches, stored measurements, images, and batch names
are erased.
- The icon will appear on the display.
- Menu settings are returned to the following:
Memory = OFF
igh Res = OFF
Statistics Mode = OFF
i Lo Alarm = OFF
Scan Mode = OFF
Cal Lock = OFF
Bluetooth = OFF
Display = None
N Lock = OFF
Perform a more thorough ard Reset as follows:
1. Power down the Gage and wait 5 seconds.
2. Simultaneously press and hold the (+) and center buttons
until the Reset symbol appears.
This returns the Gage to a known, “out-of-the-box” condition and
performs the same function as a menu Reset with the addition of:
NOTES: - Keep the Gage away from metal during a Reset.
- ate, Time and WiFi are not affected by either Reset.
Units = microns
Flip Display = Normal
Auto Sync = OFF
Fast Mode = OFF
Language = English
Battery Type = Alkaline
Backlight = Normal
Bluetooth Streaming = OFF
USB Drive= ON
- All calibration adjustments and Cal Memory are cleared and
returned to the Gage’s factory calibration settings.
- Bluetooth Pairing info is cleared.
- Menu settings are returned to the following:
Selects display brightness (Sun, Normal or Night). All settings will
dim slightly after a period of no activity to conserve battery life.
Press the Down button to brighten the display.
Backlight

15
Increases the displayed Gage resolution as follows:
i Res ü
Resolution Range
0.01 mil 0.00 - 99.00 mils
0.1 mil 100.0 - 999.9 mils
0.1 um 0.0 - 999.9 um
1.0 um over 1000 um
Gage accuracy is not affected.
NOTE:
Increases measurement speed for most probes. Useful for quick
inspection or when measuring large areas with thick coatings
where proper probe positioning is not critical. Swift up/down probe
movement is required. Reduced accuracy may be noted.
By default, the PosiTector 6000 takes approximately 1 reading
per second. Scan mode allows the user to take multiple readings
in rapid succession (3 readings per second) without lifting the
probe. Choose from 3 Scan modes:
•Normal - continuously measures when placed on the surface
•Statistics - displays real-time scan statistics when placed on the
surface. Average, max., min., and standard deviation are displayed.
•Limited # Avg. - continuously measures until user-specified number of
readings is reached, then displays the average for the scan.
When Memory is on (pg.6), Scan measurement data is
recorded. However, in Statistics and Limited # Avg. Scan
modes, only the statistics and/or avergage is saved, not
individual readings. Note that performing a scan may reduce the
life of the probe and is recommended for smooth surfaces only.
For additional information concerning Scan mode, visit
http://www.defelsko.com/scan
Scan ü
Fast ü
(Advanced models only)

16
All measurements are date and time stamped (24 hour format)
when stored into memory. It is therefore important to keep both the
date and time current using this menu option. Use the Up and
Down buttons to scroll, and the (-) and (+) buttons to adjust a
value. The Gage’s data and time can also be viewed in Gage Info
(pg. 15).
Set Clock
Selects the type of batteries used in the Gage from a choice of
“Alkaline”, “Lithium” or “NiMH” (Nickel-metal hydride
rechargeable). If NiMH is selected, the Gage will trickle charge the
batteries while connected via USB to a PC or optional AC charger
(Gage must be powered ON). The battery state indicator icon is
calibrated for the selected battery type. No damage will occur if the
wrong battery type is selected.
eFelsko recommends eneloop (NiMH) rechargeable batteries.
Converts the display from inch to metric or vice versa. Stored
measurements in memory are not converted.
Switching units will turn off Statistics, HiLo Alarm and closes
Memory.
Units
Battery Type
Converts displayed and printed words to the selected language.
Language
Flip Display
This option causes the display to rotate 180°. Ideal for right-side-
up viewing when the sensors are pointed away from the user.
Gage Info
isplays the model number & serial number, probe type & serial
number, PosiSoft.net registration key, the amount of remaining
memory for storage of readings, date and time, and software
packages.
For security purposes, the registration key is required to add the
Gage to your free PosiSoft.net account.

17
Allows the Gage to visibly and audibly alert the user when
measurements exceed user-specified limits.
When iLo Alarm is selected, the current Lo setting is displayed.
Adjust down (-) or up (+). Alternatively, measure a coating with a
thickness close to the required value and make final adjustments
with the buttons. Select NEXT to accept this value. The current i
setting is now displayed. Follow the same procedure to adjust the
i setting.
The icon will appear on the display.
Measurements will be compared to your defined iLo limits. The
Gage beeps if results are within those limits. A single low tone will
sound if the reading is below the Lo limit, and a high tone if it is
above the i limit. Press (+) to clear iLo readings.
When selected, a icon and statistical summary will appear on
the display.
Remove the last measurement by pressing the (-) button. Press
(+) to clear statistics.
Clear
Statistics Menu
Statistics Menu
Mean
(average)
Standard
eviation
# of
measurements
Minimum
measurement
Statistics
Icon
Last
reading
Statistics ü
iLo Alarm ü
Clears all on-screen Statistics and iLo tabulations.
50
microns
n6
49.8
52 48
x
x
x↨
σ
↨
1.3
Maximum
measurement
