IMPORTANT SAFEGUARDS
• Use this appliance only as described in this instruction manual.
As with all electrical equipment, whilst the instructions aim to cover as many eventualities
as possible, caution and common sense should be applied when operating and installing
this appliance.
• This appliance is designed for home air conditioning and must not be used for other pur-
poses.
• It is dangerous to modify or alter the characteristics of the appliance in any way.
• The appliance must be installed in conformity with national legislation regulating electrical
equipment and installations.
• If the appliance requires repair, contact a Service Centre authorised by the manufacturer
only. Repairs carried out by unauthorised personnel may be dangerous.
• This appliance must be used exclusively by adults.
• Never allow the appliance to be used by people (including children) with psychological,
physical or sensory impairments or with insufficient experience and knowledge, unless clo-
sely supervised and instructed by someone responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
• The appliance must be connected to an efficient earth system.
Have your electrical circuit checked by a qualified electrician.
• Do not use extension cables.
• Before cleaning or maintenance, always unplug the appliance from the mains socket.
• Never unplug the appliance by pulling on the power cable.
• Do not install the appliance in rooms containing gas, oil or sulphur. Do not install near sour-
ces of heat.
• Keep the appliance at least 50 cm away from flammable substances (alcohol etc) or pres-
surised containers (eg aerosol cans).
• Do not rest heavy or hot objects on top of the appliance.
• Clean the air filter at least once a week.
• Avoid using heating appliances near the air conditioner.
• Always transport the appliance upright or resting on one side.
Before moving the appliance, empty the internal circuit completely of water.
After moving the appliance, wait at least 1 hour before starting it
• When putting the appliance away, do not cover with plastic bags.
• The materials used for packaging can be recycled.
You are therefore recommended to dispose of them in special differentiated waste collec-
tion containers.
• At the end of its working life, consign the appliance to a specialist collection centre.
• If the power cable is damaged, it must be replaced by the manufacturer or an authorised
technical service centre in order to avoid all risk.
• Remember to descale the appliance at the end of every season and always after 500
hours of operation (see page 38).
In areas with particularly hard water, you are recommended to add special water softener
obtainable from authorised service centres to the water.
SPECIFIC WARNINGS FOR APPLIANCES WITH R410A* REFRIGERANT GAS
R410A refrigerant gas conforms to EC regulations on the environment.
Avoid perforating the refrigerant circuit of the appliance.
ENVIRONMENTAL INFORMATION: This unit contains fluorinated greenhouse gases covered by
the Kyoto Protocol.
Maintenance and disposal must be carried out by qualified personnel only (R410A,
GWP=1975).
* Verify the type of refrigerant gas used in your appliance on the rating plate.
22

SPECIFIC WARNINGS FOR APPLIANCES WITH R290* REFRIGERANT GAS
• Read the warnings carefully.
• When defrosting or cleaning, use only the implements recommended by the manufactu-
rer.
• The appliance must be placed in a room without continuously operating sources of ignition
(for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Refrigerant gas may be odourless.
• The appliance must be installed, used and stored in a room with a surface area greater
than 15 m2.
• This appliance contains about 300 g of R290 refrigerant gas.
• R290 refrigerant gas complies with European environmental directives. Do not perforate
any of the components in the refrigerant circuit.
• If the appliance is installed, used or stored in an unventilated room, the room must be such
as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of
fire or explosion hazard should the refrigerant come into contact with electric heaters, sto-
ves or other sources of ignition.
• The appliance must be stored in such a way as to prevent mechanical faults.
• Persons working on a refrigerant circuit must have the relative authorisation issued by an
accredited body certifying their competence to handle refrigerants in compliance with a
standard assessment recognised by sector associations.
• All repairs must be carried out in accordance with the manufacturer’s recommendations.
Maintenance and repairs requiring the assistance of other qualified personnel must be car-
ried out under the supervision of specialists in the use of inflammable refrigerants.
* Verify the type of refrigerant gas used in your appliance on the rating plate.
23
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste.
It must be taken to a special local authority differentiated waste collection centre
or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative conse-
quences for the environment and health deriving from inappropriate disposal and
enables the constituent materials to be recovered to obtain significant savings in
energy and resources.As a reminder of the need to dispose of household appliances separa-
tely, the product is marked with a crossed-out wheeled dustbin.
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
• the mains power supply corresponds to the value indicated on the rating plate on the back
of the appliance;
• the power socket and electrical circuit are adequate for the appliance.
• the mains socket matches the plug. If this is not the case, have the plug replaced;
• the mains socket is adequately earthed. Failure to follow these important safety instructions
absolves the manufacturer of all liability.

24
WHAT IS THE WATER-AIR PINGUINO
During the summer, you feel comfortable at a temperature of between 24 and 27° C with a
relative humidity of about 50%.
An air conditioner removes excess moisture and heat from the room where it is located.
Compared with installed models, portable air conditioners have the advantage that they can
be moved from one room to another in the home or be transported from one building to
another.
Hot air from the room is passed through a heat
exchanger cooled by refrigerant gas. Excess
heat and moisture are removed before the
air is re-emitted into the room.
In single unit models, a small part of this
air is used to cool the refrigerant gas
and then, when hot and damp, is
discharged outside.
In exclusive De'longhi water-air
models, the heat is removed from
the room through the cooling effect
of the water which is obviously much
greater than air.
This gives this air conditioner
unbeatable cooling efficiency.
MODELS WITH R290 REFRIGERANT GAS
The Pinguino ECO is a latest generation
environmentally-friendly air conditioner.
The Pinguino ECO does not, in fact, contain
gases (CFC/HCFC) dangerous to the
ozone layer or with a marked
greenhouse effect (HFC).
As well as reducing energy
consumption, the high efficiency
of the appliance also minimises
impact on the greenhouse
effect.

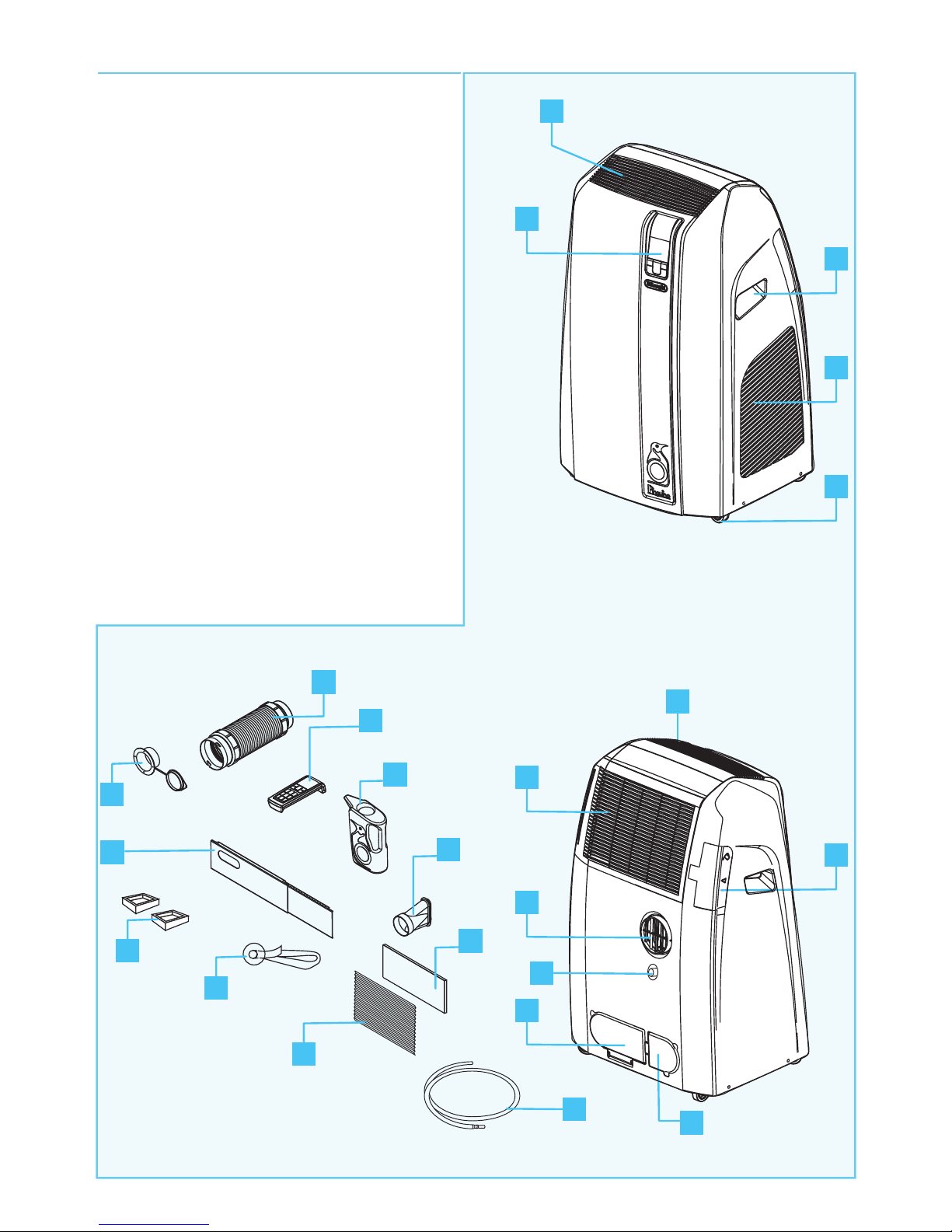

DESCRIPTION
A Air outlet grille

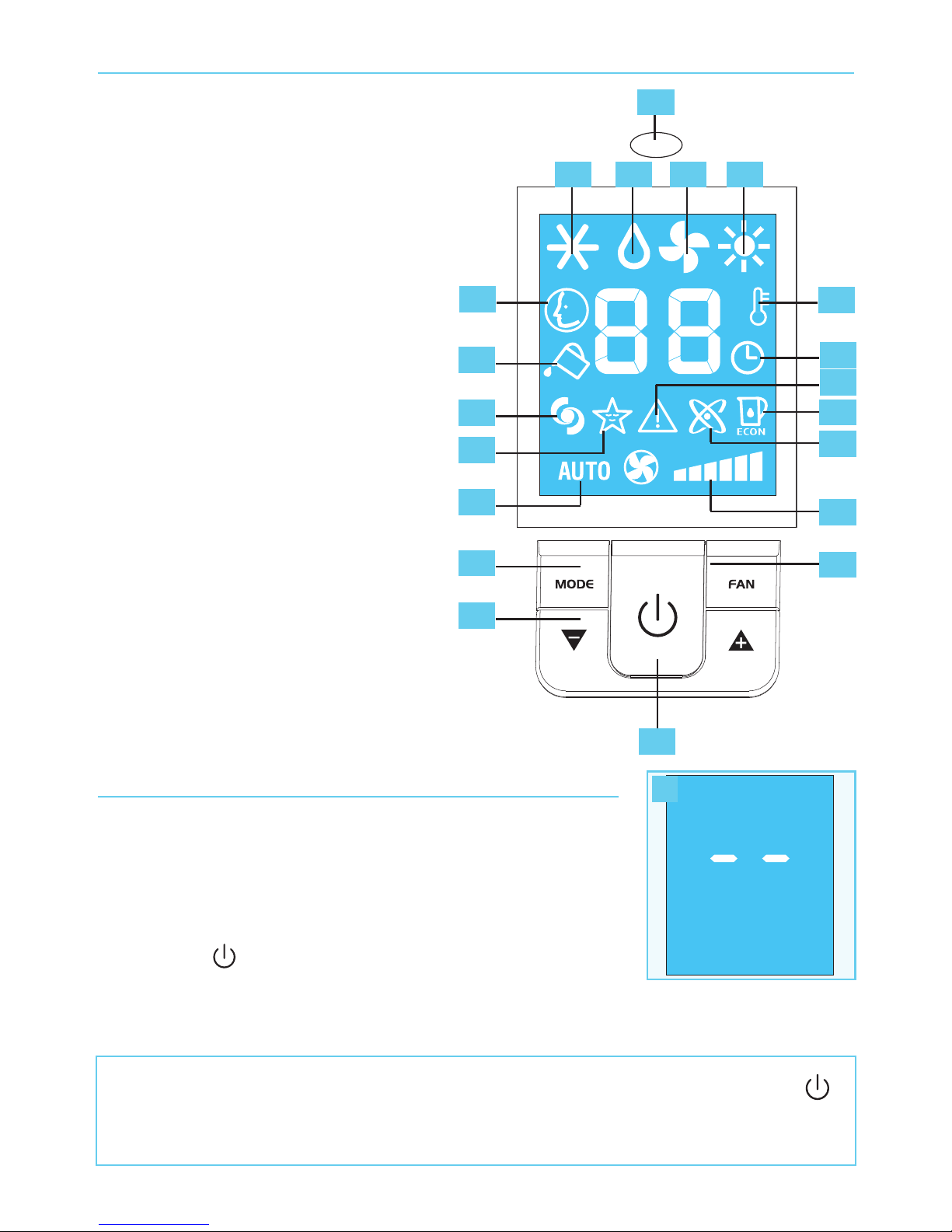

BControl panel with advanced LCD display
C Handle
D Grille
E Castors
F Air intake grille with dust filter
G Air exhaust hose compartment
H Water drainage hose door
I Power cable compartment door
J Water fill door
K Air exhaust hose
L Remote control
M Filling jug
N Window outlet
O Silver ion filter (certain models only)
P 3M filter (certain models only)
QSucker
R Castor locks
S Flange with cap
T Adjustable bar
U Condensate drain connector
V Condensate drain hose with coupling
25
AA
AA
BB
FF
CC
DD
EE
JJ
II
GG
HH
KK
LL
MM
NN
OO
PP
QQ
RR
SS
TT
UU
VV

PREPARING FOR USE
The instructions below will enable you to prepare your air condi-
tioner for operation as efficiently as possible.
Before use, make sure the air intake and outlet grilles are unob-
structed.
AIR-CONDITIONING WITHOUT INSTALLATION
Just a few simple steps and your comfort is ensured with your
appliance:
• Fit the air exhaust hose in the housing at the back of the
appliance (fig. 1).
• Fit the window outlet to the end of the hose.
• Place the air conditioner near a window or French window.
• Adjust the length of the hose to reach the window.
• Make sure the air exhaust hose is unobstructed.
• Open the window or French window slightly and position the
outlet (fig. 2).
• If you have a double window, use the sucker provided to hold
the two parts of the window together (fig. 3).
You can also use the "adjustable bar" accessory.
- Fit the window outlet in the housing in the bar (fig. 4)
- Position the bar on the window sill and adjust until it fits in
the guides of the blind (the length can be blocked with
the plastic pin provided), then lower the blind (fig. 5).
- Fit the air hose to the end of the window outlet.
• Place the air conditioner near a window or French window
and connect the end of the hose as shown in figure 6.
Keep the air hose as short and free of curves as possible to avoid
bottlenecks.
To use the appliance in heating or smart mode, the condensate
drain hose must be attached as follows:
• Fit the hose with the rapid coupling as shown in fig. 7.
• In order for the continuous drain function to operate correctly,
make sure the hose coupling is fully inserted into the connec-
tor. To remove, press the connector flange.
1
2
12
1
2
26
3
4
5
1
2
1
2
6

Place the end of the hose in a suitable container (for example, 5
litres) which must be emptied regularly. Alternatively place it out-
side the window (max. height 1 m) (fig. 8).
AIR-CONDITIONING WITH INSTALLATION
If required, your appliance can also be installed semi-perma-
nently (Fig. 9).
Proceed as follows:
- Drill a 106 mm dia. hole in the wall respecting the heights shown
in fig. 10 and following the indications in figs. 11, 12 and 13.
27
in the window pane
in the wooden kickboard
of a French window
in the wall: you are
recommended to
insulate the section of
wall using suitable
insulation.
• Fit the flange accessory provided in the hole
• Fit the hose in the housing at the back of the appliance (fig.
1).
• Fit the end of the hose to the flange as shown in fig. 10. When
the hose is not fitted, the hole can be closed with the flange
cap.
Keep the air hose as short and free of curves as possible to avoid
bottlenecks.
When installing the air conditioner semi-permanently, you
should leave a door slightly open (as little as 1 cm) to gua-
rantee correct ventilation.
To use the appliance in heating or smart mode, the condensate
drain hose must be attached as follows:
• Fit the hose with the rapid coupling as shown in fig. 7.
• In order for the continuous drain function to operate correctly,
make sure the hose coupling is fully inserted into the connec-
tor. To remove, press the connector flange. Place the other
end of the hose in a suitable container (for example, 5 litres)
which must be emptied regularly, (max. height 1 m).

30 cm
30 cm
9
12
MAX100 cm
MIN 35 cm
10
106
11
13
2
PUSH
1
7
MAX
100 cm
8

PREPARING FOR OPERATION IN WATER MODE
Once the appliance has been installed following the instructions
above, it is ready for use. However, its efficiency can be enhan-
ced by operating it in the exclusive De'longhi water mode. The
water in the tank increases the cooling power of your Pinguino
and at the same time reduces noise levels and electrical con-
sumption. Compared to air, water reduces the temperature of
the cooling circuit much more efficiently, before being given off
from the air exhaust hose in the form of vapour.
Remember that:
• You must always use salt-free clean mains water.
• The length of time the water in the tank lasts depends greatly
on environmental conditions such as temperature, humidity,
insulation, the exposure of the room, the number of people
present, etc. Indicatively it lasts about six hours. By using the
WATERSAVE function (see page 34), the length of time can be
extended to 10 hours, with a slightly lower cooling power and
efficiency.
• When the water in the tank runs out, the light comes on
and operation of the appliance switches automatically to air-
air. At the same time, the quantity of air given out from the
rear hose increases.
FILLING THE TANK
You can fill the tank in one of two ways:
1) By using the jug provided or another recipient:
Instead of the jug provided, you can use any recipient (plastic or
glass bottle, watering can etc), providing you avoid the water
spilling.
• Without using force, open the rear door completely, then
remove the rubber cap (fig. 14).
• Pour the water into the tank (fig. 15). When the tank is full, the
water level window (fig. 16) becomes completely red.
Indicatively, you will need to refill the jug three times to fill the
tank completely.
• After filling, put the rubber cap back in place, then close the
door.
2) Using the extendible hose:
• Without using force, open the rear door completely, then
remove the rubber cap (fig. 14). Pull out the extendible hose
(fig. 17) and place near a tap.
• Fill the tank to the required level.
• When the tank is full, the water level window (fig. 16) beco-
mes completely red (about 14 l).
• After filling, put the rubber cap back in place, then close the
door.
28
14
15
16
17
Level
window
The tank does not have to be full to use the water function, but the length of time the
appliance will operate in water mode will be shorter.
When the level window has become completely red, do not add further water or it
could overflow. The tank has no overflow prevention system.



DESCRIPTION OF THE CONTROL PANEL WITH ADVANCED LCD DISPLAY
1 Signal receiver
2 Air conditioning symbol
3 Dehumidifying symbol
4 Fan symbol
5 Heating symbol (certain models
only)
6 Temperature indicator
7 Timer symbol
8 Alarm symbol
9 WATERSAVE symbol
10 Ioniser symbol (certain models only)
11 Speed indicator
12 SMART symbol
13 "No water" symbol
14 BOOST symbol
15 SLEEP symbol
16 AUTOFAN indicator
17 MODE button (selects the modes)
18 FAN button
19 Increase (+) and decrease (-) tem-
perature button
20 ON/Standby button
29
1
2 3 4 5
6
7
8
9
10
11
18
12
13
14
15
16
17
19
20
OPERATING FROM THE CONTROL PANEL
The control panel enables you to manage all the main functions
of the appliance, but to fully exploit its potential, you must use the
remote control unit.
TURNING THE APPLIANCE ON
• Plug into the mains socket.
Two lines appear on the display indicating that the appliance
is in standby (fig. 18).
• Press the button until the appliance comes on. The last
function active when it was turned off will appear.
18
Never turn the air conditioner off by unplugging from the mains. Always press the
button, then wait for a few minutes before unplugging. This allows the appliance to per-
form a cycle of checks to verify operation.
4

AIR CONDITIONING MODE (FIG. 19)
Ideal for hot muggy weather when you need to cool and dehu-
midify the room.
Always make sure the water fill door is completely closed before
setting this mode.
To set this mode correctly:
• Press the MODE button a number of times until the air-condi-
tioning symbol appears.
• Select the target temperature by pressing the or but-
ton until the corresponding value is displayed.
• Select the required fan speed by pressing the FAN button.
Four speeds are available:
Maximum speed: to achieve the target tempe-
rature as rapidly as possible
Medium speed: reduces noise levels but still
maintains a good level of comfort
Low speed: for silent operation
AUTOFAN: the appliance automatically selects
the most suitable fan speed in relation to the
temperature set on the digital display.
The most suitable temperature for the room during the summer
varies from 24 to 27°C. You are recommended, however, not to
set a temperature much below the outdoor temperature.
DEHUMIDIFYING MODE (FIG. 20)
Ideal to reduce room humidity (spring and autumn, damp rooms,
rainy periods, etc).
In dehumidifying mode, the appliance should be prepared in the
same way as for air conditioning, with the air exhaust hose atta-
ched to enable the moisture to be discharged outside.
To set this mode correctly:
• Press the MODE button a number of times until the dehumidif-
ying symbol appears.
In this mode, fan speed is selected automatically by the applian-
ce and cannot be set manually.
30
19
20

FAN MODE (FIG. 21)
When using the appliance in this mode, the air hose does not
need to be attached.
To set this mode correctly:
• Press the MODE button a number of times until the fan symbol
appears.
• Select the required fan speed by pressing the FAN button.
Three speeds are available:
Maximum speed: for maximum fan power
Medium speed: reduces noise levels but still
maintains effective fan operation.
Low speed: for silent operation
In this mode, AUTO speed cannot be selected.
HEATING MODE (FIG. 22)
C ERTAIN MODELS ONLY
This is ideal in spring and autumn when outdoor temperatures are
not particularly severe.
When using the appliance in this mode, the air hose does not
need to be attached.
In heating mode, as well as fitting the air exhaust hose, you must
also attach the condensate drain hose to drain the water remo-
ved from the room (see the section: "Preparing for use").
To set this mode correctly:
• Press the MODE button a number of times until the heating
symbol appears.
• Select the target temperature by pressing the or but-
ton until the corresponding value is displayed.
In this mode, fan speed is selected automatically by the applian-
ce and cannot be set manually.
N.B. -When operating in very cold rooms, the appliance defreezes auto-
matically, momentarily interrupting normal operation. " " appears
on the display. During this operation, it is normal for the noise made
by the appliance to change.
- In this mode, you may have to wait a few minutes before the
appliance starts giving out hot air.
- In this mode, the fan may operate for short periods, even though
the set temperature has already been reached.
SMART MODE (FIG. 23)
The appliance chooses automatically whether to operate in air
conditioning, fan or heating (certain models only) mode.
To set this mode:
• Press the MODE button a number of times until the SMART
symbol appears.
• Select the required fan speed. For safety reasons, when the
appliance is operating in heating mode, the fan speed could
differ from the set speed.
N.B.: in SMART mode, you should always fit the condensate drain hose as
the appliance may also operate in heating mode.
31
21
22
23

32
DESCRIPTION OF THE REMOTE CONTROL
2 Air conditioning symbol
3 Dehumidifying symbol
4 Fan symbol
5 Heating symbol (certain models only)
9 WATERSAVE symbol
10 Ioniser symbol (certain models only)
11 Fan speed indicator
12 SMART symbol
14 BOOST symbol
15 SLEEP symbol
16 AUTOFAN indicator
17 MODE button (selects the modes)
18 FAN button
19 Increase (+) and decrease (-) tem-
perature button
20 ON/Standby button
21 Signal transmission
22 Selected temperature scale indica-
tor
23 Clock
24 Timer ON symbol
25 Timer OFF symbol
26 Reset button (resets the appliance to
the original settings)
27 Timer ON button
28 SET button
29 Timer OFF button
30 SLEEP button
31 °C or °F selection button
32 Swing button (function not available
in these models)
33 WATERSAVE button
34 Ioniser button (certain models only)
35 BOOST button
USING THE REMOTE CONTROL
Point the remote control at the receiver on
the appliance. The remote control must be
no more than 7 metres away from the
appliance (without obstacles between the
remote control and the receiver).
The remote control must be handled with
extreme care. Do not drop it or expose it to
direct sunlight or sources of heat.
5533
2121
1515
1616
1717
2626
2727
3434
44
1212
2222
99
1111
2525
1919
2929
3131
3535
2323
1414
22
3333
1010
2424
1818
2020
2828
3030
3232


MAX 7 metres

33
USING THE REMOTE CONTROL UNIT
The first part of the controls on the
remote control are the same as those
on the control panel of the appliance
(fig. 25).
You should therefore refer to the
instructions in the chapter Operating
the appliance from the control panel
to:
- turn the appliance on
- select the operating mode (AIR
CONDITIONING, DEHUMIDIFYING,
FAN, HEATING or SMART) and the
fan speed.
- set the required temperature
The following section describes the additional functions corre-
sponding to the controls on the bottom part of the remote con-
trol.
BOOST FUNCTION (FIG. 26)
Ideal for the summer to cool rooms rapidly.
Activate by simply pressing the button.
The appliance operates in air conditioning mode at maximum
fan speed. While this function is selected, it is not possible to set
the temperature or change fan speed.
SELECTING THE TEMPERATURE SCALE (FIG. 27)
Press the button to switch the temperature display from °C
to °F and vice versa.
SETTING THE TIME
After having inserted the batteries, the clock on the display flashes until the time is set.
Proceed as follows.
• Press the or button until the correct time is reached. Hold the button down to run
rapidly through first the minutes, then the tens of minutes.
• Once the correct time has been reached, release the button and press the SET button to
confirm.
• To cancel the settings programmed on the remote control and restore the original settings,
press the RESET button lightly with the point of a pencil or pen.
INSERTING OR REPLACING THE BATTERIES
• Remove the cover on the rear of the remote control (fig. 24);
• Insert two R03 “AAA” 1.5V batteries, making sure they are in
the correct position (see the instructions inside the battery
compartment);
• Replace the cover.
If the remote control unit is replaced or discarded, the bat-
teries must be removed and disposed of in accordance
with current legislation as they are harmful to the environ-
ment.

33
24
27
26
25

SLEEP FUNCTION (FIG. 28)
This function is useful for the night as it gradually reduces opera-
tion of the appliance and turns it off after 8 hours.
To set this function correctly:
• Select the operating mode (air conditioning, dehumidifying,
smart or heating (certain models only) as described above.
• Press the button. The appliance operates in the previously
selected mode with the lowest possible fan speed.
The SLEEP function maintains the room at optimum temperature
without excessive fluctuations in either temperature or humidity
and with silent operation.
Fan speed, room temperature and humidity vary gradually to
ensure the most comfortable conditions.
During air conditioning, the temperature increases by 1°C after
60 minutes and a further 1°C after 2 hours.
In dehumidifying mode, the dehumidifying power of the applian-
ce is partially reduced every hour for the first two hours.
In heating mode, the temperature drops by 1°C every hour, three
times.
IONISER FUNCTION (CERTAIN MODELS ONLY) (FIG. 29)
The ioniser is an electronic component which releases negative
ions into the air. Rooms with a clean pleasant atmosphere have
been shown to have an abundance of negative ions, while
rooms with stale air contain abundant positive ions.
The ioniser restores the correct balance between the two types
of ion, reducing dust in the air and generating a pleasant sensa-
tion of well-being. This button activates the ioniser present in cer-
tain models. This function can be activated in all operating
modes.
WATERSAVE FUNCTION (FIG. 30)
This function is designed to increase the operating time of the
appliance when operating in water mode and can be activated
in air conditioning and SMART mode.
When the button is pressed, the appliance is slightly less efficient,
but consumption of water in the tank is considerably reduced.
With a full tank, the appliance normally operates for six hours.
With this function activated, the operating time increases to 10
hours, avoiding the need to top up frequently.
When the water runs out, the light comes on and the quan-
tity of air coming out of the hose at the back increases. To resto-
re operation in water mode, fill the tank.
SWING FUNCTION
Not available in these models.
34
28
29
30

35
PROGRAMMIN THE TIMER
The appliance can be programmed to start up and shut down
when required.
Programming start up
• Press the ON button.
The start-up time and message "ON TIMER" flash on the remo-
te control display (fig. 31).
• Press the or buttons to set the time you want the applian-
ce to start up.
• When that time is reached, press the SET button to confirm
(fig. 32). The message "ON TIMER" appears on the remote con-
trol display and the symbol is displayed on the appliance
to indicate that the timer is active.
Programming shutdown
• Press the OFF button. The shutdown time and message
"OFF TIMER" flash on the remote control display (fig. 33).
• Press the or buttons to set the time you want the applian-
ce to shut down.
• When that time is reached, press the SET button to confirm
(fig. 34). The message "OFF TIMER" appears on the remote
control display and the symbol is displayed on the applian-
ce to indicate that the timer is active.
SELF-DIAGNOSIS
The appliance has a self diagnosis system to identify a number of malfunctions.
Error messages are displayed on the appliance display.
IF…IS DISPLAYED,WHAT SHOULD I DO?
LOW TEMPERATURE
(frost prevention)
PROBE FAILURE
(sensor damaged)
The appliance is fitted with
a frost protection device to
avoid excessive formation
of ice. The appliance starts
up again automatically
when the defrosting pro-
cess is completed.
If this is displayed, contact
your local authorised servi-
ce centre.
IF…IS DISPLAYED,WHAT SHOULD I DO?
HIGH LEVEL
(tank full)
CLEAN
Empty the internal safety
tank, following the instruc-
tions in the "End of season
operations" paragraph.
If this reoccurs, contact
your local authorised servi-
ce centre. In heating
mode, attach the conden-
sate drain hose.
This message appears after
about 500 hours of opera-
tion in water mode and indi-
cates that the appliance
requires descaling as descri-
bed in the "descaling" para-
graph.
After descaling or if the alarm reappears too soon after
the last descaling (carried out before the message is dis-
played), reset the alarm by holding the button down
for 10 seconds.
31
32
33
34
FAILURE1
(pump failure)
This message could appear in
heating mode if the condensate
drain hose is not attached or is
blocked.
Attach the hose or remove the
obstruction.

36
TIPS FOR CORRECT USE
To get the best from your air conditioner, follow these recom-
mendations:
• close the windows and doors in the room to be air conditio-
ned (fig. 35). When installing the air conditioner semi-perma-
nently, you should leave a door slightly open (as little as 1 cm)
to guarantee correct ventilation.
• protect the room from direct exposure to the sun by partially
closing curtains and/or blinds to make the appliance much
more economical to run (fig. 36);
• never rest objects of any kind on the air conditioner;
• do not obstruct the air intake and outlet (fig. 37). Leave both
grilles free;
• make sure there are no heat sources in the room.
• never use the appliance in very damp rooms (laundries for
example).
• never use the appliance outdoors.
• make sure the air conditioner is standing on a level surface. If
necessary, place the castor locks under the front wheels.
close
doors and
windows
close
curtains
do not
cover the
appliance
AIR PURIFYING FILTERS
The appliance is fitted with a dust filter which retains impurities in
the air drawn in from the room.
Certain models also include other filters with a high filtering capa-
city, namely a silver ion filter and a 3M® electrostatic filter.
SILVER ION FILTER
The silver ion filter not just retains dust particles, but also has an
efficient antibacterial action. It also greatly reduces concentra-
tions of irritants such as pollen and spores.
The filter is treated with small particles of silver (on the scale of mil-
lionths of a millimetre) which are able to block the multiplication
of and kill any nearby bacteria or spores.
3M® ELECTROSTATIC FILTER
The 3M® electrostatic filter retains the finest dust particles, thus
enhancing the filtering capacity of the appliance.
FITTING THE FILTERS TO THE GRILLE
The appliance can be used with just the dust filter already inser-
ted in the grille.
To use the two supplementary filters (if provided with your model),
remove them from the packaging and attach them to the dust
filter, inserting them under the special clips (fig. 38).
If you decide not to use them, keep them sealed in the packa-
ging.
3M® filter
Silver ion
filter
38
37
36
35

CLEANING
Before cleaning or maintenance, turn the appliance off by pres-
sing the button on the control panel or remote control, wait
for a few seconds then unplug from the mains socket.
CLEANING THE CABINET
You should clean the appliance with a slightly damp cloth then
dry with a dry cloth.
Never wash the air conditioner with water. It could be dan-
gerous.
Never use petrol, alcohol or solvents to clean the appliance.
Never spray insecticide liquids or similar.
CLEANING THE AIR FILTERS
To keep your air conditioner working efficiently, you should clean
the dust filters every week of operation.
Dust filter supplied with all models
The filter is housed in the intake grille.
To clean the filters, proceed as follows:
• Remove the intake grille by pulling it outwards (fig. 39).
• Remove the dust filter by detaching it from the grille (Fig. 40).
• Use a vacuum cleaner to remove the dust collected on the
filter. If it is very dirty, immerse in warm water and rinse a num-
ber of times. The water should never be hotter than 40°C.
• After washing, leave the filter to dry completely.
• To replace, put the filters back in the intake grille then attach
the intake grille to the appliance.
Silver ion filter and 3M® electrostatic filter (certain models only)
These two filters are located behind the dust filter.
To clean the dust filter, the two supplementary filters must be tem-
porarily removed.
To clean, use a vacuum cleaner at medium power.
The silver ion filter can be washed with cold water. Leave to dry
completely and replace. It should be replaced at least once
every two seasons.
The 3M® filter is not washable and must replaced at the end of
the season or when it is exhausted and no longer efficient.
The silver ion filter and 3M® filter can be bought from shops
selling De'longhi accessories or authorised service centres.
37



40
39

38
OPERATIONS AT END OF SEASON (OR BEFORE TRANS-
PORTING THE APPLIANCE)
Before putting the appliance away, you are recommend to per-
form the descaling procedure described in the "Descaling" sec-
tion.
• Before putting the appliance away or moving it to another
location, you must empty any water left in the tanks as descri-
bed in the "Forced draining" section.
• Then empty any water left in the internal circuits by extracting
and opening the two hoses inside the rear door (fig. 41).
• After performing the two operations described above, ope-
rate the appliance in fan only mode for about half an hour.
This dries any water remaining inside the appliance.
• Turn the appliance off and unplug from the mains.
• Remove the air exhaust hose and condensate drain hose.
• Clean the dust filters and (in certain models) the air purifying
filters.
• Place the power cable in the special rear cable compart-
ment (fig. 42).
• Cover the appliance to avoid dust.
FORCED DRAINING
If you need to completely empty the appliance of water (for
example, to move it to another location or put it away at the end
of the season), you must follow the forced draining procedure.
Proceed as follows:
• Attach the continuous drain hose and make sure it drains into
a suitable container or drain (max. height 1 m).
• Plug the appliance into the mains and set the appliance to
stand-by.
• Press and hold the ON/STAND-BY and MODE buttons for about
6-7 seconds.
A beep indicates that the automatic procedure has begun
and a graphic sequence is displayed.
Wait for the procedure to end.
• The appliance resets to stand-by.
Depending on the quantity of water to be drained, this pro-
cess could last more than an hour.
42
41

DESCALING
When using the appliance in water mode, lime scale will inevi-
tably form and must be removed to maintain efficiency. After
about 500 hours of operation, the appliance therefore warns that
descaling is required by displaying the message CL (CLEAN).
Descale the appliance.
• Turn off the appliance and unplug from the mains. Empty all
water from the inside of the appliance through the drain
hoses (fig. 42).
• Close and replace the drain hoses. Pour 0.5 l of descaler (one
bottle) and 1.5 l of clean water into the tank.
• Plug in and operate the appliance in air conditioning mode
with the BOOST function selected until the "no water"
symbol appears on the display.
• Turn off the appliance and unplug from the mains. Empty all
water from the inside of the appliance through the drain
hoses.
• Close and replace the drain hoses. Pour 2 l of clean water into
the tank and rinse the internal circuits of dirt and descaler.
• Plug in and operate the appliance until the "no water"
symbol appears on the display.
• Turn off the appliance and unplug from the mains. Empty all
rinsing water from the inside of the appliance through the
drain hoses.
• If the water drained off is very dirty or contains large quanti-
ties of foam, repeat the rinsing operation.
• Close the drain hoses and replace.
• After descaling, reset the alarm by pressing the button for
10 seconds.

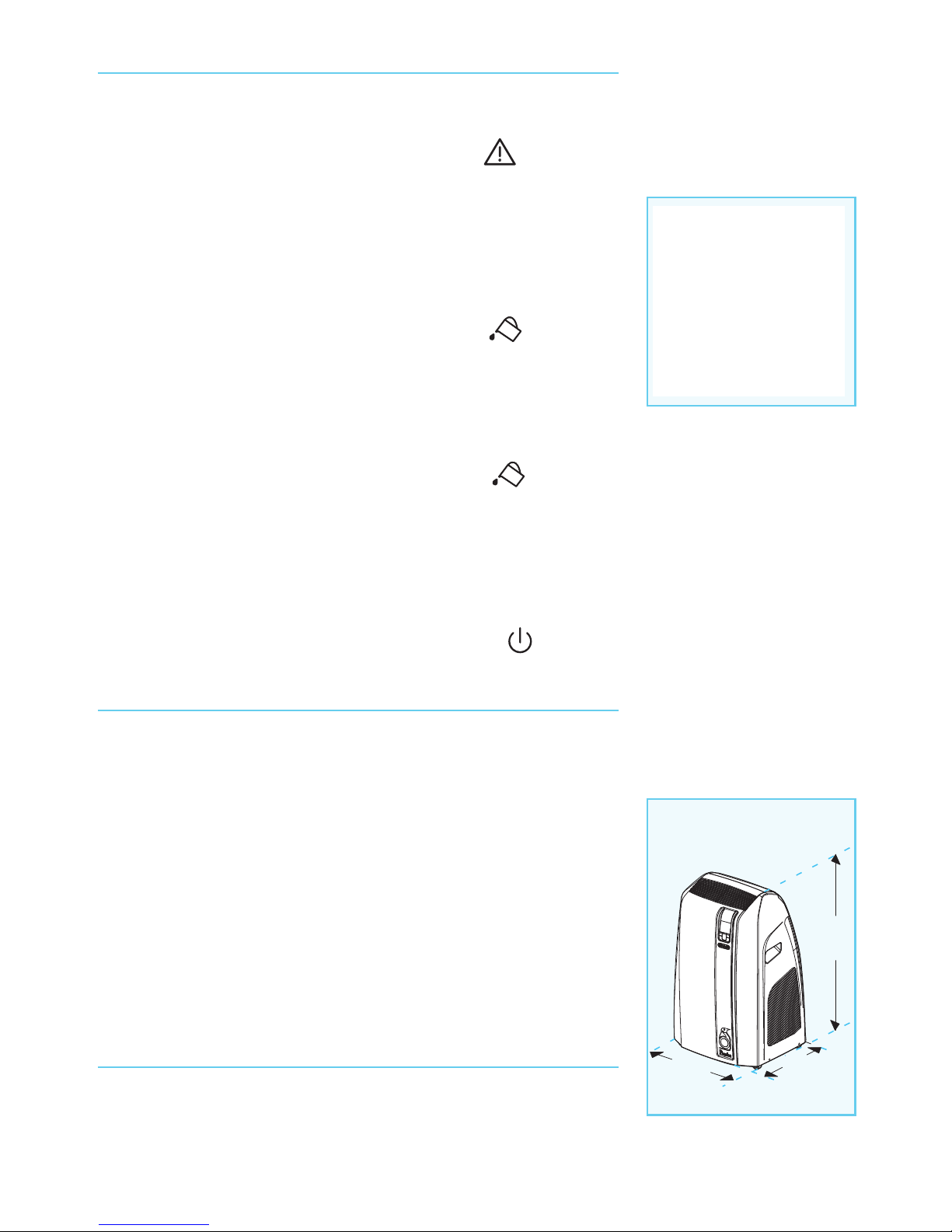

TECHNICAL CHARACTERISTICS:
Power supply voltage see rating plate
Max. power input
during air conditioning “
Absorbed power heating
(certain models only) “
Refrigerant “
Cooling capacity “
LIMIT CONDITIONS
Room temperature for air conditioning MAX 25°C21÷35°C
Room temperature for heating MAX 25°C
(certain models only)
GUARANTEE AND TECHNICAL ASSISTANCE
The conditions of the guarantee and technical assistance are
given on the certificate supplied with your appliance.
39
570mm
910mm
465mm
If you think there may
be a large amount of
water left in the tank,
before descaling, perform
the "forced draining" pro-
cedure.


40
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The air conditioner
does not come on • there is no current
• it is not plugged into the mains
• the internal safety device has
tripped
•wait
• plug into the mains
• call the Service Centre
The air conditioner
works for a short time
only
• there are bends or kinks in the
air exhaust hose
• something is preventing the
air from being discharged
• position the air hose correctly,
keeping it as short and free of
curves as possible to avoid
bottlenecks.
• check and remove any
obstacles obstructing air dis-
charge
The air conditioner
works, but does not
cool the room
• windows, doors and/or cur-
tains open
• there are heat sources in the
room (oven, hairdryer, etc)
• the air exhaust hose is deta-
ched from the appliance
• dust filter and (when present)
silver ion filter and 3M® filter
clogged
• the technical specification of
the appliance is not adequa-
te for the room in which it is
located.
• close doors, windows and
curtains, bearing in mind the
"tips for correct use" given
above
• eliminate the heat sources
• fit the air exhaust hose in the
housing at the back of the
appliance (fig. 1).
• clean the filters as described
above
During operation,
there is an unplea-
sant smell in the
room
• dust filter and (when present)
silver ion filter and 3M® filter
clogged
• clean the filters as described
above
The air conditioner
does not operate for
about three minutes
after restarting it
• the internal compressor safety
device prevents the applian-
ce from being restarted until
three minutes have elapsed
since it was last turned off.
• wait. This delay is part of nor-
mal operation.
The symbol and
one of the following
messages appears
on the appliance dis-
play: LT / PF / HL / CL
• The appliance has a self dia-
gnosis system to identify a
number of malfunctions.
•see the SELF-DIAGNOSIS chap-
ter.
