Dear Customer,
Thank you for having purchased an appliance made by De’ Lon-
ghi, the international leader in portable air conditioning units.
Thanks to our years of experience all around the world we are con-
stantly improving the quality and performance of Pinguino. We
are confident that you will be satisfied with your purchase and
enjoy the cool comfort created by the Pinguino for many years to
come. You should spend some time reading this instruction
manual and keep it handy to refer to in order to use your Pinguino
efficiently.
5751008700 15-04-2004 16:20 Pagina 2

1
2
3
4
5
67
915
16 18
19
17
20
8
10 11 12
14
Description
CONTROL PANEL
ACCESSORY-SET
13
5751008700 15-04-2004 16:20 Pagina 3

4
During the summer, optimum comfort is achieved with a temperature of around 24 °C and
50% relative humidity.
An air conditioner removes moisture and heat from the room where it is located. One advantage
of portable air conditioning units over fitted models is that they can be moved from one room to
another in the home or even transferred between different buildings.
The hot air in your room is passed through a
coil cooled by refrigerant gas, removing
excess heat and moisture before
being discharged again into the
room.
In single unit models, a small
amount of this air is used to
cool the refrigerant gas, then
the hot and moist air dischar-
ged outside.
Each Pinguino and Super-
Pinguino can also be used
as a fan only.
For more details, contact
or visit our Internet site
www.delonghi.com
How does your pinguino work
5751008700 15-04-2004 16:20 Pagina 4

5
Important Safe-guards
•This appliance has been manufactured
to cool and de-humidify domestic envi-
ronments and should not be used for
other purposes.
•It is dangerous to alter or modify the
unit's characteristics in any way.
•The appliance must be installed in line
with the relevant national legislation.
•Should repairs be necessary, contact
Parex Industries Ltd for your nearest autho-
rised De’ Longhi Service Agent. Unauthori-
sed servicing can be dangerous.
•This appliance is to be used by adults
only; keep away from children.
•Always ensure the appliance is earthed.
If you have any doubts check with a
qualified electrician.
•Avoid using extension leads with the
unit.
•Before cleaning or maintenance opera-
tions, always unplug the unit from the
socket.
•Do not pull on or place strain on the
power cable when moving the applian-
ce.
•The appliance should not be installed
where the atmosphere may contain
combustible gases, oil or sulphur, or near
heat sources.
•Do not rest hot or heavy objects onto
the appliance.
•Clean the filters at least once a week.
•Avoid using heaters near the unit.
•If the unit cannot be transported in a
vertical position, anchor it to a sloping
surface. Avoid positioning it horizontally.
•Before transporting the unit drain the
condensation collecting-tray and tank.
After transportation, wait at least 1 hour
before switching on the unit.
•The packaging materials can be recy-
cled. You are therefore recommended
to place them in the special containers
for differentiated waste collection.
5751008700 15-04-2004 16:20 Pagina 5

6
1
2
The following instructions will help you set up your air conditioning unit as efficiently as possible.
FOR INSTANT TEMPORARY USAGE
With just a few simple operations, Pinguino will
restore comfortable conditions in your room:
•Fix the air exhaust hose to the coupling
on the back of the unit as shown in figu-
re A.
3
17
•With a double casement window, use the
suckers provided to hold the two hal-
ves of the window together (fig. C).
19
•Fix the window attachment to the end
of the hose .
•Place the unit near a window, French win-
dow or door.
•Open the window, French window or door
slightly and place the window attachment
as shown in figure B.
18
17
18
A
Setting up
B
C
For optimum results:
•If you have a sash window, place the
bracket on the window sill, extend the
bracket fully within the window frame, fix the
bracket by turning the wing nut and lower
the window onto the bracket. Insert the win-
dow attachment of the exhaust
hose into the slot,
then connect the hose to the air conditioner
(fig. C1).
Thanks to the wing nut, it’s possible to use the
window bracket also for sliding windows.
Position the hole of the bracket so to allow a
correct installation of the exhaust hose (see
the following instructions).
17
18
13
C1
5751008700 15-04-2004 16:20 Pagina 6

7
Setting up
AIR CONDITIONING WITH INSTALLATION
For more efficient use Pinguino can also be
semi-permanently installed
•Fit the flange supplied to the hole.
•Fix the hose to the coupling on the
back of the unit (figure A).
•Attach the end of the tube to the flan-
ge as shown in the figure E.
16
17
17
16
To install, proceed as follows:
•Make a hole in an outside wall or through
the pane of a window. Check the height
and dimensions given in figure D
30 cm
30 cm
MAX115 cm
MIN 50 cm
When the hose is not attached, close
the hole with the bung on the flange .
NOTE:
When the unit is installed semi-permanently,
we recommend leaving a door slightly open
(1 cm is enough) to ensure an adequate
exchange of air.
16
17
in a window
pane
in the wall: for
optimum results,
insulate the sec-
tion of the wall
with suitable
insulating mate-
rial.
in the
wood sill of
a window
D
DEHUMIDIFICATION
Position the appliance in the room without
inserting the hose; in this way the dehumidi-
fied air will exhaust directly into the room.
E
5751008700 15-04-2004 16:20 Pagina 7

8
Turning on and Selecting functions
ELECTRICAL CONNECTION
Before inserting the plug check that:
•the mains supply corresponds to the
power supply shown on the rating plate;
•the socket and the mains lead correspond
to the power requirements of the applian-
ce;
•the socket is suited to the plug, otherwise
have the socket replaced;
•the socket is properly earthed. The manu-
factures cannot be held responsible for
any damages due to failure in following
normal safety procedures.
7
Replacement of the power cable must be
carried out by qualified personnel.
AIR CONDITIONING FUNCTIONS
With the unit turned off, the function selector
is in the “●” position. To turn the unit on in
air conditioning mode, proceed as follows:
1. Rotate the function selector knob clockwi-
se:
•Place the large crystal symbol in line
with the reference mark to operate the
unit in air conditioning mode at maximum
fan speed.
•Place the small crystal symbol in line
with the reference mark to operate the
unit in air conditioning mode at minimum
fan speed.
2. Now set the required temperature by rota-
ting the room thermostat knob .
Note
The temperature is not expressed in degrees.
We therefore recommend rotating the room
thermostat dial to the maximum cool posi-
tion. When room temperature has reached
the required level, rotate the thermostat dial
SLOWLY clockwise until the thermostat is acti-
vated, turning the unit off. This programs the
unit to the precise level of comfort required
which will then be automatically maintained
by the thermostat with considerable energy
savings. When regulating the thermostat, the
air conditioning function is temporarily inter-
rupted and the unit continues to operate in
fan only mode.
Note: cool air is discharged from grill only
after a delay of three to five minutes.
1
15
9
AIR PURIFICATION WITH FAN
Your air conditioning unit has two special high
efficiency electrostatic filters. These filters,
active in all modes, filter out extremely fine
particles (down to 0.3 thousands of a millime-
tre).
If you want to purify the air by ventilating the
room only, rotate the function selector
anticlockwise.
•Place the large symbol in line with the
reference mark to operate the unit in air puri-
fication mode at maximum fan speed.
•Place the small symbol in line with the
reference mark to operate the unit in air puri-
fication mode at minimum fan speed.
9
THIS UNIT EMPLOYS AN EXCLUSIVE CON-
DENSATION RECYCLING SYSTEM TO DISPO-
SE OF EXCESS MOISTURE. IN NORMAL
CONDITIONS, CONDENSATION IS DISPO-
SED OF AUTOMATICALLY. WHEN THE HUMI-
DITY IS PARTICULARLY HIGH, AN EXCESS OF
CONDENSATION MAY BUILT UP IN THE TANK
. WHEN THIS HAPPENS, THE INDICATOR
LIGHT COMES ON INDICATING THAT
THE TANK SHOULD BE EMPTIED. ONLY FOR
SOME MODEL: WHENEVER CONDITIONS OF
HIGH HUMIDITY MAKE THE PROBLEM
RECURRENT, YOU MAY DISCHARGE THE
EXCESS WATER DIRECTLY INTO A DRAIN,
USING A RUBBER TUBE WITH AN INTERNAL
DIAMETER OF 12 MM; THE TUBE SHOULD BE
INSERTED INTO THE HOLE PROVIDED, AFTER
HAVING REMOVED THE RUBBER STOPPER.
(see figure below).
MAKE SURE THE TANK IS PUT BACK COR-
RECTLY OTHERWISE THE LIGHT WILL
REMAIN ON.
14
14
5
5751008700 15-04-2004 16:20 Pagina 8

9
Functions/Warning lights
HOW TO DEHUMIDIFY
When the appliance is working as an air condi-
tioner, it automatically reduces the excess
humidity in the air present in the room. This is eli-
minated through the exhaust tube .
Only for some models: If only the elimination
of the excess humidity in the room is desired
without lowering the temperature, simply turn
the function selector knob in a counter
clockwise direction until the symbol is rea-
ched.
Note
In the dehumidifying mode, air colder than
the room temperature will exhaust from the
air exhaust grill . Conversely, air warmer
than room temperature will be exhausted
from the accommodation tube on the
back side of the appliance.
3
1
9
6
TURN THE APPLIANCE OFF
TO TURN THE UNIT OFF COMPLETELY, SET
THE FUNCTION SELECTOR TO THE “●” POSI-
TION AND UNPLUG FROM THE MAINS
THE LEDS
Led displays come on depending on the selected function or as warning of possible anomalies.
FUNCTION LED 10 LED 11 LED 12
OFF ---
AIR-CONDITIONING on* on* on
DEHUMIDIFYING on** -on
PURIFYING --on
*The leds will light up 3 minutes after the machine is turned on (that is, when the appliance starts
cooling). They will turn off when the temperature set by the thermostat is reached.
** When in the dehumidifying mode, the appliance operates continuously. If the temperature is
too low, the anti-freeze thermostat intervenes, interrupting the operation.
5751008700 15-04-2004 16:20 Pagina 9

10
Recommendations
Follow these recommendations to achieve
maximum efficiency from your air conditio-
ning unit:

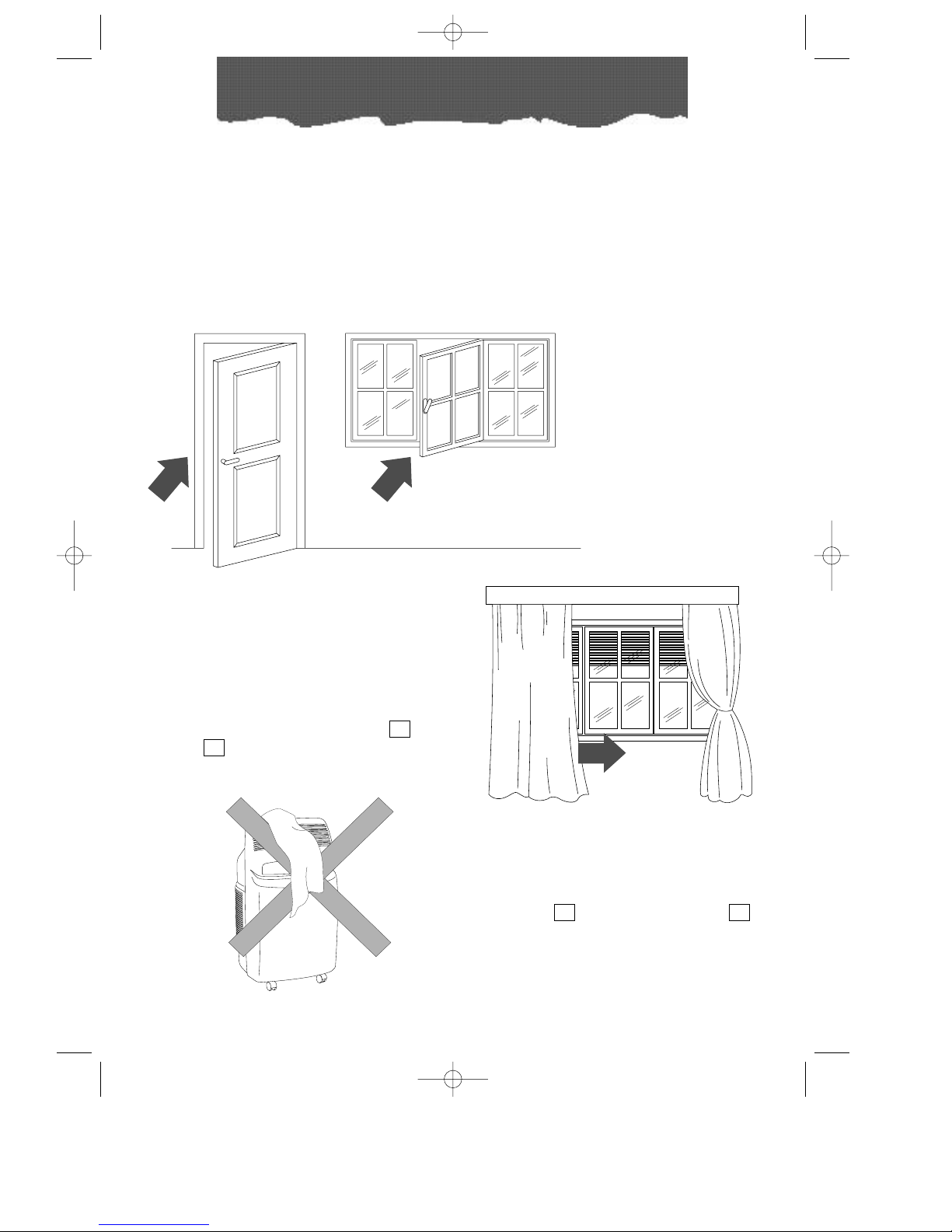

•Close the doors and windows in the room
where the unit is functioning. The only
exception is in the case of installation throu-
gh a hole in the wall or window. In this case,
you are recommended to allow a small
amount of air to enter through a door or
window to guarantee an adequate
exchange of air.
•Protect the room from direct exposure to
the sun’s rays by drawing the curtains
and/or partially lowering the blinds so as
to maximise energy savings.
•Do not rest objects on the air conditioning
unit.
•Do not obstruct the air intake or
outlet .
•Make sure there are no heat sources in the
room.
1
4
•Do not install the appliance in humid envi-
ronments.
•Do not use the appliance outdoors.
close doors and windows
lower the blinds or draw the curtains
do not cover
•Make sure the unit is located on a level
floor. If necessary, place the two blocking
devices under the front wheels .
220
5751008700 15-04-2004 16:20 Pagina 10

11
intake grille
anti-dust
filter
air
purification
filter
Before cleaning or maintaning the unit, always
turn the unit off by placing the selector in the “●”
position and unpluging from the mains socket.
CLEANING THE UNIT
We recommend cleaning the unit with a sli-
ghtly damp cloth then drying with a dry cloth.
For safety reasons, do not wash the air condi-
tioner with running water.
Precautions
Never clean with petrol, alcohol or solvents.
Never spray liquid insecticide or similar.
CLEANING THE AIR FILTERS.
To maintain the air conditioning unit at peak
efficiency, you are recommended to:
1. Clean the anti-dust filter weekly.
2. Replace the air purification filters at the end
of each season or when spent (follow the
instructions on the unit near the filter).
The filters are located behind the two intake gril-
les. The grilles in fact house the filters themselves.
To clean the filters:
1.Remove the intake grills on either side of the
appliance by rotating them outwards (Fig. F).
To remove dust deposited on the anti-dust fil-
ter, use a vacuum cleaner. If very dirty, rinse
repeatedly in warm water at a temperature
of not more than 40°C.
After washing, dry the filter. To replace, put
the filters back into the intake grill, then hook
the latter to the unit.
END OF SEASON OPERATIONS
Take out the condensation basin located in
side the unit and empty it.
Empty the residual water by removing the
bung in the drainage tube .
After replacing the bung, put the condensa-
tion tank back .
Clean the anti-dust filters and dry well before
replacing.
Protect the unit from dust by covering with a
plastic bag.
START OF SEASON CHECKS
Check that the power cable and socket are
undamaged and that the earth installation is
efficient.
5
6
fig. F
Cleaning
1
2
2.Remove the first air purification filter (white).
3.Remove the filter holder holding the anti-
dust filter by unhooking it from the intake grill.
5751008700 15-04-2004 16:20 Pagina 11

12
Troubleshooting
PROBLEMS CAUSES SOLUTIONS
The air conditioner
doesn’t work
•the power is off
• the plug is not inserted into the electrical outlet
•the fan is blocked
•the safety float was triggered
•wait
•plug in the appliance
•call the Service Centre
•empty the tank
The air conditioner
works for a short
time only
•the exhaust hose is twisted
•the exhaust tube is blocked
•the drain tube is bent
•position exhaust hose correctly
•check if there are obstacles
blocking the exhaust of air out
of the appliance
•unbend the hose
The air conditioner
works but doesn’t
cool the room
•awindow is open
•in the room there is some source of heat
(lamp, burner, etc.) or there are many peo-
ple in the room
•the exhaust hose has come out of place
•the air filter is dirty
•the air conditioner has a capacity not ade-
quate for the conditions or the ldimensions of
the room
•close the open window
•remove the heat source
•reinsert the those into its place
•clean the filter or replace
•clean the filter or replace it
Strange odour in the
room
•air filters dirty
Leaking condensa-
tion from the
appliance
•condensation collection tank is full
•incorrect installation of the appliance
•empty the tank and drain the
water with the drainage tube
found on the back side of the
appliance
•see page 6 to properly install
the appliance
The air conditioner
doesn’t work for
about 3 minutes from
turning on the
appliance
•the appliance’s safety system has intervened • wait for 3 minutes
The warning light
is on
14
•condensation collection tank is full • Empty the tank.
If the light is still on, consult the
Service Centre
5751008700 15-04-2004 16:20 Pagina 12

13
Technical specification
RECOMMENDED OPERATING CONDITIONS
Room temperature 21 ÷ 32°C
TECHNICAL SPECIFICATION
Power supply see rating plate
Max. absorbed power
in air conditioning “
Max. absorbed power
when dehumidifying “
Max. absorbed power
when heating (mod. F15) “
Refrigerating capacity* “
Number of fan speeds 2
Max. air flow . 360 m3/h
Dimensions of internal unit:
•width 452 mm
•height 800 mm
•depth 415 mm
•weight 33,5 kg
*Standard conditions: ASHRAE 128
8
This appliance contains substances which, if released into the atmosphere, would damage the
ozone layer. Care should therefore be taken not to perforate the refrigerant circuit. At the end of
its working life, delivery the air conditioning unit to a special collection centre.
5751008700 15-04-2004 16:20 Pagina 13

De Longhi S.p.A.
Via L. Seitz, 47
31100 Treviso Italia
tel. [phone]
fax [phone]
www.delonghi.com
5751008700/06.02
5751008700 15-04-2004 16:20 Pagina 14

15
ENGLISH
5751008700 15-04-2004 16:20 Pagina 15
