Denver Electronics SEL-65115 Operation instructions

1
Original manual
SEL-65115
facebook.com/denver.eu
Before operating this vehicle, read all the instructions for safe assembly and operations.
User’s manual can guide you through the functions and usage of Electric scooter. Before
using this Electric scooter, familiarize yourself with how to operate, so that you can keep
the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the appliance.
This appliance contains batteries that are not replaceable.
Version 1.0

2
Table of Contents
1. Product and Accessories........................................................................................... 3
2. Unfold/fold the Electric scooter................................................................................4
3. Handle bar assembly................................................................................................. 5
4. Connect the charger...................................................................................................6
5. Intended Use..............................................................................................................7
6. Safety Instruction...................................................................................................... 7
7. Maintenance.............................................................................................................. 9
8. Operational control..................................................................................................11
9. Riding Electric scooter............................................................................................13
10. List of parameters..................................................................................................15
11. Electric scooter safe parking................................................................................... 16
12. Safe transportation...................................................................................................16
13. Warnings..................................................................................................................16

3
1. Product and Accessories
IMPORTANT:
This Electric scooter must be charged and stored in a safe place.
For safety reason and battery performance, never charge the Electric scooter in the
temperature below 5°C or above 45°C. Only use the charger included to charge the
Electric scooter. Always disconnect the charger after the Electric scooter is fully charged.
Make sure that all screws are properly tightened to avoid unsafe situations.
WARNING
Please make sure to check that the steering system is correctly adjusted and that all
connection components are firmly secured and not broken before riding, refer to
handlebar assembly and safety instruction.
Please read operation guide and warnings of correct techniques for use and braking
Always wear shoes;
When self-locking nuts and other self- locking fixings may lose their effectiveness
All parts and materials' quality of electric scooter can not be changed, modifications are
not allowed
LED light
Built-in rechargeable battery (25.2V~4000mAh) - It takes approximately 3 hours to
fully charge the electric scooter.
Shock absorption
6.5” wheel
size
Menu screen
Bell
Electric brake
White reflector
Throttle
Foldable
Mechanical brake
Back light

4
2. Unfold/fold the Electric scooter
Unfold the Electric scooter
1) Stand the Electric scooter on its wheels, and press the unlock clasp.
2) Pull up the handle in a gentle way.
3) The Electric scooter is unfolded as soon as you hear the rod click into place.
Fold the Electric scooter
1) Hold the clasp and pull it outward
2) Press the front tube of Electric scooter downward (Attention: the limit position must
be put right.)
3) The rod clicks audibly into place.

5
4) Dual action safety knob
Push up and press the red button to fold or unfold the Electric scooter.
3. Handle bar assembly
1) Parts inside the packaging: two handlebars
2) Change display angle: Loosen the screw on the handlebar, and rotate the axle
to make the handlebar meter screen upwards while the and display
screen turn inwards in a horizontal level. Remember to tighten screws again
3) Before operating the electric scooter, turn the handlebar grips, and carefully check all
the components to make sure that the steering is correctly installed as described above,
and that all connecting parts are secure and fully functional.
Figure 1
Figure 2
Fold-Unfold Position

6
4. Connect the charger
Plug the supplied adapter into the charging port.
Charging port

7
5. Intended Use
The Electric scooter is neither a means of transport nor sports equipment, but a device for
personal entertainment. The Electric scooter for domestic use only and only by a person aged
at least 14 with a maximum weight of 100 kg. The other parameters for the permissible
operation of the Electric scooter are defined in the section (“10. List of parameters”) .
Importantly, the Electric scooter may only be operated in good visibility conditions and only if
the physical conditions for stability on the Electric scooter are met (for example, not on one
leg/not under the influence of drugs or alcohol). When operating the Electric scooter, the
operator must wear personal protective equipment specified in the section (“13. Warnings” >
13.2 Preparation”).
6. Safety Instruction

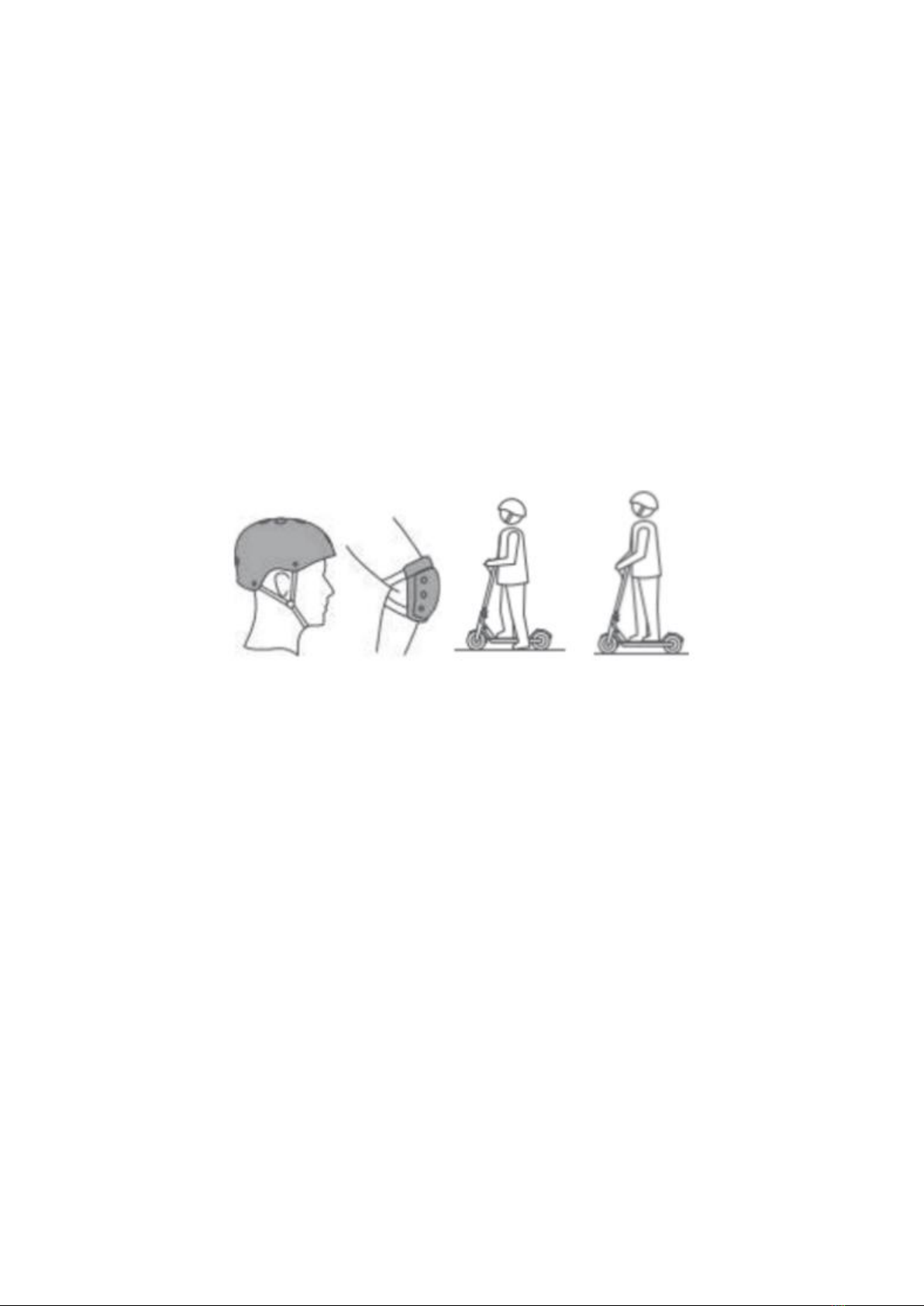

We recommend always wearing helmet and protective gear like elbow, knee and wrist
protectors to ensure your personal safety.
Also make sure you have read the user manual carefully, to ensure you know how to ride it
in a safe and fun way.
The Electric scooter is for domestic use only.
It is your responsibility to be aware of and comply with all regulations in your country. If
there are no regulations for this Electric scooter in your country, please take care of your
own safety and the safety of others.
Also pay attention to other people. Always ride safely and only at a speed that allows you
to brake safely at any time. A common thing for such products is that there is a risk that
you may fall off the product and injure yourself. Always ride as safely as possible.
If lending the Electric scooter to friends and family, please make sure they use proper
protective gear and know how to ride it.
Before riding the Electric scooter, please check that all parts are working as supposed to. If
any loose parts, abnormal noise, reduced battery life etc. are detected, please contact your
retailer for product service and warranty. Do not repair the Electric scooter yourself.
Inspect the rear tire, rear brake, and brake pad according to Section 7 of the maintenance
specification in this operating instructions. The Electric scooter may become unstable if
the rear brake is deformed or loose. This is because the distance between the brake pad
and the rear wheel becomes too small, possibly leading to a blocked rear wheel.

8
Avoid applying too much force or stepping on the rear fender permanently. This may
cause the fender to loosen or damage the spring holding the fender.
As a result, the brake pad constantly touches the wheel and the motor temperature
increases due to the additional resistance. The rear tire can also get loose if the brake is in
constant braking position.
Avoid constant braking. As a result, the tires will not only wear off, but also become hot.
This will soften the rubber and it will no longer have the same grip on the road as usual.
Do not touch the tire after braking.
If you hear unusual noises or notice friction when switching on the Electric scooter, a
bearing may be damaged. A worn bearing may even be indicated by strong vibration of the
handlebar. In this case, please contact your retailer since the bearing needs to be replaced
and/or the handlebar checked and adjusted.
Ride the Electric scooter only on a dry surface since otherwise the riding safety and
braking performance may be impaired and the motor or bearings may be damaged.
Please do not ride up or down long and steep slopes.
Stop riding when you receive the "Low Battery Warning". The Electric scooter then
moves only slowly and does not have the same traction as normal and the electric brake
does not work. In this case, please use the rear brake to stop the Electric scooter. Get off
the scooter as soon as the speed allows to do that safely.
Do not use the electric brake and the throttle at the same time.
A normally working Electric scooter operates safely and quietly. If you hear noises or
notice bumpy operation, please check wheels, bearings, and brakes. Contact your customer
service for repair and maintenance, if necessary.

9
7. Maintenance
To ensure you get the best possible performance and experience from your electric
scooter, it is important to do regular maintenance for important parts of the product.
●Battery maintenance
●Bearings, Screws, Brakes and Wheels
●Storage and Cleaning
Your electric scooter will require some maintenance so please read and familiarize
yourself with this guide.
●Battery maintenance
All batteries have a life cycle, and performance will decrease over time, however here
are some advice to maximize the life span of the battery.
Make sure that the battery is charged at regular intervals, even if you do not use the
electric scooter for a long time. This is to prevent damage to the battery, caused by low
voltage over an extended period.
Avoid draining the battery completely. It is best to charge while there is still power on it.
This will extend battery life. If the battery is constantly depleted, it will damage the
battery (damaged battery caused by wrong handling are not covered by the warranty).
If riding the electric scooter in cold or very hot areas, the battery time can be lower than
when riding in temperatures from 15-25° Celsius. This is not a failure on the batteries, but
normal behavior.
Please notice: Even a fully charged battery will run out of power if the electric scooter is
not used for a period. Expect a fully charged battery to keep power between 90 and 120
days in off mode, before it is fully discharged. If only partially charged, this period is
lower.
Please make sure the battery does not get above 50° Celsius, or below minus 10° Celsius
for a longer period. (e.g. don’t leave the electric scooter in a hot car in summer, do not
put battery into fire etc.) Low temperature (e.g. subzero temperature) can damage the
battery cells.
Keep the Electric scooter away from open flame or other sources of heat to prevent the
battery from getting too hot. Also make sure not to leave the electric scooter at freezing
temperatures. Both heat and excessive cold can cause the battery to discharge.
Only use original charger or an official replacement, as different batteries may require
specific charger, and if using other chargers, this could cause damage to the product.
Do not overcharge and discharge the battery.

10
Please make sure to charge the battery before it is completely out of power, to avoid
damaging the battery cells. (damaged battery caused by wrong handling are not covered
by the warranty)
It is forbidden to disassemble battery package. This is only to be handled by official
service repair centers and professionals.
●Bearings, Screws, brakes and Wheels
Your electric scooter is made up of moving parts, which in time, will be susceptible to
wear and tear.
Bearings and screws:
The electric scooter has sealed and dustproof bearings so that no lubrication is required.
Check the bearings for wear at regular intervals to avoid unsafe riding. Do not jump on
and off and do not apply excessive force otherwise to avoid damage to the bearings. This
is not a sports electric scooter.
Make sure that all screws are properly tightened to avoid unsafe situations.
Please check the screws regularly and tighten if they seem loose.
Brakes:
Check the brake for wear at regular intervals to avoid unsafe riding. Do not apply
excessive force to avoid damage to the brake.
Wheels:
Check the wheels for wear at regular intervals to avoid unsafe riding.
Electric scooters come with different wheels but can in general be separated into tires
with inflatable inner tubes and solid wheels.
For inflatable tires, please make sure to keep the right pressure, as hard tires will last
longer.
If the wheel seems wobbly even after screws are tightened, the bearings might
be worn down and need replacement
WARNING
●Please make sure to check that the steering system is correctly adjusted and that all
connection components are firmly secured and not broken before riding, refer to
handle assembly and safety instruction.
●Please read operation guide and warnings of correct techniques for use and braking
●Always wear shoes.
●We highly recommend to always wear helmet/pads for your own protection.
●Self-locking nuts and other self- locking fixings may lose their effectiveness.

11
●All parts and materials of electric scooter cannot be changed, modifications of the
scooter are not allowed. If done, then warranty is void.
●Storage and cleaning
If your Electric scooter gets dirty, please clean it with a damp cloth only, you may not use
pressured water-gun or running water, as this could damage vital parts. It is also possible
to use a little toothpaste if the dirt is stuck. Remember to clean with damp cloth after this.
Please make sure to keep the electric scooter turned off while cleaning it, and make sure
to cover the charging input to avoid problems with the electronics.
Make sure to dry the scooter with a towel, should it become wet.
Please notice: Do not use alcohol, gas, kerosene or other corrosive and volatile chemical
solvents. This can damage both the appearance and the internal structure of the electric
scooter.
Please store your Electric scooter in a dry and cool environment when not in use. Avoid
leaving it outdoors, as it is not made for storing in wet areas. Nor is it good to expose to
high temperatures caused by direct sun for a long time.
8. Operational control
For better operation, please read the instructions carefully.
8.1 Button
Speed up button
Power button
Speed down button
Accelerator button
Electric brake
button

12
There are three buttons in the display, Power button, ▲ Speed up button and ▼ speed
down button.
8.2 Control and display
Power On: Long press the power button until the display lights up.
Power Off: Long press the power button until the display goes out and the system is off.
1. Battery power display: it shows the current remaining battery capacity.
2. Power off automatically: After the display is idle for more than 5 minutes, the Electric
scooter automatically turns off.
Change display information: When the Electric scooter is on, short press the power
button , change the showing data on the display, TIME, ODO, DIS and other
characters respectively. When it is showing time, it indicates the running time after
switching on. The time will be cleared after switching off. When it is showing DIS, it
indicates the driving distance after switching on, and it will be cleared after power off.
When it is showing ODO, it indicates the total mileage, which will be retained unless it
is manually cleared.
Change the gear: Short press ▲ or ▼ button to change the gear level (Gear 3 is fast
speed, Gear 2 is medium speed, and Gear 1 is slow speed).
Deceleration: Gently press the deceleration dial to slow down. The deeper the press,
the greater the deceleration (the deceleration is relevant to the formation of the press,
and pushing too hard cannot increase the braking force and may cause damage to the
brake dial).
Battery
Gear
Single Mileage
Time
KM
Speed

13
Clear total mileage: Press ▲ and ▼ buttons at the same time, then press the power
button to switch on the Electric scooter, and the total mileage will be cleared.
Important: Press ▲and ▼ buttons at the same time, then press the power button and
select P3 mode, when parameter value is 0, it will start with zero. When parameter value is
1, it will start with non-zero.
(Zero start: When starting, the Electric scooter in a stationary case, press the accelerator to
start driving.)
(Non-zero start: When starting, the scooter is static, press the accelerator and the Electric
scooter does not work, push the Electric scooter manually to start driving, the Electric
scooter works. factory default is non-zero start.)
You have to manually move the Electric scooter with your foot before the accelerator
handle are working.
9. Riding Electric scooter
1. Press ▲ and ▼ buttons to adjust speed level.
2. Press the accelerator button to accelerate, so you can drive；
3. Press the brake button to brake；
4. When you press the accelerator and electric brake button at the same time, the Electric
scooter will automatically brake;
5. For safety, the rear wheel brake system must be used when driving at high speed.
Rear Brake

14
9.1 Front and back LED lamps
This Electric scooter is equipped with the front and back LED lamps. The front lamp lights
white and the back lamp lights red.
1. Walking mode: 6KM/H, when 1 mode, the front and back light will be flashed.
2. 2/3 mode: when 2/3 mode and when brake, front and back light will be on, and can not
flash. User can also press the “▲”key by 5S to turn on/off the light.

15
10. List of parameters
Parameter
Range
Size
Folding size (m)
1.08*0.42*0.28
Developed size (m)
0.97*0.42*1.08
Carton size (m)
1.13*0.22*0.33
Weight
Max Vehicle Payload (kg)
100
Net Weight (kg)
11.3
Ride Condition
Age (Year)
14+
Electric scooter
Max. speed (horizontal riding)
(km/h)
20
Max traveling distance (km)
12
Terrain
Level and dry surface
Battery
Type: Li-ion battery
Nominal voltage (V)
25.2
Input voltage (V)
29.4
Battery capacity (mAH)
4000
Motor
Motor Power (W)
250
Emission sound pressure level (DB)
Emissions < 70 db
(A).
Battery Charger
Rated input voltage(V)
100-240
Rated output voltage(v)
29.4
Rated current (A)
1.5
Charging Time(h)
3
Electric scooter
Model: SEL-65115
Input: 100V-240V~, 50/60Hz, 1.5A (Max)
Output: 29.4V 1.5A
Max Speed: 20km/h
Weight: 11.3 kg
Year Of Construction: 2022
Max Vehicle Payload: 100kg
Battery: 25.2V/4Ah
Power Consumption: ≤250W
Please charge the Electric scooter with the original charger XHK-922-29415.
DENVER A/S
Omega 5A Soeften DK-8382 Hinnerup
Denmark
www.denver.eu

16
11. Electric scooter safe parking
Once you have stopped the Electric scooter, get off it and press the side stand down with
your right foot to support the Electric scooter. The side stand is located on the left-hand
side of the Electric scooter below the foot board.
Before you ride again, push the side stand back up so that it is parallel to the foot board.
12. Safe transportation
Pack the Electric scooter flat, don’t drop the Electric scooter during the transportation,
forbid to put the Electric scooter near fire or explosive materials.
13. Warnings
13.1 Risks of riding
WARNING
First, learn safe riding before you ride the Electric scooter fast.
-Failure to observe, loss of control, falls, and violations of the rules can cause injuries.
-Speed and range depend on the rider's weight, terrain, temperature, and riding style.
-Wear a helmet and protective clothing when riding the Electric scooter.
-Read the operating instructions carefully before riding the Electric scooter.
-For use only in a dry environment.
-The Electric scooter may not be used on public roads.
-Make sure that this product complies with local regulations.
-For domestic use only
13.2 Preparation
-First, charge the battery completely.
-Wear a helmet, knee and elbow pads, as well as earmuffs/earplugs.
-Do not wear loose clothing or open laces that can get caught in the Electric scooter
wheels.
13.3 Weight restriction
Reason for the weight restriction:
Ensuring the rider's safety;
Avoiding damage due to overload.
Maximum vehicle payload: 100kg.
WARNING
Do not try to make a turn too fast.
WARNING
Lithium battery inside.
WARNING
If the Electric scooter switches off, the system will block the vehicle automatically.

17
It can be released again by pressing On/Off.
Use the device only at temperatures between -10 °C and +45 °C.
13.4 Range per charge
The range depends on several factors:
Topography: On level paths you have a greater range than on uneven ground.
Weight: The range depends on the rider's weight.
Temperature: Extreme temperatures reduce the range.
Maintenance: If the Electric scooter is charged properly and the battery is kept in good
condition, the range will be extended.
Speed and riding style: The range is greater at constant speed than at frequent stops and
starts, acceleration and braking.
13.5 Safe riding
This chapter focuses on safety, experience, and warnings. Before operating the vehicle,
please read all installation and operating instructions carefully.
WARNING
Familiarize yourself with the vehicle before you use it so that you can keep the Electric
scooter in sound condition.
Observe all safety instructions when riding the Electric scooter.
The Electric scooter is designed only for personal entertainment. Avoid operating it on
public roads/in road traffic.
Children, elderly people, and pregnant women are not allowed to ride the vehicle.
People with limited sense of balance are not allowed to ride the Electric scooter.
Avoid riding the Electric scooter under the influence of alcohol or other substances.
Do not carry any objects while riding.
Make sure you have a clear vision in front of you to ride the Electric scooter safely.
While riding, your feet must always be on the foot board.
The Electric scooter can accommodate only one person.
Do not start or stop abruptly.
Avoid riding on steep slopes.
Stop riding the Electric scooter if you hit against a solid object (such as a wall or other
structure) with it.
Do not ride in dimly lit or dark places.
Ride the Electric scooter at your own risk, we assume no liability for accidents or
damage.
Ride at a safe speed that allows you to stop at any time.
Keep the Electric scooter at a sufficient distance from other people and avoid collisions.
Steer through balance shifting, fast movement can result in falls.
Do not ride in rain or under other wet conditions. Ride only in dry weather.
Avoid riding over obstacles, if possible, and avoid snow, ice, and slippery surfaces.
Avoid riding over textiles, small branches, and stones, if possible.

18
Avoid riding in narrow places or in places with obstacles, if possible.
Jumping on and off the Electric scooter will cause damage that is not covered by the
warranty. There is a risk of injury. Injuries and damage due to "trick riding" are not
covered by the warranty.
Stand on the pedal with one foot, push the other foot back on the ground and start
sliding. The motor can only start after the vehicle speed reaches 3km/h.
13.6 Charging
Make sure that the Electric scooter, charger, and DC power input of the device are
always dry.
Note: To charge this Electric scooter, use SOLELY the supplied XHK-922-29415
charger with the following output: 29.4 V - 1.5 A.
Using a different charger may cause damage to the device and other potential risks.
Use the mains adapter to plug the DC input of the device into a conventional socket.
There will be no light on the charger before charging, when connected to e-scooter the
adapter will light red, and charging has started.
The red indicator lights up when properly charged; if this is not the case, please check
the connections.
Now you can stop the charging cycle. Overcharge shortens the battery life.
The charging process takes up to 3 hours. Do not charge the battery for more than 3
hours. After 3 hours, disconnect the charger from the device and the power supply.
Overcharge reduces the battery service life.
The product must not be charged over extended periods.
Always keep an eye on the device throughout the charging cycle.
Charge the device only at temperatures between 0 °C and +45 °C.
When charging at lower or higher temperatures, there is a risk that the battery
performance will be reduced; therefore, there is a potential risk of injuries and material
damage.
Store and charge the device in an open, dry area away from combustible materials.
Do not charge the device in direct sunlight or in the vicinity of open flames.
Do not charge the device immediately after use. Allow the device to cool down for an
hour before charging it.
If the device is left to other people, it must be charged partially (20 - 50%), not fully.
Do not remove the device from its package to fully charge it and then put it back in the
package.
The device is generally partially charged as shipped from the factory. Keep the device
partially charged until it is used.
Allow the Electric scooter to cool down for at least 1 hour before it can be put in the
package.
Do not leave the device exposed to sunlight in a car.
CAUTION

19
The Electric scooter must not be used during the charging cycle!
The LED indicator on the battery charger lights red during the charging process.
The LED indicator on the charger will light green when the charging process is
complete.
After charging, disconnect the charger from the mains and the Electric scooter.
CAUTION
Connect the DC cable supplied with the Electric scooter only to the DC input!
Do not insert foreign bodies into the DC input.
CAUTION
Do not remove the protective cap from the DC input!
Remove the cap only when charging the Electric scooter!
After charging, disconnect the DC plug and close the DC input again with the cap!
WARNING
Make sure that neither water nor other liquids penetrate into the inner components of the
Electric scooter; otherwise, the electronics/batteries of the device could be permanently
damaged. There is a risk of injury.
CAUTION
If you open the Electric scooter casing, the warranty will become null and void.
WARNING
Always keep the protective cap plugged onto the DC connector!
Only take off the cap when charging the Electric scooter!
After charging, take out the DC plug and put on the protective cap onto the DC
connector again!
WARNING
Make sure to wear helmet and protective clothing before using the Electric scooter.
Make sure to read manual carefully before using the Electric scooter.
The Electric scooter is not intended for use on public roads nor in traffic
The Electric scooter must only be used on dry and level ground
For domestic use only
The Electric scooter may not be used by anyone under age of 14 years

20
IMPORTANT! Read carefully and keep for future reference.
Any load attached to the handlebar will affect the stability of the vehicle.
Accessories and any additional items which are not approved by the manufacturer shall
not be used.
WARNING ! As with any mechanical component, a vehicle is subject to high stresses and
wear. The various materials and components may react differently to wear or fatigue. If
the expected service life for a component has been exceeded, it may break suddenly,
therefore risking causing injuries to the user. Cracks, scratches and discoloration in the
areas subject to high stresses indicate that the component has exceeded its service life and
should be replaced.
Traffic in the city has many obstacles to cross such as curbs or steps. It is recommended to
avoid obstacle jumps. It is important to anticipate and adapt your trajectory and speed to
those of a pedestrian before crossing these obstacles. It is also recommended to get out of
the vehicle when these obstacles become dangerous due to their shape, height or slippage.
WARNING Keep plastic covering away from children to avoid suffocation.
Take the time to learn the basics of the practice to avoid any serious accident that can take
place in the first months;
Get closer to your seller so he can refer you to an appropriate training organization.
- In any case, anticipate your trajectory and your speed while respecting the code of the
road, the code of the sidewalk and the most vulnerable.
- Notify your presence when approaching a pedestrian or cyclist when you are not seen or
heard.
- Cross the protected passages while walking.
- In all cases, take care of yourself and others.
- Do not divert the use of the vehicle.
- This vehicle is not intended for acrobatic use.
- Caution, the brake may become hot in use. Do not touch the brake disc after use.
- Eliminate any sharp edges caused by use.
Power-off the vehicle during charging.
Self-tightening nuts as well as the other self-tightening fastenings may lose their efficiency
and that they may need to be retightened;
According to French traffic rules, reflective clothing and helmet is strongly required
during cycling.
