USER MANUAL
MCR-50MK3
WWW.DENVER-ELECTRONICS.COM
Please read th s user manual carefully before start us ng the product.

CLEANING THE CABINET

If the wooden cab net becomes dusty please w pe t w th a soft, non-abras ve dust cloth. Also
don’t use water or spray cleaners as th s can damage the cab net and the plast c/metal parts of the
un t.
TECHNICAL SPECIFICATION
•Turntable speed: 33/45/78 RPM (D sc s ze 17.5/25/30cm)
•CD can play CD/CD-R/CD-RW/MP3
•USB can play MP3
•Cassette: C60 & C90 (C120 cassette s not recommended)
•Output power: 2x2.5W
PREPARATION FOR USE
IMPORTANT: RAISING AN LOWERING THE TURNTABLE LID
To open the l d. Ra se t as far as t can go unt l the l d support bracket locks n the pos t on.

To close the l d. Pull forward the l d support bracket to release and then gently lower the l d.
TO AVOID DAMAGING THE CABINET OR THE LID, NEVER FORCE THE LID CLOSED. ALWAYS RAISE
THE LID TO RELEASE THE LID SUPPORT BRACKET.
LOCATIONS OF CONTROLS AND INDICATORS
Locatio s of Co trols:
1. TURNTABLE LID
2. TURNTABLE LID SUPPORT BRACKET
3. SPEAKERS
4. USB
5. AUX IN
6. RECORD/DELETE BUTTON
7. NOT AVAILABLE
8. VOLUME/STANDBY/ON/OFF CONTROL
9. TUNER BACKLIGHT
10. LCD DISPLAY
11. REMOTE CONTROL SENSOR
12. POWER INDICATOR
13. FM ST./REC INDICATOR
14. FM DIAL SCALE
15. AM DIAL SCALE
16. TUNING POINTER
17. TUNER
18. CD/USB
19. TAPE/AUX IN
20. PHONO
21. EQ
22. CD DRAWER
23. TUNING CONTROL
24. PLAY/PAUSE BUTTON

25. STOP BUTTON
26. DN/F.R BUTTON
27. UP/F.F BUTTON
28. PLAY MODE/PROG BUTTON
29. OP/CL BUTTON
(CD OPEN/CLOSE BUTTON)
30. CASSETTE EJ/F.F BUTTON
(EJECT/FAST FORWARD)
31. CASSETTE PLAYER SLOT
32. HEADPHONE CONNECTOR
Remote Co trol:
1.POWER ON/OFF
2. CD DOOR OPEN/CLOSE BUTTON
3.RECORD BUTTON
4. DELETE BUTTON
5. MODE BUTTON
6. STOP BUTTON
7. REPEAT BUTTON
8. PROGRAM BUTTON
9. PLAY/PAUSE BUTTON
10. REWIND BUTTON
11. FOLDER-
12. SKIP- BUTTON
13. SKIP+ BUTTON
14. NUMERIC KEYBOARD
15. +10
16. volume+
17. volume-
18. FAST FORWARD BUTTON
19. FOLDER+
20. EQ
Press (5) on remote repeatedly to select FM /
AM / CD / USB / AUX / PHONO / TAPE
mode
REMOTE BATTERY INSTALLATION
The infrared remote control requires 2
PCS UM-4 R03, AAA 3V)
Battery excluded)
Note 1: All buttons on the remote control have the same funct on as the buttons on the un t. The
remote control s just used for CD/MP3 and USB mode.
Note 2: Long press ng DELETE on remote control for 2 t mes w ll delete f le n USB mode.

27. CASSETTE MECHANISM/TAPE STOP / EJ
28. FM ANTENNA
29. AC CORD
30. ON/OFF SWITCH
31. ADAPTOR
32. TURNTABLE PAUSE SWITCH
33. PICK-UP HOLDER
34.Auto-stop ON/OFF
35. 33/45/78 RPM SPEED SELECTOR
36.Tone needle
37.TURNTABLE
38.LINE OUT
INFORMATION
The AM antenna s ns de the cab net. IF AM recept on s unsat sfactory try re-pos t on ng the
cab net sl ghtly unt l the nternal antenna s p ck ng up the strongest s gnal.
The FM w re s located back of the cab net. If necessary adjust the pos t on and d rect on of th s
antenna unt l you f nd the pos t on that prov des the best recept on.

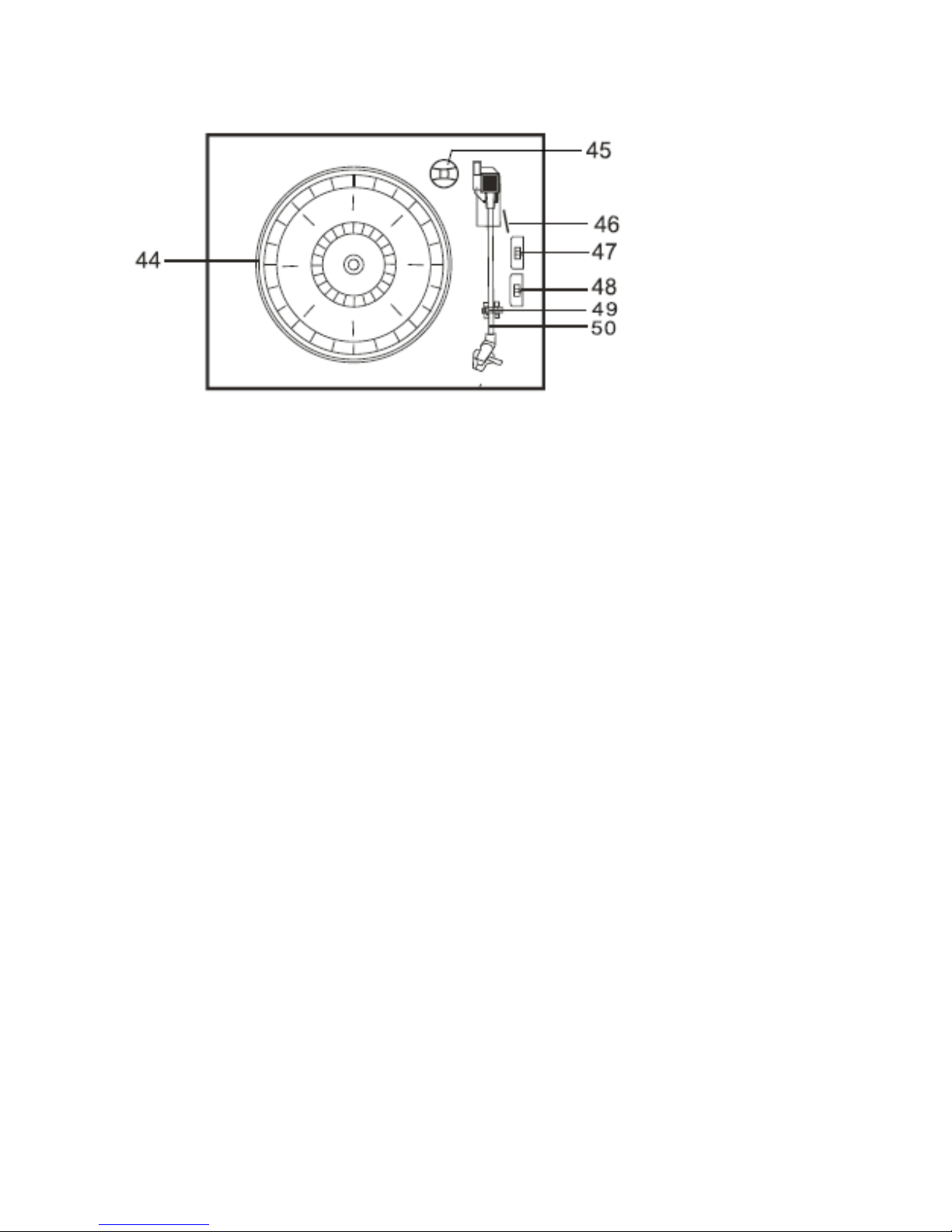

44. Turntable
45. 45 rpm adapter
46. Cue lever
47. Auto Stop control
48. Speed selector (33/45/78 rpm)
49. Tone arm lock
50. Tone arm w th stylus
POWER ON/OFF
1. Press POWER to turn the system on. The power nd cator l ghts up.
2. Press the funct on selector buttons (AM/FM/CD/USB/TAPE/PHONO/AUX IN) to select the
des red funct on.
3. Start to adjust the volume by us ng the volume control button.
4. When f n shed l sten ng press POWER aga n to turn off the system. The power nd cator
goes off.
Remark: The un t s comply w th ERP2, the un t w ll turn to Standby mode f there s no operat on
on the un t after 15 m ns, please press POWER button 2 t mes f you want to re-start the un t.
RADIO OPERATION
1. Press POWER to turn the system on.

2. Make sure you connected the FM antenna cable on the rear s de of the un t.
3. Press MW button for AM or UKW button for FM rad o.
4. Rotate the TUNING control to tune the des red rad o stat on, the FM ST/REC nd cator w ll
l ght.
CD OPERATION
1. Press the CD/USB button to enter CD mode, the “---“ and ‘DISC’ con w ll be shown on the
screen. The un t can play CD, CD-R and CD-RW.
2. Press the OP/CL button top open the CD drawer.
3. Place your d sc n the CD drawer w th the label s de fac ng up.
4. Press the OP/CL button aga n to close the CD drawer. Playback w ll automat cally start from
the f rst track.
5. MP3 con w ll be shown f MP3 f le s detected n the d sc.
PLAYING CASSETTE
Note: Before nsert ng the tape n the player be sure that there s no excess slack n the cassette
that could jam the mechan sm.
1. Press POWER to turn the system on.
2. Press TAPE button to enter TAPE mode.

3. Insert your cassette nto the slot located on the r ght s de of the cab net, as shown n the
llustrat on, w th the s de you w sh to play fac ng up and the open end on the r ght s de.
4. Cassette playback beg ns as soon as the tape s nserted. Adjust the VOLUME control to the
des red level.
5. To advance the tape rap dly, depress the button approx mately half way. The tape
w ll move forward rap dly as long as the button s depressed. Normal playback w ll resume
when the button s released.
6. When the tape ends, the player stops automat cally. Depress the button
completely to remove the tape from the player. You may depress button to stop play ng the
tape at any t me.
7. Press POWER aga n to turn the system off.

PLAYING VINYLS RECORDS
The system ncludes a full-s ze, 3 speed, belt-dr ve turntable. You can play 33, 45 and 78rpm
records.
1. Press POWER to turn the system on.
2. Press the PHONO button to enter the PHONO mode.
3. Make sure you have removed the stylus cover from the stylus and have released the tone
arm lock that secured the tone arm to the tone arm rest.
4. Set the turntable speed selector to appropr ate speed 33, 45 or 78rpm. If you are play ng 45
rpm s ngles, place the 45rpm adapter on the centre sp ndle.
5. Place your record on the the centre sp ndle.
6. Ra se the cue lever to l ft the tone arm of ts rest. Move the tone arm to the edge of the
record. The turntable starts automat cally. Use the cue lever to gently lower the tone arm
onto the record.
7. Adjust the volume control to the des red level.
8. When the tone arm reaches the end of the record t automat cally returns to the tone arm
rest and the record player stops.
9. Press POWER aga n to turn the system off. The POWER nd cator goes OFF.
Note: Do not turn or stop the turntable manually. Mov ng or jarr ng the turntable w thout secur ng
the tone arm clamp could result n damage to the tone arm.
AUX IN OPERATION
Connect the aud o system nto the AUX IN jack on the rear panel, Press the PHONO/AUX IN button.
Start play ng from the connected dev ce.
USB OPERATION
1. Press the CD/USB button f rst and the FUNCTION button to enter USB mode. The ‘---‘ and
USB con w ll be shown.

2. Insert a USB flash dev ce nto the USB socket.
3. PLAY/PAUSE, DN/UP and stop funct ons are the same as CD funct ons.
PLAYING IN MP3 MODE (CD/USB)
1. Press PLAY/PAUSE button to start or pause playback selected track.
2. Wh le play ng the song, the song number and folder number of the selected track w ll be
shown n the d splay.
3. You can stop the playback at any t me by press ng the STOP button.
TRACK SKIP AND HIGH SPEED TRACK SEARCH IN CD/USB MODE
Dur ng CD/USB playback press UP/F.F ( ) or DN/F.R ( ) button on the un t front panel or on the
remote control repeatedly to change track. To rap dly search forward or backwards w th n a track
press and hold UP/F.F ( ) or DN/F.R ( ) button. To sk p 10 tracks back or forth then press
TRACK-10 or TRACK+10 on the remote control.
USB RECORDING
1. CD recordi g
Insert USB flash dr ve nto the USB socket. Then press CD/USB button. Place CD nto the CD drawer
and play the track wh ch w ll be recorded. Press RECORD button tw ce to start record ng. If all CD s
played, Then all tracks w ll be recorded.
NOTE: Record ng w ll fa l f press ng STOP button dur ng record ng
2. MP3 DISC record ng
Insert USB flash dr ve nto the USB socket. Then press CD/USB button. Place CD w th MP3 f les nto
the CD drawer and play the MP3 track wh ch w ll be recorded. Press RECORD button tw ce to start
record ng. If all MP3 f les s played, Then all tracks w ll be recorded.
NOTE: Record ng w ll fa l f press ng STOP button dur ng record ng
3. Cassette record ng

Insert USB flash dr ve nto the USB socket. Then press TAPE button. Place the cassette nto the
socket. Play cassette. Press RECORD button tw ce to start record ng. Press STOP button to stop
record ng.
4. V nyl record ng
Insert USB flash dr ve nto the USB socket. Then press PHONO/AUX IN button. Play the v nyl and
press RECORD button tw ce to start record ng. Press STOP button to stop record ng.
5. AUX IN record ng
Insert USB flash dr ve nto the USB socket. Connect the external aud o dev ce nto the AUX jack on
the rear panel. Then press PHONO/AUX IN button and play aud o and press RECORD button tw ce
to start record ng.
DELETE TRACKS FROM USB DISC
Press CD/USB button on the front panel or long press PLAY/PAUSE on remote control to select USB
mode. Select the track and press delete for 2 t mes and the track s deleted.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S
Electric and electronic equipment contains materials, components and substances that can be
hazardous to your health and the environment, if the waste material discarded electric and
electronic equipment) is not handled correctly.
Electric and electronic equipment is marked with the crossed out trash can symbol, seen below.
This symbol signifies that electric and electronic equipment should not be disposed of with other
household waste, but should be disposed of separately.
All cities have established collection points, where electric and electronic equipment can either be
submitted free of charge at recycling stations and other collection sites, or be collected from the
households. Additional information is available at the technical department of your city.
Hereby, Inter Sales A/S declares that the radio equipment type MCR-50 MK3 is in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
http://www.denver-electronics.com/denver-mcr-50mk3/
Operating Frequency Range: AM: 530 – 1650kHz FM: 87.5 – 108.5MHz
Max Output Power: 29W
