DEVI DEVIreg Touch User manual

DEVIreg™ Touch
Electronic Intelligent Timer Thermostat
Installation Guide
www.DEVI.com

Table of Contents
1 Introduction ............... 3
1.1 Technical Specifications ..... 4
1.2 Safety Instructions ........ 7
2 Mounting Instructions ......... 8
3 Settings ................. 12
3.1 Initial Settings .......... 12
3.2 Forecast .............. 16
3.3 Window Open .......... 18
3.4 Maximum Floor Temperature . 19
4 Symbols ................. 23
5 Warranty ................. 24
6 Disposal Instruction .......... 24
1 Introduction

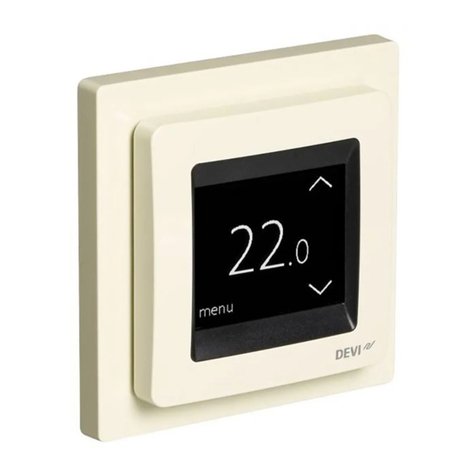

DEVIreg™ Touch is an electronic programmable timer ther-
mostat used for controlling electrical floor heating ele-
ments. The thermostat is designed for fixed installation
only and can be used for both direct heating of the entire
room and for comfort heating of the floor. Among others,
the thermostat has the following features:
ƒA touchscreen display with backlight.
ƒAn easy-to-follow menu-driven programming and op-
eration.
DEVIreg™ Touch
Installation Guide 3

ƒAn installation wizard with room/floor type-specific
setup.
ƒSupport for multiple frame systems.
ƒCompatible with several 3rd party NTC sensors.
ƒThermostat settings can be specified before installa-
tion and imported to the thermostat using a web-gen-
erated code, or copied from a thermostat in a similar
installation.
ƒSmart access to thermostat settings after installation
by using a web code interface for easy setup or remote
troubleshooting.
More information on this product can also be found at:
touch.devi.com
1.1 Technical Specifications
Operation voltage 220-240 V~, 50/60 Hz
Standby power con-
sumption
Max. 0.40 W
Relay:
Resistive load
Inductive load
Max. 16 A / 3680 W @ 230 V
cos φ= 0.3 Max. 1 A
DEVIreg™ Touch
4 Installation Guide

Sensing units NTC 6.8 kOhm at 25°C
NTC 10 kOhm at 25°C
NTC 12 kOhm at 25°C
NTC 15 kOhm at 25°C (Default)
NTC 33 kOhm at 25°C
NTC 47 kOhm at 25°C
Sensing values: (De-
fault NTC 15 K)
0°C
20°C
50°C
42 kOhm
18 kOhm
6 kOhm
Control PWM (Pulse Wide Modulation)
Ambient temperature 0° to +30°C
Frost protection tem-
perature
5°C to +9°C (default 5°C)
Temperature range Room temperature: 5-35°C.
Floor temperature: 5-45°C.
Max. floor: 20-35°C (if unrecovera-
ble seal is broken then up to
45°C).
Min. floor: 10-35°C, only with
combination of room and floor
sensor.
DEVIreg™ Touch
Installation Guide 5

Sensor failure moni-
toring
The thermostat has a built-in
monitoring circuit, which will
switch off the heating if the sen-
sor is disconnected or short-
circuited
Cable specification
max.
1x4 mm2or 2x2,5 mm2
Ball pressure test
temperature
75°C
Pollution degree 2 (domestic use)
Controller type 1C
Software class A
Storage temperature -20°C to +65°C
IP class 21
Protection class Class II -
Dimensions 85 x 85 x 20-24 mm (in-wall
depth: 22 mm)
Weight 103 g
Electrical safety and Electro-Magnetic Compatibility for this
product is covered by the compliance with the EN/IEC
Standard “Automatic electrical controls for household and
similar use”:
ƒEN/IEC 60730-1 (general)
ƒEN/IEC 60730-2-9 (thermostat)
DEVIreg™ Touch
6 Installation Guide

1.2 Safety Instructions
Make sure the mains supply to the thermostat is turned off
before installation.
IMPORTANT: When the thermostat is used to control a
floor heating element in connection with a wooden floor or
similar material, always use a floor sensor and never set the
maximum floor temperature to more than 35°C.
Please also note the following:
ƒThe installation of the thermostat must be done by an
authorized and qualified installer according to local
regulations.
ƒThe thermostat must be connected to a power supply
via an all-pole disconnection switch.
ƒAlways connect the thermostat to continuous power
supply.
ƒDo not expose the thermostat to moisture, water, dust,
and excessive heat.
DEVIreg™ Touch
Installation Guide 7

2 Mounting Instructions
Please observe the following placement guidelines:
Place the thermostat at a suitable height on
the wall (typically 80-170cm.).
The thermostat should not be placed in wet
rooms. Place it in an adjacent room. Always
place the thermostat according to local regula-
tion on IP classes.
Do not place the thermostat on the inner side
of an exterior wall.
Always install the thermostat at least 50 cm.
from windows and doors.
Do not place the thermostat in a way that it
will be exposed to direct sunlight.
DEVIreg™ Touch
8 Installation Guide

Note: A floor sensor enables a more accurate
temperature control and is recommended in
all floor heating applications and mandatory
under wooden floors to reduce the risk of
over-heating the floor.
ƒPlace the floor sensor in a conduit in an appropriate
place where it is not exposed to sunlight or draft from
door openings.
ƒEqually distant and >2cm from two heating cables.
ƒThe conduit should be flush with the floor surface -
countersink the conduit if necessary.
ƒRoute the conduit to the connection box.
ƒThe bending radius of the conduit must be min 50mm.
DEVIreg™ Touch
Installation Guide 9

Follow the steps below to mount the thermostat:
1. Open the thermostat:
Important: Do NOT press on the display screen when
removing the front part.
Press your fingers under the side of the front part and
pull toward you:
2. Connect the thermostat according to the connection
diagram.
DEVIreg™ Touch
10 Installation Guide

The screen of the heating cable must be connected to
the earth conductor of the power supply cable by us-
ing a separate connector.
Note: Always install the floor sensor in a conduit in the
floor.
3. Mount and reassemble the thermostat.
ƒFasten the thermostat to a socket or an exterior
wall box by driving the screws through the holes
in each side of the thermostat.
ƒPut the frame on.
ƒClick the display module back in place
Important: Do NOT press on the display screen when
clicking the display module back in place.
DEVIreg™ Touch
Installation Guide 11

Initially main supply the thermostat for 15 hours to fully
charge the battery. The current time and day is then kept
for 24 hours if mains supply is off. All other settings are stor-
ed permanently.
3 Settings
3.1 Initial Settings
Initial settings must be specified when the unit is activated
for the first time:
1. Use the arrows in the
right side of the screen to
go to your language, and
press to select it. Then
press in the upper
right corner to confirm.
DEVIreg™ Touch
12 Installation Guide

2. Press the hour numbers
and use the < and > ar-
rows to set the hour.
Press to confirm.
3. Press the minutes num-
bers and use the < and >
arrows to set the mi-
nutes. Press to con-
firm. Press again to go
to the SET DATE screen.
4. Press the day, month and
year respectively and set
the date using the < and
> arrows and pressing
to confirm. When the
date is correct, press
to confirm on the SET
DATE screen.
5. If you have already made
the installation setup on-
line, press ENTER CODE
and go directly to Step
13 now. Otherwise press
SETUP WIZARD and go
to Step 6.
DEVIreg™ Touch
Installation Guide 13

6. On the SETUP informa-
tion screen, press to
start.
7. Use the < and > arrows
to select whether only a
floor sensor or a combi-
nation of room and floor
sensors should be used.
Press to confirm.
Note: A "room only" option may also be available.
For details, see the "Maximum Floor Temperature"
section.
8. Use the < and > arrows
to select the installed
floor sensor type. (Meas-
ured resistance and cor-
responding temperature
are shown in brackets).
Press to confirm.
DEVIreg™ Touch
14 Installation Guide

9. Use the < and > arrows
to select the flooring
type. Press to confirm.
10. Use the < and > arrows
to select the room type.
Press to confirm.
11. Use the < and > arrows
to select the approximate
load of the heating ele-
ment. If an external relay
is used or the installed
output is unknown, se-
lect the "– –" option.
Press to confirm.
DEVIreg™ Touch
Installation Guide 15

12. Use the < and > arrows
to select whether the
timer should be activated
or not. Press to con-
firm and end the initial
thermostat setup. Skip
Step 13.
13. Enter your web-gener-
ated code. Then press
to end the initial thermo-
stat setup. If no check
mark ( ) appears, the
hexacode is incorrect.
3.2 Forecast
The forecast feature is used when you switch between
economy temperature and comfort temperature. If forecast
is turned on, heating will start so that the requested tem-
perature is reached at the specified time.
For example, if your comfort temperature is set to 22°C and
the comfort period starts at 6.00 o'clock am, heating will
start before 6 o'clock so that your room temperature will be
22°C at 6 o'clock. If forecast is turned off, heating will not
start until 6 o'clock and it will take a while to reach a room
temperature of 22°C.
DEVIreg™ Touch
16 Installation Guide

The forecast feature also optimises heating stop when
switching from comfort temperature to economy tempera-
ture.
How to turn the forecast feature on and off.
1. Touch the thermostat
display to activate it,
then press menu.
2. Press SETTINGS in the
bottom right corner of
the menu. Then press
OPTIONS.
DEVIreg™ Touch
Installation Guide 17

3. Press FORECAST. Then
press ON to optimise
heating start/stop or OFF
to simply let the heating
start/stop at the specified
time. Press to confirm.
To return to the normal temperature display, press
the back arrow in the upper left corner of the screen
until you get to the main menu, then press .
3.3 Window Open
How to turn "window open detection" on or off
1. Touch the thermostat
display to activate it,
then press menu.
2. Press SETTINGS in the
bottom right corner of
the menu. Then press
OPTIONS.
DEVIreg™ Touch
18 Installation Guide

3. Press WINDOW OPEN.
Then press ON to tempo-
rarily turn off heating in
case of a sudden temper-
ature drop in the room or
OFF to let the thermostat
heat during sudden tem-
perature drops in the
room. Press to con-
firm.
To return to the normal temperature display, press
the back arrow in the upper left corner of the screen
until you get to the main menu, then press .
3.4 Maximum Floor Temperature
How to set the maximum floor temperature
1. Touch the thermostat
display to activate it,
then press menu.
DEVIreg™ Touch
Installation Guide 19

2. Press SETTINGS in the
bottom right corner of
the menu. Then press IN-
STALLATION and MAN-
UAL SETUP.
3. Press MAX. FLOOR. Then
use the < and > arrows to
set the allowed maxi-
mum floor temperature.
Press to confirm.
To return to the normal temperature display, press
the back arrow in the upper left corner of the screen
until you get to the main menu, then press .
