DeVilbiss COMPACT COM-G430-16 User manual

SB-E-2-534 ISS.06
Operation Manual
Advanced - Conventional Gravity
Feed Spraygun
E P 1 – 12

2 © 2003 ITW Finishing Systems and Products
E
Operation Manual
COMPACT – Gravity Feed Spraygun
Important
Read and follow all instructions and Safety Precautions before using this equipment
Description
The Compact Gravity feed Spraygun Kit complies to ATEX regulations 94/9/EC, protection level;
II 2 G X, Suitable for use in Zones 1 and 2
Important: : These Sprayguns are suitable for use with solvent based materials. These guns are not
designed for use with highly corrosive and/or abrasive materials and if used with such materials it must
be expected that the need for cleaning and/or replacement of parts will be increased. If there is any
doubt regarding the suitability of a specific material contact your local Distributor or ITW Finishing direct.
.
Model Part Number
COM-G430-16
Example:
Aircap
Fluid Nozzle size
(14 = 1.4 mm)
EC Declaration of Conformity
We, ITW Finishing UK, Ringwood Rd, Bournemouth, Dorset, BH11 9LH, UK, as the
manufacturer of the Spray gun model Compact, declare, under our sole responsibility, that the
equipment to which this document relates is in conformity with the following standards or other
normative documents:
BS EN 292-1 PARTS 1 & 2: 1991, BS EN 1953: 1999; and thereby conform to the
protection requirements of Council Directive 98/37/EEC relating to Machinery Safety Directive,
and: EN 13463-1:2001, council Directive 94/9/EC relating to Equipment and Protective
Systems intended for use in Potentially Explosive Atmospheres protection level II 2 G X.
For HVLP and Trans-Tech Aircaps these products comply with the requirements of the EPA
guidelines, PG6/34,PG6/20 and PG6/23 achieving transfer efficiency in excess of 65%.
B. Holt, General Manager
30th June 2003
ITW Finishing Systems and Products reserve the right to modify equipment specification without prior
notice.

© 2003 ITW Finishing Systems and Products 3
E

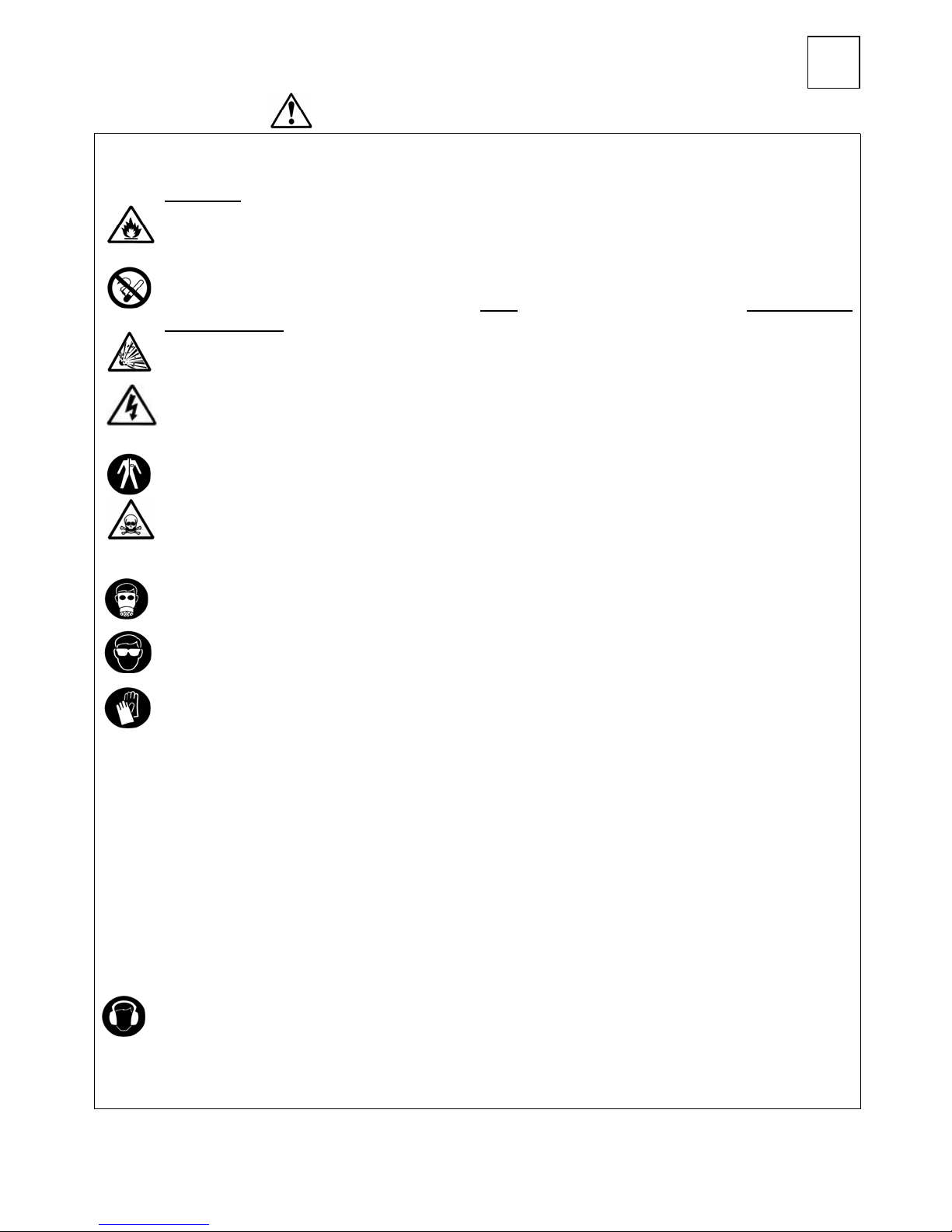

SAFETY WARNINGS
Fire and explosion
Solvents and coating materials can be highly flammable or combustible when sprayed.
ALWAYS refer to the coating material suppliers instructions and COSHH sheets
before using this equipment.
Users must comply with all local and national codes of practice and insurance company
requirements governing ventilation, fire precautions, operation and house-keeping of
working areas.
This equipment, as supplied, is NOT suitable for use with Halogenated
Hydrocarbons.
Static electricity can be generated by fluid and/or air passing through hoses, by the
spraying process and by cleaning non-conductive parts with cloths. To prevent ignition
sources from static discharges, earth continuity must be maintained to the spray gun
and other metallic equipment used. It is essential to use conductive air and/or fluid
hoses. Personal Protective Equipment
Toxic vapours – When sprayed, certain materials may be poisonous, create irritation or
be otherwise harmful to health. Always read all labels, safety data sheets and follow any
recommendations for the material before spraying. If in doubt, contact your material
supplier.
The use of respiratory protective equipment is recommended at all times. The type of
equipment must be compatible with the material being sprayed.
Always wear eye protection when spraying or cleaning the spray gun.
Gloves must be worn when spraying or cleaning the equipment.
Training – Personnel should be given adequate training in the safe use of spraying equipment.
Misuse
Never aim a spray gun at any part of the body.
Never exceed the max. recommended safe working pressure for the equipment.
The fitting of non-recommended or non-original spares may create hazards.
Before cleaning or maintenance, all pressure must be isolated and relieved from the equipment.
The product should be cleaned using a gun-washing machine. However, this equipment should
not be left inside gun-washing machines for prolonged periods of time.
Noise Levels
The A-weighted sound level of spray guns may exceed 85 dB (A) depending on the set-
up being used. Details of actual noise levels are available on request. It is
recommended that ear protection is worn at all times when spraying.
Operating
Spray equipment using high pressures may be subject to recoil forces. Under certain
circumstances, such forces could result in repetitive strain injury to the operator.

4 © 2003 ITW Finishing Systems and Products
EParts List
Ref.
No Description Part Number Qty Options
1 Air Cap/Retaining ring
See Selection Chart
2 Nozzle See Selection Chart
*+ 3 Separator SP-626-K5 5
*+ 4 Packing GTI-445-K2 2
5 Spreader Valve SP-403-K 1
6 Stud and Screw GTI-408-K5 5
7 Needle Adjusting Screw SP-614-K 1
*+ 8 Spring SP-622-K5 1
+ 9 Needle See Selection Chart
10 Airvalve housing + seal SP-612-K 1
*+ 11 Spindle 1
12 Trigger SP-617-K 1
13 Connector SP-611-K 1
14 Airflow Valve SP-402-K 1
15 Drip Check Lid kit of 5 GFC-2-K5 1
+ 16 Air Valve Service Kit SPK-101-K 1
17 Retaining Ring and Seals SPK-102-K 1
*+ 18 Spreader/ Cheater Service Kit GTI-428-K5 5
19 Circlip 25746-007-K5 5
+ 20 Cup Lid GFC-501 1
21 Filter KGP-5 1
22 1/2 Ltr Gravity Cup Kit GFC-501
* 23 Air Valve assembly Tool
24 Spanner SPN-5
Spraygun Service Kit
(parts included marked + )
SPK-401-** 1 ,13,14, 16,18,20,22
e.g ** =14 =1.4 mm
Spraygun Service Kit
(parts included marked * )
SPK-402-** 1 ,13,14, 16,18,20,22
e.g ** =14 =1.4 mm

CHART : AIR CAPS / NOZZLES AND NEEDLE COMBINATIONS
AIR CAP/ RETAINING RING SP-100-***- K e.g *** = 430
CONVENTIONAL HVLP TRANS -TECH
430,497,443,
470 505 510,522,523,513, 590
Nozzle SP-200S-**-K
e.g ** =14 =1.4mm 085,10,12,13,14, 16,18,20,22
085,10,12,13,14,
16,18,20,22
085,10,12,13,
14,16,18,20,22
Needle SP-300S-**-K
e.g ** =14 =1.4mm 085,10,12,13,14,16, 18,20,22,28
085,10,12,13,
14,16,18,20,22
085,10,12,13,
14,16,18,20,22 05,07,10
Needle
Plastic tipped SP-300P-**-K e.g ** =14 =1.4mm 10, 12, 14 10, 12, 14 10, 12, 14 10
Nozzle Hardened SP-200N-**-K
e.g ** =14 =1.4mm 14,18, 22 14,18, 22 14,18, 22
Nozzle Hardened
( Air Cap 470 only)
SP-247N-**-K
e.g ** =22 =2.2mm 22,28
Needle Hardened SP-300N-**-K
e.g ** =14 =1.4mm 14,18,22 22,28 14, 18, 22 14, 18, 22
Nozzle
(Air Cap 590 only)
SP-259S-**-K
e.g **=10=1.0mm 05,07,10
Nozzle
( Air Cap 470 only)
SP-247S-**-K
e.g ** =22 =2.2mm
22,28

Specification
Air supply connection - Universal 1/4“ BSP and NPS
Maximum static Air inlet pressure - P1= 12 bar (175 psi)
Nominal gun Air inlet pressure -
with gun triggered 3 bar (44 psi)
Maximum Service temperature 40°C
Gun Weight - 583 g
Materials of Construction
Gun body Aluminium
Nozzle Stainless Steel
Needle Stainless Steel
Fluid Inlet / Fluid Passages Stainless Steel / PTFE
Trigger Nickel Plated Steel
Cup Acetal (Anti-static)
Cup Lid Acetal (Anti-static)

© 2003 ITW Finishing Systems and Products 7
E
Installation
Important: To ensure that this equipment reaches you in first class condition, protective coatings have
been used. Flush the equipment through with a suitable solvent before use.
1. Attach air hose to connector (13). Recommended hose size 8 mm bore. The hose must be
conductive and electrical bond from the spraygun to earth should be checked with an ohmeter. A
resistance of less than 106Ohms is recommended.
2. Air supply should be filtered and regulated.
3. Attach Cup assembly (22) by screwing into the Fluid Inlet of the spraygun. Tighen when fully
home.
Operation
1. Mix coating material to manufacturers instructions.
2. Fill the cup with the required amount of material. Fill to no more than 25mm (1“) from the top of
the cup. DO NOT OVERFILL.
3. Attach Cup Lid.
4. Turn needle adjusting screw (7) clockwise to prevent movement.
5. Turn spreader valve (5) counter-clockwise to fully open.
6. Adjust inlet air pressure to give 3 bar (44 psi) at the gun inlet with the gun triggered. (pressure
gauge attachment shown under Accessories is recommended for this).
7. Turn needle adjusting screw counter clockwise until first thread shows.
8. Test spray. If the finish is too dry reduce airflow by reducing air inlet pressure or by the Airflow
Valve (14). Screw the Adjusting Knob (14) in to reduce pressure.
9. If finish is too wet reduce fluid flow by turning needle screw (7) clockwise. If atomisation is too
coarse, increase inlet air pressure. If too fine reduce inlet pressure.
10. The pattern size can be reduced by turning adjusting valve (5) clockwise.
11. Hold gun perpendicular to surface being sprayed. Arcing or tilting may result in uneven coating.
12. The recommended spray distance is 150-200 mm (6”-8”).
13. Spray edges first. Overlap each stroke a minimum of 50%. Move gun at a constant speed.
14. Always turn off air supply and relieve pressure when gun is not in use.
Preventative Maintenance
1. Turn off air and relieve pressure in the supply lines, or if using QD system, disconnect from
airline.
2. Remove Cup Lid (20 )and empty coating material into a suitable container. Clean the gun and
cup, preferably in a gun wash machine. Clean the cup.
3. Check the breather hole in the Lid and the Drip Check Lid is not blocked.
4. Remove air cap (1) and clean. If any of the holes in the cap are blocked with coating material use
a toothpick to clean. Never use metal wire which could damage the cap and produce distorted
spray patterns
5. Ensure the tip of the nozzle (2) is clean and free from damage. Build up of dried paint can distort
the spray pattern.
6. Lubrication – stud/screw (6), needle (9) and air valve (11) should be oiled each day.

8 © 2003 ITW Finishing Systems and Products
E
Replacement of Parts
Nozzle (2) and Needle (9) – Remove parts in the following order: 7, 8, 9, 1 and 2. Replace any worn or
damaged parts and re-assemble in reverse order. Recommended tightening torque for nozzle (2) 9.5-12
Nm (80-100 lbf in).
Packing – Remove parts 7, 8, 9. Unscrew cartridge (4). Fit new cartridge finger tight. Re-assemble
parts 9, 8, and 7 and tighten cartridge (4) with spanner sufficient to seal but to allow free movement of
needle. Lubricate with gun oil.
Air Valve Seal Kit (16) - (Refer to photos 1 to 28 and fig 2)
1. Remove Adjusting Knob (7), Spring (8), and Needle (9).
2. Loosen Housing (10).
3. Remove Housing (10) and Airvalve Spring.
4. Remove Valve (11).
5. Using Service Tool SPN-7, engage groove behind the Valve Seat.
6. Remove Valve Seat.
7. Push out the Front Airvalve Seal with a finger.
8. Turn the Gun upside down and let the Seal fall out.
9. Fit New Front Seal to Service Tool.
10. Fit new Seal to gunbody and press firmly to ensure Seal is engaged.
11. Fit New Valve Seat to Service Tool. Groove must face outwards.
12. Fit Valve Seat to Gunbody.
13. Remove Rear Airvalve Seal from housing (10) with a hooked instrument.
14. Fit new Seal to Service Tool.
15. Fit Seal to Housing (10).
16. Replace Valve (11).
17. Replace Valve Spring and screw in Housing (10).
18. Tighten Housing.
19. Fit Needle (9).
20. Fit Spring (8) and Knob (7).
21. Adjust Needle Packing (4) with Spanner sufficient to seal but to allow free movement of needle.
Lubricate with gun oil.
Spreader valve (5) – Caution: always ensure that the valve is in the fully open position by turning screw
fully counter-clockwise before fitting to body.
Air cap / Nozzle Selection
Refer to coating material manufacturers recommendations or ITW Finishing UK Website:
www.itweuropeanfinishing.com
FI
G
2

© 2003 ITW Finishing Systems and Products 9
E
1 2
3 4
5 6
7 8

10 © 2003 ITW Finishing Systems and Products
E
9 10
11 11a
12 13
14 15
