DeVilbiss Viper User manual

SB-E-2-VPR ISS.08
Operation Manual
Viper –Automatic Spray Gun
EN

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
2
Operation Manual
Viper- Automatic Spraygun
Important
Read and follow all instructions and Safety Precautions before using this equipment
CHARACTERISTICS
Automatic Spray gun for enamel application designed to give you the optimal production performance.
This spray gun is answering the needs of the sanitary application, table ware and decorative
application, pavement, tiles, electric domestic appliances and all other ceramic activities.
The patent pending “Quick Up” ring will give you an easy and quick dissembling of the air cap and the
tip. The patent pending bellows seal will give your needle long life.
The needle adjustment knob has 18 ratchet positions, allows fine and accurate fluid flow control.
The spray gun is suitable for solvent based materials.
MATERIALS OF CONSTRUCTION
Gun body
Aluminium hard anodizing
Tip
With brass body
assy
Stainless steel 303.
Stainless steel hardened HRC 58 & Nickel treated.
Carbide.
Needle
Stainless steel 303 body & needle end
Stainless steel body & needle end Steel hardened to HRC 58
Stainless steel body & carbide end.
Stainless steel body & special PU end (Option only)
Spray head
Stainless steel
SPECIFICATIONS
Thread
Pressure
Fluid inlet & Fluid Recirculation “P”
1/4 BSP
7b max
Air inlet (Atom+Fan) “A” “F”
1/4 BSP
7b max
Cylinder/trigger “Cyl”
1/8 BSP
4b min - 7b max
Maximum temperature in use
40° C
Spray gun weight
620 gr
Air consumption E31
E63
E70
340 l/mn at 2.5 bar
450 l/mn at 3.5 bar
540 l/mn at 4 bar
A
Adjusting knob
B
Head gun
C
Retaining Ring
D
Air Cap
E
Valve
F
Body
P
Product inlet

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
3
SAFETY WARNINGS
Fire and explosion
Solvents and coating materials can be highly flammable or combustible when sprayed.
ALWAYS refer to the coating material supplier’s instructions and COSHH sheets
before using this equipment.
Users must comply with all local and national codes of practice and insurance company
requirements governing ventilation, fire precautions, operation and house-keeping of
working areas.
This equipment, as supplied, is NOT suitable for use with Halogenated
Hydrocarbons.
Static electricity can be generated by fluid and/or air passing through hoses, by the
spraying process and by cleaning non- conductive parts with cloths. To prevent ignition
sources from static discharges, earth continuity must be maintained to the spray gun and
other metallic equipment used. It is essential to use conductive air and/or fluid hoses.
Personal Protective Equipment
Toxic vapours –When sprayed, certain materials may be poisonous, create irritation or
are otherwise harmful to health. Always read all labels, safety data sheets and follow any
recommendations for the material before spraying. If in doubt, contact your material
supplier.
The use of respiratory protective equipment is recommended at all times. The type of
equipment must be compatible with the material being sprayed.
Always wear eye protection when spraying or cleaning the spray gun.
Gloves must be worn when spraying or cleaning the equipment.
Training –Personnel should be given adequate training in the safe use of spraying equipment.
Misuse
Never aim a spray gun at any part of the body.
Never exceed the max. Recommended safe working pressure for the equipment.
The fitting of non-recommended or non-original spares may create hazards.
Before cleaning or maintenance, all pressure must be isolated and relieved from the equipment.
The product should be cleaned using a gun-washing machine. However, this equipment should
not be left inside gun-washing machines for prolonged periods of time.
Noise Levels
The A-weighted sound level of spray guns may exceed 85 dB (A) depending on the set-
up being used. Details of actual noise levels are available on request. It is recommended
that ear protection is worn at all times when spraying.
Operating
Spray equipment using high pressures may be subject to recoil forces. Under certain
circumstances, such forces could result in repetitive strain injury to the operator.

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
4
PATENTED –FR2872717

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
5
LIST OF SPARE PARTS
For the arrangement of the parts, refer to the exploded view.
Rep
Ref
Description
Qty
1
SPA-36
Retaining ring
1
2
SPA-17-K5
Gasket Polyurethane kit of 5
1
3
SPA-100-E63
SPA-100-E70
SPA-100-E31
“Conventional” air cap for tips Ø 1.8 & 2.0
“Conventional” air cap for tips Ø 2.2 & 2.8
“Transtech” air cap for tips Ø 1.2 to 2.0
1
4
SPA-16-K2
Gasket kit of 2
1
5
SPA-250H-XX
SPA-250-XX
SPA-254-XX
Tip insert in Stainless steel (1,2 to 2,0)
Tip insert steel hardened & Nickel plated (1.2 to 2.8B)
Tip insert carbide (2,2 or 2,8)
1
6
S-14190-K4
Screw M4 x 25 kit of 4 Torx 20
4
7
S-28218X-K5
O ring kit of 5
1
8
SPA-2
Spray head
1
9
SPA-416-K
Needle Packing
1
10
SPA-10
Sealing washer
1
11
SPA-53-K10
Gasket kit of 10
2
12
SPA-1-VPR
Gun body
1
13
AGG-403
Air valve
2
14
S-28220X-K2
‘O’ Ring kit of 2
1
15
SPA-6X-K
Piston + Gaskets (14, 15a, 15b, 16)
1
15a
S-28225X-K2
‘O’ Ring kit of 2
1
15b
SPA-6-CER
Piston
1
16
S-28219X-K4
‘O’ Ring kit of 4
2
17
SPA-13
Piston Spring
1
18
SPA-350-DE
SPA-351-DE
SPA-351-DEH
SPA-351-22
SPA-351-28B
SPA-352
Needle, PU point for tips 1.2 to 2.0
Needle, hardened S Steel point, for tips 1.2 to 2.0
Needle, full 303 S. steel for tip SPA-250H-xx
Needle, hardened S Steel point, for tip 2.2
Needle, hardened S Steel point, for tip 2.8B
Needle, carbide point, for carbide tips 2.2 to 2.8
1
19
SPA-404-K
Rear Housing Assembly
1
20
SPA-KK-1
Kit of ring and ball for ratchet
1
21
3
22
SPA-37
Spring Cap
1
23
SPA-31
Spring
1
24
SPA-49
Spring Button
1
25
SPA-4
Adjusting knob
1
26*
SPA-7-K
Kit rear housing without adjustment (Option)
27*
SPA-22-K2
Kit of air connector for remote control (Option)
28*
AGGS-33
Shaft (Accessory)
29*
SS-659-CD
Nut (Accessory)
30
S-18226
Plug ¼ BSP for spray gun without fluid recirculation
1
31
S-1444-H
M5 hexagon socket head cap screw, length 8
2
32
SPA-25
Plug
1
* Optional spare parts

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
6
Adjusting knob
Adjusting knob
POSSIBLE COMBINATIONS
Fluid Tip
Needle
Air Cap
Ø
mm
Hardenerd
Steel
Carbide
Stainless
Steel
Point
Pu
Point
Steel
Point
Carbide
Point
Stainless
Steel
E63
E70
E31
SPA-250-XX
SPA-254-XX
SPA-250H-XX
SPA-350-XX
SPA-351-XX
SPA-352
SPA-351-XX
SPA-100-XXX
0.85
085
085
DE
DE
DEH
1.2
12
12
DE
DE
DEH
X
X
1.4
14
14
DE
DE
DEH
X
X
1.6
16
16
DE
DE
DEH
X
X
1.8
18
18
DE
DE
DEH
X
X
X
2.0
20
20
DE
DE
DEH
X
X
2.2
22
22
22
22
X
X
2.8
28B
28
28B
X
X
MODEL PART NUMBER
VPR - E70 - 28 C
C = Tip/Needle in carbide, H= Tip/Needle Stainless Steel
Tip Ø (2.8 mm)
Air cap number (E70)
Spray gun type
INSTALLATION
Important: To ensure that this equipment reaches you in first class condition,
protective coatings have been used. Flush the equipment through with
appropriate solvent before use.
Fix the spray gun using mounting stem ref.28 and secure it with nut ref.29.
SETTING
1. The « ATOM » air valve control the atomizing air pressure
« FAN » reduces the spray pattern size. To increase the
pressure turn clockwise & reverse to reduce turn counter-
clockwise.
2. Fluid flow can be adjusted with the rear ratchet knob; fluid
flow is increased when you turn the knob counter-
clockwise.

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
7
STARTING-UP
1. Turn the needle adjusting knob (25) clockwise until the needle is fully closed.
2. Turn the “Fan” and “Atom air valves counter-clockwise to be full open.
3. Set the air pressure at the air regulator to achieve recommended pressures above.
4. Turn the adjusting knob counter clockwise to obtain the desired fluid flow.
5. Test spray. If the finish is too dry or fine, reduce airflow by reducing air inlet pressure or by the valve
(13 Atom) screwing it in clockwise, or increase fluid flow using ratchet knob rotating counter clockwise.
6. If the finish is too wet, turn the needle adjusting knob (25) in clockwise to reduce the fluid flow, or
reduce the fluid pressure. If the atomization is too coarse, increase inlet air pressure, or reduce fluid
flow.
7. The pattern size can be reduced by turning adjusting valve “Fan” (13) clockwise.
8. The spray pattern will give the best results when perpendicular to the target.
9. The recommended spray distance is 150-220 mm (6’’ to 8’’).
10. Spray edges first. Overlap each stroke a minimum of 50%. Move gun at a constant speed.
11. Always turn off air and fluid supply and relieve pressure and clean down when gun is not in us.
PREVENTIVE MAINTENANCE
Turn off air and coating supply and relieve pressure in the supply lines, before any maintenance
operation.
Tip (5) & needle (18)
Remove the air cap and its retaining ring by unscrewing by
¼ turn counter- clockwise (Fig 1).
Remove the tip and its baffle (5) by unscrewing by ¼ turn counter- clockwise (Fig 2). Unscrew the
adjusting needle knob fully in counter-clockwise rotation and pull out the needle at the back.
Make sure the vent hole is clear.
The fluid tip and baffle are permanently fitted together. There is no
possibility to separate them. The baffle will be damaged if you try to
dismantle.

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
8
FIG 1 FIG 2
PACKING
Unscrew the 4 screws to disassemble the gun head. Remove the packing bellows seal. Clean or
replace if the packing is damaged.
FAN & ATOM AIR VALVE (13)
Before assembling, check the air valve is in fully open position by
unscrewing it counter-clockwise.
Piston (15), o ring (16) & (14)
Unscrew the rear housing (19) at the back of the gun body counter
clockwise, pull out the needle (18).
Use bent nose pliers so to pull out the piston which has a 12mm
internal groove for this purpose.
It’s recommended to replace the o ring (14) into the gun body as soon
you disassemble the Piston.
When replacing the piston, slightly lubricate all the O rings before
fitting into the gun body.
PREVENTIVE MAINTENANCE
1. Turn off air and coating supply and relieve pressure in the supply lines, or disconnect from airline and
fluid line.
2. Remove air cap and clean (3). If any of the holes in the cap are blocked with coating material use a
toothpick to clean. Never use metal wire which could damage the cap and produce distorted spray
patterns
3. Ensure the fluid tip (5) of the nozzle is clean and free from damage especially the outside at the front
diameter. Any build up of dried paint can distort the spray pattern.

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
9

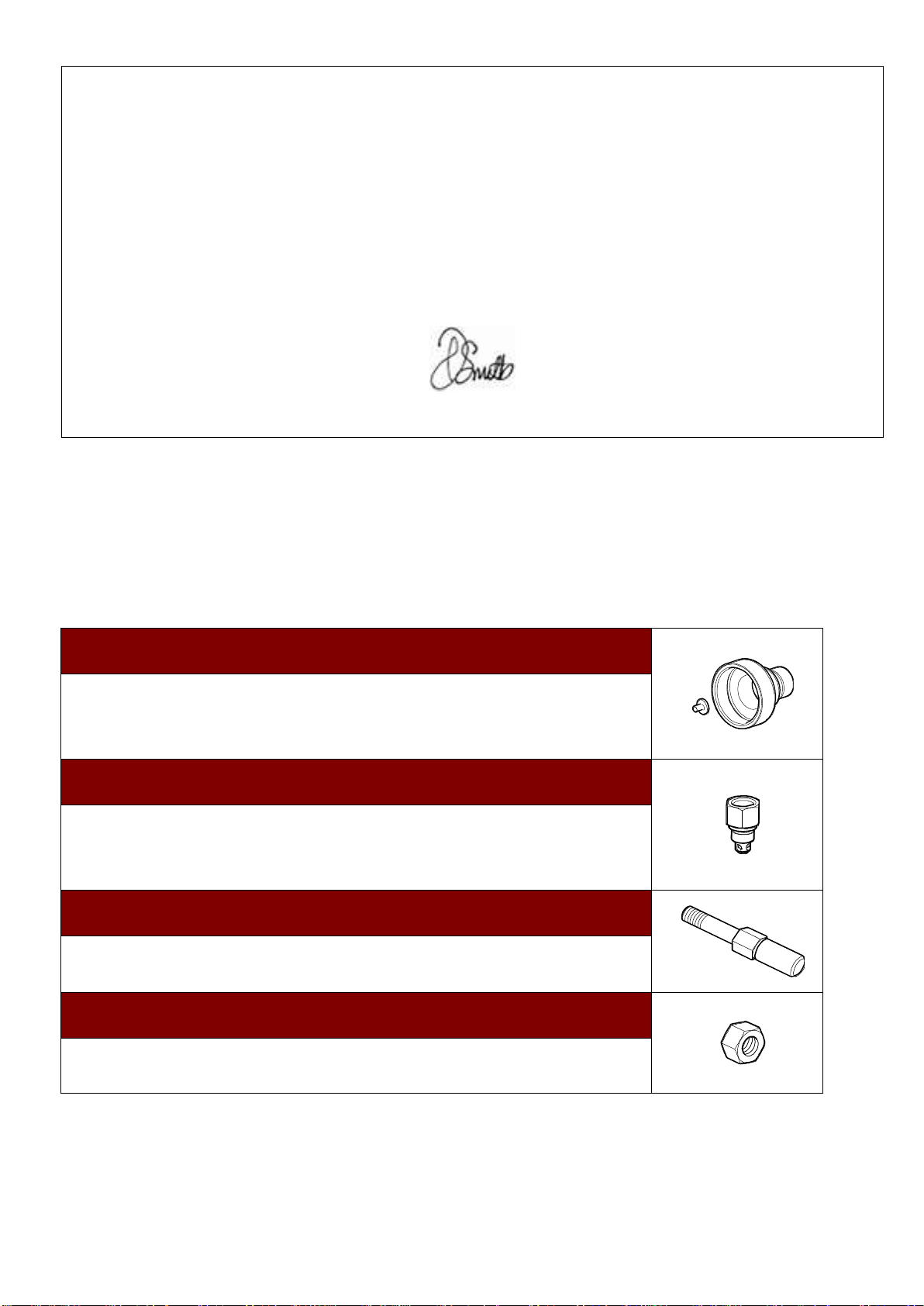

EC Declaration of Conformity
We, Finishing Brands UK Limited, Ringwood Rd, Bournemouth, Dorset, BH11 9LH, UK, as the manufacturer of
the Spray gun model VIPER, declare, under our sole responsibility that the equipment to which this document relates
is in conformity with the following standards or other normative documents:
BS EN ISO 12100:2010, BS EN 1953: 2013; and thereby conform to the protection requirements of Council Directive
2006/42/EC relating to Machinery Safety Directive, and;
EN 13463-1:2009, council Directive 94/9/EC relating to Equipment and Protective Systems intended for use in
Potentially Explosive Atmospheres protection level II 2 G X.
D. Smith. General Manager
22nd May 2015
Finishing Brands UK Limited reserves the right to modify equipment specification without prior notice.
OPTIONS
Spray gun without needle adjustment
Part number: SPA-7-K
This kit includes the back piece and washer to replace the part items 19, 20,
21, 24, 25, on the exploded view.
Spray gun with “Atom” & “fan” remote control
Parts number: SPA-22-K2
This includes 2 connectors taking place of the two 2 air valves (13) on the
exploded view.
Spray gun shaft
Part number: AGGS-33
Nut for spray gun shaft
Part number: SS-659-CD

© 2015 Carlisle Fluid Technologies, dba Finishing Brands UK Ltd.
10
Carlisle Fluid Technologies,
dba Finishing Brands UK Limited,
Ringwood Road,
Bournemouth,
BH11 9LH,
England.
Tel.No. 01202 571111
Fax No. 01202 581940
Website address http://www.finishingbrands.eu
Registered Office:
Finishing Brands UK Limited,
400, Capability Green,
Luton,
Bedfordshire,
LU1 3AE.
UK.
Registered in England: No. 07656273.
Vat. No. GB 113 5531 50
