Directed Directechs DB3 User manual

Designed by Installers for Installers
INSTALLATION GUIDE
DB3
2010 Toyota Camry. 403.TL11 1.15
© 2022 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle’s
electrical system and components.

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Key type 6
Wiring Diagram 7
Locating components in the vehicle 8
Vehicle connections 9
Module programming 11
With transponder and CAN 11
Without transponder with CAN 12
Connecting the module 13

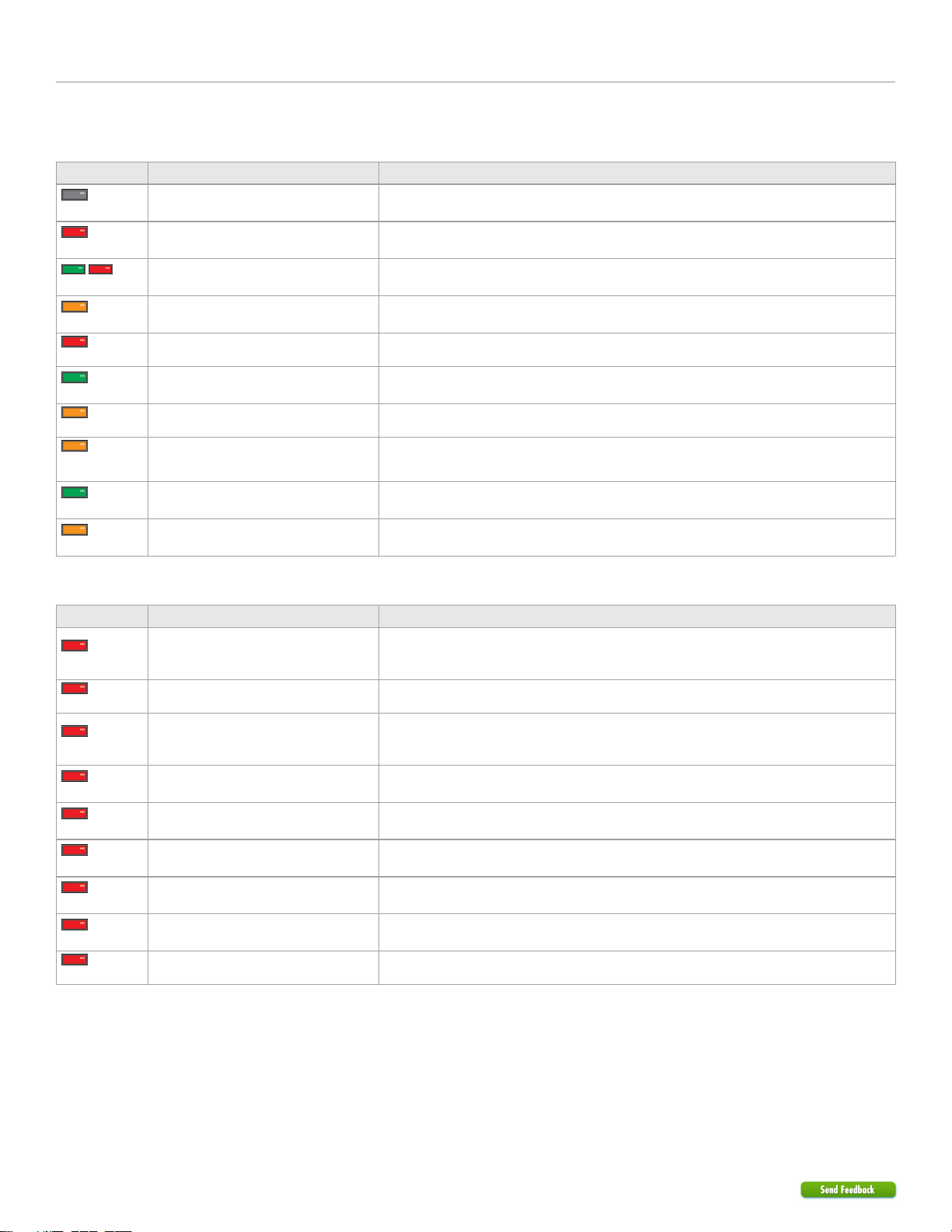

LED diagnostics and troubleshooting 14
Soft reset 16
Hard reset 16
Feature programming 17
Feature and option list 18
Limited one year consumer warranty 19
Quick reference guide 20
Contents

3403.TL11 1.15 2010 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.

4403.TL11 1.15 2010 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
Trunk / Hatch Release
Immobilizer Bypass-Data No Key Req'd
Remote Start Takeover
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Driver Door Pin
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Brake Status (foot brake)
E-Brake Status
Ignition Status

5403.TL11 1.15 2010 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Pre-installation and application warnings
Firmware notes: This section highlights important information for this specic rmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
Keys required for
programming 1Keys required for operation 0
Important! TL11 requires either CAN or IMMO connections. An Analog Firmware is recommended if CAN connections are
NOT used and the vehicle does NOT have a transponder. The TL11 installation guides can be used for wire and connection
details.
Some Toyota 2010+ models have dierent encryption types. Please look at your key blade and identify the markings. A dot
"." means the vehicle is compatible with TL11 rmware. "G" or "H" indicates the vehicle is not compatible with this rmware.
Refer to "Key Types" for more information. Note: some replacement keys may not have any markings on the key.
Unless specied otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
connector.
Refer to the "Vehicle connections" following the installation diagram.
General notes: This section highlights important information for this specic rmware.
[1] Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[2] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin or
NOT supported in data.
[3] Second starter connection may be required in some vehicles.

6403.TL11 1.15 2010 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Key type
Some Toyota 2010+ models have different encryption types. Please look at your key blade and identify the markings.
G-stamped keys Standard Key H-stamped keys
H
For vehicles with H-stamped keys, see
the TL10 firmware.
For vehicles with G-stamped keys, see
the TL5 & TL7 firmware.
For vehicles with dot-stamped keys,
see the TL11 firmware.
Note: Some replacement keys
may not have any markings on
the key.

7403.TL11 1.15 2010 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
D2D Port
(-) Ground (-) Ground
(+) Ignition 1 Output
(+) Ignition 2 Output
(+) 12V Input
(-) Parking Lights Output
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
1412
10 42
9: Pink: (+) Ignition Input
Wiring diagram
(+) Starter 2 Output
(+) Accessory Output
(+) Starter 1 Output
XKD2D65
(AC) Tach Output: Violet/White: 5
TX: Yellow/Black: 10
RX: Orange/Black: 11
(AC) Tach Input
OBDII Plug
Black Connector
HS CAN High: Pin 6
HS CAN Low: Pin 14
Headlight Switch
(white conn. at headlights)
(-) Parking Lights: Pin 18
12345678910
1112131415161720
19 18
16
8
9
1
Refer to Vehicle connections for wire and connector details.
Ignition Switch
Dash Fuse Box
(white 1-pin conn.)
1
Transponder Key Amplifier
(black conn. around ignition)
(-) Hood Pin Input
Hood Pin

8403.TL11 1.15 2010 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Locating components in the vehicle

9403.TL11 1.15 2010 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2010 Toyota Camry. Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High OBD-data link connector, black 16 pin plug, pin 6 data black
H1/4 Tan (DATA) HS CAN Low OBD-data link connector, black 16 pin plug, pin 14 data white
H1/5 Orange/Green No Connection No Connection
H1/6 Orange/Brown No Connection No Connection
H1/7 Brown Relay N.O. No Connection No Connection
H1/8 Yellow Relay COM No Connection No Connection
H1/9 Orange/Yellow Relay N.C. No Connection No Connection
H1/10 Orange/Red Relay N.C. No Connection No Connection
H1/11 Yellow/Red Relay COM No Connection No Connection
H1/12 Brown/Red Relay N.O. No Connection No Connection
H1/13 Red (+) W2W Only - 12 Volt Input ignition switch, white 8 pin plug, pin 5 + black (30A)
H1/14 Black (-) W2W Only - Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) W2W Only - E-Brake Output Remote Starter
H2/2 Green/Black No Connection No Connection
H2/3 Green/White (-) W2W Only - Door Output Remote Starter
H2/4 Red/Black (-) W2W Only - Trunk Output Remote Starter
H2/5 Violet/White (AC) W2W Only - Tach Output [1] Remote Starter
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black No Connection No Connection
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection
H2/10 Yellow/Black (Data) Immo Data Transponder Key Amplifier on ignition switch, black 7 pin plug, pin 5 data red
H2/11 Orange/Black (Data) Immo Data Transponder Key Amplifier on ignition switch, black 7 pin plug, pin 4 data brown
H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color

10 403.TL11 1.15 2010 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black No Connection No Connection
H3/7 Pink/White No Connection No Connection
H3/8 Violet No Connection No Connection
H3/9 Pink (+) Ignition Input ignition switch, white 8 pin plug, pin 6 + yellow
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue (Data) TX
H4/2 Black (-) Ground
H4/3 Green (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
12 Volts ignition switch, white 8 pin plug, pin 5 + black (30A)
Accessory ignition switch, white 8 pin plug, pin 2 + white
Ignition ignition switch, white 8 pin plug, pin 6 + yellow
Parking Lights - headlight switch, white 20 pin plug, pin 18 - black
Second Ignition ignition switch, white 8 pin plug, pin 1 + pink
Second Starter ignition switch, white 8 pin plug, pin 3 + gray
Starter ignition switch, white 8 pin plug, pin 7 + blue
