Directed Directechs DB3 User manual

403.FORD12
v2.07
2022 Ford Transit
THFOD2 Compatible
(Sold Separately)
Functions compatible with the 2022 Ford Transit
*Telematics features: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart Pro.
* Odometer
3x LOCK START (Start control using OEM Remote)
3x LOCK STOP (Stop control using OEM Remote)
Brake Status (foot brake)
Control of aftermarket alarm with OEM remote
Door Lock Control
Door Unlock
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Fuel level/EV battery level
Ignition Status
Immobilizer Bypass-Data No Key Req'd
Parking Lights Control
Remote Start Ready
Remote Start Takeover
SmartStart
Tach / RPM Output

Introduction 3
Pre-installation and application warnings 4
Installation 5
Wiring diagram with T-Harness (THFOD2) 5
Wiring diagram 6
Locating components in the vehicle 7
Vehicle connections 8
Module programming 10
Key vehicles 10
Push-to-Start (PTS) vehicles 11
Module programming for convenience only (skip transponder) 12
SmartStart Pro/Digital RF Kit/XL202 installation notes 13
LED diagnostics and troubleshooting 14
Parking light error codes 16
Soft reset 16
Hard reset 16
Limited one year consumer warranty 17
Quick Reference Guide (customer copy) 18
Contents

3403.FORD12 2.07 2022 Ford Transit
©2023 Directed. All rights
Introduction

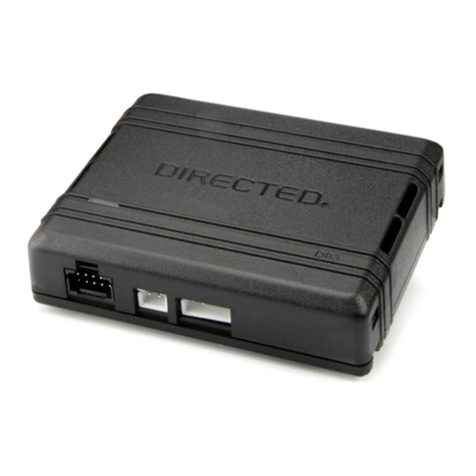

This guide supports the installation of a DB3, which is an all-in-one door lock and override interface module in Remote Start Ready (RSR)
mode. RSR is a function that enables the DB3 to remote start the vehicle completely on its own. Consequently, there is no need for an
aftermarket or an OEM remote starter in order to start the vehicle from a distance.
This solution may offer up to four (4) configuration options to control your system (all sold separately):
• 3x OEM Lock Remote Start Activation: if applicable, refer to the “Vehicle function compatibilities” section.
• SmartStart Pro Compatible: SmartStart Pro is equipped with D2D, which means it can be connected to an interface module and used
in RSR mode without the use of a remote starter. See “Module programming” for more information.
• Digital RF Kit Compatible: This firmware supports D2D 2.0, which means Digital RF kits can be connected to the interface module and
used when in RSR mode (compatible with firmware version ending with .101 or higher only).
• XL202 & Analog RF Kit
Notes
• This module can only be flashed and configured using DirectLink at www.directechs.com.
• RSR mode is not compatible with vehicles equipped with a manual transmission.

4403.FORD12 2.07 2022 Ford Transit
©2023 Directed. All rights
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible THFOD2
AUX
Keys required for
programming 1Keys required for operation 0

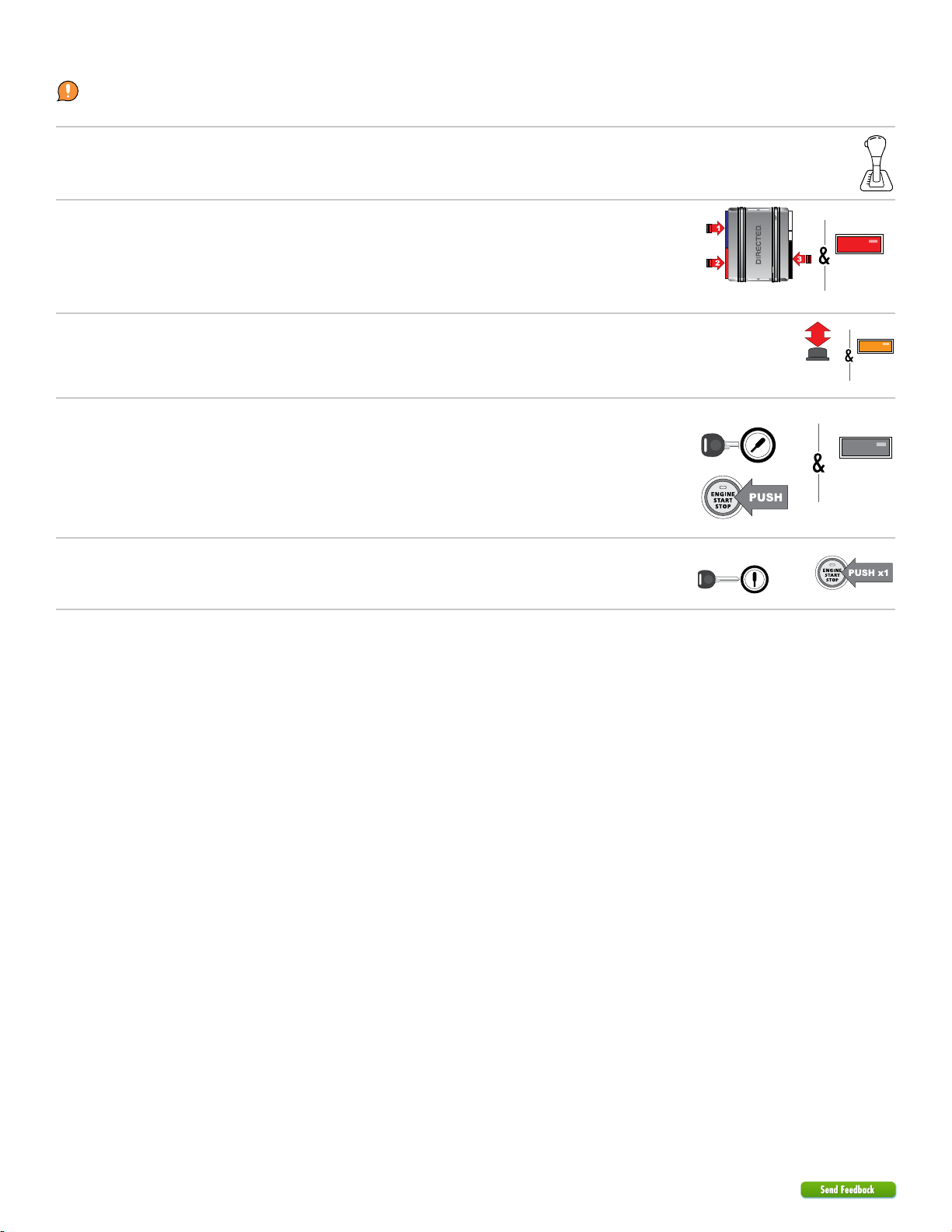

Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
Factory hood pin: In vehicles not equipped with a Factory Hood Pin, must permanently ground the vehicles N.C. OEM Hood Pin
input for successful operation. See Directechs for hood pin location.
Pit Stop: The vehicle pit stop/idle mode feature is not available in this firmware.
Remote Start Ready (RSR):
•RSR installations are not compatible with vehicles equipped with a manual transmission.
•RSR is a function that enables the interface module to remote start the vehicle completely on its own
Consequently, there is no need for an aftermarket or an OEM remote starter in order to start the vehicle from a distance.
The optional Plug & Play THFOD2 T-Harness is sold separately
The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
SmartStart Compatible: SmartStart is equipped with D2D, which means it can be connected to an interface module and used in
Remote Start Ready (RSR) mode without the use of a remote starter. See "Module programming" for more information.
All T-Harness wires not listed in the diagram are not required for the installation.
All connectors are displayed from the wire side (unless specified otherwise).
Refer to the "Vehicle connections" following the installation diagram.
Conditions and Limitations
This installation enables the OEM remote starter and the remote start system will not work in the following conditions:
The ignition is on.
The alarm system is triggered.
The doors/hood are open.
The transmission is not in Park (P).
The vehicle battery voltage is too low.
The service engine light is on.
Note: Any stored DTC code errors will prevent vehicle from remote starting (no visual lights on dash).
RS Features: The following remote starter features can be configured via the information display:
Climate control
Heated seats/steering wheel
Runtime (for best results, program the remote starter runtime to match the OEM setting)
Remote Starter enable/disable
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or if
not supported in data.
[2] Optional parking lights: They will flash when locked/unlocked, and stay ON during remote start runtime. They are only required for
visual confirmation in the event of a remote start failure.

5403.FORD12 2.07 2022 Ford Transit
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
1412
10 42

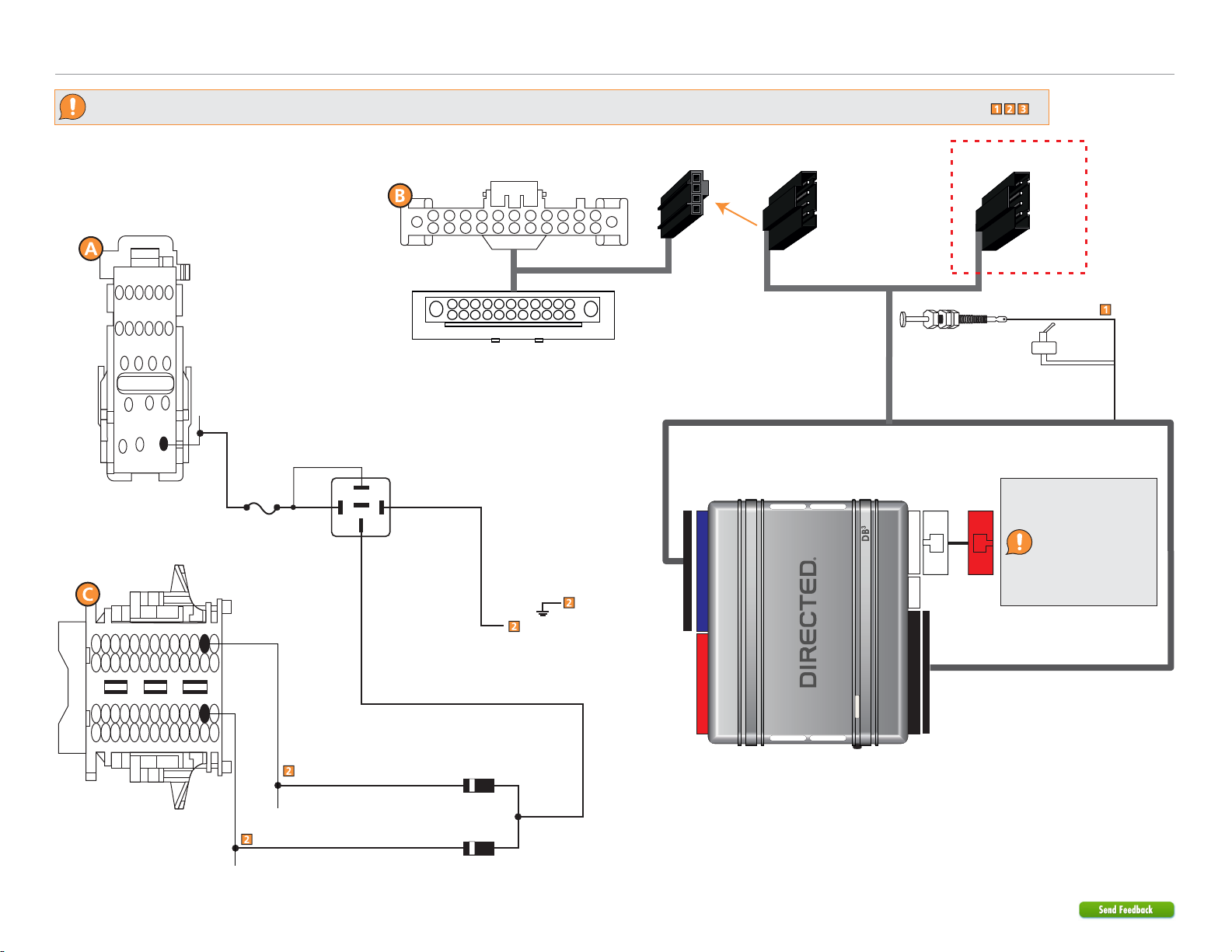

Wiring diagram with T-Harness (THFOD2)
Type 1
4-pin
connectors
Type 2
NOT USED
Remote Start Safety
Override Switch
White/Black N.C.
T-Harness THFOD2
(optional)
Gateway Module
(Black connector Gateway Module
on OBDII connector)
30
86 85 87
87a
Fuse 15A
(+) 12V: Red, pin 22
BCM
(black plug ‘G’
at dash fuse box)
1 2 3 4 5 6
7
13 14 15 16
17 18 19
20 21 22
89
10 11 12
(+) Parking Lights (R): White/Orange, pin 51
(+) Parking Lights (L): Violet/Green, pin 25
40 52
51
25
27 39
14 26
1 13
2 x
3A Diodes
BCM
(Blue plug ‘E’
at dash fuse box)
Hood Pin

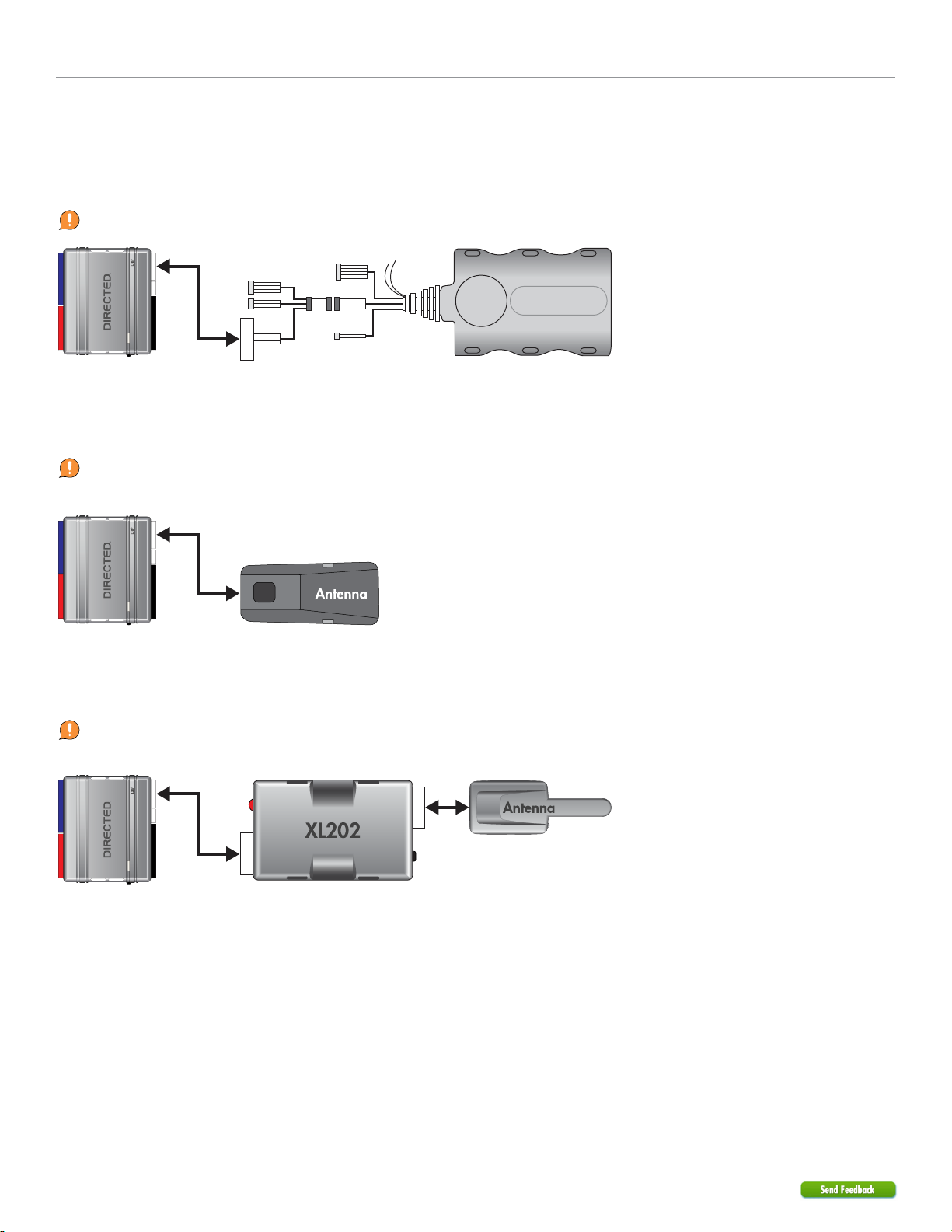

You can connect to
either a XL202 RFTD
OR a SmartStart
module.
Refer to the
SmartStart/XL202
Installation Notes for
more information.
(-) Parking Light Output: Yellow/Red
(-) Ground: Brown/Red

6403.FORD12 2.07 2022 Ford Transit
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
2
153
164
175
18
6
21
9
197
22
10
208
2311
12
13
1
14
24
Wiring diagram
CAN 3 Low: Gray/Blue or
Blue pin 17
CAN 3 High: Green/Orange or
Orange, pin 18
CAN 1 High: Orange/Green: 5
CAN 1 Low: Orange/Brown: 6
CAN 3 Low: Tan: 4
CAN 3 High: Tan/Black: 3
CAN 1 High: Blue, pin 20
CAN 1 Low:
White, pin 19
Gateway Module
(Black connector Gateway Module
on OBDII connector)
(+) 12V:
Gray/Red, pin 24
(-) Ground: Black/Violet, pin 14
(+) 12V: Red, pin 22
BCM
(black plug ‘G’
at dash fuse box)
1 2 3 4 5 6
7
13 14 15 16
17 18 19
20 21 22
89
10 11 12
(+) Parking Lights (R):
White/Orange, pin 51
(+) Parking Lights (L):
Violet/Green, pin 25
51
25
40 52
27 39
14 26
1 13
BCM
(Blue plug ‘E’ at dash fuse box)
6: White/Black:
(-) Hood
Remote Start Safety
Override Switch
Hood Pin
You can connect to
either a XL202 RFTD
OR a SmartStart
module.
Refer to the
SmartStart/XL202
Installation Notes for
more information.
1412
10 42
(+) 12V Input: Red: 13
(-) Ground: Black: 14
(+) Parking Lights Output: Yellow: 8
(+) Parking Lights Output: Yellow/Red: 11
(+) 12V Input: Brown/Red: 12
Fuse 15A
(+) 12V Input: Brown: 7

7403.FORD12 2.07 2022 Ford Transit
©2023 Directed. All rights
Locating components in the vehicle

8403.FORD12 2.07 2022 Ford Transit
©2023 Directed. All rights
Vehicle connections
The connection information listed below is specific to the 2022 Ford Transit. Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) MS CAN 3 High Gateway Module on OBD-Data Link Connector, black 24 pin plug, pin 18 Data Green/Orange (HS2 CAN)
H1/4 Tan (DATA) MS CAN 3 Low Gateway Module on OBD-Data Link Connector, black 24 pin plug, pin 17 Data Gray/Blue (HS2 CAN)
H1/5 Orange/Green (DATA) HS CAN 1 High Gateway Module on OBD-Data Link Connector, black 24 pin plug, pin 20 Data Blue (HS1 CAN)
H1/6 Orange/Brown (DATA) HS CAN 1 Low Gateway Module on OBD-Data Link Connector, black 24 pin plug, pin 19 Data White (HS1 CAN)
H1/7 Brown Relay N.O. (+) 12V Input [2] BCM-Dash Fuse Box, black 22 pin plug (J7-G), pin 22 + Red (50A)
H1/8 Yellow Relay COM. (+) Parking lights output [2] BCM-Dash Fuse Box, blue 52 pin plug (J5-E), pin 25 (LR); pin 51 (RR) + Violet/Green (LR);
White/Orange (RR)
H1/9 Orange/Yellow Relay N.C. No Connection No Connection
H1/10 Orange/Red Relay N.C. No connection No Connection
H1/11 Yellow/Red Relay COM. (+) Parking lights output [2] BCM-Dash Fuse Box, blue 52 pin plug (J5-E), pin 25 (LR); pin 51 (RR)
An external relay and 1A diodes must be used for parking lights when using a
THFOD2 T-Harness.
+ Violet/Green (LR);
White/Orange (RR)
H1/12 Brown/Red Relay N.O. (+) 12V Input [2] BCM-Dash Fuse Box, black 22 pin plug (J7-G), pin 22
The Brown/Red wire must be grounded when using a THFOD2 T-Harness.
+ Red (50A)
H1/13 Red (+) 12 Volt Input Gateway Module on OBD-Data Link Connector, black 24 pin plug, pin 24 + Gray/Red (7.5A)
H1/14 Black (-) Ground Gateway Module on OBD-Data Link Connector, black 24 pin plug, pin 14 - Black/Violet
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) Trunk Output No Connection
H2/2 Green/Black No Connection No Connection
H2/3 Green/White No Connection No Connection
H2/4 Red/Black No Connection No Connection
H2/5 Violet/White No Connection No Connection
H2/6 Gray No Connection No Connection
H2/7 Gray/Black No Connection No Connection
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection
H2/10 Yellow/Black No Connection No Connection
H2/11 Orange/Black No Connection No Connection
H2/12 Blue/Red No Connection No Connection

9403.FORD12 2.07 2022 Ford Transit
©2023 Directed. All rights
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green No Connection No Connection
H3/2 Blue No Connection No Connection
H3/3 Red/White No Connection No Connection
H3/4 White/Violet No Connection No Connection
H3/5 Violet/Black No Connection No Connection
H3/6 White/Black (-) W2W Only - Hood Switch Input [1] The installation of an aftermarket hood pin is only required on vehicles that
are not equipped with a factory hood pin or if not supported in data.
H3/7 Pink/White No Connection No Connection
H3/8 Violet No Connection No Connection
H3/9 Pink No Connection No Connection
H3/10 Blue/White No Connection No Connection
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Blue (Data) TX
H4/2 Black (-) Ground
H4/3 Green (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection

10 403.FORD12 2.07 2022 Ford Transit
©2023 Directed. All rights
Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
Key vehicles
For Convenience-Only programming, see next section.
1Ensure vehicle is in a safe location and cannot move forward during programming.
2
The harnesses must be connected in this exact order:
 1. Connect the 14-pin.
 2. Connect the 12-pin.
 3. Connect the 10-pin.
When the LED turns ON solid red, proceed with the next step.
3Turn the ignition ON.
The LED will flash green then stay green for 3 seconds and then turn OFF.
4Turn the ignition OFF and remove the key from the ignition barrel.
You have successfully completed the module programming sequence.
