dji OSMO User manual

User Manual
OSMO MOBILE
2017.01
V1.2

2
©2017 DJI All Rights Reserved.
Using this Manual
Legend
Important Tips
Install the DJI GO App
Search for ‘DJI GO’ on the App Store or Google Play and install
the app on your mobile device.
DJI GO supports iOS 8.0 (or later) or Android 4.4 (or later).
Searching for Keywords
Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe
Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on
Mac to begin a search.
Navigating to a Topic
View a complete list of topics in the table of contents. Click on a topic to navigate to that
section.
Printing this Document
This document supports high resolution printing.

©2017 DJI All Rights Reserved.
3
Contents
Using this Manual 2
Legend 2
Install the DJI GO App 2
Introduction 4
GettingStarted 5
Intelligent Battery 5
Mount and Balance the Mobile Phone 7
Optional Accessories 8
UsingtheOsmoMobile 9
Controls and Operations 9
Operation Modes 12
DJIGOApp 14
Download 14

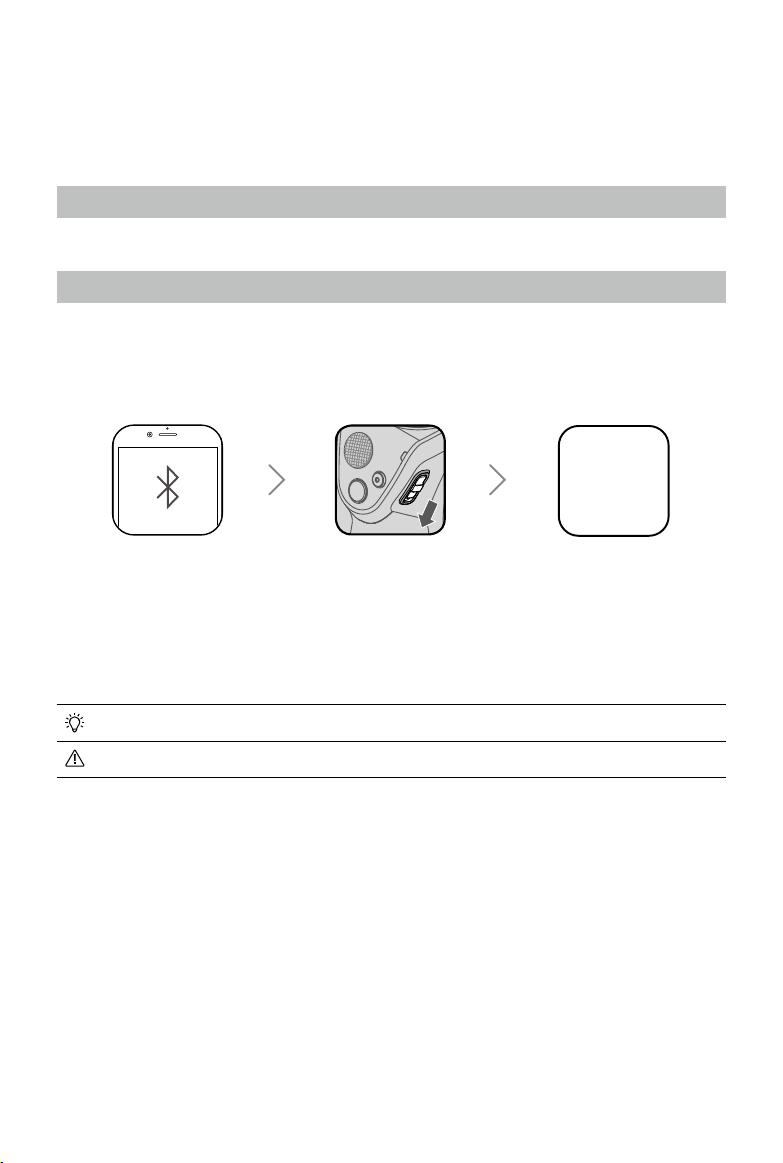

Connecting to the DJI GO App 14
Key Pages 15
UpgradingtheFirmware 18
How to Upgrade 18
UsingtheZenmuseM1gimbalwithOsmoHandle 18

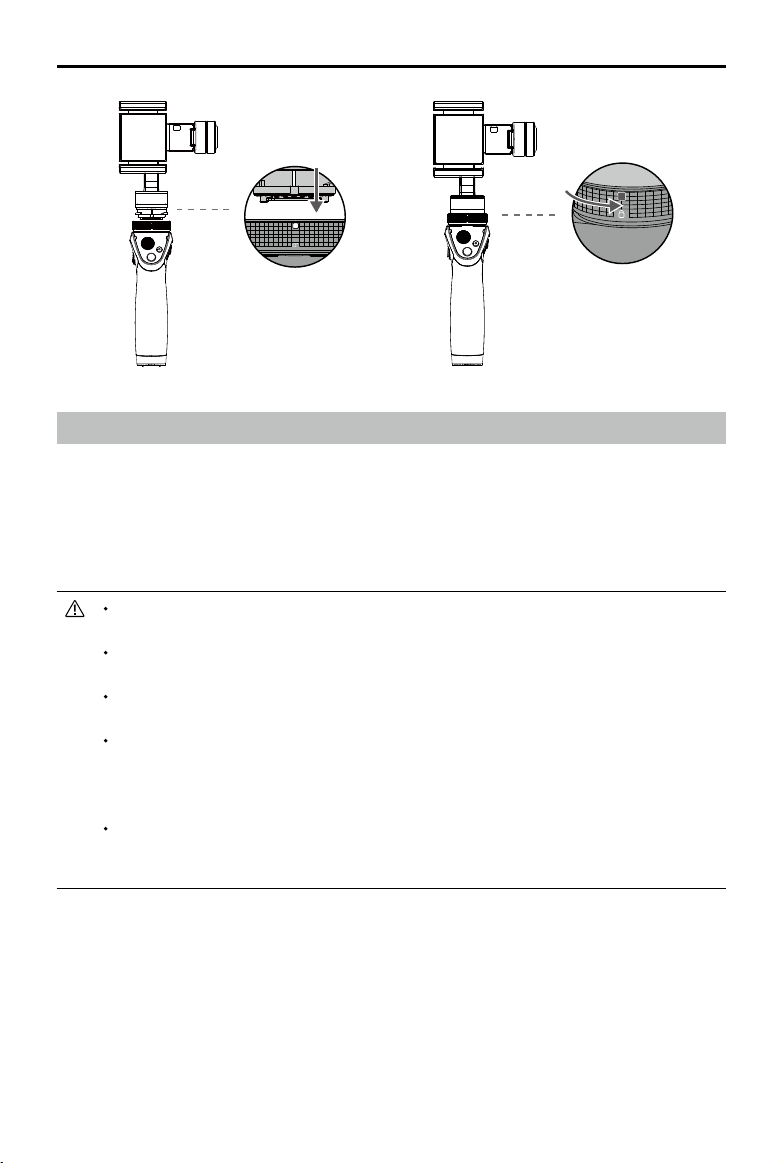

Install the Zenmuse M1 18
Notes19
Specifications 20

4
©2017 DJI All Rights Reserved.
Introduction
The OSMOTM Mobile is an advanced 3-axis gimbal that stabilizes and controls your
smartphone, turning it into a smart motion camera. Its light and ergonomic design places
physical controls at your ngertips, to form a powerful go anywhere smartphone lmmaking
device. The DJI GO app brings ActiveTrack and Motion Timelapse features to the Osmo
Mobile.
Equipped with 3-axis stabilization and SmoothTrack technology, the Osmo Mobile
compensates for natural arm movements and smooths out transitions, creating seamlessly
smooth video. Finer operations can be done with the joystick, and the phone can be instantly
positioned by hand. The DJI Rosette Mount on the side of the handle supports a number
of accessories, including an Extension Rod, a Tripod, and various mounts for specialized
lmmaking applications.
At a Glance:
[1] Mobile Phone Holder
[2] Pan Motor
[3] Camera Status LED
[4] Joystick
[5] Shutter Button
[6] Record Button
[7] Power Switch
[8] System Status LED
[9] Tilt Motor
[10] Adjustable Arm
[11] Mobile Phone Detection Sensor
[12] Balance Adjustment Knob
[13] Roll Motor
[14] Holder Lock Knob
[15] Charging/Upgrade Port
[16] Trigger
[17] DJI Rosette Mount
[18] Lanyard Hole
[19] Battery Cover
[13]
[12]
[9]
[1]
[2]
[3]
[4]
[5]
[8]
[7]
[6]
[10]
[11]
[14]
[17]
[19]
[15]
[16]
[18]

©2017 DJI All Rights Reserved.
5
Getting Started
Intelligent Battery
The 980 mAh Intelligent Battery can power the Osmo Mobile for about 4.5 hours.
Intelligent Battery Functions
Battery Balancing Balances the voltage of each cell during charging.
Overcurrent Protection Stops charging if the charging current is too large.
Overcharge Protection Stops charging if its voltage is too high.
Over-discharge Protection Stops discharging if its voltage is too low.
Short Circuit Protection Cuts the power supply if a short circuit is detected.
Temperature Control Stops charging if the core temperature falls below 41°F (5°C)
or exceeds 104°F (40°C).
Battery Level Display The battery level is displayed in the DJI GO app.
Battery Specications
Model HB01-522365
Type LiPo
Capacity 980 mAh
Energy 10.8 Wh
Voltage 11.1 V
Charging Temperature 41° to 104° F (5° to 40° C)
Operating Temperature 32° to 104° F (0° to 40° C)
Be sure to fully charge the Intelligent Battery for the rst time to activate it.
Read the user manual, Intelligent Battery Safety Guidelines before use. The user
takes full responsibility for all operations and usage.

Osmo Mobile User Manual
6
©2017 DJI All Rights Reserved.

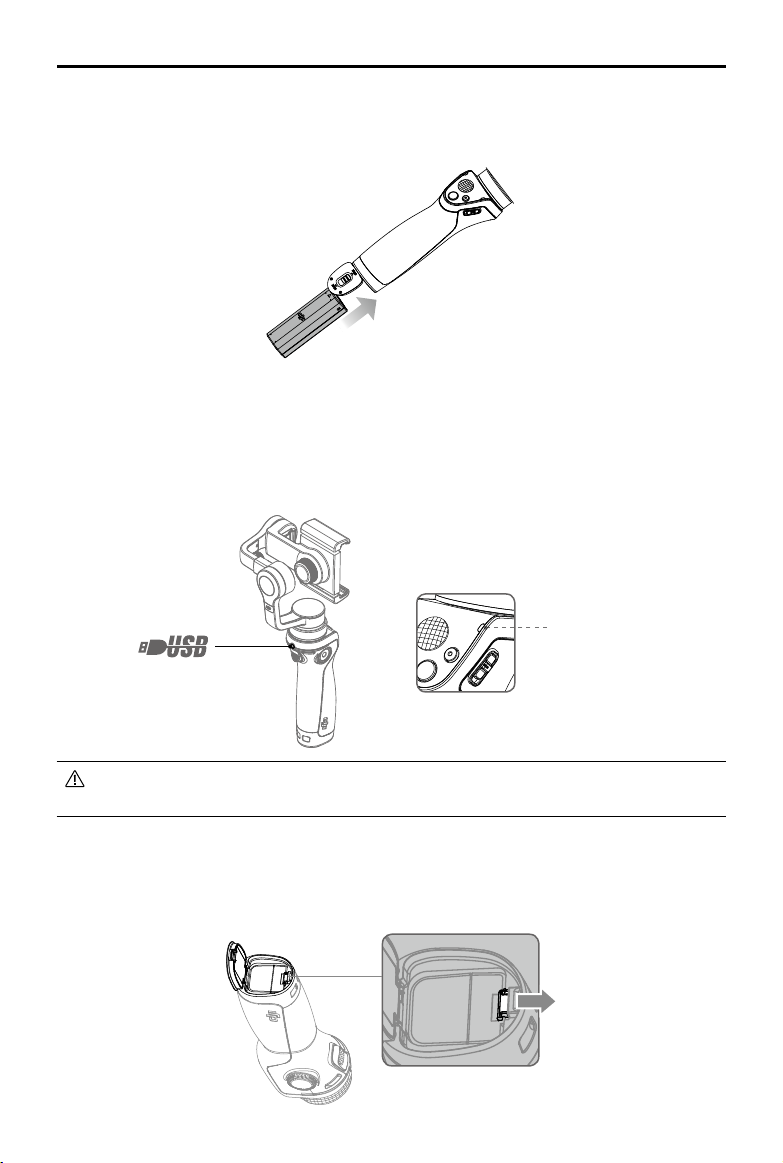

Inserting the Battery
Slide the locking switch at the base of the Osmo Mobile to open the battery cover. Insert the
battery and lock the battery cover.
Charging
To charge the Osmo Mobile, connect the USB adapter (not included) to the charging port
using the provided power cable.
The battery is fully charged when the system status LED become solid green.
USB Adapter Charging Time : 3 hours (when charging at 1 A)
Maximum Supported USB Charging Current: 2.1 A
System Status LED
Only use the Power Cable with the Osmo Mobile. Damage may occur if the Power
Cable is attached to any other device's 3.5 mm port.
Removing the Battery
Slide the locking switch at the base of the Osmo Mobile to open the battery cover. Push the
red safety hook away from the battery to let it pop up, and then remove the battery.

Osmo Mobile User Manual
©2017 DJI All Rights Reserved.
7
Mount and Balance the Mobile Phone
1. With the Osmo Mobile powered off, loosen the Holder Lock Knob, place the mobile phone
in the mobile phone holder and tighten the knob to secure its position.
2. The system is balanced if the mobile phone remains level when released, balanced only
by the gimbal.
1
2
1
2
If the roll axis tilts to the left, pull
out the arm until the roll axis
remains level.
If the roll axis tilts to the right, adjust
the mobile phone to the left until the
roll axis levels out.
Left Right
Do not power on the Osmo Mobile without a mobile phone. The Osmo Mobile will
not work if no device is detected by the Mobile Phone Detection Sensor.
It is important to balance the mobile phone in order to achieve optimal performance.
The Osmo Mobile should only be balanced when powered off.

Osmo Mobile User Manual
8
©2017 DJI All Rights Reserved.
Optional Accessories
DJI provides various optional accessories for the Osmo Mobile.
Osmo Base
Provides a stable platform for your Osmo to
stand upright.
Universal Mount
Used to mount external devices such as a
ashlight.
Extension Rod
Good for taking group seles, overhead shots
or reaching into small spaces.
Tripod
For stationary shots that require steady
footage. The tripod must be used with the
Extension Rod.
High Capacity Intelligent Battery
Battery capacity is 1225 mAh.
Osmo Charger
The Osmo Charger is designed to charge the
Osmo series Intelligent Battery by connecting
to a power outlet.
Osmo Quad Charging System
Used with the dedicated DJI Battery Chargers,
which can charge up to four Osmo Intelligent
Batteries.

©2017 DJI All Rights Reserved.
9
Using the Osmo Mobile
Controls and Operations

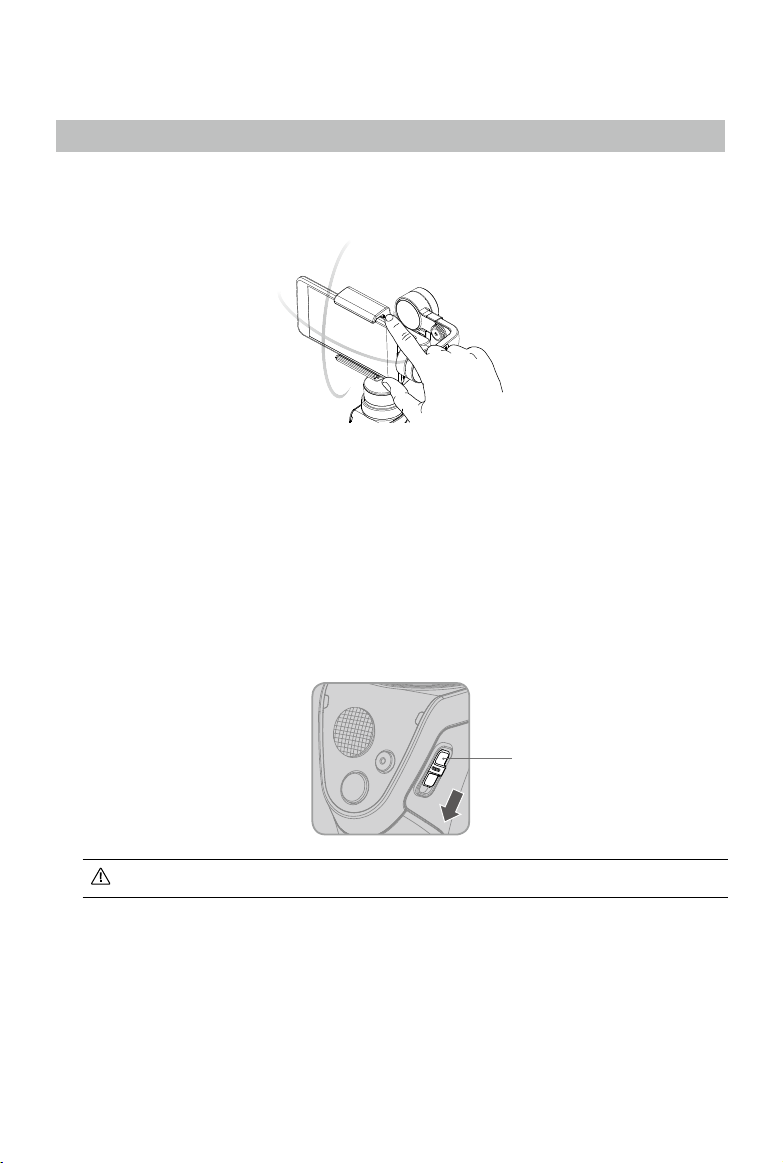

The gimbal anticipates handle movement to smooth out pan and tilt transitions, and uses
SmoothTrack technology to reduce mobile phone shakes from natural arm movements.
You can position the mobile phone directly by hand.
Hold the Osmo Mobile steady and upright while it is starting up.
Power Switch
[2] Joystick
Vertical movement tilts the camera. Horizontal movement pans the camera. Joystick
control direction can be set in the DJI GO app.
[3] Shutter Button
Press this button to take photos based on your settings in the DJI GO app. Hold down
shutter button to capture continuous photo.
Additionally, there are buttons on the front and back of the handle that allow for ner control
over the gimbal and mobile phone. All of the buttons and controls are described below.
[1] Power Switch
To turn on/off the Osmo Mobile, pull the power switch down and hold for 1.5 seconds.
With the Osmo Mobile powered on, pull the power switch and then release quickly will
cause the Osmo Mobile to go in or out of sleep mode.

Osmo Mobile User Manual
10
©2017 DJI All Rights Reserved.

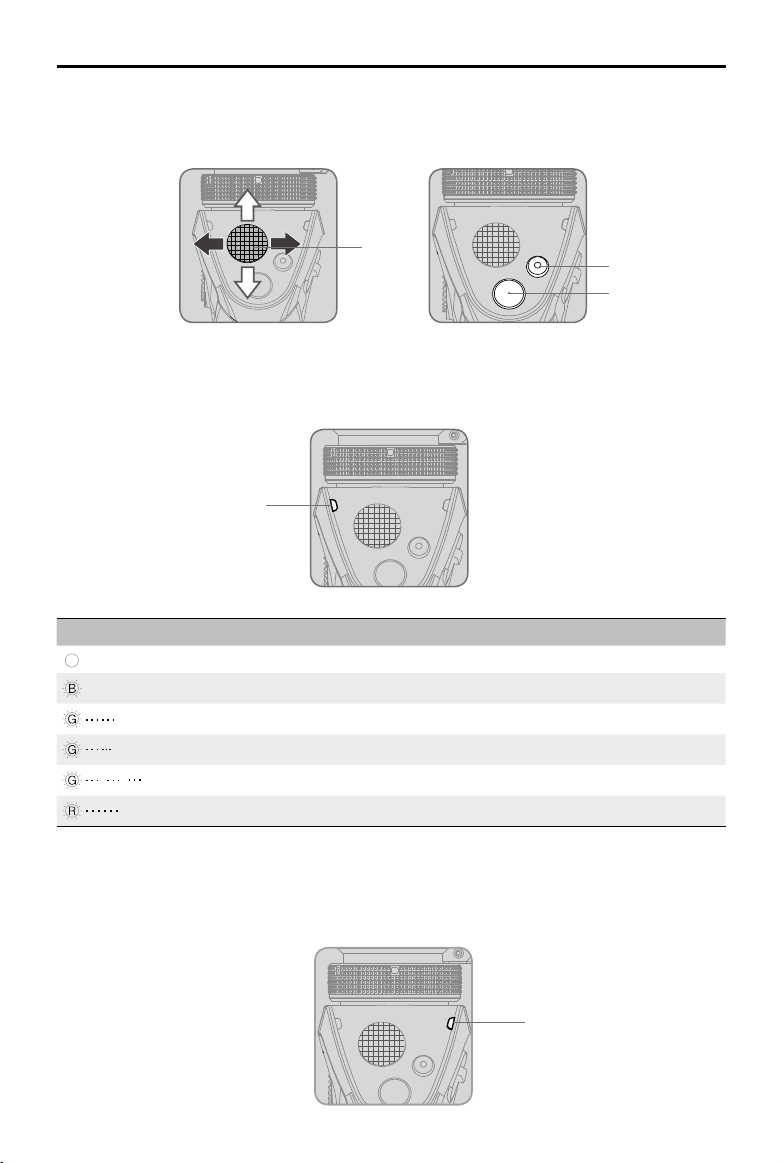

[4] Record Button
Press this button once to start recording video, and again to stop recording.
[5] Camera Status Indicator
Indicates the camera’s system status. Refer to the table below for details.
Camera Status Indicator
Record Button
Shutter Button
Joystick
Blinking Pattern Descriptions
LED Off No device connected.
— Solid Blue Camera is functioning normally.
Blinks Green Shooting photo.
Blinks Green slowly Self-timer
Blinks Green for each shot Burst shooting
Blinks Red slowly Recording video

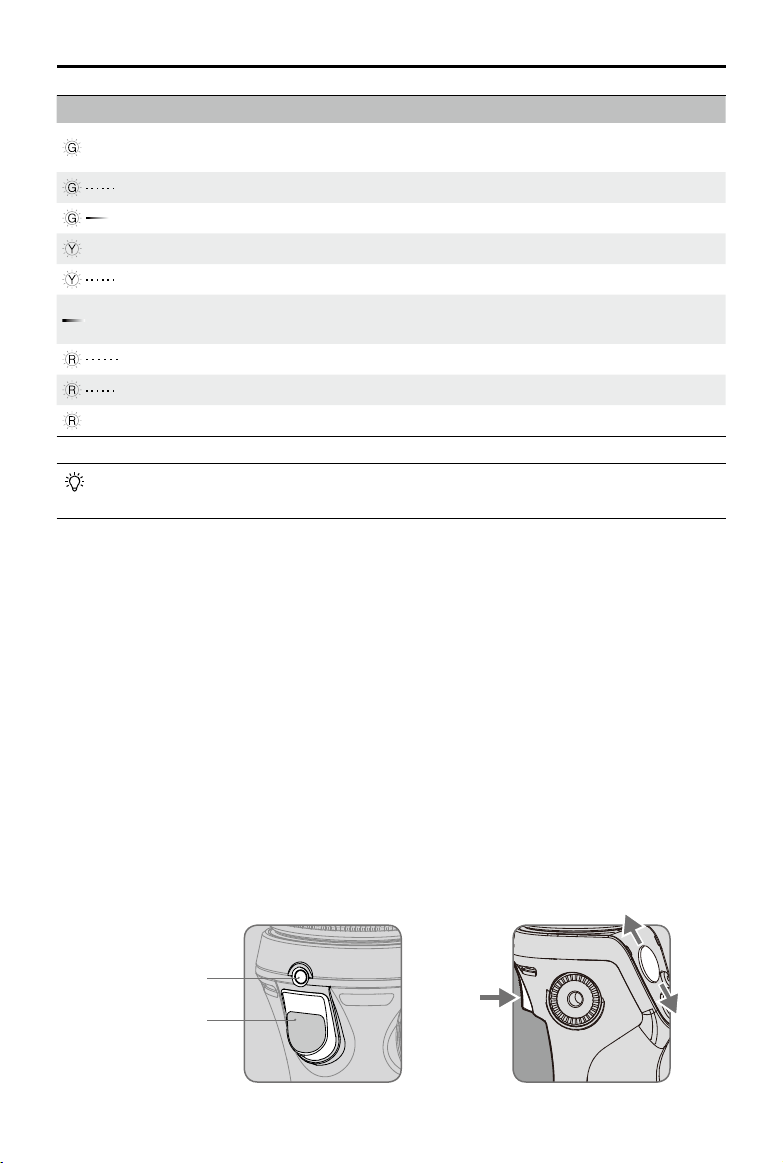

[6] System Status Indicator
Indicates the status of the Osmo Mobile. Refer to the table below for details.
System Status Indicator
