DOM Tronic Pro User manual

Tronic Pro
Assembly

Drilling template
ASSEMBLY
Right hand door Left hand door
TRONIC PRO : Drilling template
ø8,1
ø4,5
2,5
For housing
the screw head

Right hand door Left hand door
TRONIC PRO : Drilling template
ø8,1
ø4,5
2,5
For housing
the screw head

Accessories
ASSEMBLY
ø5x29.5
C
D
E F
ø3.5x9.5 Strike plate
M3x18

Right door assembly
ASSEMBLY
ø3.5
ø22
1
A
2
18 + x mm
18 mm
panel thickness
AA
Section A-A

3
5 6
4
!Warning: Connect blue part
to the side of the legde
Right door
Right door
Right door assembly
ASSEMBLY

B
12
ø3.5
ø22
Le door assembly
ASSEMBLY
AA
Section A-A
18 mm
panel thickness

3
5 6
4
!Warning: Connect blue part
to the side of the legde
Le door
Le door
Le door assembly
ASSEMBLY

1
2

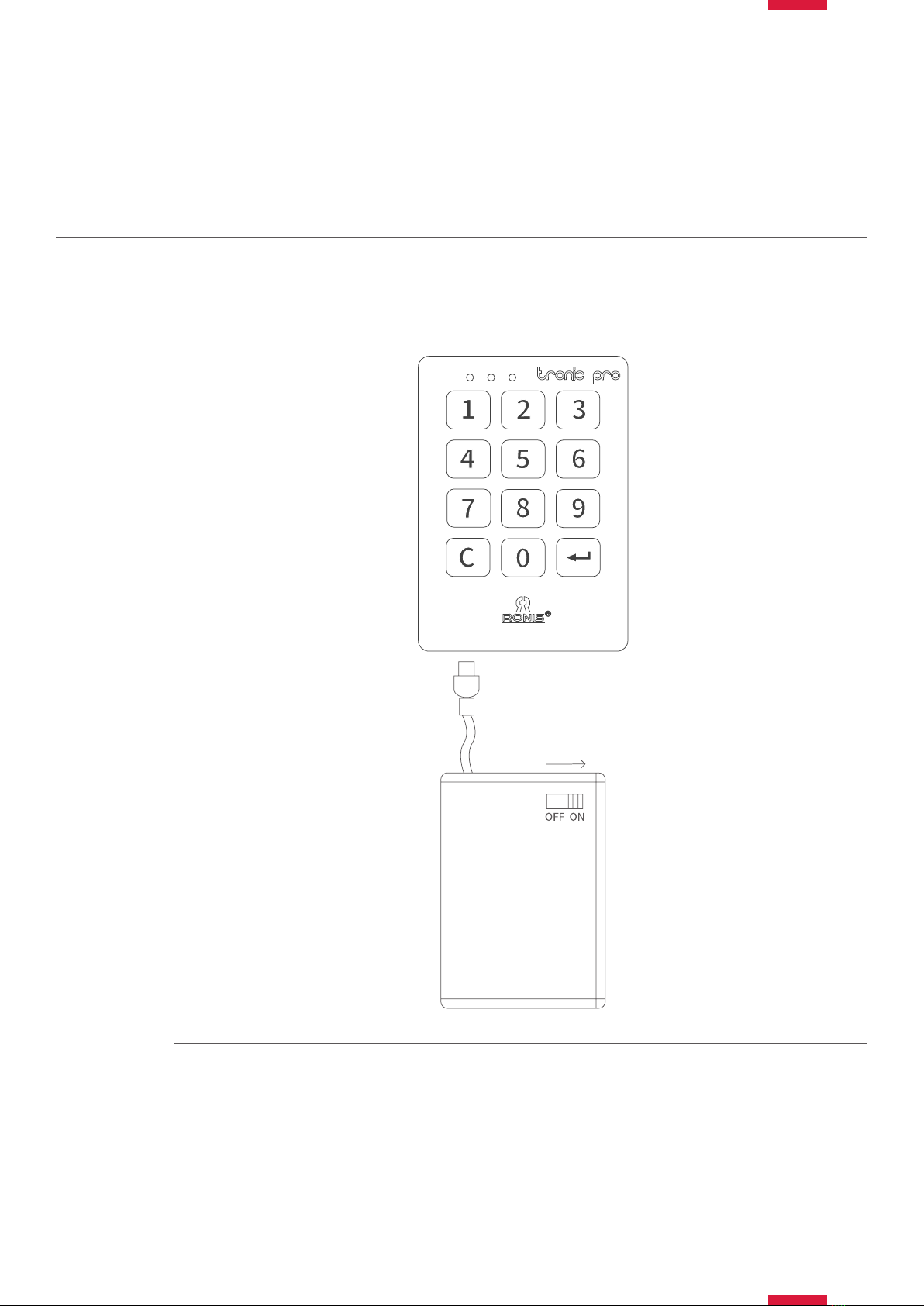

IMPORTANT
The battery pack must remain
connected during the release
of the batteries. Otherwise,
the internal clock will lose the
time configuration.
Verify that the cable is properly
connected (straight and untill
the bottom).
Relase the batteries thanks to
T20 Torx Security screw located
on the opposite of the battery case
Verify that the batteries are in
the right polarity (as indicated
in the battery box).
Don’t push any key during the wire
assembly process.
Important notes
ASSEMBLY
T20 Torx security

Important notes
ASSEMBLY
3
4
Verify that the screws are not fastened
too tight (<20kgf/cm2).
Verify that the latch works smoothly in
and out, without any frinction with the
door frame.

LED lights
ASSEMBLY
Aer introducing the correct code and
pressing ENTER, the three LEDs blink
at the same time (green-yellow-red)
and the lock does not work.
Aer pressing any button
the yellow LED blinks.
Dead or almost dead batteries:
replace batteries.
Dead batteries: replace batteries.

Batteries
ASSEMBLY
1. Make sure the battery pack contains
full powered batteries (don’t screw
the battery pack too tight to avoid
breaking the mechanism)
2. If the lock is closed, introduce the
user code (or the master one) to
open it.
3. Replace the old batteries for
new ones and disconnect the
battery pack.
Important
We suggest to change once every
three years the batteries for ensure
their good condition. Aer a long
time, the batteries can deteriorate
and damage the lock, especially
in hot environments
Do not clean the locks with cleaning
products with hydrochloric acid,
lye or corrosive components,
especially on the metallic parts.
