Dometic PERFECTROOF PR2000 User manual

PR2000, PR2500
Awning
Operating manual . . . . . . . . . . . . . . . . . . . . 11
Markise
Bedienungsanleitung . . . . . . . . . . . . . . . . .27
Store extérieuru
Notice d’utilisation . . . . . . . . . . . . . . . . . . .45
Toldo
Instrucciones de uso . . . . . . . . . . . . . . . . . .63
Toldo
Manual de instruções . . . . . . . . . . . . . . . . . 81
Tenda da sol e
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . .99
Zonnescherm
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 116
Markise
Betjeningsvejledning . . . . . . . . . . . . . . . .134
Markis
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . 151
Markise
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . 167
Markiisi
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . .183
Синусоидальный инвертор
Инструкция по эксплуатации . . . . . . . . . 199
Markiza
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 217
Markíza
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 234
Markýza
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 251
Előtető
Használati utasítás. . . . . . . . . . . . . . . . . . . 267
Markiza
Navodilo za uporabo . . . . . . . . . . . . . . . . 284

  . . . . . . . . . . . . . . . . 300
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
SL
EL
AWNINGS
PERFECTROOF
PR2000_PR2500-O-16S.book Seite 1 Donnerstag, 5. Oktober 2017 10:23 10

PR2000_PR2500-O-16S.book Seite 2 Donnerstag, 5. Oktober 2017 10:23 10

PR2000, PR2500
3
1
2
3
4
1
3
2
1
1. 3.
2.
2
PR2000_PR2500-O-16S.book Seite 3 Donnerstag, 5. Oktober 2017 10:23 10

PR2000, PR2500
4
1,5 m
3
1,5 m
4
PR2000_PR2500-O-16S.book Seite 4 Donnerstag, 5. Oktober 2017 10:23 10

PR2000, PR2500
5
2.
1.
5
PR2000_PR2500-O-16S.book Seite 5 Donnerstag, 5. Oktober 2017 10:23 10

PR2000, PR2500
6
6
7
PR2000_PR2500-O-16S.book Seite 6 Donnerstag, 5. Oktober 2017 10:23 10

PR2000, PR2500
7
1.
2.
3.
8 9
0
1.
2.
3.
a
PR2000_PR2500-O-16S.book Seite 7 Donnerstag, 5. Oktober 2017 10:23 10

PR2000, PR2500
8
b
1. 2.
c
PR2000_PR2500-O-16S.book Seite 8 Donnerstag, 5. Oktober 2017 10:23 10

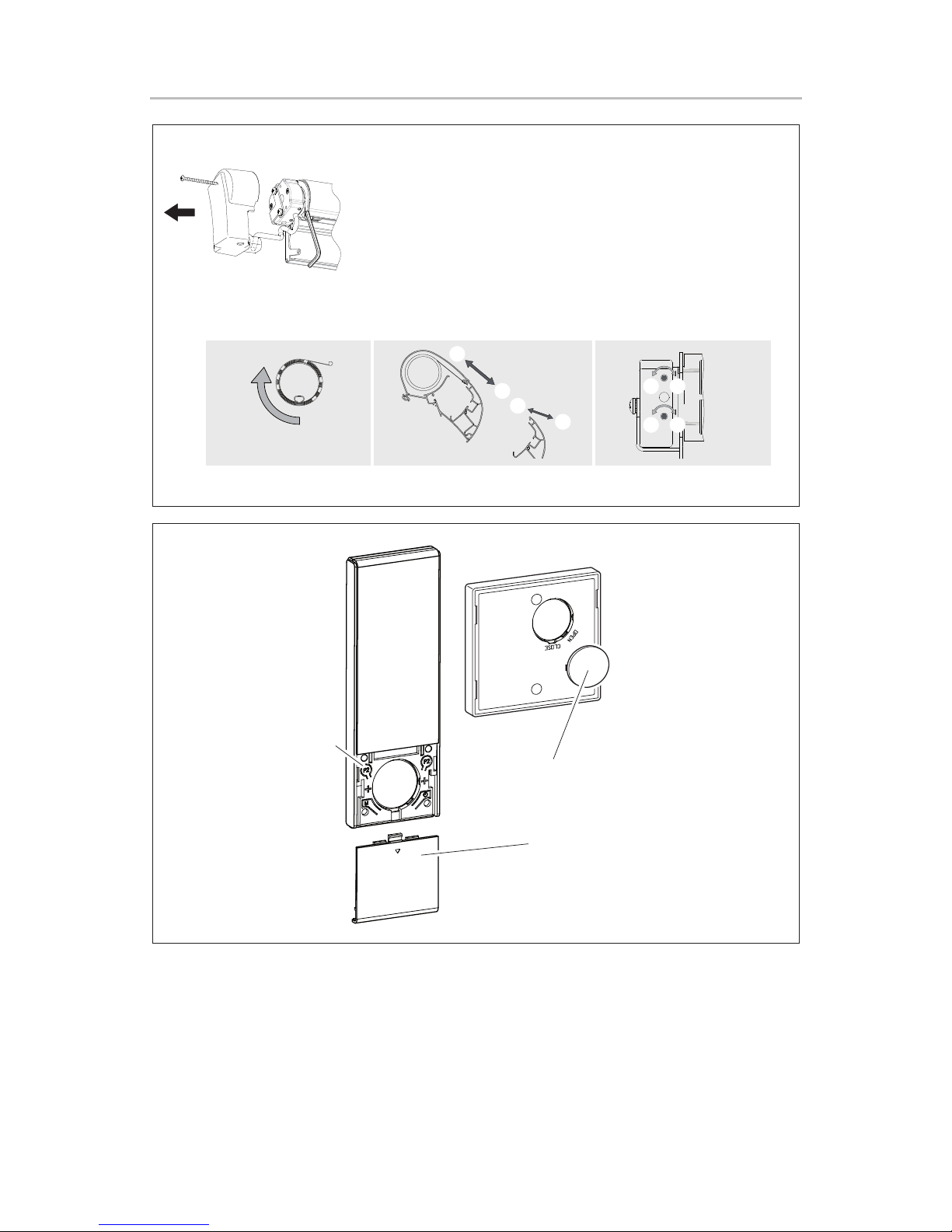

PR2000, PR2500
9
A
B
C
D
AB
C
D
d
1
1
2
e
PR2000_PR2500-O-16S.book Seite 9 Donnerstag, 5. Oktober 2017 10:23 10

PR2000, PR2500
10
15 – 25 Nm
f
PR2000_PR2500-O-16S.book Seite 10 Donnerstag, 5. Oktober 2017 10:23 10

EN
PR2000, PR2500
11
!
Table of contents
1Notesonusingtheoperatingmanual..............................12
2Safetyinstructions..............................................12
3Scopeofdelivery..............................................14
4Accessories...................................................15
5Intendeduse..................................................15
6Technicaldescription...........................................16
7Operatingtheawning...........................................17
8Cleaningandmaintenance......................................22
9Troubleshooting..............................................24
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
WARNING!
•This operating manual must be read and understood before the
device is set up, operated, cleaned or serviced.
•This device must be installed by a specialist. Improper installation
can lead to serious injury. Alterations to the device can be extremely
dangerous and lead to serious injury or damage to the device.
•Keep this operating manual with the device. The owner must read it
carefully.
PR2000_PR2500-O-16S.book Seite 11 Donnerstag, 5. Oktober 2017 10:23 10

EN
Notes on using the operating manual PR2000, PR2500
12
1 Notes on using the operating manual
!
A
I
2 Safety instructions
Please observe the safety instructions and stipulations issued by the
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Please note the following warnings:
!WARNING!
•Before starting your journey, check that the awning is fully retracted.
Never move the vehicle when the awning is open.
•Never drive with the crank inserted. Remove the crank before starting
your journey.
•Do not drive the vehicle if the fabric is damaged or torn, even if the
awning has been properly retracted. The awning arms are held in
place by the fabric. If the fabric rips while driving, the awning will
suddenly shoot out. This can lead to serious injury. Secure the awning
so that it cannot extend suddenly and unexpectedly while driving.
•Do not open the awning while driving.
•Do not open the awning in strong winds or snowfall.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
PR2000_PR2500-O-16S.book Seite 12 Donnerstag, 5. Oktober 2017 10:23 10

EN
PR2000, PR2500 Safety instructions
13
•Retract the awning if strong winds, heavy rain or snowfall are
imminent.
•Make sure that water or snow does not accumulate on the fabric.
Otherwise this could damage the awning or the awning arms could
collapse and cause severe injury or fatality.
•Do not approach the awning
– if it was left open during heavy winds
–ifpoolsofwaterhaveformedonit
– if snow has accumulated on it
– if any debris is on the awning fabric.
The awning may move unexpectedly, become unstable and bend or
break.
•PR2500, optional: If the connection cable of the awning is
damaged, it must be replaced by an expert.
•PR2500, optional: Disconnect the power supply by means of the
on/off switch before you clean the vehicle in the vicinity of the awning
or the awning itself.
•Do not leave the extended awning unattended. Retract the awning
before leaving your location.
•Keep a safe distance away from the awning when having barbecues or
open fires. The fabric can be damaged by heat or catch fire.
•This device can be used by children aged8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•PR2500, optional: Electrical devices are not toys.
Keep the remote control out of the reach of children. Prevent children
from playing with the wall switch (accessory).
•Children must be supervised to ensure that they do not play with the
device.
ANOTICE!
•Park the motorhome or caravan so that no debris (branches, leaves or
similar) can get onto the fabric.
•The fabric of the awning should not hang down at the edges but must
be taut at all times. If the fabric hangs down, it could rub on the arms
and get damaged.
The fabric should not sag in the middle with long awnings.
PR2000_PR2500-O-16S.book Seite 13 Donnerstag, 5. Oktober 2017 10:23 10

EN
Scope of delivery PR2000, PR2500
14
•Only retract the awning, when the fabric is free of debris (branches,
leaves or similar). Otherwise the awning can be damaged when it is
retracted.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
•Only retract the awning if it is wet for safety reasons. Extend it again as
soon as possible. Otherwise, mildew or stains can form or the colour
may fade.
•Never bend an awning arm or the cover down to drain water off the
awning. This can bend the awning and impair its function.
•Do not hang any objects on the awning, on the front cover or the
awning arms.
•Do not use any sprays (e. g. insect repellent, hairspray) near the
awning. This will soil the fabric or the water-repellent effect of the
fabric will be lost.
•If there is insufficient space above the door after the awning is
mounted, the door must remain closed when retracting or extending
to avoid the door making contact with the arms or the front panel.
The required space depends on the design of the door (door width,
swing or sliding door) as well as the set awning angle of inclination.
3Scopeofdelivery
Quantity Designation
1Awning
1 Hand crank (only awnings without motor)
1 Tension rafter (only for awnings with a length of 4 m or more)
1 Remote control (only PR2500, optional)
1 Awning switch (only PR2500, optional)
4Pegs
1 Operation manual
1 Installation manual
PR2000_PR2500-O-16S.book Seite 14 Donnerstag, 5. Oktober 2017 10:23 10

EN
PR2000, PR2500 Accessories
15
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The PerfectRoof PR2000 and PR2500 awnings are suitable for installing on
motorhomes or caravans.
The awnings shall only be used whilst the vehicle is stationary.
Description
TieDown Kit
Straps for anchoring the awning
CampRoom
Awning tent front panel and sides for various models with support legs in different sizes
RainProtect
Front panel and sides available in different sizes
SunProtect
Front panel and sides available in different sizes
Dometic Light LK120
LED light kit with remote control for installation on the awning arms
LED LightStrip
LED strip available in different lengths for installation on the underside of the awning
Awning cleaner
Special awning cleaner
Repair Kit
Awning repair patch
PR2000_PR2500-O-16S.book Seite 15 Donnerstag, 5. Oktober 2017 10:23 10

EN
Technical description PR2000, PR2500
16
6 Technical description
PerfectRoof PR2000 and PR2500 are awnings which can be extended and retracted
using a hand crank.
The PerfectRoof PR2500 awning can optionally also be extended and retracted with
a 12 V motor that is controlled by switch or remote control.
The awnings are secured on the side of the vehicle or on the ground using struts.

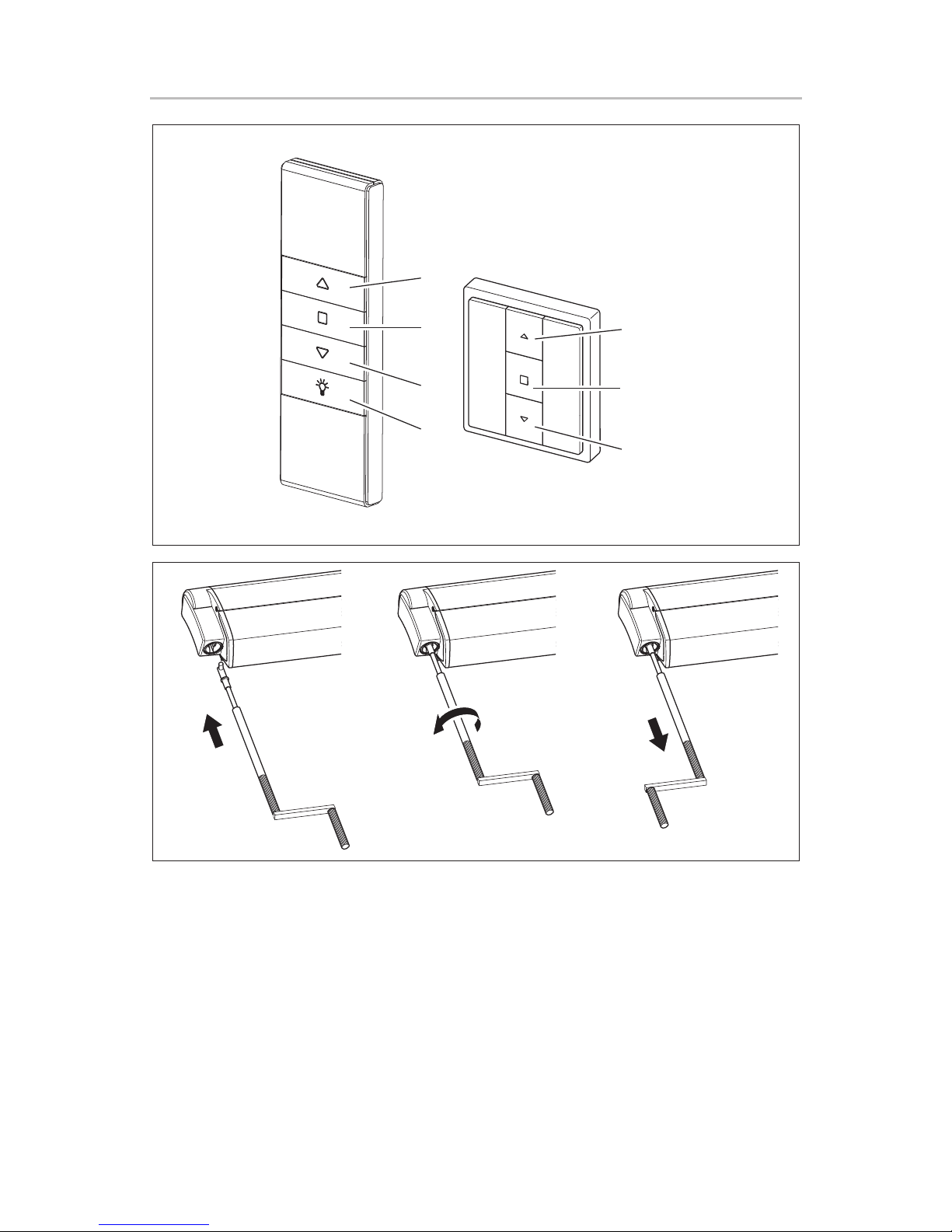

Controls of the remote control (only PR2500, optional)
Controls of the switch (only PR2500, optional)
No. in fig. 1,
page 3 Description
1 Retract awning
2Stop
3 Extend awning
4 Switch LED lighting on/off (accessory)
No. in fig. 1,
page 3 Description
1 Retract awning
2Stop
3 Extend awning
PR2000_PR2500-O-16S.book Seite 16 Donnerstag, 5. Oktober 2017 10:23 10

EN
PR2000, PR2500 Operating the awning
17
7 Operating the awning
Observe the safety instructions in chapter “Safety instructions” on page 12.
7.1 Note on the vehicle location
A
7.2 Extending the awning
Extending the awning using a hand crank
!

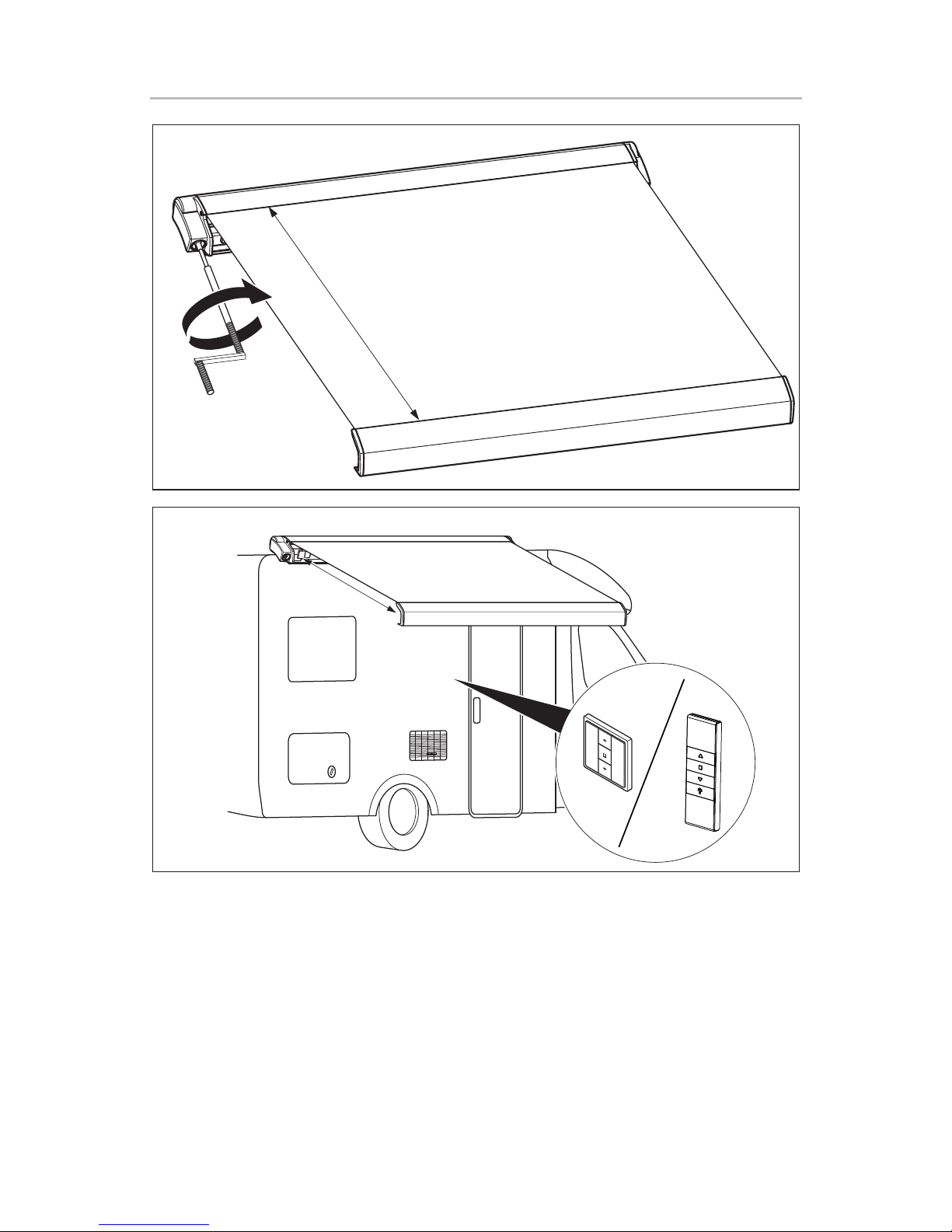

➤Click the hand crank into the holder in the awning (fig. 2, page 3).
➤Turn the hand crank until the awning is extended by about 1.5 metres (fig. 3,
page 4).

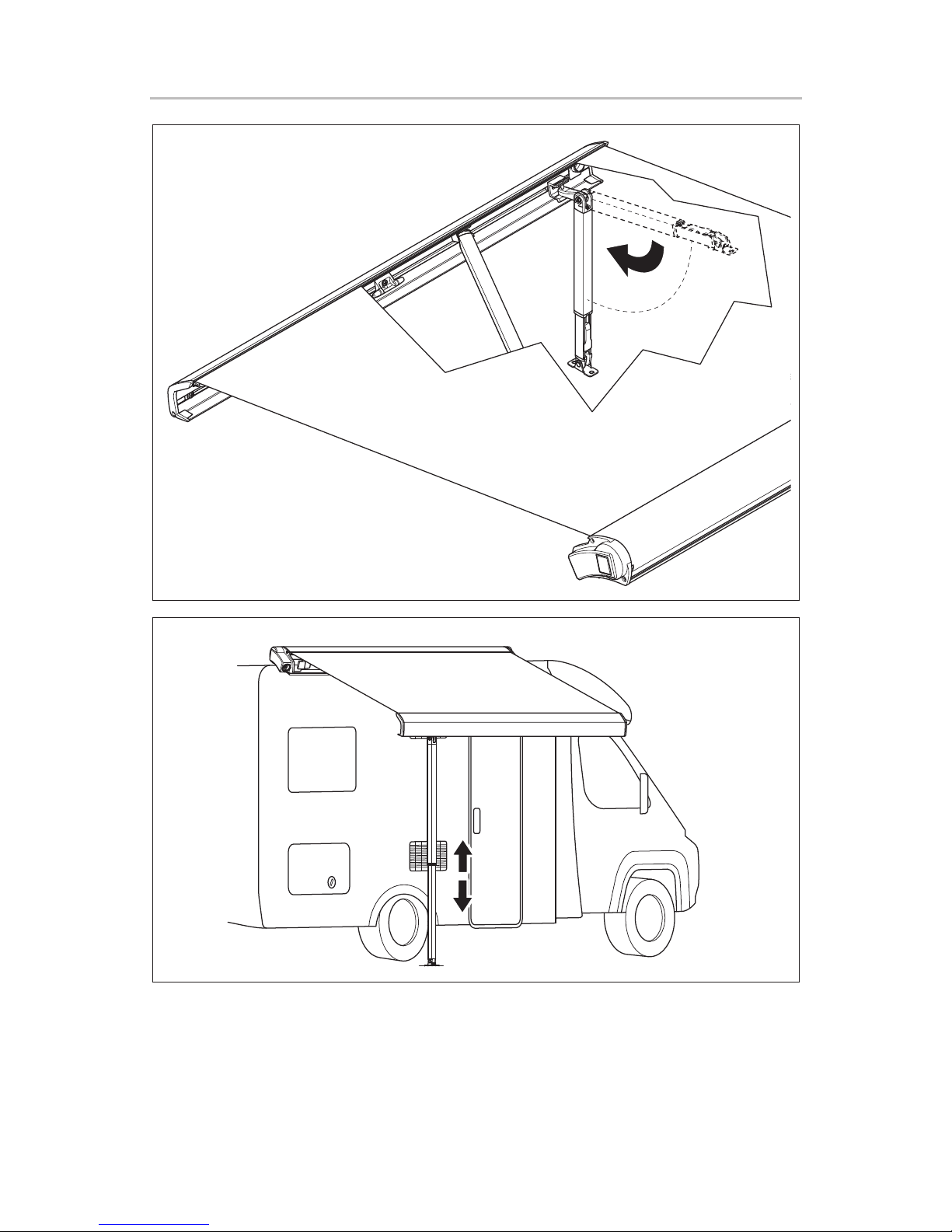

➤Push the right strut in the front cover together so that you can move it freely
(fig. 5, page 5).
➤Turn the right strut to the side (fig. 5, page 5).

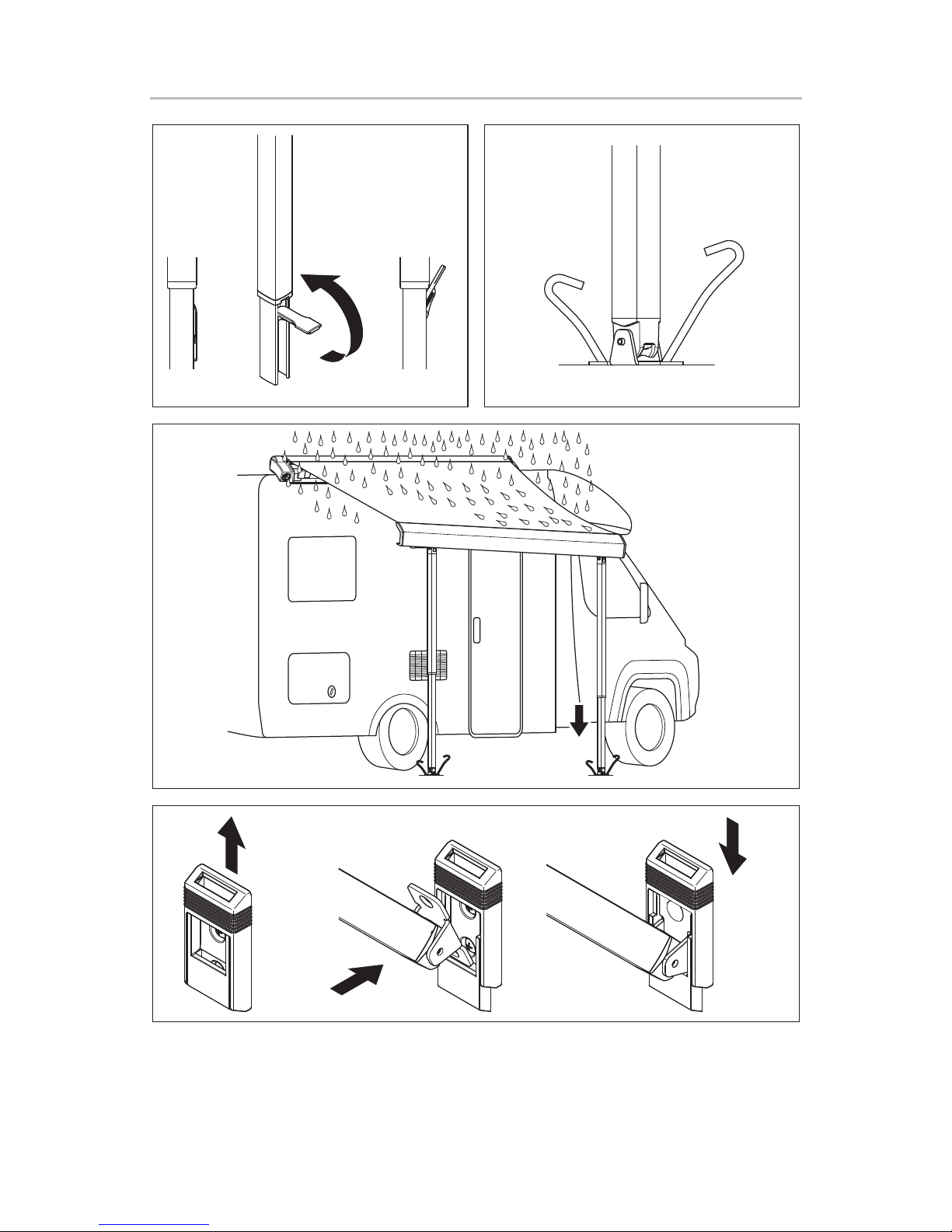

➤Fold the right strut down and set it on the ground (fig. 6, page 6).
➤Adjust the strut to the required height (fig. 7, page 6).
➤Fold the lever for the strut up to secure the struts (fig. 8, page 7).
➤Extend the other strut in the same way.
➤Turn the hand crank until the awning is extended to the required position.
Position the struts vertically and back under the front panel every 30 cm so that
the awning stays secured at all times.
➤Turn the hand crank approx. a quarter of the way back to tighten the fabric.
NOTICE!
•Park the vehicle so that no debris (branches, leaves or similar) gets on
to the fabric.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
WARNING! Beware of injury.
Keep a sufficient distance from objects or other vehicles. Once it is
retracted, it should be at least 40 cm away from other objects and
vehicles on all sides.
PR2000_PR2500-O-16S.book Seite 17 Donnerstag, 5. Oktober 2017 10:23 10

EN
Operating the awning PR2000, PR2500
18
A
➤Remove the hand crank from the holder on the awning.
Extending the awning using a 12 V motor (only PR2500, optional)
!
I
➤Press the button of the switch or the remote control until the awning is
extended by about 1.5 metres (fig. 4, page 4).
➤Push the right strut in the front cover together so that you can move it freely
(fig. 5, page 5).
➤Turn the right strut to the side (fig. 5, page 5).
➤Fold the right strut down and set it on the ground (fig. 6, page 6).
➤Adjust the strut to the required height (fig. 7, page 6).
➤Fold the lever for the strut up to secure the struts (fig. 8, page 7).
➤Extend the other strut in the same way.
NOTICE! Beware of damage.
The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against the
arms and become damaged.
The fabric used for long awnings should not sag in the middle.
WARNING! Beware of injury.
Keep a sufficient distance from objects or other vehicles. Once it is
retracted, it should be at least 40 cm away from other objects and
vehicles on all sides.
NOTE
Only for operation with the remote control:
•When the vehicle is started, the awning retracts automatically. While
the vehicle is running, the awning is blocked and can not be
extended.
•The receiver beeps once when it is switched on.
•Operation of the remote control can be affected by interference if
another device is being used nearby on the same frequency.
•Keep the remote control in a safe place while you are driving. The
magnet in the holder is not designed for strong vibrations, such as
sudden braking.
PR2000_PR2500-O-16S.book Seite 18 Donnerstag, 5. Oktober 2017 10:23 10

EN
PR2000, PR2500 Operating the awning
19
➤Press the button of the switch or the remote control until the awning is
extended to the required position. Position the struts vertically and back under
the front panel every 30 cm so that the awning stays secured at all times.
➤Press the switch of the switch or the remote control until the awning has
retracted far enough to tauten the fabric.
A
Positioning the struts on the ground
!
➤Position the struts vertically underneath the front panel.
➤Secure the struts with pegs (fig. 9, page 7).
➤Position one of the struts slightly deeper so that the front panel hangs at an angle.
This allows rain to run off more easily (fig. 0, page 7).
Securing the struts on the vehicle
You can secure the awning on your vehicle directly if you have already mounted the
latches for the struts.
➤Slide the cover of the latch up (fig. a, page 7).
➤Fit the strut into the latch (fig. a, page 7).
➤Slide the cover of the latch down (fig. a, page 7).
➤Position one of the struts slightly deeper so that the front panel hangs at an angle.
This allows rain to run off more easily (fig. b, page 8).
Mounting the tension rafter (fig. c, page 8)
Awnings with a length of 4 m or more need to have a tension rafter fitted in the
middle of the awning. This prevents the awning from sagging.
➤Slide in the tension rafter.
NOTICE! Beware of damage.
The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against the
arms and become damaged.
The fabric used for long awnings should not sag in the middle.
WARNING! Beware of injury
•Only position the struts on solid ground.
•Secure the struts from slipping.
PR2000_PR2500-O-16S.book Seite 19 Donnerstag, 5. Oktober 2017 10:23 10

EN
Operating the awning PR2000, PR2500
20
➤Fit the top end of the tension rafter into the attachment on the housing.
➤Slide the other end of the tension rafter into the attachment in the front panel.
7.3 Retracting the awning
A
➤Remove any debris (branches, leaves or similar) lying on the fabric.
➤Loosen the struts from the fastenings (pegs or latches on the vehicle).
Retracting the awning using a hand crank
➤Click the top end of the hand crank into the holder in the awning.
➤Turn the hand crank until the awning is extended by only about 1.5 metres.
Position the struts vertically and back under the front panel every 30 cm so that
the awning stays secured at all times.
➤Fold the lever of the right strut down to loosen the struts.
➤Slide the struts together completely.
➤Fold the right strut up.
➤Turn the right strut into the front panel.
➤Slide the bottom part of the right strut into the latch of the front panel.
➤Retract the other strut in the same way.
➤Turn the hand crank until the awning is fully retracted.
➤Double-check that the awning is fully retracted before starting your journey.
The front panel should be right up against the housing.
➤Remove the hand crank from the holder on the awning.
NOTICE!
•Only retract the awning, when the fabric is free of debris (branches,
leaves or similar). Otherwise, the awning can be damaged when it is
retracted.
•Keep the awning free of dirt to prevent abrasions, stains and mildew.
•When retracting the awning, make sure that any branches or other
objects are not trapped in it.
PR2000_PR2500-O-16S.book Seite 20 Donnerstag, 5. Oktober 2017 10:23 10
