Dometic BRISK 2 User manual

AIR CONDITIONERS
BRISK 2
BR342
EN
Air conditioning roof unit
Installation and Operating Manual

Dometic BR342 Explanation of symbols
EN 3
Please read this instruction manual carefully before installation and start-up, and store it in a safe place. If you pass on the
device to another person, hand over this instruction manual along with it.
Table of contents
1Explanation of symbols..........................................................................................................................................................3
2Safety and installation instructions .......................................................................................................................................4
3Target group for this instruction manual...............................................................................................................................6
4Required components ...........................................................................................................................................................6
5Intended use ..........................................................................................................................................................................7
6Labels .....................................................................................................................................................................................7
7Installation .............................................................................................................................................................................8
6Operating instructions .........................................................................................................................................................19
7Troubleshooting & Maintenance.........................................................................................................................................22
8Disposal................................................................................................................................................................................24
9Technical data......................................................................................................................................................................26
1 Explanation of symbols
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair the function of the product.
Note
Supplementary information for operating the product.
➤Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
✓This symbol describes the result of an action.
Fig. 1-5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

Safety and installation instructions Dometic BR342
4 EN
2 Safety and installation instructions
Please observe the prescribed safety instructions and stipulations from the vehicle manufacturer
and service workshops.
The manufacturer accepts no liability for damage in the following cases:
Faulty assembly or connection
Damage to the product resulting from mechanical influences and excess voltage
Alterations to the product without express permission from the manufacturer
Use for purposes other than those described in the operating manual
2.1 Handling the device
WARNING!
Installation and repair of the roof air conditioner may only be carried out by qualified personnel who are familiar
with the risks involved and the relevant regulations. Inadequate repairs may cause serious hazards. For repair
service, please contact the service centre in your country (addresses on the back page).
Electrical devices are not toys.
Keep electrical devices out of reach of children or infirm per-sons. Do not allow them to use electrical
devices without super-vision.
Persons whose physical, sensory or mental capabilities or whose lack of experience and knowledge prevent them
from using the device safely should not use it without supervision or instruction by a responsible person.
Do not undo the upper cover of the roof air conditioner in the event of a fire. Use approved extinguishing agents
instead. Do not use water to extinguish fires.
CAUTION!
The roof air conditioner must be installed securely so that it can-not fall down.
Only operate the roof air conditioner if you are certain that the housing and the cables are not damaged.
Do not use the roof air conditioner near flammable fluids or in closed rooms.
Make sure no combustible objects are stored or installed near the air outlet. A distance of at least 50 cm must be
kept.
Do not reach into air outlets or insert any foreign objects in the device.
NOTICE!
Only use the device as intended.
The roof air conditioner is not suitable for use in agricultural or construction vehicles.
Do not make any alterations or conversions to the device.
Never drive through automatic car washes when the roof air conditioner is mounted.
If faults occur in the refrigerant circuit, the system must be checked by a specialist company and repaired properly.
The refrigerant must never be released into the air

Dometic BR342 Safety and installation instructions
EN 5
Note
Please ask your vehicle manufacturer if a technical inspection is required after fitting an air conditioner and whether
the height entered in the vehicle documents needs to be altered:
–BR342: increased height 283 mm.
2.2 Handling electrical cables
WARNING!
The electrical power supply may only be connected by a qualified electrician.
CAUTION!
Fit a fuse of at least 10 A to the connection with the vehicle’s power supply.
Attach and lay the cables so that they cannot be tripped over or damaged.
NOTICE!
Use cable ducts to lay cables through walls with sharp edges.
Do not lay loose or bent cables next to electrically conductive materials (metal).
Do not pull on the cables.

Target group for this instruction manual Dometic BR342
6 EN
3 Target group for this instruction manual
The instructions in this manual are intended for qualified personnel at workshops who are familiar with the guidelines
and safety precautions to be applied.
4 Required components
No. in fig. 1
Quantity
Description
1
1
BR342 Rooftop Air-conditioner
2
1
Air Distribution Box
1
Duct Divider
1
Ceiling Template
1
ADB Cover
8
Sheet Metal Screws
4
Mounting Bolts
2
Wood Screws
2
Front / Rear Vent Doors
1
Remote Control
2
Batteries
1
Filter
1
2
Figure 1 –Required components

Dometic BR342 Intended use
EN 7
5 Intended use
The Dometic BR342 roof air conditioner can condition the interior of campers and caravans with cool or warm
dehumidified air.
The roof air conditioner is not suitable for installation in construction machines, agricultural machines or similar
equipment. It will not work properly if exposed to strong vibrations.
Do not operate the roof air conditioner if the ambient temperature is above 43 °C.
6 Labels
Labels are attached to the Dometic BR342 roof air conditioner. These labels provide the user and fitter with information
on specifications of the device.
A label is applied to the base of the rooftop unit and can be read from inside the RV through the roof opening. This label
provides details on the rooftop unit.

Installation Dometic BR342
8 EN
7 Installation
CAUTION! Beware of injury
The roof air conditioner may only be installed by qualified personnel. The following information is intended
for technicians who are familiar with the guidelines and safety precautions to be applied.
5.1 Note on installation
Read this installation manual completely before installing the roof air conditioner.
The following tips and instructions must be observed while installing the roof air conditioner:
DANGER! Danger of electrocution
Disconnect all power supplies when working on the roof air conditioner.
CAUTION! Beware of injury
Improper installation of the roof air conditioner can result in irreparable damage to the device and put the safety
of the user at risk.
The manufacturer assumes no liability for malfunctions and for the safety of the roof air conditioner, especially for
injury and/or damage to property, if the roof air conditioner is not fitted in accordance with these installation
instructions.
Always wear the recommended protective clothing (e.g. protective goggles, gloves).
NOTICE! Beware of damage
Observe the structural engineering of the vehicle and seal of all openings made when installing the roof air
conditioner.
Check whether the roof of the vehicle is able to support the weight of a person before climbing onto it. Ask the
vehicle manufacturer about the permissible roof loads.
Note on transport
Always have someone help you carry the roof air conditioner.
Always lift the roof air conditioner to move it and never drag it over the roof.
Do not use the rear or side ventilation slots to lift it.
Note on installation location
Before installing the roof air conditioner, check whether any vehicle components could be damaged by the installation of the roof
air conditioner (such as lamps, cupboards, doors).
Before installation, find out (by consulting the manufacturer of the vehicle) whether the construction is designed for the static
weight and the loads of the air conditioner when the vehicle is in motion. The manufacturer of the roof air conditioner assumes
no liability whatsoever.

Dometic BR342 Installation
EN 9
The vehicle manufacturer may have already provided points where the opening for the installation of the roof air conditioner can
be made without any risk of weakening the construction or cutting power cables. If not, fitment of a roof H-frame may be
required. These are available separately.
Select a flat and sufficiently level area at the centre of the vehicle roof between two longitudinal sections for installation.
The roof inclination of the installation surface may not exceed 15°.
The unit should be mounted slightly forward of centre (front to back) and centred from side to side.
When installing 2 units, place one unit 1/3 and one unit 2/3’s from front of RV and centred from side to side.
Make sure no combustible objects are stored or installed near the air outlet. A distance of at least 457 mm should be kept.
Check inside the vehicle for air distribution box (ADB) obstructions (i.e. door openings, room dividers, curtains, ceiling fixtures,
etc.).
Make sure that there are no objects within the vehicle which could obstruct the attachment of the air outlet unit or the cooled air
from flowing through the swivelling air distribution nozzles.
For safety reasons, note the location of existing wiring harnesses, wires and other components within the installation area, in
particular those which are not visible, when installing the roof air conditioner (when drilling or screwing etc.).
Note on electrical system
Only a qualified electrician should connect the roof air conditioner to the electrical power.
Check that the voltage specification on the type plate is the same as that of the power supply.
Do not lay cables which are loose or bent next to electrically conductive material (metal).
Install an all-pole switch with a contact opening width of at least 3 mm on the installation side.
5.2 Roof preparation
Note
Opening Requirements: Before preparing the ceiling opening, read all of the following instructions
before beginning the installation.
Roof vent removal (if required):
➤Unscrew and remove the roof vent.
➤Remove all caulking compound around opening.
➤Seal all screw holes and seams where the roof gasket will be located. Use a good grade of all weather sealant.
➤If the opening exceeds 352 ×352mm, it will be necessary to re-size the opening.
➤If the opening is less than 346 ×346mm must be enlarged.

Installation Dometic BR342
10 EN

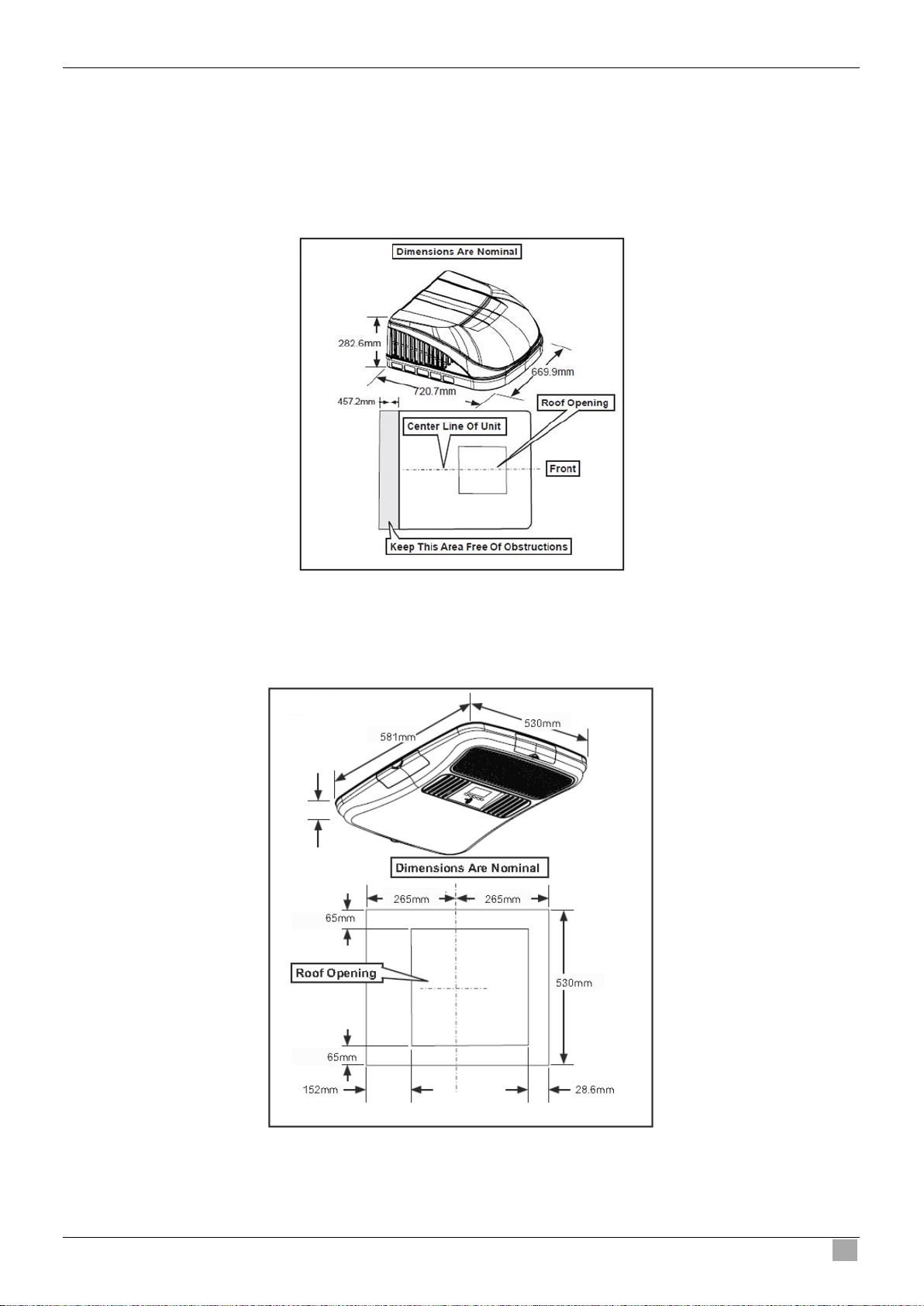

New opening
➤Carefully mark and cut the required roof opening.
➤Use the roof opening as a guide and cut the matching hole in the ceiling.
65mm

Dometic BR342 Installation
EN 11

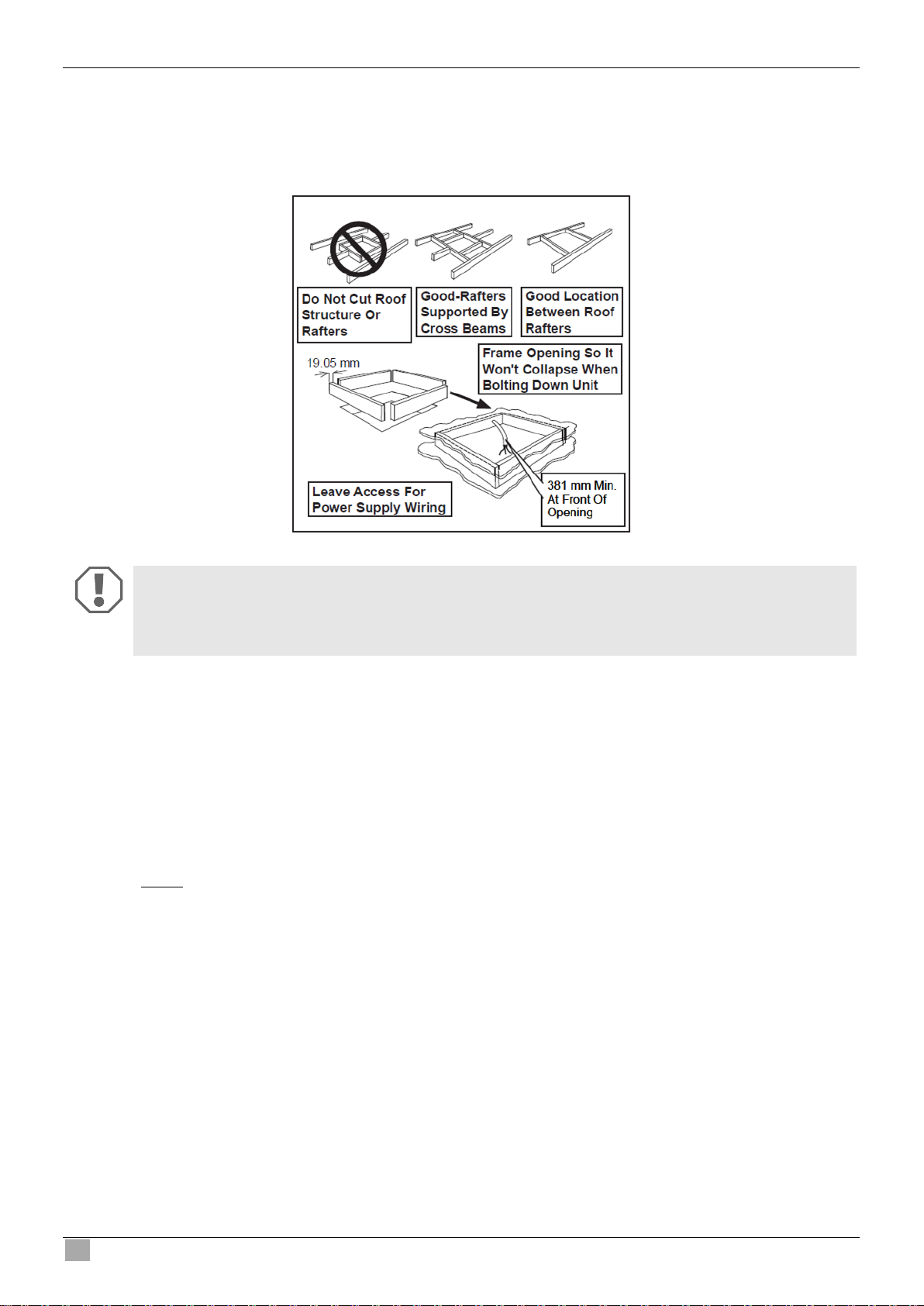

The opening created must be framed to provide adequate support and prevent air from being drawn from the roof cavity.
Framing stock 3/4″(19mm) or more in thickness must be used. Remember to provide an entrance hole for power
supplies, indoor temperature sensor (if applicable), thermostat communication cable, and furnace wires (if applicable) at
the front of the opening.
NOTICE! Beware of damage
Maintain structural integrity. Otherwise damage to product and/or RV could occur..
NEVER create a low spot on RV roof. Otherwise, water will pool and could cause a leak..
5.4 Electrical wiring
Route a copper, with ground, 240VAC supply wire from the time delay fuse or circuit breaker box to the roof opening.
This supply wire must be located in the front portion of the roof opening.
The power MUST be on an appropriately sized separate time delay fuse or circuit breaker. It is recommended a fuse of at
least 16A is used.
Make sure that at least 381mm of supply wire extends into the roof opening. This insures an easy connection at the junction
box.
Protect the wire where it passed into the opening with approved method.

Installation Dometic BR342
12 EN
5.5 Placing the unit on rooftop
➤Remove unit from carton and discard the carton.
CAUTION! Lifting hazard
Use proper lifting technique and control when lifting product. The rooftop unit weighs approximately 35 kg.
Follow occupational health of safety guide when lifting or moving the unit. Failure to obey this caution could result
in injury.
NOTICE! Beware of damage

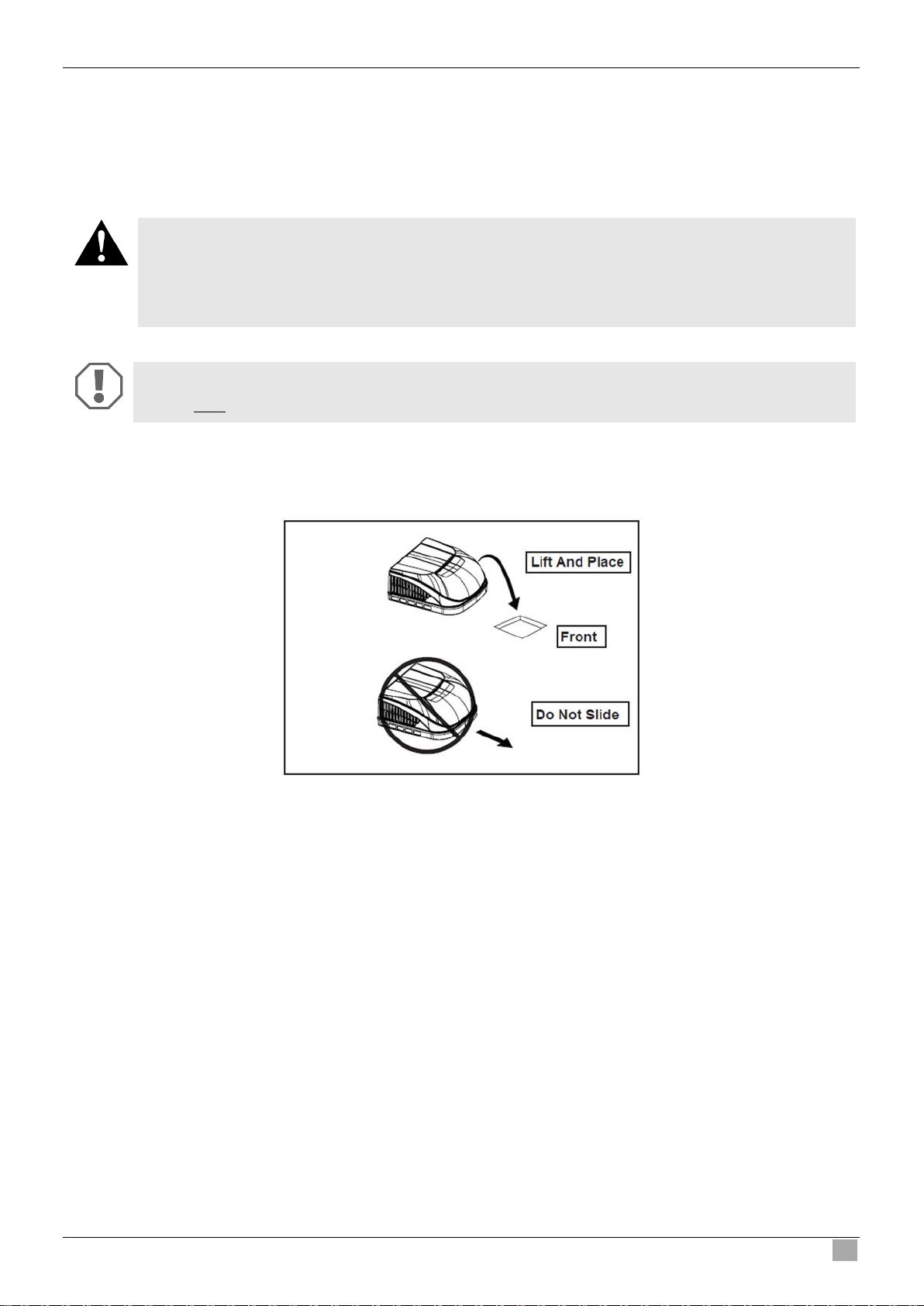

Do NOT slide unit. Otherwise, damage to gasket (on bottom of unit) may occur, and could cause a leak.
➤Lift and place the unit over the prepared opening using the gasket on the unit as a guide.

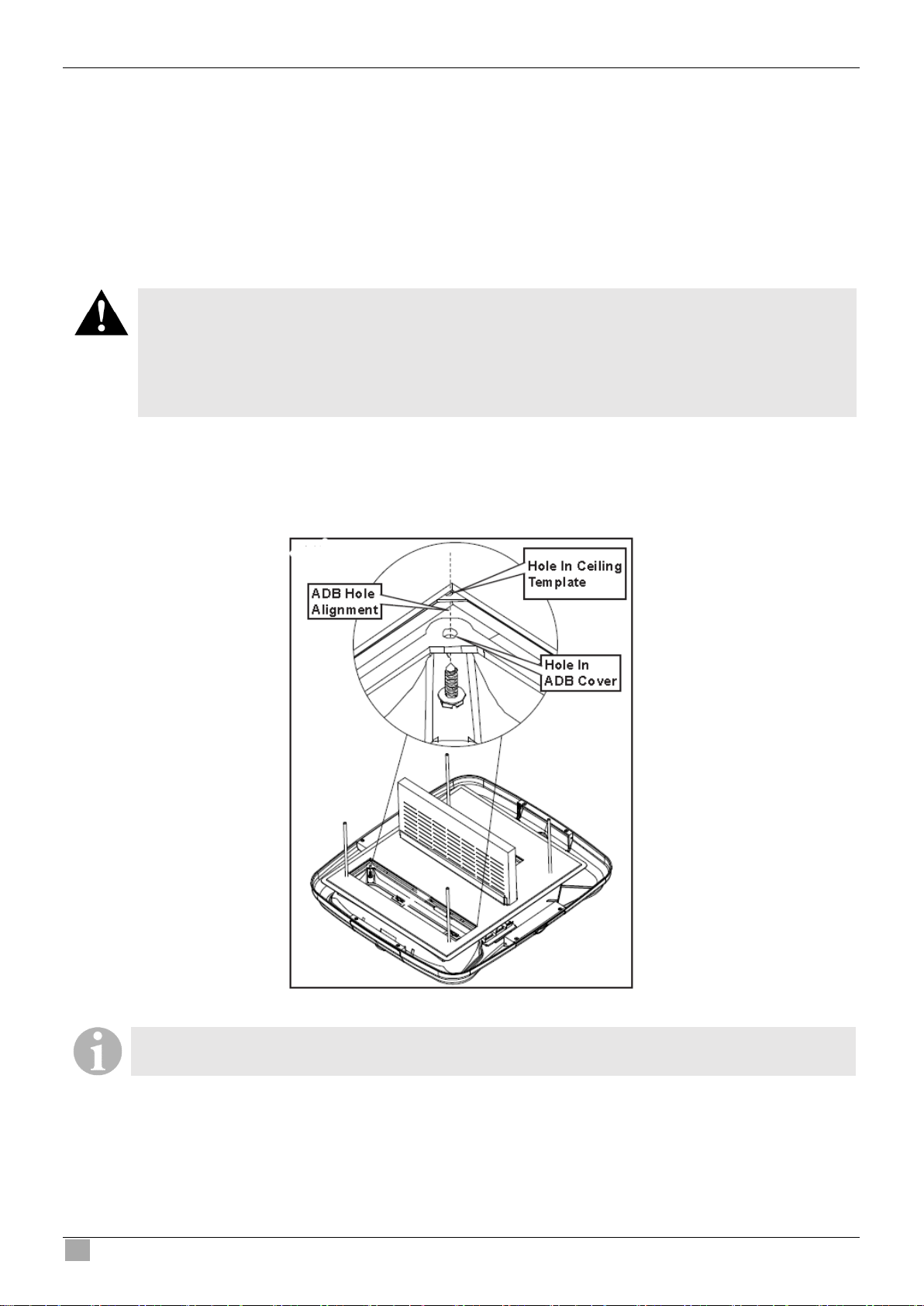

➤Place the ADB kit inside the RV. This contains mounting hardware for the unit and will be used inside the vehicle.

Dometic BR342 Installation
EN 13
5.7 Completing installation
➤Check gasket alignment of the unit over the roof opening and adjust if necessary. Unit may be moved from below by
slightly lifting.
➤Remove air distribution box and mounting hardware from carton.

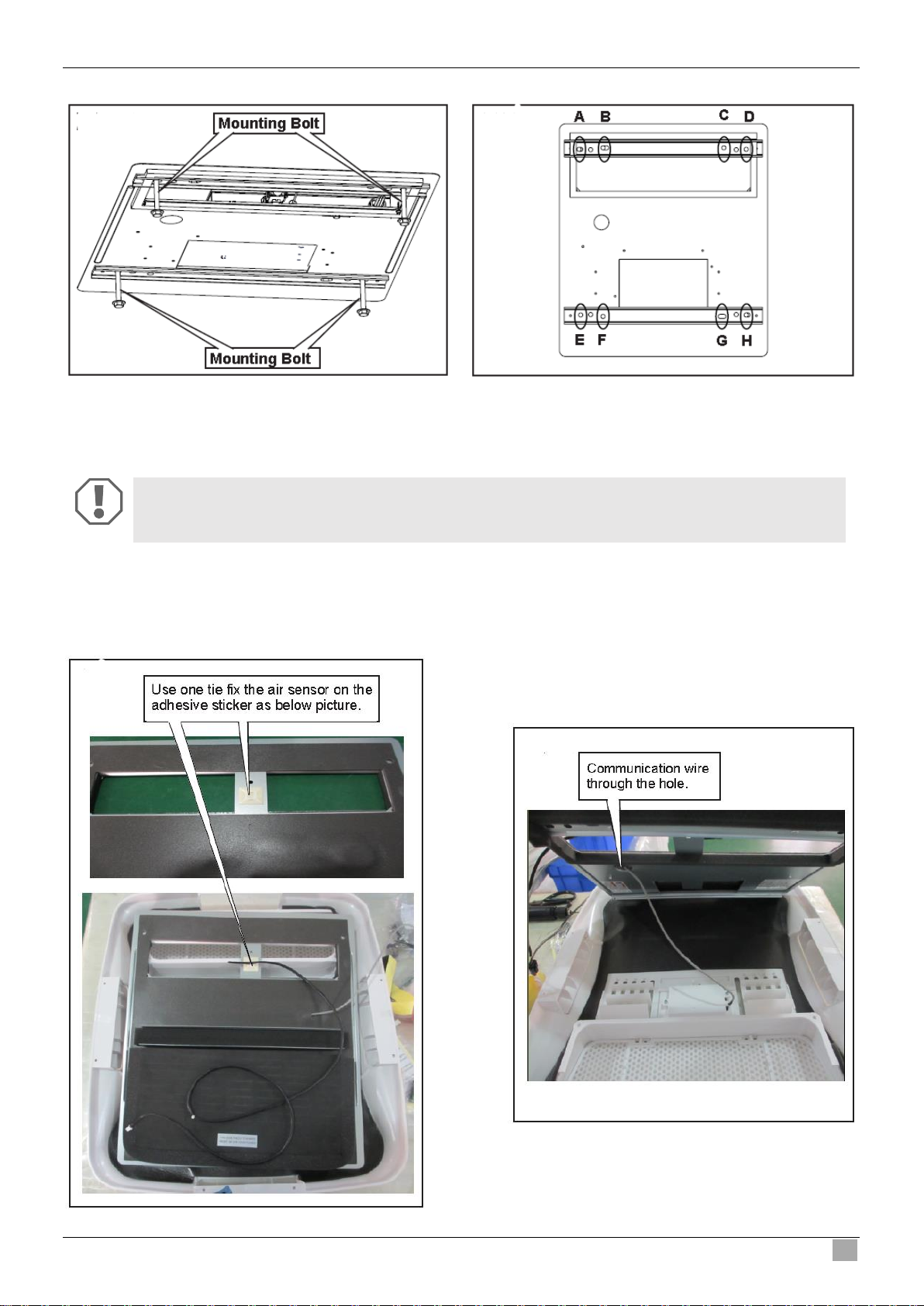

➤All models in this manual will use a four (4) bolt pattern for installing the air distribution box kit.

Installation Dometic BR342
14 EN

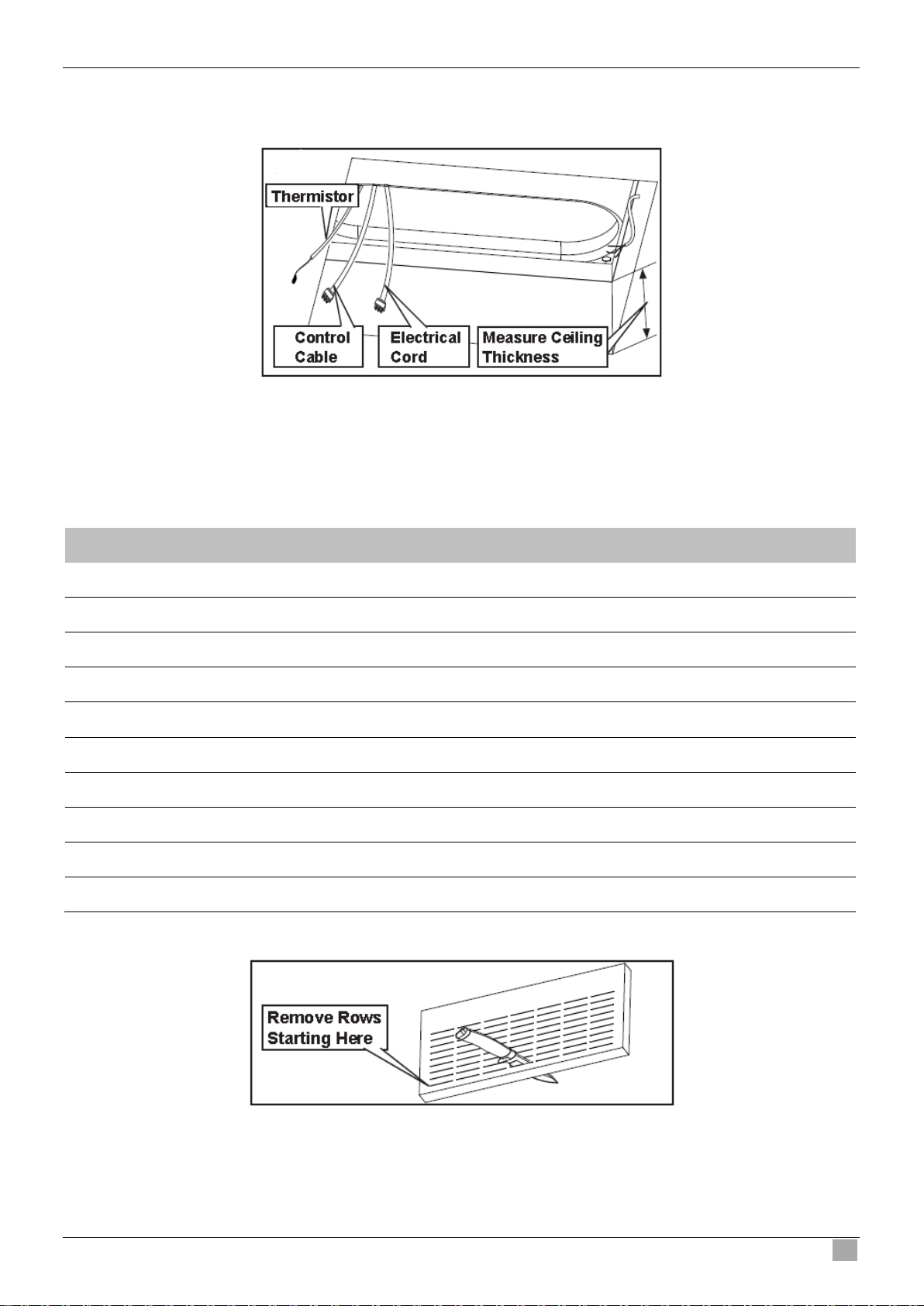

➤Reach up into the return air opening and pull the unit electric cord and control cables down for later connection.
➤Measure the ceiling thickness.
➤Cut away the number of rows as indicated in table below.
Roof Thickness Range
Number of Rows to Cut from Duct Divider
152.4 to 165.1mm
0(0mm)
139.7 to 152.4mm
1(25.4mm)
127.0 to 139.7mm
2(50.8mm)
114.3 to 127.0mm
3(76.2mm)
101.6 to 114.3mm
4(101.6mm)
88.9 to 101.6mm
5(127.0mm)
76.2 to 88.9mm
6(152.4mm)
63.5 to 76.2mm
7(177.8mm)
50.8 to 63.5mm
8(203.2mm)
38.1 to 50.8mm
9(228.6mm)

Dometic BR342 Installation
EN 15

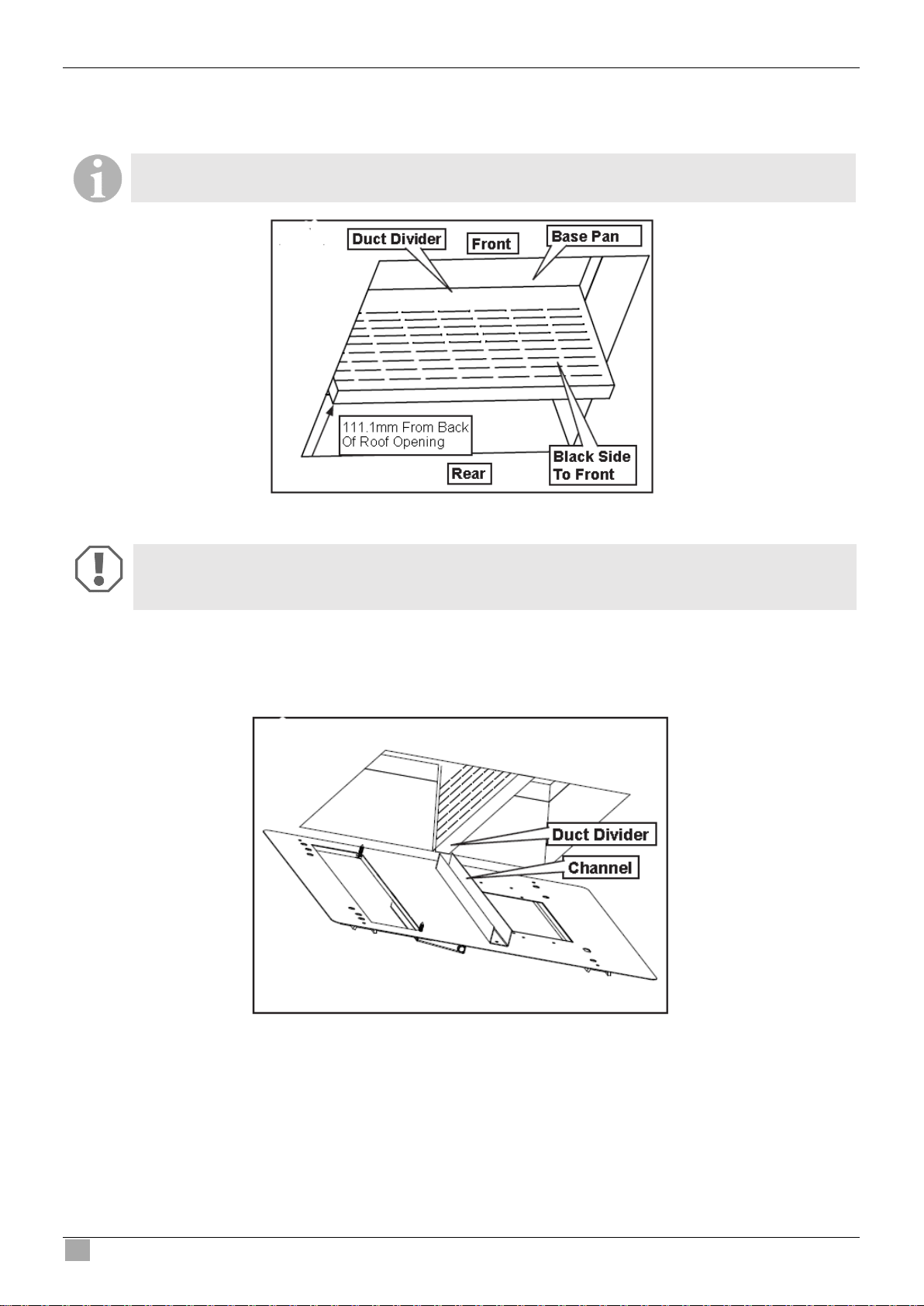

➤Carefully install the duct divider in the roof opening 111.1mm from back of roof opening.
Note
The foil side faces rear of unit.
➤Hold the ceiling template up to the roof opening and start each mounting bolt, by hand, through the ceiling template
and up into the unit base pan.
➤Bolts should be fed into locations A, D, E and H as shown in the following diagram.
NOTICE!
Incorrect installation of the divider could cause compressor to short-cycle, resulting in supply circuit
overload and reduced product performance.

Installation Dometic BR342
16 EN
➤Tighten all four (4) mounting bolts EVENLY to 4.5 to 5.5 Nm.
NOTICE!
Tighten mounting bolts to correct torque specifications. Overtightening could damage unit’s base pan or
ceiling template. Not enough torque will allow an inadequate roof seal, and could cause a leak.
➤Fix the return air sensor to the tie fix on the ceiling template so it is positioned in the return air stream.
➤Feed the communication wire through the hole in the ceiling plate as shown below and connect the 2 ends.

Dometic BR342 Installation
EN 17
➤Make connections for the 240VAC positive (+), negative (-) and earth from the supply to the rooftop unit and ensure
they are well insulated.
➤Tuck any excess wire up out of the way
WARNING! Electrical shock hazard
Verify 240VAC power is disconnected from the RV. Failure to obey this warning could result in death or serious
injury.
Provide grounding in compliance with all applicable electrical codes. Failure to obey this warning could result in
death or serious injury.
➤Align air distribution box with ceiling template.
Note
Front and rear vent doors are supplied loose. Do NOT install them until all screws are installed.

Installation Dometic BR342
18 EN
➤Install two (2) (supplied) sheet metal screws inside return air opening to secure air distribution box to ceiling
template.
➤Install eight (8) (supplied) wood screws inside the front, rear and side doors to secure air distribution box to ceiling.
➤Install front and rear doors.
➤Place filter in return air grille. It may already be installed on some units.

Dometic BR342 Installation
EN 19

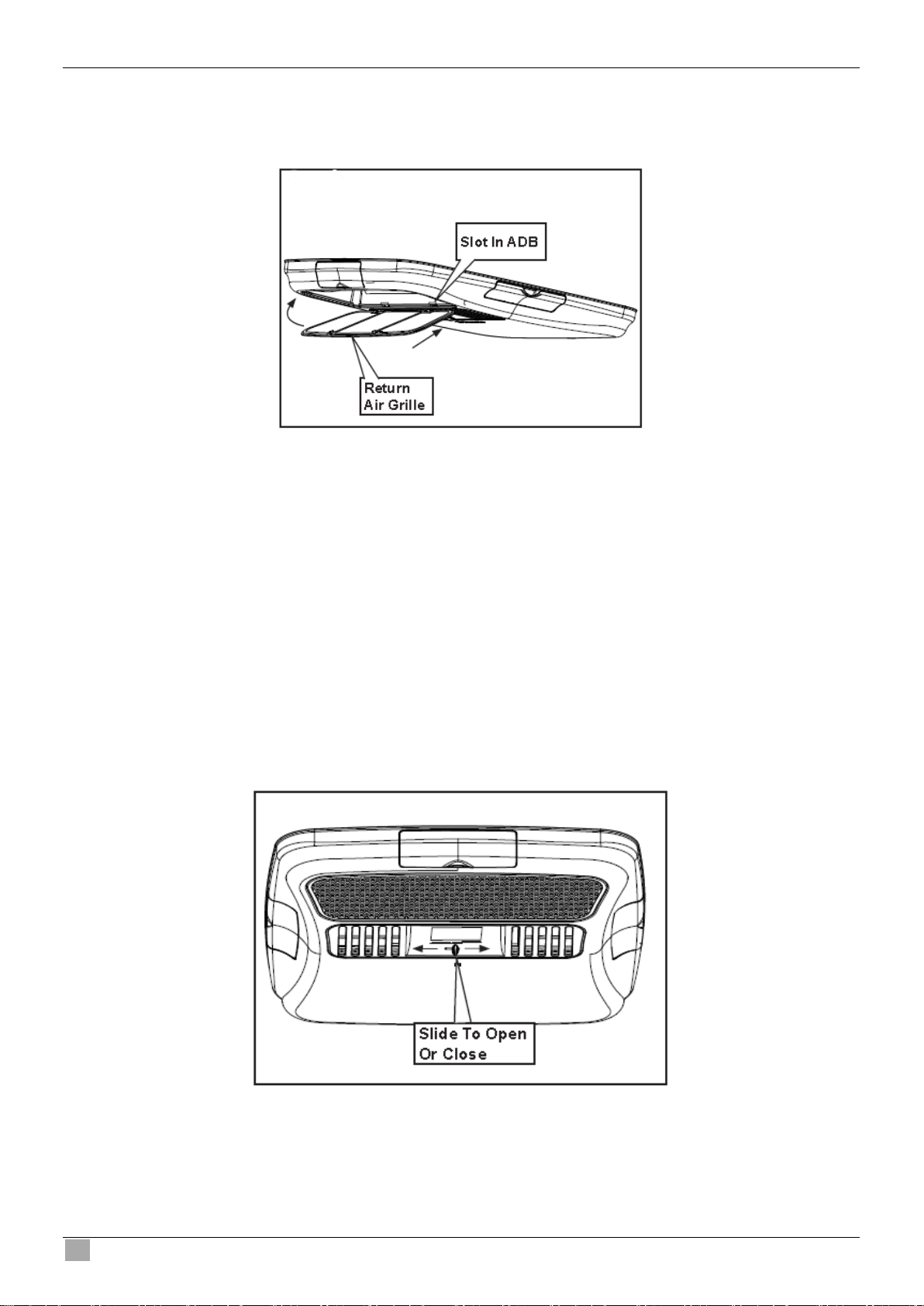

➤Install return air vent grille into the air distribution box. Slide return air grille tab into slot in air distribution box and
rotate up and snap in place.
➤The unit installation is now complete and is ready for operation. The power supply to the unit may now be turned on.
➤Verify that all features of the installed system work. Please read the following operating instructions before attempting
to run the unit.
6 Operating instructions
6.1 Centre air discharge
The ADB is able to discharge the air directly down below the ADB by opening the slider shown below.

Operating instructions Dometic BR342
20 EN
6.2 Operation and mode description
➤Press to switch on the machine. The previous operating mode that was selected by the remote control is automatically
used.
➤Press MODE to select mode
Mode
Description
Auto
In this mode the A/C will run automatically and the running mode will be selected
automatically by the difference temperature between the set point and the ambient
temperature.
For the automatic speed it will be set according to comparing the set temperature with
the internal temperature according to.
1. Below 20°C –Heat Mode
2. 20°C to 25°C –Ventilation Mode
3. Above 25°C –Cool Mode
Cold
Press MODE button to select cold mode then set the expected temperature between
18°C and 30°C.
Press the FAN speed button to select low, medium or high fan speed of automatic
speed.
Dehumidification
Press MODE button to select this function and set the expected temperature between
18°C and 30°C.
The fan speed will be kept at LOW.
Ventilation
Press MODE button to select ventilation.
Press the FAN speed button to select low, medium or high fan speed of automatic
speed.
Heat Pump (Heat)
Press MODE button to select heat mode then set the expected temperature between
18°C and 30°C.
Press the FAN speed button to select low, medium or high fan speed of automatic
speed.
Timer OFF
The machine must be ON
Press TIMER button to set the time when the machine need to be switched off.
Press the selection button (“+” and “-“) to change the time when the machine needs to
be switched off.
Press the TIMER button to confirm the data entered.
Timer ON
The machine must be OFF
Press TIMER button to set the time when the machine need to be switched on.
Press the selection button (“+” and “-“) to change the time when the machine needs to
be switched off.
Press the TIMER button to confirm the data entered
Fan Speed
Low Speed
Medium Speed
High Speed (static)
Auto Speed (flashing)
