Dometic PERFECTVIEW CAM80AHD User manual

CAM80AHD
Rear View Video Camera
Installation and Operating Manual . . . . . . 9
Rückfahrvideokamera
Montage- und Bedienungsanleitung . . . 20
Caméra vidéo de recul
Instructions de montage et de service . . 32
Cámara de vídeo de marcha atrás
Instrucciones de montaje y de uso . . . . . 44
Câmara de marcha-atrás
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . 56
Videocamera per la retromarcia
Istruzioni di montaggio e d’uso . . . . . . . . 68
Achteruitrijvideocamera
Montagehandleiding en
gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 80
Bakvideokamera
Monterings- og betjeningsvejledning. . . 92
Backningsvideokamera
Monterings- och bruksanvisning . . . . . . 103
Ryggevideokamera
Monterings- og bruksanvisning . . . . . . . 114
Peruutusvideokamera
Asennus- ja käyttöohje. . . . . . . . . . . . . . 125
Видеокамера заднего вида
Инструкция по монтажу
и эксплуатации. . . . . . . . . . . . . . . . . . . . 136
Kamera cofania
Instrukcja montażu i obsługi . . . . . . . . . 148
Cúvacia kamera
Návod na montáž a uvedenie
do prevádzky . . . . . . . . . . . . . . . . . . . . . 160
Couvací kamera
Návod k montáži a obsluze . . . . . . . . . . .171
Tol a tók a me ra
Szerelési és használati útmutató . . . . . . 182
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
DRIVING SUPPORT
PERFECTVIEW
CAM80CM-AHD-IO-16s.book Seite 1 Freitag, 21. Dezember 2018 11:55 11

CAM80CM-AHD-IO-16s.book Seite 2 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD
3
1 2 3
4
9
6
8
5
7
10 11 12
1
CAM80CM-AHD-IO-16s.book Seite 3 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD
4
2
3
4
5
6
7
CAM80CM-AHD-IO-16s.book Seite 4 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD
5
Ø 16 mm
1
3
2
4
8
2
3
1
9
CAM80CM-AHD-IO-16s.book Seite 5 Freitag, 21. Dezember 2018 11:55 11

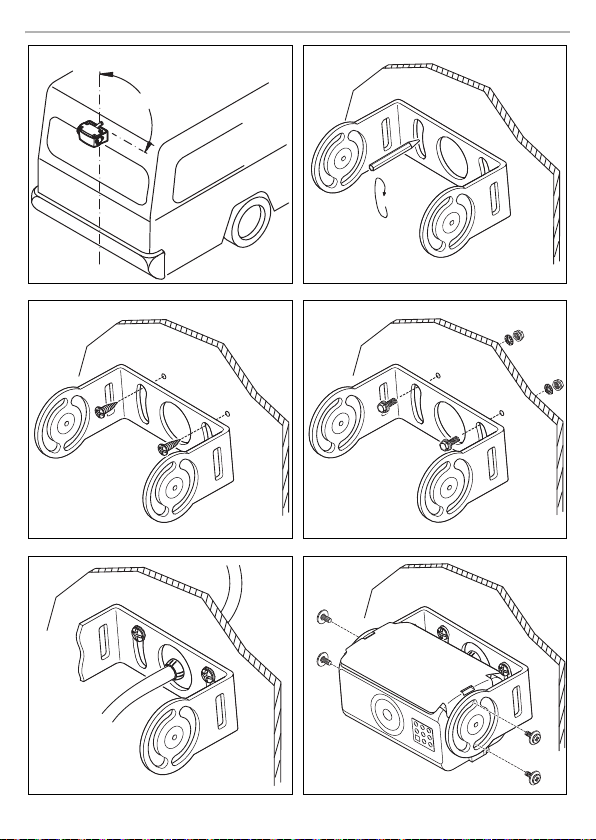

CAM80AHD
6
90°
0
a
b
c
d
e
CAM80CM-AHD-IO-16s.book Seite 6 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD
7
f
~50°
2.
1.
1.
g
h
A
B
i
CAM80CM-AHD-IO-16s.book Seite 7 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD
8
j
CAM80CM-AHD-IO-16s.book Seite 8 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD Explanation of symbols
EN
9
Please read this instruction manual carefully before installation and first use, and store
it in a safe place. If you pass on the product to another person, hand over this instruc-
tion manual along with it.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Information on the electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8 Mounting the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9 Cleaning and caring for the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
12 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction can cause death or serious
injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair the function
of the product.
NOTE
Supplementary information for operating the product.
CAM80CM-AHD-IO-16s.book Seite 9 Freitag, 21. Dezember 2018 11:55 11

Safety and installation instructions CAM80AHD
EN
10
2 Safety and installation instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and incorrect connection voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Please observe the prescribed safety instructions and stipulations from the vehicle
manufacturer and service workshops.
!WARNING!
Inadequate supply cable connections could result in short circuits, which could have as
a consequence that:
•Cable fires occur
•The airbag is triggered
•Electronic control devices are damaged
•Electric functions fail (indicators, brake light, horn, ignition, lights)
ANOTICE!
To prevent the risk of short circuits, always disconnect the negative terminal of the
vehicle's electrical system before working on it.
If the vehicle has an additional battery, its negative terminal should also be discon-
nected.
Please observe the following instructions:
•When working on the following cables, only use insulated cable lugs, plugs and flat push-on
receptacles:
– 30 (direct supply from positive battery terminal)
–15(connectedpositiveterminal, behind the battery)
– 31 (return line from the battery, earth)
– L (indicator lights left)
– R (indicator lights right)
Do not use terminal strips.
•Use a crimping tool to connect the cables.
•When connecting to cable 31 (earth), screw the cable
– to the vehicle's earth bolt with a cable lug and a gear disc or
– to the sheet-metal bodywork with a cable lug and a self-tapping screw.
Ensure that there is a good earth connection.
CAM80CM-AHD-IO-16s.book Seite 10 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD Safety and installation instructions
EN
11
If you disconnect the negative terminal of the battery, all data stored in the volatile memories will
be lost.
•The following data must be set again, depending on the vehicle equipment options:
–Radiocode
– Vehicle clock
–Timer
– On-board computer
– Seat position
You can find instructions for making these settings in the appropriate operating instructions.
Observe the following installation instructions:
!CAUTION!
•Secure the parts installed in the vehicle in such a way that they cannot become loose
under any circumstances (sudden braking, accidents) and cause injuries to the
occupants of the vehicle.
•Secure any parts of the system covered by the bodywork in such a manner that they
cannot be come loose or damage other parts and cables or impair vehicle functions
(steering, pedals, etc).
•Always follow the safety instructions of the vehicle manufacturer.
Some work (e.g. on retention systems such as the AIRBAG etc.) may only be
performed by qualified specialists.
ANOTICE!
•To prevent damage when drilling, make sure there is sufficient space on the other
side for the drill head to come out.
•Deburr all drill holes and treat them with a rust-protection agent.
Observe the following instructions when working with electrical parts:
ANOTICE!
•When testing the voltage in electrical cables, only use a diode test lamp or a
voltmeter.
Test lamps with an illuminant take up voltages which are too high and which can
damage the vehicle's electronic system.
•When making electrical connections, ensure that:
– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp edged ducts without protection.
•Insulate all connections.
•Secure the cables against mechanical wear with cable binders or insulating tape,
for example to existing cables.
CAM80CM-AHD-IO-16s.book Seite 11 Freitag, 21. Dezember 2018 11:55 11

Scope of delivery CAM80AHD
EN
12

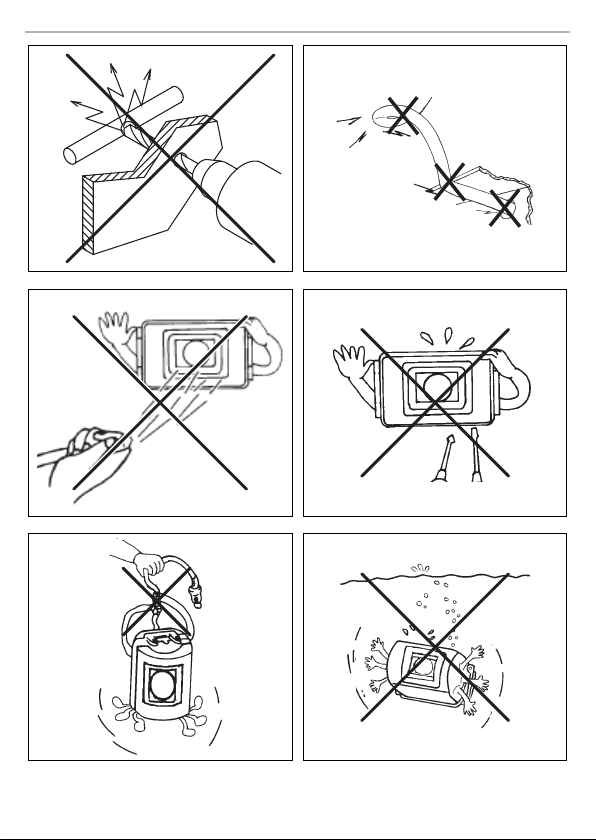

The camera is watertight. However, the sealings on the camera cannot withstand a high-pressure
cleaner (fig. 4, page 4). Therefore, you should observe the following instructions when handling
the camera:
•Do not open the camera, as this impairs the sealing and the function of the camera (fig. 5,
page 4).
•Do not pull at the cables, as this impairs the sealing and the function of the camera (fig. 6,
page 4).
•The camera is not suitable for submerged operation (fig. 7, page 4).
3Scopeofdelivery
4 Accessories
Available as accessory (not included in scope of delivery):

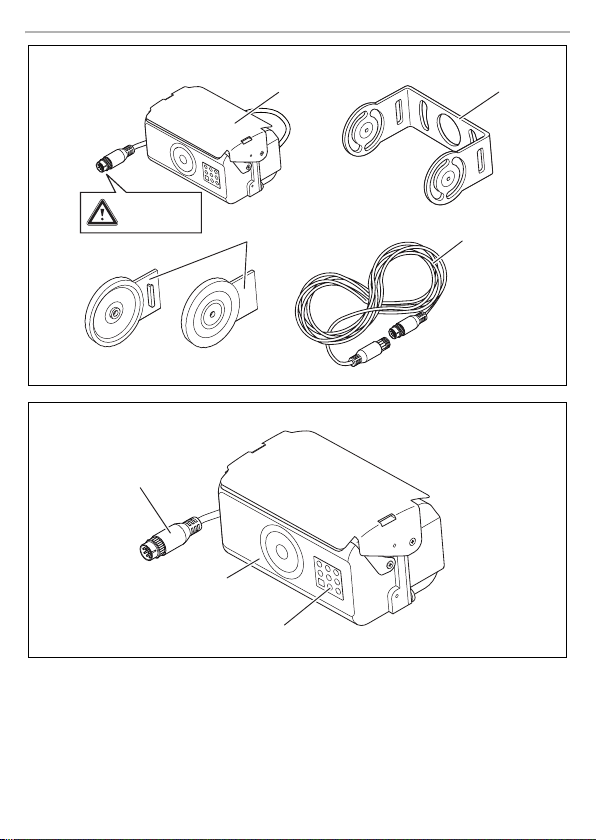

No. in
fig. 8,
page 5
Quantity Description Ref. no.
1 1 Colour camera CAM80AHD 9600012923
2 1 Camera bracket 9102200073
32Sidecovers
4 1 Extension cable 9600000208
–1Fasteningmaterial
Description Ref. no.
Extension cable 5 m 9600000206
Extension cable 10 m 9600000207
Extension cable 20 m 9600000208
Spiral cable for trailer operation 9600000209
CAM80CM-AHD-IO-16s.book Seite 12 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD Intended use
EN
13
5Intendeduse
The CAM80AHD colour camera is designed primarily for use in vehicles. It can be used in video
systems to observe the space around the vehicle from the driver's seat when manoeuvring or
parking, for example.
!
6 Technical description
The camera, which is encased in aluminium housing, transmits image and sound to a monitor via a
cable. The built-in infrared LEDs improve night vision.
The camera transmits the image as if you are looking in the rear mirror.
The camera consists of the following main elements:
7 Information on the electrical connections
7.1 Laying cables
A
Please observe the following instructions:
•As far as possible, use original openings or alternative openings for the connecting cable duct,
e.g. the paneling edges, ventilation grilles or blank panels. If no openings are available, you
must drill holes for the cables. Check beforehand that there is sufficient room for the drill head
to come out on the other side.
WARNING!
Risk of injury!
Since rear view systems are designed merely as an additional aid for reversing, it does
not relieve you of the duty to take proper care when reversing.
No. in
fig. 9, page 5 Description
1 6-pin connection cable
2Microphone
3 Infrared LEDs
NOTICE! Risk of damage!
•To prevent damage, when drilling ensure that there is sufficient space on the other
side for the drill head to come out.
•Cables and connections which are not properly installed will cause malfunctions or
damage to components. Correct installation of cables and connections is the basic
prerequisite for lasting and trouble-free operation of the retrofitted components.
•The cables may not be exposed for long periods to solvents such as benzine, as the
solvents can damage the cable.
CAM80CM-AHD-IO-16s.book Seite 13 Freitag, 21. Dezember 2018 11:55 11

Mounting the camera CAM80AHD
EN
14
•Whereverpossible laycablesinsidethe vehicle,as theyare better protected inside than outside
the vehicle.
If you do need to lay a cable outside the vehicle, ensure that it is well secured (use additional
cable ties, insulating tape, etc.).
•To prevent damage to the cables, when laying them ensure that there is sufficient distance to
hot or moving vehicle components (exhaust pipes, drive shafts, light systems, fans, heater etc.).
Use corrugated piping or other protective materials to protect against mechanical wear.

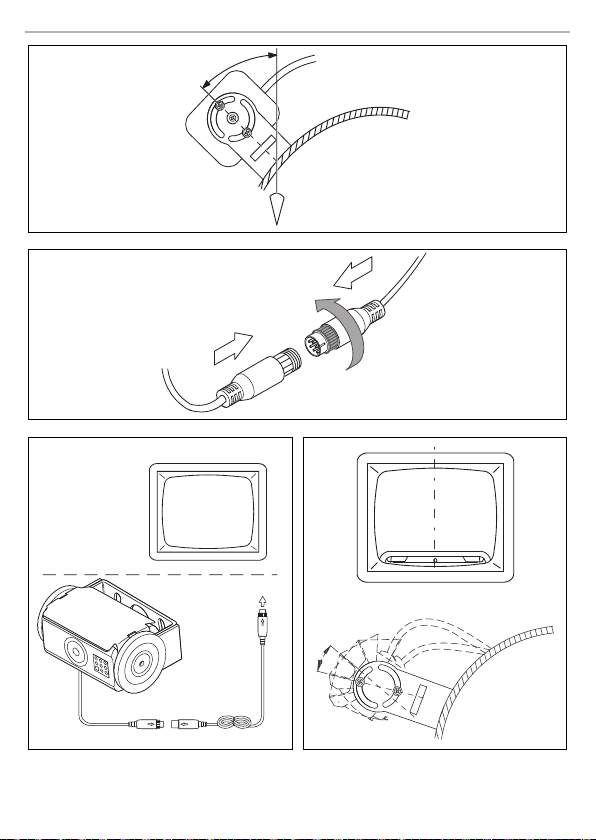

•Screw on the plug connection of the connecting cables to protect against water penetration
(fig. g, page 7).
•When laying electric connections, ensure that
– They are not kinked or twisted
– They do not rub on edges
– They are not laid in sharp edged ducts without protection (fig. 3, page 4)
•Attach the cables securely in the vehicles to prevent tripping hazards. Use cable binders,
insulating tape or glue the cables in place.
•Protect every through-hole made in the bodywork against water penetration, e.g. by using a
cable with a sealant and by spraying the cable and the the cable sleeve with sealant.
I
8 Mounting the camera

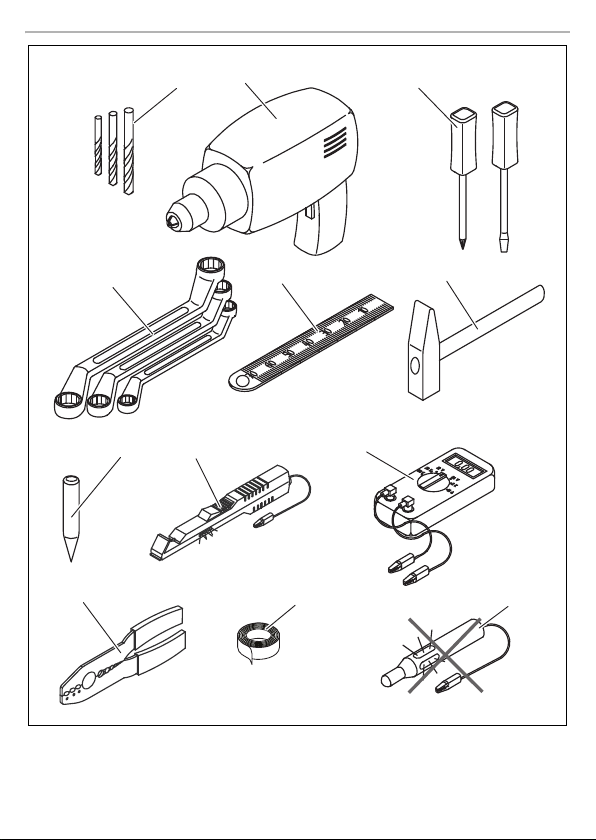

8.1 Tools required
For installation and assembly you will require the following tools:
•Drill bit set (fig. 11, page 3)
•Drill (fig. 12, page 3)
•Screwdriver (fig. 13, page 3)
•Set of ring or open-ended spanners (fig. 14, page 3)
•Measuring ruler (fig. 15, page 3)
•Hammer (fig. 16, page 3)
•Centre punch (fig. 17, page 3)
To make and test the electrical connection, the following tools are required:
•Diode test lamp (fig. 18, page 3) or voltmeter (fig. 19, page 3)
•Crimping tool (fig. 110, page 3)
•Insulating tape (fig. 111, page 3)
•Cable bushing sleeves, if necessary
NOTE
Do not start sealing the through-holes until all installation work has been finished for the
camera, and the required cable lengths have been established.
CAM80CM-AHD-IO-16s.book Seite 14 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD Mounting the camera
EN
15
To fasten the cables you may require additional cable binders.
8.2 Mounting the camera
!
I
Observe the following installation instructions:
•To provide a suitable viewing angle, the camera must be attached at a height of at least 2 m.
Ensure that you have a firm place from which to work when mounting the camera.
•Ensure that the installation location of the camera is sufficiently firm (e.g. to prevent the camera
from being knocked down by branches that may brush over the roof of the vehicle).
•Mount the camera bracket horizontally and in the middle of the rear of the vehicle (fig. 0,
page 6).
•The most secure type of attachment is with screws fitted through the body. Please observe the
following instructions:
– There must be sufficient space for the mounting procedure behind the chosen installation
location.
– Suitable measures must be taken to prevent water penetrating through any holes made
(e.g. by using screws and sealant and/or spraying the outer attachment parts with a
sealant).
– The location on the body where you wish to attach the camera must be rigid enough to
allow the camera to be tightly fastened.
•Check beforehand that there is sufficient room for the drill head to come out on the other side
(fig. 2, page 4).
•If you are not sure about the location you have chosen, consult the vehicle manufacturer or
dealer.
I
When mounting the camera, proceed as follows:
➤Hold the camera on the chosen location and mark at least two different pointsfor the drill holes
(fig. a, page 6).
CAUTION!
Select a location for the camera and attach it so securely that it cannot under any
circumstances fall off and injure bystanders (e.g. by being knocked off by branches
brushing over the roof of the vehicle).
NOTE
If installing the camera alters the vehicle height or length specified in the vehicle
documents, your vehicle must be inspected by the appropriate authorities.
Make sure that you are in possession of documents verifying that your vehicle has
passed this inspection.
NOTE
We recommend greasing the threads of the bolts to prevent corrosion.
CAM80CM-AHD-IO-16s.book Seite 15 Freitag, 21. Dezember 2018 11:55 11

Mounting the camera CAM80AHD
EN
16
➤Using a hammer and centre punch, gently pre-punch the previously marked points to prevent
the drill head from slipping off.
If you want to screw on the camera with self-tapping screws (fig. b, page 6)
A
➤Drill Ø 4 mm holes at the points you have just marked.
➤Deburr all drill holes and apply rust-protection.
➤Screw the camera bracket on with the 5 x 20 mm self-tapping screws.
If you would like to attach the camera with threaded screws fitted through the
construction (fig. c, page 6)
A
➤Drill Ø 4.5 mm holes at the points you have just marked.
➤Deburr all drill holes and apply rust-protection.
➤Screw the camera bracket on with the M5 x 20 mm threaded screws.
Depending on the thickness of the construction, you may require longer threaded screws.
Creating a through-hole for the camera connection cable (fig. d, page 6)
I
A
➤Drill a hole of Ø 16 mm near the camera.
➤Deburr all drill holes that have been made in the sheet metal and apply rust-protection.
➤Place cable sleeves in all sharp edged ducts.
Mounting the camera
A
NOTICE! Risk of damage!
The holder may only be attached to steel panels with a minimum thickness of 1.5 mm
using self-tapping screws.
NOTICE! Risk of damage!
Ensure that that nuts cannot be pulled through the body shell when they are tightened.
Use larger washers or metal plates if necessary.
NOTE
If possible, use available openings – such as ventilation grilles – tofeed the connection
cables through. If there are no existing openings, you must drill a hole with a
16 mm diameter.
NOTICE! Risk of damage!
Ensure that there is sufficient space on the other side for the drill head to come out
NOTICE! Risk of damage!
Only use the screws supplied to mount the camera in the camera bracket. Longer
screws will damage the camera.
CAM80CM-AHD-IO-16s.book Seite 16 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD Mounting the camera
EN
17
➤Push the camera into the camera bracket.
➤Attach the camera loosely with the two screws M3 x 8 mm in the slots (fig. e, page 6).
➤Align the camera provisorily so that the lens is at an angle of approx. 50° to the perpendicular
axis of the vehicle (fig. f, page 7).
A
Connecting the camera
I
➤Guide the camera cable into the vehicle interior.
➤Insert the plug of the camera cable into the socket of the extension cable.
➤Screw on the plug connection of the connecting cables to protect against water penetration
(fig. g, page 7).
Aligning the camera
I
➤Use the monitor image to align the camera:
The monitor image should show the bottom edge of the rear or the bumper of your
vehicle (A). The middle of the bumper should be in the middle of the screen (fig. i, page 7).
➤Check the function of the camera after you have connected it to a monitor.
Fastening the camera
➤Thighten the two screws in the slots of the camera bracket.

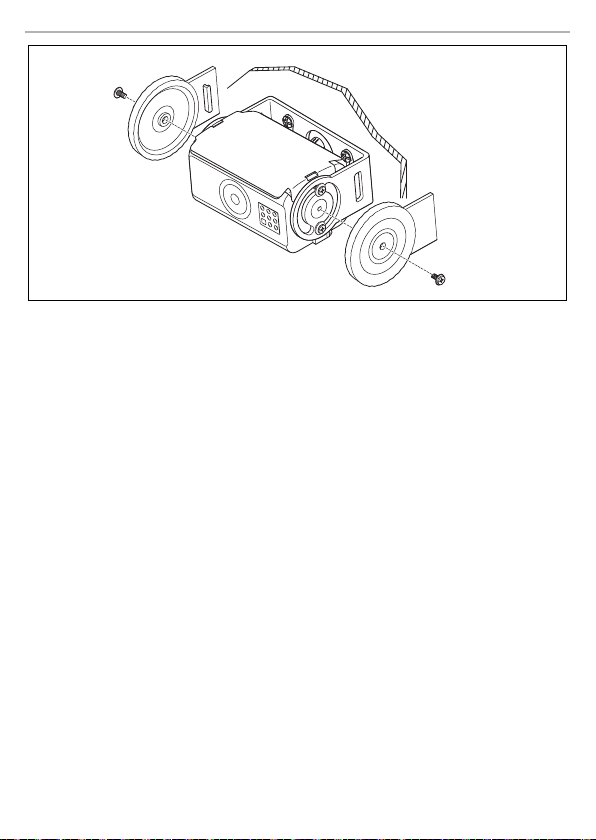

➤Mount the side covers with the two screws M3 x 8 mm in the middle drill holes (fig. j,
page 8).
NOTICE! Risk of damage!
Never mount the camera without the camera guard.
NOTE
•Lay the camera cable so that should you need to remove the camera, you can access
the plug connection between the camera and the extension cable easily.
This considerably eases dismantling work.
•To minimise corrosion in the plug, apply a small amount of grease – such as pin
grease – inside the plug.
•Additional extension cables are available on request (see chapter “Accessories” on
page 12).
NOTE
If necessary before aligning the camera connect the camera to a monitor and to a
power supply (see connecting diagram, fig. h, page 7
CAM80CM-AHD-IO-16s.book Seite 17 Freitag, 21. Dezember 2018 11:55 11

Cleaning and caring for the camera CAM80AHD
EN
18
9 Cleaning and caring for the camera
A
➤Clean the camera with a soft, damp cloth from time to time.
10 Guarantee
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the addresses) or
your retailer.
For repair and warranty processing, please send the following items:
•Defect components
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
11 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever possible.
MIf you wish to finally dispose of the product, ask your local recycling centre or specialist
dealer for details about how to do this in accordance with the applicable disposal
regulations.
NOTICE! Risk of damage!
Do not use sharp or hard objects to clean the device as these may damage the device.
CAM80CM-AHD-IO-16s.book Seite 18 Freitag, 21. Dezember 2018 11:55 11

CAM80AHD Technical data
EN
19
12 Technical data
Approval
The device has the E13 approval.
PerfectView CAM 80AHD
Ref. no: 9600012923
Image sensor: 1/2.9" CMOS
Pixels: approx. 2,000,000 pixels
Video standard: 1 Vpp/ 75 ohm
Light sensitivity: < 2 Lux
Picture angle: approx. 120° diagonal
approx. 110° horizontal
approx. 60° vertical
Operating voltage: 11 – 16 Vg
Power consumption: 1.8 W
Operating temperature: –20 °C to +70 °C
Protection class: IP69K
Resistance against vibration: 6g
Dimensions W x H x D
(with camera bracket):
106 x 68 x 54 mm
Weight: approx. 0.35 kg
E
CAM80CM-AHD-IO-16s.book Seite 19 Freitag, 21. Dezember 2018 11:55 11

Erklärung der Symbole CAM80AHD
DE
20
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig durch und
bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe des Produktes an den
Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
2 Sicherheits- und Einbauhinweise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
4 Zubehör . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
6 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
7 Hinweise zum elektrischen Anschluss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
8 Kamera montieren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
9 Kamera pflegen und reinigen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
10 Gewährleistung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
11 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
12 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
1 Erklärung der Symbole
!
!
A
I
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des Produktes
beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
CAM80CM-AHD-IO-16s.book Seite 20 Freitag, 21. Dezember 2018 11:55 11
