Dormakaba Saflok RT User manual

Saflok RT/RT Plus
Installation instructions
PK3720-T - 2019 - 04
EN

2 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
1. Introduction and Disclaimers
2. Checklist and Exploded Views
2.1. Parts and Tools List
2.2. ASM/ESM
2.3. Autodeadbolt ASM Inside Trim
Assembly
3. Installation of Standard ASM or ESM
Models
3.1. Check the Mortise Handing
3.2. Install the Strike
3.3. Install the Mortise

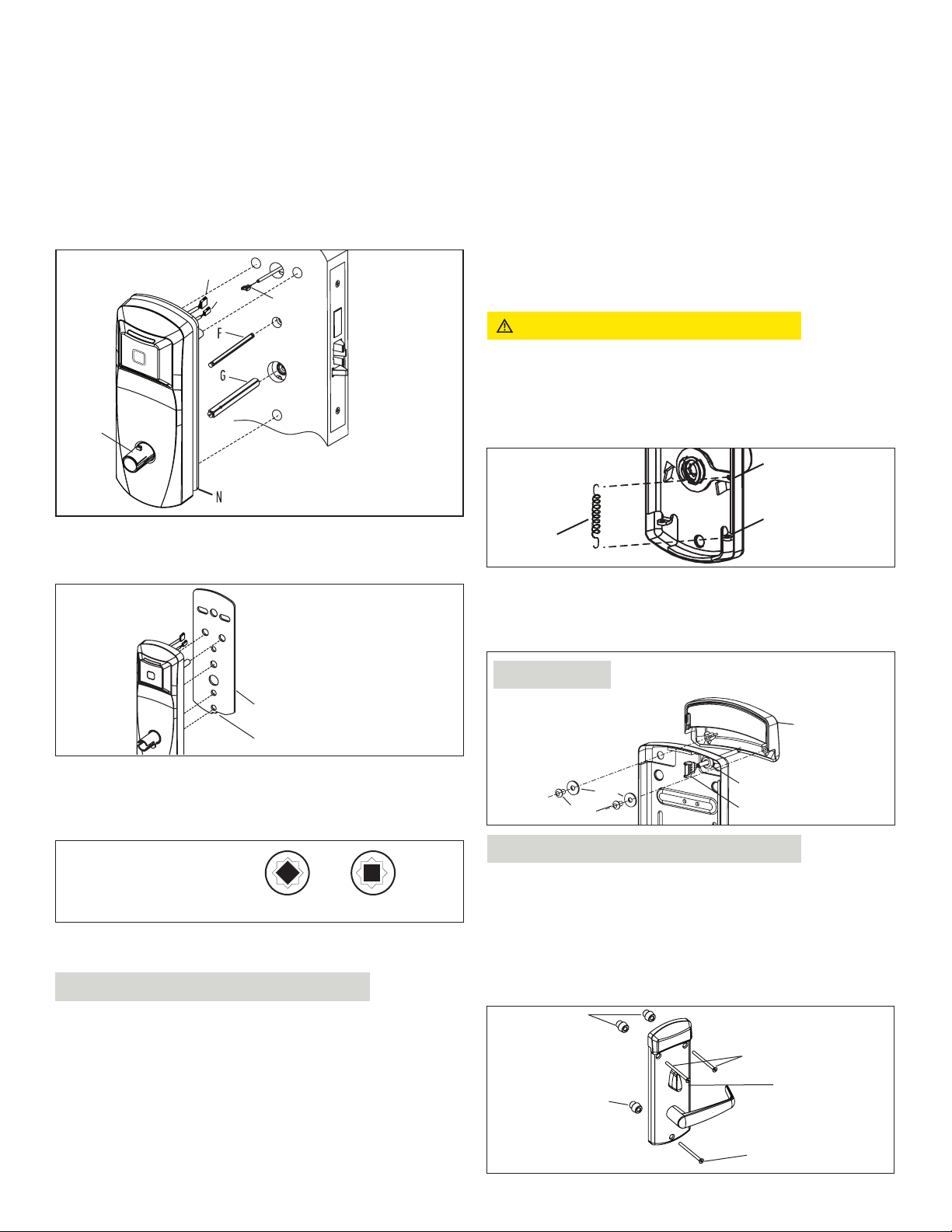

3.4. Install the Outside Housing & Inside
Trim Assembly without key override

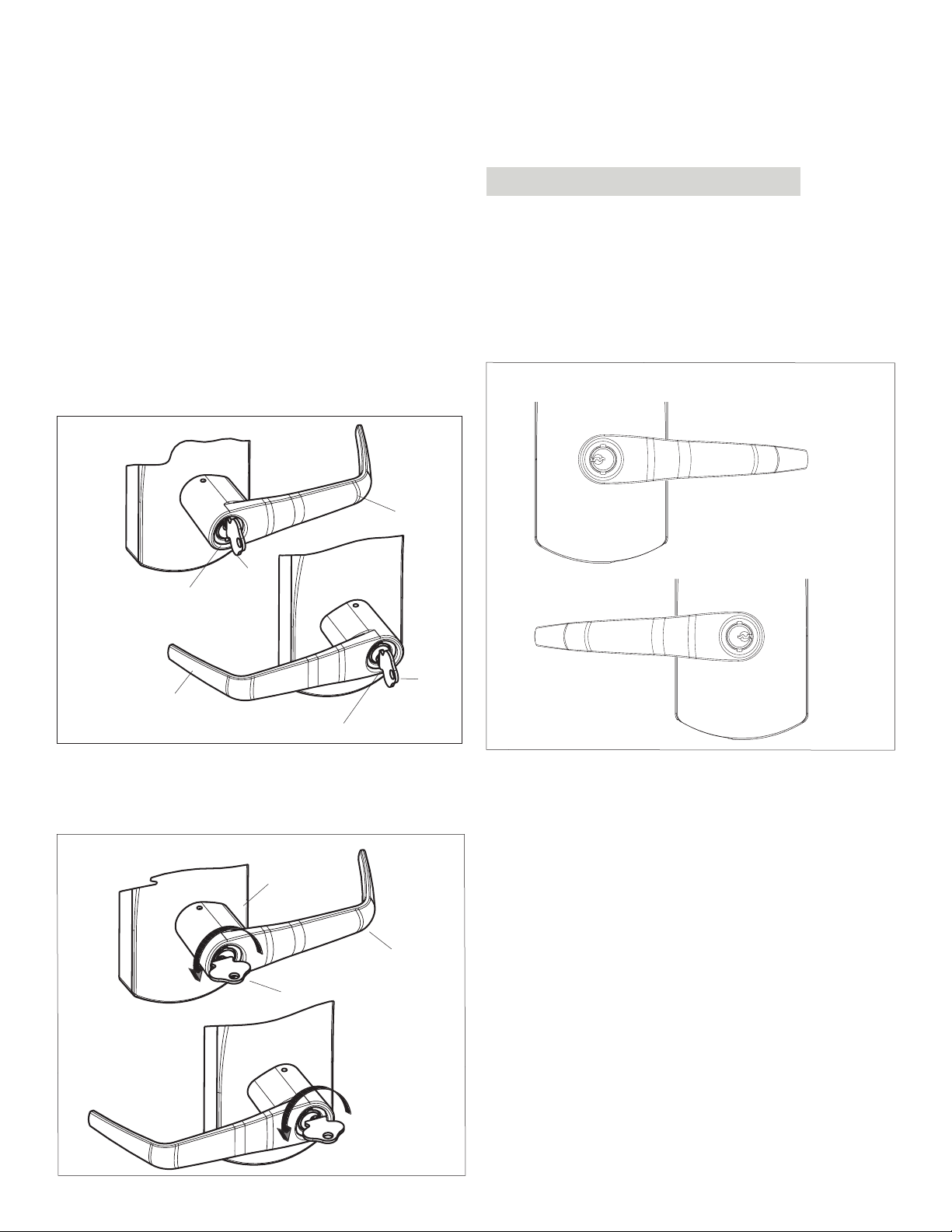

3.5. Reversing the Outside Lever

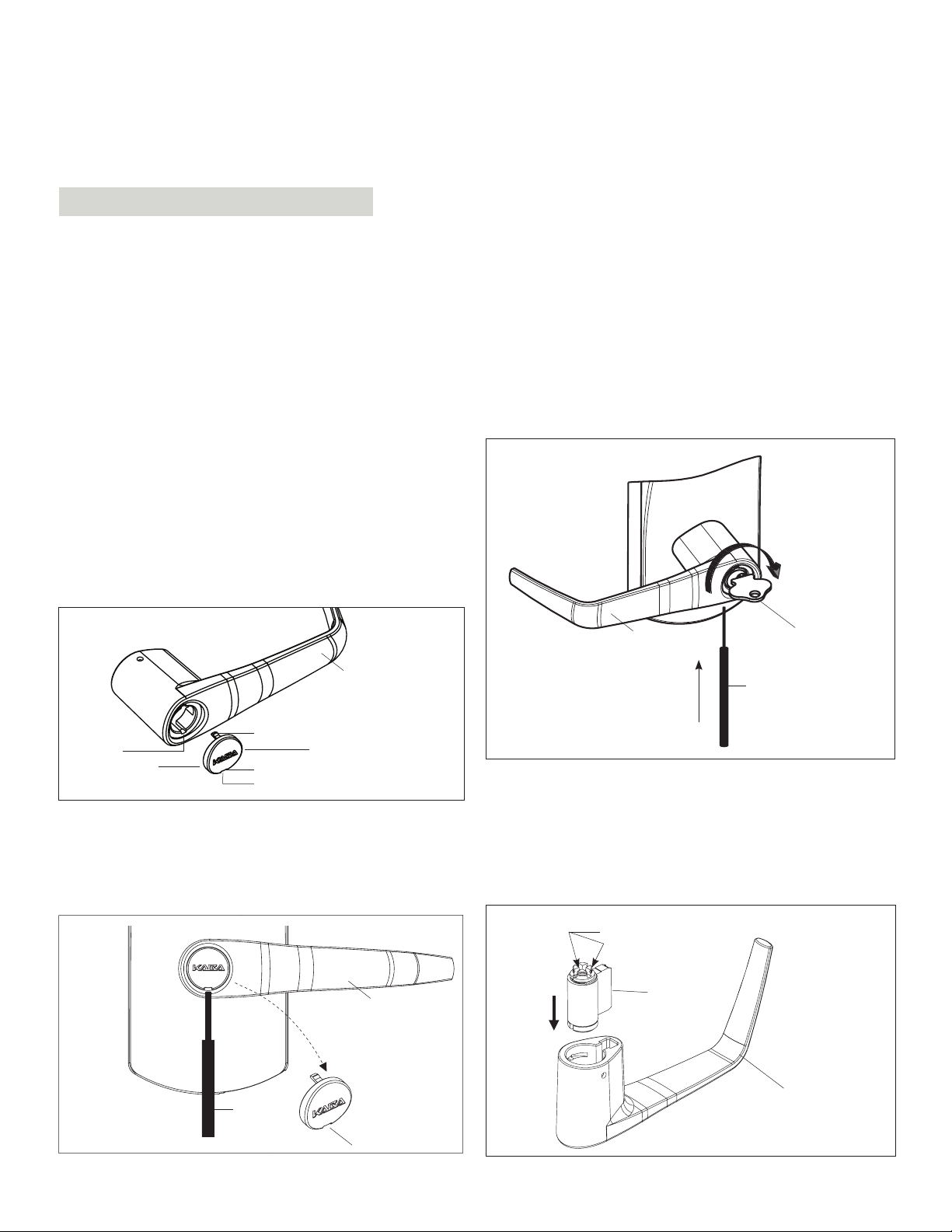

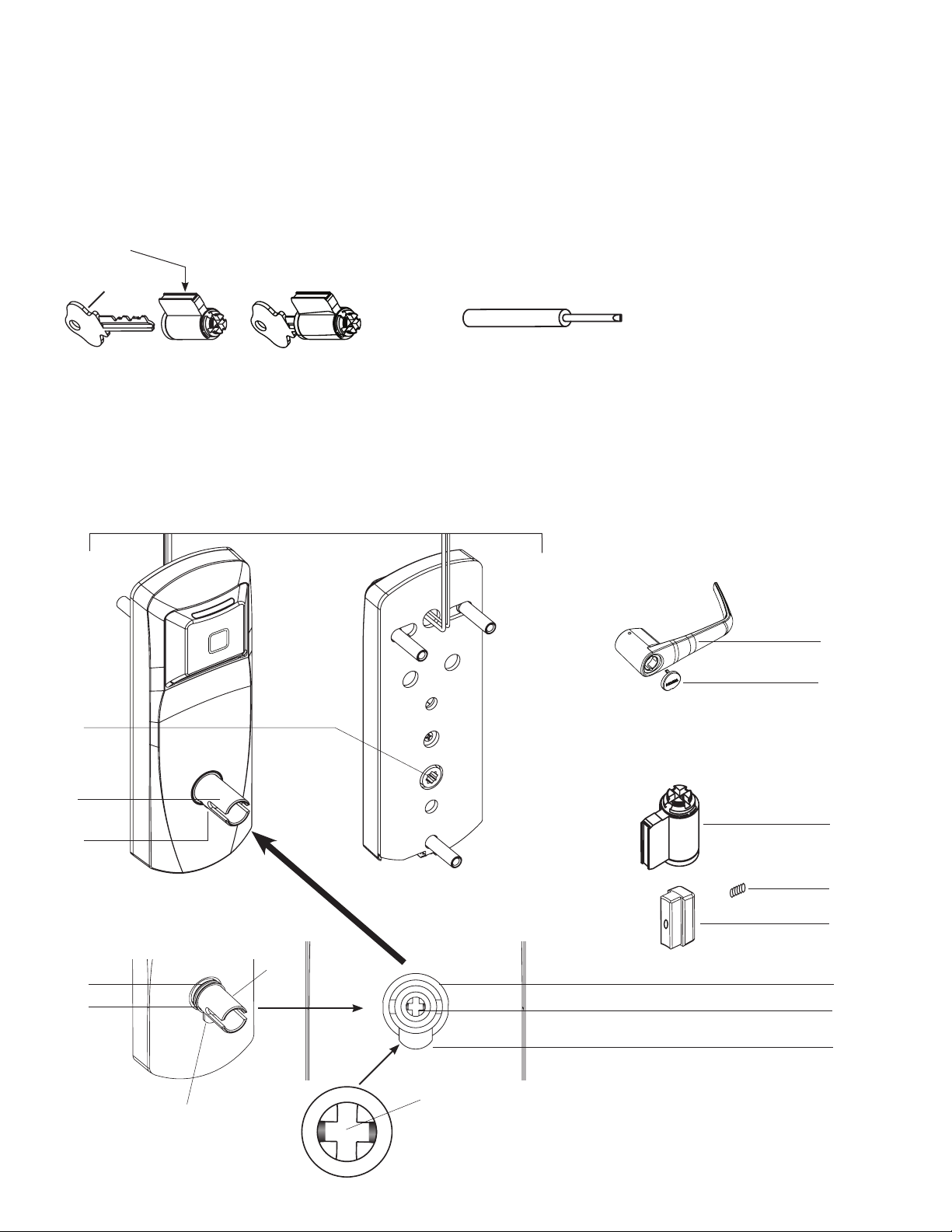

4. Installing the Mechanical Override Model
Appendices
A. Mortise Models
A.1. Reversing the Mortise Handing
A.1.1. Reversible ASM
A.1.2. Reversible ESM
A.2. Additional Steps for Autodeadbolt ASM
A.3. Additional Steps for ASM Office
A.4. Additional Steps for ASM/ESM
Storeroom
B. Cylindrical Models
B.1. Installing Cylindrical Models
B.1. Install the Strike
B.2. Install the Latch
B.3. Install the Cylindrical Unit
B.4. Inside Trim Assembly
B.5. Install Outside Housing &
Trim Assembly
C. Escape Return Model (79N)
C.1. ASM/ESM & ADB Inside trim assembly
for 79N
C.2. Installation of extension spring on
inside trim assembly
Installation Guide Lexicon
Note: This installation Guide is for Saflok RT
and RT Plus lock. Images of the lock may
vary depending on installed options.
03
04
04
06
07
08
08
09
10
11
12
13
21
21
24
26
27
27
28
28
28
28
29
30
31
33
33
33
34
Table of Contents
Saflok RT/RT Plus
ASM, ESM, ASM Auto Deadbolt Mortises &
Cylindrical Models 2⁄" and 2⁄" Backset
Stand Alone (79S), Ambiance RX Ready (79R), Ambiance RX
(79Z,Y,Q), and Escape Return (79N) Models
©2019 Saflok. All trademarks and registered trademarks are the property of their respective owners.

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 3
CAUTION
WARNING
IMPORTANT
Please read and follow all directions carefully.
Target Audience
These instructions are designed for use by maintenance professionals or lock installers who are familiar with common safety
practices and competent to perform the steps described. Kaba is not responsible for damage or malfunction due to incorrect
installation however arising.
Definition of Terms
In these instructions, the term ASM refers to American Standard Mortise, and ESM refers to European Slim Mortise, and ADB
refers to Autodeadbolt Mortise.
Technical Assistance
For technical assistance, call: 1 800 999 6213
CAUTION
WARNING
IMPORTANT
Carefully inspect windows, doorframe, door, etc. to ensure that the recommended procedures will not cause damage.
dormakaba standard warranty does not cover damages caused by installation.
For all mortise models the gap between the mortise front plate and the strike must not exceed ⁄ “
CAUTION
WARNING
IMPORTANT
Door Door Frame
Mortise
Max. 1/4"
CAUTION
WARNING
IMPORTANT
Wear safety glasses when making the holes.
1 Introduction and Disclaimers

4 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
2 Checklist and Exploded Views
2.1 Parts and Tools List
Each lockset includes:
(A) Ouside lever handle
(or)
Parts for Mechanical override model only:
(A1) Outside lever handle
(B1) Outside housing
(C1) Cylinder plug
(D1) Cylinder
(E1) Cylinder cap
(E2) Instruction sheet “How to attach lever on lock"
(B) Outside housing
(C) Battery holder with 3 AA Alkaline batteries
(D) Mortise (ASM only shipped assembled with face plate (P) and 2 x 8-32 x ⁄" screws (D12))
(or)
Parts for cylindrical models (see illustrations in appendix B):
- cylindrical latch (see Section B.2)
- cylindrical unit assembled with one pair of screws & 3 spacers
- four (4) other pairs of screws & three (3) spacers in hardware bag
- additional extension spring
- storeroom function locking screw and nut
(E) Inside trim assembly, details depend on lock model (see 2.2, 2.3, 2.4)
(N) Outdoor gasket included in cylindrical latch locks only.
Order separately for locks with mortise. ESSENTIAL FOR OUTDOOR INSTALLATIONS
P/N: 033-512017-1

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 5
2 Checklist continued
Parts inside hardware bag:
(C1) 1x Cylinder plug (for K model only)
(E1) 1x Cylinder cap (for K model only)
(F) 1x Thumbturn (hex) spindle
(G) 1x Square spindle
(H) 1x Torx-head screw
(I) 3x Mounting screws (10-24, ⁄ Hex Head) or (12-24, ⁄" Hex Head for recent models only)
(J) 2x Machined screws (12-24X ⁄" Philips) & 2 wood screws (#12 X 1" Philips)
(K) 1x Strike kit (screws, strike and ASM or Cylindrical dustbox)
(L) 1x Extension spring
(M) 1x Parts required to control thumbturn motion for (ASM and ESM Storeroom, ASM Office See appendix A3 & A4)
(S) 3x Spacers
(Y) 4x Pairs of Flat Head Screws 10-24 (for cylindrical only, see appendix B door thickness table)
(Z) 3x Spacers (for cylindrical only, see appendix B door thickness table)
Tools Required:
• Safety glasses
• ⁄" (13mm) chisel
• ⁄" (3mm) drill bit
• ⁄" (6.5mm) drill bit (ESM only)
• ⁄" (13mm) drill bit
• ⁄" (22mm) drill bit or hole saw
• 1" (25.4mm) drill bit or hole saw
• Drill
• Awl or center punch
• 2 ⁄" (54mm) hole saw (Cylindrical Only)
• Hammer Rubber mallet
• Small flat screwdriver
• Torx screwdriver (T-15) (760 Series)
• Phillips screwdriver (#2)
• Fine steel file
• Mortising machine
• Router
• Mortise face plate router template
• Adjustable square
• Tape measure
• Pencil
• Tape
• Installation Jig (Recommended)
• Lock Template
• Cleaning supplies (drop cloth, vacuum)
• ⁄" Allen Key
• ⁄" Allen Key
CAUTION
WARNING
IMPORTANT
For doors more than 2 ⁄" thick up to 3 ⁄", order the appropriate hardware bag to receive the correct length of spindles and
mounting screws. Part# 062-512868-XXX; (XXX = choice of finish).
For outdoor installations, order gasket 033-512017-1. Gasket comes standard with cylindrical locks and ultra finish locks.

6 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
Notes: American Standard Mortise illustrated.
A
C
H
B
UV
W
XN
F
D
D12
S
S
G
J
J
L
P
I
E
K
B1
D1
C1
A1
E1

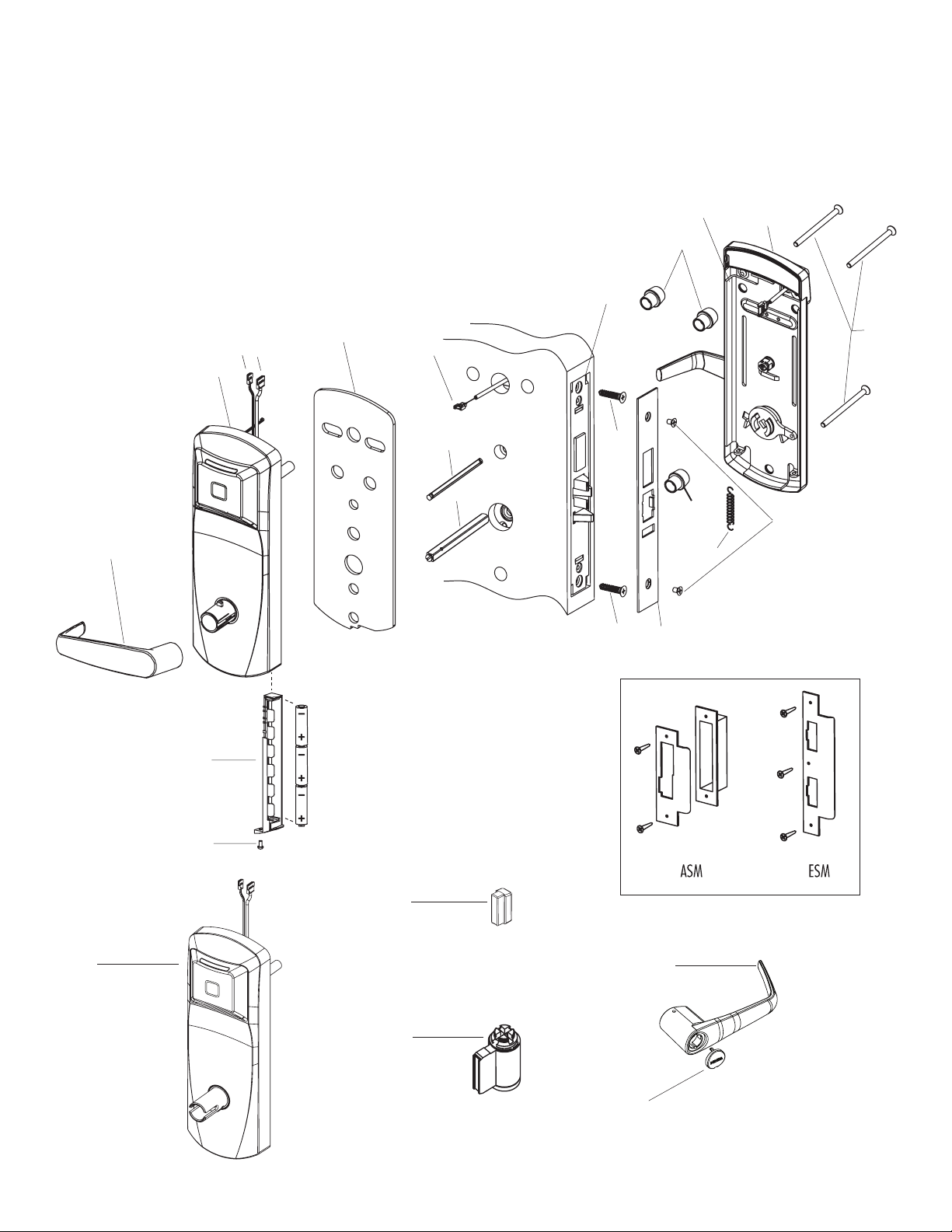

2.2 ASM/ESM (For Cylindrical, see Appendix B)
2 Exploded Views

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 7
2 Exploded Views

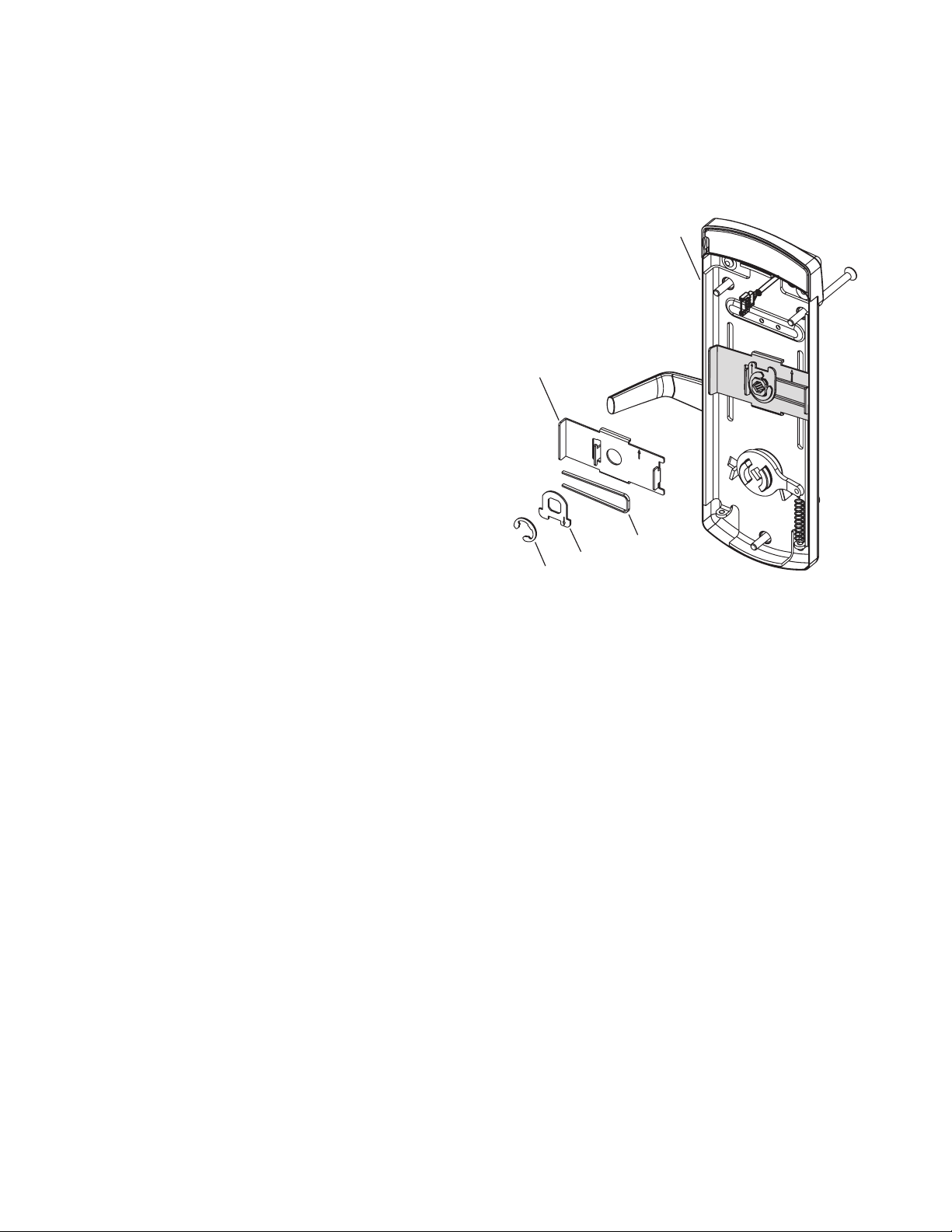

2.3 Autodeadbolt ASM Inside Trim Assembly
NOTE:
The inside trim assembly (E) for autodeadbolt models includes
the parts (E3, E4, E5, E17)shown, assembled at the factory.
For ASM Office and ASM/ESM Store-room models, only some
of the parts (E) are used. See instructions in Appendix A.
Parts (E3, E4, E5, E17) also available separately (kit #062-
510484-K) to convert the standard lock to Autodeadbolt ASM,
ASM Office or ASM/ESM Storeroom functions.
Fully assembled
view
E
E5
E17
E3
E4

8 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
3 Installation of Standard ASM or ESM Models
(for cylindrical see Appendix B)

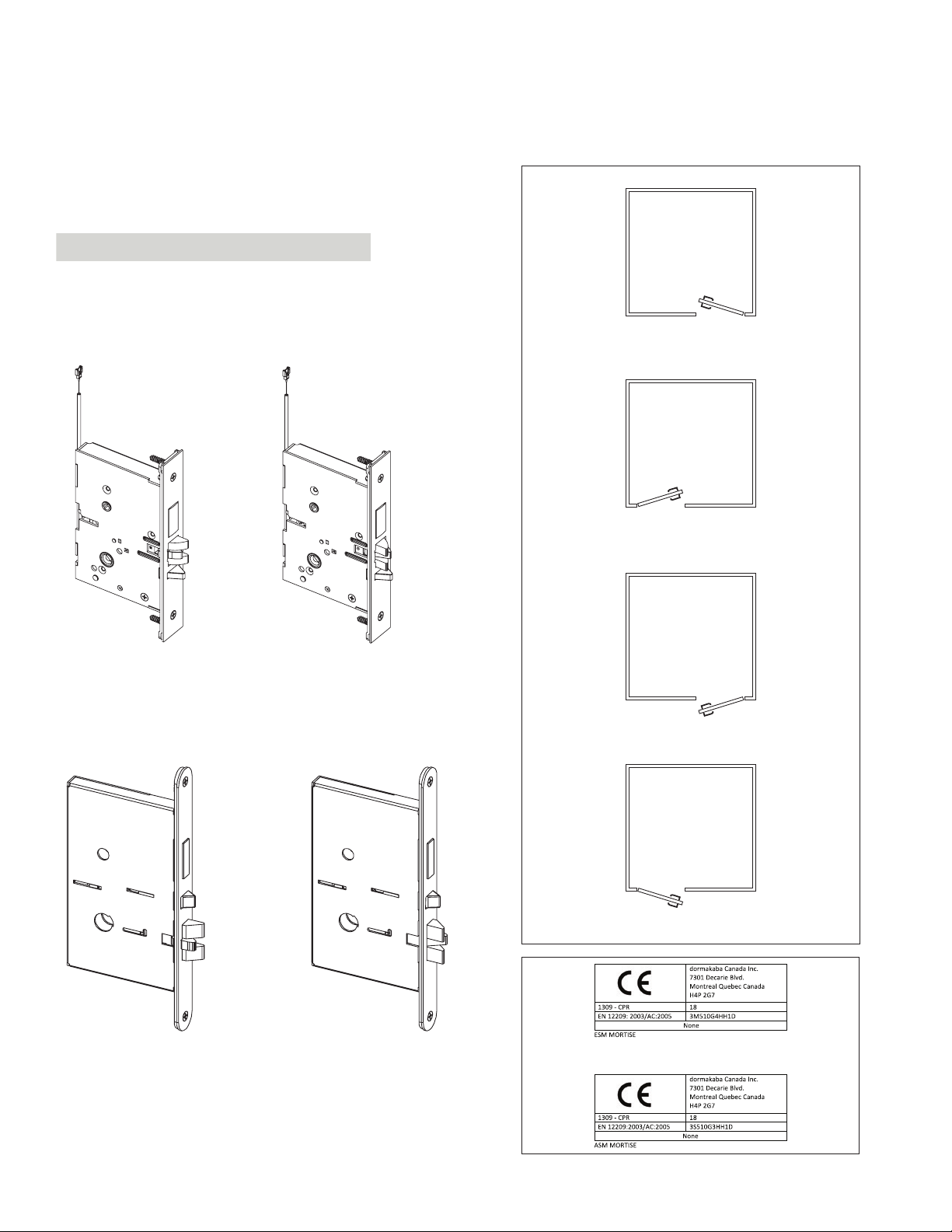

3.1 Check the Mortise Handing
Compare the mortise with the diagram below. If the mortise
is the correct handing for the door, continue with step 3.2.
CAUTION
WARNING
IMPORTANT
Refer to Appendix A.1 to change the handing of a field-re-
versible mortise.
For LH (left hand)
and RHR (right hand
reverse)
For RH (right hand)
and LHR (left hand
reverse)
ASM
For LH (left hand)
and RHR (right
hand reverse)
For RH (right hand)
and LHR (left hand
reverse)
ESM
Door Handing (Top View)
Right Hand (RH)
Left Hand (LH)
Right Hand Reverse (RHR)
Left Hand Reverse (LHR)

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 9
4. Position the strike against the door frame and align it with
the mounting screw holes. Trace the outline of the strike.
5. Remove material from within the strike outline so that the
strike will be flush with the door frame.
6. For ASM, install the dust box (optional for wood door
frames, required for metal door frames), and check the
strike handing on the template. For ASM and ESM install
the strike using the screws provided. Use wood screws for
wood frames and machined screws for steel frames.
CAUTION
WARNING
IMPORTANT
When strike is installed on wood frames under one inch thick,
wood screws supplied are not adequate. use screws of effi-
cient length to engage the structural stud behind the frame.
Use only the strike and dust box supplied. Use of non-ap-
proved parts may void the warranty.
3 Installation of Standard ASM or ESM Models
(for cylindrical see Appendix B)
3.2 Install the Strike
1. Align the paper template on the door frame at the desired
handle height ( ), and along the vertical center line of
the mortise (CL), which is also the center line of the door
edge, allowing for any bumpers on the door frame.
CAUTION
WARNING
IMPORTANT
Respect applicable building codes regarding handle height.
Note that the centerline of an ESMmortise does NOT pass
through the screw holes on the strike.
(CL)
2. Mark the locations of the dust box cutout and mounting
screws for the strike.
3. Create the dust box pocket and chisel out the strike contour
in the door frame, and drill the pilot holes for the mounting
screws (dimensions and depths marked on template).

10 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
3.3 Install the Mortise (for cylindrical, see Appendix B)
CAUTION
WARNING
IMPORTANT
If using the installation jig to pre-
pare the door, refer to the instruc-
tions provided with the jig, then
proceed with step 4 below.
1. Mark the handle ( ) height
on the edge of the door, as de-
termined directly from the
strike.
For ASM, the axis of rotation of
the handle is level with the bottom
lip of the strike.
For ESM, the axis of rotation of
the handle is 1⁄" above the bot-
tom lip of the strike.
2. Align the template along the
vertical center line of the mor-
tise (CL) at the desired handle
height, and tape it to the door. Mark all holes and cutouts
for the mortise in the edge of the door and remove the
template.
2
5
4
3
3. Locate the two sets of vertical fold lines on the template
allowing you to adjust the positioning of the template de-
pending on the bevel of the door.
If the door has no bevel, fold the template along the solid
lines. Align the fold with the edge of the door and mark the
holes for the lock. Repeat on the other side of the door.
If the door has a 3º bevel, fold and align the dashed line
marked “H" on the template with the higher-beveled edge
of the door and mark the lock holes on that side of the door.
Repeat on the side with the lower-beveled edge using the
dashed line marked “L". Remove the template.
4. Prepare the cut-outs for the mortise in the edge of the
door using a mortising machine, router and chisel (for di-
mensions, refer to template).
Ensure clearance is provided for moving latch parts as indi-
cated on the template.
RH/LHR (ASM shown) LH/RHR
5. Drill the holes in the sides of the door (for dimensions, refer
to template).
Drill from both sides of the door to prevent unsightly dam-
age.
6. For ASM only, check the bevel of the mortise. If adjust-
ment is required, loosen bevel screws (R) and adjust mor-
tise front plate angle to match the bevel of the door. Re-
tighten screws.
For models 79R, 79Z, 79Y, 79Q slide the ajar switch cable of
the mortise (V) through the hole at the top of the mortise
pocket. The cable must go through the outside of the door
for connection in the next step.
Install the mortise with 2 screws (J). Use wood screws for
wood doors and machined screws for steel doors.
Install mortise faceplate (P) with the two 8-32 x ⁄" screws
provided (D12).
Logo
P
J
R
V
Hole at the
top
Mortise
Pocket
R
D12
CAUTION
WARNING
IMPORTANT
The ESM faceplate must be installed so you can read the
logo (see arrow in figure above right-side-up for proper op-
eration.)
3 Installation of Standard ASM or ESM Models
(for cylindrical see Appendix B)
ESM
Strike
(ESM)
ASM
Strike
11 /4"
Door
(CL)

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 11
3.4 Install the Outside Housing and Inside Trim Assembly
Without Key Override (for locks with mechanical key
override please refer to section 4).
A- For Mortise
U
E
X V
1. Install the gasket (N) (if required) on the outside housing
prior to assembly, aligning the notch in the gasket with the
battery compartment. See page 4 for gasket information.
Outdoor Gasket
Notch
2. Insert the slotted end of the square spindle (G) into the
outside lever hub until it locks, at an angle of 45º. (The
spindle can be removed by pulling on it, if oriented incor-
rectly.)
Square Spindle Position
correct incorrect
3. Insert the thumbturn spindle (F) in the upper hub of the
outside housing. (It will clip in place.)
CAUTION
WARNING
IMPORTANT
If installing the lock with mortise outdoors, order the proper
gasket (See page 4).
For doors more than 2 ⁄" thick, order the appropriate hard-
ware bag to receive the correct length of spindles and mount-
ing screws. (See page 4)
4. Place the outside housing on the door so that the spindles
engage the hubs on the mortise.
For models 79N see appendix C
3 Installation of Standard ASM or ESM Models
(for cylindrical see Appendix B)
For models 79R, 79Z, 79Y, 79Q slide the 2 spindles (F & G) onto
the hub of the mortise but leave a gap between the door and
the back of the lock. Connect the ajar cable from the housing
(U) to the ajar switch cable of the mortise (V). Push the lock
to the face of the door ensuring that the cable connection
(U) to (V) remains in the door hole, and that the cable for the
outside housing antenna (X) protrudes through the hole to
the inside of the door.
CAUTION
WARNING
IMPORTANT
Ensure no cables are pinched on assembly.
5. On the inside trim assembly turn the lever to the correct
horizontal rest position for the handing of the door. Install
the tension spring (L) between the handle (E6) and the
post (E7).
L
E6
E7
6. Place the grommets (E14) as shown on the image of the
inside trim (E). Use screws (E15) and the flat washers (E16)
and fasten to the RFID module (E13) to the inside trim as-
sembly (E).
E15
E16 E14
W
E13
CAUTION
WARNING
IMPORTANT
Apply only for models 79Z, 79Y, 79Q.
Normally assembled at the factory
CAUTION
WARNING
IMPORTANT
For Autodeadbolt ASM, ASM Office and ASM/ESM Store-
room models, refer to Appendix A.2, A.3, A.4 at this point.
7. Put the thumbturn (T) in a vertical position. Place 3 spacers
(S) on the door (for recent models only) and place the in-
side trim assembly on the door so that the upper and lower
spindles (F) and (G) engage the thumbturn and the inside
lever.
T
S
S
I
I

12 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
C
3.5 Reversing the Outside Lever
(for series without Mechanical Override)
The lever is field reversible. If the handing is incorrect, insert a
small pick or flat screwdriver in the hole in the hub as shown.
Gently pry back the spring clip inside the hub, and remove the
handle.
Access Hole
cut-away view
CAUTION
WARNING
IMPORTANT
If the lock makes a continuous buzzing noise or the red LED
lights continuously, reset the electronics by removing the
battery holder for ten seconds then reinsert it.
For models 79Z, 79Y, 79Q connect the outside housing an-
tenna cable (X) to the inside trim antenna cable (W). For the
79R model leave the outside housing antenna cable (X) in the
door hole.
CAUTION
WARNING
IMPORTANT
Ensure no cables are pinched on assembly.
Fasten to the outside housing using the three ⁄" hex drive
mounting screws (I). Install the screws without tightening.
Verify the inside lever and thumbturn operates smoothly. If
not move the inside and outside housings slightly. Then tight-
en the screws.
S
G
F
X W
T
II
I
S
8. Assemble the lever on the outside housing, in the horizon-
tal rest position appropriate to the handing of the door.
Simply push the lever onto the tube until it clicks in place.
If more force is required, use a rubber mallet. Test the at-
tachment of the handle by pulling smartly on it. (For locks
with mechanical override, see section 4 p.12)
9. Three AA Alkaline batteries should already be installed in
the battery holder (C). Insert the battery holder into the
outside housing and secure it using the 6-32 x ⁄" (7.9mm)
Torx drive screw (H).
3 Installation of Standard ASM or ESM Models
(for cylindrical see Appendix B)

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 13
4 Installation of Mechanical Override Model
(K1)
Override
Shaft
(I1)
4.1 Parts and Tools List
Tools Required:
Cylinder (D1, provided with lock) or equivalent ( M1 ) Small flat scewdriver (less that ⁄")
(A1) Outside Lever handle
(B1) Outside housing
(C1) Cylinder plug
(D1) Cylinder
(E1) Cap
(F1) Inside drive hub
(G1) Nylon washer
(H1) Spring washer
(I1) Drive tube
(J1) Lever catch
(K1) Override shaft
(O1) Set screw cylinder plug
Diagram of lock:
Facing view of drive tube: (E)
BackFront
(B1)
(A1)
(I1)
(F1)
(H1)
(J1)
(E1)
(D1)
(C1)
(O1)
(I1)
(K1)
(J1)
(G1)
(J1)
(L1)*
* for recodable cylinder key #1 should be used as L1. See section 11 for more information.

14 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
4.2 Preparing the outside housing for the installation of the lever handle
1. Insert the cylinder (D1) to be used as a tool, or an equiva-
lent tool, to rotate the override shaft (K1) and turn it
clockwise until it stops so that the two small indents (N1)
on the cross are now vertically in line. (Fig.1)
2. Push in the lever catch (J1) firmly. (see Fig. 2) to be flush
with drive tube diameter
(J1) (K1)
(I1)
(N1)
(G1)
(L1)
(D1)
Fig. 2
lever catch (J1)
Push lever
catch (J1) in
Upon unpacking, the lock housing with mechanical override should look like the diagram below with:
(N1) The small indents on the cross of the override
shaft in line horizontally
(G1) The nylon washer and the spring washer on
the drive tube (I1)
(J1) The lever catch in the out position
(D1) Cylinder
Fig. 1
(J1)
(K1)
Override
Shaft
Indents (N1)
In verticle
position
(K1)
(I1)
4 Installation of Mechanical Override Model
CAUTION
WARNING
IMPORTANT
Important: Assemble the lever, cylinder and
lock components before affixing the entire
unit to the door.

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 15
4.4 Steps to attach the lever handle to the lock housing
*NOTE: the position of the key is very important
6. Right-handed Lever handle: Turn the key (L1) aproximately
100º clockwise so that it is in the vertical position and the
recess entry for key is in the top position. (See Fig. 6)
Fig. 6
Recess entry for key in the top position
(L1)
Left-handed lever handle: Turn the key (L1) approximately to
100º clockwise so that it is in the vertical position and the
recess entry for key is in the bottom position. (See Fig. 7)
Fig. 7
Recess entry for key in the bottom position
(L1)
CAUTION
WARNING
IMPORTANT
The key (L1) and the recess entry for key must be in the
positions shown in Figs 6 & 7 before placing the lever handle
on the housing or the lever and the override mechanism will
not work
Troubleshooting:
If you have assembled the lever and housing with the key
(L1) in the wrong position, the key (L1) will get stuck. To
remove the key (L1), turn it so that it is in the vertical po-
sition and insert a small flat screwdriver (M1) (see page
17) into the hole under the lever handle to push Lever
Catch (J1) in (Fig.2). Remove lever, remove key. If it is still
stuck, turn the key 90º clockwise to the horizontal posi-
tion and push the Lever Catch (J1) in again with the small
screwdriver (M1). Remove key (L1).
4.3 Preparing the lever handle and cylinder for
installation
3. Insert the cylinder (D1) without key (L1) into the lever han-
dle (A1) (see Fig.3)
Fig. 3
(D1)
(A1)
4. Put the cylinder plug (C1) into the lever (A1) (see Fig.4)
Fig. 4
(A1)
(C1)
5. Insert key (L1) into cylinder (D1). Hold plug (C1) in position.
(See Fig. 5).
Fig. 5
(L1)
CAUTION
WARNING
IMPORTANT
If the lever is not assembled with the key in the position
shown in Fig. 6 & Fig. 7, the inside mechanism of the lock
could be damaged if the lever is rotated and forced.
4 Installation of Mechanical Override Model

16 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
4.5 Attaching the Lever Handle to the Lock
(with the key as shown in Fig. 6 & Fig. 7)
7. Fit the lever handle (A1) onto the drive tube (I1). It should
rest approximately ⁄" from the body of the housing. If
not, wiggle and jiggle key (L1) to align cylinder (D1) with
override shaft (K1) (See Fig. 8)
If the lever catch (J1) can’t be pushed close to the housing, it
is probably not pushed in. Push it in. (see fig 2 page 13)
If the lever catch (J1) is stuck, the override shaft (K1) is in
the wrong position. (see fig 2 page 13) The two small indents
(N1) on the cross of the override shaft (K1) must be vertically
aligned as in fig 2 page 13
(L1)
right-handed lock
Recess entry for
key in TOP Position
Recess entry for key in BOTTOM Position
left-handed lock
Fig. 8
(A1)
(L1)
(A1)
8. Press the lever (A1) firmly against the housing while turn-
ing the key (L1) counterclockwise (this applies to both
right-handed and left-handed locks) until it is in the hori-
zontal position. (Fig. 9)
Fig. 9 right-handed lock
left-handed lock
(Housing)
(L1)
(A1)
CAUTION
WARNING
IMPORTANT
If it is not possible to turn the key (L1) counter-clockwise
to complete this step, the spring washer (H1, see page 12)
may be too tense:
Hit the lever carefully with a rubber mallet to loosen the
spring washer (H1). (you may want to cover the lever handle
(A1) with a cloth or other material to protect the finish of the
metal)
9. Remove the key (L1). The lock will look as shown in Fig.10.
right-handed lock
left-handed lock
Fig. 10
Gently check the rotation of the lever handle (A1). It should
easily rotate approximately 45º.
Troubleshooting:
Right-handed Lock: Turn the lever handle (A1) clockwise
without forcing it. If it stops at approximately 15º, it
was not assembled correctly as shown in step 6 (Fig.
6 & 7). Do not try to force it to turn. Release the lever
handle (A1). Insert the small screwdriver (M1, page 16)
into the small hole on the underside of the lever han-
dle (A1) and push in the lever catch (J1) see page 13.
Re-do steps 2, 3, 4 & 5.
Left-handed Lock: Turn the lever handle (A1) counter-
clockwise without forcing. If it stops at approximately 15º,
it was not assembled correctly as shown in step 6 (Fig. 6
& 7). Do not try to force it to turn. Release the lever han-
dle (A1). Insert the small screwdriver (M1, page 16) into the
small hole on the underside of the lever handle (A1) and push
in the lever catch (J1) see page 13. Re-do steps 2, 3, 4 & 5.
4 Installation of Mechanical Override Model

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 17
4.6 Verify the attachment of the lever handle
CAUTION
WARNING
IMPORTANT
Very Important: To verify that the lever handle has been cor-
rectly attached to the housing:
10. Remove key (L1)
11. Insert a small flat screwdriver (tool M1, page 12) into the
hole on the underside of the lever handle (A1) and push in
the lever catch (J1) as per fig 11.
12. Pull on the lever handle (A1).
You should not be able to remove the lever handle (A1). If
it comes off of the housing, you did not assemble the lock
correctly. Return to steps 2, 3, 4 & 5 and make sure that the
lever (A1) looks like Fig. 10 and repeat this verification pro-
cess. (Step 10)
Fig. 11
(M1) Small screwdriver
or equivalent tool
(A1)
4.7 Adjust the lever feel
13. If applicable, to reduce the lever play, using the ⁄ allen
key (P1), tighten the set screw (O1) while pushing the le-
ver against the front housing. Make sure the lever rotates
properly after tighting the set screw (O1). See fig 12.
Fig. 12
4.8 Test the movement of the lever handle
(remove the key (L1) in cylinder (D1))
14. Turn the handle (A1) clockwise (for a right-handed lock)
or counter-clockwise (for a left-handed lock)
15. Release the handle (A1) slowly. It should return freely to
its horizontal position. (Fig.13)
Fig. 13 (A1)
Cylinder
(J)
16. If the handle (A1) doesn’t easily return to its original po-
sition, the spring washer (H1) (page 12) is probably too
tight. Use a rubber mallet to hit the lever (A1) carefully
against the housing to reduce the tension of the spring
4 Installation of Mechanical Override Model
washer (H1), until the handle (A1) moves freely back to its
horizontal position when turned slowly.
4.9 Test the mechanical override function
CAUTION
WARNING
IMPORTANT
This test can only be performed when the lock is not affixed
to the door.
17. Without using the key (L1), turn the lever handle (A1)
clockwise (for Right-handed locks) or counter-clockwise
(for Left-handed locks). The inside drive hub (F1) should
not rotate when the handle (A1) turns. (Fig. 14)
Fig. 14
(F1) inside drive hub
does not move
(A1)
18. With the lever handle (A1) in the horizontal position, insert
the key (L1) into the cylinder (D1) and turn it clockwise
until it stops. (This applies to both Right and Left-handed
locks, see Fig.15)
Fig. 15
(A1)
(L1)
19. Hold the key (L1) in stopped position (should be a bit more
than vertical) and turn the lever handle (A1) clockwise (for
Right-handed locks) or counter-clockwise (for Left-hand-
ed locks). The inside drive hub (F1) should rotate in the
same direction as the lever handle (A1) when it is turned.
(Fig. 16)
Fig. 16
(F1) inside drive
hub rotates

18 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
Test the Mechanical Override Function (continued)
CAUTION
WARNING
IMPORTANT
Verify the functionality of the mechanical override after the
lock is installed on the door: (Door must be opened)
20. With the door open, insert key (L1) in cylinder (D1) and
turn it clockwise until it stops.
21. Hold the key (L1) in stopped position (should be a bit more
than vertical) and turn the lever handle (A1) (clockwise
for right-handed and counter-clockwise for left-handed
locks). The latch must retract.
22. Extend deadbolt and repeat the above operation (turn
key (L1) clockwise until it stops), latch and deadbolt must
retract completely.
4.10 Cover the keyhole & cylinder with the cap
23. The cap (E1) has a small groove on one edge (to allow
ease of removal) this should be facing down. Insert bot-
tom snap of cap (E1), in handle hole below the cylinder
(D1). With a small screwdriver, push the top snap of the
cap down while pushing the cap (E1) into place to cover
the keyhole (Fig. 17)
Fig. 17
(E1)
Hole below
cylinder
Bottom snap
(First)
Top snap (Second)
Push (Third)
(A1)
Groove facing down
24. To remove the cap (E1), insert a small flat screwdriver
into the groove and gently pry the cap off, being careful
not to damage it. (You may want to cover the bottom
of the lever to protect the finish from being scratched
through the process of removing the cap). (Fig.18)
Fig. 18
(A1)
(E1)
(M1)
4 Installation of Mechanical Override Model
4.11 How to change lock cylinders
25. Loosen the set screw (01) to free the lever using Allen Key
(P1) (Approx. ⁄ turn). See fig 12 page 16
26. Remove the cap (E1) from the lever handle (A1) (see step
24, Fig. 18).
27. Insert key (L1).
28. Turn the key (L1) clockwise until it stops.
29. Release key (L1).
30. Use a small flat screwdriver to push in the lever catch (J1)
through the small hole underneath the lever handle (A1)
(Fig. 19).
Fig. 19
(A1)
(M1)
Small screwdriver
or equivalent tool
(L1)
31. Pull the lever handle (A1) off of the lock housing (be careful
not to lose the cylinder plug (C1)).
32. Replace the old cylinder with the new one in the lever han-
dle (A1). Only the same kind of cylinder with 2 grooves in a
cross in the end of the cylinder plug, could be used on the
locks. (Fig. 20)
Fig. 20 2 Grooves in cross
(A1)
(D1)

Saflok RT/RT Plus Installation Guide PK3720_T 04-19 19
How to change lock cylinders (continued)
33. Re-insert the cylinder plug (C1) (Fig. 21)
Fig. 21
(A1)
(C1)
34. While holding the cylinder (D1) and plug (C1) in place, in-
sert the key (L1) (see Fig. 22)
35. Turn the key (L1) approximately 100º clockwise
36. Repeat the steps 1 to 9 to attach the lever handle (A1) to
the lock housing. (see Fig. 22)
Fig. 22
Right-handed
lock
Left-handed
lock
(A1)
(L1)
CAUTION
WARNING
IMPORTANT
The Key Override itself does not retract the latch or dead-
bolt. Do not use too much force when turning the key as this
may damage the unit. To retract the latch, turn the key clock-
wise until it stops, and turn the lever handle (A1). See page 15
CAUTION
WARNING
IMPORTANT
The lever handle must stay in the horizontal position when
turning the key (do not try to turn the key while turning the
handle) or the override mechanism will not work.
CAUTION
WARNING
IMPORTANT
Always keep the door open while installing and verifying the
functionality of the lock with the keycard or key override.
Do not close the door until you are certain that you have in-
stalled the unit correctly.
4 Installation of Mechanical Override Model

20 Saflok RT/RT Plus Installation Guide PK3720_T 04-19
4.12 The Recodable Cylinder with 3 different keys
CAUTION
WARNING
IMPORTANT
Read the following instructions before using any of the 3 keys
supplied
The recodable cylinder can be operated with three different
keys. The keys are numbered 1, 2 & 3, and each key is labeled
and supplied in a separate plastic bag. It is very important to
use them in order.
* Always read the label instructions on the label before using
a key.
CAUTION
WARNING
IMPORTANT
The use of key #2 automatically cancels the function of key
#1, and the use of key #3 automatically cancels both keys #1
and #2.
If key #3 is used first, it will immediately make keys #1 and
#2 unusable.
Once a key is cancelled, it can’t be reactivated unless the cyl-
inder itself is re-pinned.
Fig. 23
Key #1
Key #2
(cancels key #1)
Key #3
(cancels keys
#1 and #2)
cylinder
How to change lock combination from key #1 to
key #2:
37. Insert key #2 into cylinder.
38. Turn the key clockwise until it stops (see Fig. 24) for both
left-handed and right-handed locks.
Right-handed lock
Left-handed lock
Fig. 24
39. Turn the key back counter-clockwise until it is in the hori-
zontal position.
Fig. 25 Right-handed lock
Left-handed lock
40. Remove the key.
Now the lock should work with key #2, and key #1 has been
cancelled.
*Test: Try to use key #1 in the lock. It should no longer work.
How to change lock combination from key #2 to key #3
41. Insert key #3 into cylinder.
42. Turn the key clockwise until it stops.
43. Turn the key back counter-clockwise until it is in the
horizontal position.
44. Remove the key.
Now the lock should work with key #3, and key #2 has been
cancelled.
*Test: Try to use key #2 in the lock. It should no longer work.
4 Installation of Mechanical Override Model
