INSTALLATION
RCI 6 SERIES
ELECTRIC STRIKES
© 2019 dormakaba Canada Inc
www.dormakaba.us • Phone: [phone] • Fax: [phone] • E-mail: [email protected]IS6A-(B)
PCN18043
R07-19GR-1
1. Determine the vertical centerline of the door lock face
and the horizontal centerline of the latch.
IMPORTANT: When determining the horizontal
centerline observe the following:
FOR MORTISE LOCKS: Align the angled ramps of the lip
bracket with the deadlock trigger of the mortise latch.
FOR CYLINDRICAL LOCKS: Align the center of the latch
with the center of the strike opening.**
2. Transfer both the horizontal and vertical centerlines to
the doorframe.**
3. Prepare the doorframe for cutting as shown in the
appropriate drawing.
4. If required, install the ‘no weld’ mounting brackets per
page 4.
5. Attach the strike faceplate to the lip bracket with the
self-tapping screws provided. (It may be desirable to
leave these screws slightly loose to facilitate insertion
into the doorframe.
6. Connect the incoming wiring from the power supply
(see wiring instructions).
7. Install the door strike in the doorframe using the
screws provided.
E
K
B
A
F
M
G
C
G
D
R
X
C
L
C
L
M

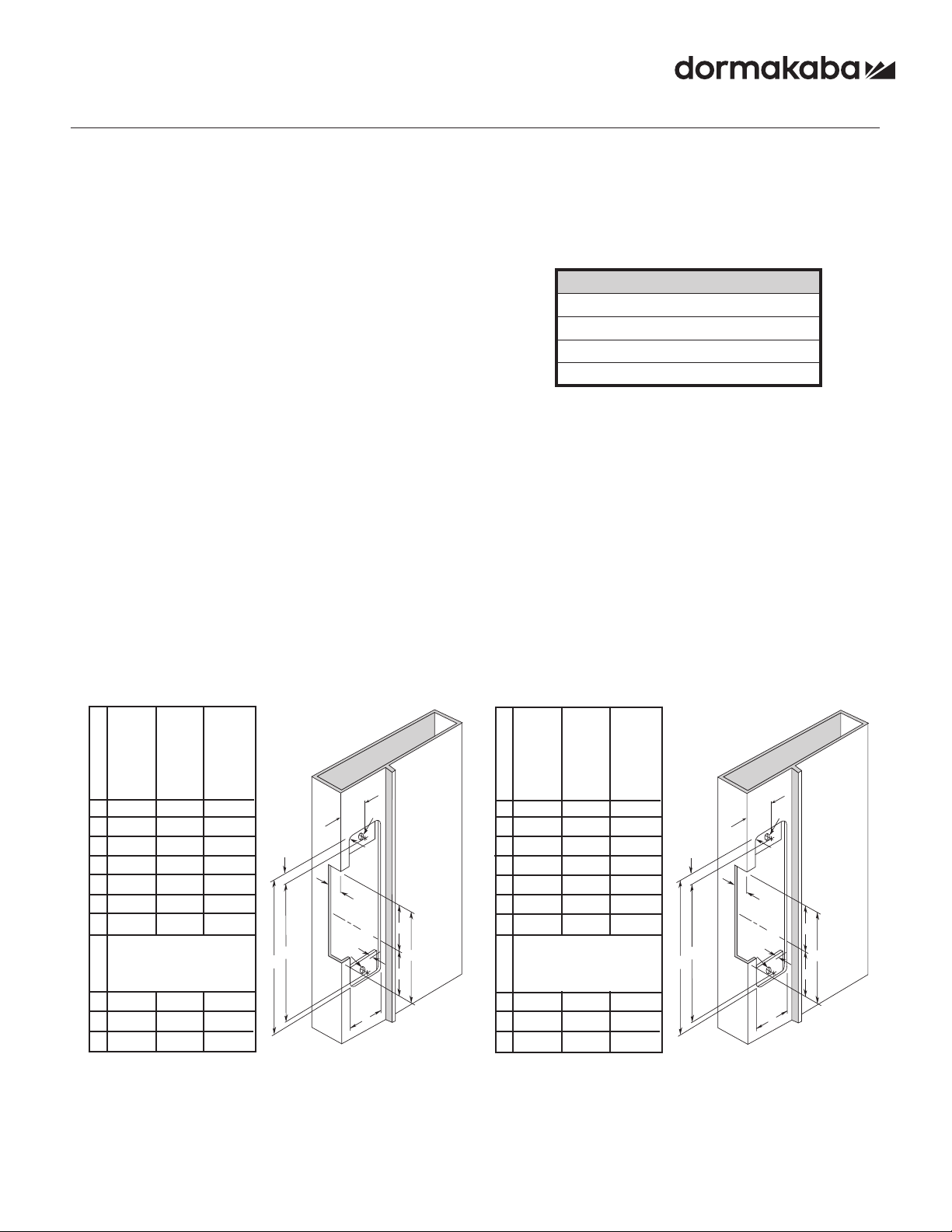

RCI S6504 Aluminum Frames, 1-3/16” Insert Depth
Modular AS65 with B604 faceplate
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
A 1-1/4 1.250 31.75
B 4-7/8 4.875 123.83
C 3-3/8 3.375 85.73
D 1-3/16 1.188 30.16
E 3/8 .375 9.53
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
R 5/32 0.156 3.97
K 4-1/8 4.125 104.78
M 12-24 — —
Vertical Centerline
of Door**
E
K
B
A
F
M
G
C
G
D
R
X
C
L
C
L
M
RCI L6504 Aluminum Frames, 1-1/16” Insert Depth
Modular AL65 with B604 faceplate
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
A 1-1/4 1.250 31.75
B 4-7/8 4.875 123.83
C 3-3/8 3.375 85.73
D 1-3/32 1.094 27.78
E 3/8 .375 9.53
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
R 5/32 0.156 3.97
K 4-1/8 4.125 104.78
M 12-24 — —
Vertical Centerline
of Door**
NOTE: Specifications subject to change without notice.
* Dimension F is measured from face of mounting tab to face of frame.
** Dimension X on the drawing is determined by the vertical centerline of the door. If the latch incorporates a deadlocking pin additional steps
will be necessary to ensure proper operation of the deadlocking pin. Measure the thickness of the deadlocking pin and add this thickness
to Dimension X to relocate the vertical centerline an appropriate distance on the frame.
Instructions
The RCI L65 Low Profile version accepts 1/2” or 5/8” latch
projection (perfect for narrow stile aluminum frames). The
RCI S65 Standard version is ideal when you require 3/4”
latch projection.
UL 294 Performance Ratings:
Access Control Line Security : Level I
Destructive Attack : Level I
Endurance : Level IV
Standby Power : Level I

© 2019 dormakaba Canada Inc
www.dormakaba.us • Phone: [phone] • Fax: [phone] • E-mail: [email protected]
FC
G
G
A
M
BK
E
X
R
D
C
L
M
C
L
RCI S6507 Aluminum & Wood Frames, 1-3/16” Insert Depth
Modular AS65 with B607 faceplate
A 1-1/4 1.250 31.75
B 6-7/8 6.875 174.63
C 3-3/8 3.375 85.73
D 1-3/16 1.188 30.16
E 3/8 0.375 9.53
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
R 5/32 .156 3.97
K 6-1/8 6.125 155.58
M 12-24†— —
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
Vertical Centerline
of Door**
X
E
K
B
R
M
D
G
G
C
A
M
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
A 1-1/8 1.125 28.58
B 5-7/8 5.875 149.23
C 3-3/8 3.375 85.73
D 1-3/16 1.188 30.16
E 1/4 0.250 6.35
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X Door Door Door
R 5/32 .156 3.97
K 5-3/8 5.375 136.53
M 12-24†— —
Vertical Centerline
of Door**
RCI L6505 Aluminum & Wood Frames, 1-1/16” Insert Depth
Modular AL65 with B605 faceplate
X
E
K
B
R
M
D
G
G
C
A
M
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
A 1-1/8 1.125 28.58
B 5-7/8 5.875 149.23
C 3-3/8 3.375 85.73
D 1-3/32 1.094 27.78
E 1/4 0.250 6.35
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
R 5/32 .156 3.97
K 5-3/8 5.375 136.53
M 12-24†— —
Vertical Centerline
of Door**
FC
G
G
A
M
BK
E
X
R
D
C
L
M
C
L
RCI L6507 Aluminum & Wood Frames, 1-1/16” Insert Depth
Modular AL65 with B607 faceplate
A 1-1/4 1.250 31.75
B 6-7/8 6.875 174.63
C 3-3/8 3.375 85.73
D 1-3/32 1.094 27.78
E 3/8 0.375 9.53
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
R 5/32 .156 3.97
K 6-1/8 6.125 155.58
M 12-24†— —
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
Vertical Centerline
of Door**
NOTE: Specifications subject to change without notice.
* Dimension F is measured from face of mounting tab to face of frame.
** Dimension X on the drawing is determined by the vertical centerline of the door. If the latch incorporates a deadlocking pin additional steps
will be necessary to ensure proper operation of the deadlocking pin. Measure the thickness of the deadlocking pin and add this thickness
to Dimension X to relocate the vertical centerline an appropriate distance on the frame.
† For wood frame door installations, substitute #12 wood screws for dimension M.
2
RCI S6505 Aluminum & Wood Frames, 1-3/16” Insert Depth
Modular AS65 with B605 faceplate

© 2019 dormakaba Canada Inc
www.dormakaba.us • Phone: [phone] • Fax: [phone] • E-mail: [email protected]
C
G
G
F
M
A
D
E
K
B
XM
C
L
C
L
RCI S6514 Hollow Metal Frames, 1-3/16” Insert Depth
Modular AS65 with B614 faceplate
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
A 1-1/4 1.250 31.75
B 4-7/8 4.875 123.83
C 3-3/8 3.375 85.73
D 1-3/16 1.188 30.16
E 3/8 .375 9.53
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
K 4-1/8 4.125 104.78
M 12-24 — —
Vertical Centerline
of Door**
C
G
G
F
M
A
D
E
K
B
XM
C
L
C
L
RCI L6514 Hollow Metal Frames, 1-1/16” Insert Depth
Modular AL65 with B614 faceplate
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
A 1-1/4 1.250 31.75
B 4-7/8 4.875 123.83
C 3-3/8 3.375 85.73
D 1-3/32 1.094 27.78
E 3/8 .375 9.53
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
K 4-1/8 4.125 104.78
M 12-24 — —
Vertical Centerline
of Door**
X
E
K
B
R
M
D
G
G
C
A
M
RCI S6508 Aluminum & Wood Frames, 1-3/16” Insert Depth
Modular AS65 with B608 faceplate
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
A 1-7/16 1.438 36.51
B 7-15/16 7.938 201.61
C 3-3/8 3.375 85.73
D 1-3/16 1.188 30.16
E 1/4 0.250 6.35
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
R 5/32 .156 3.97
K 7-7/16 7.438 188.91
M 12-24†— —
Vertical Centerline
of Door**
X
E
K
B
R
M
D
G
G
C
A
M
RCI L6508 Aluminum & Wood Frames, 1-1/16” Insert Depth
Modular AL65 with B608 faceplate
MEASUREMENT
FRACTIONAL
INCHES
DECIMAL
INCHES
METRIC
mm
A 1-7/16 1.438 36.51
B 7-15/16 7.938 201.61
C 3-3/8 3.375 85.73
D 1-3/32 1.094 27.78
E 1/4 0.250 6.35
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
X C/L C/L C/L
Door Door Door
R 5/32 .156 3.97
K 7-7/16 7.438 188.91
M 12-24†— —
Vertical Centerline
of Door**
NOTE: Specifications subject to change without notice.
* Dimension F is measured from face of mounting tab to face of frame.
** Dimension X on the drawing is determined by the vertical centerline of the door. If the latch incorporates a deadlocking pin additional steps
will be necessary to ensure proper operation of the deadlocking pin. Measure the thickness of the deadlocking pin and add this thickness
to Dimension X to relocate the vertical centerline an appropriate distance on the frame.
† For wood frame door installations, substitute #12 wood screws for dimension M.
3

© 2019 dormakaba Canada Inc
www.dormakaba.us • Phone: [phone] • Fax: [phone] • E-mail: [email protected]
4
Frame
Self-Adhesive
Mounting Shim (8
incl.)
Mounting Tab
(2 incl.)
12-24 Machine
Screws (2 per tab)
Mounting Tab Kit Instructions
Mounting tab kit is for use with aluminum and steel frames that
do not have factory installed mounting tabs for electric strike
installation.
1. Prepare the frame as shown in the approximate
drawing. Fasten the mounting tab to the faceplate
of the strike, selecting the appropriate shims for the
installation.
2. Using the assembled strike and tabs as a template,
place against the frame and mark the mounting hole
locations. Remove and drill a 3/16” hole in frame for
each mounting tab and countersink the frame.
3. Remove the tabs from the faceplate and install in the
frame using the 12-24 x 3/8” machine screws supplied.
Tabs are zinc plated and drilled and tapped for this
purpose.
4. Make final electrical connections per wiring instructions
and mount strike to the tabs with the 12-24 x 3/8”
machine screws.
Trim Plate Instructions
1. Position the Trim Plate on the frame cut-out to verify fit
and coverage.
2. Adjust cut-out if required.
3. Bend the four tabs to hold the Trim Plate onto the
frame.
4. For a tighter fit, pre-bend the two long flange tabs
before sliding onto the frame where space allows.
5. Secure the strike to the frame as per strike installation
instructions.

© 2019 dormakaba Canada Inc
www.dormakaba.us • Phone: [phone] • Fax: [phone] • E-mail: [email protected]
NO
NC
C
C
NC
NO
Keeper
Monitor
Latch
Monitor
Optional LMKM
BLACK
BLUE
RED
YELLOW
STRIKE
POWER
Fail Safe

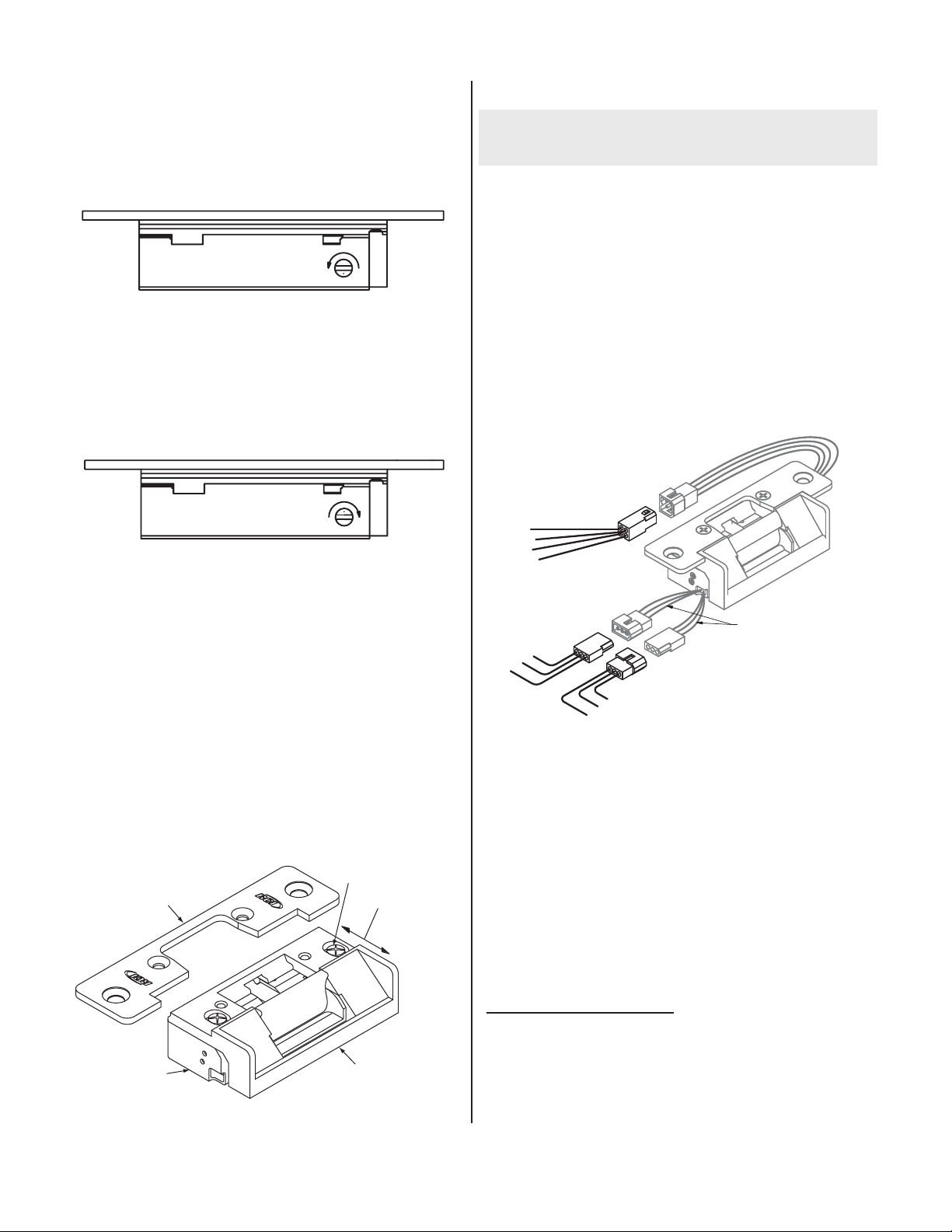

Rotate the adjustment screw so the dimple is fully
rotated to opposite the faceplate side of the strike (fully
counter clockwise). Your strike is now fail safe and
requires power to lock. See Fig. 1.
Fail Secure
Rotate the adjustment screw so the dimple is fully rotated
to the faceplate side of the strike (fully clockwise). Your
strike is now fail secure and requires power to unlock the
door. See Fig 2.
Lip Bracket Adjustment
If your door or latch is out of adjustment, the insert
can be adjusted forward or back as required for proper
alignment to the latch. See Fig. 3
1. Remove the strike from the frame.
2. Remove the faceplate from the strike.
3. 2 screws secure the lip bracket to the main insert.
4. Loosen these screws approximately 1-1/2 to 2
full turns to allow the insert to move forward or
backward as required.
5. Once the adjustment is made tighten all screws and
reinstall the strike in the frame.
Li
p
Bracket Scre
w
Faceplate
Removed Ad
j
ustment
Dir
ec
tio
n
Li
p
Bracket
S
trike Inser
t
Keeper
Fig. 1 Fail Safe = screw fully counter clockwise
Fig. 2 Fail Secure = screw fully clockwise
Fig. 3 Lip bracket adjustment
Wiring Instructions
NOTE: Overheated or Burnt Coils caused by incorrect input
voltage / wire harness combinations will not be covered under
warranty.
For 12VDC or 12-24VAC input power :
- connect RED and BLUE wires to positive (+)
- connect BLACK and YELLOW wires to negative (-)
For 24VDC input power only :
- connect YELLOW and BLUE wires together
- connect RED wire to positive (+)
- connect BLACK wire to negative (-)
If using AC power, polarity is not observed.
To meet BHMA A156.31 install the MOV provided across
the positive and negative wires or terminals of the harness.
The MOV is not polarity sensitive.
NOTE: If a suppression diode is required for access control,
observe proper polarity.
Latch Monitor Wires*
Black = Common (C)
Blue = Normally Close (NC)
Orange = Normally Open (NO)
Keeper Monitor Wires*
Black = Common (C)
Yellow = Normally Closed (NC)
Green = Normally Open (NO)
*Latch Monitor and Keeper Monitor Switch Ratings:
24VDC (SPDT), 2 Amp, resistive load
When using LMKM option:
If the lockset on the door has a 1/2” or 5/8” latch projec-
tion, the RCI L65 model is appropriate.
If the lockset on the door has a 3/4” latch projection, you
must use the RCI S65 model.
NOTE: Contacts are indicated with the keeper in a closed
and locked condition, with no latch present.
5
Fig. 4 Wiring the 6 Series
electric strike

© 2019 dormakaba Canada Inc
www.dormakaba.us • Phone: [phone] • Fax: [phone] • E-mail: [email protected]
Latch or keeper are not
functioning properly
Confirm that the keeper is closing properly and that the
lever in the strike cavity is operating freely.
SolutionPossible CausesProblem
Strike will not lock or
unlock properly
No power to the insert Using a multimeter, confirm that you have the correct
output voltage at the power supply.
Using a multimeter, confirm that you have the correct input
voltage at the strike.
Confirm that all connections are tight and secure.
Incorrect voltage used Confirm that the insert and power supply are the proper
voltage.
Strike is binding Confirm that the strike keeper functions when the door is
open. If the strike operates correctly, adjust door or strike
to eliminate any backpressure.
Confirm that the strike cavity depth is compatible with the
lock set.
Strike releases but
won’t buzz
Improper power supply Replace the power supply with a correct voltage AC power
supply, and the 12V connector. If this cannot be done, a
DC piezo buzzer can be installed.
Strike makes a buzzing
sound
Improper power supply Replace the power supply with a correct voltage DC power
supply.
Insert has a burnt smell Improper voltage Confirm that you have the correct output voltage at the power
supply.
Improper application A strike connected to an AC power supply will buzz unless
a rectifier is installed.
Improper installation Confirm that the correct connector was used when
installing the strike 12V for 12VDC & 12-24VAC, 24V for
24VDC only.
Confirm that all connections are tight and secure.
Mortise lock not dead
latching
Improper Installation Check alignment of dead latch and lip bracket ramp.
Door has sagged Adjust door alignment.
Cylindrical deadlatching not
working
Improper Installation / Door
has warped
Adjust the strike horizontal adjustment. (See Installation
Instructions).
Door won’t latch Door has warped or sagged
creating excessive back
pressure
Re-align door in frame or replace.
Monitor switch is not
functioning
Short in wiring Confirm that all connections are tight and secure.
Using a multimeter confirm continuity of the N/O & N/C
sides of the switch.
1.
2.
3.
4.
5.
6.
7.
8.
6
