Doro PhoneEasy 409s gsm User manual

Doro PhoneEasy®409s gsm

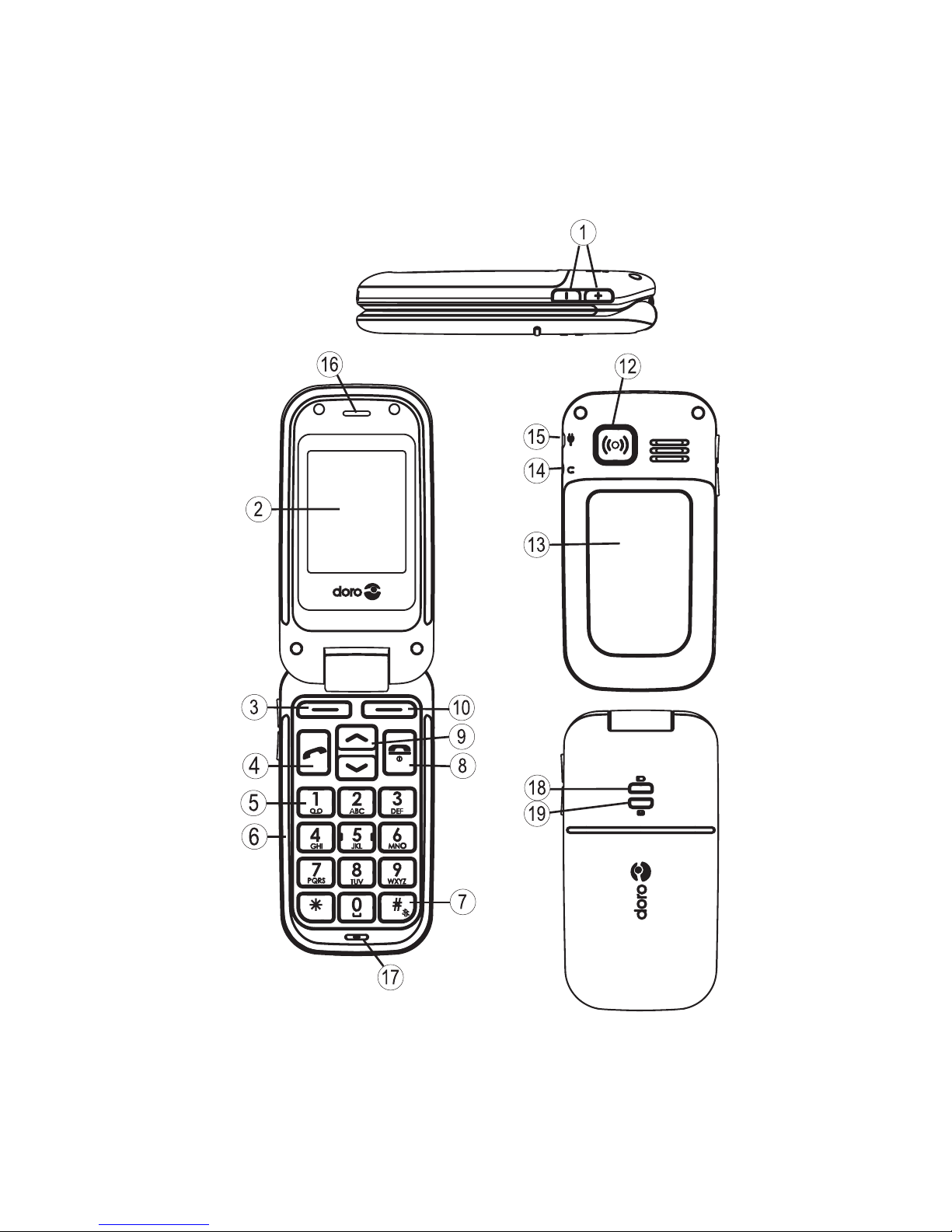

1. Side key (volume)
2. Display
3. Left soft key
4. Call key
5. 1/ Voice mail
6. Numeric keypad
7. #
8. End call/Power on/off
9. Arrow keys
10. Right soft key
11. Charging contacts, for use
with charging stand (not
included)
12. Emergency call key
13. Battery cover
14. Headset socket
15. Charging socket
16. Loudspeaker
17. Microphone
18. Led light (Battery level low)
19. Led light (New message)
20. Lanyard
English
20



1
English
Contents
Installation .................................... 3
Installing the SIM card and battery .................. 3
Charging .................................... 4
Phone indicators ............................... 5
Operation...................................... 6
Activating the phone ............................ 6
Making a call ................................. 7
Making a call from the Phonebook .................. 7
Receiving a call ............................... 7
Volume control ................................ 7
Display symbols ................................. 8
Additional functions .............................. 9
Call options .................................. 9
Call waiting ................................. 10
Call information .............................. 10
Call log .................................... 10
Phonebook .................................. 11
Silent mode ................................. 13
Headset .................................... 13
SOS calls ................................... 14
Emergency Call key ............................ 14
Games ..................................... 15
Alarm...................................... 15
Calendar ................................... 16
Calculator................................... 16
Text input................................... 17
SMS messaging ................................ 18
Creating and sending SMS ....................... 18
Incoming SMS (Inbox).......................... 19
Outgoing SMS (Outbox) ......................... 19

2
English
Settings...................................... 21
Time and date................................ 21
User setup .................................. 22
Tone settings (rings & tones) ..................... 24
Silent...................................... 25
Blocking functions ............................ 25
Emergency .................................. 26
Voice mail .................................. 27
Speed dial .................................. 28
Call setup................................... 29
SMS settings ................................ 30
Network setup ............................... 32
Services .................................... 32
Security settings .............................. 32
Safety instructions .............................. 34
Troubleshooting ................................ 37
Care and maintenance ........................... 39
Warranty and technical data ....................... 40

3
English
Installation
Warning!
Turn off the phone and disconnect the charger before
removing the battery cover.
Installing the SIM card and battery
The SIM card holder is located behind the battery.
1. Remove the battery cover by pressing it carefully down and
sliding away from the emergency call key.
2. Remove the battery if it is already installed.
3. Press lightly on the cardholder and carefully slide it towards
the emergency call key.
4. The SIM card holder can now be folded into an upright
position.
5. Placing the SIM-card on the marked area of the
compartment. Make sure that the SIM card’s contacts are
facing downwards and that the cut-off corner is placed
accordingly with the marked area. See picture. Take care not
to scratch or bend the contacts on the SIM card.
6. Fold the SIM-card holder down and carefully slide it away
from the emergency call key until it “clicks” into place.
7. Insert the battery by sliding it into the battery compartment
with the contacts facing towards the emergency call key.
8. Replace the battery cover until it “clicks” into place.

4
English
Charging
Warning!
Only use batteries, charger and accessories that have been
approved for use with this particular model. Connecting
other accessories may be dangerous and may invalidate the
phone’s type approval and guarantee.
When the battery is running low, is displayed and a warning
signal is heard. To charge the battery, connect the mains adapter
to the wall socket and to the charging socket y.

phone, and when it is disconnected. The battery charge
indicator will be animated while charging.
It takes approximately 3 hours to fully charge the battery.
is displayed when charging is completed. If the phone is
turned off when the charger is connected to the phone only the
battery charge status indicator will be shown in the display.
Note!
To save power the LCD backlight goes off after a short while
but the phone is still charging. Press any key to illuminate the
display.
Full battery capacity will not be reached until the battery has
been charged 3–4 times.
Batteries degrade over time, which means that call time and
standby time will normally decrease with regular use.

5
English
Save energy
When you have fully charged the battery and disconnected the
charger from the device, unplug the charger from the wall outlet.
Phone indicators
When 5
When ]

6
English
Operation
Activating the phone
Press and hold the red button on the phone to turn it on/off.
The following messages may be displayed:
SIM card missing or
incorrectly inserted.
SIM card damaged or not
valid.
If the SIM card is valid but protected with a PIN code (Personal
PIN: is displayed. Enter the PIN code
and press OK ( upper left corner of keypad).
Delete with Clear ( upper right corner of keypad).
Note!
If PIN and PUK codes were not provided with your SIM card,
please contact your network operator.
Attempts: # shows the number of PIN attempts left. When
no more attempts remain, SIM blocked is displayed. The
SIM card must now be unlocked with the PUK code (Personal
Unblocking Key).
OK.
OK.
Changing the language, time and date
The default language is determined by the SIM card. See Settings
on how to change language, time and date.

7
English
Making a call
1. Enter the phone number. Delete with Clear.
2. Press qto dial. Press Abort to cancel dialling.
3. Press Lto end the call.
Note!
When making international calls, press *twice for the

code (instead of 00 or similar) for best operation.
Making a call from the Phonebook
1. Press Name to open the phonebook.
2. Use the arrow keys /to scroll through the
phonebook, or quick search by pressing the key corresponding
.
3. Press Call to dial the selected entry, or press Back to return
to standby mode.
Receiving a call
1. Press qto answer, or press Silent to switch off the ring
signal and then Reject to reject the call (busy signal).
Alternatively, press Lto reject the call directly.
2. Press Lto end the call.
See also Call options.
Volume control
Use the side keys +/– to adjust the sound volume during a call.
The volume level is indicated on the display.
