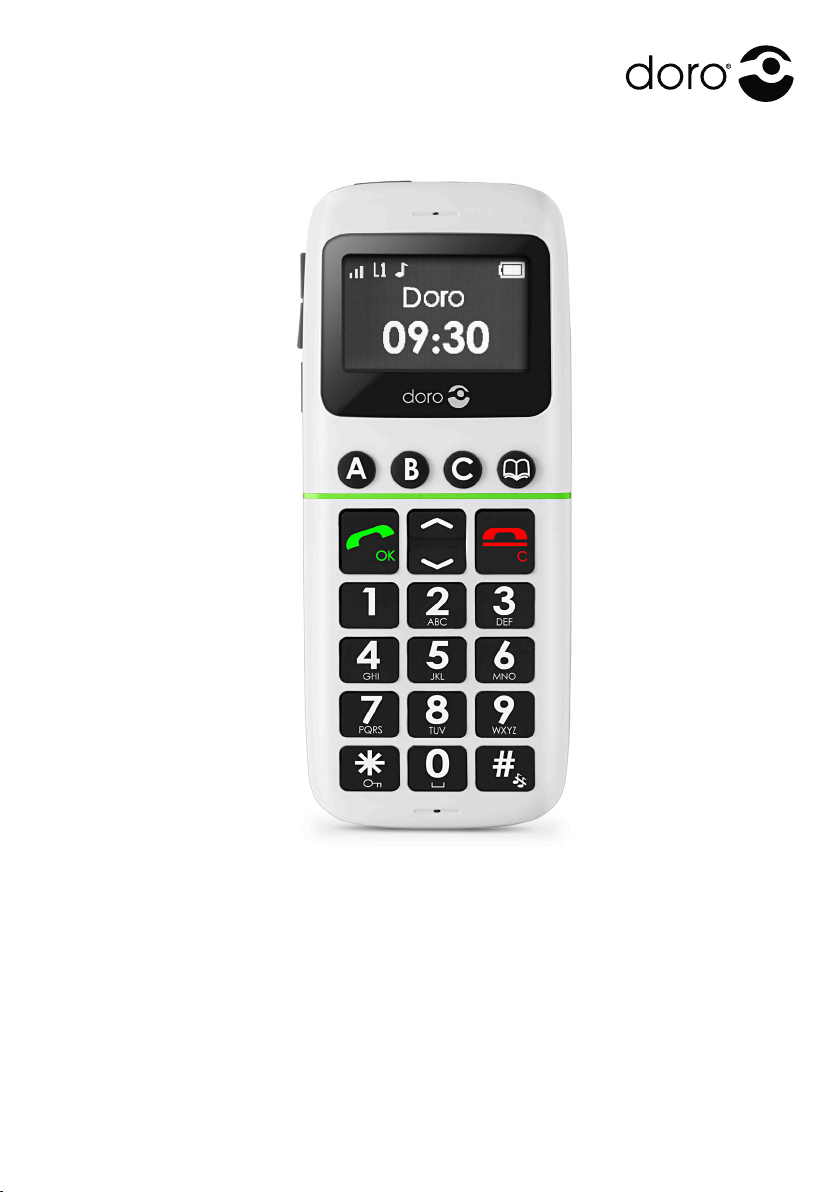

Doro PHONEEASY 338GSM User manual

PhoneEasy
338gsm

Power on/off
Side key (volume)
Menu key
Display
Memory keys
Call key/OK
Numeric keypad
*/ Key lock
# / Change prole
End call/back/Clear
Arrow keys
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Phonebook key
Charging contacts (for use
with charging stand)
Emergency call key
Headset socket
Battery cover
Charging socket
Microphone
Loudspeaker

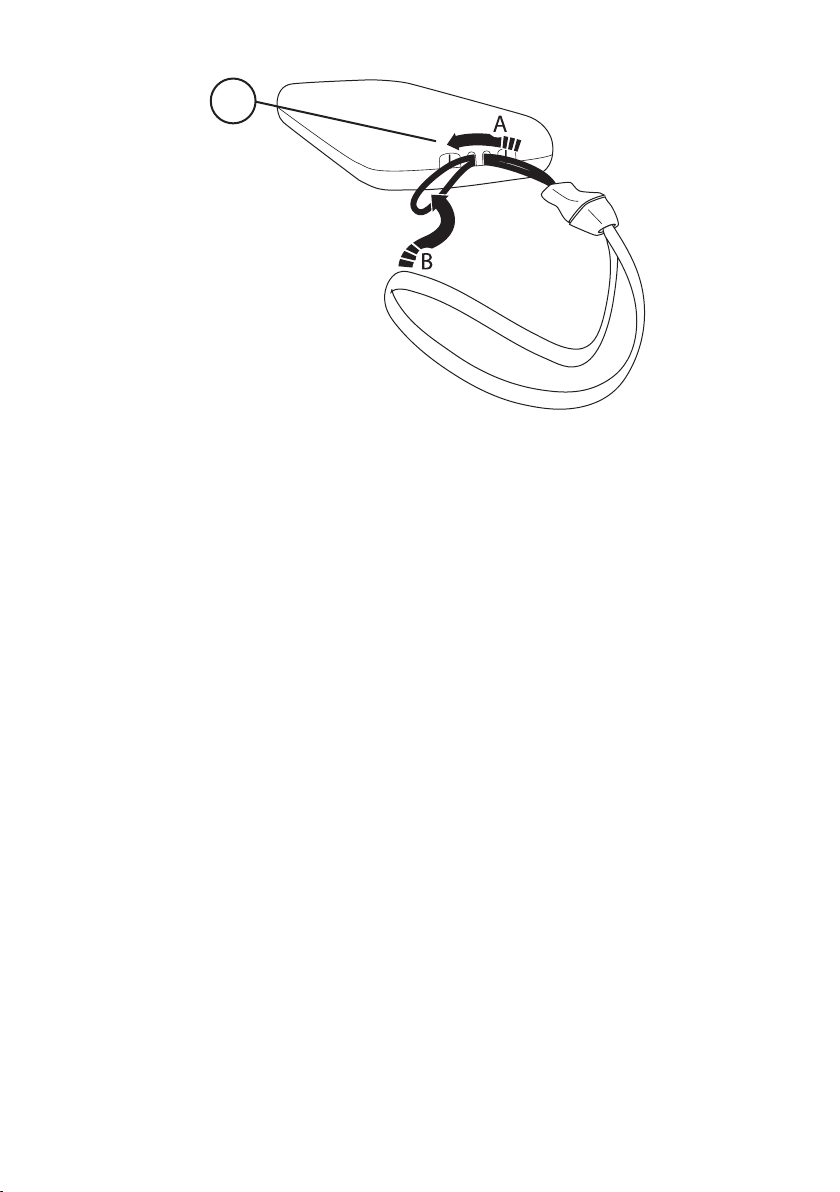

Lanyard
12.
13.
14.
15.
16.
17.
18.
19.
20.
English
20

1
English
Contents
Installation .................................... 2
Installing the SIM card and battery . . . . . . . . . . . . . . . . . . 2
Charging .................................... 3
Operation...................................... 4
Activatingthephone............................ 4
Makingacall................................. 5
Making a call from the Phonebook . . . . . . . . . . . . . . . . . . 5
Receivingacall ............................... 5
Volumecontrol................................ 5
Callinformation ............................... 5
Displaysymbols................................. 6
Additionalfunctions.............................. 7
Handsfree mode (qkey)........................ 7
Calllog ..................................... 7
Textinput.................................... 8
Speeddial................................... 8
Phonebook................................... 9
Keylock.................................... 10
Silentmode................................. 10
Headset.................................... 10
SOScalls999/112/911 ........................ 11
EmergencyCallkey............................ 11
SMSmessaging................................ 12
Incomingmessages............................ 12
Settings...................................... 13
Timeanddate................................ 13
Usersetup.................................. 14
SMSreceive................................. 16
Emergency.................................. 16
Securitysettings.............................. 18
Safetyinstructions.............................. 19
Troubleshooting ................................ 22
Careandmaintenance ........................... 26
Warranty and technical data . . . . . . . . . . . . . . . . . . . . . . . 27

2
English
Installation
Warning!
Turn off the phone and disconnect the charger before
removing the battery cover.
Installing the SIM card and battery
Remove the battery cover and the battery if it is already
installed.
Insert the SIM card by carefully sliding it into the holder.
Make sure that the SIM card’s contacts are facing inwards
and that the cut-off corner is pointing upwards. Take care not
to scratch or bend the contacts on the SIM card.
Insert the battery by sliding it into the battery compartment
with the contacts facing upwards to the right.
Replace the battery cover.
1.
2.
3.
4.

3
English
Charging
Warning!
Only use batteries, charger and accessories that have been
approved for use with this particular model. Connecting
other accessories may be dangerous and may invalidate the
phone’s type approval and guarantee.
When the battery is running low, is displayed and a warning
signal is heard. To charge the battery, connect the mains adapter
to a wall socket and to the charging socket y.
If the phone is turned on when the charger is connected to the
phone is displayed briey in the display and when it
is disconnected. The battery charge indicator is displayed while
charging.
If the phone is turned off when the charger is connected to the
phone only the battery charge status indicator will be shown in
the display.
It takes approximately 3 hours to fully charge the battery.
is displayed when charging is completed.
Note!
To save power the LCD backlight goes off after a short while
but the phone is still charging. Press any key to illuminate the
display.
Full battery capacity will not be reached until the battery has
been charged 3–4 times.
The ambient temperature must be in the range 0 °C to +40 °C
when charging.
Batteries degrade over time, which means that call time and
standby time will normally decrease with regular use.

4
English
Operation
Activating the phone
Press and hold 1on the top of the phone for a few seconds to
turn it on/off. The following messages may be displayed:
Insert SIM
SIM card missing or
incorrectly inserted.
SIM card damaged or not
valid.
If the SIM card is valid but protected with a PIN code (Personal
Identication Number), PIN: is displayed. Enter the PIN code
and press OK. Skip backwards with L.
Note!
If PIN and PUK codes were not provided with your SIM card,
please contact your network operator.
Trials: # shows the number of PIN attempts left. When no
more attempts remain, SIM blocked is displayed. The SIM
card must now be unlocked with the PUK code (Personal
Unblocking Key).
1. Enter the PUK code and conrm with OK.
2. Enter a new PIN code and conrm with OK.
Changing the language, time and date
The default language is determined by the SIM card. See Settings
on how to change language, time and date.

5
English
Making a call
Enter the phone number. Skip backwards with L.
Press qto dial.
Press Lto end the call.
Note!
When making international calls, press *twice for the
international prex "+".
Making a call from the Phonebook
Press bto open the phonebook.
Use the arrow keys / to scroll through the
phonebook, or quick search by pressing the key corresponding
to the rst letter of the entry, see Text input.
Press qto dial the selected entry, or press Lto return to
standby mode.
Receiving a call
Press qto answer.
Alternately, press Lto reject the call directly.
Press Lto end the call.
Volume control
Use the side keys +/–to adjust the sound volume. The volume
level is indicated on the display.
Call information
During a call, the called or calling phone number and the elapsed
call time is displayed.
If the identity of the caller is withheld, Unknown is displayed.
1.
2.
3.
1.
2.
3.
1.
2.

6
English
Display symbols
Signal strength Missed call
Ring only Keylock on
Ring + vibration Battery level
Vibration only New message
Silent mode Roaming (connected to
other network)
Headset connected
SIM card missing Charger connected
SIM card error Charger disconnected
Keypad locked Headset connected
Unlocking keypad Headset disconnected
New SMS message Handsfree on
SOS calls only Handsfree off
OK (conrmed) Error
Battery level low Charging (animated)
Calling Call ended
Incoming call Missed call
Searching

7
English
Additional functions
Handsfree mode (qkey)
Activates handsfree mode during a call, which allows you to
speak without holding the phone.
Speak clearly into the microphone at a maximum distance of 1 meter
(3 feet). Use the side keys +/–to adjust the loudspeaker volume.
Press qto return to normal mode.
Note!
The handsfree function allows only one person at a time
to talk. Switching between talk/listen is triggered by the
sound of the person talking. Loud noises (music, etc.) in the
background may interfere with the handsfree function.
Call log
Answered, missed, and outgoing calls are saved in a combined call
log. 20 calls of each type can be stored in the log. For multiple
calls related to the same number, only the most recent call is saved.
Retrieving and dialling
Press q.
Use the arrow keys / to scroll through the call list.
= Incoming call
= Outgoing call
= Missed call
Press qto show details for the selected call.
Press qto dial the number or press and hold wfor the
following settings:
Delete Delete the call
Delete all Delete all calls in the call log
Save Save the number in the Phonebook
1.
2.
3.
4.

8
English
Text input
Text is entered by pressing the numerical keys repeatedly to
select characters.
Press the key repeatedly until the desired character is shown.
Wait a few seconds before entering the next character.
Press *for a list of special characters. Select the desired
character and press OK to enter it.
Use the arrow keysarrow keys / to move the cursor within the text.
Press #to cycle upper case, lower case and numerals.
ABC UPPER CASE
abc lower case
123 Numerals
Speed dial
The keys A, Band Ccan be used for speed dialling.
Adding speed dial numbers
Enter the phone number.
Press and hold A.
Enter a name for the contact, see Text input.
Delete with L.
Press OK. You can now speed-dial this entry by press and
hold A.
Repeat to add speed dial entries for keys Band C.
If you need to change a number, store the new number in the
same location as the old one.
1.
2.
3.
4.
5.

9
English
Phonebook
The phonebook can store 50 entries.
Creating a phonebook entry
Press and hold w, scroll to and press OK.
Select Add new and press OK.
Select Name and press OK.
Enter a name for the contact, see Text input. Delete with L.
Press OK.
Select Number and press OK.
Enter the phone number, then press OK.
Press Lone or more times to return to stand-by.
Managing phonebook entries
Press and hold w, scroll to and press OK.
Select an entry and press and hold w.
Select one of the following options and press OK.
Add new
View Creating a phonebook entry above.
View
Will show details of contact. Press qto call the contact.
Edit
Edit the name/number. Skip backwards with L.
Delete
Press OK to delete the selected phonebook entry. Press OK to
conrm or Lto abort.
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.
3.

10
English
Delete all
Select From SIM or From phone and press OK to delete all
phonebook entries from the SIM card or phone memory.
Enter the phone code and press OK to conrm.
The default Phone code is 1234.
Key lock
Press and hold *to lock/unlock the keypad.
Incoming calls can be answered by pressing qeven if the
keypad is locked. During the call, the keypad is unlocked. When
the call is ended or rejected, the keypad is locked again.
See Settings for key lock options.
Note!
The emergency numbers 999/112/911 can be dialled without
unlocking the keypad.
Silent mode
Silent mode is a xed prole with SMS and ring signals disabled,
while vibration and key tone settings are unchanged. Press and
hold #to activate/deactivate Silent mode.
Headset
When a headset is connected, the internal microphone in the
phone is automatically disconnected.
When receiving a call you can use the answer key on the headset
cable (if it has one) to answer and end calls.
Warning!
Using a headset at high volume can damage your hearing.
Adjust the sound volume carefully when using a headset.

11
English
SOS calls
Warning!
Mobile phones such as this unit use radio signals, the
mobile phone network, the terrestrial network and user-
programmed functions. This means that connection cannot
be guaranteed in all circumstances. Therefore, you should
never rely solely on a mobile phone for very important calls
such as medical emergencies.
When the phone is turned on, the right soft key shows SOS
before the SIM card is activated or if the phone lock is on.
Press SOS and then press Yes to automatically call 911. Press
No to return to the activation screen. If you pressed Yes by
mistake, press Abort immediately to abort.
As long as the phone is switched on, it is always possible to place
an SOS call by entering 911 followed by q.
Most – but not all – networks accept calls to 911 without a valid
SIM card. Sometimes an emergency call cannot be placed due to
network, environment or interference issues.

12
English
Emergency Call key
To make an emergency call, press and hold the Emergency Call
key on the back of the phone for 3 seconds, or press it two times
within 1 second. The phone will send an emergency SMS text
message to all numbers in the Emergency numbers list. The
phone will then dial the rst number on the list. If the call is not
answered within 25 seconds, the next number is dialled.
Dialling is repeated 3 times or until the call is answered, or until
Lis pressed.
The Emergency Call function must be activated before use.
See Settings on how to activate this function, enter Emergency
Numbers, and edit the emergency SMS message.
Note!
When an emergency call is activated the phone is pre-set to
handsfree mode.
Automatic calls to 911 is normally not allowed. Do not save
this number in the list of numbers to be called automatically.
Some private security companies can accept automatic calls
from their clients. Always contact the security company before
programming in its number. The function is set to interact
with most voice mail systems to avoid that the call sequence
is interrupted.
Warning:
Do not hold the device near your ear when the handsfree
mode is in use, because the volume may be extremely loud.

13
English
SMS messaging
Incoming messages
The phone can receive (but not send) SMS text messages.
is shown in the display when a message is received.is shown in the display when a message is received.
Press and hold w, scroll to and press OK.
Select a message from the list and press OK. Use the arrow
keys to scroll the message up/down.
Press qto dial the number or press and hold wfor the
following settings:
Call sender
Call the selected number.
Delete
Press OK to delete the message, or Lto return to the menu.
Use number
Displays all phone numbers contained in the message as well as
the number of the sender.
Use the arrow keys to select one of the displayed numbers.
Press and hold w.
Select one of the following options and press OK.
Call Call the selected number
Save Save the number in the phonebook
1.
2.
3.
1.
2.
3.

14
English
Settings
Note!
The settings described in this chapter are carried out in
standby mode.
Time and date
Setting the time and date
Press and hold w(on the side), scroll to and press OK.
Select Time & date and press OK.
Select Set time and press OK.
Press OK. Enter the time (HH:MM), then press OK.
Select Set date and press OK.
Press OK. Enter the date (YYYY/MM/DD), then press OK.
Press Lone or more times to return to stand-by.
Setting the time format
Press and hold w, scroll to and press OK.
Select Time & date and press OK.
Select Time Format and press OK.
Select 12 hours or 24 hours and press OK.
Press Lone or more times to return to stand-by.
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
5.

15
English
Setting Auto time on/off
To set the phone to automatically update the time and date
according to the current time zone, select On. (Does only work
with some operators.)
Automatic update of date and time does not change the time you
have set for the alarm clock, calendar or the alarm notes. They
are in local time. Updating may cause some alarms you have set
to expire.
Press and hold w, scroll to and press OK.
Select Time & date and press OK.
Select Auto time and press OK.
Select On or Off and press OK.
Press Lone or more times to return to stand-by.
User setup
Tone setup
Press and hold w, scroll to and press OK.
Select User setup and press OK.
Select Tone setup and press OK.
Select Ring tone and press OK.
Select one of the available tones, the tone will be played.
Press OK to conrm, or press Lto discard changes.
Set up the Message tone and Keypad tone in the same way.
Press Lone or more times to return to stand-by.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
6.
7.

16
English
Tone volume
Press and hold w, scroll to and press OK.
Select User setup and press OK.
Select Tone setup and press OK.
Select Volume and press OK.
Scroll up/down to change the ring volume, then press OK.
Press Lone or more times to return to stand-by.
Alert type (ring/vibrate)
Incoming calls can be signalled by a ring tone and/or vibration, or
by display message only.
Vib->ring means that the incoming call rst activates the
vibrator, after a short time also the ringing tone is activated.
Press and hold w, scroll to and press OK.
Select User setup and press OK.
Select Alert type and press OK.
Select the desired signalling mode and press OK.
Press Lone or more times to return to stand-by.
Changing the language
The default language for the phone menus, messages etc. is
determined by the SIM card. You can change this to any other
language supported by the phone.
Press and hold w, scroll to and press OK.
Select User setup and press OK.
Select Language and press OK.
Scroll up/down to select a language, then press OK.
Press Lone or more times to return to stand-by.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
