Doro Magna 2000 User manual

English

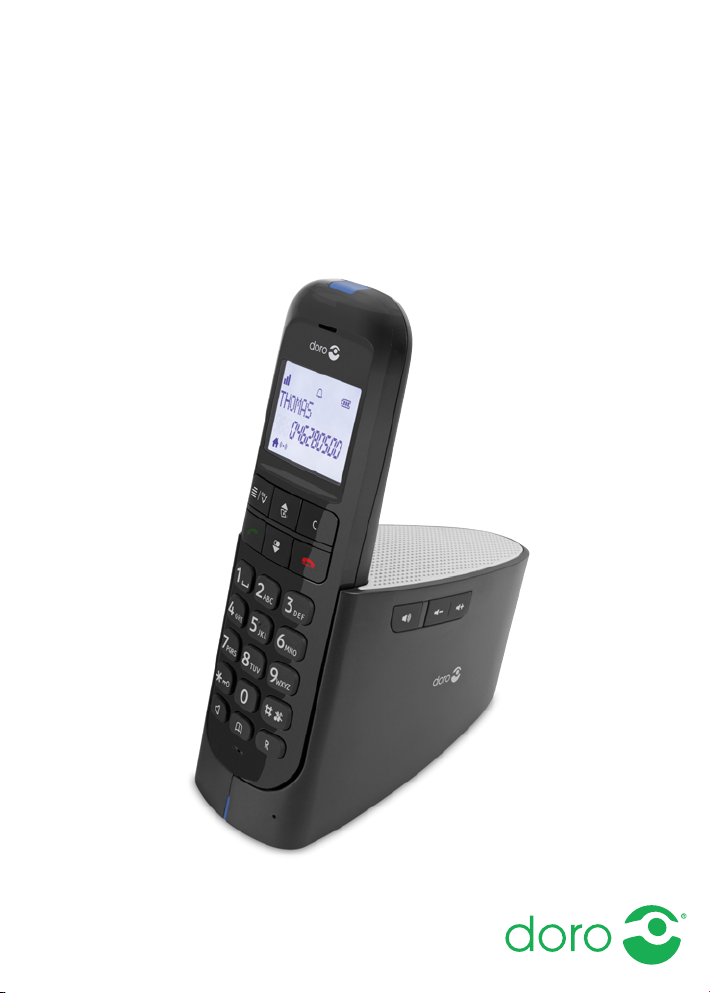

Doro Magna 2000

1
2
3
5
4
6
8
911
12 20
21
19
14
13
15
10
18
16 17
7

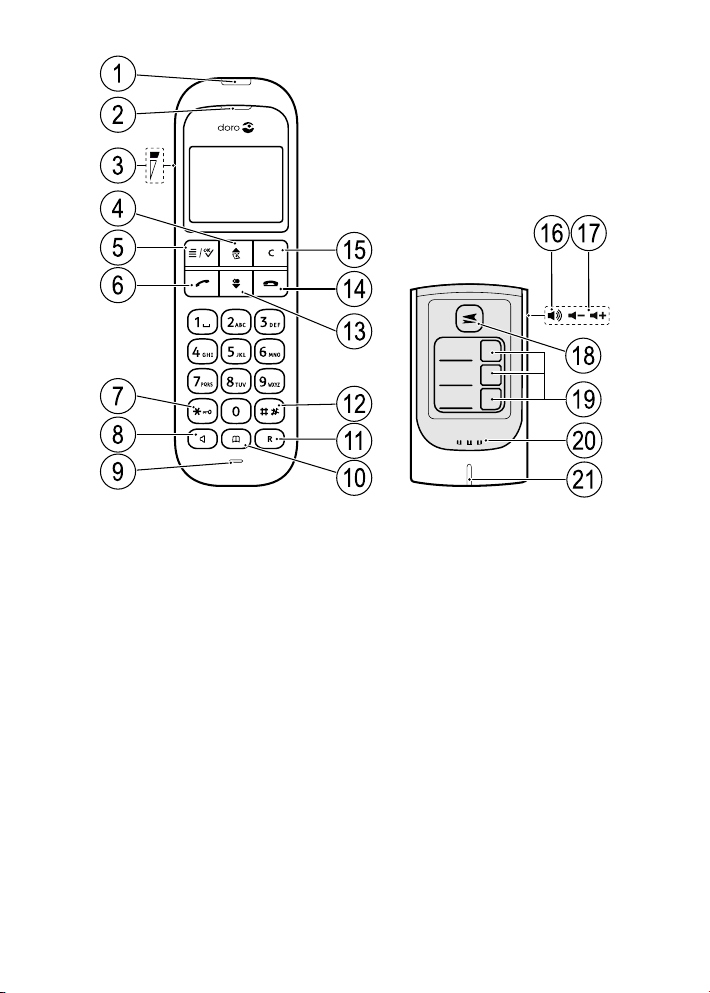

1. Ringer LED
2. Earpiece
3. Extra amplification
(boost)
4. Up/Call log
5. Left menu key/OK
6. Call key
7. */Keypad lock
8. Speakerphone on/off
9. Microphone
10. Phonebook
11. Recall key
12. #/Ring tone on/off
13. Down/Redial
14. End call
15. Right menu key/Back/In-
ternal call
16. Speakerphone
17. Speakerphone volume
18. Paging
19. Speed dial keys
20. Charging contacts
21. Ringer LED

English
Contents
Congratulations on your purchase ............................................. 1
Installation................................................................................... 1
Connection........................................................................... 1
Basic setup .......................................................................... 2
Operation ..................................................................................... 2
Calls...................................................................................... 2
Sound................................................................................... 4
Handle the phone................................................................ 6
Phonebook........................................................................... 6
Call list (Caller ID)................................................................ 8
Settings......................................................................................10
Handset settings (HS SETTINGS) .....................................10
Base unit settings (BS SETTINGS)....................................11
Reset to default.................................................................12
Expanded system (two or more handsets) ......................12
Other ..........................................................................................14
Battery................................................................................14
Range.................................................................................14
Eco functionality................................................................15
Troubleshooting.................................................................15
Care and Maintenance .....................................................16
Warranty.............................................................................16
Declaration of Conformity................................................. 17
Specifications .................................................................... 17

English
1
Congratulations on your purchase
Doro Magna 2000 combines an exceptionally loud receiver,
ringer and speakerphone with a stylish design. The speaker-
phone base allows you to answer calls and dial your three fa-
vourite numbers without having to retrieve the handset,
perfect for hands free conversations. Additional features in-
clude flashing ringer, extra volume boost button, hearing aid
compatibility and tone control for clear sound adjustable to
your hearing needs. For more information about accessories
or other Doro products please visit www.doro.com.
Installation
This device is intended for the analogue telephone network
lines in AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR,
HU, IE, IS, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SE, SI, SK.
Connection
1. Connect the mains adapter to an electrical wall socket
and to yon the base unit.
2. Connect the telephone line cord to a network wall socket
and to Kon the base unit.
3. Insert the batteries 2 x 1.2 V AAA NiMH into the handset
in accordance with the markings.
4. Place the handset in the base unit to charge (24 hours
the first time).
Note! Use the telephone line cord supplied. An existing line
cord from a previous phone may not be compatible.

English
2
Basic setup
Language setup
1. Press w/0. Select (}/{)HS SETTINGSHS SETTINGS.
Press w/0.
2. Scroll to LANGUAGE. Press w/0.
3. Scroll to ENGLISH. Press w/0.
4. Press Lto exit the menu.
Date/Time setup
1. Press w/0. Select (}/{)HS SETTINGS. Press w/0.
2. Select DATE & TIME. Press w/0.
3. Select DATE FORMAT and press w/0. Select DD-MM-YY
or MM-DD-YY and press w/0.
4. Select TIME FORMAT and press w/0. Select 24 HR or
12 HR. Press w/0.
5. Select SET TIME and press w/0.
6. Enter current time. Press w/0.
7. Select SET DATE. Press w/0.
8. Enter current year followed by date (DD – MM). Press w/
0.
Note! You need to set the correct date and time to gain full
functionality.
Operation
Calls
Note! It is not possible to make or receive a call on the base
unit if the handset is already using the line and vice versa.

English
3
Make a call
1. Enter phone number. Delete with c.
2. Press qto make the call. Press Lto end the call.
Base unit: Speed dial
Once Speed dials have been saved you only need to press one
button to make a call.
Store speed dial
1. Press w/0.
2. Select HS SETTINGS, press w/0.
3. Select DIRECT MEM., press w/0.
4. Select M1–M3 and press w/0.
5. Enter phone number. Delete with c. Press w/0.
Speed dialling
1. Base unit: press the equivalent button (M1–M3).
2. Press to end the call.
Receive a call
An incoming call is indicated on the display with a blinking
and with flashing blue ringer LEDs on the base unit and the
handset.
Tip: When someone calls, you can press Lto turn off the
handset’s ring signal.
Handset
1. Press qto answer.
2. Press Lto end the call.
Base unit
1. Press to answer.

English
4
2. Press again to end the call.
Redial
Press . Scroll through the 10 most recently dialled numbers
with }/{. If the number is already in the phonebook, the
corresponding name will also be displayed. Press qto call
the displayed entry, or press w/0for the submenu, see Pho-
nebook, p.6.
Call timer
During a call the display will show a timer HH-MM-SS, indicat-
ing the call duration.
Sound
Volume control
During a call, press }or {to adjust the volume. The volume
level is indicated on the display.
Tip: When you end the call, the setting will remain at the last
selected level.
Boost (sound amplification)
CAUTION
The handset volume can be very loud. Boost should only be
used by persons with impaired hearing ability.
Press on the side of the handset, to activate/deacti-
vate the volume Boost. When activated the LED indicator illu-
minates and is displayed. Boost cannot be activated in
speaker mode. Boost is deactivated at the end of each call to
avoid harming people with normal hearing.
Hearing aid compatible

English
5
CAUTION
Do not use extra sound amplification (boost) together with a
hearing aid if not necessary. The handset volume can be
turned up very loud.
This telephone is hearing aid compatible. Select the T-mode
on your hearing aid to use this feature. Hearing aid compatibil-
ity is not a guarantee that a specific hearing aid will work with
a specific telephone. To ensure that a specific hearing aid
works well with this telephone, test them together before mak-
ing a purchase.
Speaker
To switch between handset/speaker press . When activated
is displayed.
Note! Loud noises (music, etc.) in the background may
interfere with the function. To save power, the speaker phone
and the display light cease to operate at low battery strength.
Mute
During a call, press cto switch on/off the microphone.
Ringer
Press and hold #in standby to turn on/off the handset ring
signal. When ringer is deactivated is displayed.
Note! Base unit ringer is not affected.

English
6
Handle the phone
Keypad lock
Press and hold *to activate/deactivate the keypad lock.
When activated is displayed. Incoming calls can be an-
swered by pressing qeven if the keypad is locked. During
the call, the keypad is unlocked. When the call is ended the
keypad is locked again.
Paging
Press Jon the base unit to page the handset/s. The hand-
set/s will ring and PAGING is displayed. The signal will stop au-
tomatically, or press Jagain, or press Lon the handset.
Return to previous or to standby mode
Press Lonce to return to previous display, continue to
pressLto return to standby mode.
Handset power on/off
Press and hold Lin standby to power on/off the handset.
Phonebook
The phonebook will store 100 entries of names and phone
numbers. Contacts in the phonebook are arranged alphabeti-
cally. Each name can be up to 12 characters in length, and
phone numbers can be up to 24 digits in length.
If you subscribe to a Caller ID service, the name/number of
the caller will be shown when you receive an incoming call (for
those numbers stored in the phonebook or the memories).
Store contacts
1. Press b. Press w/0.

English
7
2. Select ADD. Press w/0.
3. Enter name. Press w/0.
4. Enter phone number. Delete with c. Press w/0.
5. Select required MELODY. Press w/0.
Dial from the phonebook
1. Press b.
2. Scroll }/{between contacts. Quick search the phone-
book by pressing the corresponding number button for
the first letter.
3. Press qto make the call. Press Lto end the call.
Edit contacts
1. Press b.
2. Scroll }/{to the contact you want to edit. Press w/0.
3. Select EDIT. Press w/0.
4. Edit the name. Delete/backspace with c. Press w/0.
5. Edit the number. Delete/backspace with c. Press w/0.
6. Select the required MELODY. Press w/0.
Delete a contact
1. Press b.
2. Scroll }/{to the contact you want to delete and press
w/0.
3. Select DELETE and press w/0.
4. Press w/0to confirm.
PB STATUS
Here you can check how many phonebook entries are stored
and the available storage capacity.
1. Press band press w/0to enter the menu.

English
8
2. Scroll }/{to PB STATUS and press w/0.
Character table
1[Space] 1 @ _ # = < > ( ) & £ $ ¥ € [ ] { } ¤
2A B C 2 Ä À Á Â Ã Å Ą Ă Æ Ç Ć Č
3D E F 3 Ď Ð È É Ë Ê Ę Ě
4G H I 4 Ğ Ì Í Î Ï İ
5J K L 5 Ł Ĺ
6M N O 6 Ñ Ń Ň Ö Ò Ó Ô Õ
7P Q R S 7 Ŕ Ř Ś Ş Š
8T U V 8 Ť Ţ Ü Ù Ú Û
9W X Y Z 9 Ý Ϋ Ź Ž Ż
00 . , / : ; " ' ! ¡ ? ¿ * + - % \ ^ ~ |
Call list (Caller ID)
Caller ID allows you to see who is calling before you answer
and to see who has called in your absence. If the number is
stored in the phonebook, the caller’s name will be displayed.
The calls are stored in chronological sequence. The last 20 in-
coming answered and unanswered calls are stored. NEW
CALL/NEW CALLS will be displayed in standby mode and �in
the call list indicates a new missed call.
Note! This function requires a subscription from your service
provider. Contact your service provider for more information.
Retrieve and dial incoming numbers
1. Press .

English
9
Or press w/0and select CALL LIST.
2. Select desired number with }/{.
3. Press qto dial or press w/0for options in the
submenu:
ADD TO PB Store number in Phonebook
DELETE Delete this number from the call log (not from
Phonebook)
DELETE ALL Delete all numbers from the call log (not from
Phonebook)
CATEGORY
Save information about MISSED CALLS (un-
answered) or ALL CALLS (answered and
unanswered).
Note! As default the last 20 incoming answered and
unanswered calls are stored along with the date and time of
the calls. To save memory storage you can select to save only
MISSED CALLS.
If the number is longer than the display can show, press *to
show the rest of the number.
Caller identification messages
The following messages can be displayed occasionally:
OUT OF AREA No information received, e.g. an international
call
WITHHELD The call comes from a withheld number or a
PBX
oMessage indication from your network
operator*.
* Only functions in certain countries.

English
10
To remove the message indicator: Press and then press
and hold 4.
Settings
Handset settings (HS SETTINGS)
1. Press w/0. Select HS SETTINGS and press w/0.
2. Select desired function e.g. ALARM and press w/0.
3. Select desired setting and press w/0.
ALARM
Select ON/OFF to activate/deactivate the alarm.
When the alarm is activated is displayed in
standby. When the alarm goes off, a signal will be
heard for 45 seconds. The signal can be turned off
with any key. If SNOOZE is activated the alarm will
go off again approximately 7 minutes later. Turn
the alarm off permanently via the menu or by hold-
ing Ldown for a few seconds. The volume is
determined by the set ringer level.
RING
SETUP
Select ringer signal for INT. RING (internal calls)
and for EXT. RING (external calls).
The handset ringer signal volume (RING VOLUME)
can be adjusted. 1= lowest, 5= highest, or VOL-
UME OFF.
TONE
SETUP
Any of the following tones can be enabled/dis-
abled: KEY TONE,BATTERY TONE and OUT OF
RANGE.
EQUALIZ-
ER
Set the sound settings to best fit your hearing. Se-
lect one of the following options:
NATURAL – Normal sound.
TREBLE – Increased sound for high frequencies.
BASS – Increased sound for low frequencies.

English
11
LANGUAGE Language of display texts. See also Language set-
up, p.2.
RENAME
HS
Text displayed in standby.
AUTO
ANSWER
The call is answered when the handset is lifted
from the base unit.
DATE &
TIME
Set date/time. The format of date/time can also
be adjusted. See also Date/Time setup, p.2
DIRECT
MEM.
Set speed dial numbers for the base unit. See also
Base unit: Speed dial, p.3
Base unit settings (BS SETTINGS)
1. Press w/0. Select BS SETTINGS and press w/0.
2. Select desired function e.g. ALARM and press w/0.
3. Select desired setting and press w/0.
BS RINGER Select ringer tone for the base unit. Press w/0to
confirm.
RING
VOLUME
Base unit ringer volume.
1= lowest, 5= highest, or VOLUME OFF. Press w/
0to confirm.
DELETE HS
To de-register a handset:
Enter your current base unit PIN code (0000 is de-
fault) and select the handset you wish to de-regis-
ter. Press w/0to confirm.
FLASH
TIME
Set the appropriate recall time (R,FLASH TIME)
to ensure correct functionality.
SHORT = EU/EES/GB/AUS.
MEDIUM = France/Portugal.
LONG = New Zealand.

English
12
Note! A de-registered handset can no longer be used with the
system. It needs to be registered as a new handset, see
Register a new handset, p.12
Change PIN
Note! This PIN is not the same as used for remote access of
answering machine, see
1. Press w/0. Scroll }/{to BS SETTINGS and press w/
0.
2. Scroll to CHANGE PIN and press w/0. Enter the old PIN
code and press w/0.
3. Enter the new PIN code and press w/0. Confirm with
the new PIN code and pressw/0again.
Reset to default
You can reset your phone to the default settings. After reset,
all your personal settings, call lists and redial lists will be de-
leted, but your phonebook remains unchanged.
1. Press w/0. Scroll }/{to DEFAULT and press w/0.
2. Enter the PIN code (default code is 0000). Press w/0.
3. Press w/0again to confirm.
Expanded system (two or more handsets)
The handset call number for internal calls will be displayed to
the right on the display in standby mode. The base unit should
be positioned centrally so that the coverage area is roughly
equal for all handsets.
Register a new handset
All handsets included in the package are already registered to
the base unit. You can register up to 5 handsets to one base
unit.

English
13
Note! This model is GAP (Generic Access Profile) compatible,
which means that the handset and the base unit can both be
used with most other GAP compatible units irrespective of
manufacturer. However the GAP protocol cannot guarantee
that all functions may be accessed.
1. Hold down Jon the base unit until you hear a beep
(around 6 seconds).
2. Press w/0. Select REGISTRATION. Press w/0.
3. Select the base unit you wish to register. Press w/0.
4. Enter base unit’s PIN code (default code is 0000). Press
w/0.
5. If the registration is successful the unit will return to
standby within one minute.
Intercom / internal call
1. Press c.
2. If using more than 2 handsets: Select handset call num-
ber 1-5for the desired handset or ALL for all and
press w/0.
A tone will be heard if an external call comes in while an
internal call is in progress. End the internal call with L
and then answer the external call with q.
Transferring calls/conference between handsets
When an external call is connected;
1. Press w/0.
2. Select INTERCOM. Press w/0.
If using more than 2 handsets: Select handset call num-
ber 1-5for the desired handset or ALL for all and
press w/0.
3. To transfer: press L.

English
14
For conference: press and hold *.
Other
Battery
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Use only
original type of batteries. The use of non-original type batteries may be
dangerous and may invalidate the phone’s certification and guarantee.
When the batteries are relatively new they will last for approximately 100
hours standby time or approximately 10 hours call time. Full battery ca-
pacity will not be reached until the batteries have been charged 4–5 times.
It is not possible to overcharge or damage the batteries by charging them
for too long. It may take up to 10 minutes charging before display illumi-
nates, if batteries are totally empty.
When the batteries are running low, will flash and a warning tone will
be heard when a call is in progress. The warning tone is optional, see
Handset settings (HS SETTINGS), p.10. The battery charge indicator in
the display will flash as long as the handset is charging. In order to save
the batteries, the display is very dark on standby, press Lonce to illu-
minate. To save power, speaker and the display light ceases to operate at
low battery strength. When the battery is low or when there is too great a
distance to the base unit the phone will be unable to connect to a line. Do
not place the base unit close to other electrical equipment, this is to mini-
mize the risk of any interference. It is normal for the device to become
warm during charging and this is not dangerous.
Range
The telephone’s range depends on whether or not the radio waves carrying
the call are restricted by obstacles in their path, and is usually between 50
and 300 metres. Coverage can be improved by turning one’s head so that
the handset is aligned with the base unit. Sound quality declines as the
limit is reached until the call is finally interrupted.

English
15
Eco functionality
We have introduced the ECO FUNCTIONALITY label to help customers iden-
tify products within our assortment having a lower impact on the environ-
ment. Products carrying this label feature:
•Reduced power consumption in both operational and standby.
•Adaptive transmission power depending on range on base unit.
Troubleshooting
Check that the telephone cord is undamaged and properly plugged in. Dis-
connect any additional equipment, extension cords and other phones. If
the problem is resolved, the fault is with some other equipment.
Test the equipment on a known working line (e.g. at a neighbour’s house).
If the equipment works there the fault is probably with your telephone line.
Please report this to your network operator.
Phone does not work
•Check that the adapter/phone cord is connected correctly.
•Check the charge status of the handset batteries.
•Connect another, functioning, phone to the network wall socket.
No number shown when receiving calls
•This function requires a Caller ID subscription from your service
provider.
Not possible to make calls
•The batteries may be running low (charge the handset).
•The hand unit may be nearly out of range. Move closer to a base unit.
Phone continues to ring
•Some of the phone’s ring tones do not follow the line signal, which
means that the signal may continue for up to 8 seconds after answer-
ing a call. Try changing ring signal (melody).
If the phone still does not work, please contact the place of purchase for
service. Don’t forget the receipt or a copy of the invoice.

English
16
Care and Maintenance
CAUTION
Only use batteries, mains adapter and accessories approved for use with
this particular model. Connecting other accessories may be dangerous
and may invalidate the phone's type approval and guarantee. The mains
adapter is the disconnect device between the product and mains power.
The mains socket outlet must be close to the equipment and easily
accessible.
Your unit is a technically advanced product and should be treated with the
greatest care. Negligence may void the warranty.
•Protect the unit from moisture. Rain/snowfall, moisture and all types
of liquid can contain substances that corrode the electronic circuits. If
the unit gets wet, you should disconnect it, remove the battery and al-
low the unit to dry completely before you replace it.
•Do not use or keep the unit in dusty, dirty environments. The unit’s
moving parts and electronic components can be damaged.
•Do not keep the unit in warm places. High temperatures can reduce
the lifespan for electronic equipment, damage batteries and distort or
melt certain plastics.
•Do not keep the unit in cold places. When the unit warms up to normal
temperature, condensation can form on the inside which can damage
the electronic circuits.
•Do not try to open the unit in any other way than that which is indi-
cated here.
•Do not drop the unit. Do not knock or shake it either. If it is treated
roughly the circuits and precision mechanics can be broken.
•Do not use strong chemicals to clean the unit.
The advice above applies to the unit, battery and other accessories. If the
unit is not working as it should, please contact the place of purchase for
service. Don’t forget the receipt or a copy of the invoice.
Warranty
This product is guaranteed for a period of 24 months from the date of pur-
chase. In the unlikely event of a fault occurring during this period, please

English
17
contact the place of purchase. Proof of purchase is required for any service
or support needed during the guarantee period.
This guarantee will not apply to a fault caused by an accident or a similar
incident or damage, liquid ingress, negligence, abnormal usage, non-main-
tenance or any other circumstances on the user’s part. Furthermore, this
guarantee will not apply to any fault caused by a thunderstorm or any other
voltage fluctuations. As a matter of precaution, we recommend disconnect-
ing the charger during a thunderstorm.
Batteries are consumables and are not included in any guarantee.
This guarantee does not apply if other batteries than the original type of
batteries have been used.
Please note that this is a voluntary manufacturer’s warranty and provides
rights in addition to, and does not affect statutory rights of end-users.
Declaration of Conformity
Hereby, Doro declares that the radio equipment type Doro Magna 2000 is
in compliance with Directives: 2014/53/EU and 2011/65/EU. The full text
of the EU declaration of conformity is available at the following internet ad-
dress: www.doro.com/dofc.
Specifications
Network bands [maximum
radio-frequency power]: DECT 1880-1900 MHz, [250mW]
AC-adapter, base unit: Ruijing: RJ-AS060600E001,
RJ-AS060600B001
AC-adapter, charger unit: Ruijing: RJ-AS060450B001,
RJ-AS060450E002
Battery: Ni-MH (RECHARGEABLE BATTERY)
2 x 1.2V AAA, GPI, xx50AAAHC
Operating ambient
temperature: Min: 0°C (32°F)
Max: 40°C (104°F)
This device meets applicable international safety requirements for expo-
sure to radio waves.
