Draper AeroLift 35 Manual

AeroLift 35 (220v)
Installation & Operating Instructions
Copyright © 2017 Draper Inc. Form AeroLift35_220_Inst17-R Printed in U.S.A.
If you encounter any difficulties installing or servicing your AeroLift 35, call your
dealer or Draper, Inc. in Spiceland, Indiana, 765-987-7999 or fax [phone].
Caution:
1Read instructions completely before proceeding. Follow instructions carefully.
Installation contrary to instructions invalidates warranty.
2Do not obstruct operation of AeroLift 35 with fingers or any other
object. Serious injury or damage could result.
3It is not uncommon to overheat the motor during initial installation when
setting limits. The motor is thermally protected and will stop working
temporarily. DO NOT physically pull the unit down when this occurs. Once it
has cooled to a safe temperature, it will begin operating again.
4The AeroLift 35 is designed to accommodate ceiling suspended
equipment. Equipment should not be allowed to rest on ceiling closures
during operation (see “Installing Projector”).
5Entire bottom of unit must be unobstructed to permit proper operation.
6Unit must be installed level (use a carpenter’s level).
7Unit operates on 220-230V AC current.
Note: Unit has been thoroughly inspected and tested at factory and found to be
operating properly prior to shipment.
Planning
1Based on screen location and projector specifications, determine proper
position for projector installation.
2Confirm that there is adequate space for installation and operation. Minimum
clearance above ceiling level varies according to height of projector, projector
mounting bracket, optional ceiling closure and optional Environmental Air
Space Housing.
3Arrange to provide service access to the unit.
4Total maximum capacity for the AeroLift 35 is 15.9 kg.
(including closure, projector and bracket).
As Soon As AeroLift Arrives
1Open carton and inspect for damage.
2Locate the following parts:
A. The unit itself
B. Controls
C. Any optional equipment
3 Test lift prior to installation.
AeroLift 35
(with Closure panel)
Hanging Unit
The AeroLift is provided with four (4) mounting angles for suspending or direct mounting the unit from above, or direct mounting from the sides. These angles provide
up to 32mm of adjustment (side to side). The AeroLift 35 is designed to fit between joists spaced 41cm apart on center (assuming 51mm joists), and to close to
aproximately 102 mm, not including the projector, bracket or closure. The unit should be guy wired or blocked to prevent swinging.
All installations should observe the following guidelines:
1Installer must ensure that all fasteners and supports are of adequate strength to securely support AeroLift 35 and projector. It is recommended that hardware
structure be able to hold at least four times the combined weight of the lift, projector, housing, closure and ceiling material attached to closure.
Caution: DO NOT hang from, "ride" or pull down on the unit.This could create a failure and cause damage and/or injury.
2Fastening methods must be suitable for mounting surface, and securely anchored
so vibration or abusive pulling on unit will not weaken installation.
3Bottom of unit must be unobstructed after installation.
Sufficient clearance must be allowed below projector or optional ceiling closure.
4Do not use unit to support adjacent ceiling, light fixtures, etc.
5Do not complete the ceiling below the unit until electrical
connections
have been completed and unit has been operated successfully.
6Use slots on the projector plate and on the closure to adjust the
unit to ensure proper alignment of ceiling closure relative to
ceiling opening.
508mm
257mm
492mm
479mm
11/4"
19mm
565mm
122mm
318mm
Top View
Side View
318mm
318mm
Front View
AeroLift 35
(Relevant Mounting Dimensions)
Top
Mounting
Hole
Side
Mounting
Slots
Top
Mounting
Hole
Anti-Slip
Hole
Side
Mounting
Slots
Figure B
Projector can be installed as shown or
turned 90° depending on projector size.
220V
Receptacle

Limit Switch Adjustments
CAUTION: Be sure all switches are in “off” position before adjusting limit switches
Always be prepared to shut lift off manually when new adjustment is being tested.
Limit switches for the AeroLift 35 are preset at the factory. The “Up” (closed) limit switch
is set for fully closed. The “down” (show) limit switch is set for fully lowered. Once unit is
in place, the “down” limit switch may need to be changed to stop the AeroLift 35 closer
to the ceiling (that is, to raise the “down” position). Limit switches are located on the end
of roller, and are accessible by removing the cover of the junction box at the left end of
the unit. To adjust the limit switches, use a 5/32" screwdriver/allen wrench.
Caution: It is not uncommon to overheat the motor during initial installation
when setting limits. The motor is thermally protected and will stop working until it
has cooled to a safe temperature before it will start operating again. DO NOT
physically pull the unit down when this occurs.
Adjusting “Down” (SHOW position)
“Down” position may be adjusted by turning the #1 limit switch adjustment socket. Turning
the socket clockwise will stop the AeroLift 35 closer to the ceiling. Turning it counter-
clockwise will cause the lift to stop at a lower point.
Adjusting “Up” (CLOSED position)
Because the “up” (“closed”) position is preset at the factory, Draper does not recommend
changing this position using the limit switch. The “up” position of the closure may be
changed by changing the length of threaded rod (see fig. 6). If necessary, however,
“up” position may be adjusted by turning the #2 limit switch adjustment socket. Turning
the socket counterclockwise creates a higher, or more fully closed position. Turning it
clockwise creates a lower ‘UP” (closed) position.
Caution: Make sure limit switch is set so that the AeroLift 35 motor is NOT still
running after the lift is closed. If it continues to cycle once the lift is closed, a
failure may occur, making the unit descend rapidly and causing damage and/or
injury.
Please Note: If load is off-center of pan, you may need to adjust the pitch of the
fabric rollers. One setscrew is provided on each end of both fabric rollers (see
above drawing). Use these to adjust roller pitch to keep entire fabric panel taut, so
load is evenly distributed. Use 3mm hex key to adjust.
Operation
When unit is first operated, be cautious! If unit fails to operate when the switch
is flipped “down”, return switch to “off” and re-check electrical connections
before proceeding. Cycle unit down and up several times to confirm satisfactory
operation.
220V Single Station Control
3-position up-off-down switch permits operation to be stopped at any point. Factory
adjusted limit switches automatically stop AeroLift when fully down or fully up.
Optional 220V Multiple Station Control
Switches are similar in appearance to 220V Single Station Control. AeroLift stops
when switch is released and may be restarted in either direction. Factory adjusted
limit switches automatically stop AeroLift when up or fully down.
Optional 24V Control
Three-button up-stop-down switches stop at any point desired, operate in any
sequence. Factory adjusted limit switches automatically stop AeroLift when fully up
or fully down.
Optional Infrared or Radio Frequency Remote Control
If ordered, a three-button transmitter is provided, with “up”, “down” and “stop”
buttons. Unit starts up or down when appropriate button is pressed, and may be
stopped by pressing “off” button. Factory set limit switches stop unit automatically
when projector is in “show” position. Multiple Station Control required for this
option.
Optional RS232/Ethernet
Serial communication and network communication optionally available with wall
switches, RF or IR remote.
Optional Key Operated Switching
Two kinds of key-operated switches are optionally available with this unit.
1 The key-operated power supply switch controls power to the AeroLift 35 and
switches. When it is “off”, the switches will not operate lift. Key may be removed
from the switch in either “on” or “off” position.
2 A three-position key switch permits the AeroLift 35 to be operated directly by key.
In this case, the screen’s operator must always have a key .
AeroLift 35 (220V) by Draper, Inc. page 2 of 4
Testing the Safety Limit Switches
The AeroLift 35 are equipped with two Safety Limit Switches (see "AeroLift—
Limit Switch Adjustment (Bottom View)" diagram on page 3). These switches
may be damaged during shipping or by rough handling on the job site.
Once the AeroLift has been installed in the ceiling, but
before the projector and closure are attached, the Safety
Limits must be tested.
Use a screwdriver or other tool to press and hold the limit switch. While hold-
ing down the limit switch, have someone operate the unit. If the unit runs up
while the limit switch is depressed, the limit switch is broken and must be
replaced. Operating the unit without a functioning Safety Limit Switch could cause
the unit's motor to continue operating after the lift is closed, leading to a failure and
the possibility of damage or injury. Make sure to test BOTH switches.
Please Note: As weight is applied to the AeroLift, the projector plate may
shift slightly. If this occurs, use setscrews on bottom of fabric roller brackets
to compensate for shift and level projector plate (see page 3).

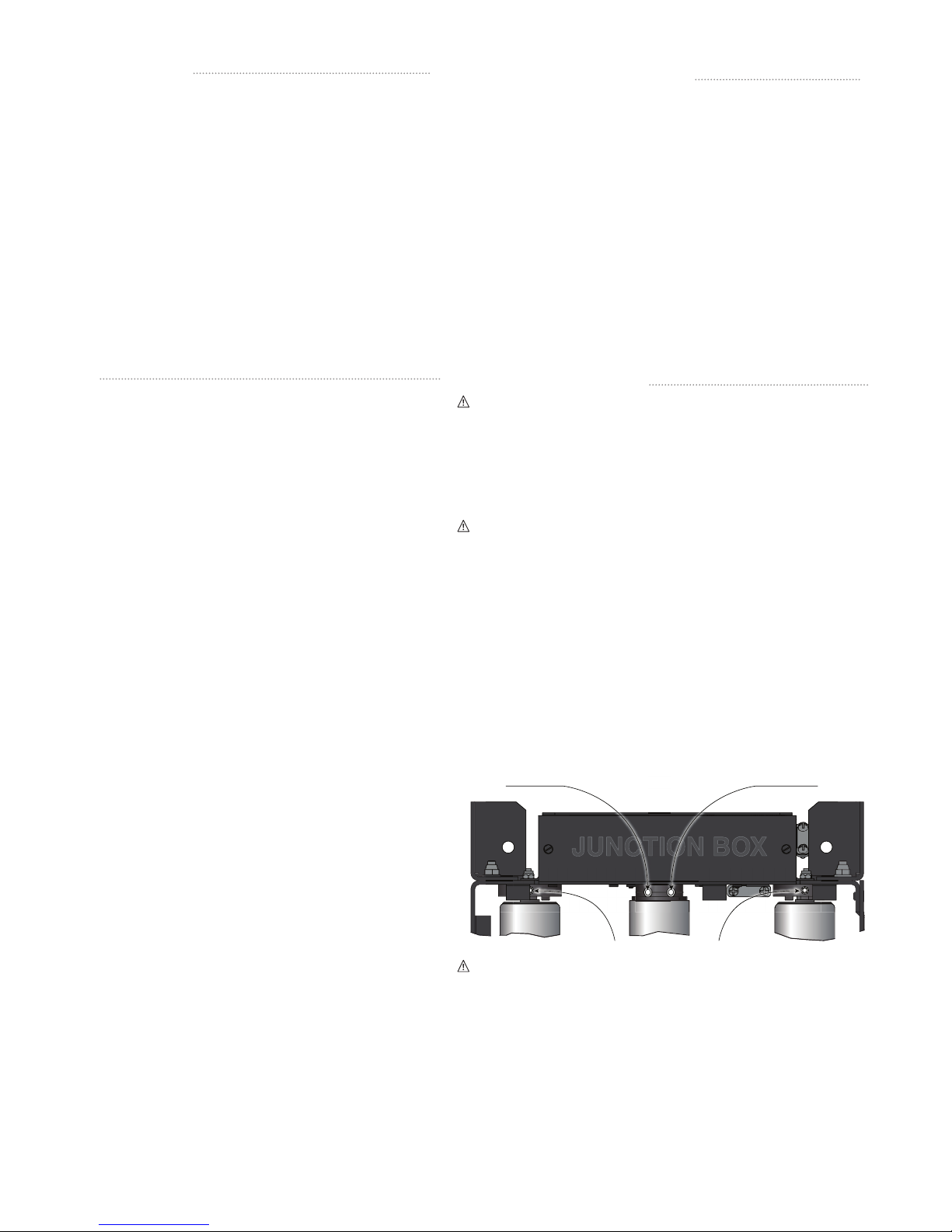

JUNCTION BOX
UP LIMIT DOWN LIMIT
Fabric Roller Adjustment Setscrew
Figure C
Electrical Connections
Unit operates on 220V AC current. The AeroLift 35 is shipped closed, with a
temporary field connection provided in the form of a pigtail temporarily wired
to the unit. After hanging the unit, make sure power is off and use this pigtail to
temporarily connect the unit to power and to a switch, so the unit can be lowered
to allow access inside.
Please note: Make sure electrical supply has been disconnected before
attempting to connect AeroLift to electricity.
Terminal strip for field connections is located inside a junction box on the end
of the unit. Unit is shipped with internal wiring complete to the terminal strip.
Once the unit has been lowered, turn off power and remove the J-box cover.
The terminal strip is attached to the cover. Disconnect temporary pigtail from
unit, then complete permanent wiring to electricity and to switches. Wire to
connect unit to power supply and to switches should be furnished by installer.
Connections should be made in accordance with wiring diagram, and wiring
should comply with national and local electrical codes. All operating switches
should be “off” before power is connected. AeroLift should be operated and
checked prior to installing projector and/or optional ceiling closure.

AeroLift 35 (220V) by Draper, Inc. page 3 of 4
www
.draperinc.com [phone]
Installing Projector Using Universal Projector Mount
(Maximum Capacity 26 lbs)
See Installation Instructions included with Universal Pojector Mount.
7"
(178mm)
2½"
(64mm)
10" (254mm)
12" (305mm)
12" (305mm)
5½"
(140mm)
7"
(178mm)
2½"
(64mm)
10" (254mm)
12" (305mm)
12" (305mm)
5½"
(140mm)
Figure D
AeroLift Clearance Installing Optional Environmental Air Space Housing
The Environmental Air Space Housing is shipped in pieces, and must be
assembled by the installer. The height of the Environmental Air Space Hous-
ing is set by drilling out the knockouts at the desired locations then using
screws to connect side panels. It is recommended that an access panel be
installed in the ceiling to allow future access. The optional environmental air
space housing must be installed to isolate the lift from the “other space used
for environmental air.” Includes trim ring for ceiling opening.
See installation instructions included with Environmental Air Space Housing.
Installing Optional Ceiling Closure
If your AeroLift is equipped with optional ceiling closure, it can be used as
is, or in conjunction with a square of existing ceiling tile.
See installation instructions included with ceiling closure.
Installing Optional Ceiling Trim Kit
The AeroLift is available with a ceiling trim kit, which consists of the lower
section of the Environmental Air Space Housing and the optional closure
panel. See installation instructions included with Ceiling Trim Kit.
Figure E
3.1mm Min. clearance
Caution: Make
sure there are
no obstructions
to the AeroLift's
operation

AeroLift 35 (220V) by Draper, Inc. page 4 of 4
www
.draperinc.com [phone]
Lift Low Voltage (& Wireless) Control
12345 678
L1 NGND
To 220-240V
AC Line
Key Operated
On-Off switch
(if furnished).
Dashed Wiring
By electrician.
Brown-to lift (UP)
Red-to lift (DOWN)
White-Neutral (Common) to lift & 220V AC
Green-Ground
Black-to 220V AC
Yellow-to 220V AC
Aux Port for connecting
additional Lift LVC modules
(up to six total-connect from Aux to Eye).
Low voltage
wiring by others.
Lift LVC — AeroLift Wiring Diagram
Key
O
perated
O
n-
O
ff switch
(
if furnished
)
.
B
l
a
c
k
t
o
2
2
0
V
A
C
Y
ellow-to 220V A
C
Eye Port for IR Eye
or RF Receiver.
Splitter is required if both
are used with one Lift LVC. 3 Button Wall Switch
DOWN - Black
COM - White
UP - Red
AeroLift Terminal Block
UP
N N
DN COM
Wiring Diagrams
Single Station Control
To 220-240 Vac Line
Dashed Wiring
By electrician.
LS2
LS1
LS2
LS1
BK
BL
BL
BRN
OR
RD
12345678TB
BK RD BK BK BK BL WH
GN/YL 14 AWG
GN/YL
RD 14 AWG
BK 14 AWG
WH 14 AWG
GN14 AWG
BK 14 AWG
BK
PROJECTOR
OUTLET
MOTOR
BRN
BL
L1 NGRD
UP DOWN
COMMON
SWITCH
BL 14 AWG
BL
Optional Multiple Station Control
LS2
LS1
LS2
LS1
BK
BL
BL
BRN
OR
RD
12345 678TB
BK RD BK BK BK BL WH
GN/YL 14 AWG
GN
RD 14 AWG
BK 14 AWG
WH 14 AWG
GN14 AWG
BK 14 AWG
BK
PROJECTOR
OUTLET
MOTOR
BRN
BL
L1 NGRD
BL
14 AWG
BL
Location of key
operated On-off
switch if furnished.
Dashed Wiring
By electrician.
To 220-240 Vac Line
COM
DOWNUP
COM
DOWNUP
COM
DOWNUP
UP
NN
DN COM
