Dreame L10Pro User manual

L10Pro
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
English
3 –27
Čeština
28 –52
Slovenčina
53 –77
Magyar
78 –102
Deutsch
103 –127

3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention to
the safety instructions. If you have any questions or comments about the device, please
contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

4
Safety Instructions
Usage Restrictions
This product can be used by children aged 8 years and above and persons with
physical, sensory, intellectual deficiencies, or limited experience or knowledge
under the supervision of a parent or guardian to ensure sage operation and to
avoid any risks. Cleaning and maintenance shall not be done by children without
supervision.
Children shall not play with this product. Ensure children and pets are kept at a
safe distance from the robot while it is operating.
This product is for floor clearing in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
Do not use the robot in an area suspended above ground level without a protective
barrier.
Do not use the robot at an ambient temperature above 40°C or below 0°C or on
floor with liquids or sticky substances.
Pick up any cables from the floor before using the robot to prevent it from dragging
them while cleaning.
Remove fragile or small items from the floor to prevent the robot from bumping
into and damaging them.
Keep hair, fingers, and other body parts away from the suction opening of the
robots.
Keep the brush cleaning tool out of reach of children.
Do not place children, pets, or any item on top of the robot regardless of whether it
is stationary or moving.
Do not use the robot to clean any burning objects.
Do not vacuum hard or sharp objects.
Make sure the robot is turned off and the charging dock is unplugged before
cleaning or performing maintenance.
Do not wipe any part of the product using a wet cloth or liquids.
Please use this product in accordance with the instructions in the User Manual.
Users are responsible for any loss or damage that arise from improper use of this
product.

5
Batteries and Charging
Do not use any third-party battery, charger, or charging dock. Use only with RCS0
supply unit.
Do not attempt to disassemble, repair, or modify the battery or charging dock on
your own.
Do not replace the charging dock near a heat source.
Do not use a wet cloth or wet hands to wipe or clean the dock’s charging contacts.
Do not improperly dispose of old batteries. Unneeded batteries should be discarded
at an appropriate recycling facility.
If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.
Make sure the robot is turned off when being transported and kept in its original
packaging if possible.
If the robot will not be used for and extended period, fully charge it, then turn it off
and store in a cool, dry place. Recharge the robot at least once every 3 months to
avoid over-discharging the battery.
This product contains batteries that can only be replaced by qualified technicians
or after-sales service.
Product Overview
Accessories
Charging Dock
Cleaning Tool
Power Cord
Water Tank
Mop Pad
Side Brush
Note: The illustrations in this manual are for reference only. Please refer to the actual
product.

6
Robot
Spot Clean Button
Press briefrly to begin Spot Clean Mode
Power/Clean Button
Press and hold for 3 seconds
Press to begin cleanign after the robot is
powered on
Status Indicator
White: Cleaning or cleanup is completed
Blinking Orange: Error
Dock Button
Press and send robot back to the charging dock
Cover
Reset Button
Press and hold for 3 seconds to restore
the robot to factory settings
Wi-Fi Indicator
Cleaning Tool
Air Outlet/Speaker

7
Robot Sensors
Dust Bin
Cliff Sensor
Omnidirectional Wheel
Charging Contacts
Cliff Sensor
Main Brush
Brush Guard Clips
Charging Contacts
Side Brush
Cliff Sensor
Main Wheel
LDS Laser Sensor
Collision Buffer
Hight Precision 3D
(3D Obstacle
Avoidance Sensor)
Edge
Sensor
Bin Clip
Bin Cover
Filter

8
Mopping Module
Charging Dock
Clearing Home Environment
To improve the working efficiency of your robot, put away any loose cords (including the
power cord of the charging dock), rags, slippers, toys, etc.
Water Inlet
Water Tank
Water Tank Release Clip
Mop Pad
Attaching Area
Signaling Area
Power Port
Charging Contacts

9
Before cleaning, place a physical barrier at the edge of the stairs and sofa to ensure safe
and smooth operation of the robot.
Open the door of the room to be cleaned and put the furniture in its proper place to make
more space.
To prevent the robot from not recognizing the area to be cleaned, do not stand in the front
of the robot, threshold, hallway, or narrow places.

10
Preparation Before Use
Remove the protective matter
Install the side brush
Note: Install the side brush until it clicks into place.
Place the charging dock on the level ground against the wall and connect
it to a power outlet
Note:
Keep the immediate area 1.5m in front of the charged and 0.5m to both sides of
the charging dock clear of objects.
To ensure you can connect to the robot with your phone well, make sure the robot
and charging dock are within the range of Wi-Fi.
Do not place the charging dock in an area with direct sunlight or where other
objects might block the signal, as this may hinder the robot from returning to the
charging dock.

11
Place the robot onto the charging dock to recharge. The robot will turn on
automatically and begin recharging
Note:
Fully charge is recommended before first-time use.
Do not install the mopping module while charging. Be extra careful with the wet
mop as it can damage the floor.
Connecting with Mi Home/Xiaomi Home App
This product works with the Mi Home/Xiaomi Home app. Use the Mi Home/Xiaomi app to
control your device and to interact with other smart home devices.
Download the Mi Home/Xiaomi Home App
Scan the QR code to download and install the app. You will be directed to the connection
setup page if the app has been installed already. Alternatively, search “Mi Home/Xiaomi
Home”in the app store to download and install it.
Battery Level Indicator
White: Battery level is more than 15%
Orange: Battery level is less than 15%

12
Add Device
Open the Mi Home/Xiaomi Home app and tap “ ” in the upper right. Then tap “ ” in the
top right corner, scan the QR code, add “Dreame Bot L10 Pro”, and follow the prompts to
finish the connection.
Note:
Only 2.4GHz Wi-Fi supported.
The version of the app might have been updated, please follow the instructions
based on the current app version.
Reset Wi-Fi
Simultaneously press and hold the buttons and until you hear a voice say, “Waiting
for the network configuration.”Once the Wi-Fi indicator is blinking slowly, the Wi-Fi has
been successfully reset.
Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and add the
device again.
Wi-Fi Indicator
Blinkng slowly: To be connected
Blinking quickly: Connecting
On: Wi-Fi connected

13

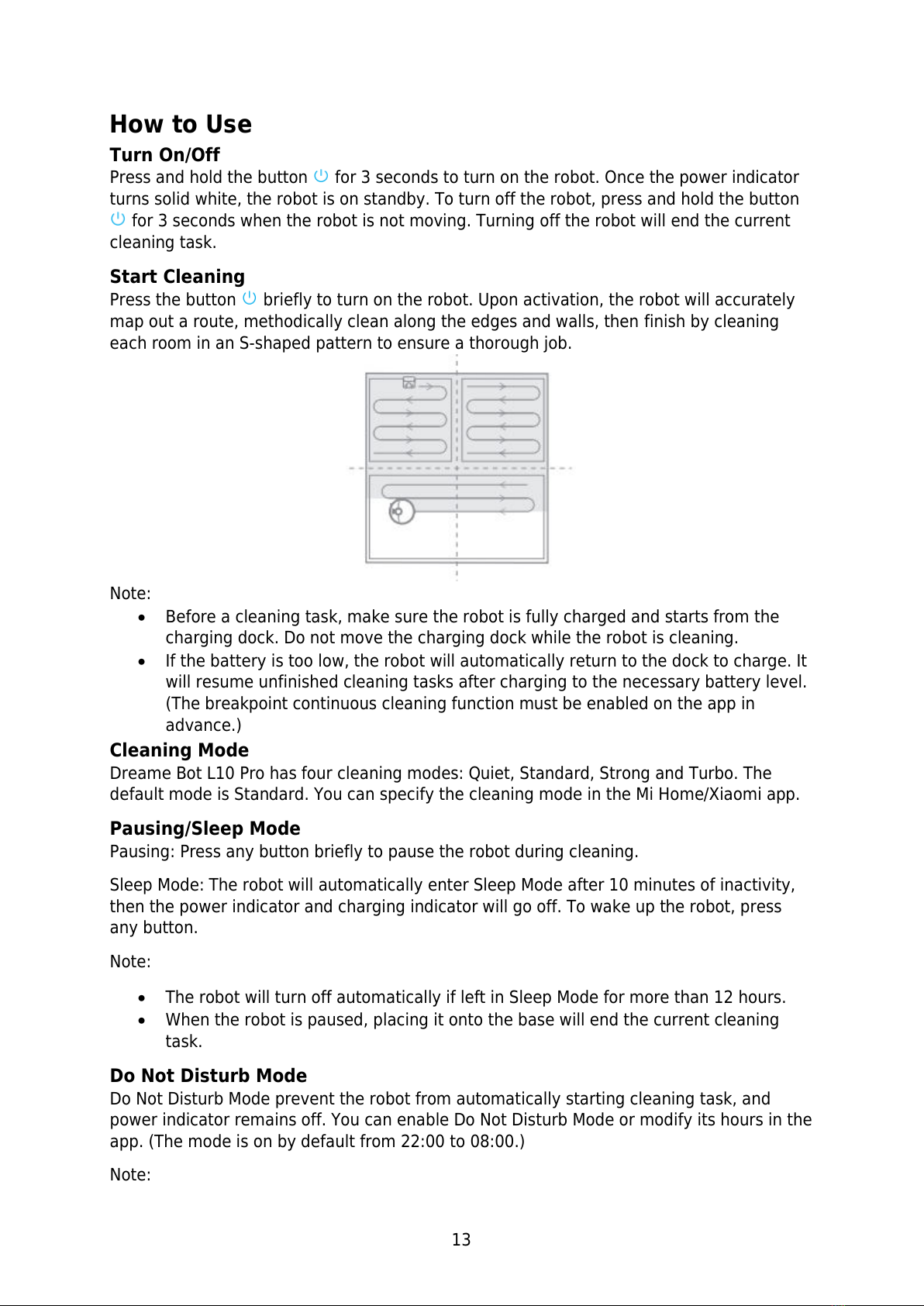

How to Use
Turn On/Off
Press and hold the button for 3 seconds to turn on the robot. Once the power indicator
turns solid white, the robot is on standby. To turn off the robot, press and hold the button
for 3 seconds when the robot is not moving. Turning off the robot will end the current
cleaning task.
Start Cleaning
Press the button briefly to turn on the robot. Upon activation, the robot will accurately
map out a route, methodically clean along the edges and walls, then finish by cleaning
each room in an S-shaped pattern to ensure a thorough job.
Note:
Before a cleaning task, make sure the robot is fully charged and starts from the
charging dock. Do not move the charging dock while the robot is cleaning.
If the battery is too low, the robot will automatically return to the dock to charge. It
will resume unfinished cleaning tasks after charging to the necessary battery level.
(The breakpoint continuous cleaning function must be enabled on the app in
advance.)
Cleaning Mode
Dreame Bot L10 Pro has four cleaning modes: Quiet, Standard, Strong and Turbo. The
default mode is Standard. You can specify the cleaning mode in the Mi Home/Xiaomi app.
Pausing/Sleep Mode
Pausing: Press any button briefly to pause the robot during cleaning.
Sleep Mode: The robot will automatically enter Sleep Mode after 10 minutes of inactivity,
then the power indicator and charging indicator will go off. To wake up the robot, press
any button.
Note:
The robot will turn off automatically if left in Sleep Mode for more than 12 hours.
When the robot is paused, placing it onto the base will end the current cleaning
task.
Do Not Disturb Mode
Do Not Disturb Mode prevent the robot from automatically starting cleaning task, and
power indicator remains off. You can enable Do Not Disturb Mode or modify its hours in the
app. (The mode is on by default from 22:00 to 08:00.)
Note:

14
Scheduled cleaning tasks will still be carried out during the DND period.
The robot will continue cleaning after the DND period ends.
Spot Clean Mode
When the robot is paused or in Standby Mode, press and hold the button for 3 seconds
to start Spot Clean Mode. In this mode, it will clean a square-shaped area of 1.5 x 1.5
meters directly around the robot. When the spot is cleaning is done, the robot will
automatically return to its original location and power off.
Note: Activating Spot Clean Mode will end the current cleaning task of the robot.
1.5 meter
1.5 meter

15
Scheduled Cleaning
You can schedule cleaning time in the Mi Home/Xiaomi Home app. The robot will
automatically start cleaning at the designated time and then return to the charging dock
to recharge when the cleaning is done.
Additional App Functions
The app be used to enable more functions such as selected room cleaning, zone cleaning,
forbidden area / virtual wall, etc.
Note:
Follow the instructions on the app interface to use more functions.
The version of the app might have been updated, please follow the instructions
based in the current app version.
Use the Mopping Function
It is recommended that all floors are vacuumed at least three times before the first
mopping session to achieve a better cleaning effect.
1. Dampen the mop pad and wiring out excess water. Slide the pad all the way into
the slot of the water tank until it is securely in place.
2. Open the water tank lid, fill the tank with water, then securely close the lid.
Note: Do not use detergent or disinfectant.

16
3. Aling the mopping module as indicated by the arrow, then slide it into the back of
the robot until it clicks into place. Press the button or use the Mi Home/Xiaomi
app to start cleaning.
Note:
It is not recommended to use the mopping function on carpets.
Use the app to adjust the water flow as required.
4. Press the two slide clips inwards and slide the water tank backwards to separate it
from the robot.
Note: When the robot is charging or not in use, remove the mopping module, pour out all
the remaining water in the tank, and clean the mop pad to prevent mildew or odor.

17
Routine Maintenance
Clean the Dust Bin and Filter
1. Open the robot cover, then press the dust bin clip to remove the dust bin.
2. Open the dust bin cover as indicated by the diagram.
3. Remove the filter and tap its basket gently.
Note: Do not attempt to clean the filter with a brush or finger.

18
4. Rinse the dust bin and filter with water until they are clean. Thoroughly dry the
filter before re-installing.
Note:
Only clean water should be used to clean the filter. Do not use detergent.
Before using, keep it in a well-ventilated or cool place.
Routine Maintenance
Clean the Mopping Module
1. Press the two release clips on the side of water tank, remove the mopping module
and pull the mop pad off the mopping module.
2. Pour out the water in the tank. Clean with water only and leave to air-dry before re-
installing.
Note: Do not expose the tank to the sun directly.

19
3. Clean the mop pad with water only and leave to air dry before re-installing.
Note:
Remove the pad from the mopping module before cleaning it, and make sure dirty
water does not flow back into the water outlet to avoid clogging.
For optimal performance, it is recommended to replace the mop pad every 3 to 6
months.
4. If slow water flow occurs, or the volume is not well-disturbed, please clean the air
hole in the cover of the water tank.
Clean the Main Brush
Press the brush guard clips inwards to remove the brush guard and lift the brush out of the
robot.

20
Pull out the brush cover as shown in the diagram. Use the included cleaning to remove any
hairs tangled in the brush.
Note: Do not pull out the hair excessively to avoid damaging the main brush when the hair
is tightly tangled in the main brush.
Clean the Side Brush
Pull out the side brushes and use the included cleaning to remove any hair tangled on the
brush.
Clean the Main Wheel / Omnidirectional Wheel
Note: Use a tool such as a small screwdriver to separate the axle and the tire.
Note: Wet cloths can damage sensitive elements within the robot and charging dock.
Please use dry rags for cleaning.
