Drive nitro dlx User manual

nitro dlx rollator
nitro dlx rollator
ambulateur nitro dlx
item # RTL10266BL-HS
RTL10266CH-HS
www.drivemedical.com

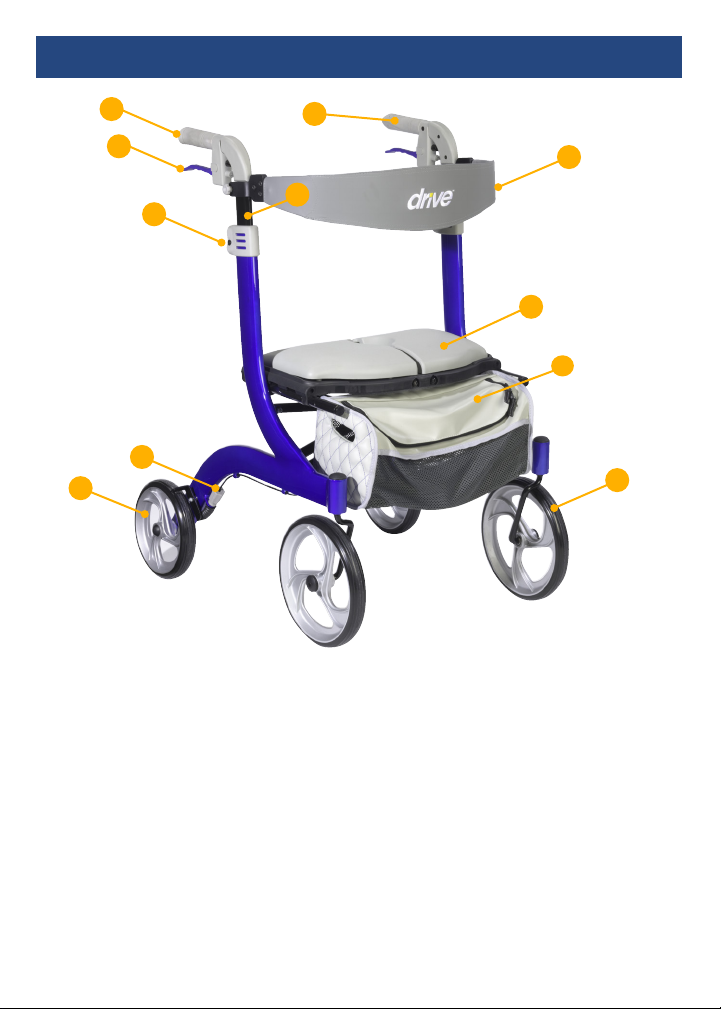

parts list
1. Handgrip
2. Adjustable tubing handgrip
3. Rear reflector on handgrip
4. Brake lever
5. Interlock button for handgrips
6. Back Rest
7. Seat
8. Bag
9. Front wheel
10. Brake adjust screw
11. Rear wheel
Item #RTL10266BL-HS
WEIGHTCAPACITYLBSKG
1
7
8
2
4
11
6
3
5
10
9

The Walking aid is suitable for a single user with limited mobility. The nitro is ideal for
indoor and outdoor use.
1. Bag
2. Back Rest
3. Operating Instructions
introduction
7. Seat
8. Bag
9. Front wheel
10. Brake adjust screw
11. Rear wheel
nitro includes:
unfolding the nitro
Position the Nitro on its wheels. Press both pipes
from the seat downwards until they interlock
(figure 1).
height adjustment
Press the blue (tan) release buttons for
handgrips below, as shown in figure 2, and
pull the handgrip upwards at the same time.
As the handle moves, release the button.
This automatically locks in the next possible
height. Repeat this process until the desired
height is reached.
1
2

removing / attaching the carry bag
To remove bag, twist knobs located on the front end of the seat frame outward
(Figure 3 & 4). Pull out knobs and slide bag out of receptacle.
To replace bag, fold the Nitro slightly and reverse above steps.
braking / locking
Pull both brake levers upwards to apply the brakes
while the Nitro is moving (see figure 5). Always
brake slowly and steady.
Press both brake levers down to apply the locks
while the Nitro is stationary (see figure 6). Pull up
the brake levers and release to release the locks.
The effect of the brakes can be affected by
abrasion of the wheels.
Regularly test the brakes.
35 4
5
6

adjustment of brakes
To adjust the braking
strength, adjust the
brake by pressing
the screw housing
downwards (figure 7)
and then turn left or
right (figure 8).
sitting
Position the Nitro on an even and solid surface. Lock the brakes (parking position).
The Nitro must stand and must not slip. Sit straight up and do not lean backwards.
DO NOT MOVE ROLLATOR WHILE SEATED.
folding / transport / storage
To fold, pull seat
upwards by the handle
on the seat plate as
shown in figure 9 & 10.
9
7 8
10

safety instructions
• Use only as a walking aid!
• Use only on even and solid surfaces.
• Maximum user weight: 300 lbs.
• Regularly check the screws and fasteners on the Nitro and retighten if necessary.
• Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.
• Do not expose the product to temperatures above 104°F for an extended period
of time, as this can cause the Nitro parts to overheat and burn the user.
• Please make sure the Rollator is fully opened, seat is down and the folding bar
under seat is locked in the down position.
• Be sure that both knobs are fully tightened and are at equal heights. Test
Rollator for stability before applying full weight to hand grips.
• Test the brake lever before operating the Rollator. When wheels are locked, lock
bar on rear wheels should prevent wheels from turning. When locks are released,
the wheels should turn freely.
• Always lock the brake lever before sitting and do not use seat when unit is on an
incline or uneven ground.
• Replace tires when significantly worn or damaged.
• DO NOT MOVE ROLLATOR WHILE SEATED. This is a walking aid only
and is not to be used as a transportation device.
cleaning / maintenance
Clean regularly by hand with a damp cloth. Do not use aggressive detergents.

The frame of your Drive Medical product is warranted to be free of defects
in material and workmanship for the lifetime of the original consumer
purchaser. The brake handle and housing are covered for a period of 5 years
of the original consumer purchaser.
This device was built to exacting standards and carefully inspected prior to
shipment. This Lifetime Limited Warranty is an expression of our confidence
in the materials and workmanship of our products and our assurance to the
consumer of years of dependable service.
This warranty does not cover device failure due to owner misuse or
negligence, or normal wear and tear. The warranty does not extend to
non-durable components, such as rubber accessories, casters, and grips,
which are subject to normal wear and need periodic replacement.
If you have a question about your Drive device or this warranty, please
contact an authorized Drive dealer.
© 2014 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
lifetime limited
warranty

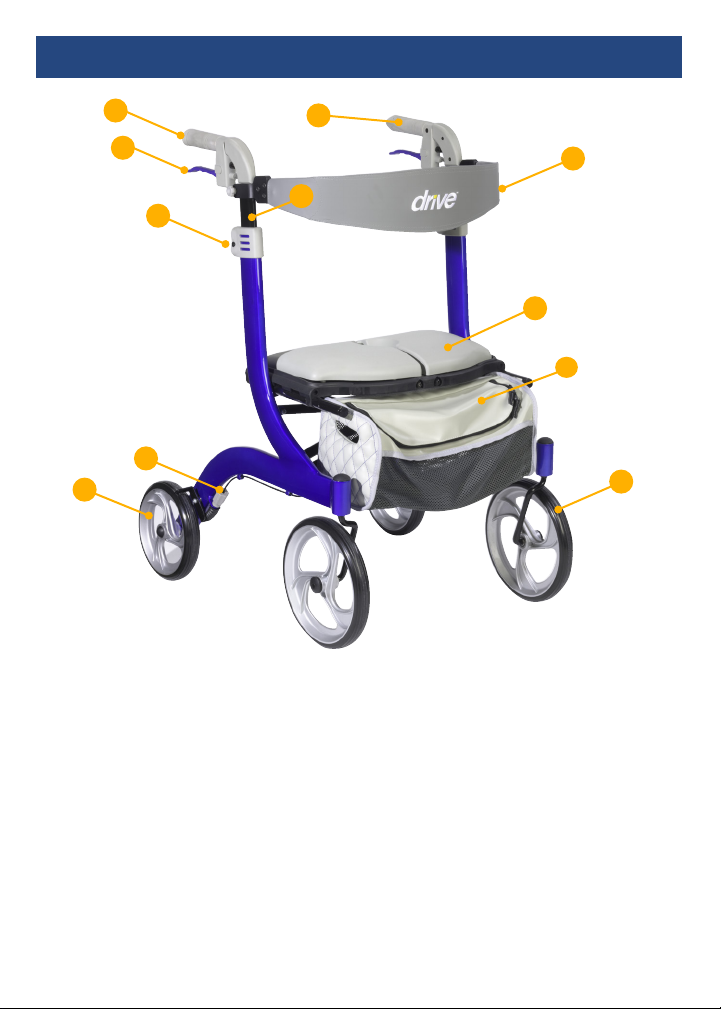

lista de partes
1. Mango
2. Tubo ajustable del mango
3. Reflector trasero sobre el mango
4. Palanca del freno
5. Botón de enclavamiento para los mangos
6. Respaldo
7. Asiento
8. Bolsa
9. Rueda frontal
10. Tornillo de ajuste del freno
11. Rueda posterior
Item # RTL10266BL-HS
CAPACIDADLBSKGDEPESO
1
7
8
2
4
11
6
3
5
10
9

Este dispositivo auxiliar para caminar es adecuado solamente para un usuario con
capacidad limitada de movilidad. El Nitro es ideal para usarse en interiores o exteriores.
1. Bolsa
2. Respaldo
3. Instrucciones de operación
introducción
el nitro incluye:
para desdoblar el nitro
Coloque el Nitro sobre sus ruedas. Empuje
hacia abajo ambos tubos del asiento hacia
arriba (figura 1) hasta que se traben.
ajustes de altura
Presione los botones azules (canelas) de liberación
de abajo de los mangos, como se muestra en la
figura 2 y jale los mangos hacia arriba al mismo
tiempo. Suelte el botón a medida que se mueve
el mango. Esto lo bloquea automáticamente en la
siguiente altura disponible. Repita este proceso
hasta lograr la altura deseada.
1
2

cómo colocar la bolsa
Para quitar la bolsa, gire las perillas que se encuentran en el extremo frontal del
marco externo del asiento (ver figuras 3 a 4). Jale hacia afuera las perillas y deslice
la bolsa hacia afuera del receptáculo.
Para reemplazar la bolsa, doble levemente el Nitro e invierta los pasos anteriores.
cómo frenar / bloquearlo
Jale ambas palancas del freno hacia arriba para
aplicar los frenos mientras el Nitro está en
movimiento (ver figura 5). Siempre frente de forma
lenta y continuamente.
Presione ambas palancas del freno hacia abajo para
aplicar los frenos mientras el Nitro está estacionario
(ver figura 6). Jale las palancas de los frenos hacia
arriba y suéltelas para desbloquearlas.
El efecto de los frenos puede afectarse por la
abrasión de las ruedas.
Compruebe el funcionamiento de los frenos con
regularidad.
35 4
5
6
