Dsc Maxsys pc4850 User manual

PC4850 v1.0 • Installation Manual

WARNING: This manual contains information on limitations

regarding product use and function and information on the

limitations as to liability of the manufacturer. The entire

manual should be carefully read.

WARNING Please Read Carefully

Note to Installers

This warning contains vital information. As the only individual in contact with system users, it is your

responsibility to bring each item in this warning to the attention of the users of this system.

System Failures

This system has been carefully designed to be as effective as possible. There are circumstances, however,

involving fire, burglary, or other types of emergencies where it may not provide protection. Any alarm sys-

tem of any type may be compromised deliberately or may fail to operate as expected for a variety of rea-

sons. Some but not all of these reasons may be:

■ Inadequate Installation

A security system must be installed properly in order to provide adequate protection. Every installation

should be evaluated by a security professional to ensure that all access points and areas are covered. Locks

and latches on windows and doors must be secure and operate as intended. Windows, doors, walls, ceilings

and other building materials must be of sufficient strength and construction to provide the level of protec-

tion expected. A reevaluation must be done during and after any construction activity. An evaluation by the

fire and/or police department is highly recommended if this service is available.

■Criminal Knowledge

This system contains security features which were known to be effective at the time of manufacture. It is

possible for persons with criminal intent to develop techniques which reduce the effectiveness of these fea-

tures. It is important that a security system be reviewed periodically to ensure that its features remain effec-

tive and that it be updated or replaced if it is found that it does not provide the protection expected.

■Access by Intruders

Intruders may enter through an unprotected access point, circumvent a sensing device, evade detection by

moving through an area of insufficient coverage, disconnect a warning device, or interfere with or prevent

the proper operation of the system.

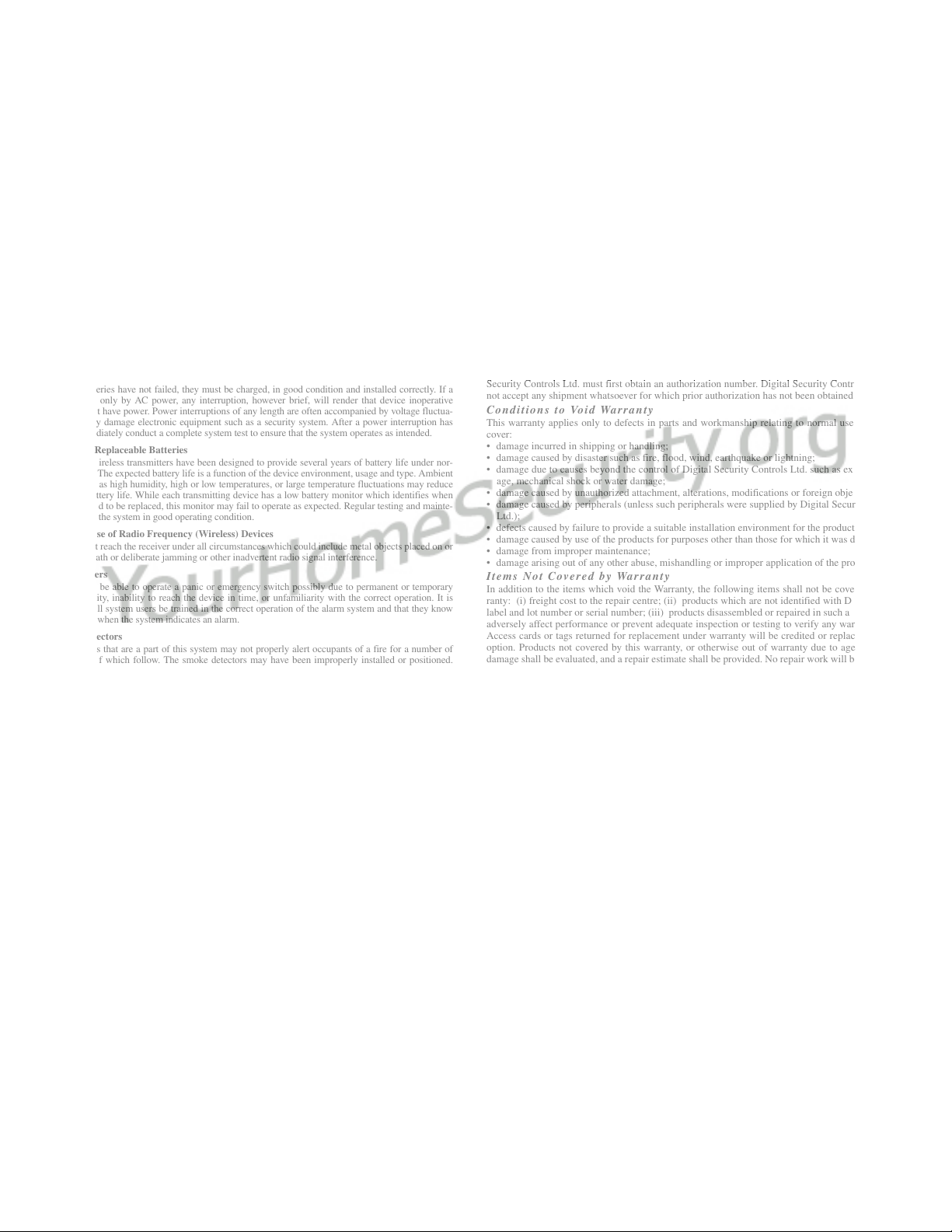

■Power Failure

Control units, intrusion detectors, smoke detectors and many other security devices require an adequate

power supply for proper operation. If a device operates from batteries, it is possible for the batteries to fail.

Even if the batteries have not failed, they must be charged, in good condition and installed correctly. If a

device operates only by AC power, any interruption, however brief, will render that device inoperative

while it does not have power. Power interruptions of any length are often accompanied by voltage fluctua-

tions which may damage electronic equipment such as a security system. After a power interruption has

occurred, immediately conduct a complete system test to ensure that the system operates as intended.

■Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to provide several years of battery life under nor-

mal conditions. The expected battery life is a function of the device environment, usage and type. Ambient

conditions such as high humidity, high or low temperatures, or large temperature fluctuations may reduce

the expected battery life. While each transmitting device has a low battery monitor which identifies when

the batteries need to be replaced, this monitor may fail to operate as expected. Regular testing and mainte-

nance will keep the system in good operating condition.

■Compromise of Radio Frequency (Wireless) Devices

Signals may not reach the receiver under all circumstances which could include metal objects placed on or

near the radio path or deliberate jamming or other inadvertent radio signal interference.

■System Users

A user may not be able to operate a panic or emergency switch possibly due to permanent or temporary

physical disability, inability to reach the device in time, or unfamiliarity with the correct operation. It is

important that all system users be trained in the correct operation of the alarm system and that they know

how to respond when the system indicates an alarm.

■Smoke Detectors

Smoke detectors that are a part of this system may not properly alert occupants of a fire for a number of

reasons, some of which follow. The smoke detectors may have been improperly installed or positioned.

Smoke may not be able to reach the smoke detectors, such as when the fire is in a chimney, walls or roofs,

or on the other side of closed doors. Smoke detectors may not detect smoke from fires on another level of

the residence or building.

Every fire is different in the amount of smoke produced and the rate of burning. Smoke detectors cannot

sense all types of fires equally well. Smoke detectors may not provide timely warning of fires caused by

carelessness or safety hazards such as smoking in bed, violent explosions, escaping gas, improper storage

of flammable materials, overloaded electrical circuits, children playing with matches or arson.

Even if the smoke detector operates as intended, there may be circumstances when there is insufficient

warning to allow all occupants to escape in time to avoid injury or death.

■Motion Detectors

Motion detectors can only detect motion within the designated areas as shown in their respective installa-

tion instructions. They cannot discriminate between intruders and intended occupants. Motion detectors do

not provide volumetric area protection. They have multiple beams of detection and motion can only be

detected in unobstructed areas covered by these beams. They cannot detect motion which occurs behind

walls, ceilings, floor, closed doors, glass partitions, glass doors or windows. Any type of tampering

whether intentional or unintentional such as masking, painting, or spraying of any material on the lenses,

mirrors, windows or any other part of the detection system will impair its proper operation.

Passive infrared motion detectors operate by sensing changes in temperature. However their effectiveness

can be reduced when the ambient temperature rises near or above body temperature or if there are inten-

tional or unintentional sources of heat in or near the detection area. Some of these heat sources could be

heaters, radiators, stoves, barbeques, fireplaces, sunlight, steam vents, lighting and so on.

■Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not warn people or waken someone sleeping if

there is an intervening wall or door. If warning devices are located on a different level of the residence or

premise, then it is less likely that the occupants will be alerted or awakened. Audible warning devices may

be interfered with by other noise sources such as stereos, radios, televisions, air conditioners or other appli-

ances, or passing traffic. Audible warning devices, however loud, may not be heard by a hearing-impaired

person.

■Telephone Lines

If telephone lines are used to transmit alarms, they may be out of service or busy for certain periods of

time. Also an intruder may cut the telephone line or defeat its operation by more sophisticated means

which may be difficult to detect.

■Insufficient Time

There may be circumstances when the system will operate as intended, yet the occupants will not be pro-

tected from the emergency due to their inability to respond to the warnings in a timely manner. If the sys-

tem is monitored, the response may not occur in time to protect the occupants or their belongings.

■Component Failure

Although every effort has been made to make this system as reliable as possible, the system may fail to

function as intended due to the failure of a component.

■Inadequate Testing

Most problems that would prevent an alarm system from operating as intended can be found by regular

testing and maintenance. The complete system should be tested weekly and immediately after a break-in,

an attempted break-in, a fire, a storm, an earthquake, an accident, or any kind of construction activity inside

or outside the premises. The testing should include all sensing devices, keypads, consoles, alarm indicating

devices and any other operational devices that are part of the system.

■Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute for property or life insurance. An alarm

system also is not a substitute for property owners, renters, or other occupants to act prudently to prevent or

minimize the harmful effects of an emergency situation.

Limited Warranty

Digital Security Controls Ltd. warrants the original purchaser that for a period of twelve months

from the date of purchase, the product shall be free of defects in materials and workmanship under

normal use. During the warranty period, Digital Security Controls Ltd. shall, at its option, repair or

replace any defective product upon return of the product to its factory, at no charge for labour and

materials. Any replacement and/or repaired parts are warranted for the remainder of the original war-

ranty or ninety (90) days, whichever is longer. The original purchaser must promptly notify Digital

Security Controls Ltd. in writing that there is defect in material or workmanship, such written notice

to be received in all events prior to expiration of the warranty period. There is absolutely no war-

ranty on software and all software products are sold as a user license under the terms of the soft-

ware license agreement included with the product. The Customer assumes all responsibility for

the proper selection, installation, operation and maintenance of any products purchased from

DSC. Custom products are only warranted to the extent that they do not function upon delivery.

In such cases, DSC can replace or credit at its option.

International Warranty

The warranty for international customers is the same as for any customer within Canada and the

United States, with the exception that Digital Security Controls Ltd. shall not be responsible for any

customs fees, taxes, or VAT that may be due.

Warranty Procedure

To obtain service under this warranty, please return the item(s) in question to the point of purchase.

All authorized distributors and dealers have a warranty program. Anyone returning goods to Digital

Security Controls Ltd. must first obtain an authorization number. Digital Security Controls Ltd. will

not accept any shipment whatsoever for which prior authorization has not been obtained.

Conditions to Void Warranty

This warranty applies only to defects in parts and workmanship relating to normal use. It does not

cover:

• damage incurred in shipping or handling;

• damage caused by disaster such as fire, flood, wind, earthquake or lightning;

• damage due to causes beyond the control of Digital Security Controls Ltd. such as excessive volt-

age, mechanical shock or water damage;

• damage caused by unauthorized attachment, alterations, modifications or foreign objects;

• damage caused by peripherals (unless such peripherals were supplied by Digital Security Controls

Ltd.);

• defects caused by failure to provide a suitable installation environment for the products;

• damage caused by use of the products for purposes other than those for which it was designed;

• damage from improper maintenance;

• damage arising out of any other abuse, mishandling or improper application of the products.

Items Not Covered by Warranty

In addition to the items which void the Warranty, the following items shall not be covered by War-

ranty: (i) freight cost to the repair centre; (ii) products which are not identified with DSC's product

label and lot number or serial number; (iii) products disassembled or repaired in such a manner as to

adversely affect performance or prevent adequate inspection or testing to verify any warranty claim.

Access cards or tags returned for replacement under warranty will be credited or replaced at DSC's

option. Products not covered by this warranty, or otherwise out of warranty due to age, misuse, or

damage shall be evaluated, and a repair estimate shall be provided. No repair work will be performed

until a valid purchase order is received from the Customer and a Return Merchandise Authorisation

number (RMA) is issued by DSC's Customer Service.

Digital Security Controls Ltd.’s liability for failure to repair the product under this warranty after a

reasonable number of attempts will be limited to a replacement of the product, as the exclusive rem-

edy for breach of warranty. Under no circumstances shall Digital Security Controls Ltd. be liable for

any special, incidental, or consequential damages based upon breach of warranty, breach of contract,

negligence, strict liability, or any other legal theory. Such damages include, but are not limited to,

loss of profits, loss of the product or any associated equipment, cost of capital, cost of substitute or

replacement equipment, facilities or services, down time, purchaser’s time, the claims of third par-

ties, including customers, and injury to property. The laws of some jurisdictions limit or do not allow

the disclaimer of consequential damages. If the laws of such a jurisdiction apply to any claim by or

against DSC, the limitations and disclaimers contained here shall be to the greatest extent permitted

by law. Some states do not allow the exclusion or limitation of incidental or consequential damages,

so that the above may not apply to you.

Disclaimer of Warranties

This warranty contains the entire warranty and shall be in lieu of any and all other warranties,

whether expressed or implied (including all implied warranties of merchantability or fitness for a

particular purpose) And of all other obligations or liabilities on the part of Digital Security Controls

Ltd. Digital Security Controls Ltd. neither assumes responsibility for, nor authorizes any other per-

son purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other

warranty or liability concerning this product.

This disclaimer of warranties and limited warranty are governed by the laws of the province of

Ontario, Canada.

WARNING: Digital Security Controls Ltd. recommends that the entire system be completely tested

on a regular basis. However, despite frequent testing, and due to, but not limited to, criminal tam-

pering or electrical disruption, it is possible for this product to fail to perform as expected.

Installer’s Lockout

Any products returned to DSC which have the Installer’s Lockout option enabled and exhibit no

other problems will be subject to a service charge.

Out of Warranty Repairs

Digital Security Controls Ltd. will at its option repair or replace out-of-warranty products which are

returned to its factory according to the following conditions. Anyone returning goods to Digital

Security Controls Ltd. must first obtain an authorization number. Digital Security Controls Ltd. will

not accept any shipment whatsoever for which prior authorization has not been obtained.

Products which Digital Security Controls Ltd. determines to be repairable will be repaired and

returned. A set fee which Digital Security Controls Ltd. has predetermined and which may be revised

from time to time, will be charged for each unit repaired.

Products which Digital Security Controls Ltd. determines not to be repairable will be replaced by the

nearest equivalent product available at that time. The current market price of the replacement product

will be charged for each replacement unit.

Table of Contents

Section 1:Introduction 1

1.1 About PC4850 Manuals ......................................................1

1.2 Features .................................................................................1

1.3 Specifications ........................................................................1

1.4 Additional Devices ..............................................................1

Section 2:Installing & Wiring PC4850 2

2.1 Unpacking the PC4850 ........................................................2

2.2 Preparing a Mounting Location .........................................2

2.3 Installing a Postal Lock .......................................................2

2.4 Installing the PC4850 ...........................................................2

2.5 Connecting Door Strikes .....................................................2

2.6 Connecting Magnetic Locks ...............................................3

2.7 Connecting the Telephone Line .........................................3

2.8 Connecting the PC4850 to a PC4851 (No Bill Option) ....3

2.9 Connecting the Combus .....................................................3

2.10 Connecting More Than One PC4850 .................................3

2.11 Connecting a PC4850 with a PC4820

Installed on the Same Door ................................................3

2.12 Connecting the PC4850 to Ground ....................................4

2.13 Connecting the Power .........................................................4

2.14 Lithium Batteries ..................................................................4

2.15 Connecting Tamper .............................................................4

Section 3:Programming the PC4850 5

3.1 How the PC4850 Works ......................................................5

3.2 Programming PC4850 From a Keypad .............................5

3.3 Programming From DLS-3 .................................................5

3.4 Enrolling the PC4850 ...........................................................5

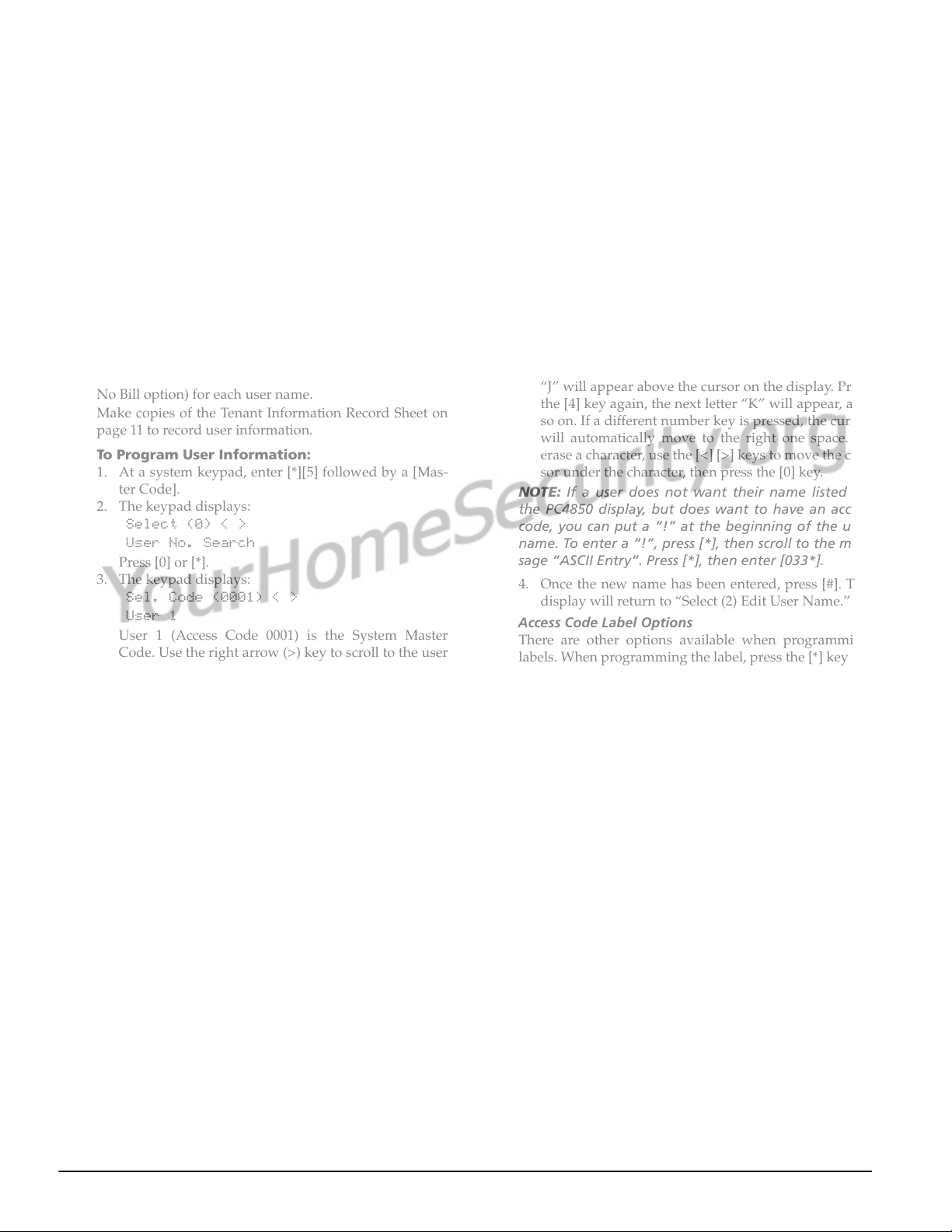

3.5 Programming Users’ Names,

Telephone Numbers, and Codes .......................................6

3.6 Programming the Greeting Display ..................................7

3.7 Selecting Touch-Tone* or Pulse Dialing ...........................7

3.8 Using the No Bill Option .....................................................7

3.9 Changing the Battery Supervision Option .......................8

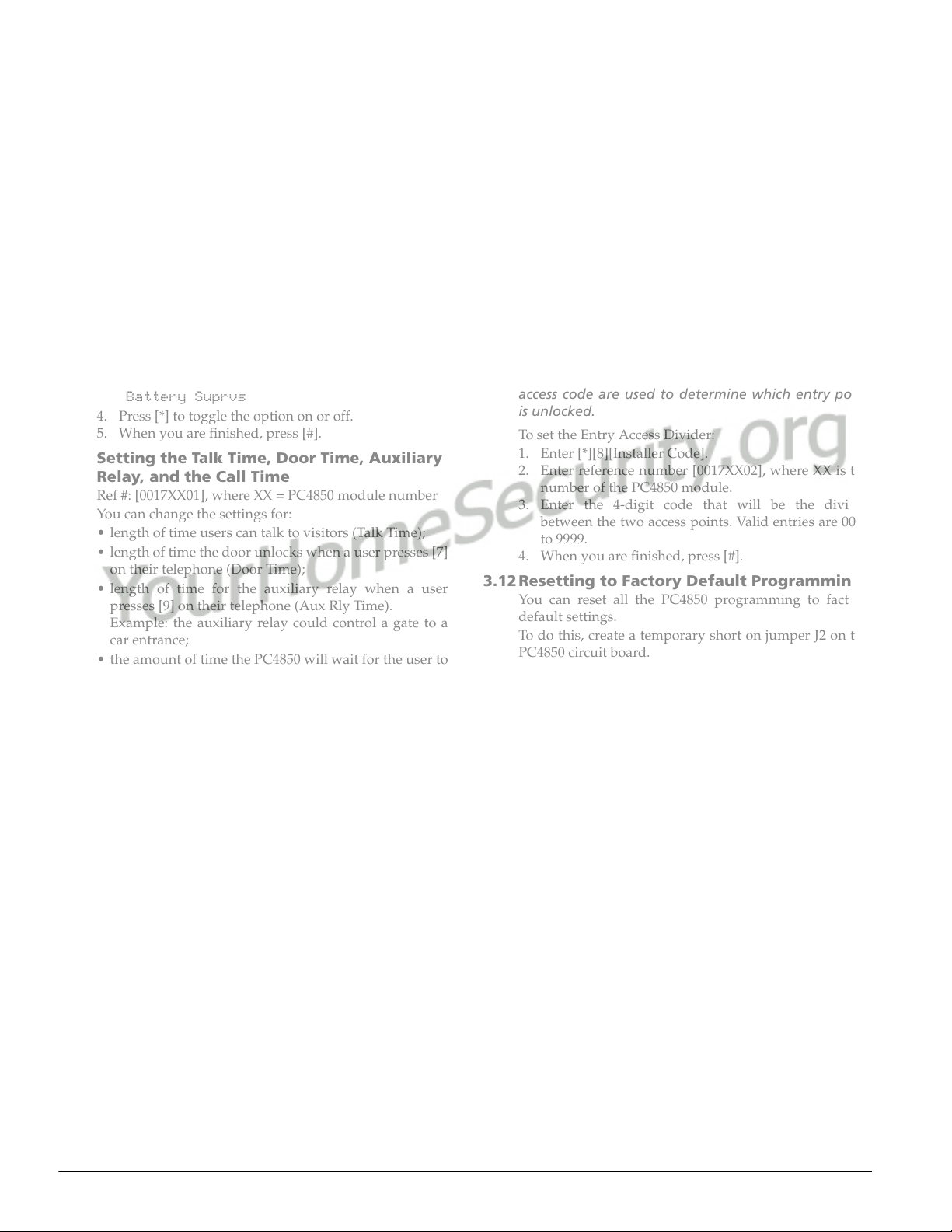

3.10 Setting the Talk Time, Door Time, Auxiliary Relay,

and the Call Time .................................................................8

3.11 Setting up Access Codes for Two Building Entry Points 8

3.12 Resetting to Factory Default Programming .....................8

Section 4:Testing and Troubleshooting 9

4.1 Testing the PC4850 ...............................................................9

4.2 Troubleshooting ...................................................................9

4.3 “System is Busy. Please Wait” Message ...........................9

Section 5:Programming Worksheet 10

5.1 PC4850 Toggle Options .....................................................10

5.2 Miscellaneous Options ......................................................10

5.3 Entry Access Divider .........................................................10

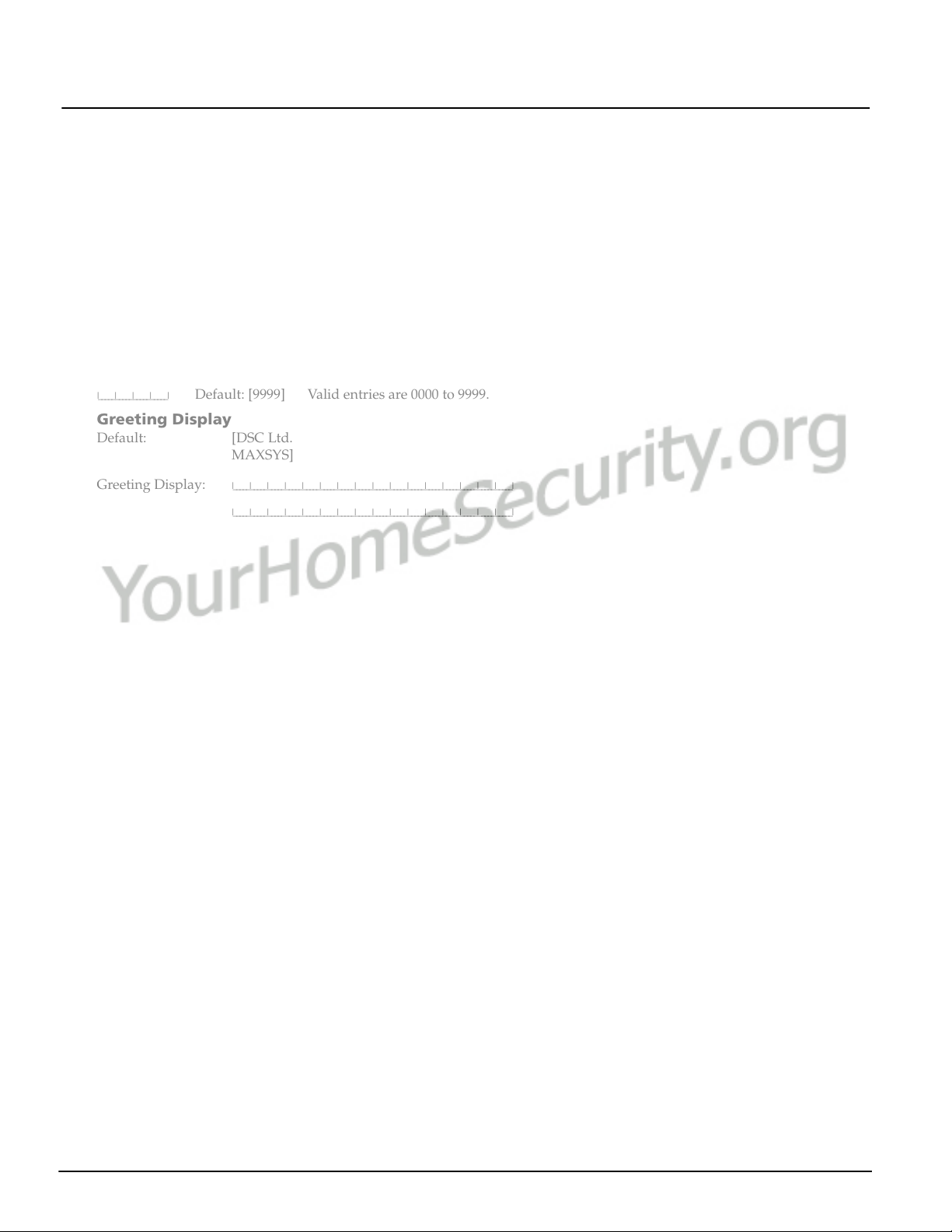

5.4 Greeting Display ................................................................10

Tenant Information Record Sheet 11

FCC COMPLIANCE STATEMENT

CAUTION: Changes or modifications not expressly approved by Digital Secu-

rity Controls Ltd. could void your authority to use this equipment.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential instal-

lation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to cor-

rect the interference by one or more of the following measures:

• Re-orient the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

The user may find the following booklet prepared by the FCC useful: “How to

Identify and Resolve Radio/Television Interference Problems”. This booklet is

available from the U.S. Government Printing Office, Washington D.C. 20402,

Stock # 004-000-00345-4.

Important Information

This equipment complies with Part 68 of the FCC Rules. On the side of this

equipment is a label that contains, among other information, the FCC registra-

tion number of this equipment.

NOTIFICATION TO TELEPHONE COMPANY The customer shall notify the telephone

company of the particular line to which the connection will be made, and provide

the FCC registration number and the ringer equivalence of the protective circuit.

FCC Registration Number: F53CAN-35604-OT-E

Ringer Equivalence Number: 0.1B

USOC Jack: RJ-11

TELEPHONE CONNECTION REQUIREMENTS Except for the telephone company pro-

vided ringers, all connections to the telephone network shall be made through

standard plugs and telephone company provided jacks, or equivalent, in such a

manner as to allow for easy, immediate disconnection of the terminal equipment.

Standard jacks shall be so arranged that, if the plug connected thereto is with-

drawn, no interference to the operation of the equipment at the customer’s pre-

mises which remains connected to the telephone network shall occur by reason

of such withdrawal.

INCIDENCE OF HARM Should terminal equipment or protective circuitry cause

harm to the telephone network, the telephone company shall, where practicable,

notify the customer that temporary disconnection of service may be required;

however, where prior notice is not practicable, the telephone company may tem-

porarily discontinue service if such action is deemed reasonable in the circum-

stances. In the case of such temporary discontinuance, the telephone company

shall promptly notify the customer and will be given the opportunity to correct

the situation.

ADDITIONAL TELEPHONE COMPANY INFORMATION The security control panel

must be properly connected to the telephone line with a USOC RJ-11 telephone

jack.

The FCC prohibits customer-provided terminal equipment be connected to party

lines or to be used in conjunction with coin telephone service. Interconnect rules

may vary from state to state.

CHANGES IN TELEPHONE COMPANY EQUIPMENT OR FACILITIES The telephone

company may make changes in its communications facilities, equipment, opera-

tions or procedures, where such actions are reasonably required and proper in its

business. Should any such changes render the customer’s terminal equipment

incompatible with the telephone company facilities the customer shall be given

adequate notice to the effect modifications to maintain uninterrupted service.

RINGER EQUIVALENCE NUMBER (REN) The REN is useful to determine the quan-

tity of devices that you may connect to your telephone line and still have all of

those devices ring when your telephone number is called. In most, but not all

areas, the sum of the RENs of all devices connected to one line should not exceed

five (5.0). To be certain of the number of devices that you may connect to your

line, you may want to contact your local telephone company.

EQUIPMENT MAINTENANCE FACILITY If you experience trouble with this tele-

phone equipment, please contact the facility indicated below for information on

obtaining service or repairs. The telephone company may ask that you discon-

nect this equipment from the network until the problem has been corrected or

until you are sure that the equipment is not malfunctioning.

Digital Security Controls Ltd. 160 Washburn St., Lockport, NY 14094

*'Touch-Tone' is a registered trademark of Stentor Resource Centre, Inc.

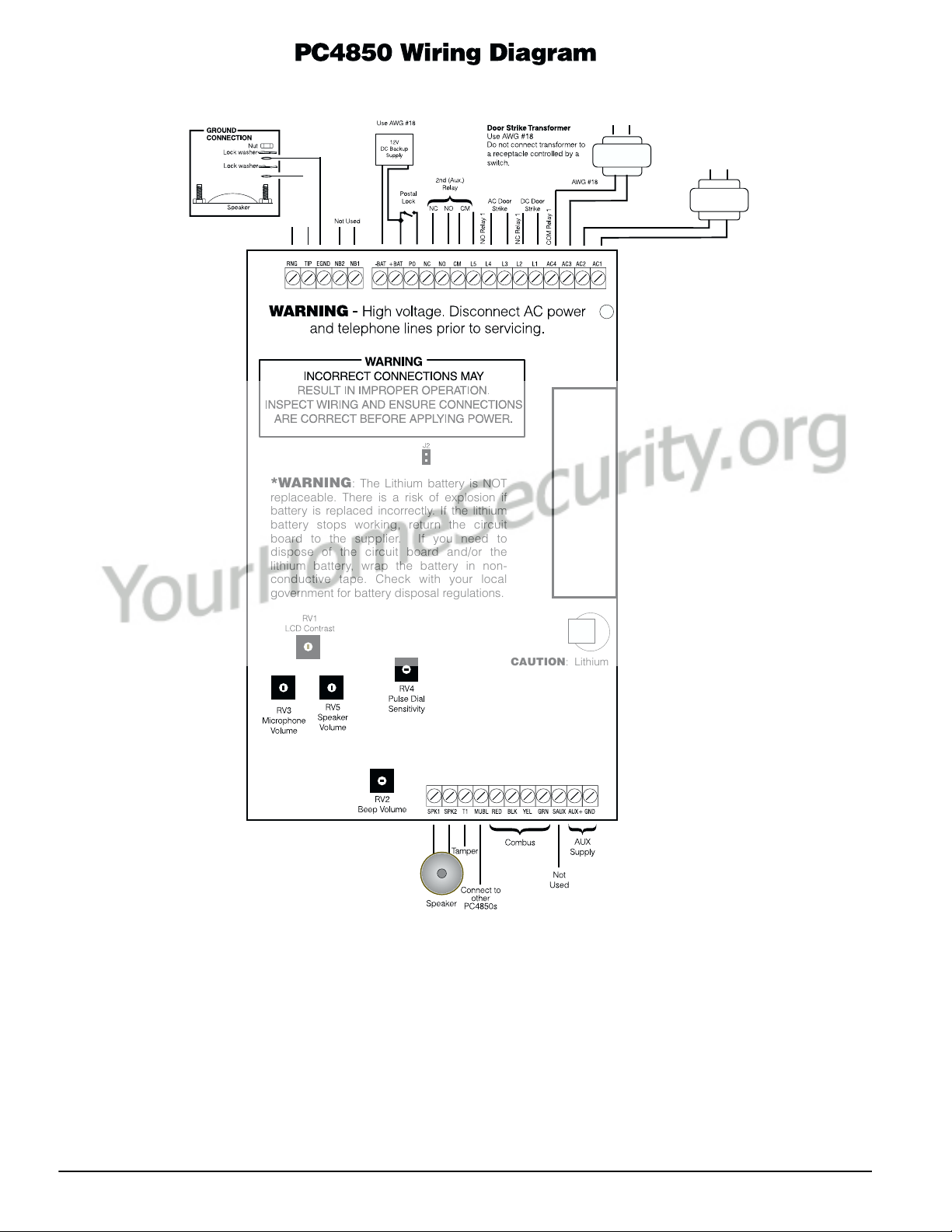

Ground wire

from building

*WARNING: The Lithium battery is NOT

replaceable. There is a risk of explosion if

battery is replaced incorrectly. If the lithium

battery stops working, return the circuit

board to the supplier. If you need to

dispose of the circuit board and/or the

lithium battery, wrap the battery in non-

conductive tape. Check with your local

government for battery disposal regulations.

16 VAC

40VA min.

Transformer

16.0V @ 40 VA

For EU countries,

the power supply must

meet the applicable requirements

of the Low Voltage Directive

NOTE: Do not connect transformer

to a receptacle controlled by a

switch, for UL/ULC installations.

CAUTION: Lithium

battery cannot

be replaced*

*The Marking related information is

provided on the Printed Circuit Board

located within the equipment.

1. The connection to the mains supply must be made as per local

authorities' rules and regulations. In the UK, as per BS6701.

2. If during the installation a knockout is removed, it is the installer's

responsibility to ensure that the same degree of protection for the

cabinet is provided by the use of bushings, fittings, etc.

3. The cabinet must be secured to the building structure before operation.

4. The equipment is intended to be installed by SERVICE PERSONNEL

ONLY or equivalent (e.g., persons having appropriate technical training

& experience necessary to be aware of hazards to which they are

exposed in performing that task.

5. Internal & external wiring must be routed in a manner that prevents:

- excessive strain on wire and on terminal connections;

- loosening of terminal connections;

- damage of conductor insulation.

6. Regarding the power supply

- it must be PERMANENTLY CONNECTED

- in EU countries, it must meet the applicable requirements of the

LowVoltage Directive and must be PERMANENTLY CONNECTED and

protected, as per EN60950 requirements. In all other countries, it shall be

of an approved type acceptable to the local authorities. It must not produce

an Earth leakage current higher than 3.5mA at maximum rated voltage.

- it is the responsibility of the installer to incorporate a readily accessible

disconnect device in the fixed wiring for the user (i.e., circuit breaker,

isolating switch).

7. The ground connection must be as shown above or equivalent.

IMPORTANT (For EU Market)

Section 1: Introduction

The PC4850 Telephone Entry Module connects to PC4020

v3.2 and higher systems to provide access control and

communication to tenants of condominiums, offices, or

apartment buildings. The PC4850 uses the tenant’s exist-

ing telephone line to allow tenants to communicate with

visitors and, if desired, to open the entry door for them.

Each PC4850 module can provide access control for up to

two building entry points.

You can program up to 1500 users on each PC4020 v3.2

and higher system.

1.1 About PC4850 Manuals

The PC4850 manual set provides installation and pro-

gramming instructions for the PC4850 module.

Installation Manual

Please read this manual before installing the PC4850

module.

On page 11 of this manual is a Tenant Information

Record Sheet. You can photocopy this form for your cus-

tomers so that they can keep a record of the user pro-

gramming for their system. On page 10 of this manual is

a programming worksheet for you to record your

PC4850 programming choices.

1.2 Features

• Supports up to 1500 users

• Connect up to 16 PC4850 modules to the system (all

PC4850 modules share one telephone line)

• Programmable locally using a Maxsys system keypad

• Uploading and downloading of data from a remote

computer using DLS-3

• Each PC4850 can control up to 2 entry points

1.3 Specifications

• Connects to PC4020 panel with 4-wire Combus

• AC input - 16VAC, 40VA

• Backup power source - 12 VDC, 4Ah compatible (not

included)

• Battery charger - 350mA to charge 12VDC lead acid

batteries (observe all safety instructions provided by

battery manufacturer)

• Door strike transformer connection - 8 to 24VAC, 1.6A

• Primary relay outputs - 24VAC, 1.6A continuous; 24V,

2.0A peak

• Auxiliary relay output - 24VAC, 1.6A

• Postal lock switch - 12VDC, 0.25A

• Lithium backup battery for programming memory

and clock included - lasts up to 10 years

• Speaker impedance: 45 Ω

• Aux output: 11.4 - 12VDC, 25mA with 1.2Ah backup

11.4 - 12VDC, 200mA with 4Ah backup

NOTE: This output is not suitable to power Door Strikes

• Indoor and outdoor use (for UL & ULC only)

1.4 Additional Devices

• AC or DC style door strikes, magnetic locks, and elec-

tric doors can be used

• A postal lock may be connected (optional Postal

Switch Kit required)

• CCTV board camera (optional Camera Mount Hard-

ware Pack is required)

Section 2: Installing & Wiring PC4850

2.1 Unpacking the PC4850

Check that the following parts are in your PC4850 package:

• 1 - PC4850-C cabinet

• 1 - PC4850 board (mounted in cabinet)

• 1 - Speaker (mounted in cabinet)

• 1 - 16VAC, 40VA transformer (N.A. only)

• 1 - Postal bracket (mounted in cabinet)

• 1 - Postal lock delete plate (mounted in cabinet)

• 1 - Hole plug (mounted in cabinet door)

2.2 Preparing a Mounting Location (Indoor or

Outdoor Use for UL/ULC only)

1. Select a mounting location for

the PC4850 using the following

guidelines:

• close to the entry door

• away from areas with a large

amount of background noise.

NOTE: It is recommended that you

mount the PC4850 so that the top

of the keypad is no higher than 46

inches (117cm) from the floor.

NOTE: If mounting the PC4850 on

a gatepost, mount it on the post which does not

receive continuous vibration when the gate closes.

2. Schedule Telephone Company Set up

Inform the local telephone company that you will be

installing communication equipment. They may need to

know the FCC registration number of the system. The

FCC number is on a label inside the PC4850 cabinet.

If necessary, schedule an appointment for the telephone

company to install an RJ-11 jack for the building. If you

are installing more than one PC4850 module, only one

module will need an RJ-11 jack.

2.3 Installing a Postal Lock

If you need to install a

postal lock, you should

install it before you

mount the PC4850 cabi-

net. The Postal Switch

Kit (optional) must be

ordered separately. If

you will not be install-

ing a postal lock, you

should leave the postal

lock delete plate and

postal bracket in place.

To install the postal

lock:

1. Undo the nuts hold-

ing the postal lock

delete plate in

place, and remove

the plate. Keep the nuts for step 4.

2. Remove the postal bracket (leave the support cables

attached).

3. Use a screwdriver to lift the prongs on the postal lock

hole plug, and remove the plug from the hole.

4. Replace the postal bracket on the posts, and secure it

with the nuts you removed in step 1.

5. Slide the postal lock switch onto posts C and D, and

secure it with the provided nuts.

6. Connect the postal lock switch to the

PO and + BAT terminals as shown.

7. Install the postal lock to posts A and

B on the postal bracket.

2.4 Installing the PC4850

Mount the panel in a dry area close to

an unswitched AC power source. Use

appropriate wall anchors when securing the panel to

drywall, plaster, concrete, brick or similar surfaces.

NOTE: You must complete all wiring before connect-

ing the battery, or applying AC to the panel.

2.5 Connecting Door Strikes

Please see the door strikes manufacturer’s instructions

when connecting door strikes.

The PC4850 can support AC and DC door strikes. It is

important to use the properly rated AC transformer, usu-

ally 8 to 24 VAC. Please see the door strike Installation

Manual and use the recommended transformer for your

particular door strike.

If an AC door strike is used, please see the diagram in the

‘AC Door Strikes’ section. The PC4850 provides an AC

output for door 1 at terminals L1/L2 and for door 2 at

terminals NO/NC.

If a DC door strike is used, please see the diagram in the

‘DC Door Strikes’ section. The PC4850 provides a DC out-

put for door 1 at terminals L3(+)/L4(-). If a DC output is

needed for door 2, an external bridge rectifier is required as

shown in the wiring diagram. When connecting magnetic

locks please see Section 2.6, ‘Connecting Magnetic Locks’.

NOTE: For UL applications, if gates are used as part of

the access control system, they must be evaluated to

UL325.

AC (Buzzing) Door Strikes

If you will be connecting AC door strikes, follow the dia-

gram below:

46 inches

(117cm)

Floor

Postal Lock

Delete Plate*

Postal

Bracket

Postal Lock

Switch

*Remove if installing a Postal Lock

Postal Lock

Hole Plug

Postal Lock

NO Contact

+BAT PO

Use AWG#18

Do not connect transformer

to a receptacle controlled

by a switch. For UL Listed

Class2, 16VAC, 40VA

DC (Silent) Door Strikes

If you will be connecting DC door strikes, follow the dia-

gram below:

2.6 Connecting Magnetic Locks

If you will be connecting magnetic locks, follow the dia-

gram below:

Follow the manufacturer’s instructions when connecting

the magnetic locks to the PC4850.

2.7 Connecting the Telephone Line

If the PC4850 will be using an incoming

telephone line to call tenants, connect the

line from the telephone company as

shown. If you will be using the existing

telephone lines in the building and the

No Bill option, you do not need to con-

nect the PC4850 to an incoming tele-

phone line.

NOTE: We recommend that you do not connect a

telephone to the incoming telephone line used by the

PC4850, as the security of the system may be reduced.

If an external telephone is connected to this line, do

not attempt outgoing telephone calls when no dial

tone is present, as the line is being used by the

PC4850.

2.8 Connecting the PC4850 to a

PC4851 (No Bill Option)

If you will be using the No Bill option in

the installation, connect the PC4850 to the

relay card in the main cabinet of the

PC4851, as shown. To install the main cab-

inet of the PC4851, follow the instructions

in the PC4851 Installation Manual. See also

section “Using the No Bill Option” on

page 7.

Note: This option has not been verified

by UL.

2.9 Connecting the Combus

The Combus is used by the Maxsys control panel and the

modules to communicate with each other. The four Com-

bus terminals of the main panel must be connected to the

four Combus terminals or wires of all modules.

When wiring the Combus, the fol-

lowing conditions apply:

• Combus should be run in mini-

mum 22 gauge quad (0.5mm),

two pair twist preferred

• the PC4850 units can be home-

run, connected in series or can be

T-tapped

• each PC4850 unit should not be

more than 1,000'/305m (in wire length) from the panel

• shielded wire is not necessary unless wires are run in an

area that may present excessive RF noise or interference.

• cables greater than 2m in length must be rated VW1,

FT1 or better.

Example of Combus Wiring

PC4850 (B) is wired correctly as it is

within 1,000'/305m of the PC4020 (A),

in wire distance

PC4850 (C) is NOT wired correctly as it

is further than 1,000'/305m from the

PC4020 (A), in wire distance.

See your PC4020 Installation Manual for complete Com-

bus wiring instructions.

2.10 Connecting More Than One PC4850

You can connect up to 16 PC4850

modules to one PC4020 system. All

modules are connected to the same

incoming telephone line. As well as

connecting each module to the main

panel through the Combus, you must

also connect the modules to each

other through the MUBL terminal, as

shown.

2.11 Connecting a PC4850 with a PC4820

Installed on the Same Door

If the PC4850 will be installed on the same door as a

PC4820 Access Control module, connect the PC4820 REX

output to the PC4850 terminals, as shown.

Note: This option has not been verified by UL.

Note: In this configuration, do not connect door

power (AC or DC).

Use AWG#18

Do not connect transformer to

a receptacle controlled by a

switch. For North America,

use a UL/CSA Listed Class2,

16VAC, 40VA transformer

NB1 NB2

PC4851

Relay Board

Jack 1

C REX C REX

PC4820

Access

Control Module

PC4820

Access

Control Module

5k6

PC4850

Telephone

Entry Module

PC4850

Telephone

Entry Module

NOEOL

SEOL

DEOL

AC3 AC3L5 L2

2.12 Connecting the PC4850 to Ground

Make a ground connection as shown below:

2.13 Connecting the Power

Once all other wiring is complete, power up the PC4850:

• After powering up the PC4850 for the first time, wait

for 10 seconds and then remove the shorting jumper J2.

During the normal operation of the PC4850, the

jumper must be kept removed.

• Connect the main board transformer to terminals AC1

and AC2, as shown.

• If connecting a backup battery, connect the red battery

lead to the +BAT terminal and the black lead to -BAT.

2.14 Lithium Batteries

There is a lithium battery on the module. Do not attempt

to replace this battery. There is a danger of explosion if

the battery is incorrectly replaced.

If the lithium battery stops working, return the circuit

board to the supplier. Batteries may cause a fire when in

contact with metal. If you need to dispose of the circuit

board and/or the lithium battery, wrap the battery in

non-conductive tape. Check with your local government

for battery disposal regulations.

WARNING: Do not store the batteries in such a way

that they come into contact with each other or with

any piece of metal. Explosion or fire may occur. Should

fire occur, use only dry chemical fire extinguishers. Do

not use water to put out the fire.

Do not heat the batteries. Do not dispose of the batter-

ies or circuit boards in a fire. Do not disassemble the

batteries. Do not apply pressure to or deform the bat-

teries. Ensure that the above precautions are strictly

observed by related departments, including, but not

limited to, production, sales and outside contractors.

2.15 Connecting Tamper

Please see diagram below for connecting tamper.

12V

DC Backup

Supply

Use AWG #18

-BAT +BAT

GNDT1

Normally Closed

Contact

Section 3: Programming the PC4850

This section describes how the PC4850 modules works, and how to program it. You can program the PC4850 using either of

these methods:

• using a Maxsys system keypad

• using DLS-3 and a computer (see section 3.3, “Programming From DLS-3”, and the DLS-3 manual).

3.1 How the PC4850 Works

When the PC4850 is set up and running correctly, visitors

will be able to call the tenant they want to talk to and the

tenant will be able to open the door for them. Tenants

will also be able to enter the building using their access

code.

To Call a Tenant

When the PC4850 is not in use, the display will switch

between the initial greeting message and the following

message every few seconds:

To Find Tenant’s

Name, Press #

Visitors who know the tenant code for the person they

want to call can enter the code at any time. If no tenant

code is programmed, or if the visitors don’t know the

code, they can press [#] to find the name of the tenant

they want to call. When scrolling through tenant names,

the display shows (for example):

Jane Smith

[*]Prev. [#] Next

The visitor may also press the number key correspond-

ing to the first letter of the tenant names. This will dis-

play the first name in the list beginning with that letter.

For example, the [4] is associated with the letter “J”, “K”,

and “L”. Pressing the [4] key will display the first name

in the list beginning with “J”. Pressing [4] again will dis-

play the first name in the “K” list; pressing [4] again will

display the first name in the “L” list. When you have

arrived at the letter of the tenant’s name scroll to the ten-

ant’s name as described above. If visitors find the correct

name and press [0], or if they have entered a valid tenant

code, the display changes to:

Calling Tenant,

To stop p sh “#”

If the tenant’s telephone line is busy, the PC4850 will

sound a 5-second busy tone and the display will show:

Line is B sy....

Please Try Again

The PC4850 will hang up the line if the tenant does not

answer after the call time programmed by the installer.

If the tenant answers the telephone, he or she can talk to

the visitor for the amount of time programmed by the

installer (from 0 – 99 seconds). At the last ten seconds of

talk time, the PC4850 will beep once and display a count-

down of the last 10 seconds.

To Open the Door for a Visitor

• If tenants want to open the door for the visitor, they

can dial [7] on their telephone. When they open the

door, the speaker beeps once per second while the

door is unlocked, and the PC4850 display shows:

Door Unlocked,

Please Enter.

• If tenants want to open the alternate entrance (e.g., a

second door, or car gate), they can dial [9] on the tele-

phone (Touch-Tone telephones only).

To Enter the Building Using an Entry Access Code

If tenants want to enter the building using the entry

access code they should:

1. Press [*] on the keypad.

2. Enter their access code. The PC4850 opens the door,

the speaker beeps once per second while the door is

unlocked, and the PC4850 display shows:

Door Unlocked,

Please Enter.

NOTE: When entering either the entry access code or

the tenant code, the PC4850 allows a maximum of 3

seconds between key presses. If you wait longer than

3 seconds before pressing the next key, the PC4850

will go back to the greeting displays.

3.2 Programming PC4850 From a Keypad

You can program the PC4850 right from a system keypad

in the same way that you program other Maxsys mod-

ules. See your PC4020 Installation Manual for more infor-

mation.

Record all your programming on the “Programming

Worksheet” on page 10.

3.3 Programming From DLS-3

You can program the PC4850 from a remote computer

using the DLS-3 software. To install and use the software,

refer to the DLS-3 manual.

3.4 Enrolling the PC4850

Once you have finished wiring the PC4850 module, you

must enroll it on the PC4020 system. To enroll the module:

1. At a system keypad, enter Installer Programming by

pressing [*] [8] [Installer Code].

NOTE: The default Installer Code is [5555].

2. Scroll to “Module Hardware” and press the [*] key.

3. The message “Enroll Module” will appear. Press [*].

4. Scroll through the different modules until the module

you wish to enroll is displayed. Press the [*] key.

5. The keypad will display the message “Create Tamper

On Desired Unit.” Go to the PC4850 module to be

enrolled and tamper it. Return to the original keypad.

A message similar to the following will be displayed

to confirm enrollment: “PC4850 TCS Mod 02

Enrolled”.

3.5 Programming Users’ Names, Telephone

Numbers, and Codes

To get the PC4850 up and running, you, or the building

staff, will need to program up to four items of informa-

tion for each user:

• Access code (this is the same access code as for the rest

of the system)

• User name (the user name will be displayed on the

PC4850 LCD display so that visitors can find the user

to call him or her)

• User telephone number, or line number for the No-Bill

option (so that the system can call the user when there

is a visitor)

• Tenant code (optional - building staff can post a list of

tenant codes for visitors to enter on the keypad to call

users)

For visitors to be able to call a user, you must program a

telephone number, or telephone line number (if using the

No Bill option) for each user name.

Make copies of the Tenant Information Record Sheet on

page 11 to record user information.

To Program User Information:

1. At a system keypad, enter [*][5] followed by a [Mas-

ter Code].

2. The keypad displays:

Select (0) < >

User No. Search

Press [0] or [*].

3. The keypad displays:

Sel. Code (0001) < >

User 1

User 1 (Access Code 0001) is the System Master

Code. Use the right arrow (>) key to scroll to the user

you wish to program (for example, User 2). Press [*]

to select the user.

4. The keypad displays:

Select (0) < >

Program Code

This is the Program Code menu. Use the right arrow

(>) key to scroll though each display in the Program

Code menu. To select any menu item for program-

ming, press [*].

Program Code

If users will enter an access code to enter the building or

to use security system functions, program the 4- or 6-

digit access code for each user here.

1. When the keypad displays: “Select (0) Program

Code.” press [0] or [*].

2. The display will indicate “Enter Digits” followed by

“AAAA.” This is the default setting for the access

code. Enter four or six digits for the new code.

3. Press [#]. The display will return to “Select (0) Pro-

gram Code.” The new code has been programmed.

NOTE: Do not program access codes that can be easily

guessed and will compromise the security of your sys-

tem (e.g., 1111 or 1234).

Edit User Name

You must program a user name for each access code. To

program the user name:

1. From the Program Code menu, use the right arrow

(>) key to scroll to the following display:

Select (2) < >

Edit User Name

2. Press [2] or [*].

3. The display will read “Program Name.” For access

code 0002, the default name will be “User 2.” Enter

the new user name using the number keys in the fol-

lowing manner:

The letters of the alphabet have been divided up

among the 1 to 9 number keys on the keypad as fol-

lows:

[1] = A, B, C, 1 [2] = D, E, F, 2 [3] = G, H, I, 3

[4] = J, K, L, 4 [5] = M, N, O, 5 [6] = P, Q, R, 6

[7] = S, T, U, 7 [8] = V, W, X, 8 [9] = Y, Z, 9, 0

[0] = Space

For example, if you press the [4] key once, the letter

“J” will appear above the cursor on the display. Press

the [4] key again, the next letter “K” will appear, and

so on. If a different number key is pressed, the cursor

will automatically move to the right one space. To

erase a character, use the [<] [>] keys to move the cur-

sor under the character, then press the [0] key.

NOTE: If a user does not want their name listed on

the PC4850 display, but does want to have an access

code, you can put a “!” at the beginning of the user

name. To enter a “!”, press [*], then scroll to the mes-

sage “ASCII Entry”. Press [*], then enter [033*].

4. Once the new name has been entered, press [#]. The

display will return to “Select (2) Edit User Name.”

Access Code Label Options

There are other options available when programming

labels. When programming the label, press the [*] key for

the options menu. Use the arrow (< >) keys to scroll

through each option. Press the [*] key to select. The avail-

able options are:

•Clear Display: Selecting this option will clear the

entire code label.

•Clear to End: This will clear the display from the char-

acter where the cursor was located to the end of the

display.

•Change Case: This will toggle the letter entry between

uppercase and lowercase letters.

•ASCII Entry: This is for entering uncommon charac-

ters. Use the arrow (< >) keys to scroll through the

available characters. Each character will be displayed

along with the corresponding 3-digit ASCII number. If

you know the character’s 3-digit number, enter it.

Press the [*] key to enter the character into the code

label.

User Telephone or Telephone Line Number

Program the telephone number for each user. If you are

using the No Bill option, program the 3-digit telephone

line number provided by your telephone company

instead.

1. From the Program Code menu, use the right arrow

(>) key to scroll to the following display:

Select (5) < >

Phone N mber

2. Press [5] or [*].

3. Enter up to 12 digits for the telephone number. If you

are using the No Bill option, program the 3-digit tele-

phone line number provided by your telephone com-

pany instead.

If you need to program special characters into the

telephone number, you can do this using hexadeci-

mal digits. The following hexadecimal digits will

insert special characters into the telephone number:

NOTE: In the No Bill Option, programming of Hexa-

decimal digits is not allowed. Hexadecimal digits will

cause incorrect operation.

Special characters can be added to the telephone number

in order to perform designated functions. Press the [*] key

to enter the telephone entry options menu. The five

options are as follows:

[0] Save: This can be selected for the telephone num-

ber to be stored in the panel’s memory, or simply

press [#] when finished entering the telephone

number.

[1] Dial tone search: This character will force the

panel to search for a dial tone at that point in the

telephone number. A “D” on the display repre-

sents a dial tone search. A dial tone search is

already programmed as the first digit for each tele-

phone number.

[2] Pause 2 Seconds: This will add a 2-second pause to

the dialing sequence, represented by the letter “A”

on the display.

[3] Pause 4 Seconds: This will add a 4-second pause to

the dialing sequence, represented by the letter “E”

on the display.

[4] DTMF [*]: This will add an asterisk to the tele-

phone number, represented by a “B” on the dis-

play. The dialer will output the same frequencies

as the Touch-Tone [*] key. This character is fre-

quently required to disable call waiting.

[5] DTMF [#]: This will add a “#” to the telephone

number, represented by the letter “C” on the dis-

play. The dialer will output the same frequencies

as the Touch Tone [#] key. In some instances, this

character is used to disable call waiting.

4. When you are finished, press [#].

Tenant Code (Optional)

You can give visitors the option of entering a 4-digit code

on the keypad to call a user. To do this, enter the 4-digit

code for the apartment. If a user knows a visitor is com-

ing, they can give them the tenant code as a faster way to

call them.

1. From the Program Code menu, use the right arrow

(>) key to scroll to the following display:

Select (6) < >

Tenant Code

2. Press [6] or [*].

3. Enter up to 4 digits for the tenant code.

4. When you are finished, press [#].

Duplicate Entries

If the Duplicate Code toggle option is turned on in the

PC4020 programming, you will not be able to program

duplicate access codes. See your PC4020 Installation Man-

ual for more information.

NOTE: We recommend that users who have different

telephone numbers be given different tenant codes. If

you program more than one user with the same ten-

ant code, the PC4850 will only call the user who is first

in alphanumeric order. Visitors will not be able to call

any other user using that code.

You can program users with the same name. However,

if users have exactly the same name, visitors will not

be able to distinguish between them when scrolling

through the list of names.

3.6 Programming the Greeting Display

Ref #: [0017XX03], where XX = PC4850 module number

The greeting display is what the LCD screen will show

when the system is not being used. The greeting display

is two lines of 16 characters. To change the greeting dis-

play:

1. Enter [*][8][Installer Code].

2. Enter reference number [0017XX03], where XX is the

number of the PC4850 module.

3. Press [*].

4. Enter the new user name using the number keys in

the following manner:

The letters of the alphabet have been divided up

among the 1 to 9 number keys on the keypad as fol-

lows:

[1] = A, B, C, 1 [2] = D, E, F, 2 [3] = G, H, I, 3

[4] = J, K, L, 4 [5] = M, N, O, 5 [6] = P, Q, R, 6

[7] = S, T, U, 7 [8] = V, W, X, 8 [9] = Y, Z, 9, 0

[0] = Space

For example, if you press the [4] key once, the letter

“J” will appear above the cursor on the display. Press

the [4] key again, the next letter “K” will appear, and

so on. If a different number key is pressed, the cursor

will automatically move to the right one space. To

erase a character, use the [<] [>] keys to move the cur-

sor under the character, then press the [0] key.

5. To save the message, press [#].

3.7 Selecting Touch Tone or Pulse Dialing

Ref #: [0017XX00], where XX = PC4850 module number

The PC4850 can call users using either Touch-Tone or

pulse dialling formats. The default setting is for the

Touch-Tone format. To change the dialling format:

1. Enter [*][8][Installer Code].

2. Enter reference number [0017XX00], where XX is the

number of the PC4850 module.

3. Use the arrow (<>) keys to scroll until the display

shows:

DTMF Dialing

4. Press [*] to toggle the option on or off.

5. When you are finished, press [#].

3.8 Using the No Bill Option

Ref #: [0017XX00], where XX = PC4850 module number

Turn on the No Bill option if the PC4850 will use the

existing telephone connections in the building to call ten-

ants, and you have connected the PC4850 to a PC4851

unit. See section 2.8, “Connecting the PC4850 to a PC4851

(No Bill Option)”.

Do not turn on this option if the PC4850 will be using an

incoming telephone line to call tenants.

1. Enter [*][8][Installer Code].

2. Enter reference number [0017XX00], where XX is the

number of the PC4850 module.

3. Use the arrow (<>) keys to scroll until the display

shows:

No Bill

4. Press [*] to toggle the option on or off.

5. When you are finished, press [#].

3.9 Changing the Battery Supervision Option

Ref #: [0017XX00], where XX = PC4850 module number

You can choose to have the PC4850 supervise the battery.

If the PC4850 supervises the battery, it will send the

panel a battery trouble when the battery is low.

1. Enter [*][8][Installer Code].

2. Enter reference number [0017XX00], where XX is the

number of the PC4850 module.

3. Use the arrow (<>) keys to scroll until the display

shows:

Battery S prvs

4. Press [*] to toggle the option on or off.

5. When you are finished, press [#].

3.10 Setting the Talk Time, Door Time, Auxiliary

Relay, and the Call Time

Ref #: [0017XX01], where XX = PC4850 module number

You can change the settings for:

• length of time users can talk to visitors (Talk Time);

• length of time the door unlocks when a user presses [7]

on their telephone (Door Time);

• length of time for the auxiliary relay when a user

presses [9] on their telephone (Aux Rly Time).

Example: the auxiliary relay could control a gate to a

car entrance;

• the amount of time the PC4850 will wait for the user to

pick up the phone before canceling the call (Call Time).

To change any of these settings follow the steps below.

1. Enter [*][8][Installer Code].

2. Enter reference number [0017XX01], where XX is the

number of the PC4850 module.

3. To change the Talk Time, press [00].

To change the Door Time, press [01].

To change the Aux Rly Time, press [02].

To change the Call Time, press [03].

4. Enter the new 3-digit time for the timer you selected

(000-255 seconds).

5. Repeat steps 3 and 4 until you have programmed all

the timers.

NOTE: When using the No Bill option, the Call Time

should not be set for more than 60 seconds.

3.11 Setting up Access Codes for Two Building

Entry Points

Ref #: [0017XX02], where XX = PC4850 module number

The PC4850 can control two entry points (e.g., a door and

a car gate) using the door strike and the auxiliary relay

circuits. If the users will be using access codes to enter

the building, you can assign one set of codes to one entry

point and another set of codes to the second entry point.

To do this, tell the PC4850 what the last code will be for

the first entry point – this is the Entry Access Divider. For

example, if you set the divider to be 4999, codes from

0001 to 4999 will open the first entry point (e.g., the

building’s main door), and codes 5000 to 9999 will open

the second entry point (e.g., the car gate).

NOTE: With the setting (9999), none of the entry

access codes will open the 2nd entry point.

NOTE: When using the Entry Access Divider with a 6-

digit access code, only the first four digits of the

access code are used to determine which entry point

is unlocked.

To set the Entry Access Divider:

1. Enter [*][8][Installer Code].

2. Enter reference number [0017XX02], where XX is the

number of the PC4850 module.

3. Enter the 4-digit code that will be the divider

between the two access points. Valid entries are 0000

to 9999.

4. When you are finished, press [#].

3.12 Resetting to Factory Default Programming

You can reset all the PC4850 programming to factory

default settings.

To do this, create a temporary short on jumper J2 on the

PC4850 circuit board.

1. Power down the PC4850.

2. Create a short on J2.

3. Power up the PC4850.

4. Wait 10 seconds and remove the short.

NOTE: Cell phones shall not be programmed to allow

access.

Section 4: Testing and Troubleshooting

4.1 Testing the PC4850

Once the PC4850 is connected and programmed, test

each of its functions to make sure it is working correctly.

The PC4850 should work as described in section 3.1,

“How the PC4850 Works”.

4.2 Troubleshooting

The PC4850 should work correctly without the need for

adjustments. However, if you encounter problems get-

ting the unit to work, you can try adjusting the following

controls on the PC4850 circuit board. To adjust these con-

trols, first, remove power from the PC4850 (AC and bat-

tery power), then use a small screwdriver to change the

appropriate setting.

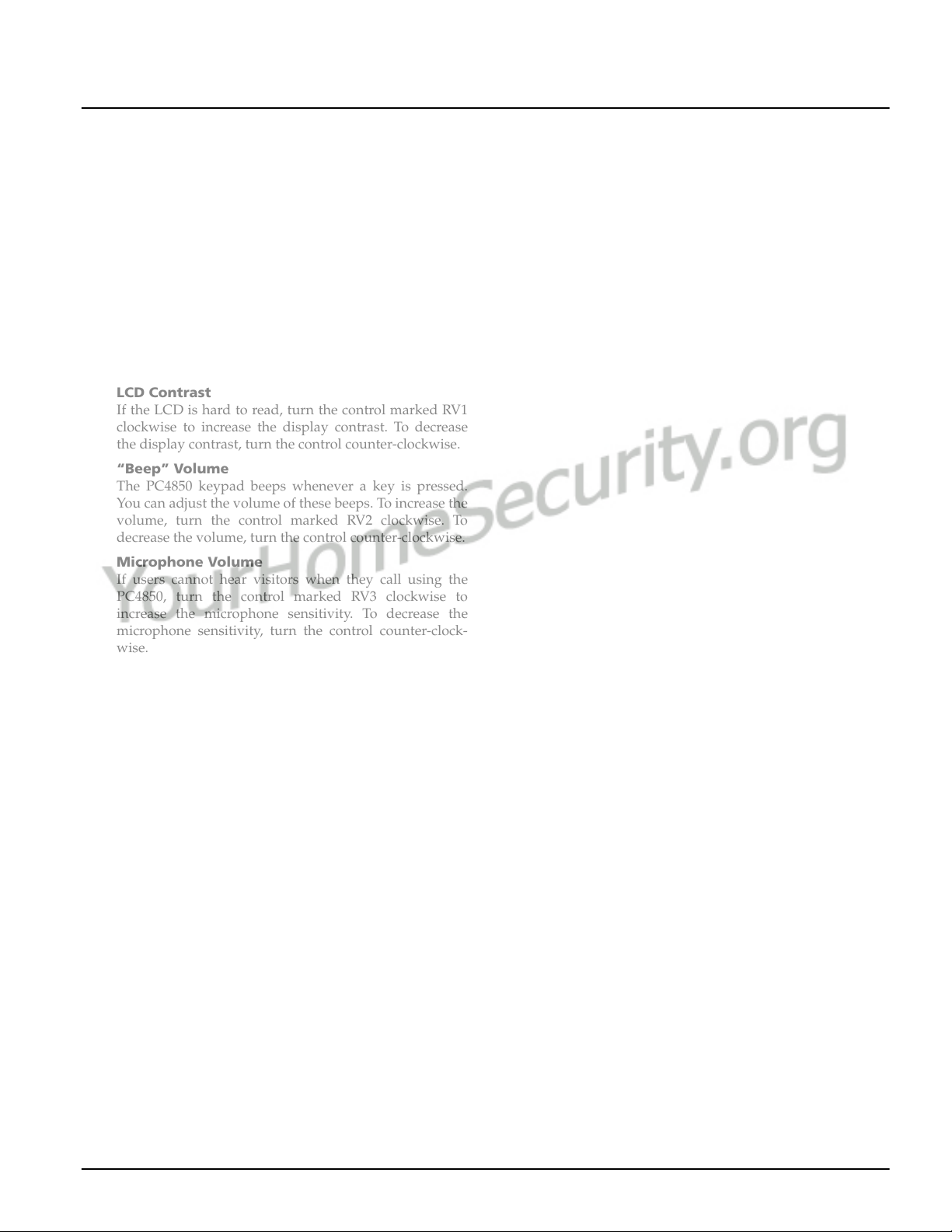

LCD Contrast

If the LCD is hard to read, turn the control marked RV1

clockwise to increase the display contrast. To decrease

the display contrast, turn the control counter-clockwise.

“Beep” Volume

The PC4850 keypad beeps whenever a key is pressed.

You can adjust the volume of these beeps. To increase the

volume, turn the control marked RV2 clockwise. To

decrease the volume, turn the control counter-clockwise.

Microphone Volume

If users cannot hear visitors when they call using the

PC4850, turn the control marked RV3 clockwise to

increase the microphone sensitivity. To decrease the

microphone sensitivity, turn the control counter-clock-

wise.

Pulse Dial Sensitivity

If the PC4850 does not unlock the door when a user dials

9 using a pulse dial telephone, turn the control marked

RV4 clockwise or counter-clockwise 1/10 of a revolution,

until the door unlocks when 9 is dialed.

Speaker Volume

If visitors cannot hear the user they are calling on the

PC4850, turn the control marked RV5 clockwise to

increase the speaker sensitivity. To decrease the speaker

sensitivity, turn the control counter-clockwise.

4.3 “System is Busy. Please Wait” Message

Whenever the system displays this message, visitors will

not be able to call users using the PC4850, but users will

still be able to enter the building using their access codes.

Postal workers will also be able to enter if a postal lock

has been installed.

If this message is displayed, check for a Telephone Line

Trouble. This trouble will occur when the outgoing tele-

phone line is disconnected from one or more units, or if

the telephone line is out of service. When the telephone

line is restored, the PC4850 will work normally. This

message is also displayed when another PC4850 current

has the line.

Section 5: Programming Worksheet

Record your PC4850 programming here.

5.1 PC4850 Toggle Options

DTMF Dialing: I_____I Default = Y

No Bill: I_____I Default = N

Battery Suprvs: I_____I Default = N

5.2 Miscellaneous Options

Default

Talk Time: 060 seconds I_____I_____I_____I

Door Time: 010 seconds I_____I_____I_____I

Aux Rly Time: 000 seconds I_____I_____I_____I

Call Time: 060 seconds I_____I_____I_____I

5.3 Entry Access Divider

I_____I_____I_____I_____I Default: [9999] Valid entries are 0000 to 9999.

5.4 Greeting Display

Default: [DSC Ltd.

MAXSYS]

Greeting Display: I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
