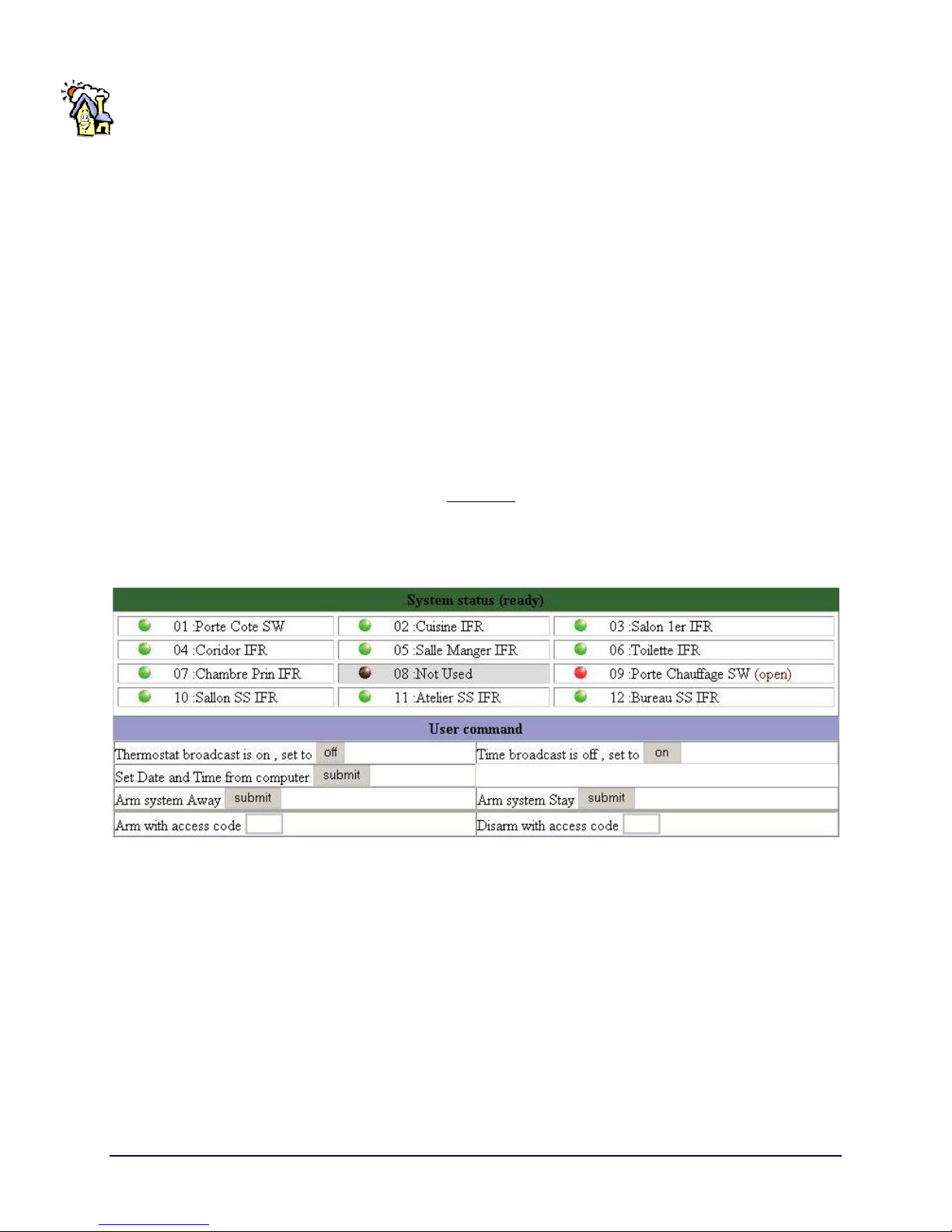

Figure 3 - DSC Web Page...........................................................................................................................15
Figure 4 - DSC Web log viewer..................................................................................................................16
Figure 5 - DSC Web Status line..................................................................................................................17

/5
CHANGE HISTORY
Change Description Date Version By
Manual creation 2005-01-15 1.0 Jocelyn B.
First general review and adding comments 2005-01-24 1.1 Gaetan L.
Formatting Gaetan comments and complete first release 2005-01-24 1.2 Jocelyn B.
Adding Compatibility information 2005-02-19 1.3 Jocelyn B.
Adding more commands information and making some corrections 2005-03-03 1.4 Jocelyn B.
Review and approval 2005-03-04 1.5 Gaetan L.
Text correction TBD 1.6 TBD
Document release with sample code TBD 2.0 TBD

DSC Alarm PC5401 Serial Module /1
1INTRODUCTION
That document present the integration between Misterhouse (MH) and DSC Alarm System via its
PC5401 serial module. This information and Perl code replace old code (code/public/dsc_pc5401.pl)
included in the MH release 2.97 posted on 01/23/2005.
Notes: Misterhouse can be reach at www.misterhouse.net and DSC Group can be
reach at www.dsc.com
Warnings: This document is our second release and some mistake can exist.
1.2 Compatibility
The PC5401 is compatible with the following PowerSeries control panels:
¾Power432™ PC580
¾Power632™ PC1555MX
¾Power832® PC5010/5015
¾Power864™ PC5020
® ™ - Certain product names mentioned herein may be trade names and/or registered trademarks of DSC and other companies.

DSC Alarm PC5401 Serial Module /2
2HARDWARE INSTALLATION
Warnings: Before installation of PC5401 Serial Module
¾Remove existing PC5400 Printer Module (With panel powered down)
¾Enable DSC Alarm Supervision (function 902)
¾Now install PC5401 Serial Module (With panel powered down)
¾Enable DSC Alarm Supervision (function 902)
2.1 PC5401 Serial Module
For all official specification read carefully DSC documentation. Remember by adding new composite in
your Alarm Panel require to calculate the Current Draw to calibrate de power requirement with panel
power supply. This board require: 35mA
Notes: Its recommended, that all DSC Alarm equipments installation must be done by an
authorize representative (Service Persons Only)
Warnings: Disconnect the AC power supply module and panel batteries before to install
the new card
2.1.1 Baud Rate Selection
¾BAUD selection can only be changed by cycling power to the module (Default: 9600 BAUD)
BAUD JP3 JP2 JP1
4800 ON ON Off
9600 Off Off Off
19200 ON Off ON
57600 ON Off Off
Table 1 - Baud Rate Selection

DSC Alarm PC5401 Serial Module /3
2.1.2 Module connection
DSC PC5401
Serial
DB9
KEYRXTXPWR
JP1
JP3
JP2
RED BLK YEL GRN
DSC Key Bus

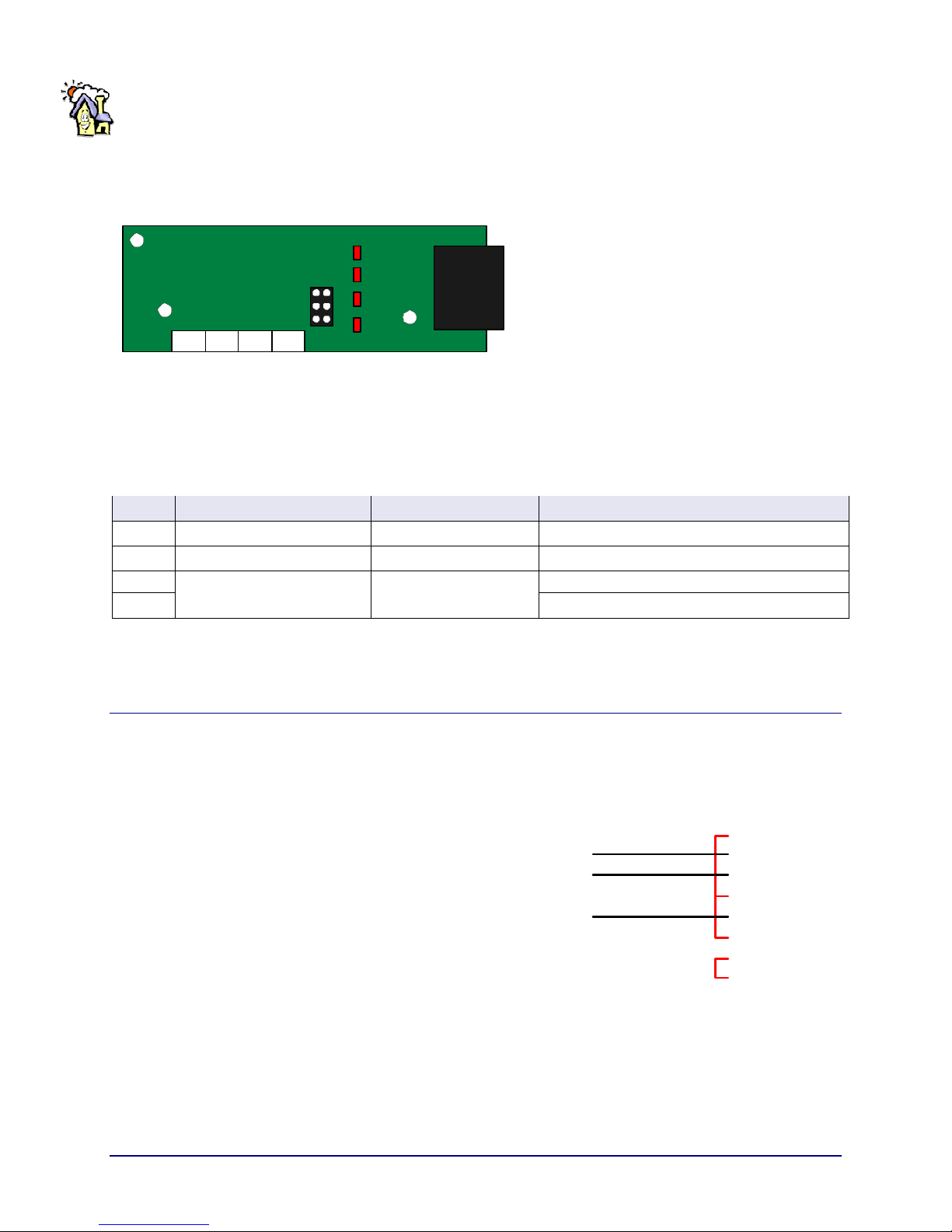

Figure 1 - PC5401 Board Component
¾Connect module to the KEYBUS
−With panel powered down
¾Select desired BAUD using JP1-3
−Default is 9600 Baud
¾Connect an RS-232 cable to the application
¾Power up the system
2.1.3 LEDs Indicator
LED Description Normal Operation Notes
KEY KEYBUS Link Active GREEN Solid
PWR Module Status RED Flashing (2 seconds) Solid RED: The module is NOT operating properly
RX
TX Serial Communication Activity Flashing when Receive
and transmit data
Table 2 - LEDs Indicator
2.2 Serial Cable
¾DSC PC5401 Side
−2 Red (TX)
−3 Black (RX)
−5 Yellow (SG)
−1-4-6-7-8-9 NC
¾PC (x86) Side
−1-6-4 Jump (DCD, DSR et DTR)
−7-8 Jump ensemble (CTS et RTS)
−9 NC (RI)
−2 Red (RX)
−3 Black (TX)
−5 Yellow (SG)
(NC = No Connect)
SG -PIN
DCD -1
RX -2
TX - 3
DTR -4
SG -5
DSR -6
RTS -7
CTS -8
RI-9
PIN -SG
1 -DCD
2 - RX
3 - TX
4 - DTR
5 - SG
6 - DSR
7 - RTS
8 - CTS
9 - RI
PC5401
DB9 - Male PC (x86) DB9 - Male
Figure 2 - Serial Cable

DSC Alarm PC5401 Serial Module /4
3MISTERHOUSE INTEGRATION
To integrate PC5401 into Misterhouse (MH), first configure properly MH.PRIVATE.INI and begin your
personal code with the following example files.
Copy both in your personal MH code directory (ex.: /mh/code/mycode).
¾DSC5401.pm: This module is heart of all functions between the DSC Alarm panel and MH, this will
provide DSC status and manage communications.
¾DSC5401_example.pl: This one his example for your personal code, this had 2 sections.
−The 1st section present example code.
−The second example section is web-based event.
¾DSC5401_web.pl: This will provide a web interface with zone Status, etc. We explain later how to
install this file. For the moment you can copy this file in MH->Web->Bin directory (ex.:
/mh/web/bin)
Some of them are needed to trigger specific event, like thermostat broadcast etc. The card allow mainly
passive event (no user intervention), so it listen to the serial port for information provided by the card.
The module will change state regarding the information receive
3.1 MH.PRIVATE.INI Configuration
There is much information in the mh.private.ini file. These allow getting a better way to display events
information, every zone and user partition.
The mh.private.ini configuration specifications are:
¾User number need 4 digit to define them "9999"
¾Zone number need 3 digit "999"
¾Partition number need 1 digit "9"
¾3 parameters are required to tell interface specification configuration and module start-up name
¾And 5 parameters to tell which information you want to put in the log file.
Description Syntax Option
Module start-up name DSC_5401_module=DSC5401 None
Define which serial port for interfacing PC5401 in MH. DSC_5401_serial_port=/dev/ttyM5
Specify the communication speed. DSC_5401_baudrate=XXXX

DSC Alarm PC5401 Serial Module /5
If you enable it, DSC alarm broadcast his time every 4 minutes,
see command table (056) and message table for (550) events.
¾Note: this Option must be activate, by default is Off DSC_5401_time_log=X On/Off (1,0)
If you have the escort module, it will write in the log when a
phone ring is detected, see message table for (560) event. DSC_5401_ring_log=X On/Off (1,0)
If you enable it, DSC Thermostat broadcast his temperature
every 1 minutes
¾Note: this Option must be activate, by default is Off DSC_5401_temp_log=X On/Off (1,0)
DSC_5401_part_log=1 If you want to see partition status (even
when alarm is no on)
DSC_5401_part_log=X On/Off (1,0)
DSC_5401_zone_log=1 if you want to see zone status
DSC_5401_zone_log=X On/Off (1,0)
3.1.1 MH.PRIVATE.INI Configuration File Example
Section MH.PRIVATE.INI Parameters
DSC_5401_module=DSC5401
DSC_5401_serial_port=/dev/ttyM5
Setup
DSC_5401_baudrate=9600
DSC_5401_time_log=1
DSC_5401_ring_log=1
DSC_5401_temp_log=1
DSC_5401_part_log=1
Options
DSC_5401_zone_log=1
DSC_5401_part_1=Home
Partitions
Definition DSC_5401_part_2=Garage
DSC_5401_user_0001=Mary
DSC_5401_user_0003=Tom
Users
Definition DSC_5401_user_0040=MisterHouse
DSC_5401_zone_001=Front Door Contact
DSC_5401_zone_002=Side Door Contact
DSC_5401_zone_003=Upstair Motion Detector
DSC_5401_zone_004= Basement Motion Detector
Zones
Definition
DSC_5401_zone_005=First Floor Motion Detector

DSC Alarm PC5401 Serial Module /6
3.2 DSC Serial Module Perl Library
To enable PC5401.pm file (Generic Function and communication setup) you have to put the following 2
lines in a "MyPersonalNewCode.pl" file.
use DSC5401
$DSC= new DSC5401;
All most information we can get from your example code is:
¾Zone status
¾Partition status
¾Trigger some information broadcast like Time and Temperature (required Escort module and
thermostat)
¾Arm, Disarm, Alarm and which user
The PC5401.pm modules provide 2 ways to query the panel or zone status. The first (1) is by query a
Functions and the second is by query a Variables. All these are create and maintain up-to-date by this
module.
3.2.1 Functions Values Access
All functions are the most frequently used or important for MH users. When the specific function is used
they will return the element content.
Syntax:$DSC->function(optional)
Examples:
$DSC->zone_now
$DSC->status_zone(1)
Notes: A function doesn’t use opening and closing brace in command line and the optional
information must pass between opening and closing parenthesis for the syntax format.

DSC Alarm PC5401 Serial Module /7
The following tables show all Functions names can be query in your code:
Functions Short Description Result
$DSC->zone_now Return Zone number in the current pass 3
$DSC->zone_now_msg Return message about zone in the current pass Zone Alarm
$DSC->zone_now_status Return the current zone state open, close, Alarm, etc.. in
the current pass Alarm
$DSC->zone_now_open Return which zone number in open state, inside the MH
current pass 3
$DSC->zone_now_restore Return which zone number in restore state, inside the MH
current pass 3
$DSC->zone_now_tamper Return which zone number in tamper state, inside the MH
current pass 3
$DSC->zone_now_tamper_restore Return which zone number in restore state, inside the MH
current pass 3
$DSC->zone_now_alarm Return which zone number in alarm state, inside the MH
current pass 3
$DSC->zone_now_alarm_restore Return which zone number in alarm state, inside the MH
current pass 3
$DSC->zone_now_fault Return which zone number in alarm state, inside the MH
current pass 3
$DSC->zone_now_fault_restore Return which zone number in alarm state, inside the MH
current pass 3
$DSC->zone_name(1..64) Return zone name Kitchen
$DSC->zone_msg(1..64) Return last message about zone number ?
$DSC->status_zone(1..64) Return current zone state Open, Close, etc.
$DSC->partition_now(1..4) ? in the current pass ?
$DSC->partition_now_msg(1..4) ? in the current pass ?
$DSC->partition_name(1..4) Return partition name House
$DSC->user_name Return user name Mary
$DSC->user_id Return user number 0001
$DSC->IntTstat(1..4) Return the current Internal thermostat temp, the number is
the thermostat number 21 F or C
$DSC->ExtTstat(1..4) Return the current External thermostat temp, the number
is the thermostat number 17 F or C
$DSC->cmd_list List possible command
Table 3 - MH DSC functions

DSC Alarm PC5401 Serial Module /8
3.2.2 Variables Values Access
A variable can be used to get access to DSC values, which are not available by using a function.
Syntax:$DSC->{VariableName}{optional}
Examples:
$DSC->{zone_now}
$DSC->{status_zone}{1}
Notes: A DSC variables and its optional information must use with an opening and closing
brace in the command syntax.
The PC5401.pm module working with two (2) types of variables:
¾The fist, we call then Now_Variables contains actual value before the MH pass is finish.
¾The second is Status Variables; these will contains the value after the MH Pass is finished.
How it’s work:
¾$DSC->{zone_now} ==> $DSC->{zone}{3}
¾$DSC->{zone_now_msg} ==> $DSC->{zone_msg}{3}
¾$DSC->{zone_now_status} ==> $DSC->{zone_status }{3}
After these variables are reset to Null Value:
¾Unset $DSC->{zone_now}
¾Unset $DSC->{zone_now_msg}
¾Unset $DSC->{zone_now_status}
If you query the Now_Variable in the second pass they will return empty space or nothing, except if something
new append and so fort.
The following tables show all Variables_Names can be query in your code:
Variables Short Description
$DSC->{zone_now}
$DSC ->{zone_now_msg}
$DSC ->{zone_now_status}
$DSC ->{zone_now_alarm}
$DSC ->{zone_now_fault}
$DSC ->{zone_now_fault_restore}

DSC Alarm PC5401 Serial Module /9
$DSC ->{zone_now_open}
$DSC ->{zone_now_restore}
$DSC ->{zone_now_tamper}
$DSC >{zone_now_tamper_restore}
$DSC ->{zone_cmd}{1..64}
$DSC ->{zone_msg}{1..64}
$DSC ->{zone_status}{1..64}
$DSC ->{zone_time}{1..64}
$DSC ->{zone_epoch}{1..64}
$DSC ->{partition_now}
$DSC ->{partition_now_cmd}
$DSC ->{partition_now_msg}
$DSC ->{partition_now_mod}
$DSC ->{partition_now_status}
$DSC ->{partition}{1..4}
$DSC ->{partition_cmd}{1..4}
$DSC ->{partition_msg}{1..4}
$DSC ->{partition_status}{1..4}
$DSC ->{partition_time}{1..4}
$DSC ->{partition_epoch}{1..4}
$DSC ->{ring_time}
$DSC ->{ring_epoch}
$DSC ->{ExtTstatTemp_now}
$DSC ->{ExtTstatTemp_now_number}
$DSC ->{IntTstatTemp_now}
$DSC ->{IntTstatTemp_now_number}
Table 4 - MH DSC Variables
3.2.3 Command List and Data Format
Its possible to send a few commands to the DSC alarm the following show the syntax and the table
specify which commands are available.
Syntax:$DSC->cmd("Command",Send_Value)
Example:

DSC Alarm PC5401 Serial Module /10
$DSC->cmd("PartitionArmControl",1)
$DSC->cmd("PartitionArmControlWithCode","1","9999")
(9999 - must be replace by an active Alarm Access Code)
Notes: Is some case the Alarm Access Code must be supply with the desired command.
For more description about all commands refer to DSC PC5401 Developer’s Guide.
Name Number Data Length Data Format
Poll 000 0
StatusReport 001 0
SetDateTime 010 10 hhmmMMDDYY
CommandOutputControl 020 2 ?
PartitionArmControl 030 1 Partition (1-8)
PartitionArmControlStayArm 031 1 Partition (1-8)
PartitionArmControlZeroEntryDelay 032 1 Partition (1-8)
PartitionArmControlWithCode 033 7 Partition (1-8)+Code(6 digit)
PartitionDisarmControl 040 7 Partition (1-8)+Code(6 digit)
VerboseArmingControl 050 1 On/Off (1,0)
TimeStampControl 055 1 On/Off (1,0)
TimeBroadcastControl 056 1 On/Off (1,0)
TemperatureBroadcastControl 057 1 On/Off (1,0)
TriggerPanicAlarm 060 1
Fire (1)
Ambulance (2)
Police (3)
CodeSend 200 6 Access Code(6 digit)
Table 5 - Command List and Format
3.3 Perl Programming
3.3.1 Basic Example
Code Example Descriptions
If ( my $ZoneEvent = $DSC->zone_now ) {
print_log "DSC->zone_now $ZoneEvent";
}
This will be trigger the zone status

DSC Alarm PC5401 Serial Module /11
if ( $DSC->zone_now =~ /FrontDoor/ && $DSC-
>status_zone('012') eq "open" ) {
Speak("Front Door is open");
}
This will monitor zone 12 for open state and calling an external
voice function.
if ( my $PartState = $DSC->partition_now ) {
print_log "DSC->partition_now $PartState";
}
This will be trigger the Partition status
If ( my $AlarmState = $DSC->state_now ) {
print_log "DSC->state_now Alarm system is now
$AlarmState";
}
This will be trigger the Alarm state
if ( $DSC->state_now =~ /^disarmed/ && $DSC->user eq
"Mary") {
Speak("Hello Mary");
}
This will monitor User Mary when she disarm the panel and
calling an external voice function.
3.3.2 Putting All Together
All this files are create in your personal code directory.
3.3.2.1 DSC Start-up Code
# Category=Alarm
#@ Starting DSC Alarm serial module
if ($Startup||$Reload)
{
use DSC5401;
# DSC5401 startup
$DSC = new DSC5401;
}
Filename: DSC5401startup.pl
¾This code activate the DSC5401.pm
module, wich create all variables, functions
and ensure the DSC Panel communication
with MH.

DSC Alarm PC5401 Serial Module /12
3.3.2.2 DSC Zone Monitoring for Lightning Controls
# Category=Alarm
#@ DSCMotion.pl version 1.0,
#@ Motion detection and automatic light controls
#---------------------------------------------------------------------------------------
if ($Startup||$Reload) {
print_log "Starting DSC motion module...";
#--- Define Timers Variables
$IR_Room_1_Timer = new Timer();
$IR_Room_2_Timer = new Timer();
# And so one for others timers Creation….
my $State_Light = "";
} #--- End of Reload or Startup
#---------------------------------------------------------------------------------------
#-- Start light motion control
if ($Dark eq 1) {
#--- Execute Zone Motion with Light
#--- Room 1
if ($DSC->{zone_status}{10} eq "open") {
$State_Light = state $Light_Room_1;
if ($State_Light eq OFF) {
set $Light_Room_1 -40 if time_between($Time_Sunset,"23:59");
set $Light_Room_1 -50 if time_between("00:00",$Time_Sunrise);
}
if (active $IR_Room_1_Timer) {
unset $IR_Salon_SS_Timer;
}
set $IR_Room_1_Timer 300 if time_between($Time_Sunset,"23:59");
set $IR_Room_1_Timer 200 if time_between("00:00",$Time_Sunrise);
}
# And so one for others Light Controls/Timers….
#---------------------------------------------------------------------------------------
#--- Closing Light with when Timeout
if ($New_Minute) {
if (expired $IR_Room_1_Timer) {
set $Light_Room_1 OFF if time_between($Time_Sunset,"19:00");
set $Light_Room_1 if time_between("00:00",$Time_Sunrise);
Filename: DSCmotion.pl
This module will controls your light
in accordance with your alarm
motion detector or door contact.

DSC Alarm PC5401 Serial Module /13
}
# And so one for others Timers Expiration/Closing Lights….
} # New minutes for Timers
#---------------------------------------------------------------------------------------
} #--- If Dark
3.3.2.3 DSC Panel State Monitoring
# Category=Alarm
#@ This module take care when an alarm situation append
if ($Startup||$Reload) {
print_log "DSC Alarm Controls Statup...";
my $text = "";
my $alarm_previous_state = 0;
}
if ($alarm_previous_state == 0 && $DSC->{partition_status}{1} =~ /alarm/){
print_log "DSC WARNING: $DSC->{partition_status}{1}";
$text = "DSC ALARM, $DSC->{partition_status}{1} in Zone $DSC-
>{zone_now_alarm} $Date_Now $Time_Now";
&alarm_page("$text");
$alarm_previous_state = 1;
}
if ($alarm_previous_state && $DSC->{partition_status}{1} =~ /desarmed/){
print_log "DSC Return State: $DSC->{partition_status}{1}";
$text = "DSC Return State to $DSC->{partition_status}{1} $Date_Now
$Time_Now";
&alarm_page("$text");
$alarm_previous_state = 0;
}
if ($alarm_previous_state && $DSC->{partition_status}{1} =~ /ready/ ){
print_log "DSC Restored: $DSC->{partition_status}{1}";
print_log "---> By: $DSC->{user_name} ($DSC->{user_id})";
$text = "DSC Alarm Restored by $DSC->{user_name} ($DSC->{user_id})
$Date_Now $Time_Now";
&alarm_page("$text");
$alarm_previous_state = 0;
}
if ($DSC->{partition_cmd}{1} >= "800"){
print_log "DSC Healthy Problems....";
$text = "DSC Healty Problems, Please verify... $Date_Now $Time_Now";
Filename: DSC_Alert_Controls.pl
This module can send e-mail to your
working e-mail or on your PCS
phone when an Alarm append or
panel fault is detected.

DSC Alarm PC5401 Serial Module /14
&alarm_page("$text");
}
#---
# Subroutine to send a page / pcs message, etc.
sub alarm_page {
my ($text2) =@_;
net_mail_send(from => "MyDSCpanel\@MyDomain.org", to =>
"MyWokingEmal or PCS Phome\@ProviderDomain.org",
text => $text2, subject => "DSC(849JP) $DSC->{partition_status}{1}");
speak(mode=>'unmuted', volume=>100, rooms=>'all', text=>"DSC Alarm
Panel Said $text2");
}
3.4 WEB Interface
3.4.1 Configuration
¾Copy this file DSC5401_web.pl to /usr/local/mh/web/bin
¾Modify this file /usr/local/mh/web/my_mh/menu.html with the following code:
<base target='output'>
<table height='100%' border='0'>
<tbody>
<td valign='top' align='left' width='100%'>
……
<a href='/bin/DSC5401_web.pl'><img src='/bin/button.pl?DSC Alarm' border='0'></a><br>
</td>
</tbody>
</table>

DSC Alarm PC5401 Serial Module /15
3.4.2 DSC WEB Interface
The following DSC Panel Dashboard show:
¾The top green banner show the panel status
−Green for Ready status
−Orange for Armed status
−Y
Y
Ye
e
el
lll llo o
ow
w
wfor Trouble status
−Red for Alarm mode
¾After the Zones areas
−Green dot for close zone
−Red dot for open zone
−Black dot with grey background for undefined zone in mh.private.ini file.
¾And command area
−These sections enable you to Arm and Disarm the DSC panel.
Figure 3 - DSC Web Page
¾The next part presents the alarm activity, which are logs in /mh/data/logs directory.
