1
CHAPTER 1
INTRODUCTI
ON
The motherboard is designed to support the latest PCI (Peripheral Component
Interconnect) local bus standard. It is developed around the pentium
microprocessor (P54C) with 64-bit access to data transfer, and integrated with the
I/O chip (W83877F), Sound System (ESS1868), VGA Controller (SiS 5596), and
PCI IDE Master/Slave Controller (SiS 5513) to form a high performance and cost-
effective computer system.
1.1 GENERAL SPECIFICATION
Processor
?? Intel Pentium P54C series, P55C series.
?? Cyrix 6x86, Cyrix 6x86L; AMD-K5 and AMD-K6 series 64-bit
microprocessor.
?? The mainboard can run with following speeds:
75, 90, 100, 110, 120, 133, 150, 166, 200 and 233 MHz
Chipset
?? SiS 5596 PCI, Memory and VGA Controller
?? SiS 5513 PCI System I/O
?? Winbond W83877F Super I/O Controller
?? ESS ES1868 Audio-Drive Sound Controller
Cache Size
?? Built in 256KB or 512KB Sychronized Pipelined Burst Mode SRAM
to achieve the high Pentium system performance.

2
2

Introduction
3
Main Memory
?? Mainboard can decode the DRAM space up to 512MB, possible
memory configurations are from combination of 256K*36 to
16M*36 double side SIMM module (32-bit non-parity 72-pin SIMM
module also available).
?? Support both Fast Page Mode and Extended Data Output (EDO) Mode
DRAM Modules.
?? Hidden DRAM Refresh for higher system performance.
Graphics Controller
?? Built-in an enhanced 64-bit BITBLT graphics engine with VGA feature
connector on board.
?? PCI 2.1 compliance, and PCI multimedia design Rev 1.0 support
?? Support DCI Drivers and Direct Draw Drivers.
Multi I/O
?? On board Multi-I/O supports two serial, one parallel ports and floppy
drive controller.
?? Serial ports are 16550 Fast UART compatible.
?? Parallel port has EPP and ECP capabilities.
?? External PS/2 Mouse Cable is provided.
?? Optional PS/2 keyboard and PS/2 mouse connector is provided.
?? Optional IrDA or Fast IR is provided.

Chapter 1 4
PCI IDE
?? On board supports PCI Master IDE Controller, two connectors support
up to four IDE devices such as HDD, CD ROM drive and Tape Back-up
drives, etc.
?? PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O
datatransfer rate can be up to 17Mb/s.
Sound Controller
?? Compatible with all major PC sound standards, including Sound
Blaster?Pro, MPU-401 and Windows Sound System?.
?? Plug-and-Play support for Audio, Joystick, FM Controller, MPU-401.
?? Wave Audio support sample rates from 4KHz to 44KHz.
?? Full-duplex monophonic mode, half-duplex stereo mode.
?? Optional 3D stereo sound effect supported (for GOI-600D and GOI-
600DW).
?? Optional wavetable support (for GOI-600DW).
System BIOS
?? Award/AMI BIOS (128KB Flash EPROM).
Slots
?? Four PCI slots
?? Three ISA slots

Introduction
5
Board
?? 4 Layers
Form Factor
?? 220mm (W) x 270mm (L)

Chapter 1 6
1.2 MAINBOARD COMPONENTS
This section gives a brief description of key components on the mainboard.
Please refer to Fig. 1a and Fig. 1b for components location.

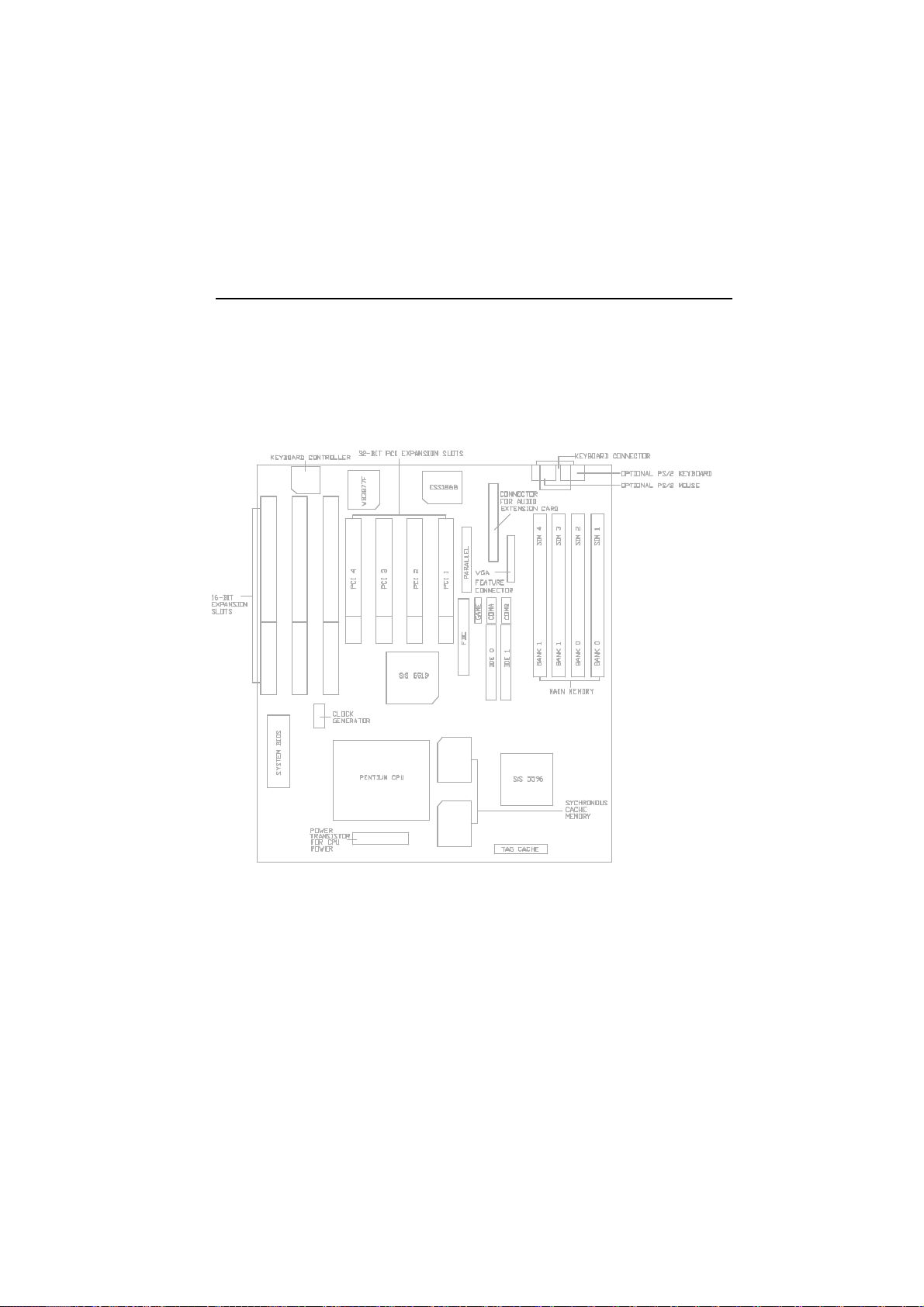

Fig. 1a Key Components of the Mainboard

Introduction
7

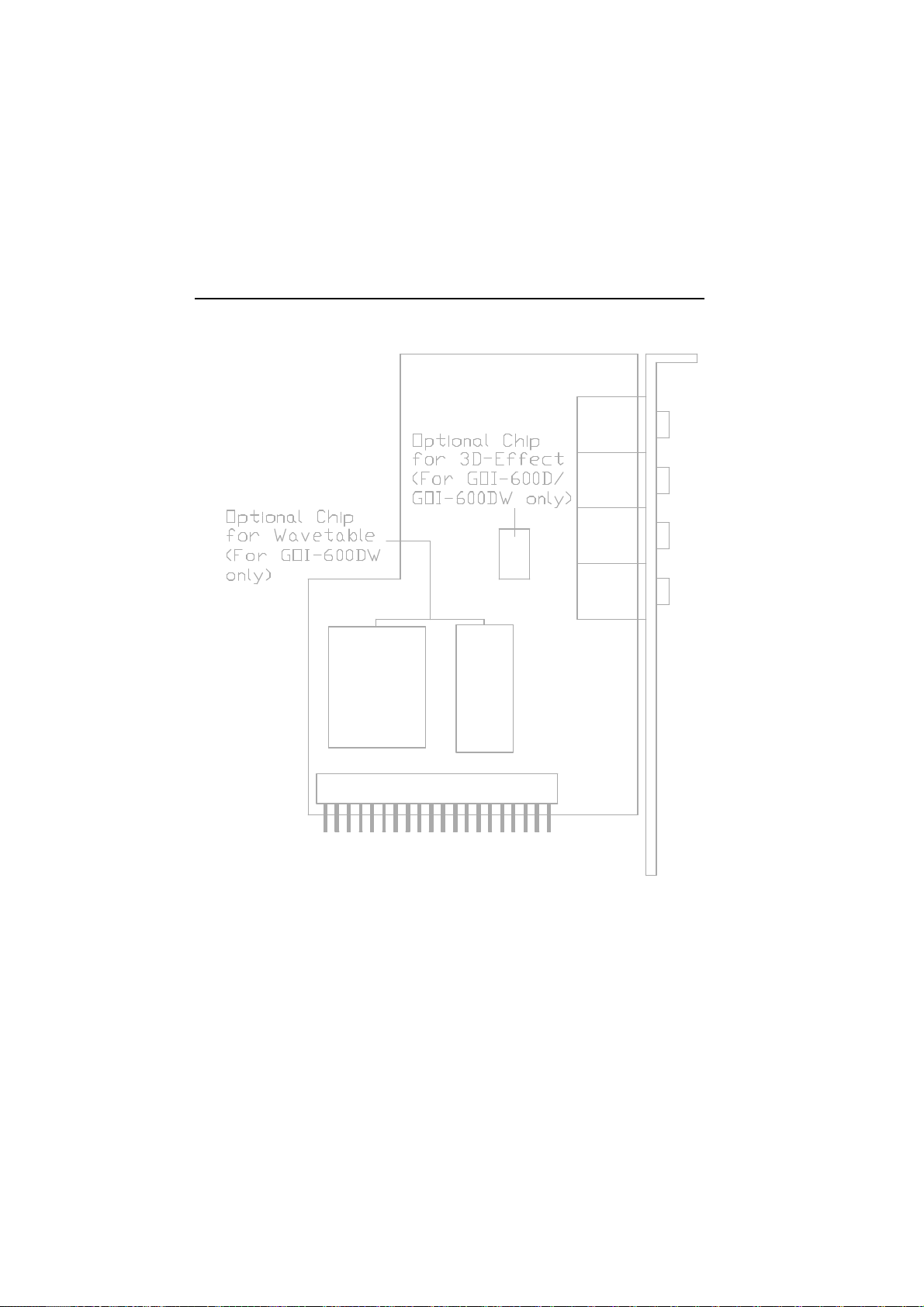

Fig. 1b Key Components of the Audio Extension Card (Optional)

Chapter 2 8
CHAPTER 2 MEMORY
CONFIGURAT
ION
2.1 SYSTEM MEMORY
The mainboard lets user add system memory via SIMM sockets on the
mainboard. On-board memory is located in two banks: Bank 0 -SIM1 &
SIM2, and Bank 1 -SIM3 & SIM4.
Both single sided and double sided DRAM modules are supported. The
mainboard can edcode the DRAM space from 8MB up to 512MB.
Bank 0
(SIM1/SIM2) Bank 1 (SIM3/SIM4)
Single None
None Single
Single Single
Single Double
Double Single
Double None
None Double
Double Double
Table 1: Memory Configuration
Note: Single means single side SIMM.
Double means double side SIMM.
The type of SIM1/SIM2 must be same.
The type of SIM3/SIM4 must be same.

9
Both 36 bits and 32 bits (non-parity) SIMM are supported, and user can
install either 4/8/16/32/64/128MB SIMM (72-pin) in each SIMM socket.
SIMM speed required for best performance depends on the CPU speed,
which requires 70ns SIMM.
2.2 CACHE MEMORY CONFIGURATION
256KB or 512KB secondary cache system is built in with Pipeline Burst
SRAM:
Cache Tag RAM Location: U7
Size of the Tag RAM: 16Kx8 or 32Kx8
Synchronous Pipeline Burst SRAM Location: U32, U33
Cache Size Tag RAM
(U7) Data RAM U32, U33
256K 16Kx8
or 32Kx32
512K 32Kx8 64Kx32
Table 2: Secondary Cache Configuration

Chapter 3 10
CHAPTER 3 JUMPER
SETTINGS
AND
CONNECTOR
S
3.1 CPU TYPE
3.1.1 INTEL PENTIUM CPU
The pentium processors have different operation voltage. In order to using
the CPU Voltage correctly, the following is the marking for identify the
CPU type.

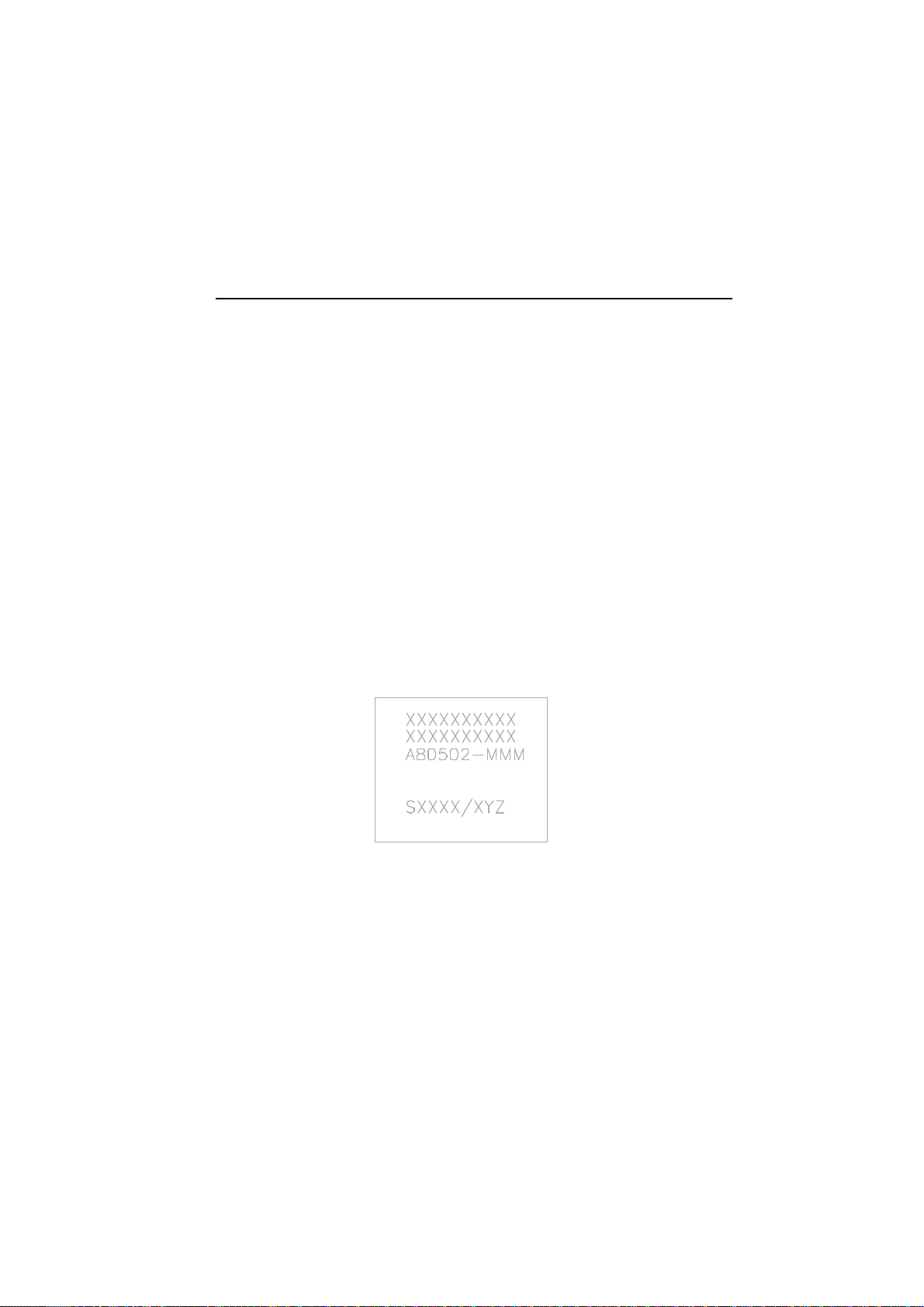

Fig. 2a CPU Description
(Bottom Side)
Description :
X = Voltage Specification (S or V)
S = Standard Voltage (3.4V)
V = VRE 3.4-3.6V (3.5V)
Y = Timing Specification (S or M)

11
S = Standard EDS timings
M = Min Valid Delay Spec.
Z = Dual Processing Support ( S or U)
S = Support DP/MP/UP
U = Not tested to support DP

Chapter 3 12
3.1.2 INTEL PENTIUM w/ MMX?TECH (P55C) CPU
The Intel Pentium w/ MMX?Tech (P55C) CPU is offered with dual
voltage supply -2.8V for core and 3.3V (I/O) interface. The following is

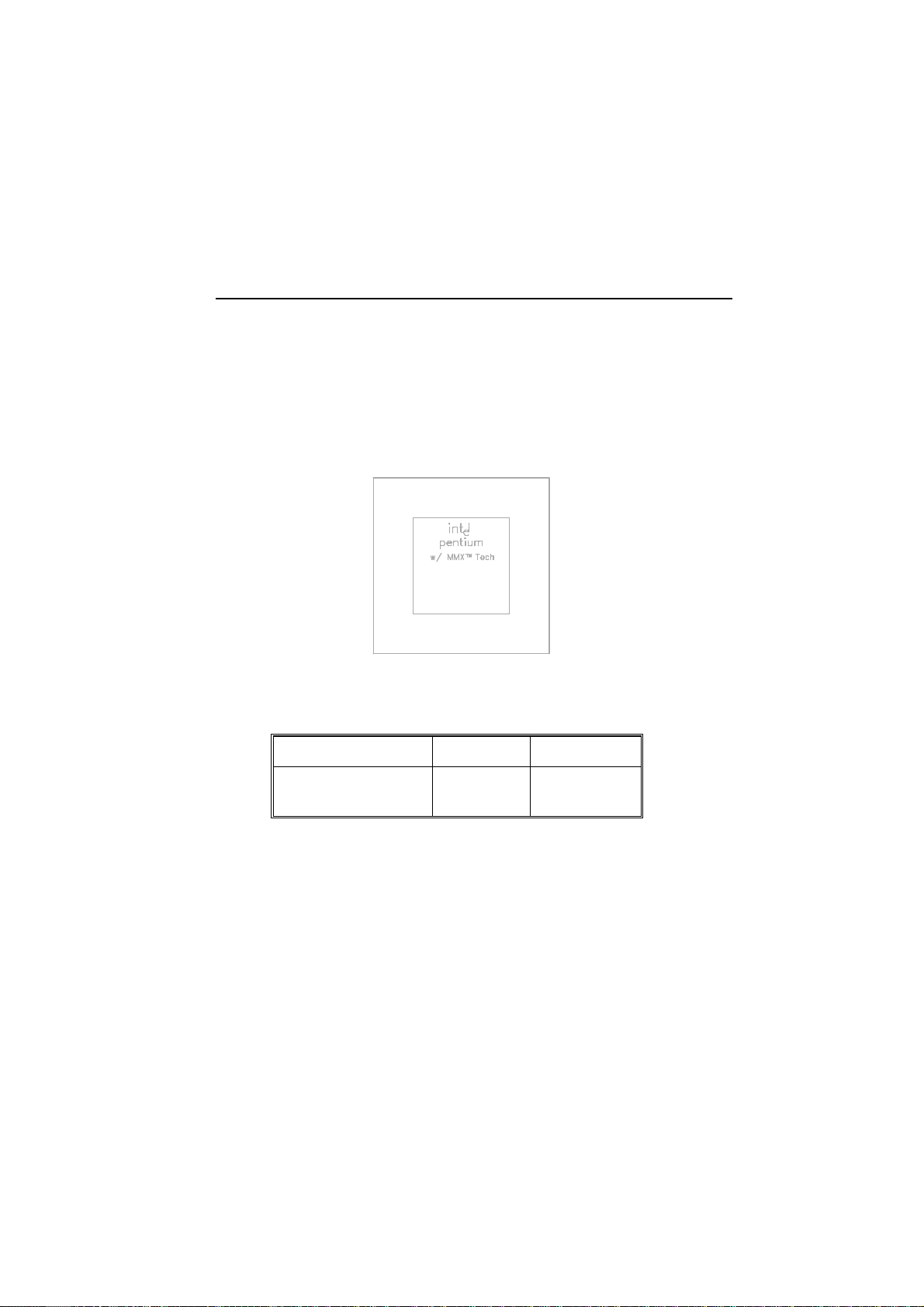

the marking for identify the CPU type. (The following diagram is provided
as an example only. It does not necessarily indicate a valid product
marking.)
Fig. 2b CPU Description
(Top Side)
I/O Voltage
Core Voltage
Intel Pentium w/
MMX?Tech (P55C)
3.3V 2.8V
