DTK PAM-0067V E1 User manual

PAM-0067V E1
High Performance
Pentium PCI Mainboard
User’s Guide
Edition 3.00
©1999 DTK Computer, Inc.
P/N: 155100-8783

I
WARNING
For the system to operate normally, please make sure JP7 of the mainboard is set as below. Refer
to Fig. 3 in this manual for the location JP7.
If JP7 is shorted to 2-3, no CMOS data can be retained.
Notice the JP12 should be selected properly for power type before power on. Please reference
to the Quick Guide. And the BIOS setup also set to the correct power type used.
CAUTION
The motherboard is an electrostatic sensitive device. Don’t open or handle except at a static-
free workstation.
POWER OFF
It needs to hold the power switch 4 seconds to turn off the power if ATX power supply used.
Windows, MS-DOS, and MS Word are trademarks of Microsoft Corporation.
Novell, Netware are trademarks of Novell, Inc.
PC, AT, PC-DOS, OS/2 and Presentation Manager are trademarks of IBM Corporation.
Pentium is registered trademark of Intel Corp.
UNIX is the trademark of AT&T.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
The information presented in this publication has been carefully checked for reliability; however,
no responsibility is assumed for inaccuracies, whereas, specification is subjected to change
without notice.
1 2 3
JP7

II
CONTENTS
CHAPTER 1 INTRODUCTION 1
CHAPTER 2 JUMPER SETTINGS 5
2.1 JUMPERS PRESENTATION 5
2.2 CPU TYPE 5
2.2.1 INTEL PENTIUM CPU 5
2.2.2 INTEL PENTIUM w/ MMXTECH (P55C) CPU 6
2.2.3 AMD-K6/K6-2/K6-III CPU 6
2.2.4 AMD-K5 CPU 7
2.2.5 CYRIX 6x86 CPU 7
2.2.6 CYRIX 6x86L CPU 8
2.2.7 CYRIX 6x86MX/M II CPU 8
2.2.8 IDT WinCHIP C6/W2 CPU 9
2.3 GRAPHICAL DESCRIPTION OF JUMPER SETTINGS 10
2.4 CPU VOLTAGE 11
2.4.1 CPU VOLTAGE AUTO SELECTION 11
2.4.2 CPU VOLTAGE BIOS SELECTION 11
2.4.3 CPU VOLTAGE MANUAL SELECTION 12
2.5 CPU BUS FREQUENCY RATIO (SW1-5,6,7) 13
2.6 CPU EXTERNAL (BUS) FREQUENCY SELECTION (SW1-8,9,10) 13
2.7 CHIPSET BUS CLOCK SETTING (JP9, JP10) 13
2.8 CPU SPEED 13
2.9 JP5 - VOLTAGE SELECTION FOR SYSTEM ROM 15
2.10 JP7 - CLEAR CMOS DATA 16
2.11 JP2 - ONBOARD VGA SELECT 17
2.12 JP6 - ONBOARD AUDIO SELECT (OPTIONAL) 17
2.13 JP8, JP11 SDRAM CLOCK SETTING 17
2.14 JP12 - POWER SUPPLY SELECTION 18
2.15 JP3, JP13 – KEYBOARD WAKE-UP/PASSWORD 18
2.16 JP4 – CPU OVERHEAT ALARM 18
2.17 MEMORY CONFIGURATION 19
2.18 VIDEO MEMORY CONFIGURATION 20
CHAPTER 3 CONNECTOR CONFIGURATION 21
3.1 J1 – MULTIPLE FUNCTION JUMPER 23
3.2 J2 – CPU FAN CONNECTION 23
3.3 J3 – FEATURE CONNECTOR 23
3.4 J5 – INTERNAL MODEM RING-IN CONNECTOR 24
3.5 J7, J8 - USB CONNECTOR 24
3.6 J9 - IrDA/FAST IR CONNECTOR 24
3.7 J10, J11 - PRIMARY/SECONDARY IDE CONNECTOR 25
3.8 J12 - FLOPPY DRIVE CONNECTOR 25
3.9 J13 - AT POWER CONNECTOR 25
3.10 J14 - ATX POWER CONNECTOR 26

III
3.11 J15 - CD-ROM AUDIO CONNECTOR (MISUMI/PANASONIC) 26
3.12 J16 - CD-ROM AUDIO CONNECTOR (SONY) 26
3.13 J17 - WAVETABLE EXPANSION CONNECTOR 27
3.14 J18, J19 - AUDIO EXTENSION CARD GOI-660 CONNECTOR
(OPTIONAL) 27
3.15 J21 – TV OUT CONNECTOR 27
3.16 J26 – CUSTOMER IR CONNECTOR 27
3.18 PS/2 KEYBOARD CONNECTOR 28
3.19 PS/2 MOUSE CONNECTOR 28
3.20 PARALLEL PRINTER CONNECTOR 28
3.21 SERIAL PORT COM1/COM2 28
3.22 VGA CONNECTOR 28
CHAPTER 4 AWARD BIOS SETUP GUIDE 29
4.1 AWARD BIOS SETUP 29
4.2 STANDARD CMOS SETUP 31
4.3 BIOS FEATURES SETUP 32
4.4 CHIPSET FEATURES SETUP 34
4.5 POWER MANAGEMENT SETUP MENU 36
4.6 PCI CONFIGURATION 38
4.7 INTEGRATED PERIPHERALS SETUP MENU 40
4.8 LOAD SETUP DEFAULTS MENU 42
4.9 SUPERVISOR PASSWORD 42
4.10 USER PASSWORD 43
4.11 IDE HDD AUTO DETECTION 43
4.12 HDD LOW LEVEL FORMAT MENU 44
4.13 SCSI HARD DISK INSTALLATION 47
4.14 SAVE & EXIT SETUP MENU 47
4.15 EXIT WITHOUT SAVING MENU 47
CHAPTER 5 SOFTWARE INSTALLATION 49
5.1 SYSTEM CHIPSET DRIVERS INSTALLATION 49
5.2 ATI VGA DRIVERS FOR WINDOWS 9x 49
5.3 VCD PLAYER FOR WINDOWS 9x 50
5.4 SOUND DRIVER INSTALLATION 50
5.5 THE AUDIORACK32 FOR WIN9x 51
5.5.1 INTRODUCTION 51
5.5.2 INSTALLING THE AudioRack32 51
5.5.3 UNINSTALLING THE AudioRack32 54
CHAPTER 6 FLASH AND DMI UTILITY 55
6.1 AWARD FLASH UTILITY 55
6.2 DESKTOP MANAGEMENT INTERFACE (DMI) OVERVIEW 57
APPENDIX A QUICK GUIDE 61
APPENDIX B JUMPER SETTING QUICK REFERENCE 65

IV
APPENDIX C PIN ASSIGNMENTS OF EISA SLOT 67

1
CHAPTER 1 INTRODUCTION
Preface
The motherboard is a LPX form factor high performance all in one mainboard. It is developed
around the pentium microprocessor with 64-bit access to data transfer and MMX technology.
It includes VIA VT82C598MVP system chipset, ATI 3D Rage Turbo AGP/Rage II C AGP
Integrated Graphics Accelerator, Winbond W83977EF-AW super I/O chip, Optional ESS
1869 Sound System.
Features
Processor
•Intel Pentium/MMX, Cyrix 6x86/6x86L/6x86MX/M II, AMD K5/K6/K6-2/K6-III and IDT
C6 CPU.
•The mainboard can run with following speeds:
90, 100, 110, 120, 133, 150, 166, 200, 233, 250, 266, 300, 333, 350, 400 and 450MHz or
above base on 100MHz FSB
Chipset
•VIA VT82C598MVP PCI/AGP System Controller
•VIA VT82C586B PCI Integrated Peripheral Controller
•ATI 3D Rage Turbo AGP/Rage II C AGP Integrated Graphics Accelerator
•Winbond W83977EF-AW Super I/O Controller
•ESS 1869 Audio-Drive Sound Controller (Optional)
Cache Size
•Built in 512KB Synchronised Pipelined Burst Mode SRAM to achieve the high Pentium
system performance.
Main Memory
•Support Mixed Memory Technologies: Extend Data Output (EDO), Standard Page Mode
(SPM) and Fast Page Mode (FPM) and Synchronous DRAM (SDRAM) can work together.
•Memory configurations from 8MB to 256MB are possible using combination of 1M*32 to
8M*32 and 2M*32 to 8M*32 SIMM module (32 bit no-parity 72-pin SIMM module).
Graphics Controller
•Support AGP 2x Mode Transfer rate for Rage Turbo & AGP 1x mode for Rage II C.
•On board 2MB Video RAM, can be expanded to 4MB (with 2MB SGRAM module), or
4MB Video RAM on board (optional), can be expanded to 8MB (with 4MB SGRAM
module).
•3D, 66MHz/133MHz/266MHz, 532MB/s fast bus speed, Hardware Acceleration for DVD
player for Rage Turbo AGP.

Chapter 1
2
Fig. 1 Key Components of the Mainboard

Introduction
3
Multi I/O
•On board Multi-I/O supports two serial, one parallel ports and floppy drive controller.
•Serial ports are 16550 Fast UART compatible.
•Parallel port has EPP and ECP capabilities.
•PS/2 keyboard and PS/2 mouse connector is provided.
•IrDA or Fast IR is provided.
•Two standard USB (Universal Serial Bus) supported.
•Support OnNow Keyboard wake up and PS/2 mouse wake up.
PCI IDE
•On board supports PCI Master IDE Controller, two connectors support up to four IDE
devices such as HDD, CD ROM drive and Tape Back-up drives LS-120, etc.
•PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O data transfer rate can be
up to 17Mb/s.
•Ultra DMA Mode supported. Transfer rate can be up to 33Mb/s.
Sound Controller
•Compatible with all major PC sound standards, including Sound BlasterPro, MPU-401
and Windows Sound System.
•Plug-and-Play support for Audio, Joystick, FM Controller, MPU-401.
•Wave Audio support sample rates from 4KHz to 44KHz.
•Full-duplex monophonic mode, half-duplex stereo mode.
•3D stereo sound effect supported.
•Optional wavetable connector is provided.
System BIOS
•Award BIOS (256KB Flash EPROM).
Slots
•One extension slot for dedicated extension card to provide ISA, and PCI interface.
LPX Form Factor
•200mm (W) x 270mm (L) 4 Layer

Chapter 1
4
Environment
Working Specifications
Actual Field MTBF (hours) 104,515 hours
Preventive Maintenance Not Required
Environmental Limits Operating Non-operating
Temperature 0 to 50 degree Celsius -10 to 65 Degree Celsius
Relative Humidity
(without condensation) 8 to 85% 5 to 95%
Altitude 10,000ft 40,000ft
Vibration 1,000Hz
Electricity 4.75 ∼5.25V

5
CHAPTER 2 JUMPER SETTINGS
2.1 JUMPERS PRESENTATION

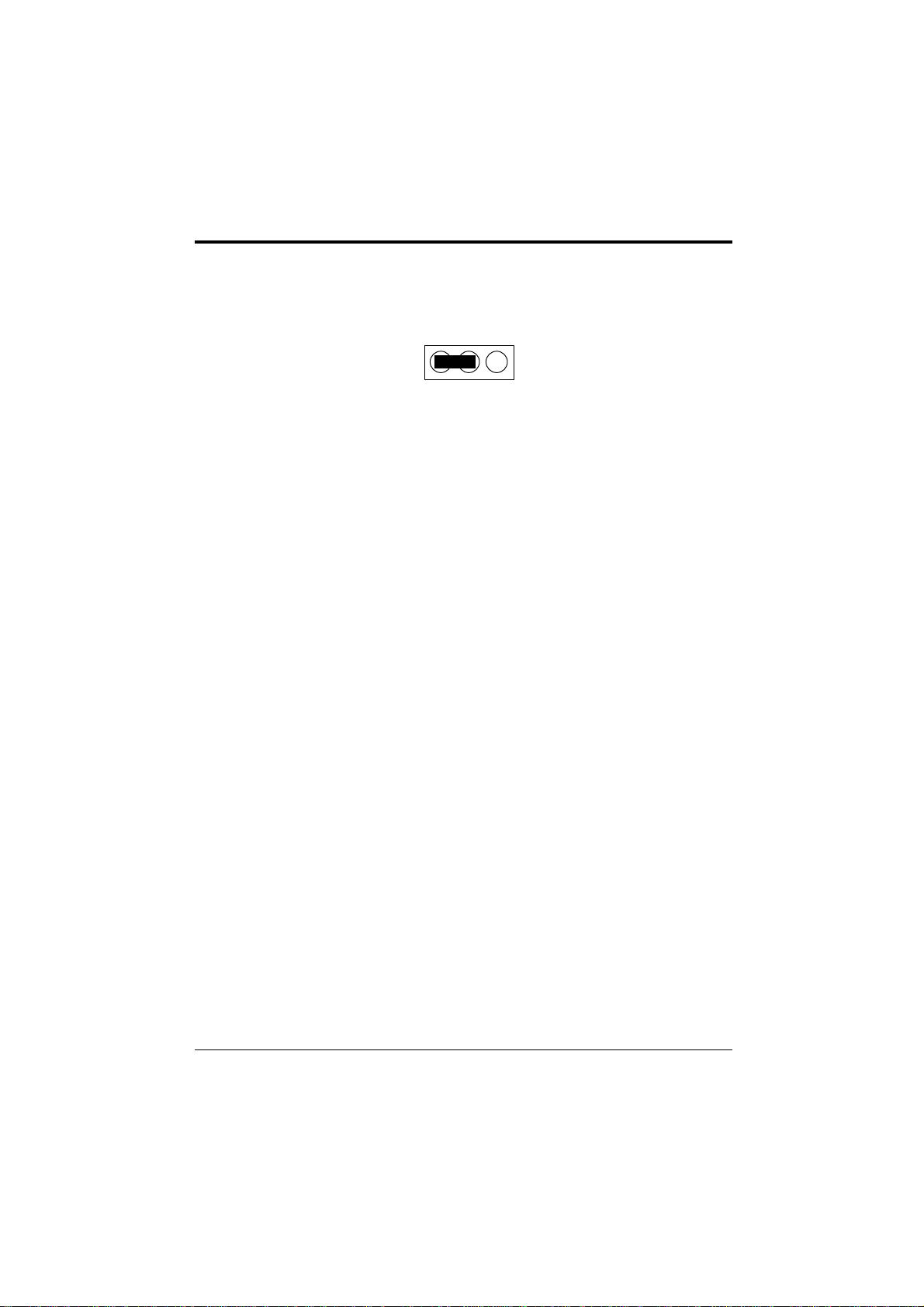

Pins 1 and 2 are shorted with a jumper cap.
1 2 3
Pins 2 and 3 are shorted with a jumper cap.
1 2 3
The jumper is shorted when the jumper cap is placed
over the two pins of the jumper.
The jumper is open when the jumper cap is removed
from jumper.
2.2 CPU TYPE
2.2.1 INTEL PENTIUM CPU
The pentium processors have different operation voltage. In order to using the CPU
Voltage correctly, the following is the marking for identify the CPU type.
Fig. 2a CPU Description
(Bottom Side)

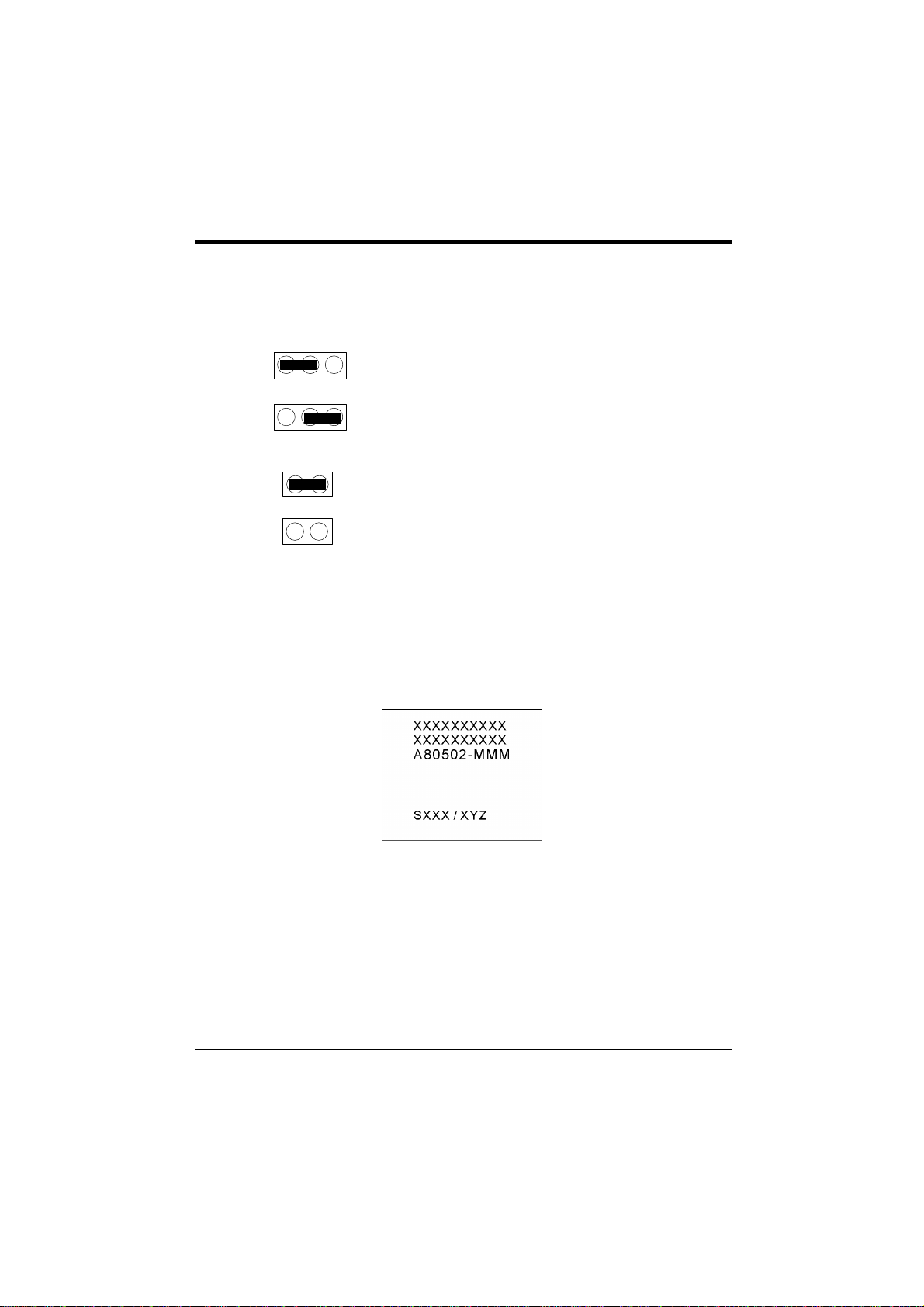

Description :
X = Voltage Specification (S or V) Y = Timing Specification (S or M)
S = Standard Voltage (3.4V) S = Standard EDS timings
V = VRE 3.4 - 3.6V (3.5V) M = Min Valid Delay Spec.
Z = Dual Processing Support ( S or U)
S = Support DP/MP/UP
U = Not tested to support DP

Chapter 2
6
2.2.2 INTEL PENTIUM w/ MMX TECH (P55C) CPU
The Intel Pentium w/ MMXTech (P55C) CPU is offered with dual voltage supply
- 2.8V for core and 3.3V (I/O) interface. The following is the marking for identify
the CPU type. (The following diagram is provided as an example only. It does not
necessarily indicate a valid product marking.)
Fig. 2b CPU Description
(Top Side)
2.2.3 AMD-K6/K6-2/K6-III CPU
The AMD-K6 CPU family requires dual voltage power for operation. The AMD-
K6/166, 200 require a voltage of 2.9V core and 3.3V I/O. The AMD-K6/233
requires a voltage of 3.2V core and 3.3V I/O. (The following diagram is provided as
an example only. It does not necessarily indicate a valid product marking.)
Fig. 2c CPU Description
(Top Side)
Operating Voltage I/O Voltage Core Voltage
2.2V 3.3V 2.2V
2.4V 3.3V 2.4V
2.9V 3.3V 2.9V
3.2V 3.3V 3.2V

Jumper Settings
7
2.2.4 AMD-K5 CPU
The AMD-K5 family CPU operates on different operation voltage depending on the
CPU type. The operating voltage can be known through the marking on the surface of
the CPU. (The following diagram is provided as an example only. It does not
necessarily indicate a valid product marking.)
Fig. 2d CPU Description
(Top Side)
2.2.5 CYRIX 6x86 CPU
The Cyrix 6x86 has different nominal voltage depends on different lot. Please refer to
the CPU marking.
Fig. 2e CPU Description
(Top Side)
Marketing Recommended Nominal Voltage
3.3V or 3.52V 3.52V
028 3.52V
016 3.3V
Blank 3.52V

Chapter 2
8
2.2.6 CYRIX 6x86L CPU
The Cyrix 6x86L has different I/O and core voltage. Please refer to the CPU
marking.
Fig. 2f CPU Description
(Top Side)
2.2.7 CYRIX 6x86MX/M II CPU
The Cyrix 6x86MX/M II has different I/O and Core Voltage. Please refer to the
CPU marking.

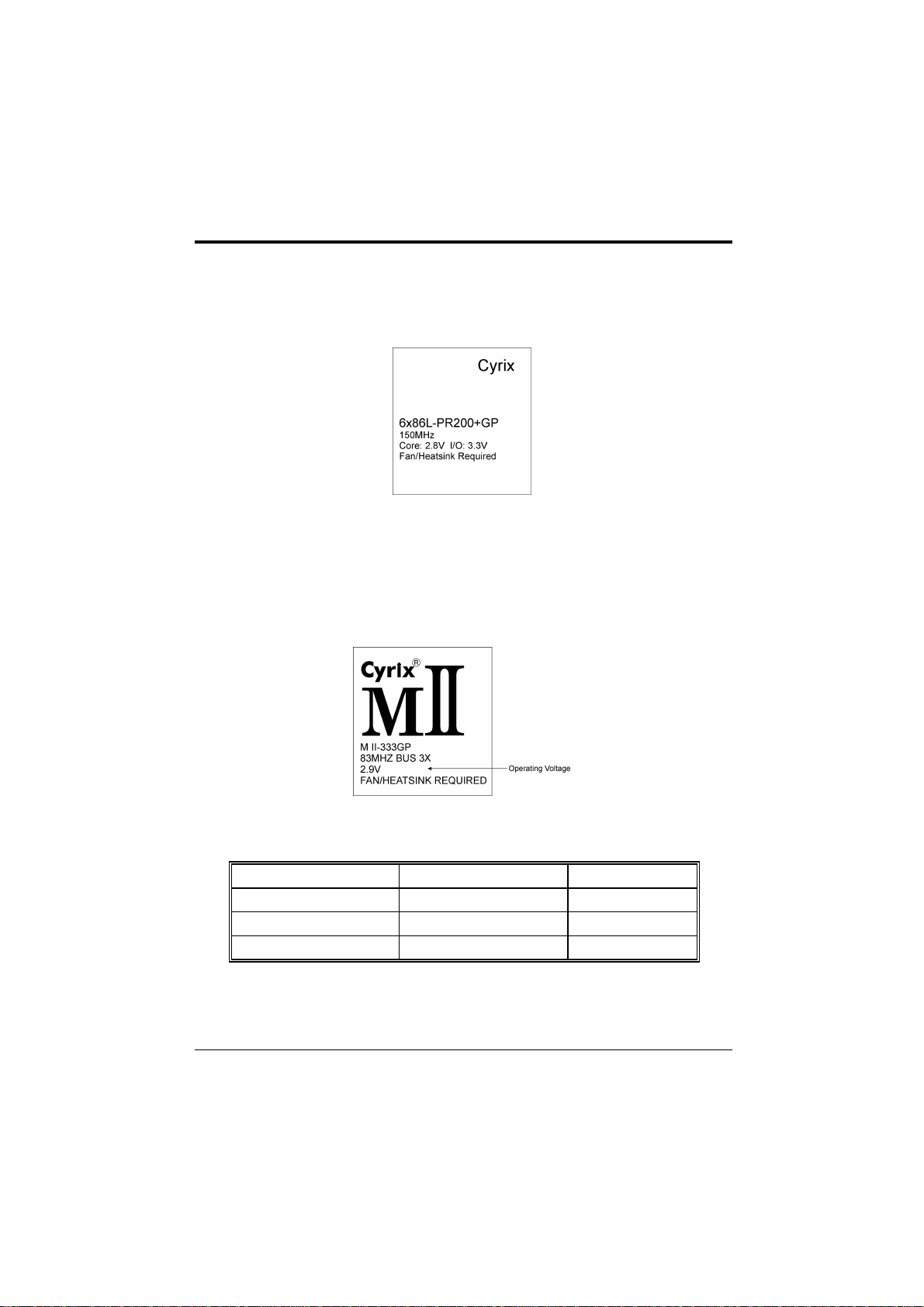

Fig. 2g CPU Description
(Top Side)
I/O Voltage Core Voltage
Cyrix 6x86MX 3.3V 2.9V
Cyrix 6x86L 3.3V 2.8V
Cyrix M II 3.3V 2.9V

Jumper Settings
9
2.2.8 IDT WinCHIP C6/W2 CPU
The IDT WinChip C6/W2 CPU has different operating voltage. Please refer to the
CPU marking to identify the operating voltage.

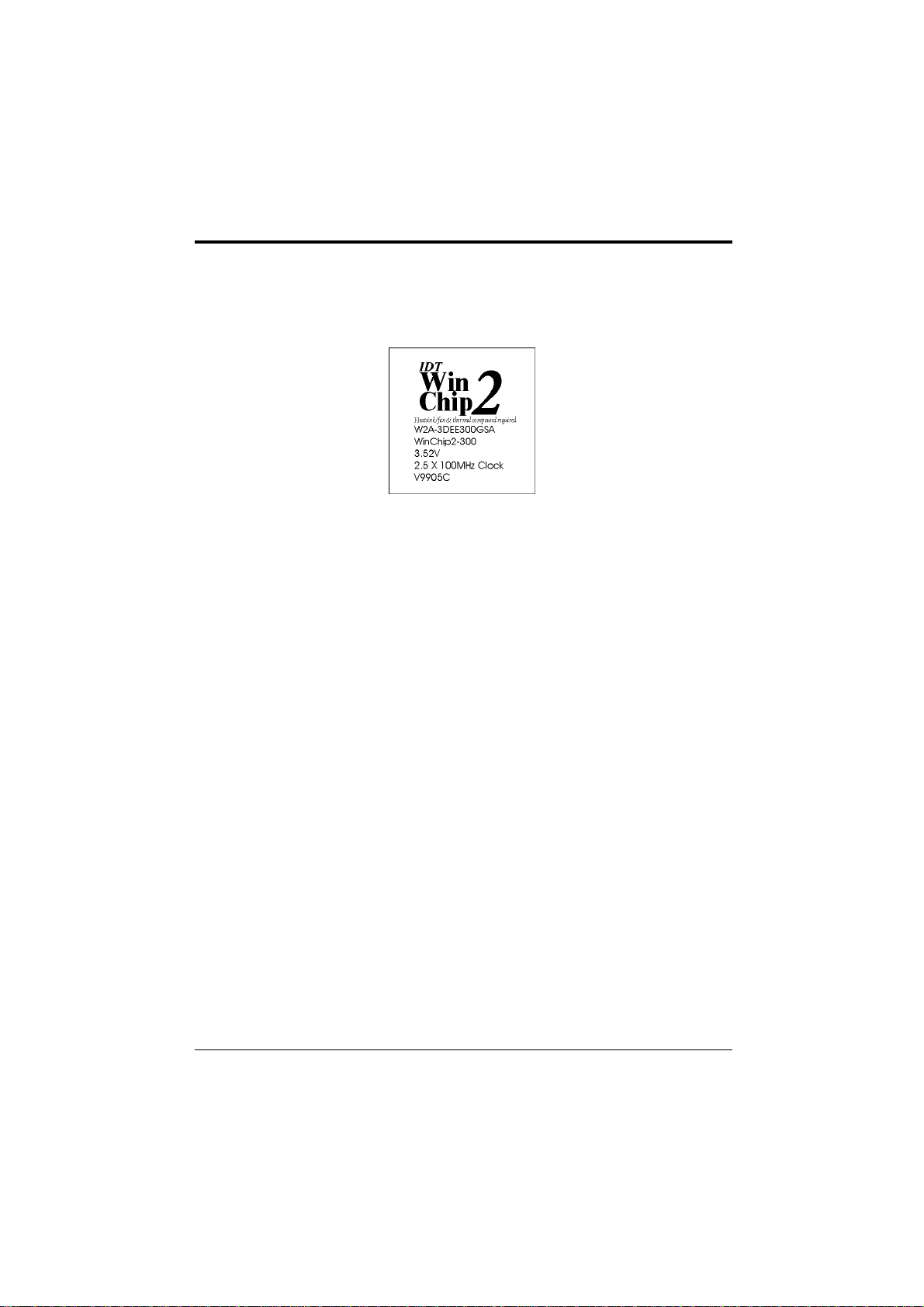

Fig. 2h CPU Description

Chapter 2
10
2.3 GRAPHICAL DESCRIPTION OF JUMPER
SETTINGS

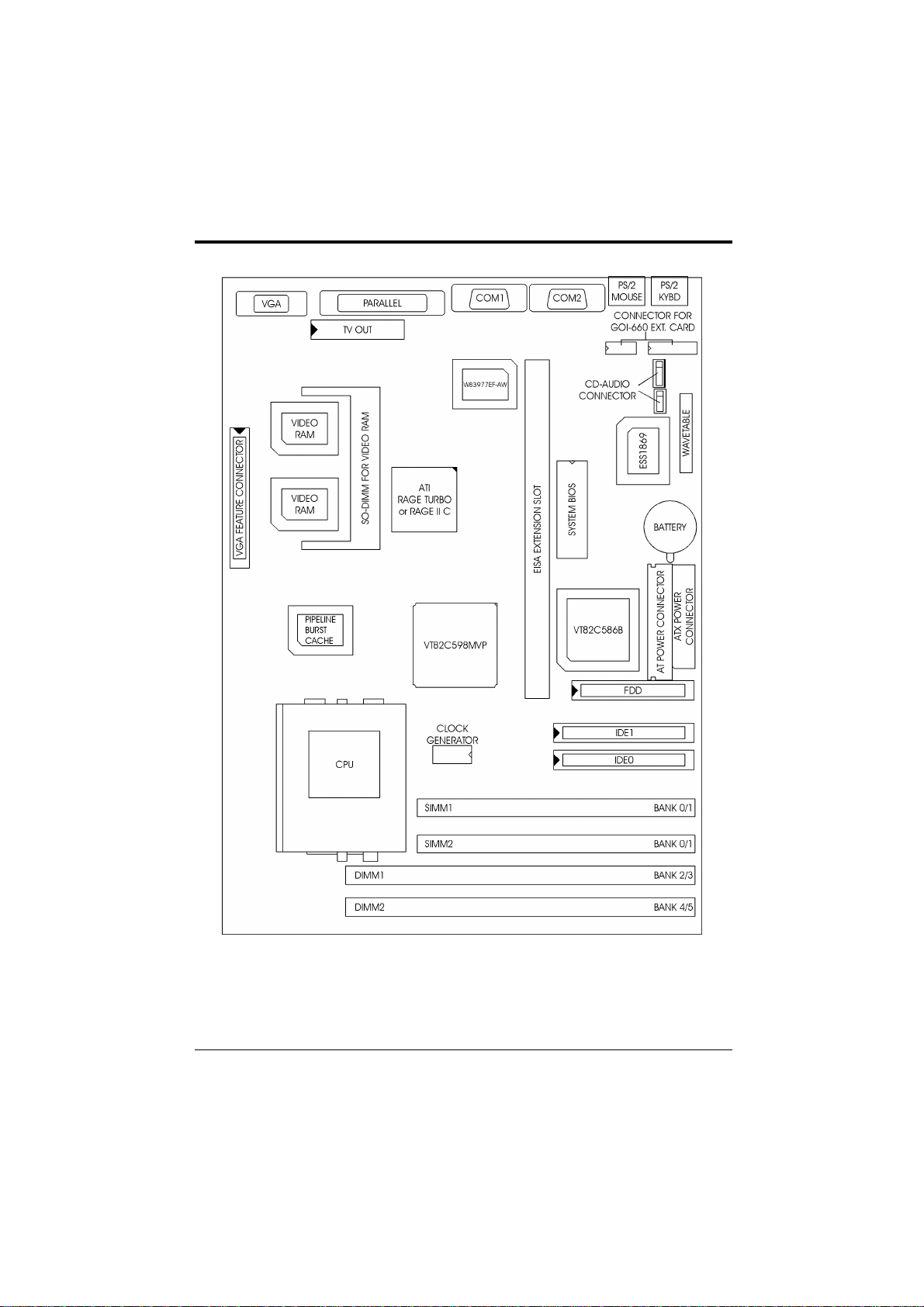

Fig. 3 Jumper Location of the mainboard

Jumper Settings
11
2.4 CPU VOLTAGE
2.4.1 CPU VOLTAGE AUTO SELECTION

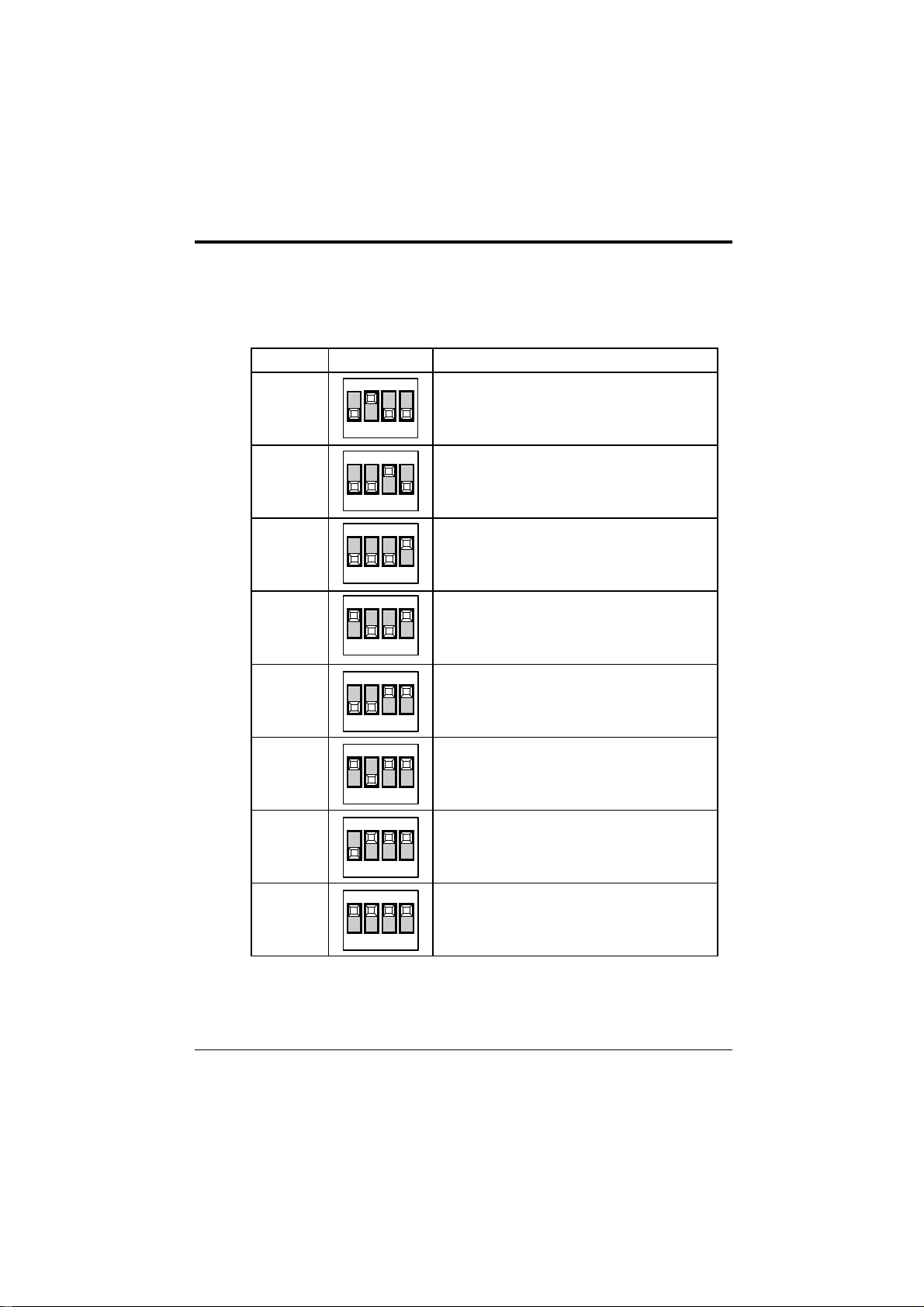

The CPU voltage SW selection is developed on this motherboard. Set the SW1 to the
proper positions reference to the voltage mark on the CPU or the listing as below.
Fig. 4
2.4.2 CPU VOLTAGE BIOS SELECTION
The CPU Voltage can be selected through BIOS setup “CPU Core Voltage
Selection”. It can be set as following table:
2.2 AMD K6 (2.2V)/K6-2
2.4 AMD K6-2/450, AMD K6-III
2.8 Intel MMX (P55C); Cyrix 6x86L
2.9 AMD K6 (2.9V); Cyrix 6x86MX/M II; IBM6x86MX
3.2 AMD K6 (3.2V)
3.3 Intel Pentium
3.52 Cyrix 6x86; AMD K5, IDT C6/W2
Table 1

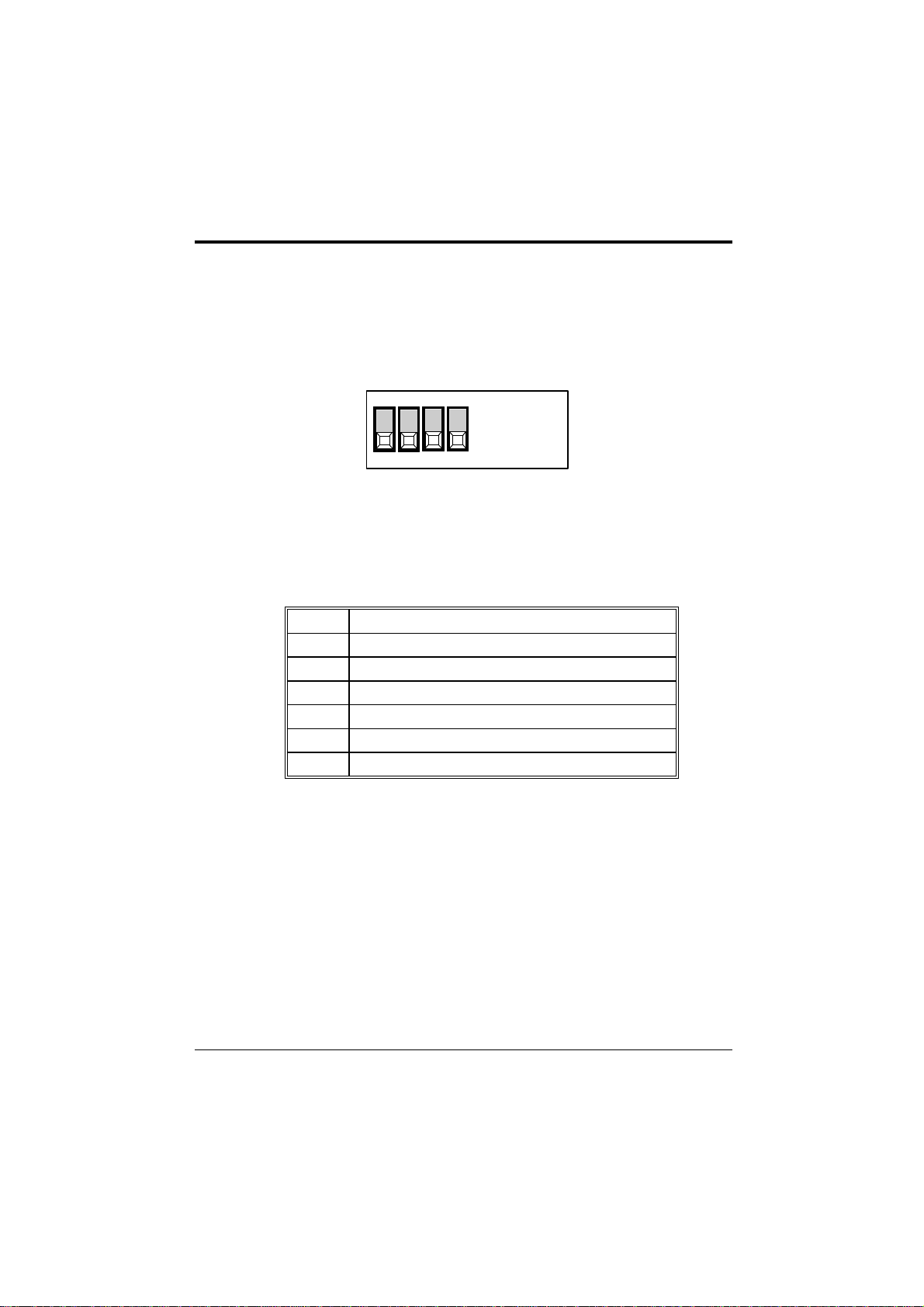

ON
1 2 3 4

Chapter 2
12
2.4.3 CPU VOLTAGE MANUAL SELECTION
The CPU Core Voltage can be selected by SW1-1,2,3,4 when the BIOS “CPU Core
Voltage” be set as Disabled.
Voltage SW1 CPU Type
2.2V 2.2V AMD K6, AMD K6-2
2.4V AMD K6-2/450 or above, AMD K6-III
2.8V Intel Pentium w/MMX (P55C);
Cyrix 6x86L
2.9V 2.9V AMD K6; Cyrix 6x86MX/M II;
IBM6x86MX
3.2V 3.2V AMD K6
3.3V Intel Pentium (P54C)
3.4V AMD K6-2/475
3.5V Cyrix 6x86; AMD K5, IDT C6/W2
Table 2
Note: S1 only “short” for Single Voltage CPU such as IDT WinChip C6, W2
and W2A series.
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4

Jumper Settings
13
2.5 CPU BUS FREQUENCY RATIO (SW1-5,6,7)
These switches set the frequency ratio between the Internal frequency of the CPU
and the External frequency (called the Bus clock) within the CPU. These must be
set together with the above jumpers CPU External (Bus) Frequency Selection.
2.6 CPU EXTERNAL (BUS) FREQUENCY SELECTION
(SW1-8,9,10)
These switches tell the clock generator what frequency to send to the CPU. The Bus
clock times the Bus Ratio equals the CPU’s Internal frequency.
2.7 CHIPSET BUS CLOCK SETTING (JP9, JP10)
These jumpers set the chipset timing according the CPU external bus frequency
selection.
2.8 CPU SPEED
CPU Type Freq. Ratio Bus Freq. Ratio Setting Bus Freq. Setting JP9 JP10
Freq. 1-5 1-6 1-7 1-8 1-9 1-10
Intel Pentium 90MHz 1.5x 60MHz OFF OFF OFF ON ON ON 2-3 1-2
Intel Pentium 100MHz 1.5x 66MHz OFF OFF OFF OFF ON ON 2-3 1-2
Intel Pentium 120MHz 2.0x 60MHz ON OFF OFF ON ON ON 2-3 1-2
Intel Pentium 133MHz 2.0x 66MHz ON OFF OFF OFF ON ON 2-3 1-2
Intel Pentium 150MHz 2.5x 60MHz ON ON OFF ON ON ON 2-3 1-2
Intel Pentium 166MHz 2.5x 66MHz ON ON OFF OFF ON ON 2-3 1-2
Intel Pentium 200MHz 3.0x 66MHz OFF ON OFF OFF ON ON 2-3 1-2
Intel Pentium w/MMX 166MHz 2.5x 66MHz ON ON OFF OFF ON ON 2-3 1-2
Intel Pentium w/MMX 200MHz 3.0x 66MHz OFF ON OFF OFF ON ON 2-3 1-2
Intel Pentium w/MMX 233MHz 3.5x 66MHz OFF OFF OFF OFF ON ON 2-3 1-2
AMD-K5-PR120 120MHz 2.0x 60MHz ON OFF OFF ON ON ON 2-3 1-2
AMD-K5-PR133 133MHz 2.0x 66MHz ON OFF OFF OFF ON ON 2-3 1-2
AMD-K5-PR166 166MHz 2.5x 66MHz ON ON OFF OFF ON ON 2-3 1-2
AMD-K6/166 166MHz 2.5x 66MHz ON ON OFF OFF ON ON 2-3 1-2
AMD-K6/200 200MHz 3.0x 66MHz OFF ON OFF OFF ON ON 2-3 1-2
AMD-K6/233 233MHz 3.5x 66MHz OFF OFF OFF OFF ON ON 2-3 1-2
AMD-K6/266 266MHz 4.0x 66MHz ON OFF ON OFF ON ON 2-3 1-2
AMD-K6/300 300MHz 4.5x 66MHz ON ON ON OFF ON ON 2-3 1-2
To be continued..
Table 3a

Chapter 2
14
CPU Type Freq. Ratio Bus Freq. Ratio Setting Bus Freq. Setting JP9 JP10
Freq. 1-5 1-6 1-7 1-8 1-9 1-10
AMD-K6-2/250 250MHz 2.5x 100MHz ON ON OFF OFF OFF OFF 1-2 2-3
AMD-K6-2/266 266MHz 4.0x 66MHz ON OFF ON OFF ON ON 2-3 1-2
AMD-K6-2/300 300MHz 3.0x 100MHz OFF ON OFF OFF OFF OFF 1-2 2-3
AMD-K6-2/333 333MHz 3.5x 95MHz OFF OFF OFF ON OFF OFF 1-2 2-3
AMD-K6-2/350 350MHz 3.5x 100MHz OFF OFF OFF OFF OFF OFF 1-2 2-3
AMD-K6-2/400 400MHz 4.0x 100MHz ON OFF ON OFF OFF OFF 1-2 2-3
AMD-K6-2/450 450MHz 4.5x 100MHz ON ON ON OFF OFF OFF 1-2 2-3
AMD-K6-2/475 475MHz 5.0x 95MHz OFF ON ON ON OFF OFF 1-2 2-3
AMD-K6-III/400 400MHz 4.0x 100MHz ON OFF ON OFF OFF OFF 1-2 2-3
AMD-K6-III/450 450MHz 4.5x 100MHz ON ON ON OFF OFF OFF 1-2 2-3
Cyrix 6x86L-PR150 120MHz 2.0x 60MHz ON OFF OFF ON ON ON 2-3 1-2
Cyrix 6x86L-PR166 133MHz 2.0x 66MHz ON OFF OFF OFF ON ON 2-3 1-2
Cyrix 6x86L-PR200 150MHz 2.0x 75MHz ON OFF OFF ON ON OFF 1-2 1-2
Cyrix 6x86MX-PR166 150MHz 2.5x 60MHz ON ON OFF ON ON ON 2-3 1-2
Cyrix 6x86MX-PR200 150MHz 2.0x 75MHz ON OFF OFF ON ON OFF 1-2 1-2
Cyrix 6x86MX-PR200 166MHz 2.5x 66MHz ON ON OFF OFF ON ON 2-3 1-2
Cyrix 6x86MX-PR233 188MHz 2.5x 75MHz ON ON OFF ON ON OFF 1-2 1-2
Cyrix 6x86MX-PR233 200MHz 3.0x 66MHz OFF ON OFF OFF ON ON 2-3 1-2
Cyrix M II-300 225MHz 3.0x 75MHz OFF ON OFF ON ON OFF 1-2 1-2
Cyrix M II-300 233MHz 3.5x 66MHz OFF OFF OFF OFF ON ON 2-3 1-2
Cyrix M II-333 249MHz 3.0x 83MHz OFF ON OFF OFF ON OFF 1-2 1-2
Cyrix M II-366 250MHz 2.5x 100MHz ON ON OFF OFF OFF OFF 1-2 2-3
IDT WinChip C6-180 180MHz 3.0x 60MHz OFF ON OFF ON ON ON 2-3 1-2
IDT WinChip C6-200 200MHz 3.0x 66MHz OFF ON OFF OFF ON ON 2-3 1-2
IDT WinChip 2A-266 250MHz 3.0x 83MHz OFF ON OFF OFF ON OFF 1-2 1-2
IDT WinChip 2A-300 250MHz 2.5x 100MHz ON ON OFF OFF OFF OFF 1-2 2-3
IDT WinChip 2A-300 266MHz 2.66x 100MHz OFF OFF ON OFF OFF OFF 1-2 2-3
IBM 6x86MX-PR266 208MHz 2.5x 83MHz ON ON OFF OFF ON OFF 1-2 1-2
IBM 6x86MX-PR300 225MHz 3.0x 75MHz OFF ON OFF ON ON OFF 1-2 1-2
IBM 6x86MX-PR300 233MHz 3.5x 66MHz OFF OFF OFF OFF ON ON 2-3 1-2
IBM 6x86MX-PR333 250MHz 3.0x 83MHz OFF ON OFF OFF ON OFF 1-2 1-2
Table 3b

Jumper Settings
15

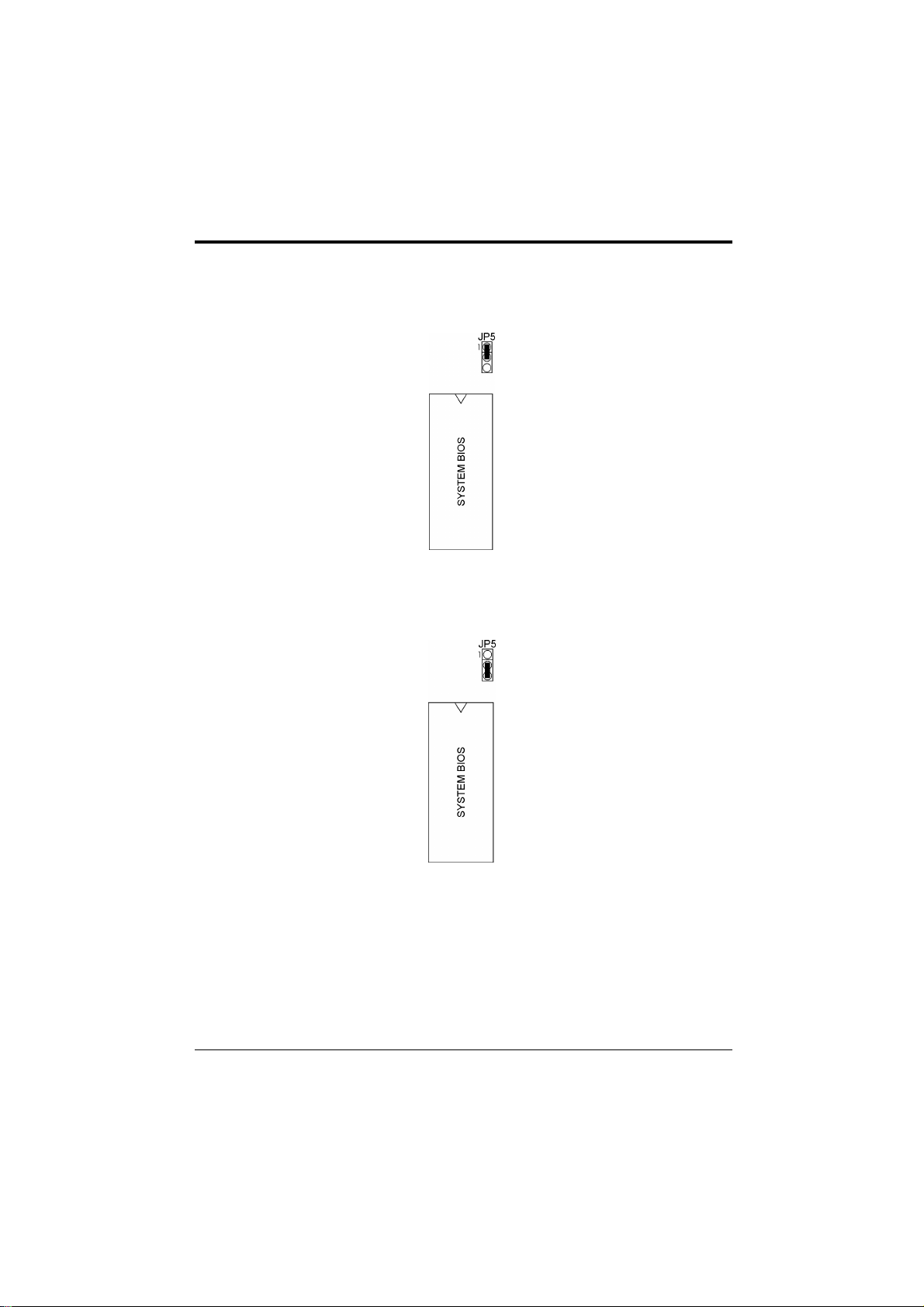

2.9 JP5 - VOLTAGE SELECTION FOR SYSTEM ROM
1. 5V Flash EPROM on System ROM
Fig. 5a
2. 12V Flash EPROM on System ROM
Fig. 5b
