DTK PAM-0035S User manual

DTK PAM-0035S
P54C PCI Mainboard
User's Manual

i
ABOUT THIS GUIDE
This guide contains instructions for configuring and installing the mainboard.
!Chapter 1, Introduction, acquaints user with the special features of the
mainboard.
!Chapter 2, Hardware Configuration, gives information on configuring memory
and setting the mainboard's jumpers. Brief sections on installing memory.
!Chapter3, Mainboard Installation, is an overview of how to install the
mainboard in a system.
!Chapter 4, BIOS Setup, provides the BIOS information for system configuration.
!Chapter 5, BIOS POST Messages, provides references for all POST error
messages .
!Chapter 6, BIOS Default Drive Table, provides a Default Drive Disk table
contained in Setup.
WARNING
For the system to operate normally, please make sure JP1 of the mainboard is set as below.
Refer to Fig 2 in this manual for the location JP1.
If JP1 is open, no CMOS data can be retained.
The information presented in this publication has been carefully checked for reliability;
however, no responsibility is assumed for inaccuracies, whereas, specification is subjected
to change without notice.
All rights reserved. No part of this Manual may be reproduced in any form without the
written permission.

ii
UNPACKING THE MAINBOARD
The Mainboard comes packed in a sturdy cardboard shipping carton. The carton contains:
!The Mainboard
!PCI IDE Driver Diskette
!40-pin Hard Disk Cable
!34-pin Floppy Disk Cable
!25-pin Serial & 15-pin Game Port Cable
!9-pin Serial & 25-pin Parallel Port Cable
!This User's Guide
Note: Do not remove the mainboard from its original packing until ready to install.
The mainboard is easily damaged by static electricity. Observe the following precautions
while unpacking and installing the mainboard.
1. Touch an unpainted area of the system chassis before handling the mainboard or
any component. Doing so, discharges the static charge the user's body may have
built.
2. Remove the mainboard from its anti-static wrapping and place it on a grounded
surface, component side up.
3. Inspectthe mainboard for damage. Shipping may have loosened integrated
circuits from their sockets. If any integrated circuit appears loose, press carefully
to seat it firmly in this socket.
Do not apply power if the mainboard appears damaged. If there is damage to the board, or
items are missing, contact dealer immediately.

iii
CONTENTS
CHAPTER 1 INTRODUCTION 1
1.1 KEY FEATURES 1
1.2 MAINBOARD COMPONENTS 3
1.3 PCI LOCAL BUS SPECIAL FEATURES 4
CHAPTER 2 HARDWARE CONFIGURATION 5
2.1 JUMPER AND MEMORY BANK LOCATIONS 5
2.2 JP01 - CPU TYPE SELECTION 6
2.3 S0-S2, JP0 - CPU CLOCK SELECTION 6
2.4 CPU INSTALLATION 7
2.5 CACHE CONFIGURATION 7
2.5.1 UPGRADING CACHE 8
2.5.2 CACHE SIZE AND MEMORY LOCATIONS 8
2.5.3 CACHE CHIP SOCKETS AND JUMPER
LOCATIONS 9
2.5.4 JP7-JP9 - CACHE JUMPER SETTING 9
2.5.5 INSTALLING CACHE CHIPS 10
2.6 JP4 - CACHE INVALIDATION INPUT FOR CPU 10
2.7 JP5 - CPU PIPELINE MODE SELECTION 11
2.8 JP6 - CPU INTERNAL CACHE WRITE BACK/WRITE
THROUGH SELECTION 11
2.9 JP12 - VIDEO SELECTION 12
2.10 JP1 - DISCHARGE CMOS RAM 12
2.11 JP2, JP3 - EPROM TYPE SELECTION 13
2.12 JP18 - PARALLEL PORT IRQ SELECTION 13

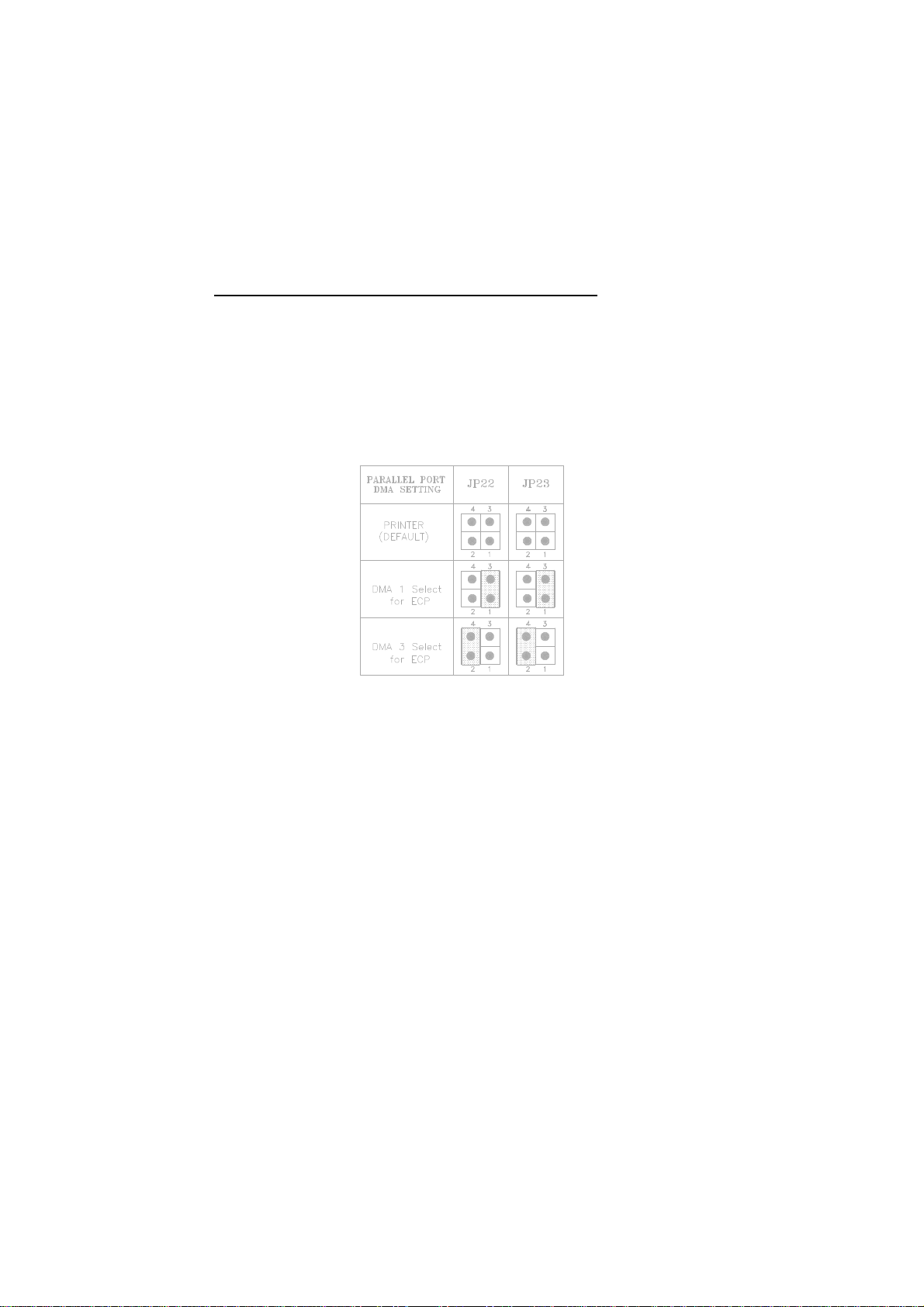

2.13 JP22, JP23 - PARALLEL PORT SETTING AND ECP DMA
SELECTION 14
2.14 MEMORY INSTALLATION 14
2.14.1 INSTALLING SIMM 17

iv
CHAPTER 3 MAINBOARD INSTALLATION 19
3.1 COMPONENTS 19
3.2 INSTALLING THE MAINBOARD 20
3.3 CONNECTION THE MAINBOARD 21
3.3.1 CONNECTION LOCATIONS 21
3.4 CONNECTORS 22
3.4.1 J1 - CPU FAN POWER CONNECTOR 22
3.4.2 J2 - HARD DISK LED CONNECTOR 22
3.4.3 J3 - KEYLOCK & POWER LED CONNECTOR 23
3.4.4 J4 - SPEAKER CONNECTOR 23
3.4.5 J5 - TURBO SWITCH CONNECTOR 24
3.4.6 J6 - TURBO LED CONNECTOR 24
3.4.7 J7 - HARDWARE RESET CONNECTOR 25
3.4.8 J8 - ON BOARD PCI IDE 1 HDD CONNECTOR 25
3.4.9 J9 - ON BOARD PCI IDE 0 HDD CONNECTOR 25
3.4.10 J10 - KEYBOARD CONNECTOR 26
3.4.11 J11 - POWER SUPPLY CONNECTOR 26
3.4.12 J12 - ON BOARD COM1 CONNECTOR 27
3.4.13 J13 - ON BOARD COM2 CONNECTOR 27
3.4.14 J14 - ON BOARD GAME PORT CONNECTOR 27
3.4.15 J15 - ON BOARD PARALLEL PORT
CONNECTOR 27
3.4.16 J16 - ON BOARD FDD CONNECTOR 27
3.4.17 JP11 - GREEN PC BREAK SWITCH 27
3.5 HARDDISK INSTALLATION 28
3.6 HARDWARE/SOFTWARE INSTALLATION 28
3.7 SYSTEM ASSEMBLY OVERVIEW 29

v
CHAPTER 4 AWARD BIOS SETUP 31
4.1 ENTERING SETUP 31
4.2 CONTROL KEYS 32
4.3 GETTING HELP 32
4.4 THE MAIN MENU 33
4.4.1 STANDARD CMOS SETUP MENU 34
4.4.2 BIOS FEATURES SETUP MENU 35
4.4.3 CHIPSET FEATURES SETUP MENU 36
4.4.4 POWER MANAGEMENT SETUP MENU 37
4.4.5 PCI CONFIGURATION SETUP MENU 38
4.4.6 LOAD BIOS DEFAULTS MENU 39
4.4.7 LOAD SETUP DEFAULTS MENU 39
4.4.8 PASSWORD SETTING MENU 39
4.4.9 IDE HDD AUTO DETECTION MENU 40
4.4.10 HDD LOW LEVEL FORMAT MENU 41
4.4.11 SAVE & EXIT SETUP MENU 44
4.4.12 EXIT WITHOUT SAVING MENU 44
CHAPTER 5 BIOS POST MESSAGE 45
5.1 POST BEEP 45
5.2 ERROR MESSAGES 45
CHAPTER 6 BIOS DEFAULT DRIVE TABLE 51

1
CHAPTER 1 INTRODUCTION
The mainboard is a 2/3 bady AT size high-performance mainboard that provides with basic
elements on which to build an advanced computer. The mainboard running at 75MHz,
90MHz, 100MHz, 120MHz or up to 133MHz, supporting the Intel Pentium CPU.
1.1 KEY FEATURES
The advanced features of the mainboard include:
!Intel Pentium CPU, Cyrix M1 support up to 75, 90, 100, 120 or 133MHz
CPU speed.
!Support SIS 85C50X or 85C550X chipset and Winbond W83769F,
W83787F, W83768F chip.
!100% IBM PC-AT Hardware and Software compatible.
!Provides power saving features:
- Supports Pentium SMM and SMI
- Long and short System Timer
- Supports Break Switch Control
- Cut power of CPU Cooling Fan
!Direct Mapped Cache Controller
- Write-Back or Write-Through Schemes
- Flexible Cache Size: 256/512/1024KB
!Memory size from 2MB to 128MB, possible using combinations of
1/2/4/8/16/32/64MB 72-pin SIMM modules in four SIMM sockets.
Support "Table-Free" DRAM Configuration.
!FP (Fast Page) DRAM or EDO (Extended Data Output) DRAM support.
!Provide 2 enhanced PCI IDE channels which support up to 4 IDE
devices.

Chapter 12
!Easy upgrade CPU speed by alter jumpers only.
!System & video Bios Shadow, optional caching of shadowed system &
video BIOS.
!Provide FDD channels which support 360K, 720K, 1.2M & 1.44M Floppy Disks,
two 16550 compatible UARTs, one parallel port with EPP/ECP mode, and one
joystick port.
!Hidden DRAM refresh support.
!Support 7 Direct Memory Access channels and 16 Interrupt levels.
!Four 16-bit I/O slots, and 4 PCI slots (4 Masters).
!Flash ROM supports
!Battery backup for CMOS configuration and real time clock/calender.
!8MHz AT Bus clock & speed changeable by hardware or keyboard.
!User Defined Password to inhibit illegal access.
!Baby AT board size = 220mm(W) X 270mm(L).
!Performance: (CPU clock = 90MHz / 100MHz)
- Landmark CPU Speed Test V2.0
CPU: 519.45MHz / 576.95MHz
FPU: 1740.43MHz / 1950.34Hz
- Power Meter V1.7
61.9MIPS / 68.4MIPS

Introduction 3
Fig 1 Key Components of the Mainboard
1.2 MAINBOARD COMPONENTS
This section gives a brief description of key components on the mainboard. Refer
to Fig 1 for component locations.

Chapter 14
1.3 PCI LOCAL BUS SPECIAL FEATURES
!PCI (Peripheral Component Interconnect) Local-Bus is the latest Local
Bus Standard which adapts the high performance and supports the future
standard on the PC industry.
!Four PCI slots are provided on the mainboard support up to four Bus
Master devices.
!PCI BIOS supports the PCI device configuration, and fully compatible
with existing drivers and application software.
!Synchronous Bus operates in 32-bit with up to 33MHz.

5
Fig 2 Jumper and Memory Bank Locations
CHAPTER 2 HARDWARE
CONFIGURATION
This chapter describes how to set the mainboard jumpers for cache memory and display
type, and how to install memory modules.
Before beginning the configuration, user should take the following precautions:
!Turn off the power supply, and unplug the power cord before begin.
!Unplug all cables that connect the mainboard to any external devices.
2.1 JUMPER AND MEMORY BANK LOCATIONS

Chapter 26
Table 1: CPU Type Configuration
Table 2: CPU Clock Selection
2.2 JP01 - CPU TYPE SELECTION
The mainboard can support processor at differenct speed. Various jumper are
required to setup for installing different CPU. Refer to Fig 2 for jumper location,
and set the jumper according to the following table:
JP01 -- CPU Type Selection
2.3 S0-S2, JP0 - CPU CLOCK SELECTION
S0, S1 ,S2 and JP0 are for setting the CPU clock speed. Refer to Fig 2 for the
jumpers location, and set the jumper according to the following table:
S0, S1, S2, JP0 -- CPU Clock Selection

Hardware Configuration 7

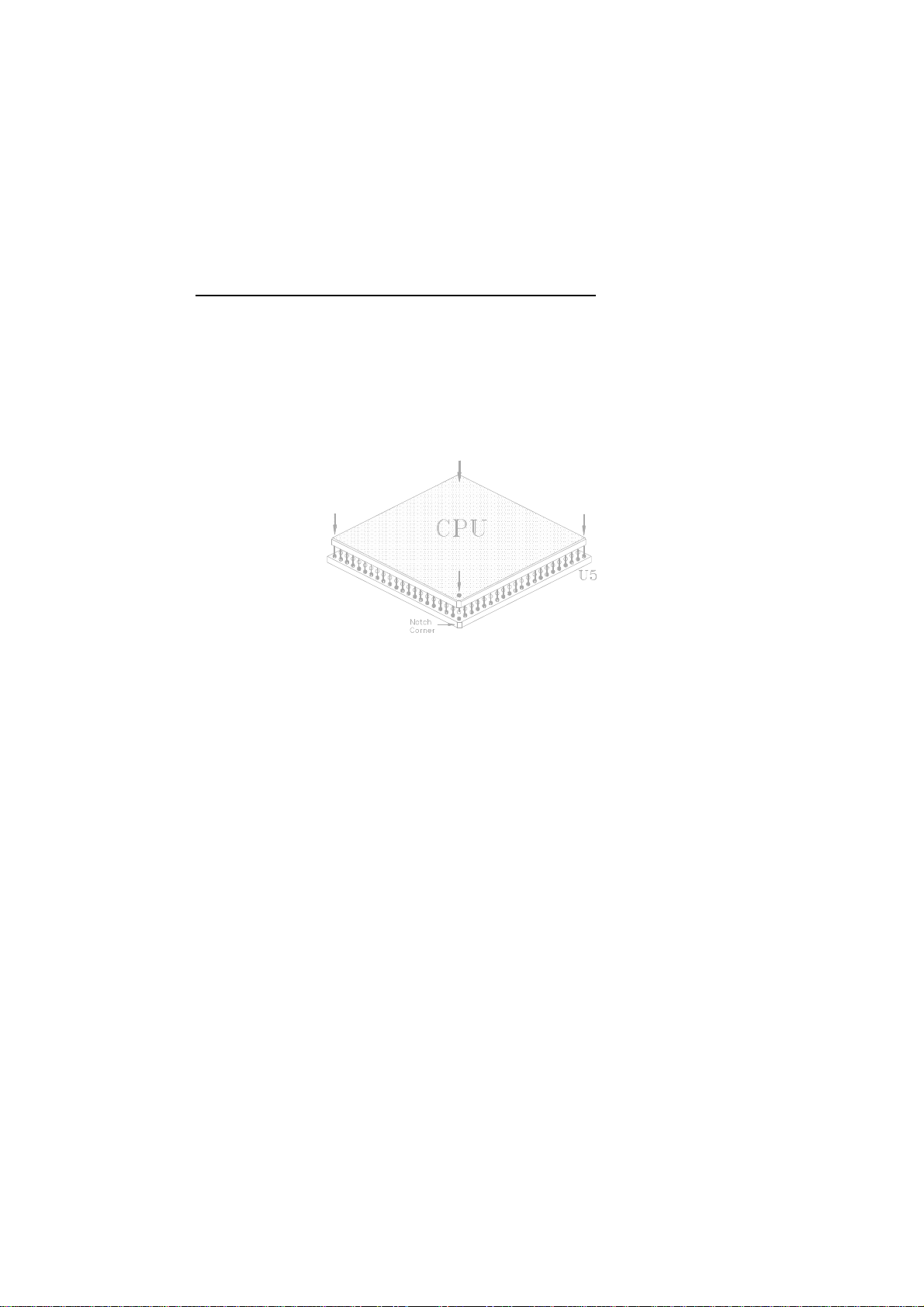

Fig 3 Installing a CPU
2.4 CPU INSTALLATION
The mainboard has a socket that can support Pentium CPU. See Fig 1 in Chapter
1 for the socket's location.
Install the CPU as follows:
Caution: Static electricity can damage the processor.
Plug the CPU into the socket, with the notch corner aligned.
2.
5
C
A
C
H
E
CONFIGURATION
The special feature of the mainboard is a built-in direct-mapped cache controller
with optional write-back or write-through operation which supports 256KB,
512KB, or 1MB cache memory.
The mainboard has a built-in cache controller. It requires external SRAM as tag
and cache memory. The caching Scheme is direct mapping with selectable write-
back or write-through operation. The mainboard allows 256KB, 512KB, or 1MB
cache configurations. Memory size is selected by the hardware jumpers and the
BIOS setup program.

Chapter 28
2.5.1 UPGRADING CACHE
The mainboard is available with an optional 256KB, 512KB, or 1MB cache
memory on-board. User can upgrade cache memory by installing additional
SRAM (Static Random Access Memory) chips in sockets U10-U17; U9.
The speed of the SRAM chips needed depends on the clock speed of the
microprocessor:
75,90,100,120,133MHz CPU requires 15ns (tag and data) SRAM chips.
2.5.2 CACHE SIZE AND MEMORY LOCATIONS
The table on following page describes the chip capacity and socket location
required for each cache size configuration. User can use 32Kx8-bit,
64Kx8-bit, or 128Kx8-bit SRAM chips in the Data RAM sockets, and
8Kx8-bit, 16Kx8-bit or 32Kx8-bit SRAM chips in the Tag RAM socket.
DATA RAM TAG RAM
Cache Size U10 - U17 U9
256K 32Kx8 8Kx8/16Kx8
512K 64Kx8 16Kx8/32Kx8
1M 128Kx8 32Kx8
Table 3: Cache Size Configuration

Hardware Configuration 9

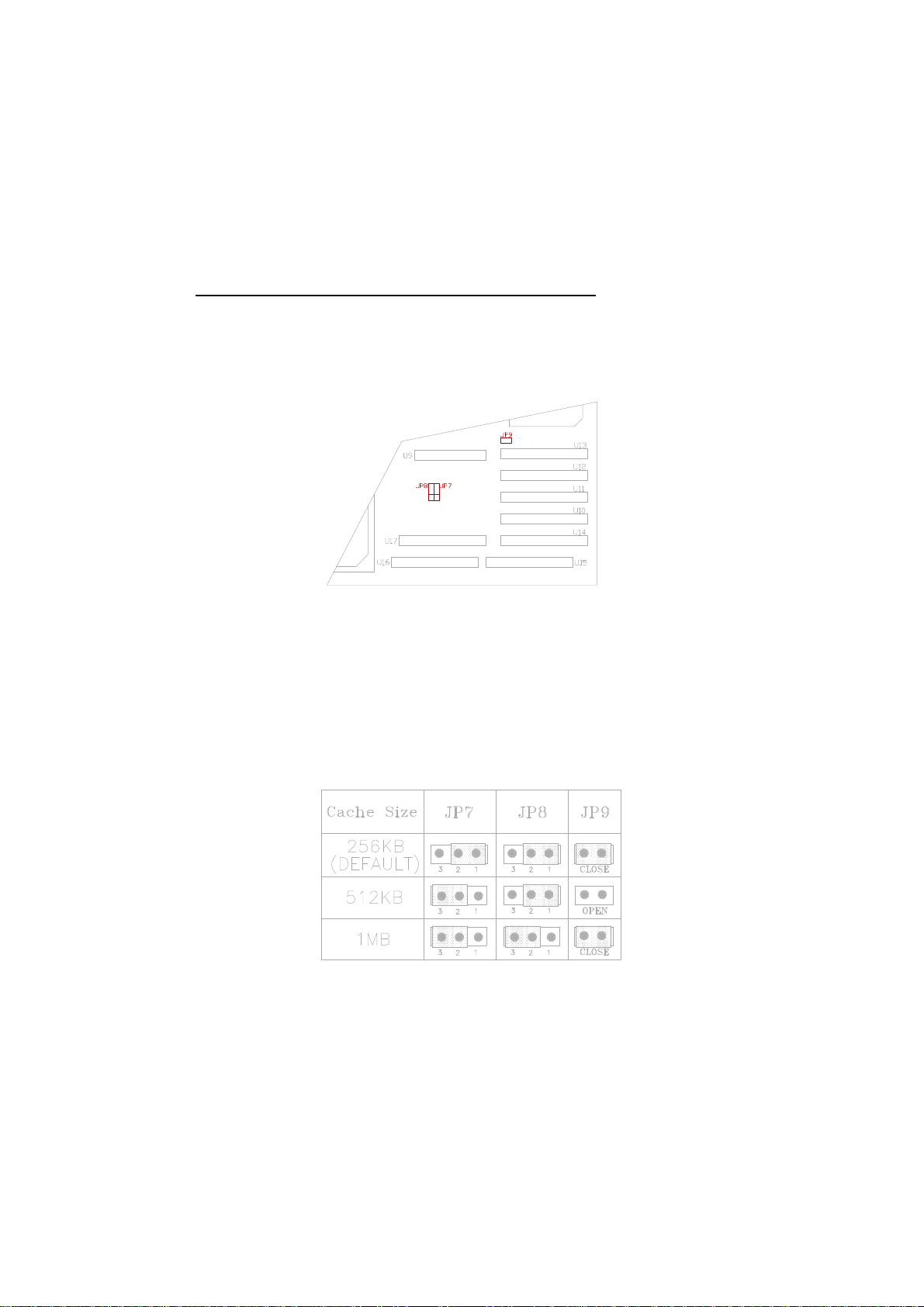

Fig 4 Cache Jumper and Socket Locations
Table 4: Cache Jumper Setting
2.5.3 CACHE CHIP SOCKETS AND JUMPER LOCATIONS
The diagram below describes the location of the cache chip sockets and cache
jumpers.
2.5.4 JP7-JP9 - CACHE JUMPER SETTING
Cache memory is configured using jumpers, JP7, JP8, & JP9. The following table
summarize the possible configuration.
JP7, JP8, JP9 -- Cache Jumper Setting

Chapter 210

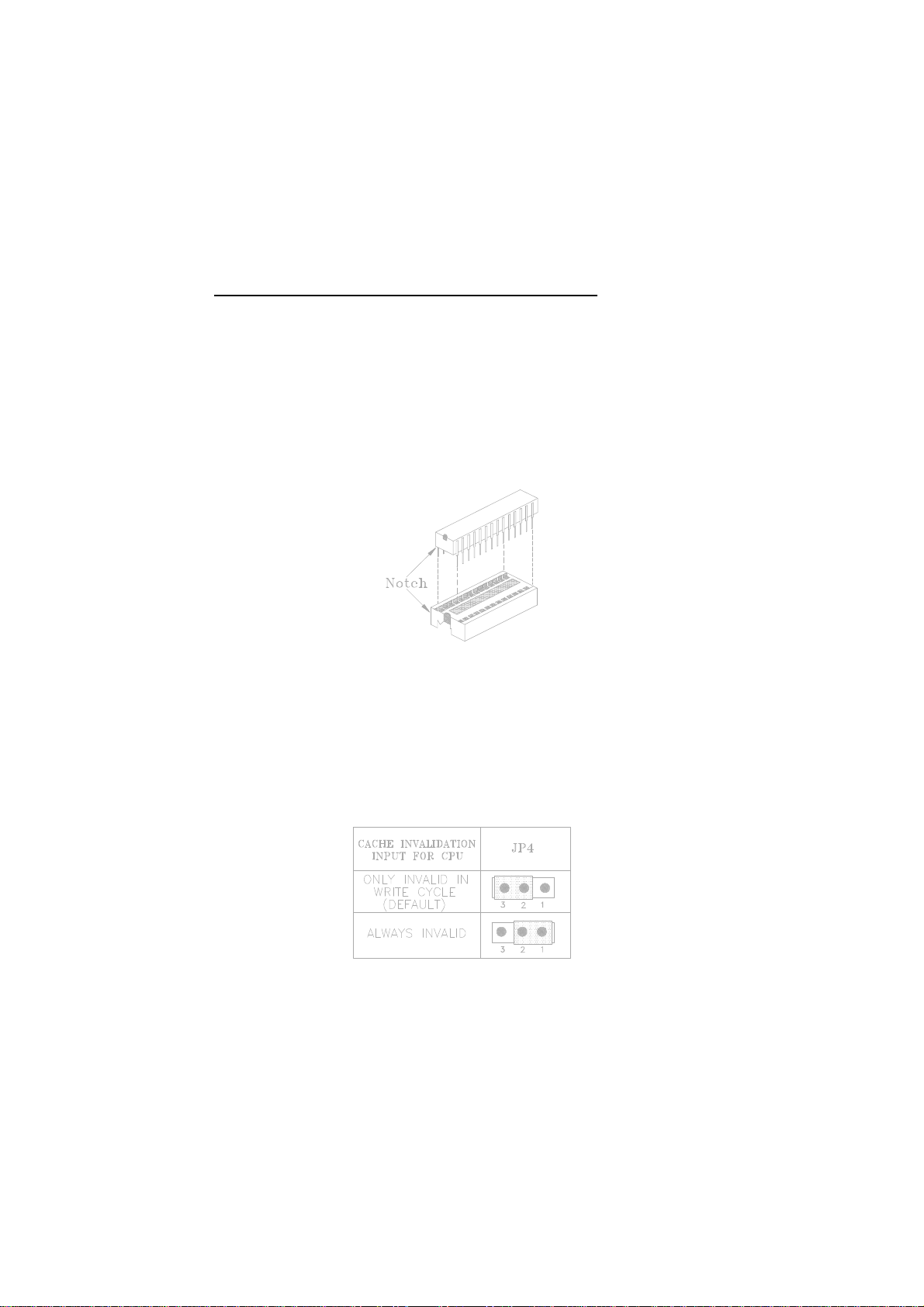

Fig 5 Installing a Cache Chip
Table 5
2.5.5 INSTALLING CACHE CHIPS
Install cache chips on the mainboard as follows:
Caution: Static electricity can damage a cache chip.
1. Review the section on static electricity precautions at the beginning of
this manual, and make sure that power to the mainboard is off.
2. Align the chip so that the notched corner of the chip matches the
notched corner of the socket.
3. Align the pins with the socket holes.
4. Carefully press the chip into the socket.
2.6 JP4 - CACHE INVALIDATION INPUT FOR CPU
JP4 is the Cache Invalidation Input for CPU, which determines the final cache line
state in case of an inquiry cycle hit. Refer to Fig 2 for the location, and set the
jumper according to the following table:
JP4 -- Cache Invalidation Input for CPU

Hardware Configuration 11
Table 6
Table 7
2.7 JP5 - CPU PIPELINE MODE SELECTION
JP5 is used to enable or disable the pipeline mode of CPU. Refer to Fig 2 for the
location, and set the jumper as below.
JP5 -- CPU Pipeline Mode Selection
2.8 JP6 - CPU INTERNAL CACHE WRITE BACK/
WRITE THROUGH SELECTION
JP6 is used to select the CPU Internal Cache to be Write Back or Write Through.
Refer to Fig 2 for the location.
JP6 -- CPU Internal Cache Write Back/Through Selection

Chapter 212
Table 8
Table 9
2.9 JP12 - VIDEO SELECTION
Please set JP12 for Mono or Color Video Display. Refer to Fig 2 for the location.
JP12 -- Video Selection
2.10 JP1 - DISCHARGE CMOS RAM
JP1 is used to clear the content of the CMOS RAM in the RTC chip DS12887A.
Refer to Fig 2 for the location.
JP1 -- Discharge CMOS RAM

Hardware Configuration 13
Table 10
Table 11
2.11 JP2, JP3 - EPROM TYPE SELECTION
JP2, JP3 are for EPROM Type Selection. Refer to Fig 2 for the location.
JP2, JP3 -- EPROM Type Selection
2.12 JP18 - PARALLEL PORT IRQ SELECTION
JP18 is for Parallel Port IRQ selection. Refer to Fig 2 for the location.
JP18 -- Parallel Port IRQ Selection

Chapter 214
Table 12
2.13 JP22, JP23 - PARALLEL PORT SETTING AND
ECP DMA SELECTION
JP22, JP23 are for Parallel Port Setting and ECP DMA selection. Refer to Fig 2
for the location.
JP22, JP23 -- Parallel Port Setting
2.14 MEMORY INSTALLATION
The mainboard lets user add system memory via SIMM sockets on the mainboard.
On-board memory is located in two banks: Bank 0 - SIM1 & SIM2, and Bank 1 -
SIM3 & SIM4. DRAM Configuration "Table-Free"
is supported on this board. See Fig 2.
User can install either 1/2/4/8/16/32/64MB SIMM (72-pin) in each SIMM
socket. Note that all SIMM modules in a bank must be the same capacity.
SIMMspeed required for best performance depends on the CPU speed, which
requires 70ns SIMM.
