DTK PRM-89I User manual

PRM-89I
High Performance
Pentium II PCI Mainboard
User’s Guide
Edition 1.00
©1998 DTK Computer, Inc.
P/N: 155100-8747

I
WARNING
For the system to operate normally, please make sure J5 of the mainboard is set as below. Refer
to Fig. 2 in this manual for the location J5.
If J5 is shorted to 2-3, no CMOS data can be retained.
CAUTION
The motherboard is an electrostatic sensitive device. Don’t open or handle except at a static-
free workstation.
POWER OFF
It needs to hold the power switch 4 seconds to turn off the power.
Windows, MS-DOS, and MS Word are trademarks of Microsoft Corporation.
Novell, Netware are trademarks of Novell, Inc.
Lotus, 1-2-3, and Symphony are trademarks of Lotus Development Corporation.
PC, AT, PC-DOS, OS/2 and Presentation Manager are trademarks of IBM Corporation.
UNIX is the trademark of AT&T.
Intel i82440LX and Pentium II are registered trademark of Intel Corporation.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
The information presented in this publication has been carefully checked for reliability; however,
no responsibility is assumed for inaccuracies, whereas, specification is subjected to change
without notice.
1 2 3
J5

II
CONTENTS
CHAPTER 1 INTRODUCTION 1
CHAPTER 2 JUMPER SETTINGS 3
2.1 JUMPERS PRESENTATION 3
2.2 GRAPHICAL DESCRIPTION OF JUMPER SETTINGS 4
2.3 CPU SPEED 5
2.4 J5 - CLEAR CMOS DATA 5
2.5 J2 - VOLTAGE SELECTION FOR SYSTEM ROM 6
2.6 MEMORY CONFIGUARTION 6
CHAPTER 3 CONNECTOR CONFIGURATION 7
3.1 JP1 - IrDA CONNECTOR 8
3.2 JP8 - ATX POWER SUPPLY CONNECTOR 8
3.3 JP10 - FLOPPY DRIVE CONTROLLER 8
3.4 JP11, JP12 – SECONDARY/PRIMARY IDE CONNECTORS 9
3.5 JP13 - HDD LED 9
3.6 JP14 - POWER ON/OFF SWITCH 9
3.7 JP15 - POWER LED 9
3.8 JP16 - RESET 9
3.9 JP17 - SPEAKER 10
3.10 FAN2 – CPU FAN CONNECTOR 10
3.11 FAN 3 – SYSTEM FAN CONNECTORS 10
3.12 U13 – PPGA P370 CPU 10
3.13 PS/2 KEYBOARD CONNECTOR 11
3.14 PS/2 MOUSE CONNECTOR 11
3.15 UNIVERSAL SERIAL BUS PORT 0 & 1 11
3.16 SERIAL PORT COM1 & COM2 11
3.17 PARALLEL PORT CONNECTOR 11
CHAPTER 4 AWARD BIOS SETUP GUIDE 13
4.1 AWARD BIOS SETUP 13
4.2 STANDARD CMOS SETUP 15
4.3 BIOS FEATURES SETUP 16
4.4 CHIPSET FEATURES SETUP 18
4.5 POWER MANAGEMENT SETUP MENU 20
4.6 PCI CONFIGURATION 22
4.7 INTEGRATED PERIPHERALS SETUP MENU 24
4.8 LOAD SETUP DEFAULTS MENU 26
4.9 SUPERVISOR PASSWORD 26
4.10 USER PASSWORD 27
4.11 IDE HDD AUTO DETECTION 27
4.12 SCSI HARD DISK INSTALLATION 27
4.13 SAVE & EXIT SETUP MENU 27
4.14 EXIT WITHOUT SAVING MENU 28

III
CHAPTER 5 FLASH AND DMI UTILITY 29
5.1 AWARD FLASH UTILITY 29
5.2 DESKTOP MANAGEMENT INTERFACE (DMI) OVERVIEW 31
APPENDIX A QUICK GUIDE 35

1
CHAPTER 1 INTRODUCTION
Preface
The motherboard is a 4 layers, ATX form factor high performance PCI/AGP mainboard. It
includes Intel i82440LX system chipset, Winbond W83977EF Super I/O controller.
Features
Processor
•Intel PPGA P370 series.
•The mainboard can run with following speeds:
300A, 333, 366 and 400 MHz
•Jumperless CPU HOST frequency
Chipset
•Intel i82443LX (PCI A.G.P. Controller)
•Intel 82371EB (PCI ISA IDE Xcelerator)
•Winbond W83977EF(Super I/O Controller)
Main Memory
•Memory configurations up to 768MB SDRAM
•DIMM socket for SDRAM (3.3V unbuffered).
•Support both Synchronous DRAM and Extended Data Output (EDO) Mode DRAM
Modules.
•ECC Function ensure data correction and integrity.
Multi I/O
•On board Multi-I/O supports two serial, one parallel ports and floppy drive controller.
•Serial ports are 16550 Fast UART compatible.
•Parallel port has EPP and ECP capabilities.
•PS/2 keyboard and PS/2 mouse connector is provided.
•Keyboard /mouse wake-up by programmable buttons.
•Programmable AC Power Failure Recovery.
•IrDA supported.
•USB supported.
Accelerated Graphics Port (AGP) Interface
•A.G.P. specification compliant
•A.G.P. 66/133MHz devices supported
PCI IDE
•On board supports PCI Master IDE Controller, two connectors support up to four IDE
devices such as HDD, CD ROM drive and Tape Back-up drives, etc.
•PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O data transfer rate can be
up to 16.6MB/s.
•Ultra DMA Mode supported. Transfer rate can be up to 33MB/s.

Chapter 1
2
System BIOS
•Award BIOS (256KB Flash EPROM).
Slots
•One AGP slot
•Four PCI slots
•Two ISA slots
Form Factor
•ATX Form Factor Size (305mm x 185mm) 4 Layers
Fig. 1 Key Components of the Mainboard

3
CHAPTER 2 JUMPER SETTINGS
2.1 JUMPERS PRESENTATION

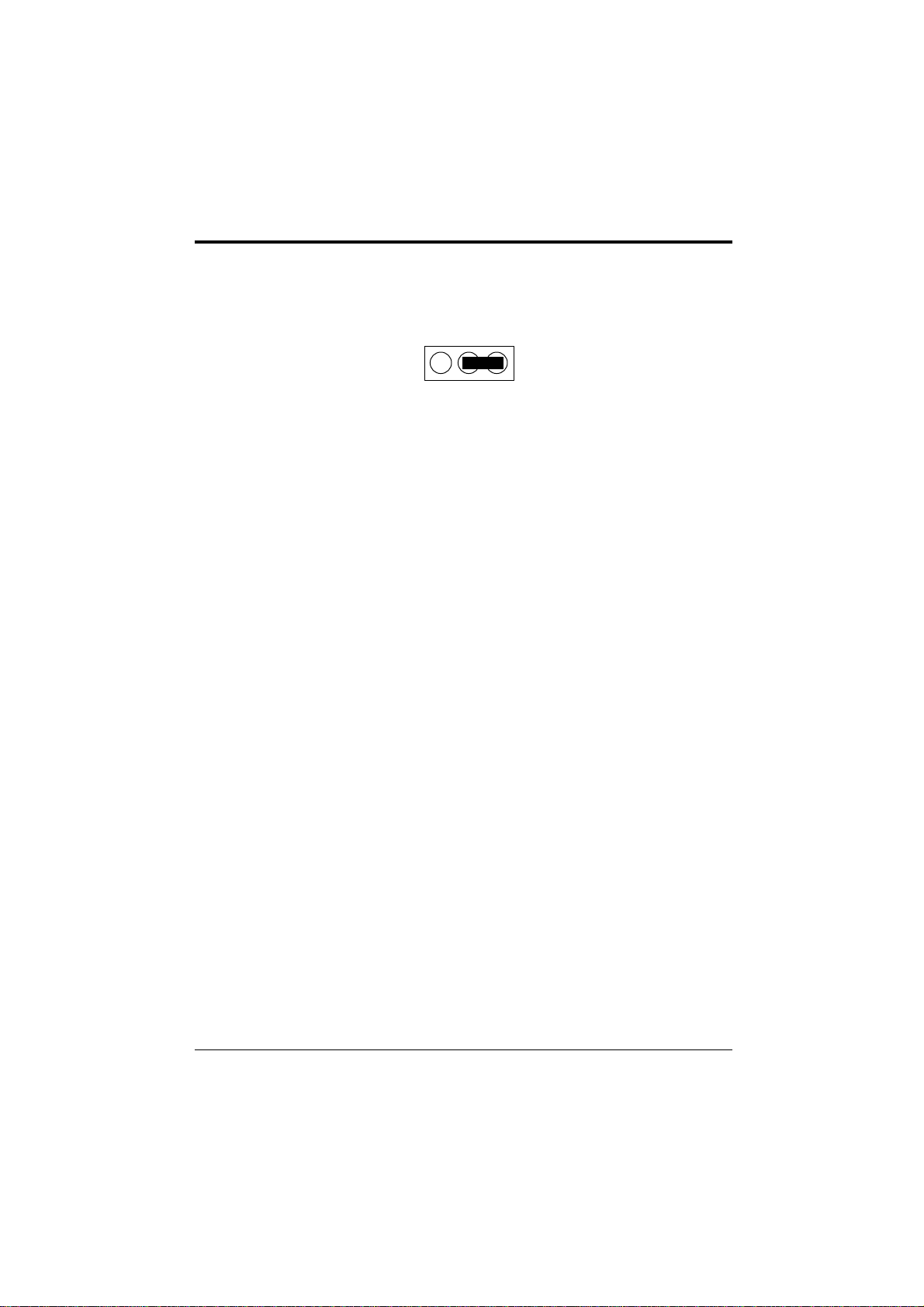

Pins 1 and 2 are shorted with a jumper cap.
1 2 3
Pins 2 and 3 are shorted with a jumper cap.
1 2 3
The jumper is shorted when the jumper cap is placed
over the two pins of the jumper.
The jumper is open when the jumper cap is removed
from jumper.

Chapter 2
4
2.2 GRAPHICAL DESCRIPTION OF JUMPER
SETTINGS

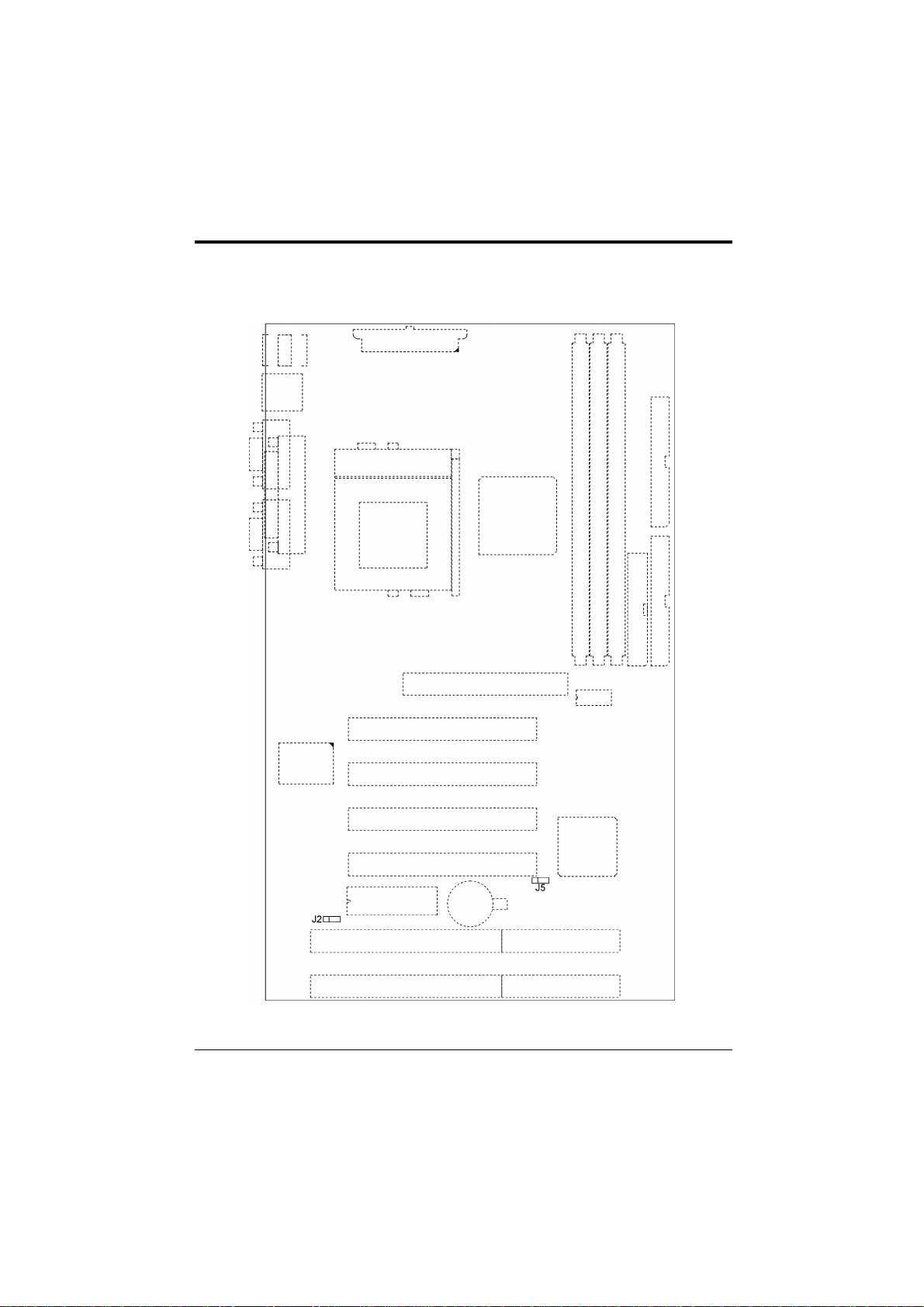

Fig. 2 Jumper Location of the mainboard

Jumper Settings
5
2.3 CPU SPEED
The table below summaries the CPU frequency and settings of each jumper of the
motherboard.
CPU Type Freq. Bus Freq.
300MHz
333MHz
366MHz
PPGA P370
Mendocino
400MHz
66MHz
Table 1
2.4 J5 - CLEAR CMOS DATA
J5 is used to clear the content of the CMOS Data in the RTC (build in PIIX4 chip).
Table 2: Clear CMOS Data

Chapter 2
6
2.5 J2 - VOLTAGE SELECTION FOR SYSTEM ROM
J2 is used to select the operation voltage of the system ROM.
Table 3: Voltage Selection for System ROM
2.6 MEMORY CONFIGUARTION
The mainboard lets user upgrade system memory via DIMM sockets on the
mainboard. On board memory is located in eight banks: Bank 0 - 7. Four DIMM
sockets are provided for EDO DRAM or Synchronous DRAM. Table 4 provides the
typical memory configurations supported by the mainboard.
Bank 0/1 (DIMM3) Bank 2/3 (DIMM2) Bank 4/5 (DIMM1)
Installed None None
None Installed None
None None Installed
Installed Installed None
Installed None Installed
None Installed Installed
Installed Installed Installed
Table 4
The maximum memory size is up to 384MB (SDRAM) or 768MB (EDO). The size
of each DIMM can be 8MB, 16MB, 32MB, 64MB, 128MB and 256MB.

7
CHAPTER 3 CONNECTOR
CONFIGURATION
Once the mainboard has been fastened into system case, the next step is to connect the internal
cables. The internal cables are wire leads with plastic female connectors that attach to the
connectors. The mainboard connectors have varying numbers of pins and are the points of
contact between the mainboard and other parts of the computer.
Fig 3 Connector Location

Chapter 3
8
3.1 JP1 - IrDA CONNECTOR
JP1 is an IrDA connector that use UART2 as interface of IrDA Infrared and ASKIR.
Fig. 4 IrDA Connector
3.2 JP8 - ATX POWER SUPPLY CONNECTOR
Fig. 5 ATX Power Supply Connector
3.3 JP10 - FLOPPY DRIVE CONTROLLER
This connector supports the floppy drive ribbon cable. After connecting the single
end to the board, connect the two plugs on the other end to the floppy drive.

Connector Configuration
9
3.4 JP11, JP12 – SECONDARY/PRIMARY IDE
CONNECTORS
These connectors support the provided IDE hard disk ribbon cable. After
connecting the single end to the board, connect the two plugs on the other end to
your hard disk or other device.
3.5 JP13 - HDD LED
JP13 is usually connected to a HDD LED on front of the system case. If the HDD is
in operation, the indicator lights during operation.
Fig. 6 HDD LED
3.6 JP14 - POWER ON/OFF SWITCH
It is used to switch on or off the ATX power supply. The power is turned on by
short the power switch once. It needs to hold the power switch about 4 seconds to
turn it off when it has not start to display.
3.7 JP15 - POWER LED
Attach the power led cable to this connector. If the system is power on, the indicator
lights.
Fig. 7 Power LED
3.8 JP16 - RESET
Attach the Reset switch cable to this connector. The Reset switch restarts the
system.

Chapter 3
10
3.9 JP17 - SPEAKER
JP17 is a four-pin connector, which is used to connect the system speaker.
Fig. 8 Speaker
3.10 FAN2 – CPU FAN CONNECTOR
FAN2 is a three-pin connector, which is used to connect with the CPU Fan Power
cable.
3.11 FAN 3 – SYSTEM FAN CONNECTORS
Additional System Fan can be connected to these connectors.
3.12 U13 – PPGA P370 CPU
U13 is the PPGA P370 for Mendocino CPU.
Fig. 9 PPGA P370 CPU

Connector Configuration
11

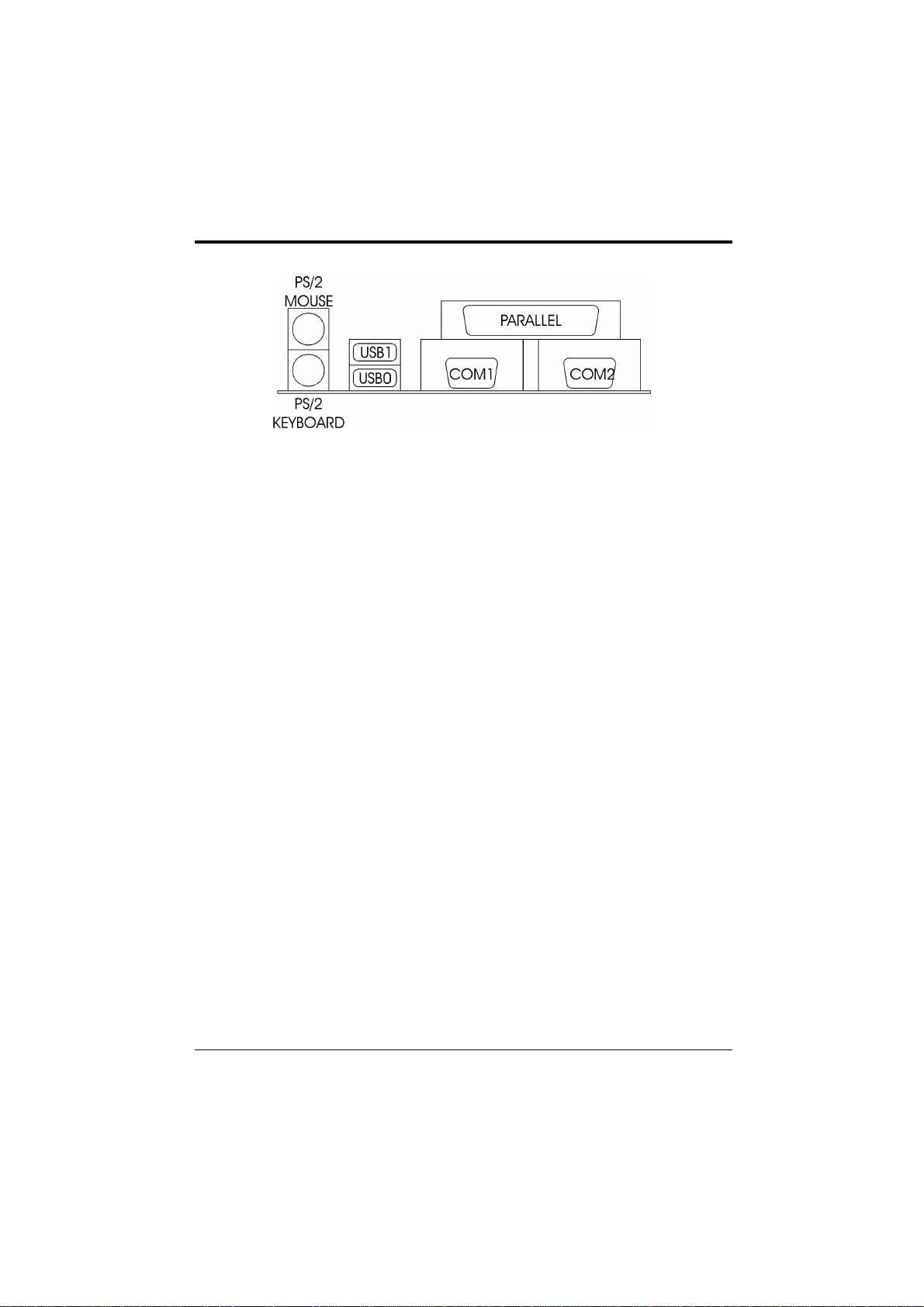

Fig. 10 I/O Connector
3.13 PS/2 KEYBOARD CONNECTOR
This connector is a six-pin female mini DIN connector using a PS/2 plug. If a
standard AT size keyboard plugs, you may use the DIN to mini DIN adaptor.
3.14 PS/2 MOUSE CONNECTOR
This connector is a six-pin female mini DIN connector using a PS/2 plug. Plug the
jack on the PS/2 keyboard cable into this connector.
3.15 UNIVERSAL SERIAL BUS PORT 0 & 1
These connectors are two four-pin female sockets which are available for connecting
USB device.
3.16 SERIAL PORT COM1 & COM2
This is a D-Type 9 pin male connector for pointing devices or other serial devices.
3.17 PARALLEL PORT CONNECTOR
This is a D-Type 25 pin female connector.

Chapter 3
12

13
CHAPTER 4 AWARD BIOS SETUP
GUIDE
This following manual is specially provided for the BIOS supported system. After the
configuration of the mainboard, and have assembled the components, user can turn on the
completed system. At this point, run the software setup to ensure that the system information is
correct.
The software setup of the system board is achieved through Basic Input-Output System (BIOS)
programming. Use the BIOS setup program to tell the operating system what type of devices
(such as disk drives) are connected to the system board.
The system setup is also called CMOS setup. Normally, users need to run system setup if either
the hardware configuration is not identical with information contained in the CMOS RAM, or the
CMOS RAM has lost power.
4.1 AWARD BIOS SETUP
The setup program provided with the mainboard is the Award BIOS from Award
Software, Inc. Enter the AWARD Setup program’s Main Menu as follows:
1. Turn on or reboot the system. After a series of diagnostic check, the
following message appear:
“Press DEL to enter SETUP”

Chapter 4
14
2. Press the <DEL> key to enter the AWARD BIOS setup program and the
following screen appears:
ROM PCI/ISA BIOS (2A69JD1J)
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULT
INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
Esc : Quit ↑↓→←: Select Item
F10 : Save & Exit Setup (Shift)F2 : Change Color
Time, Data, Hard Disk Type...
Fig. 11
3. Choose an option and press <Enter>. Modify the system parameters to
reflect the options installed in the system. (see the following sections for
more information).
4. Press <ESC> at anytime to return to the Main Menu.
5. In the Main Menu, choose “SAVE AND EXIT SETUP” to save change and
reboot the system. Choosing “EXIT WITHOUT SAVING” to ignore all
changes and exists the program.

Award BIOS Setup Guide
15
4.2 STANDARD CMOS SETUP
ROM PCI/ISA BIOS (2A69JD1J)
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Date (mm:dd:yy) : Wed, Dec 11 1998
Time (hh:mm:ss) : 20 : 27 : 55
HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto 0 0 0 0 0 0 AUTO
Primary Slave : None 0 0 0 0 0 0 ---------
Secondary Master : None 0 0 0 0 0 0 ---------
Secondary Slave : None 0 0 0 0 0 0 ---------
Drive A : 1.44M , 3.5in.
Drive B : None
Video : EGA/VGA
Halt On : All Errors
Base Memory:
Extended Memory:
Other Memory:
Total Memory:
0K
0K
512K
512K
Esc : Quit ↑↓→←: Select Item PU/PD/+/- : Modify
F1 : Help (Shift)F2 : Change Color
Fig. 12
Date(mm/dd/yy) Type the current date.
Time(hh:mm:ss) Type the current time.
Hard Disks Choose from the standard hare disk types 1 to 45. Type
47 is user definable. Type Auto is for auto detect the
hard disk type.
Drive A&B Choose 360K, 5.25in.; 1.2M, 5.25in.; 720K, 3.5in.;
1.44M, 3.5in.; 2.88MB 3.5in. or None
Video Choose EGA/VGA, CGA 40, CGA 80, or MONO,
Halt On Choose All Errors; No Errors; All, But Keyboard; All,
But Diskette or All, But Disk/Key

Chapter 4
16
4.3 BIOS FEATURES SETUP
ROM PCI/ISA BIOS (2A69JD1J)
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
Virus Warning
CPU Internal Cache
External Cache
Quick Power On Self Test
Boot Sequence
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up Numlock Status
Boot Up System Speed
Gate A20 Option
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
PCI/VGA Palette Snoop
Assign IRQ For VGA
OS Select For DRAM > 64MB
: Enabled
: Enabled
: Enabled
: Enabled
: A,C,SCSI
: Disabled
: Enabled
: Off
: High
: Fast
: Disabled
: 6
: 250
: Setup
: Disabled
: Disabled
: Non-OS2
Video BIOS Shadow
C8000-CBFFF Shadow
CC000-CFFFF Shadow
D0000-D3FFF Shadow
D4000-D7FFF Shadow
D8000-DBFFF Shadow
DC000-DFFFF Shadow
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
HDD S.M.A.R.T. capability
Report No FDD For WIN 95 : Disabled : No ESC: Quit ↑ ↓ → ←: Select Item
F1: Help PU/PD/+/-: Modify
F5: Old Values (Shift)F2: Color
F7: Load Setup Defaults
Fig. 13 BIOS Setup Defaults
A short description of the screen items follows:
Virus Warning: When enabled, you receive a warning message if a program (specifically, a
virus) attempts to write to the boot sector or the partition table of the hard disk drive. You should
then run an anti-virus program. The default is Disabled.
CPU Internal Cache: Choose Enabled or Disabled. This option lets user choose whether to use
CPU internal cache memory. The default is Enabled.
External Cache: Choose Enabled or Disabled. This option lets user choose whether to use
secondary cache memory. The default is Enabled.
Quick Power On Self Test: Choose Enabled or Disabled. This option let the POST sequence
runs longer for through tests.
