DTK PRM-0075I User manual

PRM-0075I
High Performance
Pentium PCI ATX Mainboard
User’s Guide
Edition 1.00
©1997 DTK Computer, Inc.
P/N: 155100-8454


I
CAUTION
The motherboard is an electrostatic sensitive device. Don’t open or handle except at a static-
free workstation.
POWER OFF
It needs to hold the power switch 4 seconds to turn off the power.
Windows, MS-DOS, and MS Word are trademarks of Microsoft Corporation.
Novell, Netware are trademarks of Novell, Inc.
PC, AT, PC-DOS, OS/2 and Presentation Manager are trademarks of IBM Corporation.
Pentium is registered trademark of Intel Corp.
UNIX is the trademark of AT&T.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
The information presented in this publication has been carefully checked for reliability; however,
no responsibility is assumed for inaccuracies, whereas, specification is subjected to change
without notice.

II
CONTENTS
CHAPTER 1 INTRODUCTION 1
CHAPTER 2 JUMPER SETTINGS 5
2.1 JUMPERS PRESENTATION 5
2.2 CPU TYPE 5
2.2.1 INTEL PENTIUM CPU 5
2.2.2 INTEL PENTIUM w/ MMXTECH (P55C) CPU 6
2.2.3 AMD-K6 CPU 7
2.2.4 AMD-K5 CPU 7
2.2.5 CYRIX 6x86 CPU 8
2.2.6 CYRIX 6x86L CPU 9
2.2.7 CYRIX 6x86MX CPU 9
2.3 GRAPHICAL DESCRIPTION OF JUMPER SETTINGS 10
2.4 CPU VOLTAGE 11
2.5 CPU SPEED (SW1) 13
2.6 JP4 - VOLTAGE SELECTION FOR SYSTEM ROM 16
2.7 JP10 - ON BOARD VGA IRQ SELECT 17
2.8 JP11 - ON BOARD VGA SELECT 18
2.9 JP15 - RESERVED JUMPER 19
2.10 JP21 - RING IN SELECT 19
2.11 JP22 - ON BOARD AUDIO CHIP SELECT 20
2.12 MEMORY CONFIGURATION 21
2.13 VIDEO MEMORY UPGRADE 22
CHAPTER 3 CONNECTOR CONFIGURATION 23
3.1 PS1 - ATX POWER CONNECTOR 24
3.2 JP1 - INTERNAL MODEM RING-IN CONNECTOR 24
3.3 JP6 - IrDA IR CONNECTOR 25
3.4 J2 - MULTIPLE FUNCTION JUMPER 25
3.5 J4 - TV OUTPUT EXTENSION CARD CONNECTOR 26
3.6 J5 - ACM/VFC CONNECTOR 26
3.7 J7 - CD-ROM AUDIO CONNECTOR (SONY) 26
3.8 J8 - CD-ROM AUDIO CONNECTOR (MISUMI/PANASONIC) 26
3.9 J10, J11 - PRIMARY/SECONDARY IDE CONNECTORS 27
3.10 J14 - FLOPPY DRIVE CONNECTOR 27
3.11 J20 - SERIAL PORT COM2 CONNECTOR 27
3.12 PS/2 KEYBOARD CONNECTOR 27
3.13 PS/2 MOUSE CONNECTOR 28
3.14 UNIVERSAL SERIAL BUS PORTS 0 & 1 28
3.15 PARALLEL PORT CONNECTOR 28
3.16 SERIAL PORT COM1 28
3.17 VGA MONITOR CONNECTOR 28
3.18 AUDIO PORT CONNECTOR 28

III
CHAPTER 4 AWARD BIOS SETUP GUIDE 29
4.1 AWARD BIOS SETUP 29
4.2 STANDARD CMOS SETUP 31
4.3 BIOS FEATURES SETUP 32
4.4 CHIPSET FEATURES SETUP 34
4.5 POWER MANAGEMENT SETUP MENU 36
4.6 PCI CONFIGURATION 38
4.7 INTEGRATED PERIPHERALS SETUP MENU 40
4.8 LOAD SETUP DEFAULTS MENU 42
4.9 SUPERVISOR PASSWORD 42
4.10 USER PASSWORD 43
4.11 IDE HDD AUTO DETECTION 43
4.12 SCSI HARD DISK INSTALLATION 43
4.13 SAVE & EXIT SETUP MENU 43
4.14 EXIT WITHOUT SAVING MENU 44
CHAPTER 5 SOFTWARE INSTALLATION 45
5.1 PCI IDE DRIVER INSTALLATION 45
5.2 PCI VGA DRIVER INSTALLATION 45
5.2.1 INSTALLATION OF WINDOWS 95 VGA DRIVER 45
5.2.2 INSTALLATION OF THE WINDOWS NT 4.0 47
5.3 SOUND DRIVER INSTALLATION 50
5.3.1 INSTALLATION OF WINDOWS 95 SOUND DRIVER
AND APPLICATIONS 50
5.3.2 INSTALLATION OF WINDOWS NT 4.0 SOUND DRIVER 51
CHAPTER 6 AWARD ZERO-VOLT DATA-SUSPEND UTILITY 55
6.1 INTRODUCTION 55
6.2 PREPARATION 55
6.3 RUNNING THE PROGRAM 56
6.3.1 INSTALLATION 56
6.3.2 SAVING SESSION DATA 58
6.4 PROGRAM FUNCTIONS 59
6.4.1 USAGE 59
6.4.2 REFORMATTING THE STORAGE PARTITION 60
6.4.3 DELETING THE STORAGE FILE OR PARTITION 60
CHAPTER 7 FLASH AND DMI UTILITY 61
7.1 AWARD FLASH UTILITY 61
7.2 DESKTOP MANAGEMENT INTERFACE (DMI) OVERVIEW 63
APPENDIX A QUICK GUIDE 67


1
CHAPTER 1 INTRODUCTION
Preface
The motherboard is a full ATX form factor high performance all in one mainboard. It is
developed around the pentium microprocessor with 64 bit access to data transfer and MMX
technology. It includes Intel 82430TX System Chipset, ATI 3D RAGE II Accelerated
Graphics and Video Chip, Creative ViBRA16CL CT2510 Stereo 16-bit Sound Chip and
SMC 669 Super I/O Chip.
Features
Processor
•Intel Pentium/MMX, Cyrix 6x86/6x86L/6x86MX and AMD K5/K6 CPU.
•The mainboard can run with following speeds:
90, 100, 110, 120, 133, 150, 166, 200, 233 and 266 MHz
Chipset
•Intel 82439TX (Intel 82430TX System Controller)
•Intel 82371AB (PCI ISA IDE Xcelerator)
•ATI 3D RAGE II (PCI 3D Graphics and Video Accelerators)
•Creative ViBRA 16CL CT2510 (Stereo 16-bit Sound Chip)
•SMC 669 (Super I/O Controller)
Cache Size
•Built in 0/256/512KB Synchronised Pipelined Burst Mode SRAM to achieve the high
Pentium system performance.
Main Memory
•Support Mixed Memory Technologies: Extend Data Output (EDO), Standard Page Mode
(SPM), Fast Page Mode (FPM) and Synchronous DRAM (SDRAM) SIMM can work
together.
•Memory configurations from 4MB to 256MB are possible using combination of 512K*32 to
8M*32 SIMM module (32 bit no-parity 72-pin SIMM module) and 2M*32 to 8M*32
SDRAM DIMM module.
•DIMM socket for EDO or SDRAM (3.3V unbuffered).
Multi I/O
•On board Multi-I/O supports two serial, one parallel ports and floppy drive controller.
•Serial ports are 16550 Fast UART compatible.
•Parallel port has EPP and ECP capabilities.
•PS/2 keyboard and PS/2 mouse connector is provided.
•IrDA or Fast IR is provided.
•Two standard USB connectors are provided.

Chapter 1
2

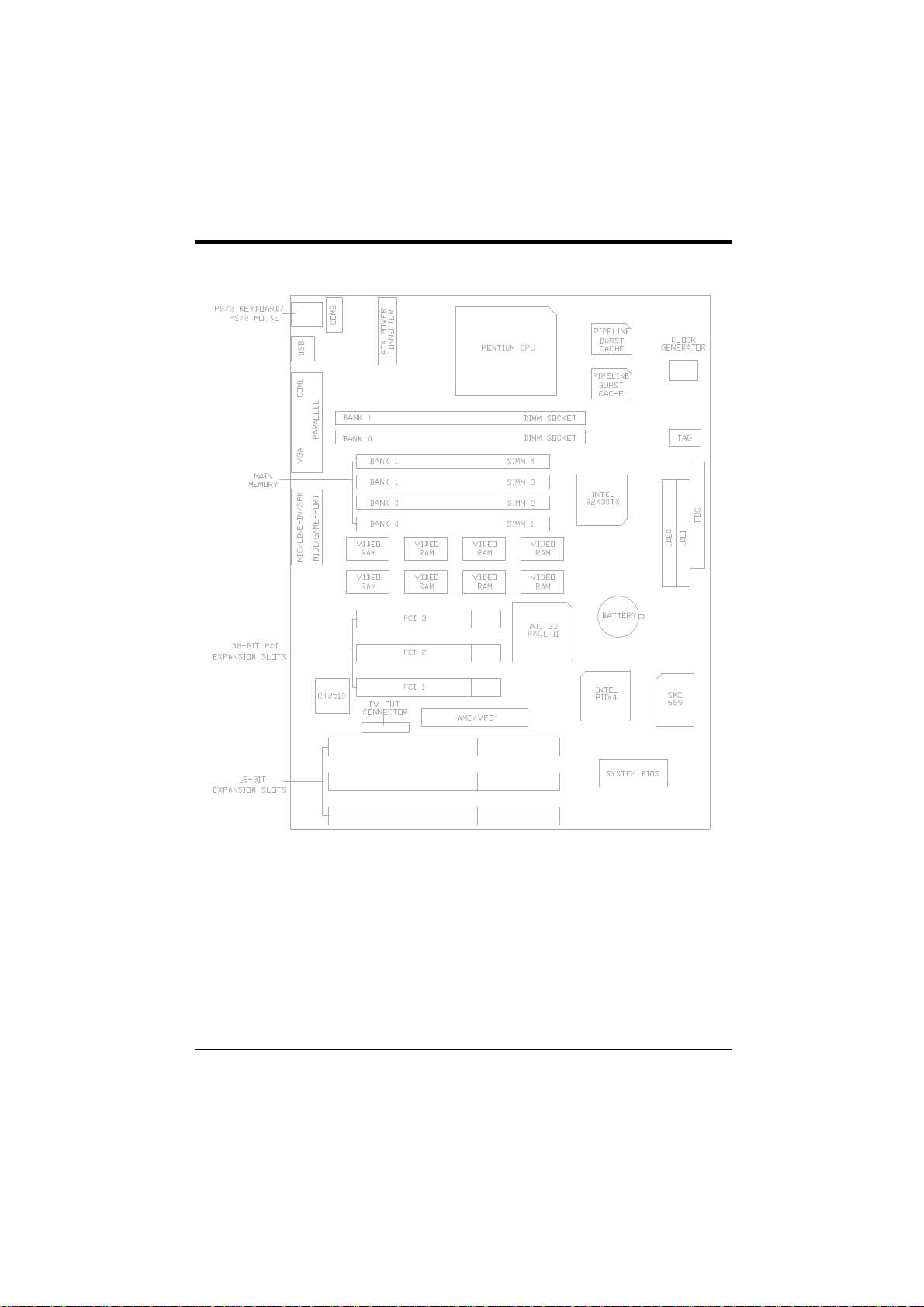

Fig. 1 Key Components of the Mainboard

Introduction
3
PCI IDE
•On board supports PCI Master IDE Controller, two connectors support up to four IDE
devices such as HDD, CD ROM drive and Tape Back-up drives LS-120, etc.
•PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O data transfer rate can be
up to 17Mb/s.
•Ultra DMA Mode supported. Transfer rate can be up to 33Mb/s.
PCI Graphic and Video Accelerator
•64-bit 3D and 2D graphics accelerator.
•On board 1MB or 2MB Video RAM, can be expanded to 4MB.
•Support up to 1600x1200 resolution.
•Optional TV output extension card for NTSC or PAL TV display.
Sound Controller
•Compatible with all major PC sound standards, including Sound Blaster16, MPU-401
and Windows Sound System.
•Plug-and-Play support for Audio, Joystick, FM Controller, MPU-401.
•Wave Audio support sample rates for 5KHz to 48KHz.
•Full-duplex DMA allowing 8-bit or 16-bit data for record and playback.
System BIOS
•Award BIOS (256KB Flash ROM).
Slots
•Three PCI slots
•Three ISA slots
Form Factor
•304mm (W) x 245mm (L) 4 Layer
Environment
Working Specifications
Actual Field MTBF (hours) 104,515 hours
Preventive Maintenance Not Required
Environmental Limits Operating Non-operating
Temperature 0 to 50 degree Celsius -10 to 65 Degree Celsius
Relative Humidity
(without condensation) 8 to 85% 5 to 95%
Altitude 10,000ft 40,000ft
Vibration 1,000Hz
Electricity 4.75 ∼5.25V

Chapter 1
4

5
CHAPTER 2 JUMPER SETTINGS

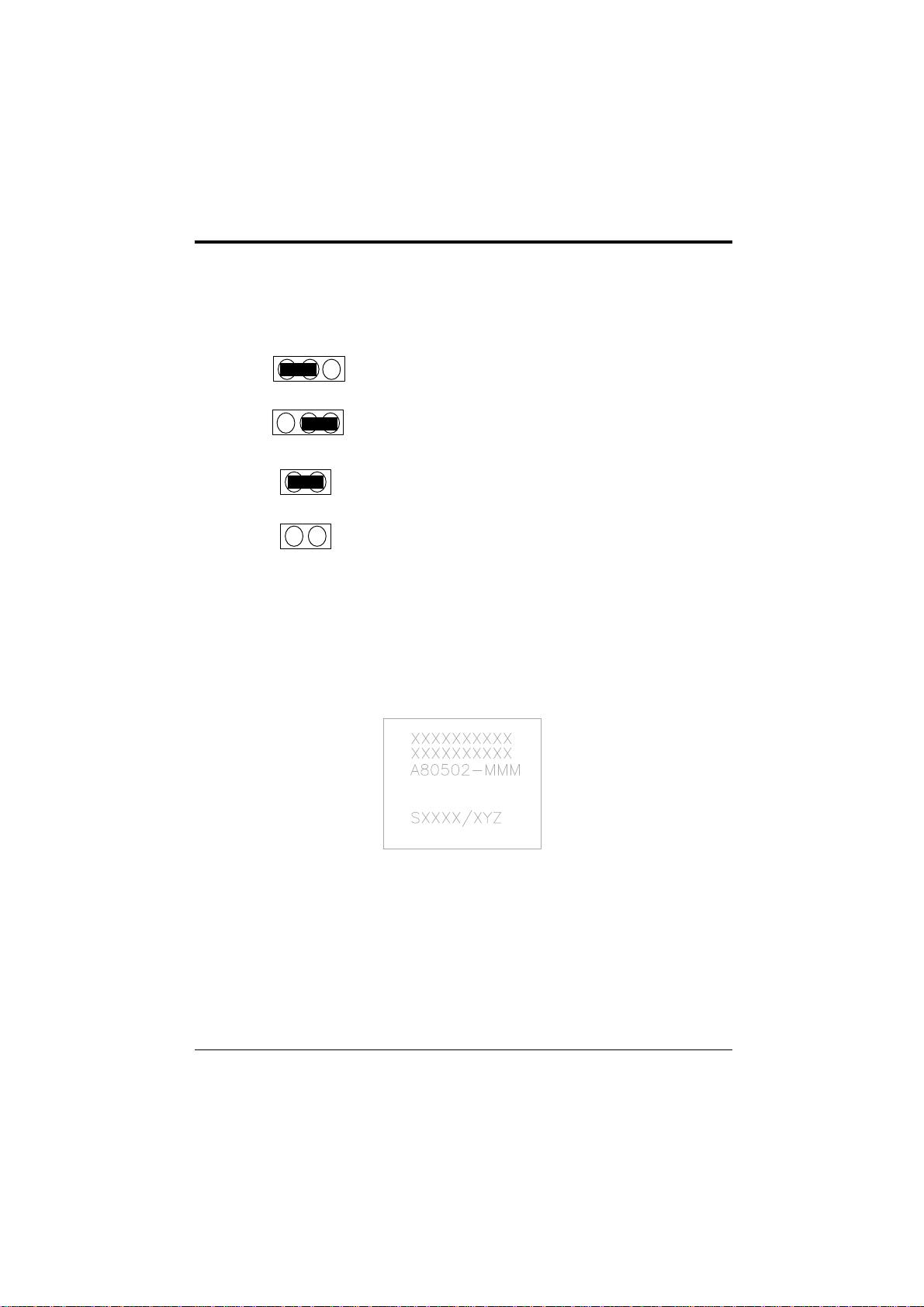

2.1 JUMPERS PRESENTATION
Pins 1 and 2 are shorted with a jumper cap.
1 2 3
Pins 2 and 3 are shorted with a jumper cap.
1 2 3
The jumper is shorted when the jumper cap is placed
over the two pins of the jumper.
The jumper is open when the jumper cap is removed
from jumper.
2.2 CPU TYPE
2.2.1 INTEL PENTIUM CPU
The pentium processors have different operation voltage. In order to using the CPU
Voltage correctly, the following is the marking for identify the CPU type.
Fig. 2a CPU Description
(Bottom Side)
Description :
X = Voltage Specification (S or V) Y = Timing Specification (S or M)
S = Standard Voltage (3.4V) S = Standard EDS timings
V = VRE 3.4 - 3.6V (3.5V) M = Min Valid Delay Spec.
Z = Dual Processing Support ( S or U)
S = Support DP/MP/UP
U = Not tested to support DP

Chapter 2
6

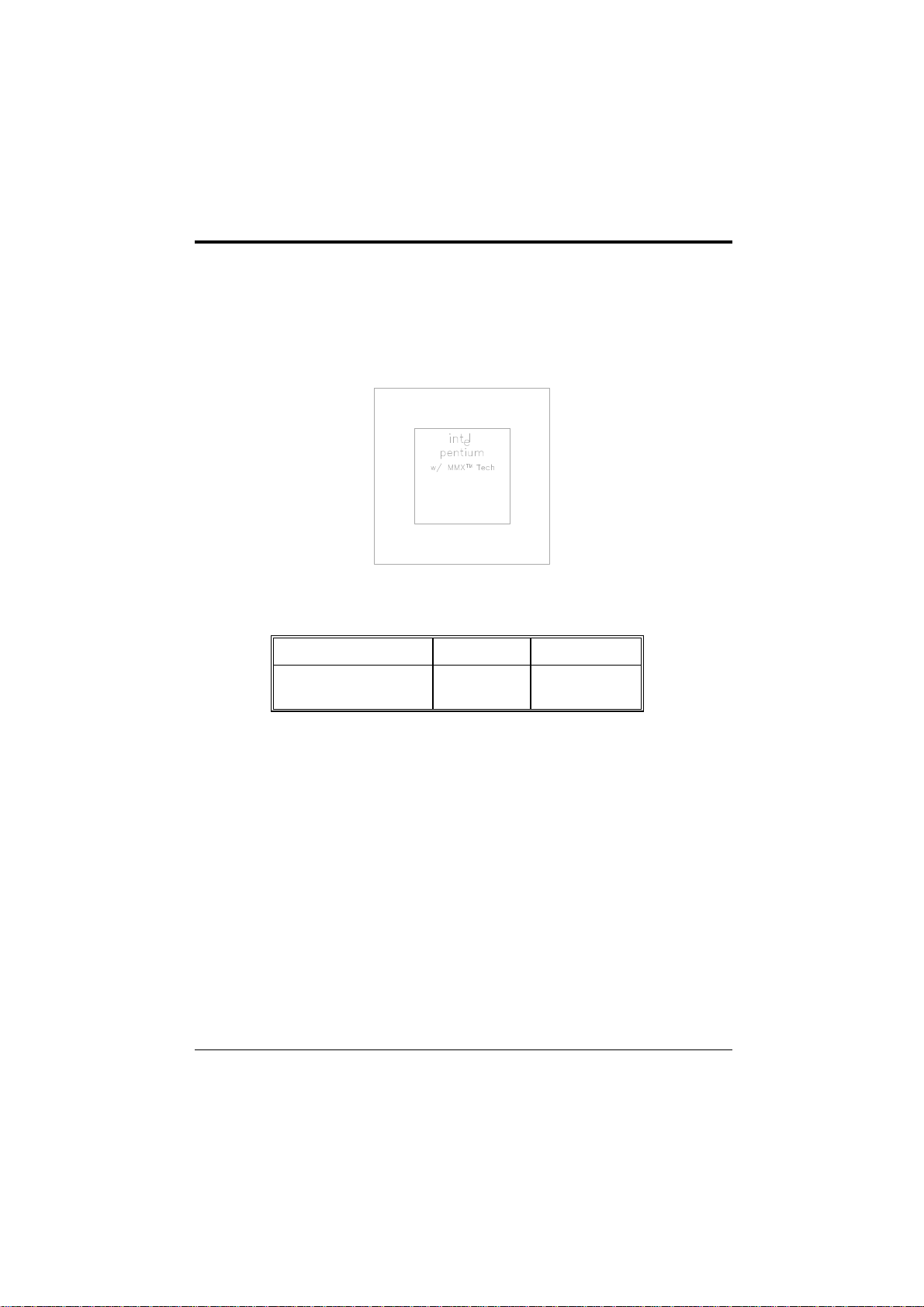

2.2.2 INTEL PENTIUM w/ MMX TECH (P55C) CPU
The Intel Pentium w/ MMXTech (P55C) CPU is offered with dual voltage supply
- 2.8V for core and 3.3V (I/O) interface. The following is the marking for identify
the CPU type. (The following diagram is provided as an example only. It does not
necessarily indicate a valid product marking.)
Fig. 2b CPU Description
(Top Side)
I/O Voltage Core Voltage
Intel Pentium w/
MMXTech (P55C) 3.3V 2.8V

Jumper Settings
7

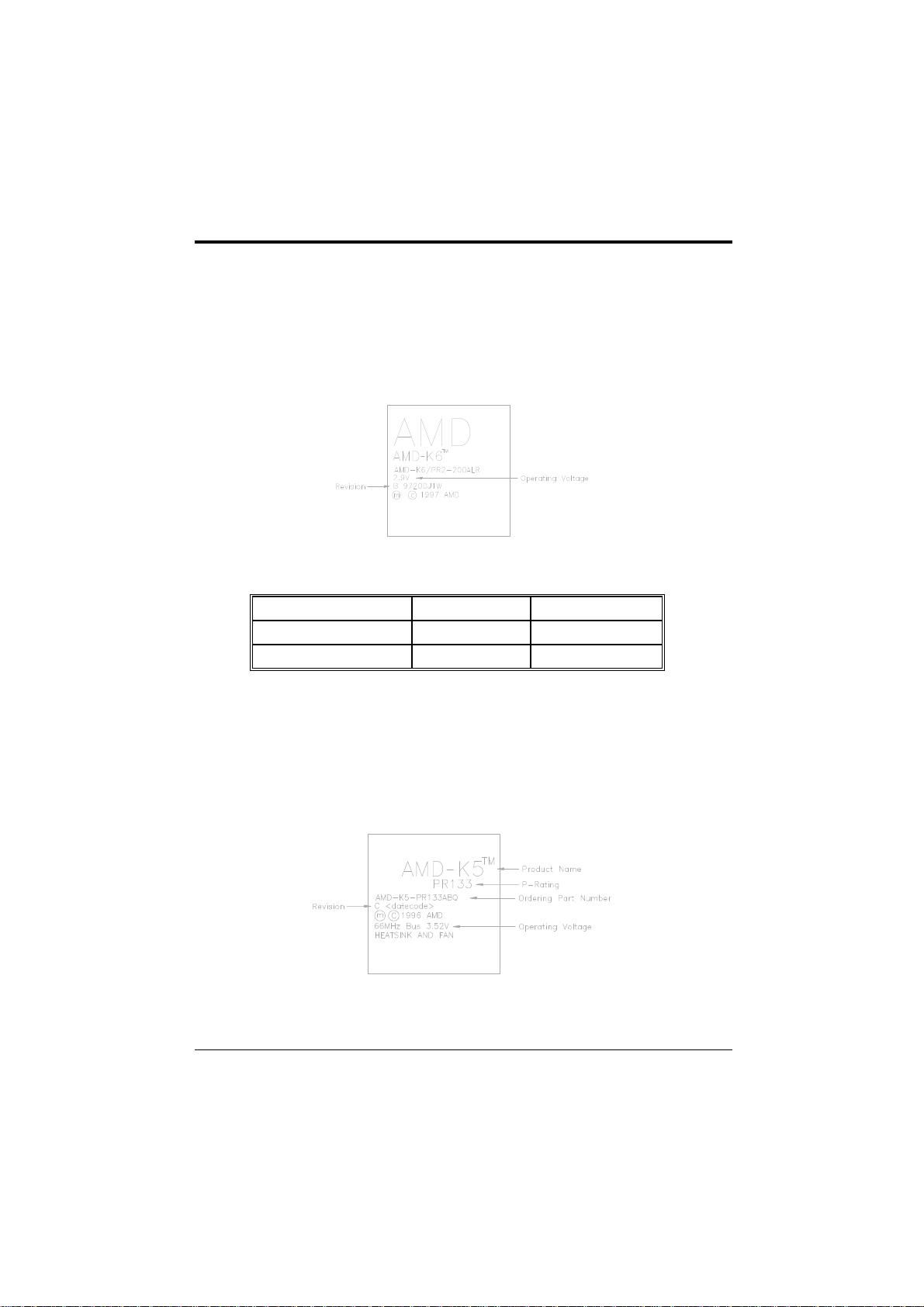

2.2.3 AMD-K6 CPU
The AMD-K6 CPU family require dual voltage power for operation. The AMD-
K6/166 and AMD-K6/200 require a voltage of 2.9V for the core and 3.3V for the
I/O. The AMD-K6/233 require a voltage of 3.2V for the core and 3.3V for the I/O.
(The following diagram is provided as an example only. It does not necessarily
indicate a valid product marking.)
Fig. 2c CPU Description
(Top Side)
Operating Voltage I/O Voltage Core Voltage
2.9V 3.3V 2.9V
3.2V 3.3V 3.2V
2.2.4 AMD-K5 CPU
The AMD-K5 family CPU operates on different operation voltage depending on the
CPU type. The operating voltage can be known through the marking on the surface of
the CPU. (The following diagram is provided as an example only. It does not
necessarily indicate a valid product marking.)
Fig. 2d CPU Description
(Top Side)

Chapter 2
8
2.2.5 CYRIX 6x86 CPU
The Cyrix 6x86 has different nominal voltage depends on different lot. Please refer to
the CPU marking.
Fig. 2e CPU Description
(Top Side)
Marketing Recommended Nominal Voltage
3.3V or 3.52V 3.52V
028 3.52V
016 3.3V
Blank 3.52V

Jumper Settings
9

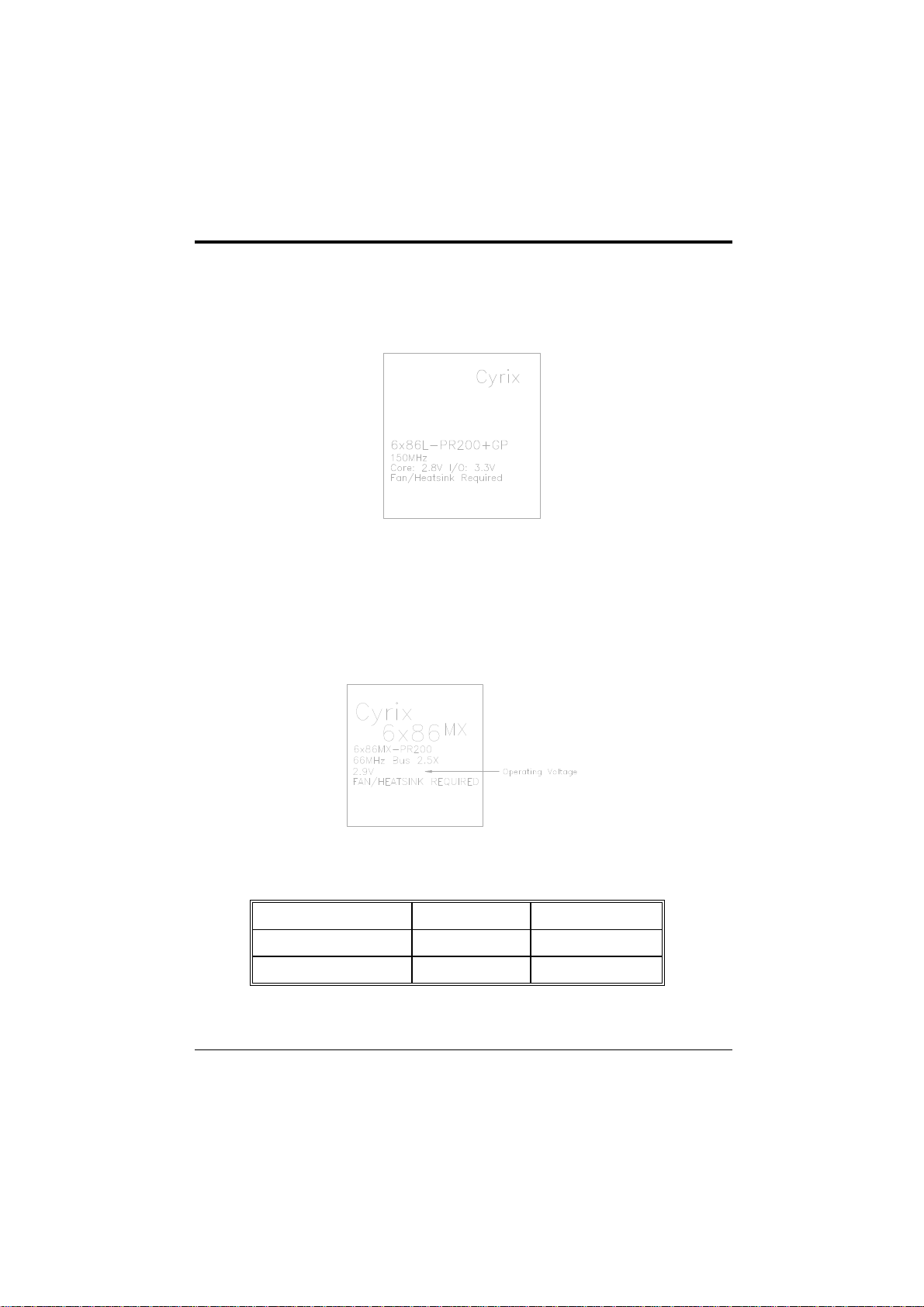

2.2.6 CYRIX 6x86L CPU
The Cyrix 6x86L has different I/O and core voltage. Please refer to the CPU
marking.
Fig. 2f CPU Description
(Top Side)
2.2.7 CYRIX 6x86MX CPU
The Cyrix 6x86MX has different I/O and core voltage. Please refer to the CPU
marking.
Fig. 2g CPU Description
(Top Side)
I/O Voltage Core Voltage
Cyrix 6x86MX CPU 3.3V 2.9V
Cyrix 6x86L CPU 3.3V 2.8V

Chapter 2
10
2.3 GRAPHICAL DESCRIPTION OF JUMPER
SETTINGS
Fig. 3 Jumpers Location of the mainboard

Jumper Settings
11
2.4 CPU VOLTAGE
1. 3.3V Single Voltage CPU: P54C, P54CT
Fig. 4a CPU Type - 3.3V
2. 3.5V Single Voltage CPU: P54C-VRE, AMD-K5, Cyrix 6x86
Fig. 4b CPU Type - 3.5V

Chapter 2
12

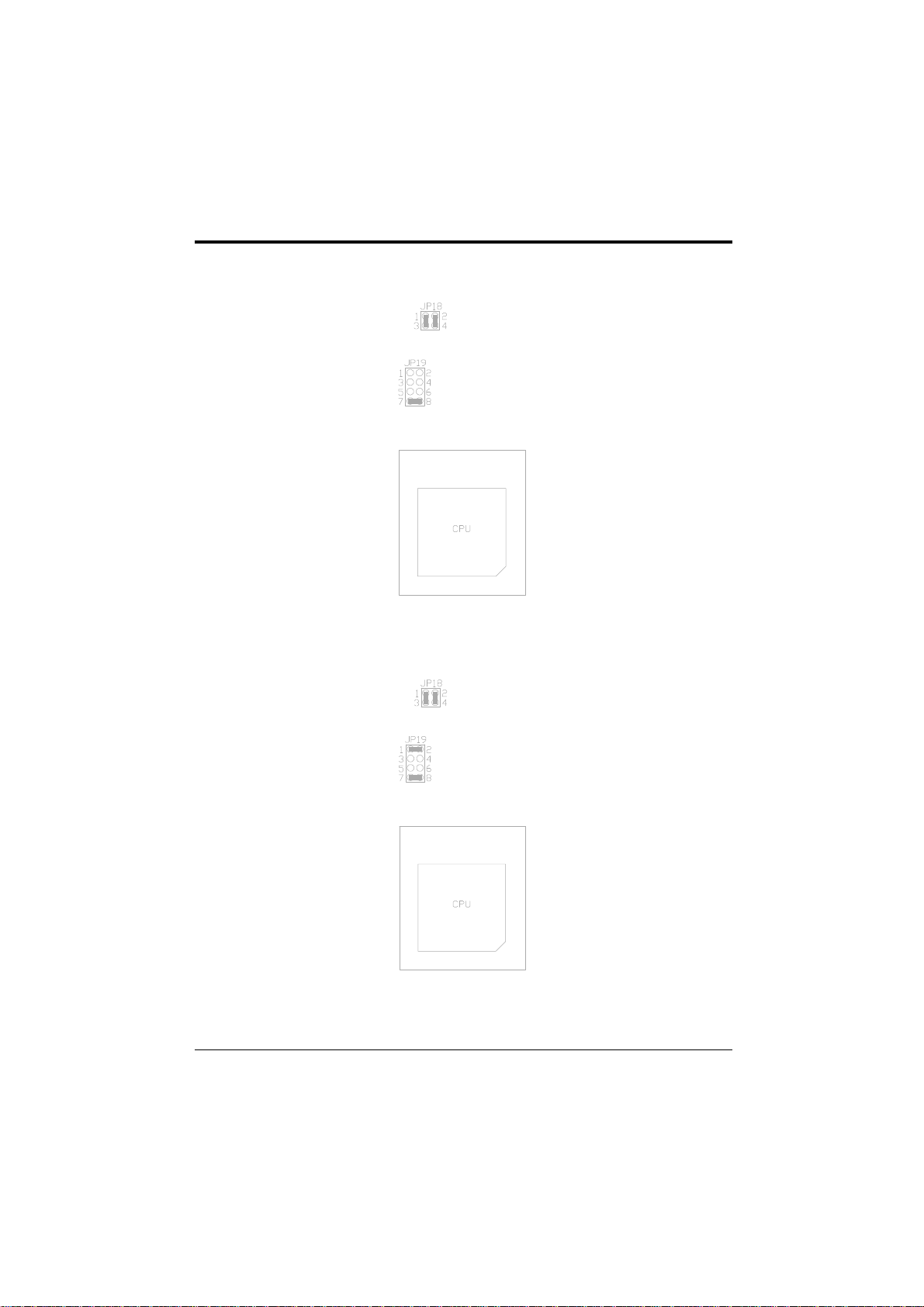

3. 3.3V (I/O)/2.8V (core) Dual Voltage CPU: P55C, Cyrix 6x86L
Fig. 4c CPU Type - 3.3V/2.8V
4. 3.3V (I/O)/2.9V (core) Dual Voltage CPU: AMD-K6/166 and 200, Cyrix 6x86MX
Fig. 4d CPU Type - 3.3V/2.9V

Jumper Settings
13

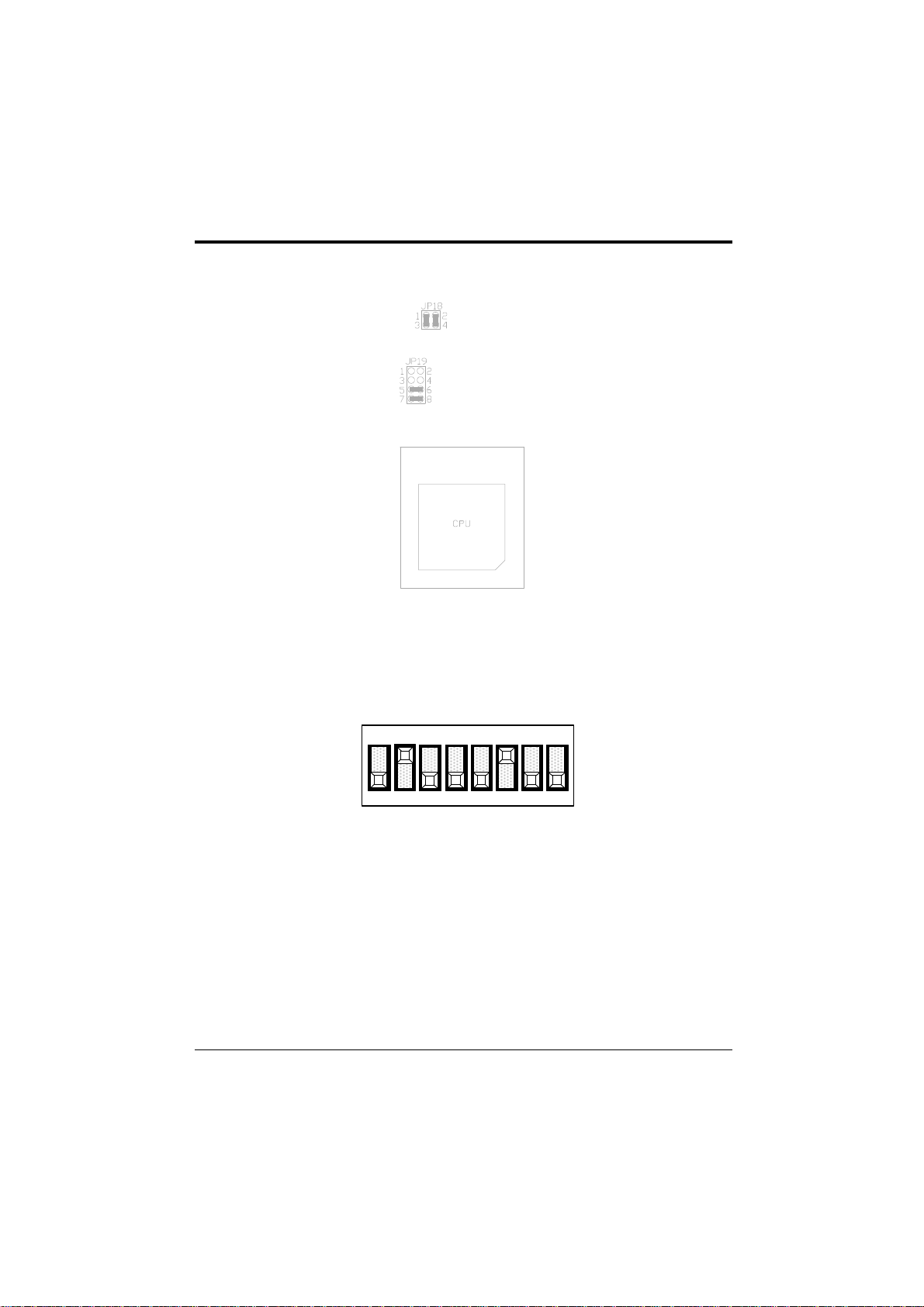

5. 3.3V (I/O)/3.2V (core) Dual Voltage CPU: AMD-K6/233
Fig. 4e CPU Type - 3.3V/3.2V
2.5 CPU SPEED (SW1)
1. For 90MHz Intel Pentium, AMD-K5-PR90 and AMD-K5-PR120 CPU
Fig 5a CPU Speed
ON
1 2 3 4 5 6 7 8

Chapter 2
14
2. For 100MHz and 233MHz Intel Pentium; AMD-K6/233, AMD-K5-PR100 and
AMD-K5-PR150 CPU
Fig. 5b CPU Speed
3. For 110MHz Cyrix 6x86-PR133+ CPU
Fig. 5c CPU Speed
4. For 120MHz Intel Pentium and Cyrix 6x86-PR150+ CPU
Fig. 5d CPU Speed
5. For 133MHz Intel Pentium, AMD-K5-PR133 (REV C) and Cyrix 6x86L-PR166+
CPU
Fig. 5e CPU Speed
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
