DTK PRM-0077I User manual

PRM-0077I
High Performance
Dual Pentium II
AGP/PCI Mainboard
Edition 1.00
1998 DTK Computer, Inc.
P/N: 155100-8548

I
WARNING
For the system to operate normally, please make sure J10 of the mainboard is set as below. Refer
to Fig. 3 in this manual for the location J10.
If J10 is shorted to 1-2, no CMOS data can be retained.
CAUTION
The motherboard is an electrostatic sensitive device. Don’t open or handle except at a static-
free workstation.
POWER OFF
It needs to hold the power switch 4 seconds to turn off the power.
Windows, MS-DOS, and MS Word are trademarks of Microsoft Corporation.
Novell, Netware are trademarks of Novell, Inc.
Lotus, 1-2-3, and Symphony are trademarks of Lotus Development Corporation.
PC, AT, PC-DOS, OS/2 and Presentation Manager are trademarks of IBM Corporation.
UNIX is the trademark of AT&T.
Intel i82440LX and Pentium II are registered trademark of Intel Corporation.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
The information presented in this publication has been carefully checked for reliability; however,
no responsibility is assumed for inaccuracies, whereas, specification is subjected to change
without notice.

II
CONTENTS
CHAPTER 1 INTRODUCTION 1
CHAPTER 2 JUMPER SETTINGS 5
2.1 JUMPERS PRESENTATION 5
2.2 GRAPHICAL DESCRIPTION OF JUMPER SETTINGS 6
2.3 CPU SPEED 7
2.4 J10 - CLEAR CMOS DATA 7
2.5 MEMORY CONFIGUARTION 8
CHAPTER 3 CONNECTOR CONFIGURATION 9
3.1 PS1 - ATX POWER SUPPLY CONNECTOR 10
3.2 U27, U28 - SLOT 1 FOR PENTIUM II CPU 10
3.3 FAN1, FAN2 - CPU FAN CONNECTOR 10
3.4 J1 - IrDA CONNECTOR 11
3.5 J2 - SCSI CONNECTOR 11
3.6 J3 - ULTRA WIDE SCSI CONNECTOR 11
3.7 J5 - HDD LED 11
3.8 J6 - KEYLOCK AND POWER LED 12
3.9 J7 - POWER ON/OFF SWITCH 12
3.10 J8 - SPEAKER 12
3.11 J9 - RESET 12
3.12 J12 - FLOPPY DRIVE CONTROLLER 13
3.13 JP5 - WAKE ON LAN CONNECTOR 13
3.14 JP11, JP12 - PRIMARY/SECONDARY IDE CONNECTORS 13
3.15 PS/2 KEYBOARD CONNECTOR 14
3.16 PS/2 MOUSE CONNECTOR 14
3.17 UNIVERSAL SERIAL BUS PORT 0 & 1 14
3.18 SERIAL PORT COM1 & COM2 14
3.19 PARALLEL PORT CONNECTOR 14
3.20 RETENTION MECHANISM KITS INSTALLATION GUIDE 15
CHAPTER 4 AWARD BIOS SETUP GUIDE 19
4.1 AWARD BIOS SETUP 19
4.2 STANDARD CMOS SETUP 21
4.3 BIOS FEATURES SETUP 22
4.4 CHIPSET FEATURES SETUP 24
4.5 POWER MANAGEMENT SETUP MENU 26
4.6 PCI CONFIGURATION 28
4.7 INTEGRATED PERIPHERALS SETUP MENU 30
4.8 LOAD SETUP DEFAULTS MENU 32
4.9 SUPERVISOR PASSWORD 32
4.10 USER PASSWORD 32
4.11 IDE HDD AUTO DETECTION 33
4.12 SAVE & EXIT SETUP MENU 33

III
4.13 EXIT WITHOUT SAVING MENU 33
CHAPTER 5 FLASH AND DMI UTILITY 35
5.1 AWARD FLASH UTILITY 35
5.2 DESKTOP MANAGEMENT INTERFACE (DMI) 37
OVERVIEW 37
APPENDIX A QUICK GUIDE 39

1
CHAPTER 1 INTRODUCTION
Preface
The motherboard is a 4 layer, ATX form factor high performance Dual Pentium II AGP/PCI
mainboard. It includes Intel i82440LX system chipset, Winbond W83977TF Super I/O
controller and Adaptec AIC-7880 SCSI controller.
Features
Processor
•Intel Dual Pentium II series.
•The mainboard can run with following speeds:
233, 266, 300 and 333MHz
Chipset
•Intel i82443LX (PCI A.G.P. Controller)
•Intel 82371AB (PCI ISA IDE Xcelerator)
•Winbond W83977TF (Super I/O Controller)
•Adaptec AIC-7880 (SCSI Controller)
Main Memory
•Memory configurations up to 512MB SDRAM or 1GB EDO.
•DIMM socket for SDRAM (3.3V unbuffered).
•Support both Synchronous DRAM and Extended Data Output (EDO) Mode DRAM
Modules.
•ECC Function ensure data correction and integrity.
Multi I/O
•On board Multi-I/O supports two serial, one parallel ports and floppy drive controller.
•Serial ports are 16550 Fast UART compatible.
•Parallel port has EPP and ECP capabilities.
•PS/2 keyboard and PS/2 mouse connector is provided.
•IrDA supported.
•USB supported.
Accelerated Graphics Port (AGP) Interface
•A.G.P. specification compliant
•A.G.P. 66/133MHz devices supported
PCI IDE
•On board supports PCI Master IDE Controller, two connectors support up to four IDE
devices such as HDD, CD ROM drive and Tape Back-up drives, etc.
•PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O data transfer rate can be
up to 16.6MB/s.
•Ultra DMA Mode supported. Transfer rate can be up to 33MB/s.

Chapter 1
2
PCI SCSI
•Support Double Speed SCSI operation up to 4Mbytes/sec.
•PCI Bus Master for data transfer.
•8 bit, 16 bit SCSI Bus support.
System BIOS
•Award/AMI BIOS (128KB Flash EPROM).
Slots
•One AGP slot
•Four PCI slots (1 shared)
•Three ISA slots(1 shared)
•One RAID port
Form Factor
•Full ATX Size (305mm x 244mm) 4 Layer

Introduction
3

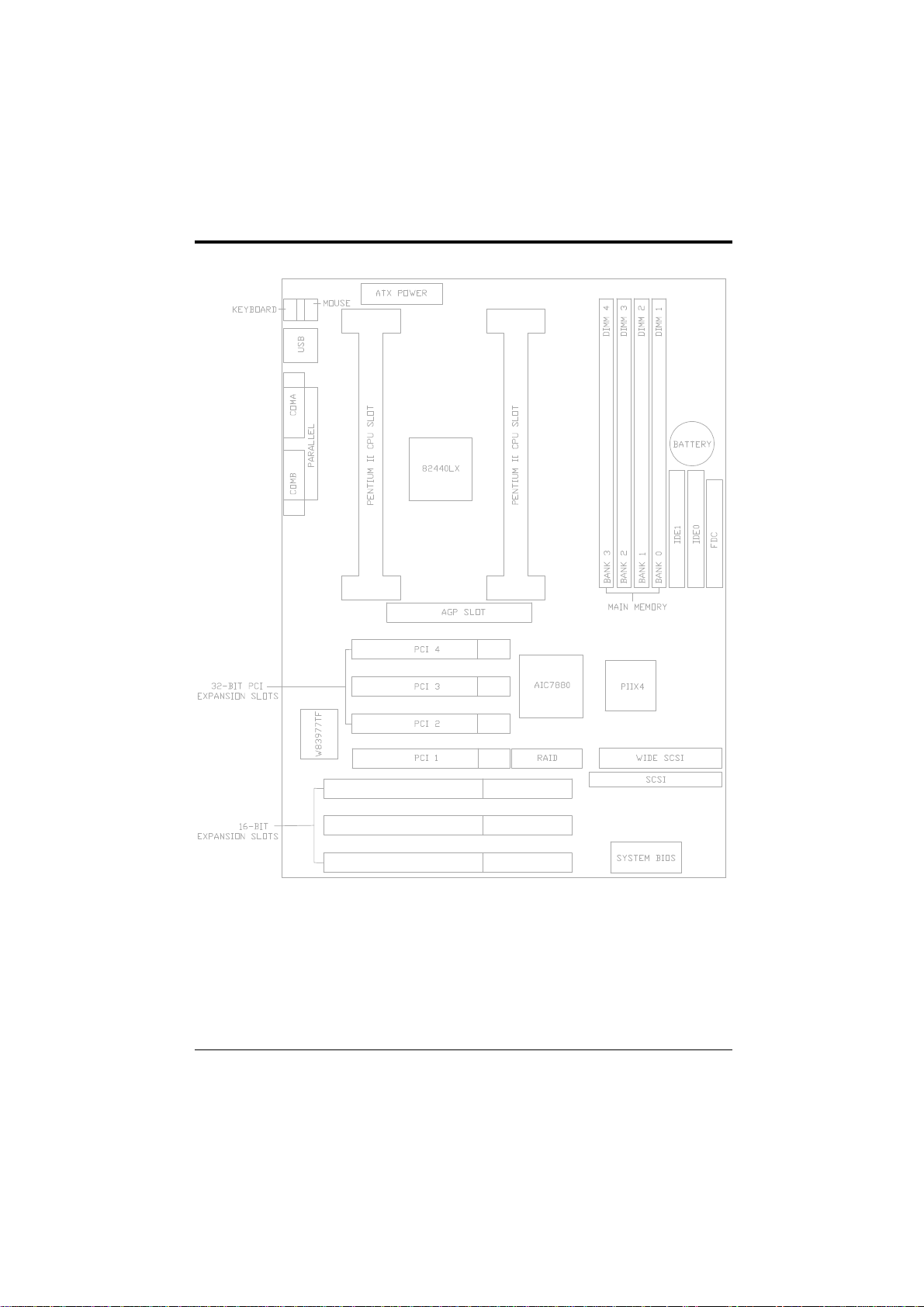

Fig. 1 Key Components of the Mainboard

Chapter 1
4

5
CHAPTER 2 JUMPER SETTINGS
2.1 JUMPERS PRESENTATION
Pins 1 and 2 are shorted with a jumper cap.
1 2 3
Pins 2 and 3 are shorted with a jumper cap.
1 2 3
The jumper is shorted when the jumper cap is placed
over the two pins of the jumper.
The jumper is open when the jumper cap is removed
from jumper.
Jumpers Convention
Different color of jumper caps (mini-jumpers) are used on the board to represent
different usage of the jumpers:
Red: CPU Clock setting
Black: Other

Chapter 2
6
2.2 GRAPHICAL DESCRIPTION OF JUMPER
SETTINGS
Fig. 2 Jumper Location of the mainboard

Jumper Settings
7
2.3 CPU SPEED
The table below summaries the CPU frequence and settings of each jumper of the
motherboard.
CPU Type Freq. Ratio Bus Freq. Rating Setting
Pentium II 233MHz 3.5x JP8: 1-2 open
3-4 open
5-6 close
Pentium II 266MHz 4.0x
66MHz
JP8: 1-2 close
3-4 close
5-6 open
Pentium II 300MHz 4.5x JP8: 1-2 open
3-4 close
5-6 open
Pentium II 333MHz 5.0x JP8: 1-2 close
3-4 open
5-6 open
Table 1: Jumper Setting

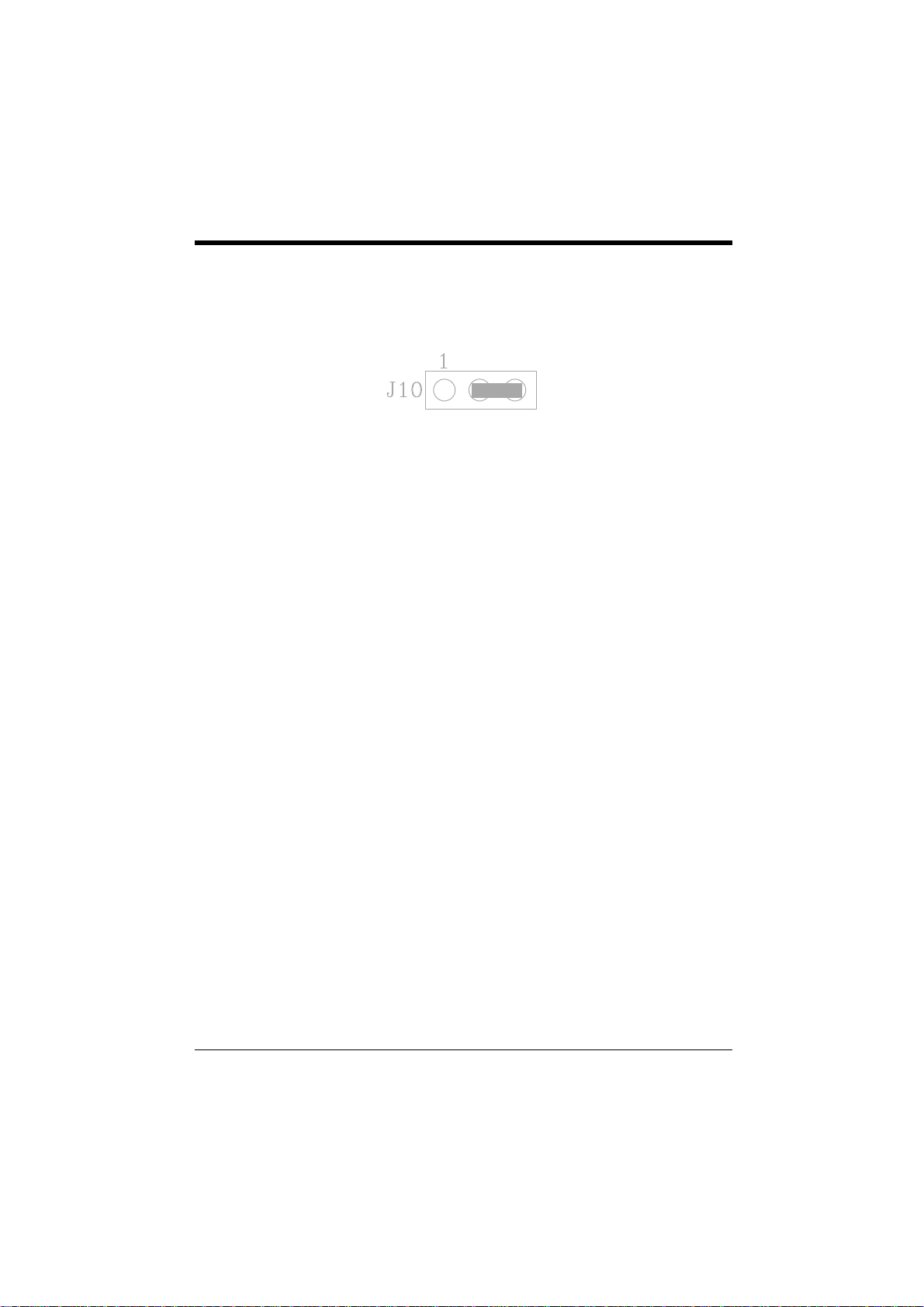

2.4 J10 - CLEAR CMOS DATA
J10 is used to clear the content of the CMOS Data in the RTC (build in PIIX4 chip).
Table 2: Clear CMOS Data

Chapter 2
8
2.5 MEMORY CONFIGUARTION
The mainboard lets user upgrade system memory via DIMM sockets on the
mainboard. On board memory is located in eight banks: Bank 0 - 7. Four DIMM
sockets are provided for EDO DRAM or Synchronous DRAM. Table 4 provide the
typical memory configurations supported by the mainboard.
Bank 0/1 (DIMM1) Bank 2/3 (DIMM2) Bank 4/5 (DIMM3) Bank 6/7 (DIMM4)
Installed None None None
None Installed None None
None None Installed None
None None None Installed
Installed Installed None None
Installed None Installed None
Installed None None Installed
None Installed Installed None
None Installed None Installed
None None Installed Installed
Installed Installed Installed None
Installed Installed None Installed
Installed None Installed Installed
None Installed Installed Installed
Installed Installed Installed Installed
Table 3
The maximum memory size is up to 512MB (SDRAM) or 1GB (EDO). The size of
each DIMM can be 8MB, 16MB, 32MB, 64MB or 128MB.

9
CHAPTER 3 CONNECTOR
CONFIGURATION
Once the mainboard has been fastened into system case, the next step is to connect the internal
cables. The internal cables are wire leads with plastic female connectors that attach to the
connectors. The mainboard connectors have varying numbers of pins and are the points of
contact between the mainboard and other parts of the computer.
Fig 3 Connector Location

Chapter 3
10

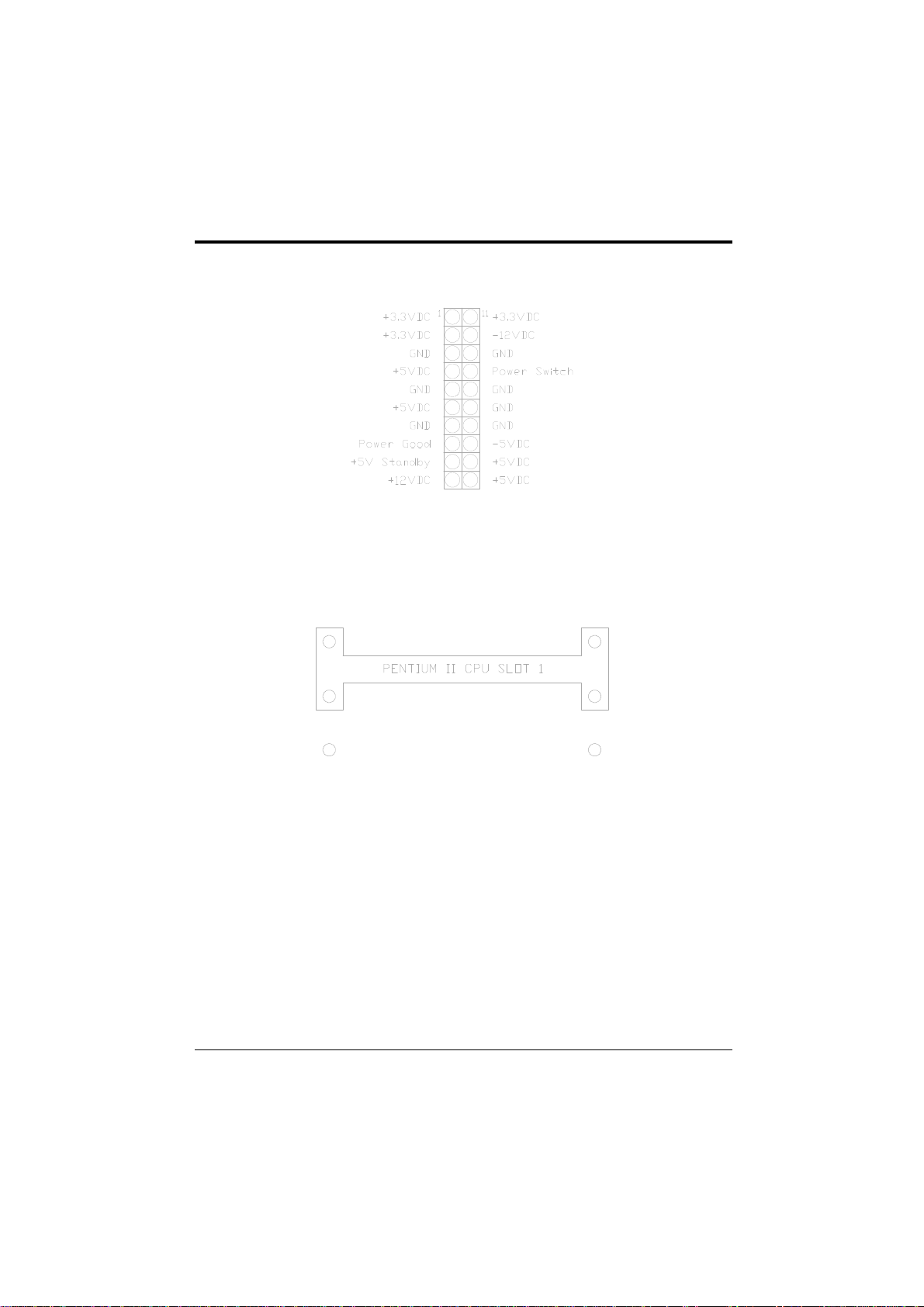

3.1 PS1 - ATX POWER SUPPLY CONNECTOR
Fig. 4 ATX Power Supply Connector
3.2 U27, U28 - SLOT 1 FOR PENTIUM II CPU
U27 and U28 are the slots for Pentium II CPU.
Fig. 5 Slot 1 for Pentium CPU
3.3 FAN1, FAN2 - CPU FAN CONNECTOR
FAN1 & FAN2 are three pin connectors, which are used to connect with the CPU
Fan Power cable.

Connector Configuration
11

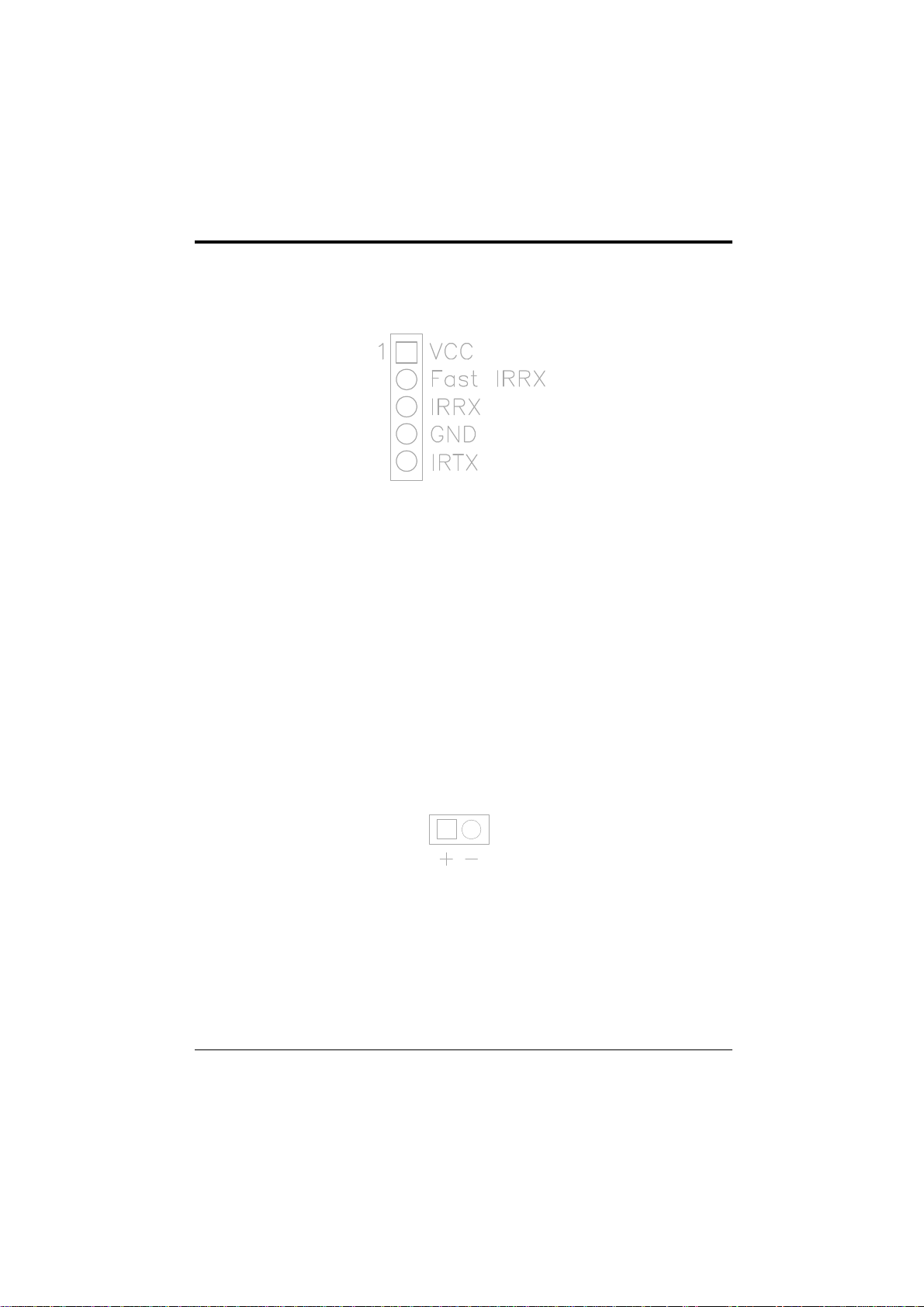

3.4 J1 - IrDA CONNECTOR
J1 is a IrDA connector that use UART2 as interface of IrDA Infrared and HP SIR.
Fig. 6 IrDA Connector
3.5 J2 - SCSI CONNECTOR
J2 is a 50 pin connector for a SCSI device.
3.6 J3 - ULTRA WIDE SCSI CONNECTOR
J3 is a high density 68 pin connector for a wide SCSI device.
3.7 J5 - HDD LED
J5 is usually connected to a HDD LED on front of the system case. If the HDD is in
operation, the indicator lights during operation.
Fig. 7 HDD LED

Chapter 3
12
3.8 J6 - KEYLOCK AND POWER LED
Fig. 8 Power LED
3.9 J7 - POWER ON/OFF SWITCH
It is used to switch on or off the ATX power supply. The power is turned on by
short the power switch once. It needs to hold the power switch about 4 seconds to
turn it off when it has not start to display.
3.10 J8 - SPEAKER
J8 is a four pins connector, which is used to connect the system speaker.
Fig. 9 Speaker
3.11 J9 - RESET
Attach the Reset switch cable to this connector. The Reset switch restarts the
system.

Connector Configuration
13
3.12 J12 - FLOPPY DRIVE CONTROLLER
This connector supports the floppy drive ribbon cable. After connecting the single
end to the board, connect the two plugs on the other end to the floppy drive.

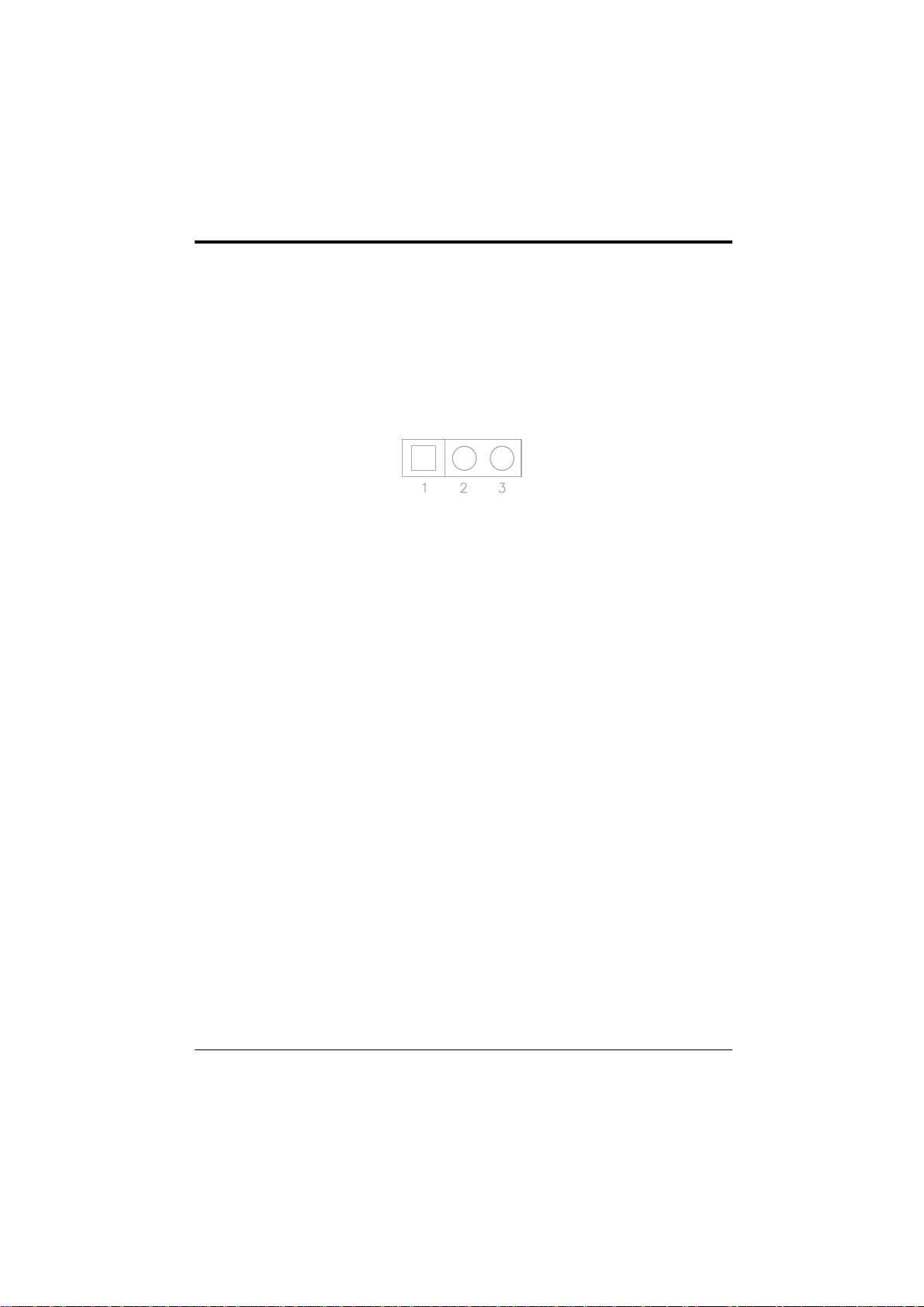

3.13 JP5 - WAKE ON LAN CONNECTOR
JP5 is a 3-pin connector as interface of LAN card for wake up on LAN purpose.
Fig. 10 Wake On LAN Connector
3.14 JP11, JP12 - PRIMARY/SECONDARY IDE
CONNECTORS
These connectors support the provided IDE hard disk ribbon cable. After
connecting the single end to the board, connect the two plugs on the other end to
your hard disk or other device.

Chapter 3
14
Fig. 11 I/O Connector
3.15 PS/2 KEYBOARD CONNECTOR
This connector is a six-pin female mini DIN connector using a PS/2 plug. If a
standard AT size keyboard plugs, you may use the DIN to mini DIN adaptor.
3.16 PS/2 MOUSE CONNECTOR
This connector is a six-pin female mini DIN connector using a PS/2 plug. Plug the
jack on the PS/2 keyboard cable into this connector.
3.17 UNIVERSAL SERIAL BUS PORT 0 & 1
These connectors are two four pin female sockets which are available for connecting
USB device.
3.18 SERIAL PORT COM1 & COM2
This is a D-Type 9 pin male connector for pointing devices or other serial devices.
3.19 PARALLEL PORT CONNECTOR
This is a D-Type 25 pin female connector.
