DTK PRM-0084I ZX User manual

PRM-0084I ZX
High Performance
Pentium II PCI Mainboard
User’s Guide
Edition 1.10
©1999 DTK Computer, Inc.

2
WARNING
For the system to operate normally, please make sure JCC of the mainboard is set as below. Refer
to Fig. 2 in this manual for the location JCC.
If JCC is shorted to 1-2, no CMOS data can be retained.
CAUTION
The motherboard is an electrostatic sensitive device. Don’t open or handle except at a static-
free workstation.
POWER OFF
It needs to hold the power switch 4 seconds to turn off the power.
Windows, MS-DOS, and MS Word are trademarks of Microsoft Corporation.
Novell, Netware are trademarks of Novell, Inc.
Lotus, 1-2-3, and Symphony are trademarks of Lotus Development Corporation.
PC, AT, PC-DOS, OS/2 and Presentation Manager are trademarks of IBM Corporation.
UNIX is the trademark of AT&T.
Intel i82440ZX and Pentium II are registered trademark of Intel Corporation.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
The information presented in this publication has been carefully checked for reliability; however,
no responsibility is assumed for inaccuracies, whereas, specification is subjected to change
without notice.
1 2 3
JCC

3
JUMPERLESS QUICK SETUP PROCEDURES
1. Insert the Pentium® II CPU correctly.
2. Plug in other configurations and restore the system.
3. Press <Del> key and switch on power to the system to enter BIOS setup.
4. Enter “CPU Speed Setting” Menu to setup CPU speed.
Note: If you don not set CPU speed; your system will run at the lowest setting
(133MHz for Pentium® II)
5. Save and exit BIOS setup, your system can now boot successfully.
JUMPERLESS CPU SETUP MENU
Select <CPU Speed Setting> item from the main menu and enter the sub-menu:
ROM PCI/ISA BIOS (2A69KG3G)
CPU FEATURES SETUP
AWARD SOFTWARE, INC.
CPU Speed : 350MHz (100x3.5)
ESC: Quit ↑ ↓ → ←: Select Item
F1: Help PU/PD/+/-: Modify
F5: Old Values (Shift)F2: Color
F7: Load Setup Defaults
WARNING
Don’t set CPU frequency higher than its working frequency. If you do, we will not be
responsible for any damage caused.

4
CONTENTS
CHAPTER 1 INTRODUCTION 6
CHAPTER 2 JUMPER SETTINGS 9
2.1 JUMPERS PRESENTATION 9
2.2 GRAPHICAL DESCRIPTION OF JUMPER SETTINGS 10
2.3 JCC - CLEAR CMOS DATA 11
2.4 JP2 – CPU SPEED PROTECTION 11
2.5 JP3 – ONBOARD AUDIO SELECT 12
2.6 JP4 – CPU SPEED DETECTION 12
2.7 MEMORY CONFIGUARTION 12
CHAPTER 3 CONNECTOR CONFIGURATION 13
3.1 MULTIPLE FUNCTION JUMPER 14
3.2 IRDA - IrDA CONNECTOR 17
3.3 IDE1/IDE2 – PRIMARY/SECONDARY IDE CONNECTORS 17
3.4 FLOPPY - FLOPPY DRIVE CONTROLLER 17
3.5 CPUFAN – CPU FAN CONNECTOR 17
3.6 BAKFAN – BAKE FAN CONNECTOR 17
3.7 CHSFAN – CHASIS FAN CONNECTOR 18
3.8 WOL – WAKE UP ON LAN 18
3.9 WOM – WAKE UP ON MODEM 18
3.10 SLOT 1 FOR PENTIUM II CPU 18
3.11 SJ4 – CD-ROM AUDIO CONNECTOR (MITSUMI/PANASONIC) 19
3.12 SJ6 – CD-ROM AUDIO CONNECTOR (SONY) 19
3.13 J1 - ATX POWER SUPPLY CONNECTOR 19
3.14 PS/2 KEYBOARD CONNECTOR 20
3.15 PS/2 MOUSE CONNECTOR 20
3.16 UNIVERSAL SERIAL BUS PORT 0 & 1 20
3.17 SERIAL PORT COM1 & COM2 20
3.18 PARALLEL PORT CONNECTOR20
3.19 AUDIO PORT CONNECTOR 21
3.20 RETENTION MECHANISM KITS INSTALLATION GUIDE 21
3.21 OPTIONAL HEATSINK SUPPORT INSTALLATION GUIDE 24
CHAPTER 4 AWARD BIOS SETUP GUIDE 26
4.1 AWARD BIOS SETUP 26
4.2 STANDARD CMOS SETUP 28
4.3 BIOS FEATURES SETUP 29
4.4 CHIPSET FEATURES SETUP 31
4.5 POWER MANAGEMENT SETUP MENU 33
4.6 PNP/PCI CONFIGURATION 35
4.7 INTEGRATED PERIPHERALS SETUP MENU 37
4.8 LOAD SETUP DEFAULTS MENU 39
4.9 SUPERVISOR PASSWORD 39

5
4.10 USER PASSWORD 39
4.11 IDE HDD AUTO DETECTION 40
4.12 SCSI HARD DISK INSTALLATION 40
4.13 SAVE & EXIT SETUP MENU 40
4.14 EXIT WITHOUT SAVING MENU 40
CHAPTER 5 SOFTWARE INSTALLATION 41
5.1 SOUND DRIVER INSTALLATION 41
5.2 THE YSTATION APPLICATION FOR WINDOWS 95/WINDOWS 98 42
CHAPTER 6 FLASH AND DMI UTILITY 43
6.1 AWARD FLASH UTILITY 43
6.2 DESKTOP MANAGEMENT INTERFACE (DMI) OVERVIEW 45
APPENDIX A QUICK GUIDE 49

6
CHAPTER 1 INTRODUCTION
Preface
The motherboard is a 4 layer, Micro ATX form factor high performance green Pentium II
PCI/AGP mainboard with 100MHz Front Side Bus supports. It includes Intel i82440ZX
system chipset, Winbond W83977EF Super I/O controller, Yamaha YMF740 Sound Chip.
Features
Processor
•Intel Pentium II/III series.
•The mainboard can run with following speeds:
233, 266, 300, 333, 350, 400, 450 and 500MHz
Chipset
•Intel i82443ZX (PCI A.G.P. Controller)
•Intel 82371EB (PCI ISA IDE Xcelerator)
•Winbond W83977EF (Super I/O Controller)
•Winbond W83781D (optional)
•Yamaha YMF740 (Audio Drive Sound Controller)
Main Memory
•2 DIMM socket constitute 4 memory banks.
•DIMM Type – 16/64/128MB 168-pin 3.3V unbuffered SDRAM with SMBus connections
for memory detection.
•ECC Functions ensure data correction and integrity (SDRAM only).
•Memory Configurations up to 256MB.
•100MHz SDRAM support.
Architecture
•ISA, IBM PC/AT and PCI 2.1 compatible.
Power Management Feature
•True green functions support SMM, SMI and CPU stop clock.
•ACPI/PC 97 compatible.
•H/W monitoring: CPU Voltage, System Temp., Fan Speed (option)
•LAN, Modem & keyboard wake up function.

Introduction
7
Multi I/O
•On board Multi-I/O supports two serial, one parallel ports and floppy drive controller.
•Serial ports are 16550 Fast UART compatible.
•Parallel port has EPP and ECP capabilities.
•PS/2 keyboard and PS/2 mouse connector is provided.
•IrDA supported.
•USB supported.
Accelerated Graphics Port (AGP) Interface
•A.G.P. specification compliant
•A.G.P. 66/133MHz devices supported
PCI IDE
•On board supports PCI Master IDE Controller, two connectors support up to four IDE
devices such as HDD, CD ROM drive and Tape Back-up drives, etc.
•PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O data transfer rate can be
up to 16.6MB/s.
•Ultra DMA Mode supported. Transfer rate can be up to 33MB/s.
Sound Controller (Optional)
•PCI 2.1 complaint.
•PC97/PC98 specification compliant.
•PCI Bus Power Management Rev. 1.0 compliant.
•PCI Bus Master for PCI Audio.
•Supports PC/PCI for legacy DMAC emulation.
•Legacy Audio compatibility.
•Support AC-2 Interface (AC-Link).
Others
•Jumperless function.
•H/W Reset protection.
System BIOS
•Award BIOS (256KB Flash ROM)
Slots
•One AGP slot
•Three PCI slots (1 shared)
•One ISA slots (1 shared)
Form Factor
•Micro ATX Form Factor Size (244mm x 188mm) 4 Layer

Chapter 1
8
Fig. 1 Key Components of the Mainboard

9
CHAPTER 2 JUMPER SETTINGS
2.1 JUMPERS PRESENTATION
Pins 1 and 2 are shorted with a jumper cap.
1 2 3
Pins 2 and 3 are shorted with a jumper cap.
1 2 3
The jumper is shorted when the jumper cap is placed
over the two pins of the jumper.
The jumper is open when the jumper cap is removed
from jumper.

Chapter 2
10
2.2 GRAPHICAL DESCRIPTION OF JUMPER
SETTINGS

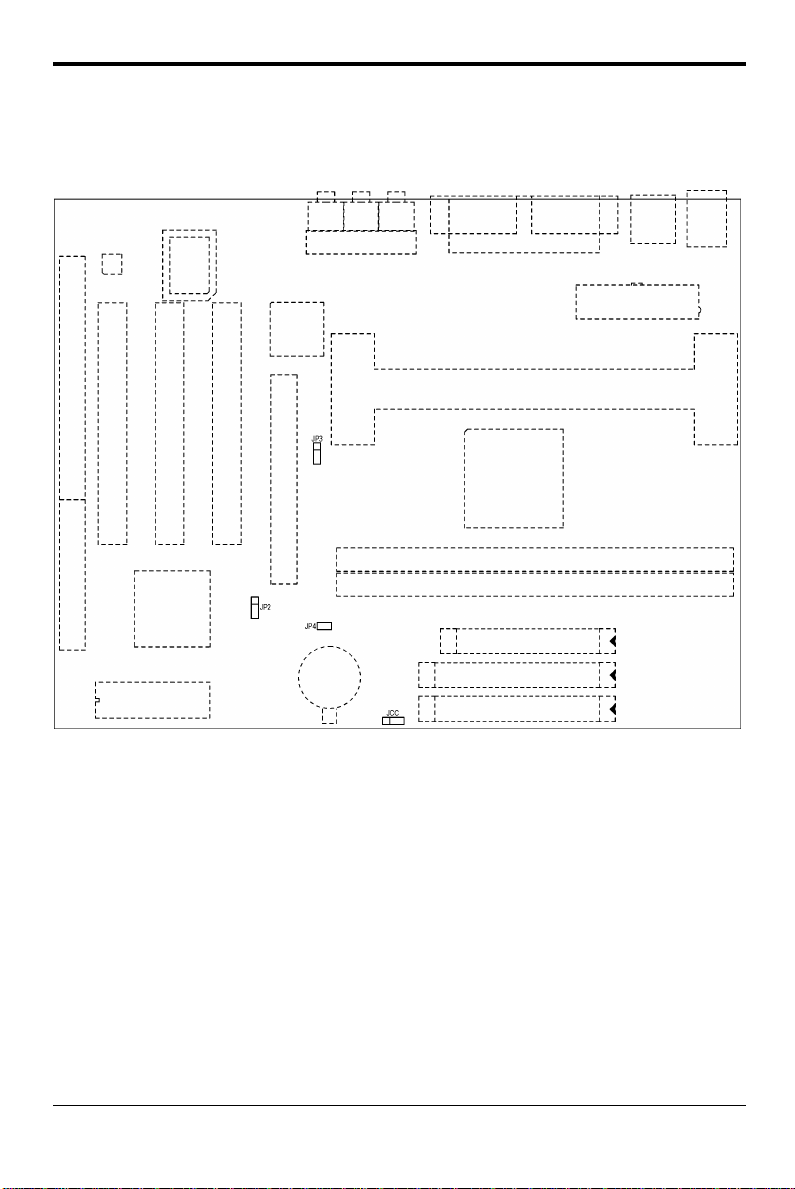

Fig. 2 Jumper Location of the mainboard

Jumper Settings
11

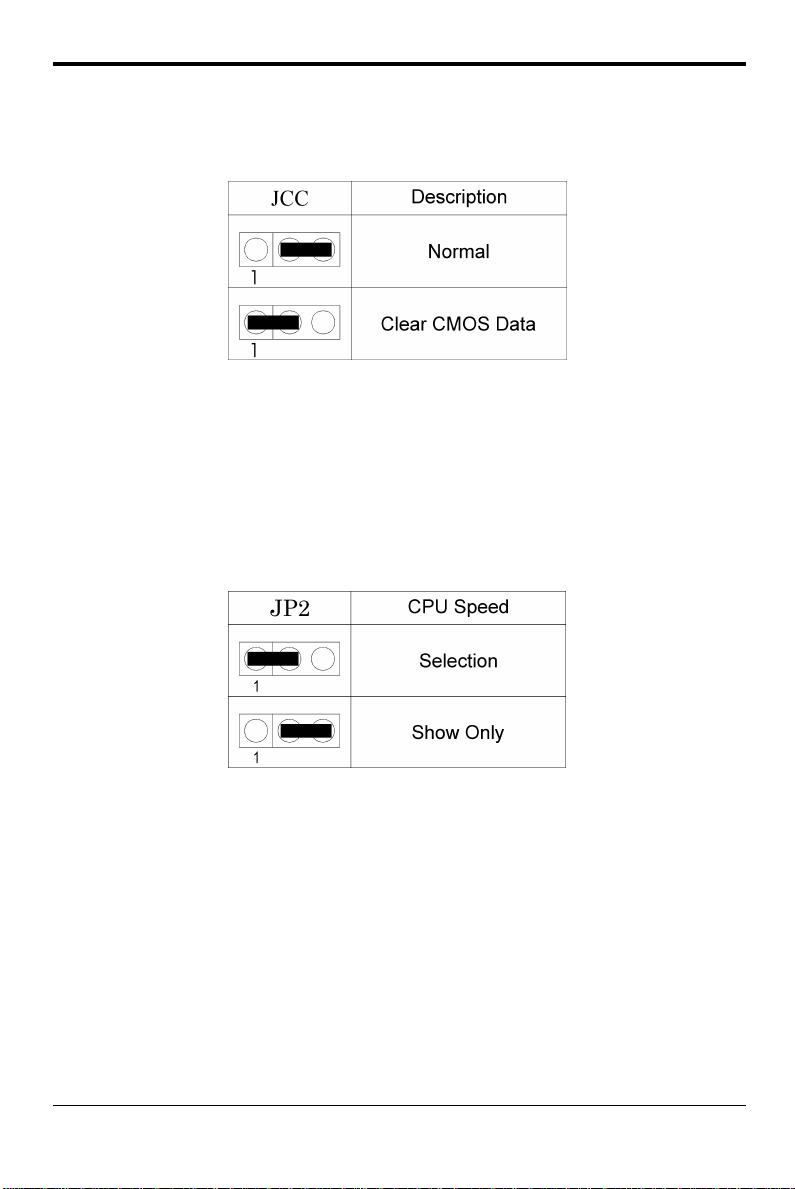

2.3 JCC - CLEAR CMOS DATA
JCC is used to clear the content of the CMOS Data in the RTC (build in PIIX4 chip).
Table 1: Clear CMOS Data
Note: You must power down the AC supply (111/220V) when you want to clear
CMOS.
2.4 JP2 – CPU SPEED PROTECTION
This jumper sets CPU speed can change or not.
Table 2

Chapter 2
12
2.5 JP3 – ONBOARD AUDIO SELECT
Table 3
2.6 JP4 – CPU SPEED DETECTION
Table 4
2.7 MEMORY CONFIGUARTION
The mainboard lets user upgrade system memory via DIMM sockets on the
mainboard. On board memory is located in four banks: Bank 0 - 3. Two DIMM
sockets are provided for Synchronous DRAM. Table 5 provides the typical memory
configurations supported by the mainboard.
The maximum memory size is up to 256MB (SDRAM). The size of each DIMM can
be 8MB, 16MB, 32MB, 64MB or 128MB.
Bank 0/1 (DIMM2) Bank 2/3 (DIMM1)
Installed None
None Installed
Installed Installed
Table 5

13
CHAPTER 3 CONNECTOR
CONFIGURATION
Once the mainboard has been fastened into system case, the next step is to connect the internal
cables. The internal cables are wire leads with plastic female connectors that attach to the
connectors. The mainboard connectors have varying numbers of pins and are the points of
contact between the mainboard and other parts of the computer.

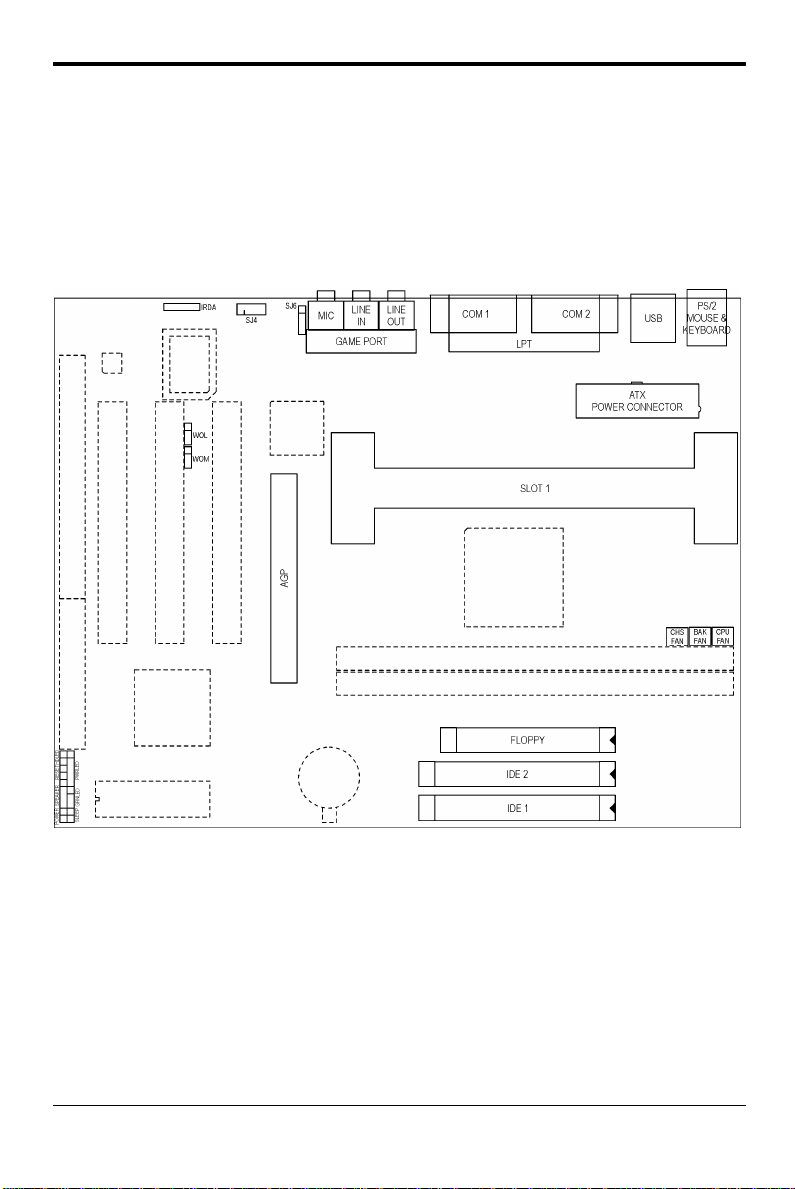

Fig 3 Connector Location

Chapter 3
14
3.1 MULTIPLE FUNCTION JUMPER
Multiple function jumper includes speaker, reset, keylock, harddisk LED, ATX
power switch, green LED and sleep switch.
Fig. 4a Multiple Function Jumper
•RESET – RESET SWITCH CONNECTOR
Attach the Reset switch cable to this connector. The Reset switch restarts the
system.
•POWER – POWER ON/OFF SWITCH
It is used to switch on or off the ATX power supply. The power is turned on by
short the power switch once. It needs to hold the power switch about 4 seconds
to turn it off when it has not start to display.
•SLEEP – HARDWARE GREEN CONNECTOR
Sleep is for SMI Break switch setting. When Sleep is trigger from Open to
Close and back to Open, the system would suspend immediately.

Connector Configuration
15
•HDLED – HDD LED CONNECTOR
It is usually connected to a HDD LED on front of the system case. If the HDD
is in operation, the indicator lights during operation.
Fig. 4b HDD LED Connector
•SPEAKER – SPEAKER CONNECTOR
Speaker is a four-pin connector, which is used to connect the system speaker.
Fig. 4c Speaker Connector

Chapter 3
16

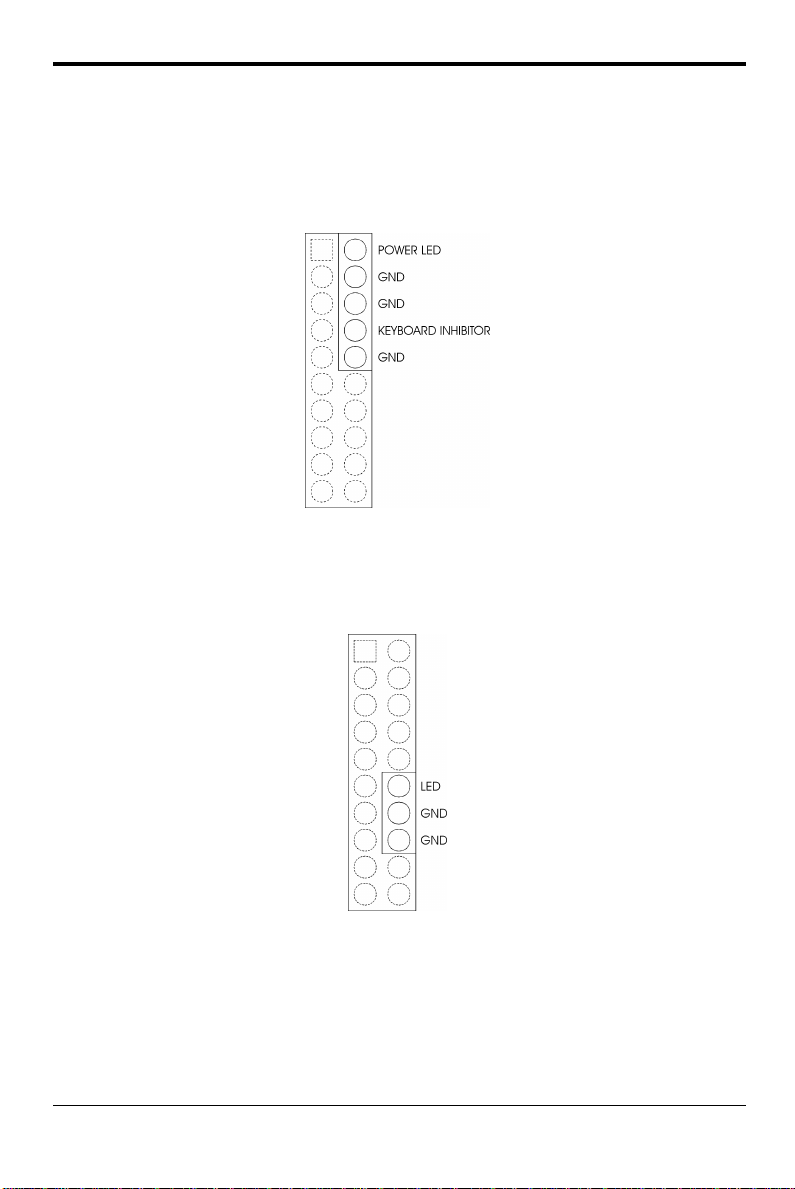

•PWRLED – POWER LED AND KEYLOCK
CONNECTOR
Attach the power led cable to this connector. If the system is power on, the
indicator lights.
Fig. 4d Power LED & Keylock Connector
•GRNLED – GREEN LED CONNECTOR
Fig. 4e Green LED Connector

Connector Configuration
17
3.2 IRDA - IrDA CONNECTOR
It is an IrDA connector that uses UART2 as interface of IrDA Infrared and ASKIR.
Fig. 5 IrDA Connector
3.3 IDE1/IDE2 – PRIMARY/SECONDARY IDE
CONNECTORS
These connectors support the provided IDE hard disk ribbon cable. After
connecting the single end to the board, connect the two plugs on the other end to
your hard disk or other device.
3.4 FLOPPY - FLOPPY DRIVE CONTROLLER
This connector supports the floppy drive ribbon cable. After connecting the single
end to the board, connect the two plugs on the other end to the floppy drive.
3.5 CPUFAN – CPU FAN CONNECTOR
It is a three-pin connector, which is used to connect with the CPU Fan Power cable.
3.6 BAKFAN – BAKE FAN CONNECTOR
It is a three-pin connector, which is used to connect with the Bake Fan Power cable.

Chapter 3
18
3.7 CHSFAN – CHASIS FAN CONNECTOR
It is a three-pin connector, which is used to connect with the Chassis Fan Power
cable.

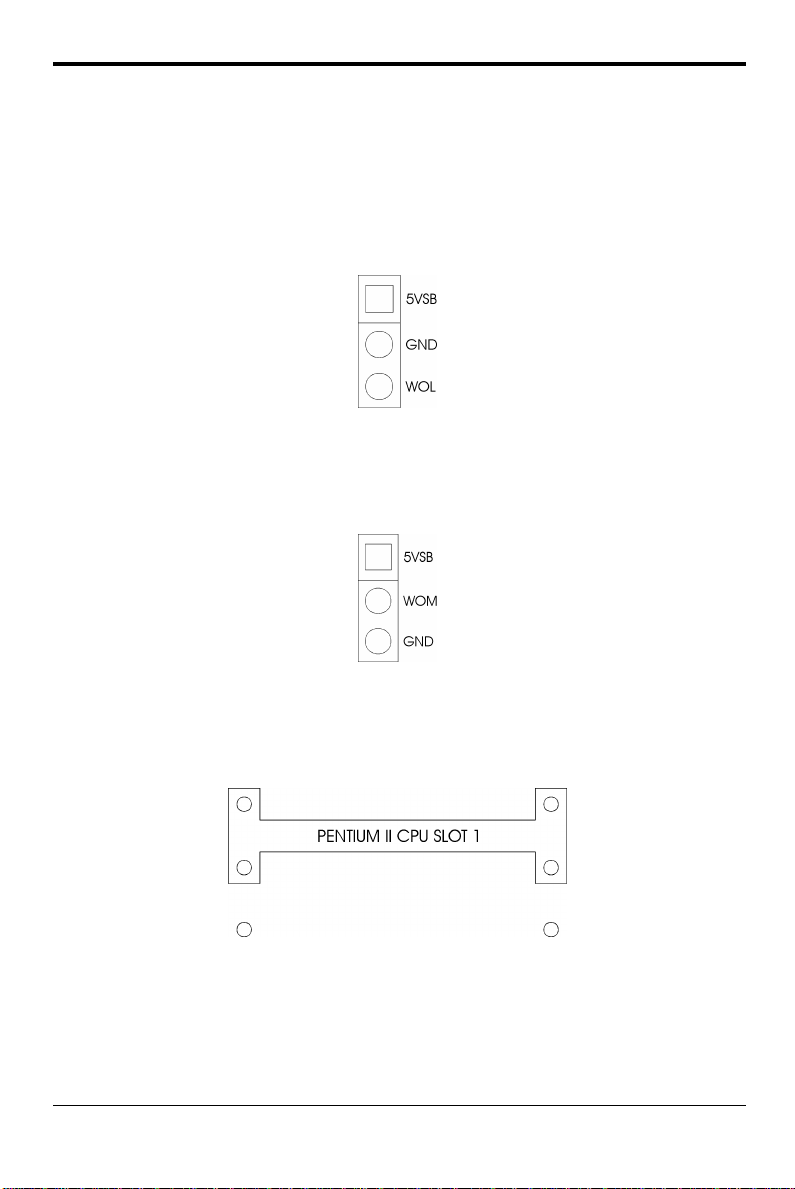

3.8 WOL – WAKE UP ON LAN
Fig. 6 Wake up On LAN
3.9 WOM – WAKE UP ON MODEM
Fig. 7 Wake up On Modem
3.10 SLOT 1 FOR PENTIUM II CPU
Fig. 8 Slot 1 for Pentium II CPU

Connector Configuration
19
3.11 SJ4 – CD-ROM AUDIO CONNECTOR
(MITSUMI/PANASONIC)
Fig. 9 CD-ROM Audio
3.12 SJ6 – CD-ROM AUDIO CONNECTOR (SONY)
Fig. 10 CD-ROM Audio
3.13 J1 - ATX POWER SUPPLY CONNECTOR
Fig. 11 ATX Power Supply Connector

Chapter 3
20
Fig. 12 I/O Connector
3.14 PS/2 KEYBOARD CONNECTOR
This connector is a six-pin female mini DIN connector using a PS/2 plug. If a
standard AT size keyboard plugs, you may use the DIN to mini DIN adaptor.
3.15 PS/2 MOUSE CONNECTOR
This connector is a six-pin female mini DIN connector using a PS/2 plug. Plug the
jack on the PS/2 keyboard cable into this connector.
3.16 UNIVERSAL SERIAL BUS PORT 0 & 1
These connectors are two four pin female sockets which are available for connecting
USB device.
3.17 SERIAL PORT COM1 & COM2
This is a D-Type 9 pin male connector for pointing devices or other serial devices.
3.18 PARALLEL PORT CONNECTOR
This is a D-Type 25 pin female connector.
